Choosing the right structure begins with the ground, not the solar panel. How to choose solar mounting systems for different terrains requires careful attention to soil, slope, weather, access, and local construction conditions. A flat agricultural field may suit driven piles, while rocky ground could demand ground screws, ballasted frames, or engineered concrete foundations. Each option has trade-offs.
Dr. Jan Kleissl, a solar-energy researcher at the University of California, San Diego, offers a useful principle: “Solar performance depends on the details of the site.” That idea matters during every site visit. A hillside may look stable after a dry week, yet loose soil can shift during heavy rain. Sandy ground may install quickly, but strong winds can increase uplift forces. Snowy regions need stronger frames, steeper tilt angles, and clear snow-shedding paths. Coastal projects also require careful corrosion protection.
This guide explains how engineers compare mounting systems across difficult landscapes. It examines pile refusal, ground-screw torque, ballast loading, drainage, wind exposure, and maintenance access. It also considers transport routes, drilling equipment, and foundation testing before equipment arrives.
Small details matter.
A promising design can still hide a weak assumption. I have seen neat layouts become expensive after unexpected rock, poor drainage, or limited machinery access appears. That is why reliable selection combines geotechnical evidence, structural calculations, manufacturer data, and practical installation experience. The best system is rarely the cheapest option on paper. It is the system that remains stable, serviceable, and productive when the terrain behaves differently than expected.
Choosing a solar mounting system in China starts with the ground, not the catalogue. Terrain changes loading, installation time, drainage, and maintenance access. On flat farmland, fixed-tilt steel structures need careful pile-depth checks. Soft soil may require longer piles, ground improvement, or concrete foundations. Ask for geotechnical reports, pull-out tests, and verified material certificates. Documents matter.
On sloped or rocky land, adjustable foundations can reduce earthwork, but they may increase structural complexity. Irregular slopes also create shading and row-spacing problems. A small trial section can reveal drilling limits, alignment errors, and unexpected costs. Mountain projects need stronger wind and seismic assessments. Snow regions require designs based on local snow loads, not average weather data.
Coastal sites demand stronger corrosion protection, especially around exposed fasteners and cut edges. Desert terrain needs attention to sand movement, dust buildup, and difficult maintenance roads. Wet ground needs drainage channels that do not undermine foundations. A flat site is not always easy. That assumption can fail. Engineers should verify wind, snow, seismic, soil, and drainage conditions before production. Supplier drawings are useful, but they are not final engineering. Installation records, inspection photos, and material traceability make the project more reliable. Small omissions still happen, so the design deserves a second review.
Choosing a solar mounting system begins below the panels. Soil conditions determine pile depth, pull-out resistance, and corrosion risk. Test bearing capacity, groundwater, rock layers, and drainage before selecting foundations. Soft clay may need deeper piles or driven alternatives. Rocky ground often requires predrilling or concrete footings. A small mistake here becomes expensive steelwork later. Soil reports are useful, but they can miss local variation.
Slope changes row spacing, post length, and installation access. On steep land, stepped layouts can reduce earthwork, but uneven torque may increase structural stress. Wind assessment should consider terrain exposure, nearby buildings, and panel edge zones. Open ridges need stronger design attention than sheltered fields. Snow load is not uniform; drifting near fences or elevation changes can create heavy pockets. Check regional climate data and applicable structural requirements with a qualified engineer. Corrosive soil, salt spray, flooding, and seasonal frost also affect material selection. Ignore one condition, and the design may look sound but age poorly.
Tips: Walk the site after rain. Mark wet ground, erosion channels, and access bottlenecks. Compare survey results with trial installation data. Keep adjustable components where slopes vary unexpectedly. Do not rely on a single wind or snow value. Recheck assumptions during detailed design. The first layout is rarely perfect, and that is acceptable when changes are documented and tested.
Choosing suitable China solar mounting structures starts with the terrain, not the panel layout. A flat, stable roof may accept a ballasted system, but weak slabs require structural review and lighter solutions. Concrete foundations suit firm soil, while driven piles can reduce installation time on open land. Rocky ground needs pre-drilling or adjustable ground screws.
Slope changes the design significantly. On gentle slopes, fixed-tilt structures can follow natural contours and limit excavation. Steeper sites may need stepped rows, stronger bracing, and careful drainage planning. Uneven terrain demands adjustable posts. Small height differences can create large alignment errors. Measure twice.
Coastal locations require stronger corrosion protection, sealed fasteners, and regular inspection plans. High-wind regions need verified pull-out resistance and reinforced connections. Snowy areas require accurate snow-load calculations, especially where drifting occurs near walls or raised edges. In seismic zones, engineers should review both foundation movement and frame flexibility. Local geological surveys and applicable building codes should guide every decision.
Field inspections often show that the cheapest structure is not the lowest-cost choice. Difficult access, repeated leveling, or unexpected rock can increase labor sharply. A practical design should include soil testing, drainage checks, transport limits, and maintenance access. Some early layouts look efficient but fail after these details are considered. That is where careful engineering matters.

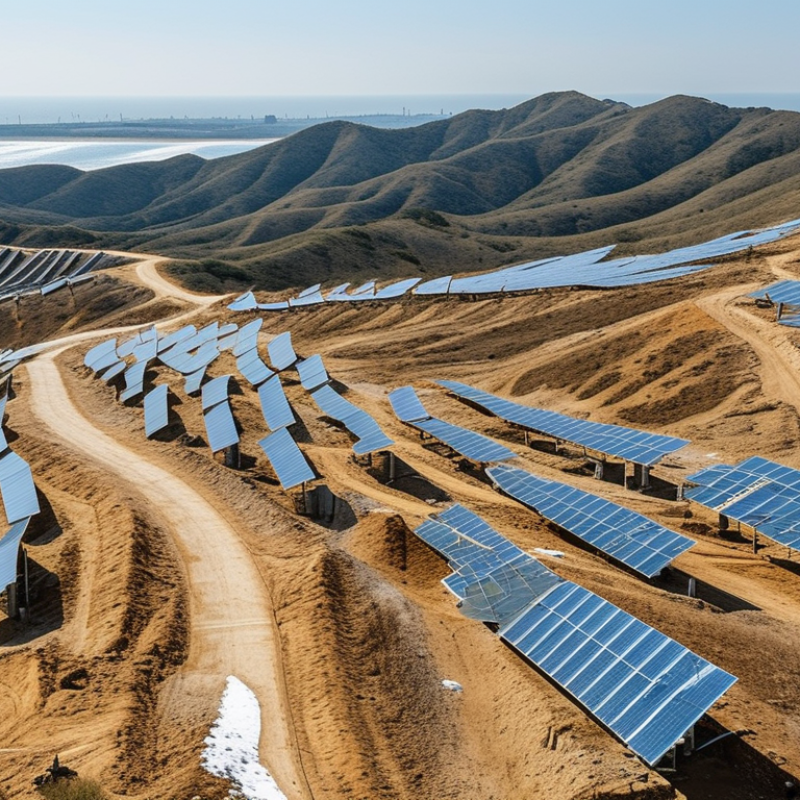

How to Choose China Solar Mounting Systems for Any Terrain
Comparing Materials, Corrosion Resistance, and Structural Durability
Terrain changes the mounting decision more than the panel size. On coastal sites, salt-laden air attacks exposed steel, fasteners, and cut edges. A NACE IMPACT study estimated global corrosion costs at about 3.4% of GDP, showing why surface protection deserves serious attention. Hot-dip galvanized steel suits many inland projects, while aluminum can reduce weight on difficult slopes. However, mixed metals may create galvanic corrosion when moisture bridges them. Use compatible fasteners and isolate dissimilar metals where necessary.
Look closely at coating thickness, drainage paths, and unfinished holes. A trapped-water pocket can damage a rail faster than visible rain. ISO 9223 classifies atmospheric corrosivity from low to extreme, but a single site can contain several microclimates. Coastal fog, agricultural chemicals, and desert dust may require different protection levels. Stainless steel fasteners help, yet they do not rescue poorly sealed connections.
Structural durability also depends on wind, snow, soil, and installation quality. ASCE 7-22 and Eurocode provisions provide design methods, but local engineering checks remain essential. NREL research reports a typical photovoltaic degradation rate near 0.5% annually, often supporting 25-year planning assumptions. The mounting structure should not merely match that timeline. It should tolerate repeated thermal movement, vibration, and maintenance access.
A neat spreadsheet can still mislead. I would request load calculations, coating test results, and pull-out data before comparing prices. ASTM B117 salt-spray hours may reveal weaknesses, but they do not perfectly predict outdoor life. Real exposure is messier. That matters on uneven terrain, where small installation errors can amplify long-term stress.
Material and terrain selection matrix for ground-mounted photovoltaic structures. Values are typical engineering reference ranges and should be verified against project loads, local codes, soil conditions, and environmental exposure.
| Mounting Material | Typical Mechanical Data | Corrosion Protection | Recommended Terrain | Corrosion Resistance | Structural Durability | Typical Service-Life Target | Key Advantages and Limitations |
|---|---|---|---|---|---|---|---|
| Hot-Dip Galvanized Structural Steel |
Common structural grades: yield strength approximately 235–350 MPa; density approximately 7.85 g/cm³. |
Zinc coating commonly specified by mass, such as 275–600 g/m² total coating mass, depending on section and specification. | Flat, sloped, rocky, agricultural, and high-wind sites when supported by driven piles, ground screws, or concrete foundations. | Very Good Suitable for many rural and inland environments; coating performance decreases in salt spray, industrial pollution, and areas with damaged or cut surfaces. |
High stiffness and strong resistance to wind and snow loads. Well suited to long spans, pile-driven systems, and uneven terrain. | Commonly designed for 25–30 years, subject to coating thickness, exposure category, drainage, and maintenance. | High strength and cost efficiency. Heavier than aluminum and requires careful treatment of drilled, cut, or welded areas. |
| Aluminum Alloy 6005-T5 or Similar Extrusion Alloy |
Yield strength typically about 145–175 MPa; density approximately 2.70 g/cm³; elastic modulus approximately 69 GPa. |
Natural oxide film; optional anodizing or conversion coating may be used for additional protection. | Rooftops, light ground-mounted arrays, coastal sites, and terrain where low transportation and installation weight are important. | Excellent Strong resistance to atmospheric corrosion and marine humidity; avoid direct contact with incompatible metals without isolation. |
Good durability with low mass, but lower stiffness than steel requires larger sections or closer supports for heavy snow and long spans. | Commonly designed for 25–30 years or longer when galvanic isolation, drainage, and fastener compatibility are properly managed. | Lightweight, easy to transport, and naturally corrosion resistant. Higher thermal expansion and lower stiffness must be considered in design. |
| Stainless Steel 304 |
Annealed yield strength typically about 205 MPa; density approximately 8.00 g/cm³; elastic modulus approximately 193 GPa. |
No applied metallic coating is normally required; corrosion resistance comes from the chromium-rich passive surface layer. | Coastal, humid, urban, and visually sensitive projects; suitable for foundations, fasteners, clamps, and selected structural components. | Very Good Performs well in ordinary atmospheric exposure, but chloride-rich coastal areas may require a higher-alloy stainless grade. |
High stiffness and good fatigue resistance. Proper detailing is required to avoid crevices, trapped water, and contamination from carbon steel. | Often selected for 30 years or longer in suitable environments, provided crevice corrosion and dissimilar-metal contact are controlled. | Strong, durable, and low-maintenance. Higher material cost and greater weight than aluminum; not ideal for all large primary frames. |
| Stainless Steel 316 or 316L |
Annealed yield strength typically about 170–205 MPa; density approximately 8.00 g/cm³; elastic modulus approximately 193 GPa. |
Passive chromium oxide surface; molybdenum content improves resistance to chloride-related pitting. | Marine and near-shore sites, salt-affected agricultural areas, wastewater environments, and locations with frequent condensation. | Excellent Better chloride resistance than 304, although severe marine exposure can still require inspection and careful design. |
High stiffness, good toughness, and strong long-term resistance when joints are designed to prevent water retention. | Commonly selected for 30 years or longer in aggressive environments, subject to exposure severity and maintenance. | Preferred for salt-laden environments and critical fasteners. Higher cost and weight; should not be treated as immune to corrosion. |
| Organic-Coated Carbon Steel |
Typical structural steel yield strength approximately 235–350 MPa; density approximately 7.85 g/cm³. |
Zinc-rich primer, epoxy, polyester, polyurethane, or multi-layer protective coating systems; coating thickness varies by specification. | Inland flat or sloped terrain, agricultural land, and projects where a specified coating system can be inspected and maintained. | Good Performance depends strongly on surface preparation, edge coverage, coating thickness, UV exposure, impact damage, and maintenance. |
High structural strength and stiffness. Local coating damage can create concentrated corrosion and should be repaired promptly. | Commonly designed for 20–30 years when the coating system is correctly selected for the exposure category and maintained. | Flexible appearance and strong structural performance. More maintenance-sensitive than hot-dip galvanized or stainless steel systems. |
| Concrete Foundation with Steel or Aluminum Superstructure | Reinforced concrete compressive strength commonly about 20–40 MPa for general foundations; steel or aluminum carries the frame loads. | Reinforcement cover, concrete quality, drainage, waterproofing, and corrosion-protected embedded hardware are the primary defenses. | Soft soils, expansive soils, flood-prone areas, steep slopes, and sites where driven piles or screws cannot achieve reliable capacity. | Moderate to Very Good Depends on concrete permeability, chloride exposure, crack control, drainage, and reinforcement protection. |
High resistance to overturning and uplift when correctly engineered. Foundation settlement and frost heave must be assessed. | Commonly designed for 25–50 years or more, depending on concrete durability class, reinforcement cover, soil chemistry, and inspection. | Adaptable to difficult terrain and variable soils. Higher material, labor, curing, and site-preparation requirements. |
| Ground Screws with Corrosion-Protected Steel | Capacity depends on helix geometry, shaft size, installation torque, soil density, and axial/lateral loading; project-specific testing is required. | Common protection includes hot-dip galvanizing or engineered protective coatings; cut or welded areas require compatible repair treatment. | Firm granular soils, compacted soils, grassland, agricultural sites, and sloped terrain with limited concrete access. | Good Adequate protection is possible in many soils, but soil resistivity, pH, moisture, sulfates, chlorides, and stray current must be evaluated. |
Fast installation and good adaptability to slopes. Long-term performance depends on pull-out capacity, lateral resistance, frost action, and corrosion allowance. | Commonly designed for 25–30 years, subject to geotechnical verification and corrosion assessment. | Low concrete use and minimal excavation. Not suitable for every soil; refusal layers, loose fill, and highly corrosive soils may require alternatives. |
How to Choose China Solar Mounting Systems for Any Terrain
Verifying Installation Standards, Customization, and Supplier Reliability
Terrain changes more than the mounting angle. It affects foundations, drainage, corrosion exposure, and installation access. A rocky slope may need drilled anchors, while soft soil may require longer piles or reinforced foundations. Request a site-specific design based on wind speed, snow load, soil conditions, and module dimensions.
Do not accept a certificate alone. Ask for structural calculations, material specifications, torque requirements, grounding details, and installation tolerances. These documents should match applicable national standards and the actual project conditions. Check whether fasteners resist local humidity, salt, and temperature changes. Small omissions can create expensive field adjustments.
Customization must include practical support. Look for adjustable components, clear drawings, numbered parts, and installation guidance for uneven ground. Measure twice. It saves time. Supplier reliability needs evidence, not confident promises. Review production records, quality-control procedures, inspection reports, and comparable project references. Confirm how the supplier handles damaged parts, design changes, spare components, and technical questions during construction.
A factory audit or independent inspection can reveal more than a polished website. Ask for sample reports and traceability from raw material to shipment. Communication speed also matters when a pile meets unexpected rock. I once underestimated this issue on a sloped site; the design was sound, but the installation sequence was not. A better supplier would challenge that assumption before delivery.
: Terrain affects foundation depth, steel loading, drainage, installation time, and maintenance access. A flat site is not always simple. Soil, slope, wind, snow, and water conditions still need verification.
Check bearing capacity, groundwater, rock layers, drainage, and soil corrosion risk. Pull-out tests can confirm foundation resistance. Soil reports help, but local variation may remain.
Soft clay may need deeper piles, ground improvement, or concrete foundations. Rocky ground may require predrilling or footings. A small trial section can expose drilling limits early.
Slopes affect row spacing, post lengths, alignment, and access roads. Stepped layouts may reduce earthwork. They can also increase structural complexity and uneven stress.
Wind checks should include ridges, exposed edges, nearby buildings, and local terrain. Snow may drift near fences or elevation changes. Average weather data is not enough.
Drainage channels should move water without weakening foundations. Inspect the site after rain. Mark erosion paths, soft ground, and blocked access points.
Hot-dip galvanized steel suits many inland projects. Aluminum can reduce weight on difficult slopes. Coastal air, salt spray, chemicals, and dust require stronger protection.
Protect exposed fasteners, cut edges, unfinished holes, and trapped-water areas. Use compatible fasteners. Isolate dissimilar metals when moisture could connect them.
Request drawings, load calculations, coating test results, pull-out data, and material certificates. Installation records and inspection photos improve traceability. Supplier drawings still require independent engineering review.
Not always. Trial installation may reveal alignment errors, unexpected rock, or higher costs. Document changes and test them before full production. A second review can catch small omissions.
Choosing the right solar mounting structure begins with understanding the terrain. How to choose solar mounting systems for different terrains depends on whether the project is located on flat ground, sloped land, rocky soil, farmland, rooftops, or areas exposed to harsh weather. A careful assessment should include soil strength, slope angle, wind pressure, snow load, drainage, temperature changes, and environmental conditions. These factors determine the foundation method, structural design, tilt adjustment, and installation approach.
The selected system should match the terrain while providing reliable support, efficient construction, and long-term stability. Material selection is equally important, with attention to corrosion resistance, structural strength, weight, and durability in local climate conditions. Before installation, project owners should verify engineering standards, safety requirements, customization capabilities, quality control procedures, and supplier experience. A dependable supplier should provide clear technical documentation, accurate load calculations, responsive service, and solutions adapted to site-specific challenges.
