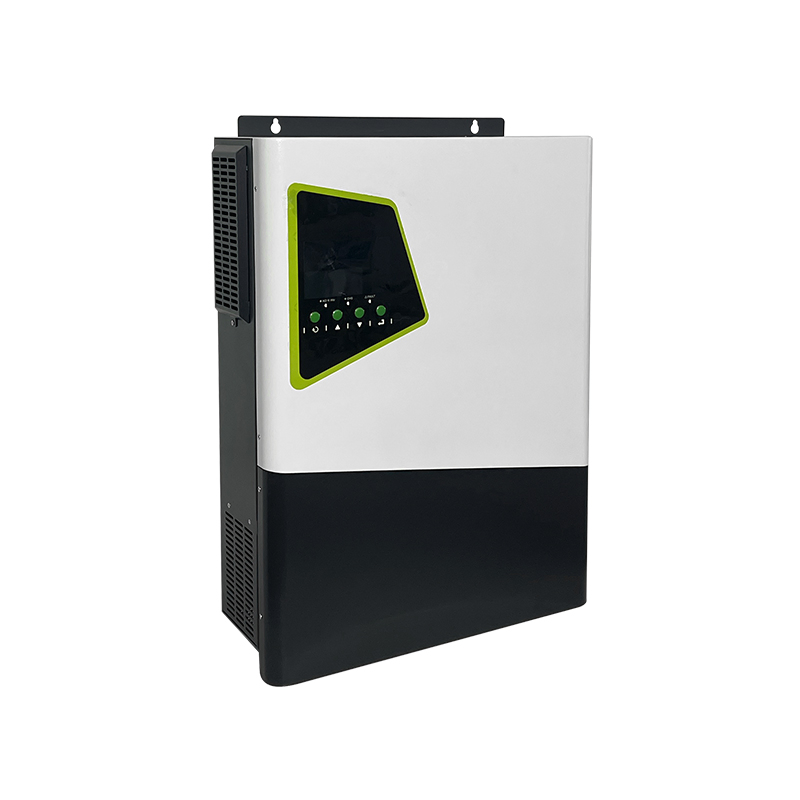

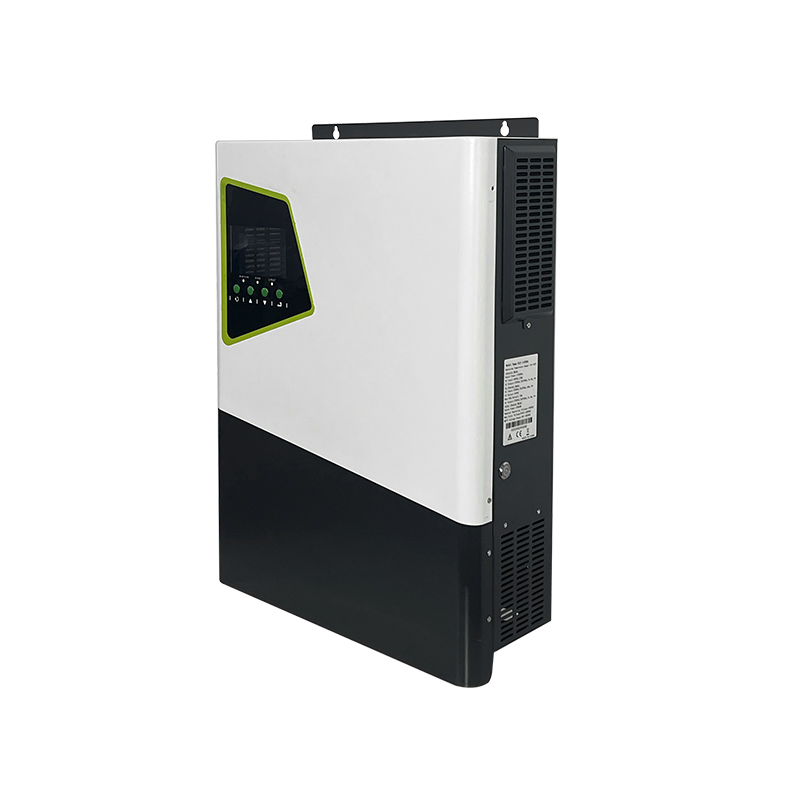

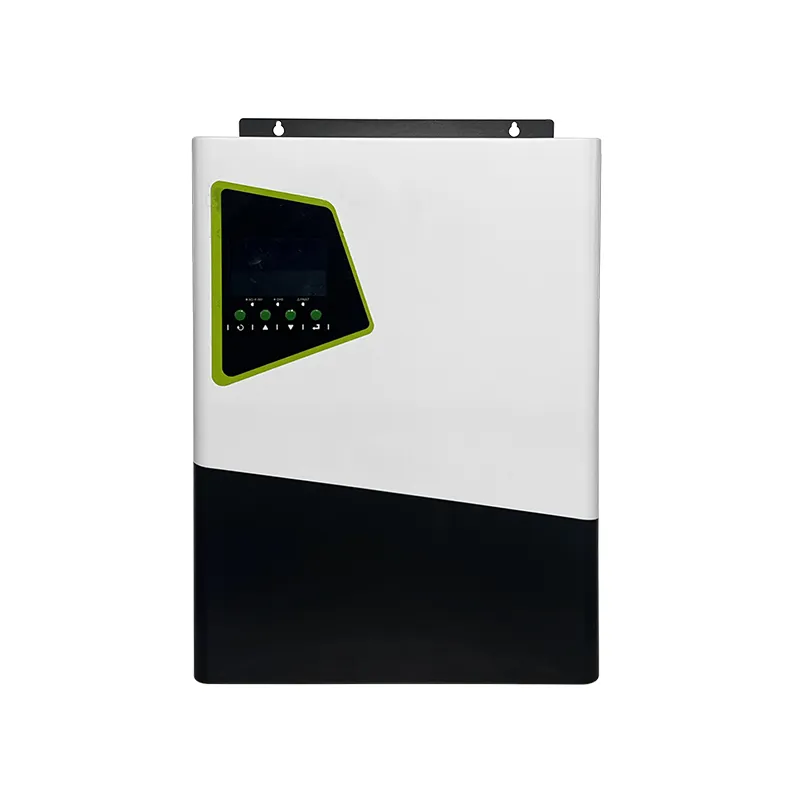

10kw off Grid High Frequency Inverter Hybrid Solar with MPPT Controller

1 / 5

10kw off Grid High Frequency Inverter Hybrid Solar with MPPT Controller

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

OLU10048VMII

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

11kw

Certification

CE, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Product Name

Hybrid Inverter

Nominal Voltage

230VAC

Frequency

50/60Hz(Adaptive)

Waveform

Pure Sine Wave

Peak Efficiency

94%

Charging Method

PV/AC/Generator

Max.AC Charge Current

120A

Package Size

59.50cm * 47.50cm * 18.20cm

Package Gross Weight

17.300kg

★

Product Description

A Hybrid Inverter integrates multiple power conversion functions in a single unit for comprehensive energy management solutions. This versatile system combines various power sources and automatically switches between different energy inputs to optimize performance. The intelligent design provides reliable backup power and reduces energy costs through efficient power management.

MULTI-SOURCE INTEGRATION

Combines different power sources in a single unit for comprehensive energy management, eliminating the need for separate components and reducing system complexity.

BUILT-IN CHARGE CONTROL

Incorporates charge controller functionality to optimize energy harvesting from renewable sources, maximizing system efficiency and protecting batteries.

DUAL OPERATION MODES

Supports both grid-connected and standalone operation for versatile installation options, providing flexibility for different applications.

⚙

Technical Parameters

Model	OLU8548VMII	OLU11048VMII
Capacity	8.5KVA/8.5kW	11KVA/11kW
Maximum PV Input Power	10kW	11kW
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC (PC); 90-280VAC (Home)
OUTPUT
Surge Power	17000VA	22000VA
Waveform	Pure Sine wave
Peak Efficiency	94%
BATTERY
Battery Voltage	48VDC	48VDC
Max. Discharge Current	180A	220A
SOLAR & AC CHARGER
Max. PV Open Circuit Voltage	500VDC
Max. Solar Charge Current	140A	160A
Max. AC Charge Current	120A

📷

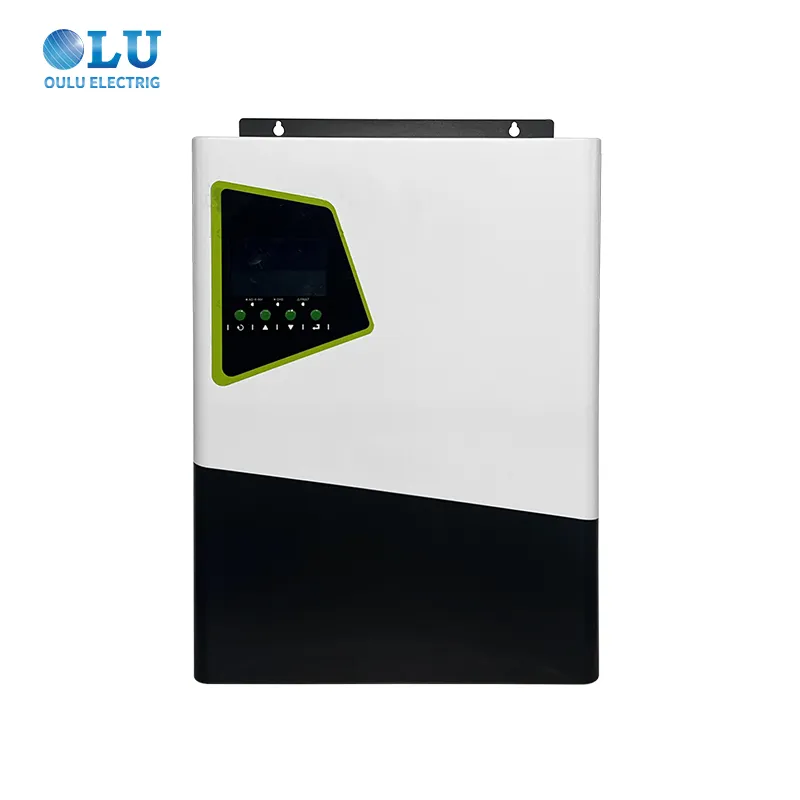

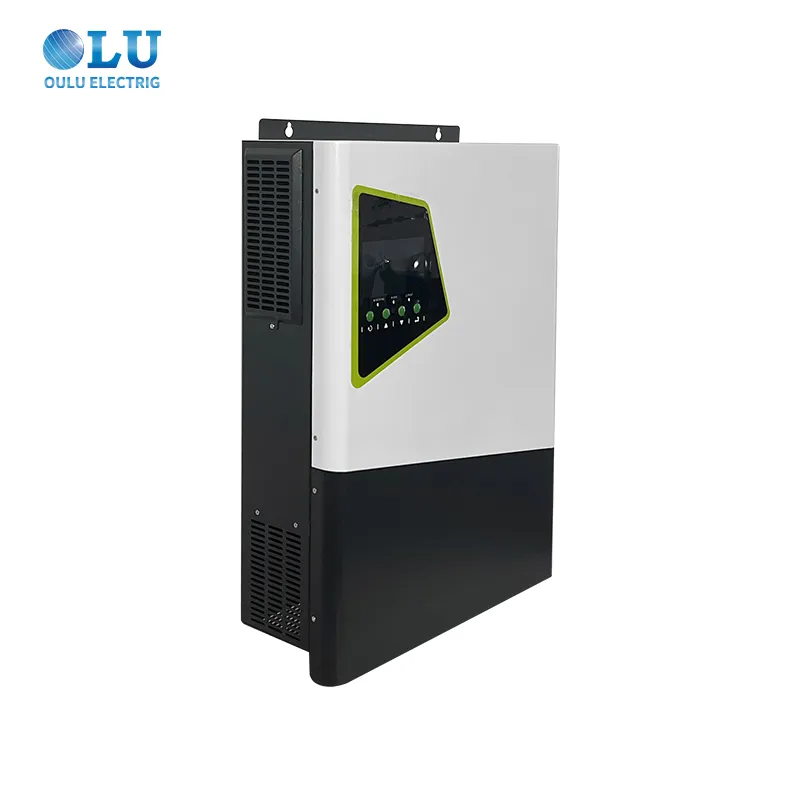

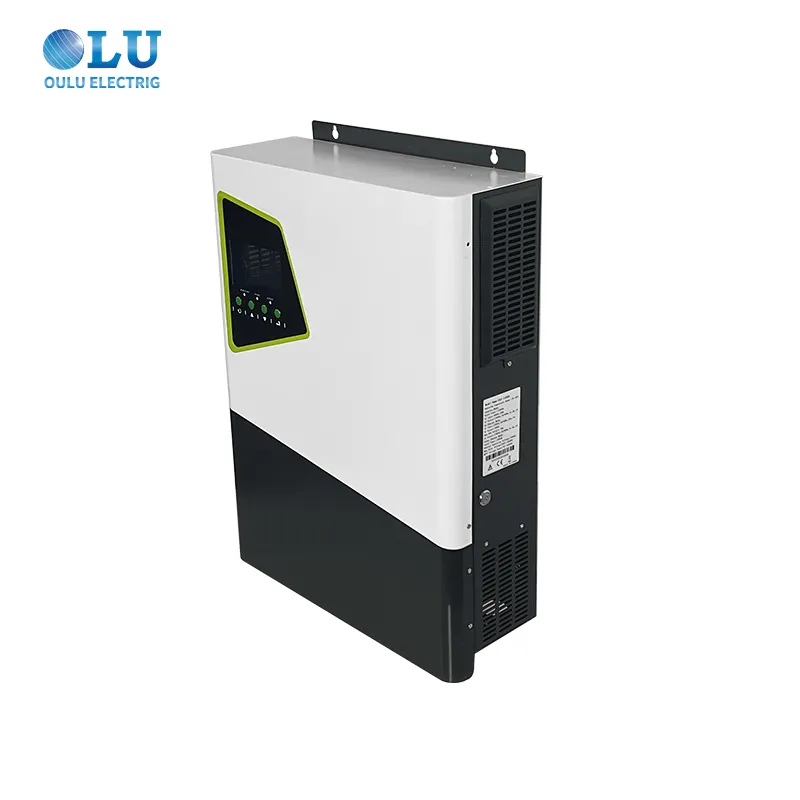

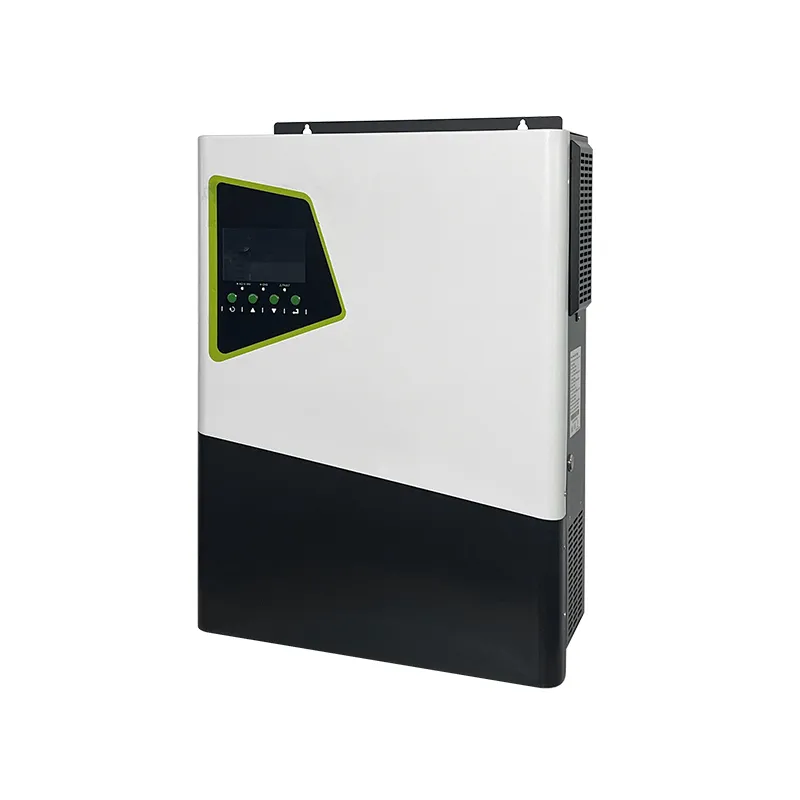

Detailed Photos

ENERGY COST SAVINGS

Reduces electricity expenses through intelligent load management and peak shaving capabilities.

HIGH EFFICIENCY

Delivers superior power conversion performance with minimal energy loss, maximizing system output.

Frequently Asked Questions

Are you a professional manufacturer?

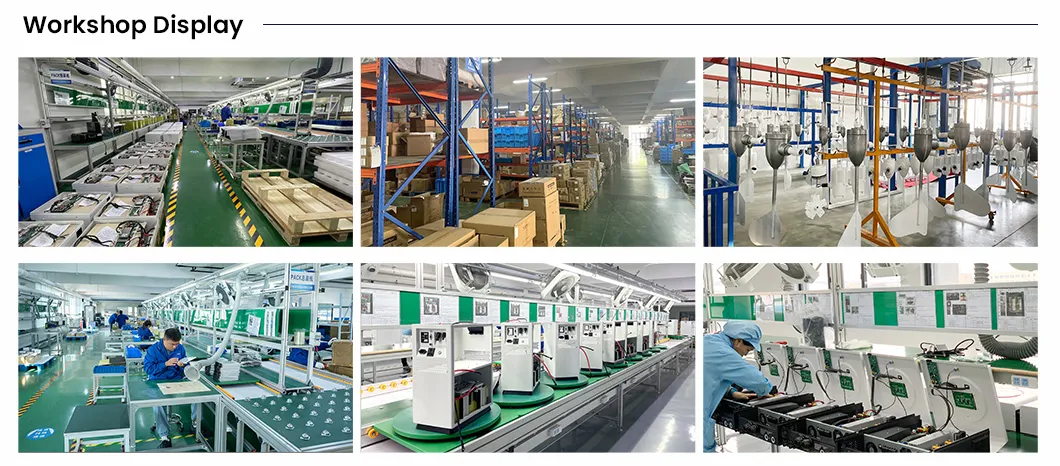

Yes, we are a factory with over 19 years of experience in producing solar inverters and storage batteries in China.

How do I select the right model for my needs?

Before purchasing, please contact our technical team to confirm the model number and specifications to ensure it meets your specific requirements.

What are the available shipping methods?

We normally ship goods by sea, express (DHL/UPS/FEDEX/EMS), or air. We also accommodate customer-specified logistics arrangements.

Can I request a sample for testing?

Yes, samples can be provided for quality testing and performance verification before bulk orders.

Do you offer OEM or ODM services?

Yes, we have a dedicated R&D department and fully support both OEM and ODM services to meet customized needs.

What is the warranty period for the inverters?

We provide a 12-month warranty along with ongoing technical support to help solve any operational issues.
