Basic Information
Model NO.JHI650M-110D/0132P-4
CertificationCE, ISO9001
TypeDC/AC & AC/AC Inverters
Circuit TopologiesFull-Bridge Type
Wave NatureSine Wave Inverter
Output Current210A
Output Frequency0Hz~60Hz
Output Voltage380V AC 3phase
Input Voltage180-450V DC 3phase
Product Size670*272*380mm
OriginChina
Capacity10000PCS/Year
Packaging & Delivery
Package Size740.00cm * 345.00cm * 490.00cm
Gross Weight48.000kg
Transport PackageCarton
Product Description
♦ Technical Features
Flexibility:
- Compatible with IEC standard three-phase asynchronous induction motors
- Compatible with popular PV arrays
- Grid supply option available
Reliability:
- 10-year market proven experience in motor and pump drive technology
- Soft start feature to prevent water hammer and increase system life
- Built-in overvoltage, overload, overheat and dry-run protection
Cost Effectiveness:
- Plug-and-play system design
- Embedded motor protection and pump functions
- Battery-free for most applications
- Effortless maintenance
Smartness & Monitoring:
- Self-adaptive MPPT technology up to 99% efficiency
- Automatic regulation of pump flow
- Standard RS485 interface; Optional GPRS/WIFI/Ethernet
- Android/iOS monitoring APP support

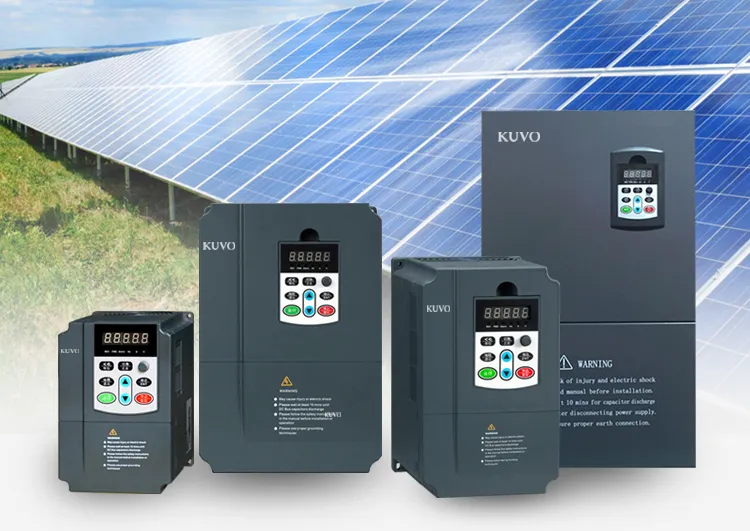

Solar Photovoltaic Water Pump Inverter
Experts in photovoltaic water pump systems, providing sustainable water solutions for remote areas without power supply.

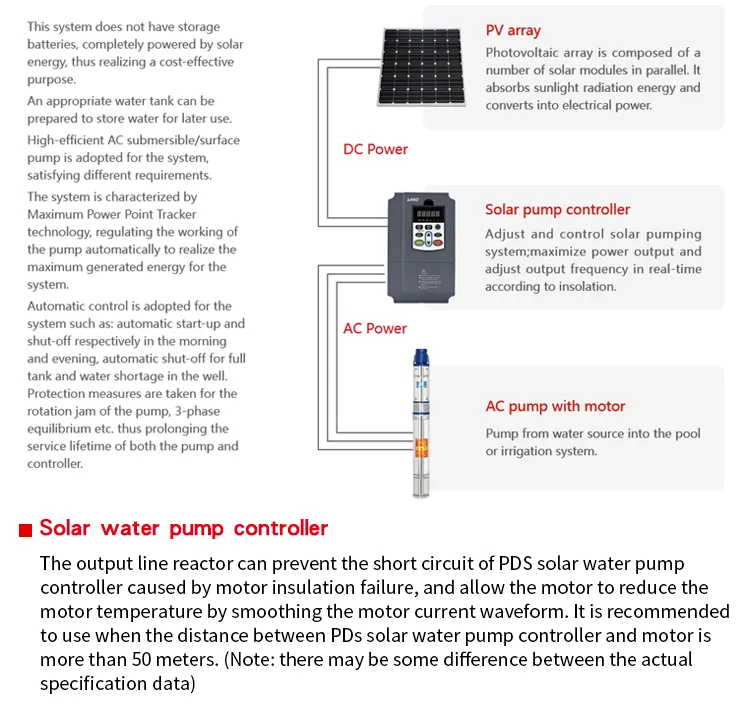

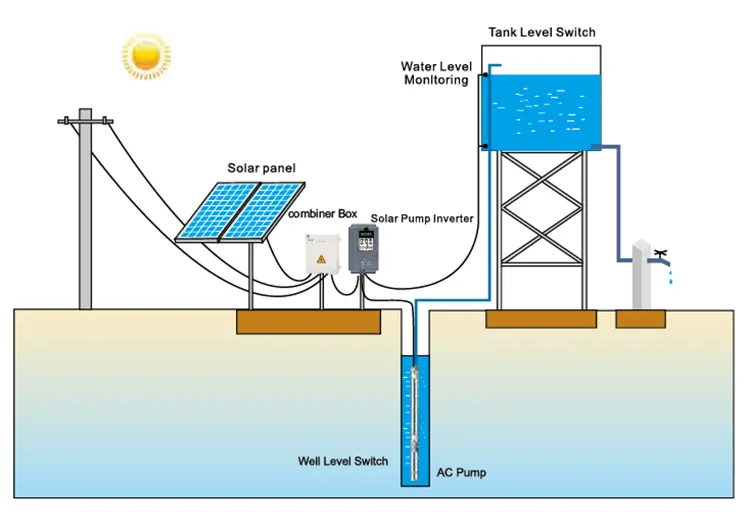

Introduction of Solar Water Pump System
The system uses DC power output from photovoltaic arrays to pump water directly. It eliminates the need for expensive batteries, storing energy in the form of water in reservoirs for subsequent use. This system can effectively utilize sources like rivers and lakes.
System Advantages
- No fuel required, powered entirely by solar energy.
- Suitable for harsh environments and off-grid locations.
- Compatible with various three-phase asynchronous motors and solar modules.
- Maximum Power Point Tracking (MPPT) for optimized generation.
- Automatic control: starts/stops based on sunlight and water levels.
- Protective measures to prevent stalling and ensure three-phase balance.
Frequently Asked Questions
Q1: Does this solar pump system require batteries?
A: No, the system is designed to be battery-free for most applications, using water storage in reservoirs as a more cost-effective alternative.
Q2: What is the efficiency of the MPPT technology?
A: The self-adaptive Maximum Power Point Tracking (MPPT) technology achieves an efficiency of up to 99%.
Q3: Is the inverter compatible with standard motors?
A: Yes, it is fully compatible with IEC standard three-phase asynchronous induction motors.
Q4: Can I monitor the system remotely?
A: Yes, each unit comes with a standard RS485 interface. Optional GPRS, WIFI, or Ethernet modules are available for remote access via Android or iOS apps.
Q5: What safety protections are included?
A: The inverter includes built-in protection for overvoltage, overload, overheat, and dry-run scenarios to ensure system longevity.
Q6: What is the output voltage and frequency range?
A: The output voltage is 380V AC 3-phase, and the frequency range is adjustable from 0Hz to 60Hz.
