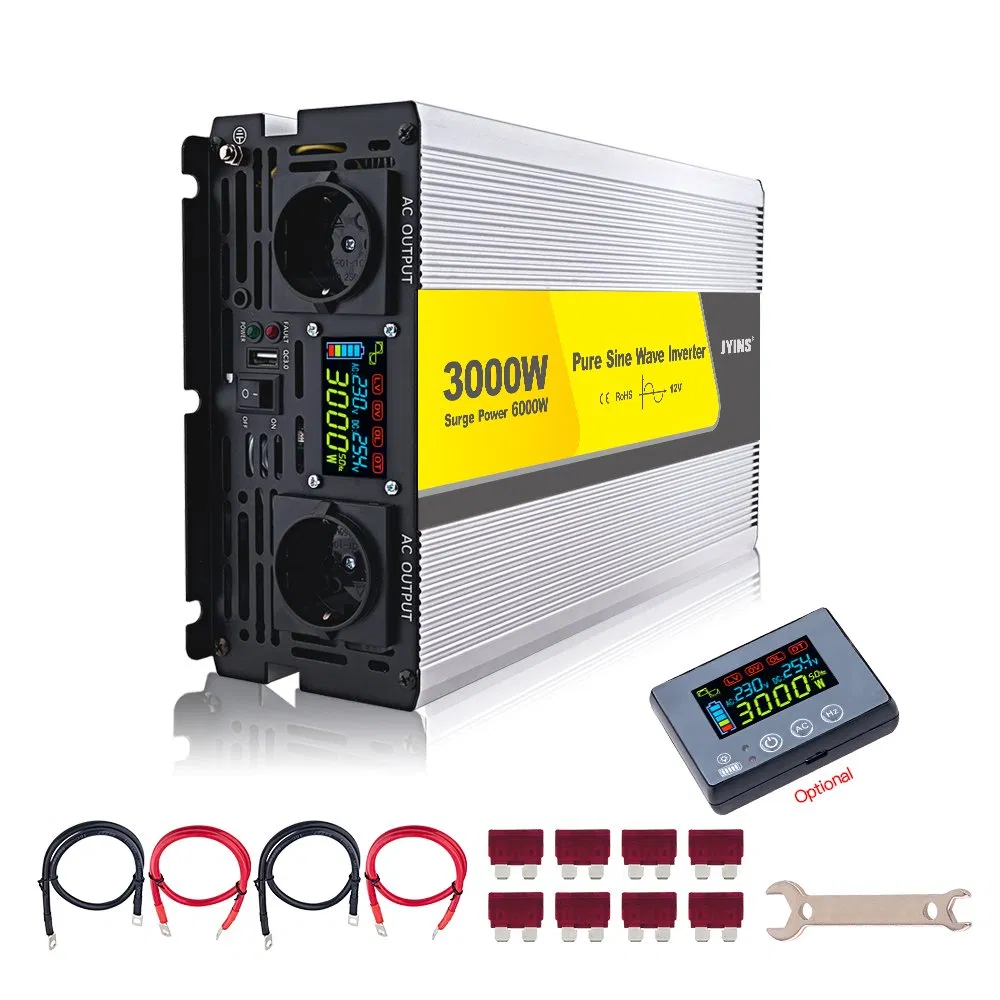

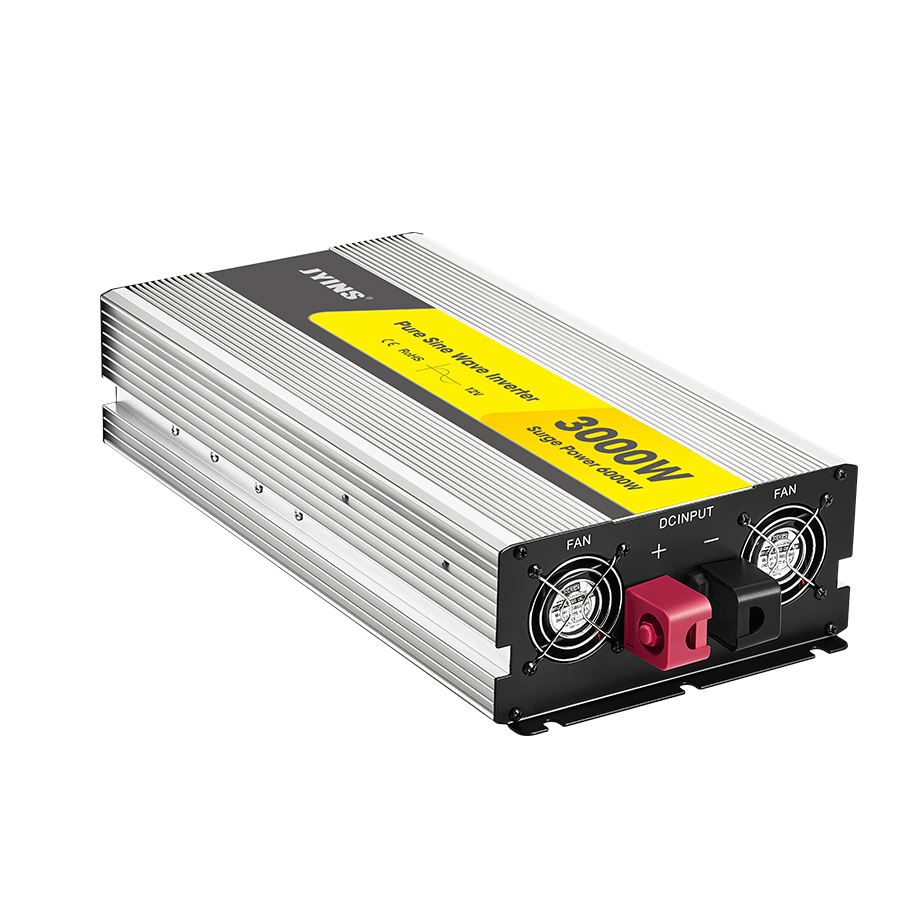

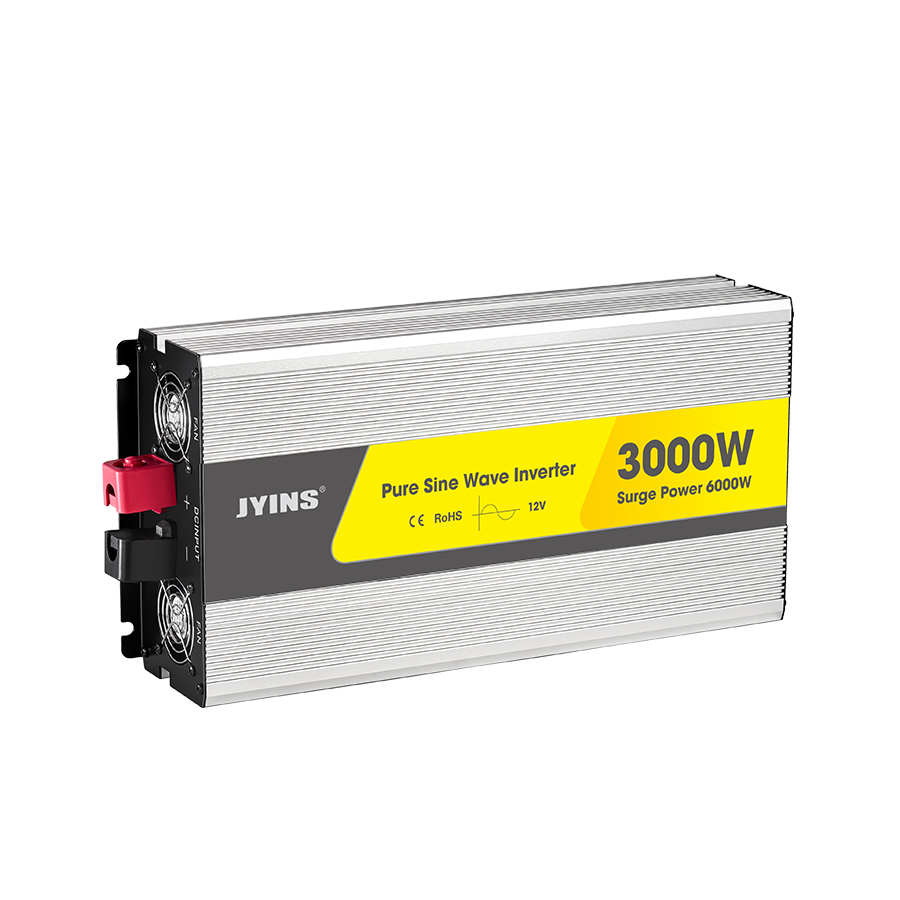

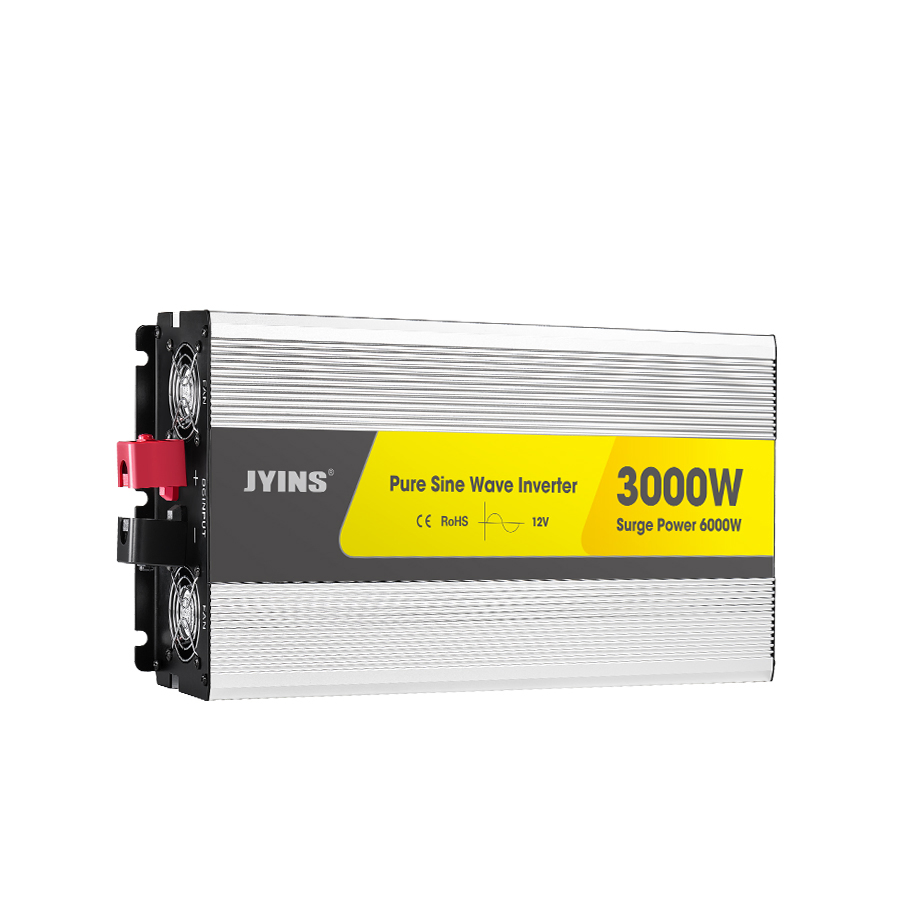

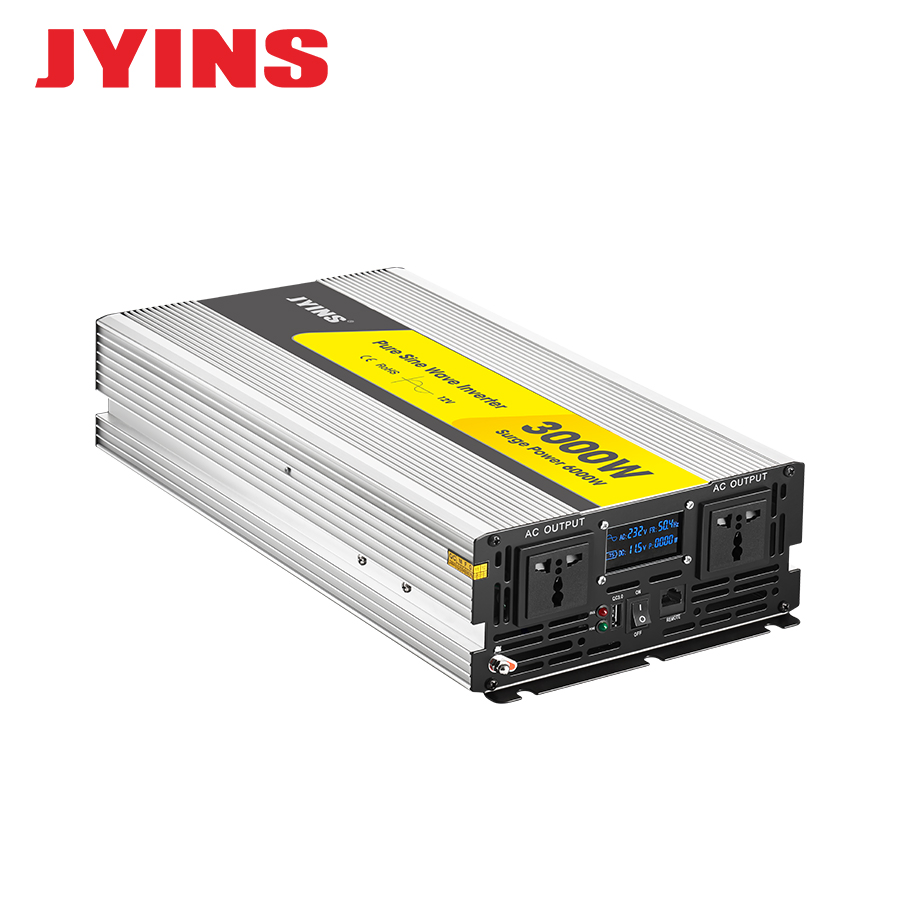

3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
1 / 5
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter
3000W off Grid Solar Pure Sine Wae Power Inverter

3000W off Grid Solar Pure Sine Wae Power Inverter

Customization: Available
Nature of Source Flow: Active Inverter
Certification: RoHS, CE
Send Inquiry

Product Description

📊

Basic Information

Model NO.
JYP-3000W
Output Power
3000W
Grid Type
Off-Grid Inverter
Output Type
Single
Circuit Topologies
Push-Pull Type
Nature of Wave
Sine Wave Inverter
Type
DC/AC Inverters
Certificate
CE & RoHS
Output Voltage
110V / 220V
Input Voltage
12V / 24V / 48V
Output Frequency
50Hz / 60Hz
Warranty
12 Months
Shell Material
Aluminium Alloy
HS Code
8504403090
Production Capacity
10,000 PCS/Month
📝

Product Description

3000W Off-Grid Solar Pure Sine Wave Power Inverter

🛡️ Protection Functions

✔ Low voltage alarm & Shutdown
✔ Over voltage protection
✔ Overload protection
✔ Over temperature protection
✔ Short circuit protection
✔ Reverse Polarity protection
✔ Soft start
✔ Auto-reset after protection
✔ Grounding protection
Inverter Detail 1

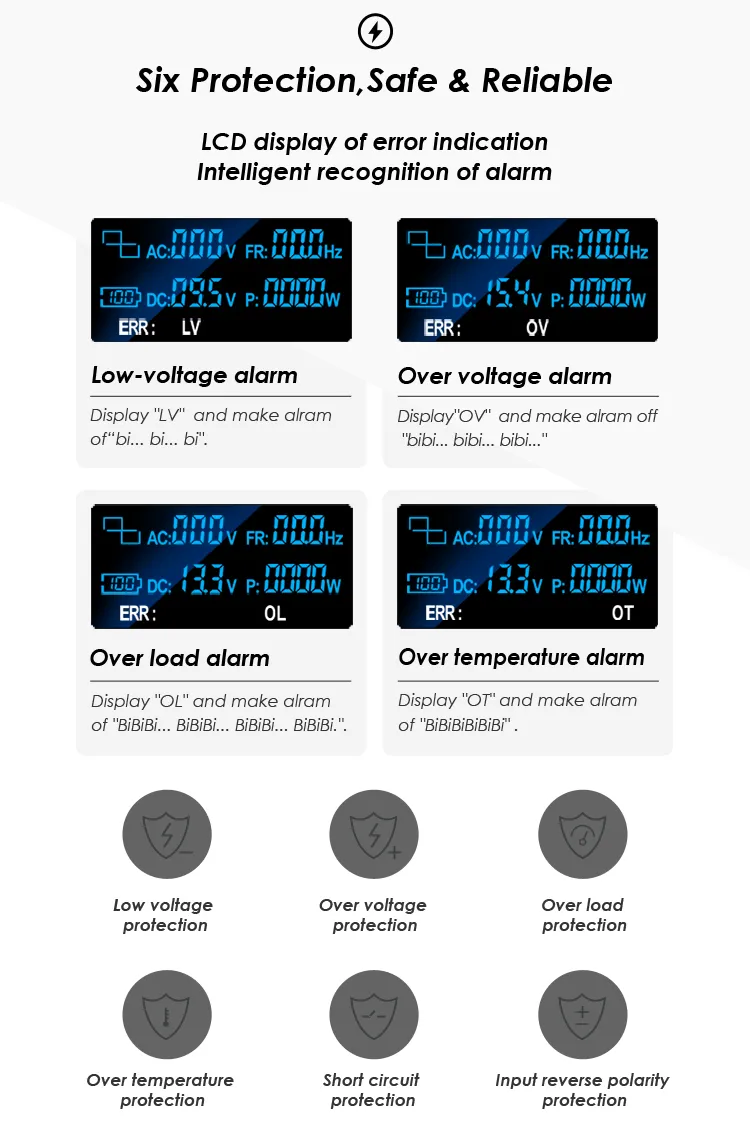

Inverter Detail 2

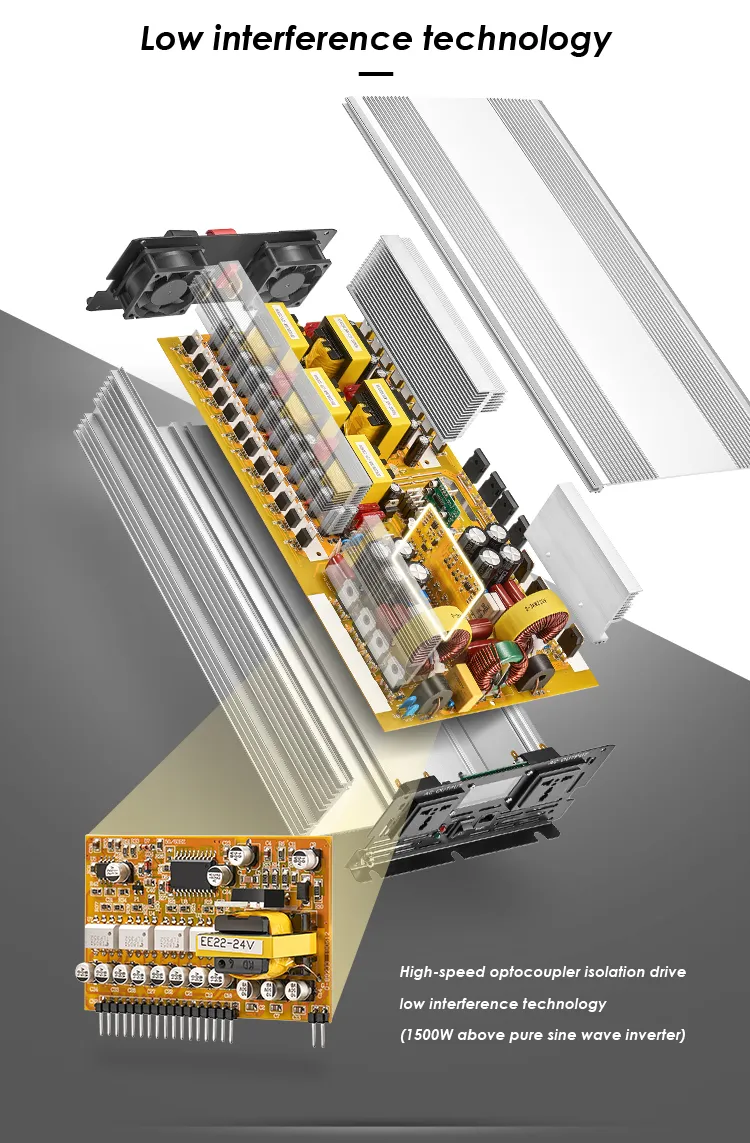

Inverter Detail 3

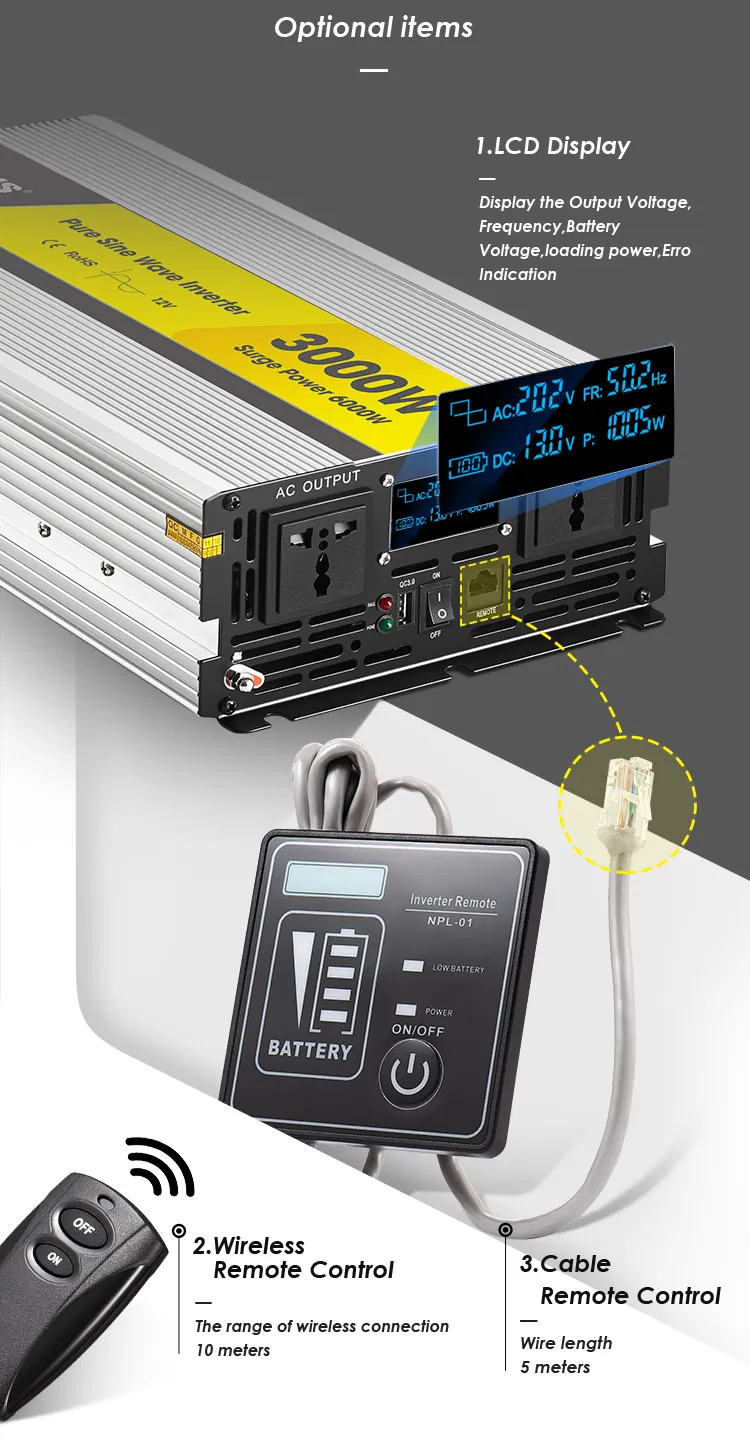

Inverter Detail 4

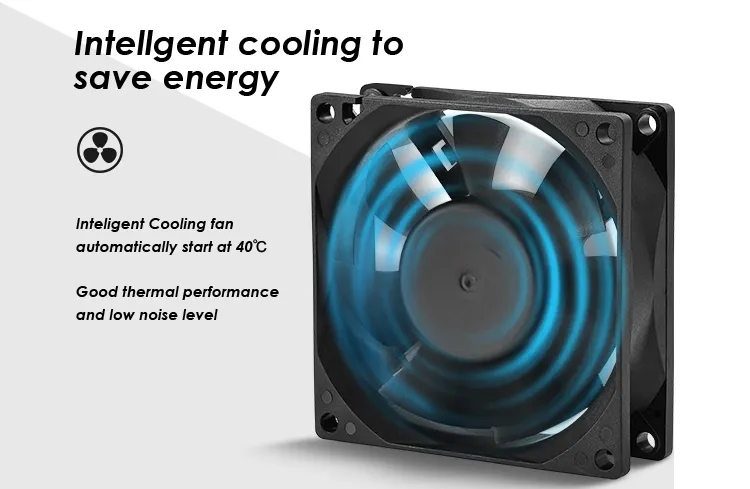

Inverter Detail 5

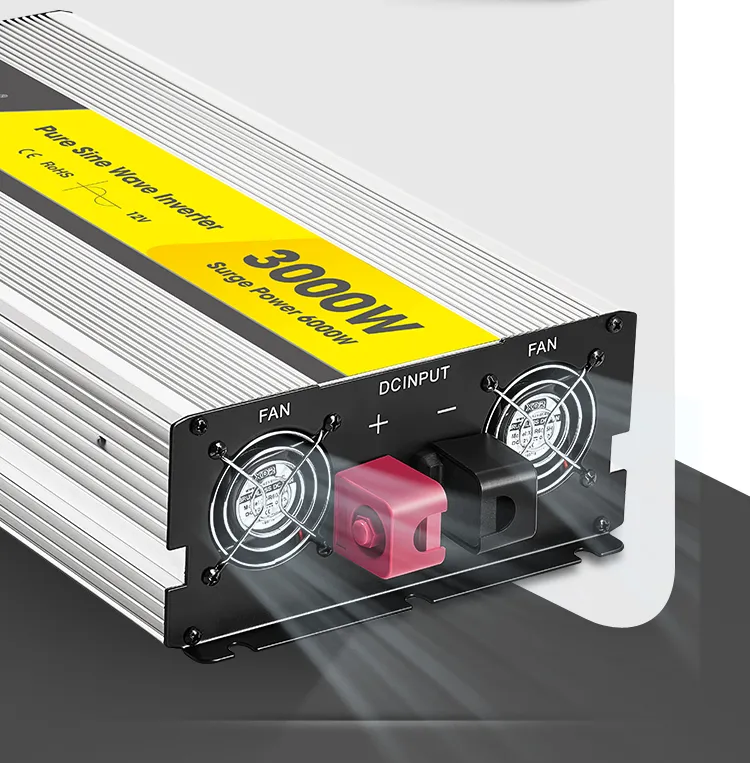

Inverter Detail 6

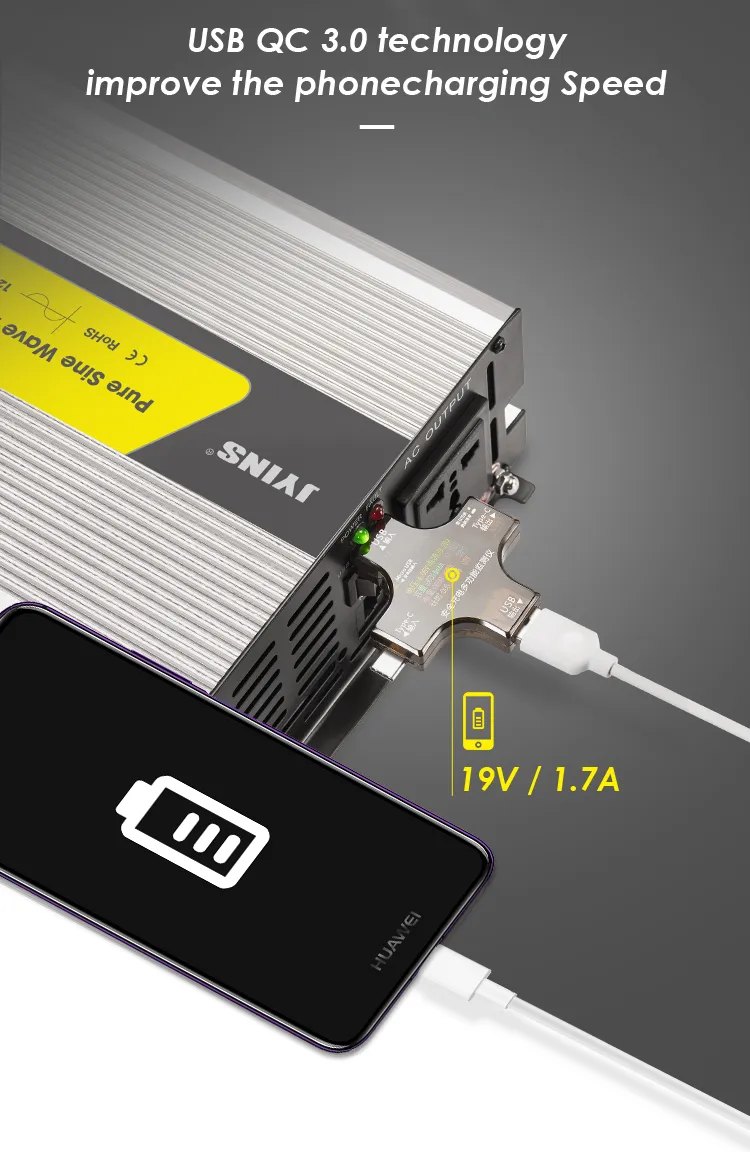

Inverter Detail 7

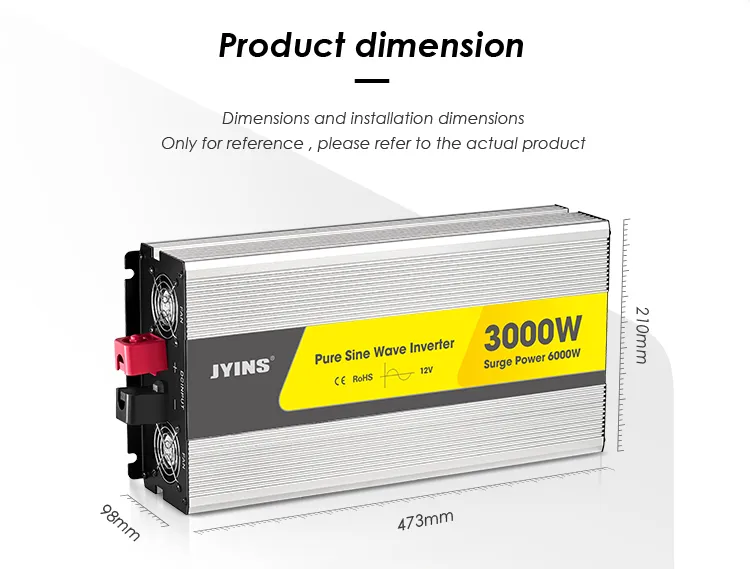

Inverter Detail 8

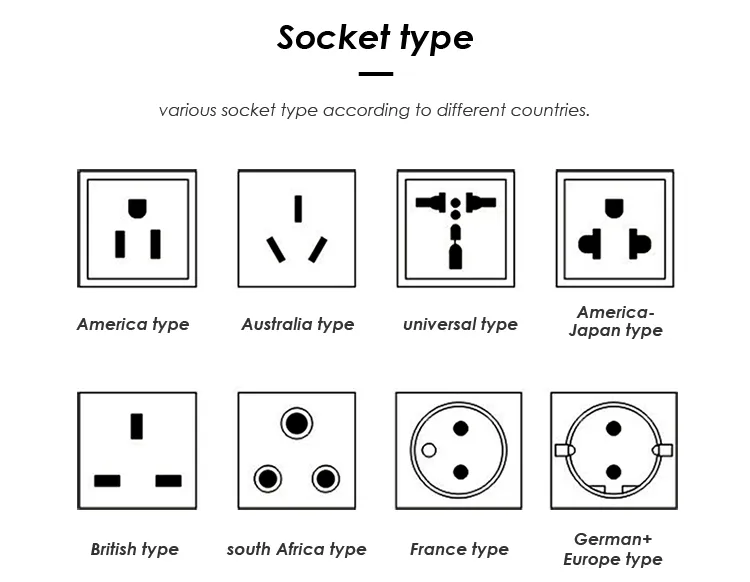

Inverter Detail 9
⚙️

Product Parameters

Model JYP-3K-1 (12V) JYP-3K-1 (24V) JYP-3K-1 (48V) JYP-3K-2 (12V) JYP-3K-2 (24V) JYP-3K-2 (48V)
Rated Power 3000W
Peak Power 6000W
Output Voltage 100V/110V/120VAC ±5% 220V/230V/240VAC ±5%
Output Waveform Pure Sine Wave (THD < 3%)
Max Efficiency 90%
Input Range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
Dimension 398 x 180 x 130 mm
Net Weight 5960g
Cooling Intelligent Air Cooling

* Note: Technical parameters are for reference only. Please refer to the actual product.

⭐

Our Advantages

Advantage 1

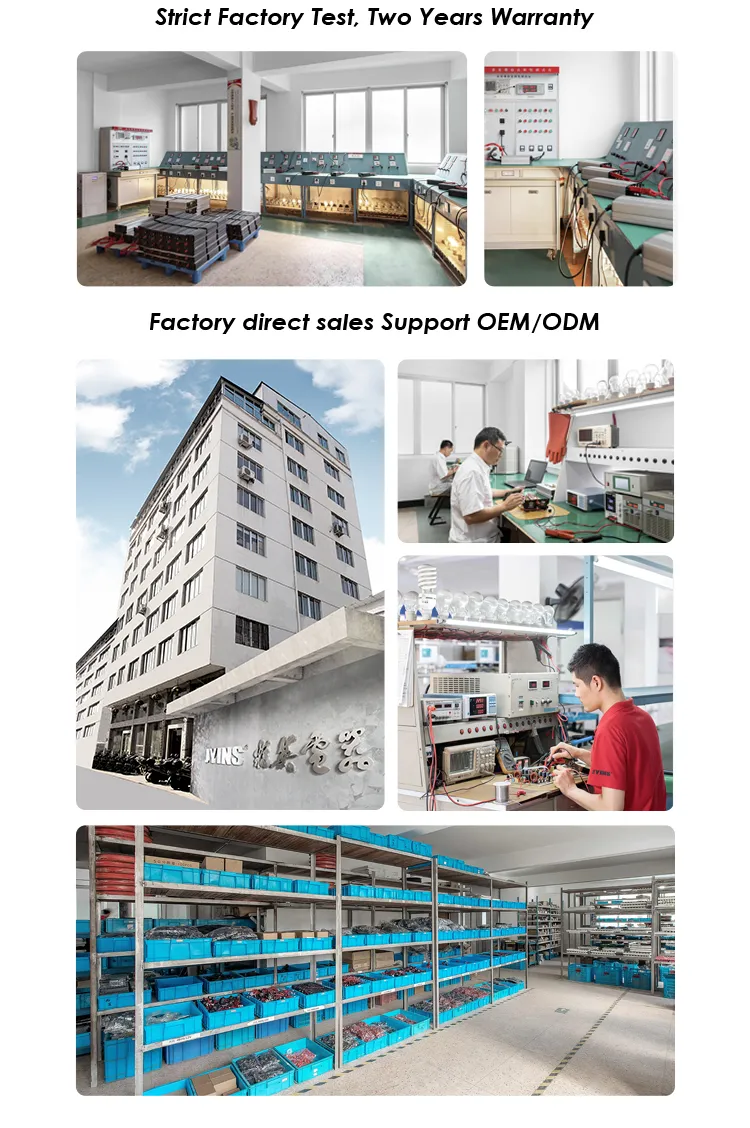

Advantage 2
❓

Frequently Asked Questions

Why is your quotation higher than other suppliers?
In the market, inverter quality varies greatly. Many low-cost inverters are assembled in unlicensed workshops using substandard components, posing significant security risks. To protect personal and property safety, choose a reliable inverter rather than just the lowest price.
How many categories are there based on output waveform?
There are two main types:
1. Modified Sine Wave: Suitable for basic equipment, cost-effective but may have 20% harmonic distortion.
2. Pure Sine Wave: High stability, suitable for all loads including sensitive inductive devices like refrigerators and drills, with no interference.
Is the output voltage of our inverter stable?
Absolutely. Our inverters are designed with high-quality regulator circuits. Note that ordinary multimeters may show incorrect readings as they are often only designed to test standard grid waveforms; a true RMS multimeter is required for accurate measurement.
What are resistive load appliances?
These include mobile phones, computers, LCD TVs, incandescent lights, electric fans, and rice cookers. Our inverters can drive these efficiently.
What are inductive load appliances?
These are products using electromagnetic induction, such as motors, compressors, refrigerators, and air conditioners. These require 3-7 times their rated power at startup, so only a pure sine wave inverter is recommended.
What should be noticed during installation?
Place the product in a well-ventilated, cool, dry, and waterproof location. Do not put foreign objects into the inverter and always turn on the inverter before turning on the connected appliance.

Related Products

3kw 5kw 6kw off Grid Power Hybrid Solar Inverter with MPPT Controller

3kw 5kw 6kw off Grid Power Hybrid Solar Inverter with MPPT Controller
3000W off Grid Solar Pure Sine Wae Power Inverter

3000W off Grid Solar Pure Sine Wae Power Inverter
Low Frequency Pure Sine Wave on/off Grid Hybrid Solar Power Inverter System 1kw - 12kw Inveters Inbuilt MPPT Controller and Isolation Trasnformer

Low Frequency Pure Sine Wave on/off Grid Hybrid Solar Power Inverter System 1kw - 12kw Inveters Inbuilt MPPT Controller and Isolation Trasnformer
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
High Quality 5kw 6kw 8kw 10kw Single Phase DC AC Hybrid Inverter Grid Tied off Grid 48V Solar Home System Inverter for Solar Panel Energy System

High Quality 5kw 6kw 8kw 10kw Single Phase DC AC Hybrid Inverter Grid Tied off Grid 48V Solar Home System Inverter for Solar Panel Energy System
Dual Power Supply (Mains Electricity/Lithium Battery) Single Head Solar Panel Cleaning Brush Photovoltaic Brush with Telescopic Rod

Dual Power Supply (Mains Electricity/Lithium Battery) Single Head Solar Panel Cleaning Brush Photovoltaic Brush with Telescopic Rod

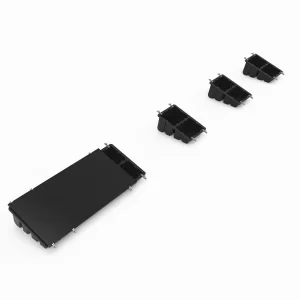

Customizable Solar Structure PP Plastic Ballasted Flat Roof Mounting System
