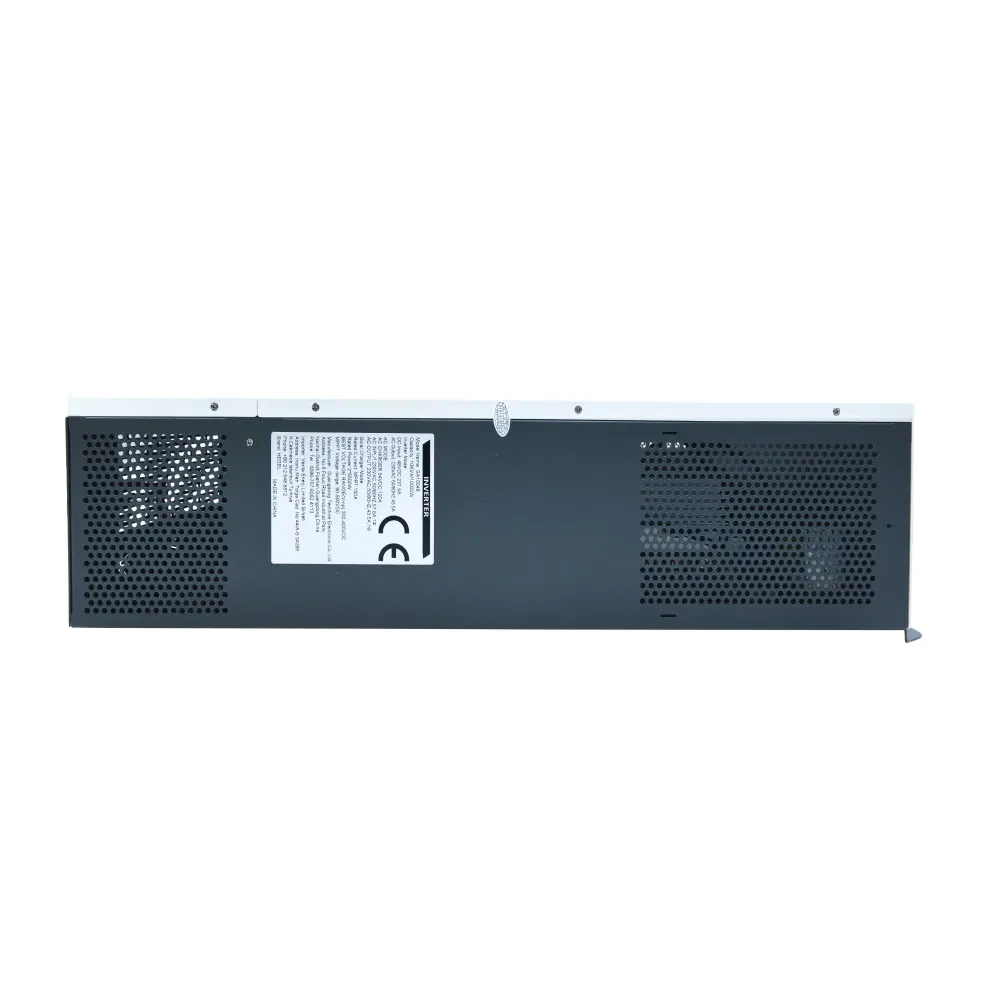

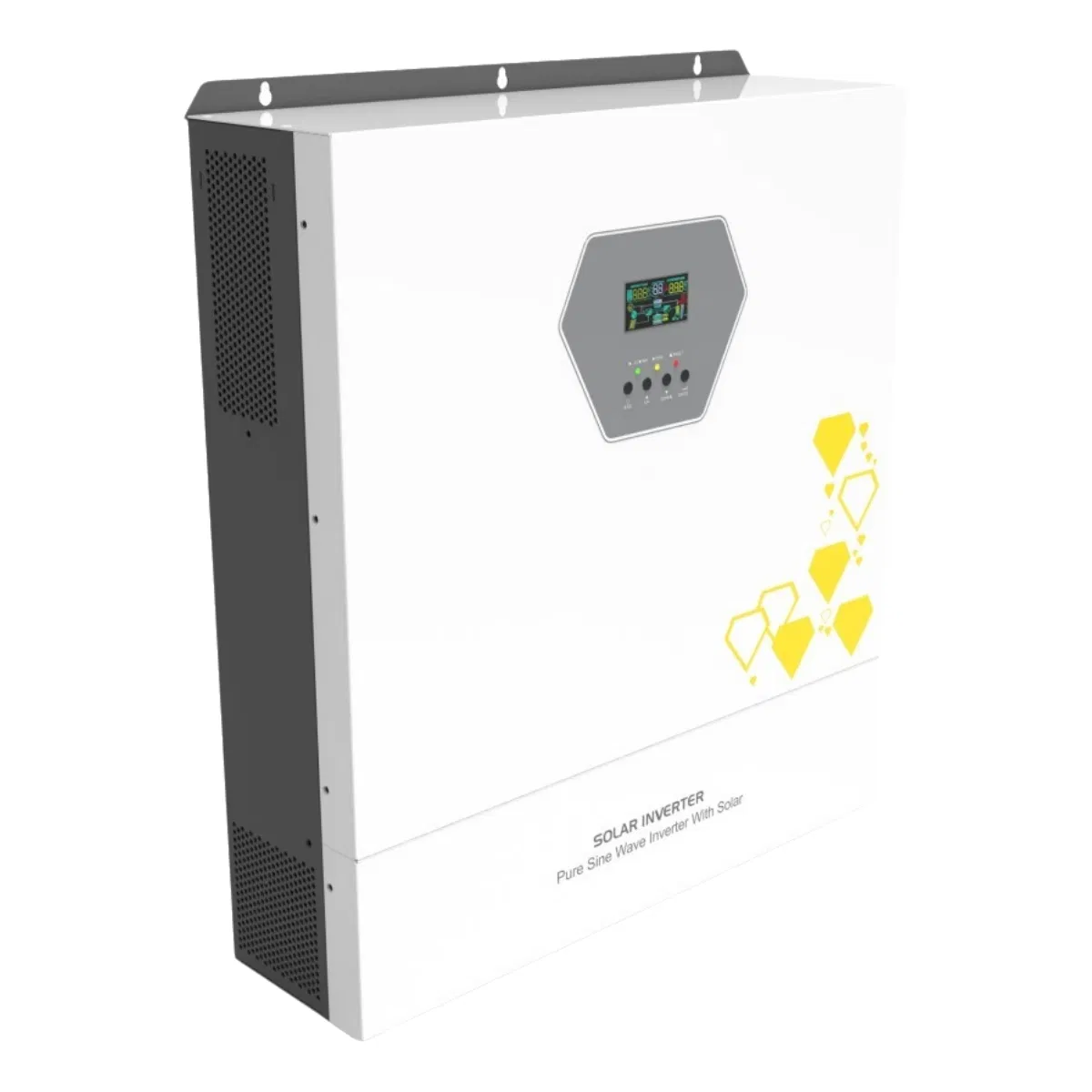

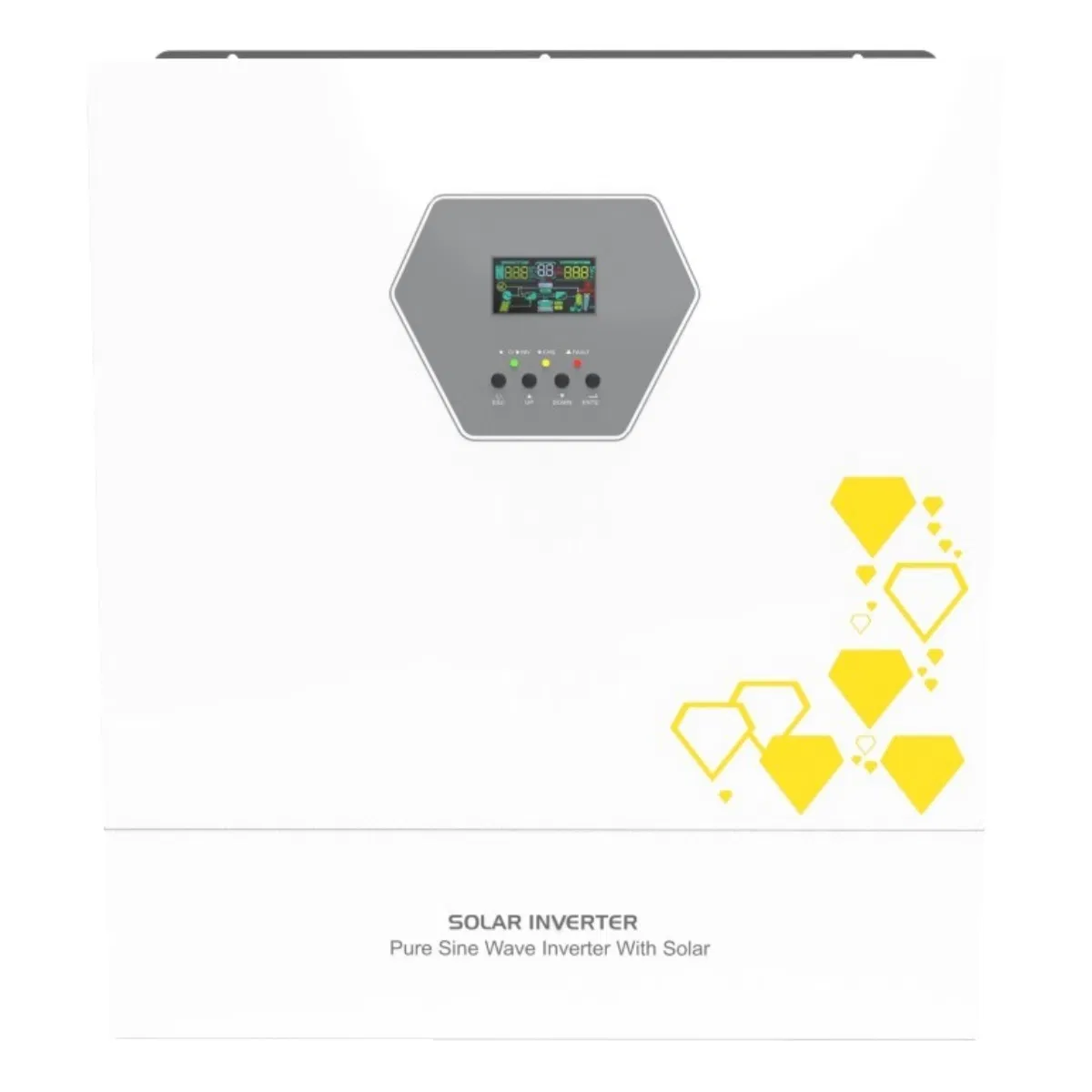

3kw High Efficiency off Grid Hybrid Solar Inverter Gd Series Normal Pure Sine Wave Inverter

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
GD Series Normal
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
AC Input
220/230/240VAC
Input Frequency
50-60Hz (Adaptive)
Output Wave
Pure Sine Wave
Package Size
57.00cm * 50.00cm * 14.80cm
Gross Weight
10.000kg

Product Description

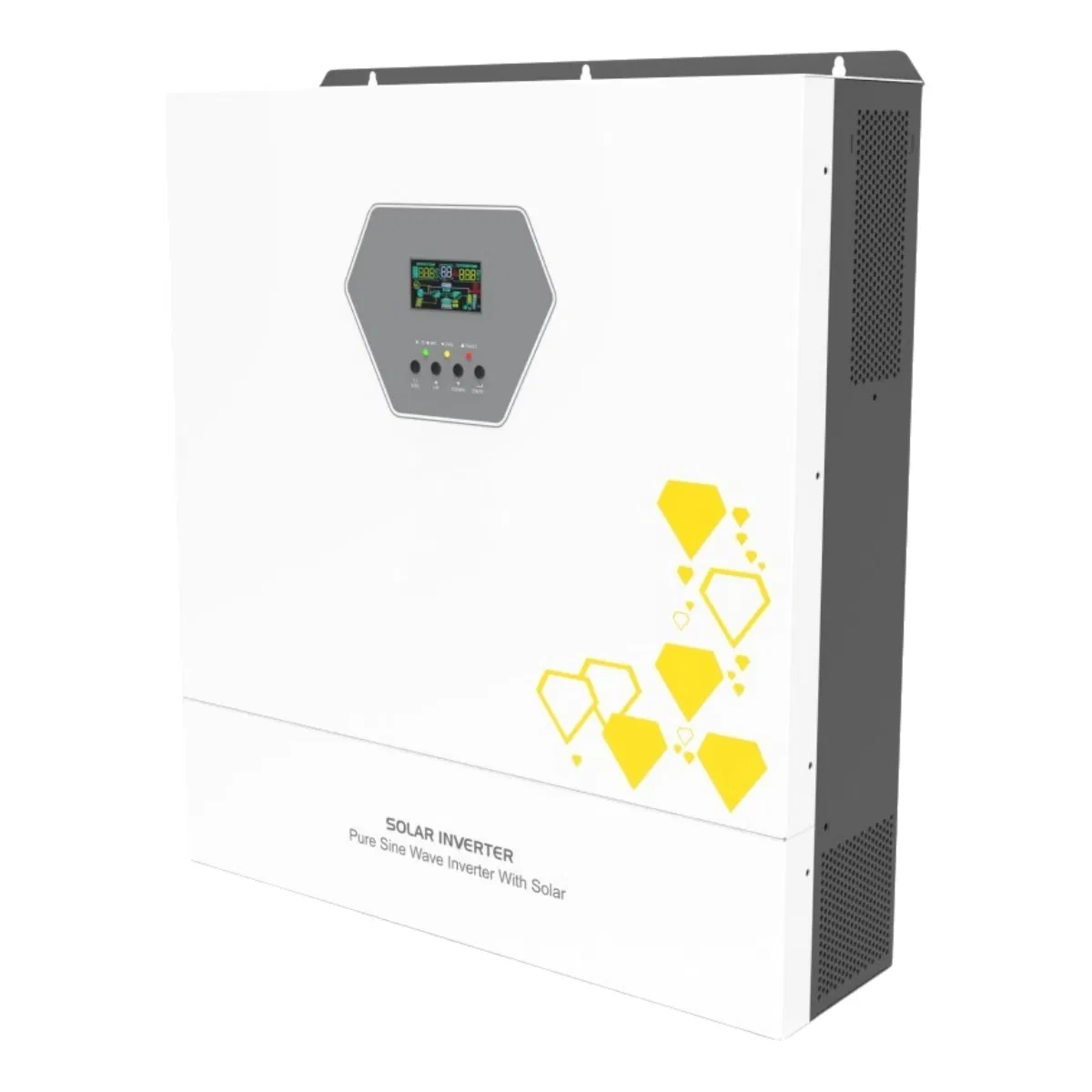

3KW High Efficiency Off Grid Hybrid Solar Inverter GD Series Normal Pure Sine Wave Inverter

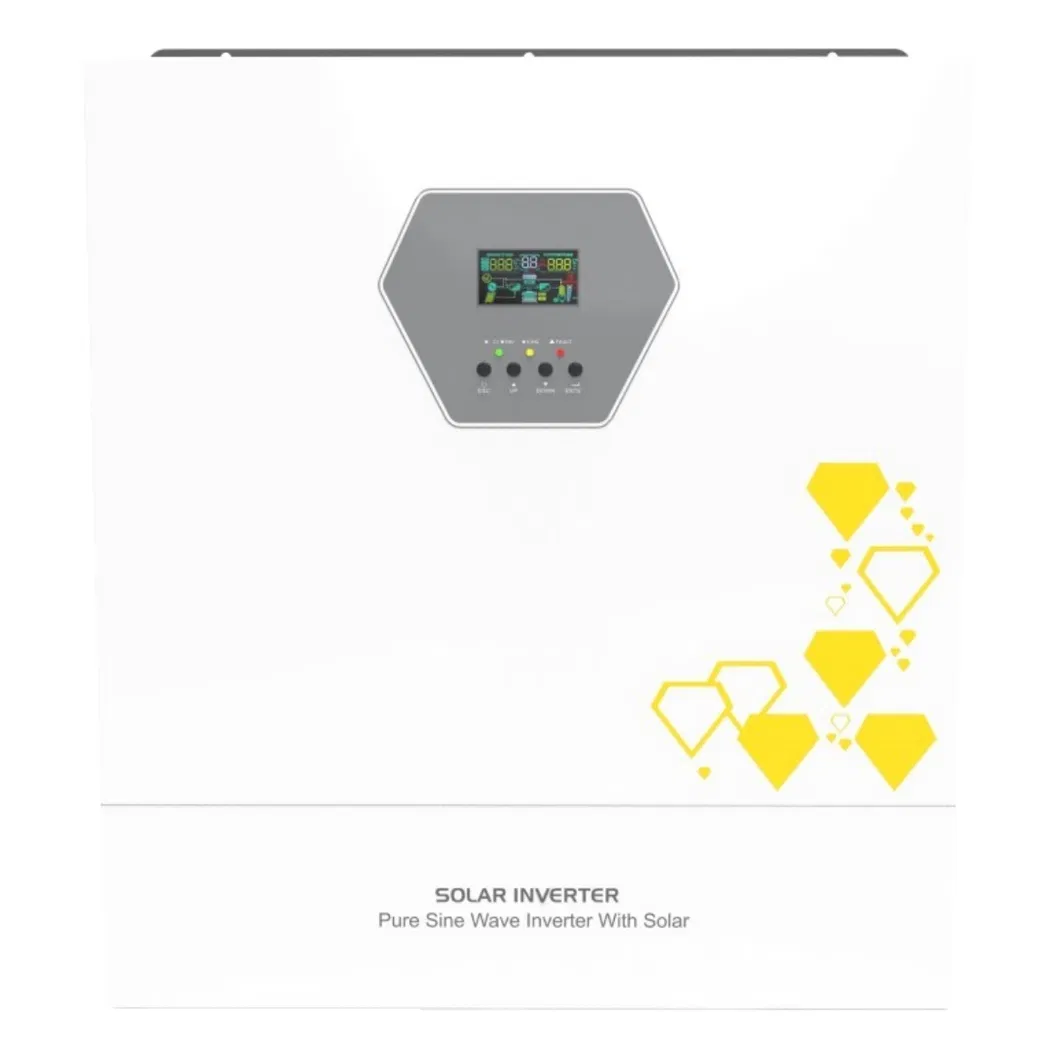

Solar Inverter

Product Features

  • Lithium battery self-starting, better match lithium battery charging.
  • Intelligent power supply mode, intelligent distribution of solar panels/mains/battery power ratio.
  • Mains/PV charging voltage intelligently adjustable for various batteries.
  • Convenient for installation and transportation.
  • Battery reverse connection protection with fuse switch.
  • PF1.0, high efficiency inverter, energy saving.
  • Support work without battery to reduce system costs.
  • External wifi support for real-time monitoring.
  • High precision output voltage 5%.
  • BMS function for lithium battery.

Product Parameters

Solar Inverter GD Normal (3000-11000W)
Model GD3024JMH GD3624JMH GD5548JMH GD6248JMH GD11048JMH
Input AC Input 220/230/240VAC
Frequency 50-60Hz (Adaptive)
Output Rated Power 3000W 3600W 5500W 6200W 11000W
Peak Power 6000W 7200W 10000W 12400W 22000W
Output Wave Pure Sine Wave
Battery Rated Voltage 24VDC 48VDC
Charger Max PV Input 4200W 6200W 6200W 2*5500W
MPPT Range 60-500VDC 90-500VDC
Max Charge Current 100A 100A 100A 120A 150A

Detailed Photos

Detail 1
Detail 2

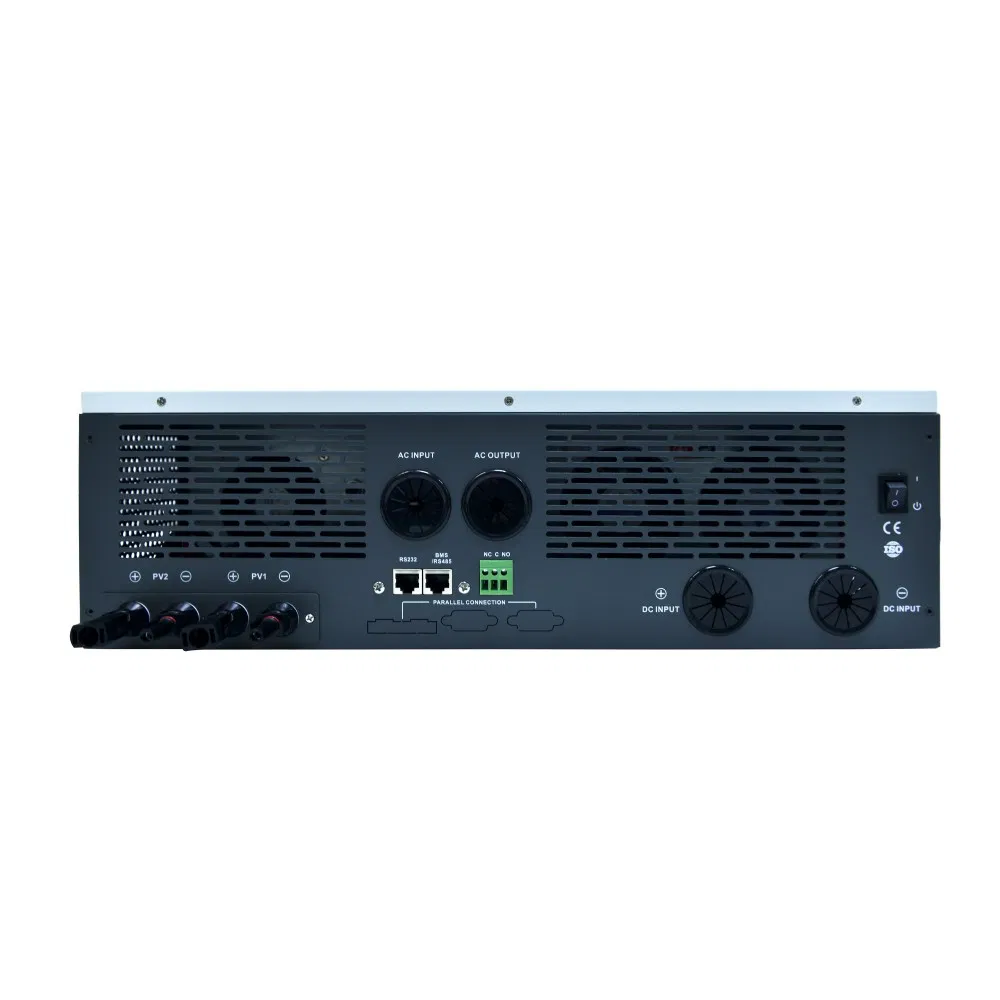

Detail 3
Detail 4

Company Profile

Factory Banner

Our company was founded in 2017, after more than 6 years of development, it has become a comprehensive integration of industry and trade company, which engaged in design, development and production of various pipeline system and connectors professionally. We provide high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, and electrical installations.

The excellence of every detail is the root of excellent quality. We have strong technical force, advanced production techniques, and complete testing equipment. We maintain "Excellent quality, Exceeding customer needs" as our business purpose. We have established a quality system according to international standards, applied in the whole process control of product design, manufacturing, and service. Our supply chains have obtained international quality certifications. The products have passed EU CE Certification, conform to ROHS standards and SGS Environmental Protection Certification, and are exported to the Middle East, Southeast Asia, the European Union, the United States, Australia, South America, and other regions.

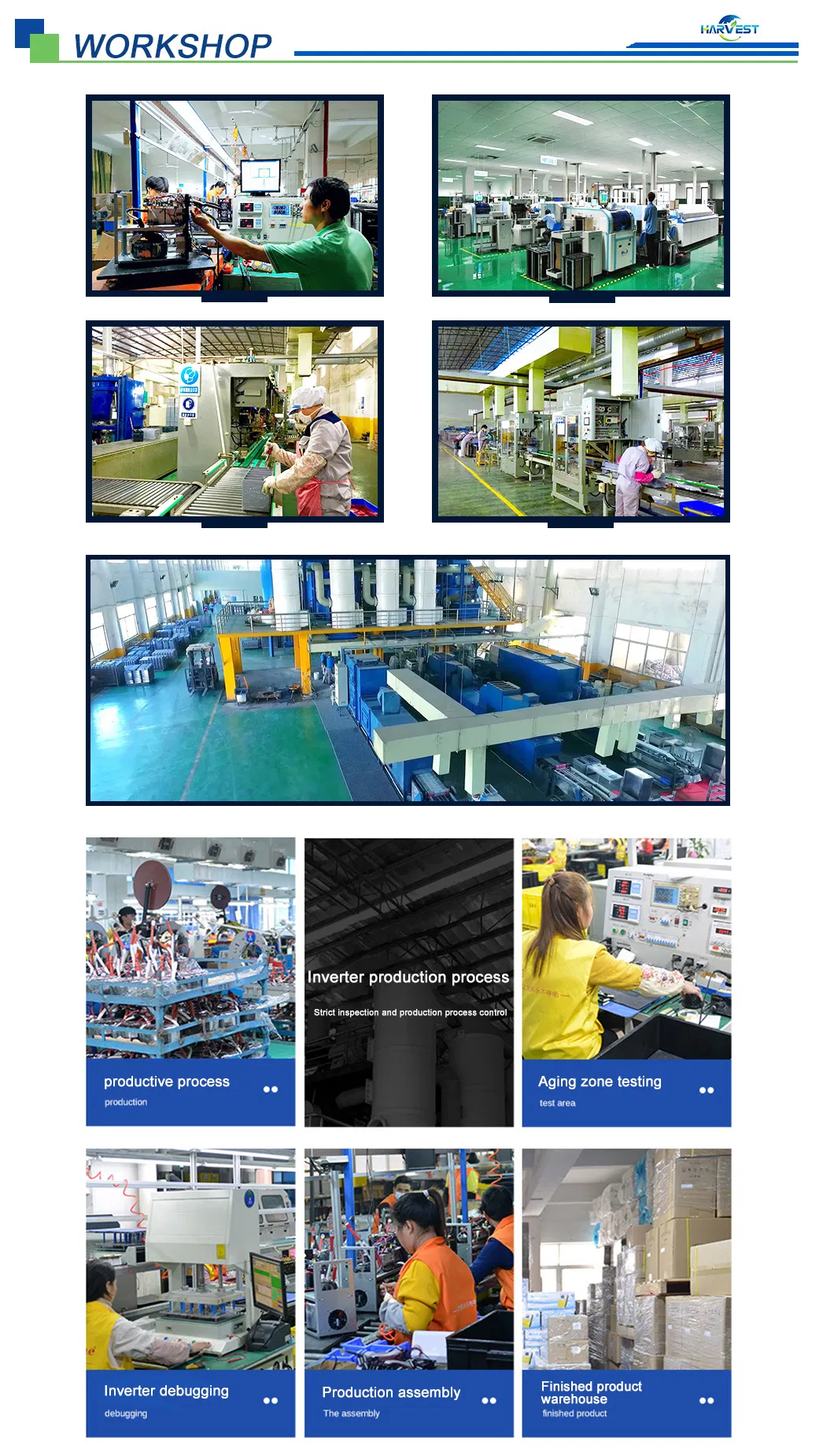

Factory 1
Factory 2
Factory 3

Frequently Asked Questions

Are you a factory or just a trading company?
We are a manufacturer, and we focus on the development and production of the electrical industry for more than 10 years.
Is customized service available?
Of course, OEM & ODM both are available to meet your specific requirements.
How can I get a quotation?
Leave us a message with your purchase requirements and we will reply to you within one hour during working time.
Can I buy one as a sample?
Yes, sample orders are welcome for quality testing and market evaluation.
How about your quality control?
Our professional QC team checks the quality during production and performs strict tests before shipment. An inspection report is provided with every shipment.
What is the typical lead time for orders?
Lead times vary based on order volume and customization, but we strive for efficient production to ensure timely delivery.
