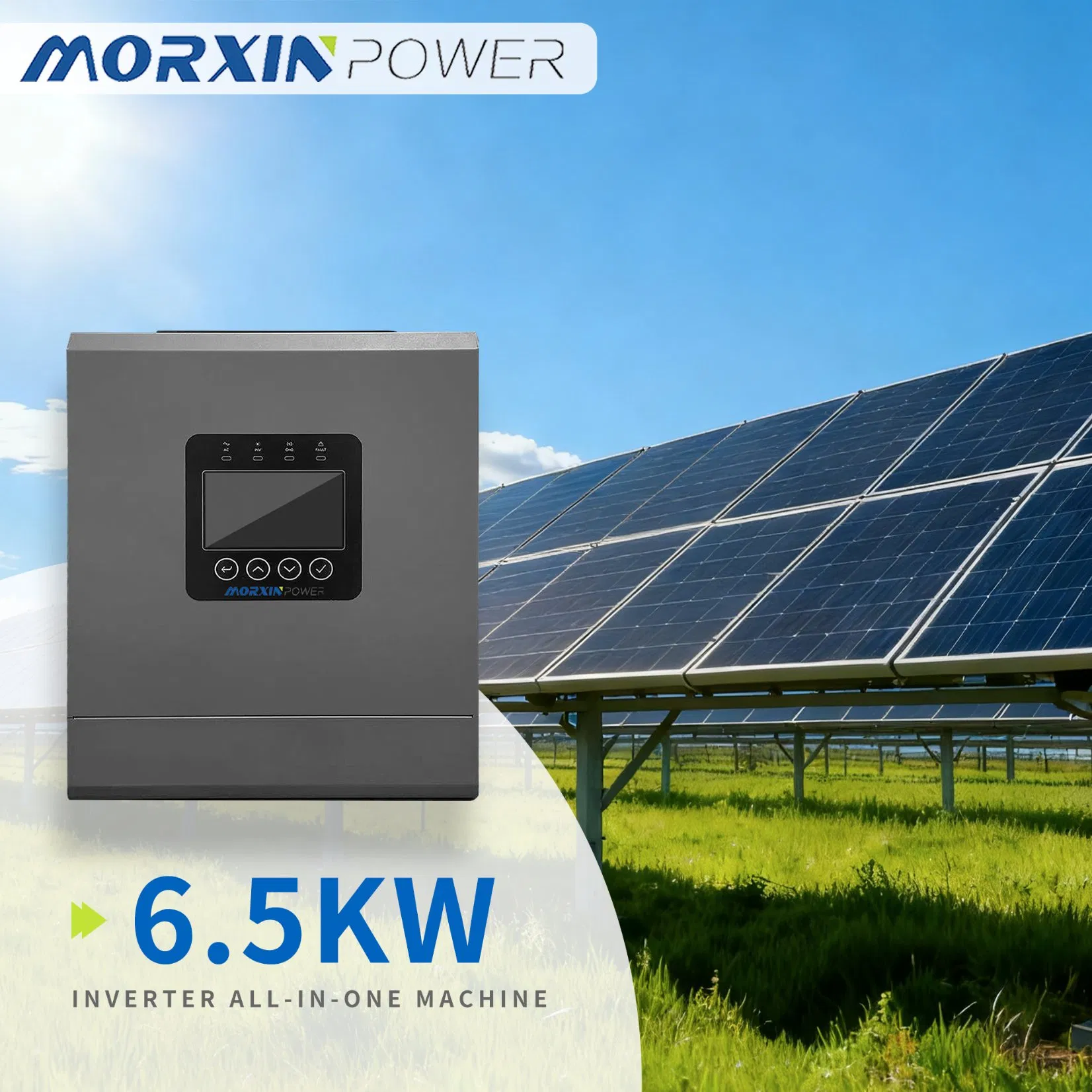

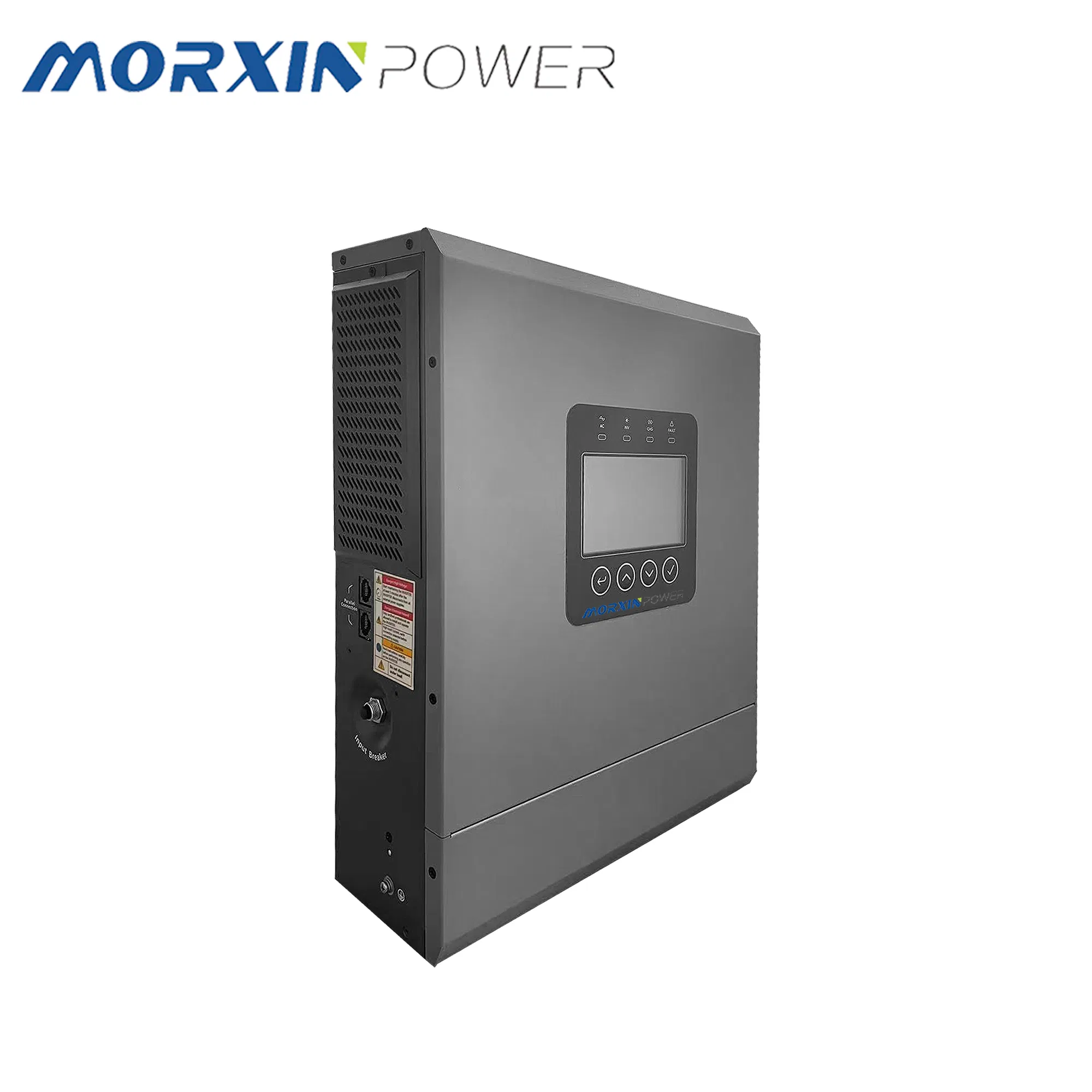

Advanced 48V 6.5kw Controller Charge off Grid Solar Pure Sine Wave Energy Solar Power Inverter with MPPT

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.PV9000-48 P6.5
Output Power>1000W
Grid Typeoff-Grid Inverter
Output TypeSingle
Circuit TopologiesHalf-Bridge Type
Nature of Wave StringSine Wave Inverter
TypeDC/AC Inverters
Rated Input Voltage(VAC)208/220/230/240;L+N+PE
Voltage Range(VAC)90-280(APP Mode);170-280(UPS Mode)
Frequency(Hz)50/60(Auto Adaptive)
AC Output Rated Capacity(Kw)6.5kw
Wave FormPure Sine Wave
Max. Efficiency(Battery Mode)94%@48V
Solar Charger TypeMPPT
Max PV Input Current/Power27A/9000W
Max PV Open Circuit Voltage(VDC)500
Battery TypeLithium and Lead-Acid
Ingress ProtectionIP21
Operating Temperature-10℃~60℃

Product Specifications

AC Input & Output
Surge Power (kVA)12
Power Factor(PF)1
Switch Time (ms)10(APP/UPS mode)/20(GEN mode)
Overload Capacity1min@ 102%~110% load; 10s@ >110%load
Charger (PV/AC)
MPPT Range (VDC)60~450
PV Start-up Voltage80Vdc
Max AC Charge Current (A)120
Max. Charge Current (PV+AC)120
General Data
HMI / InterfaceLCD / RS485, CAN, RS232, Parallel ports
MonitoringWiFi (Optional)
Max. Operating Altitude4000m (Derating above 1000m)
📷

Product Visuals

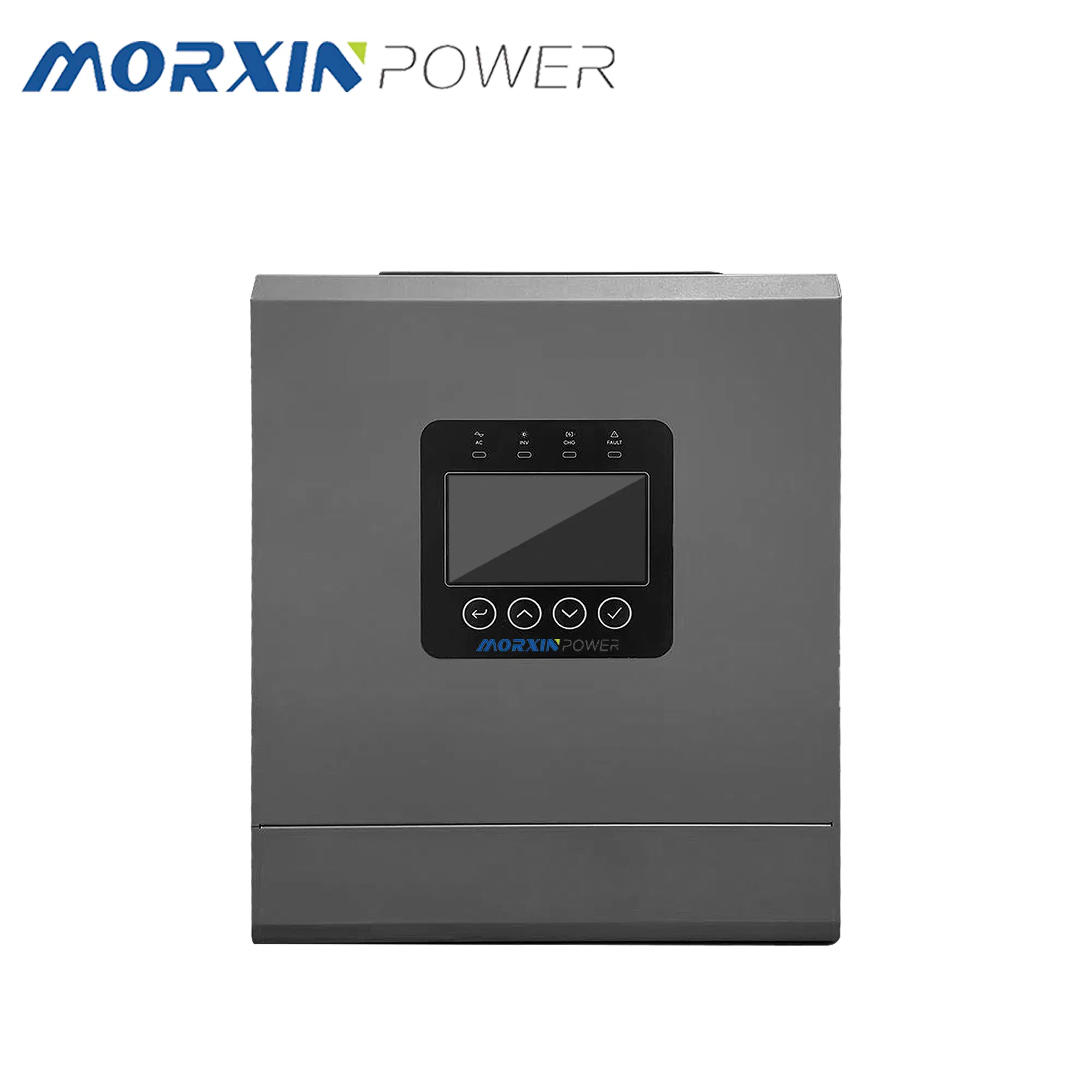

Solar Power Inverter Detail 1

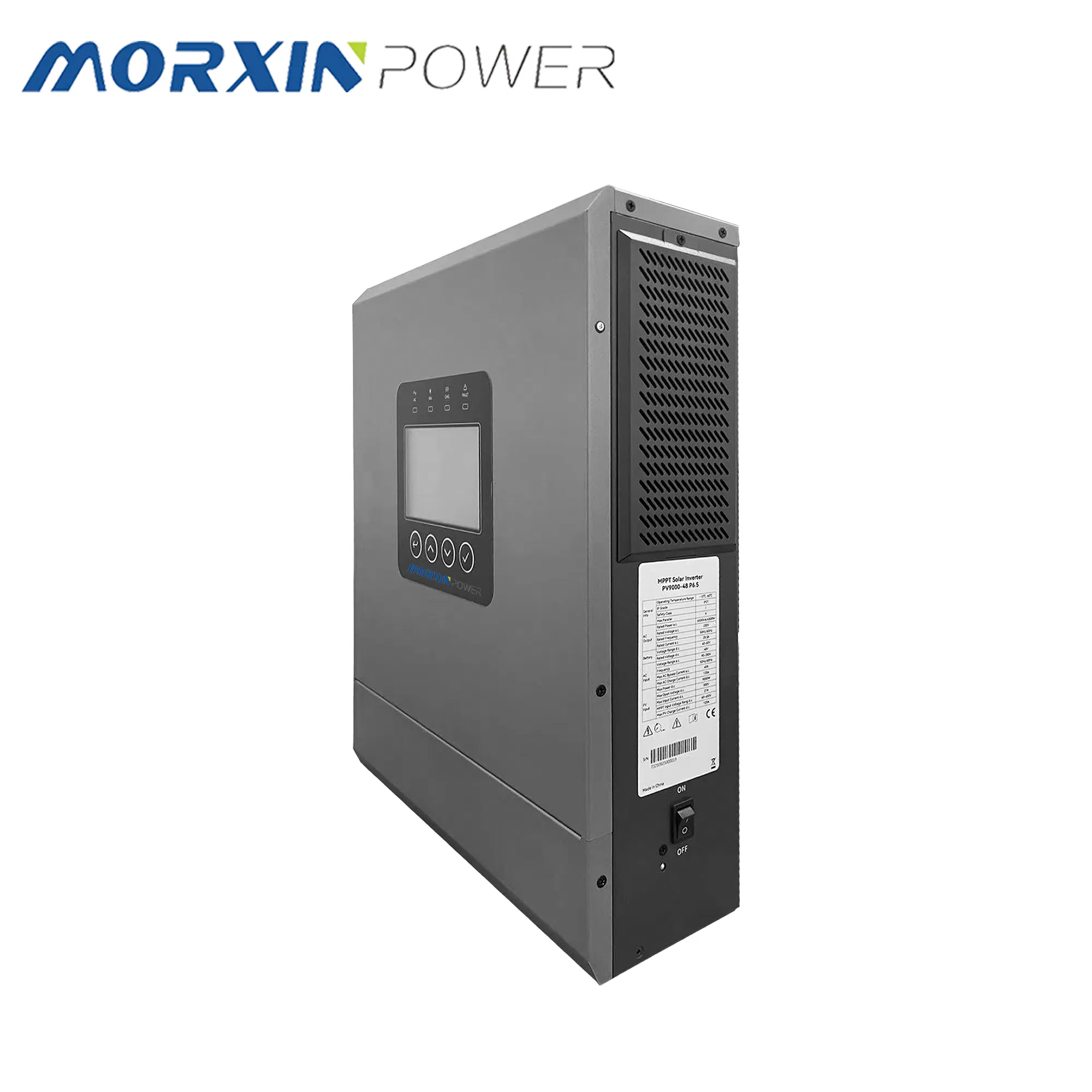

Solar Power Inverter Detail 2

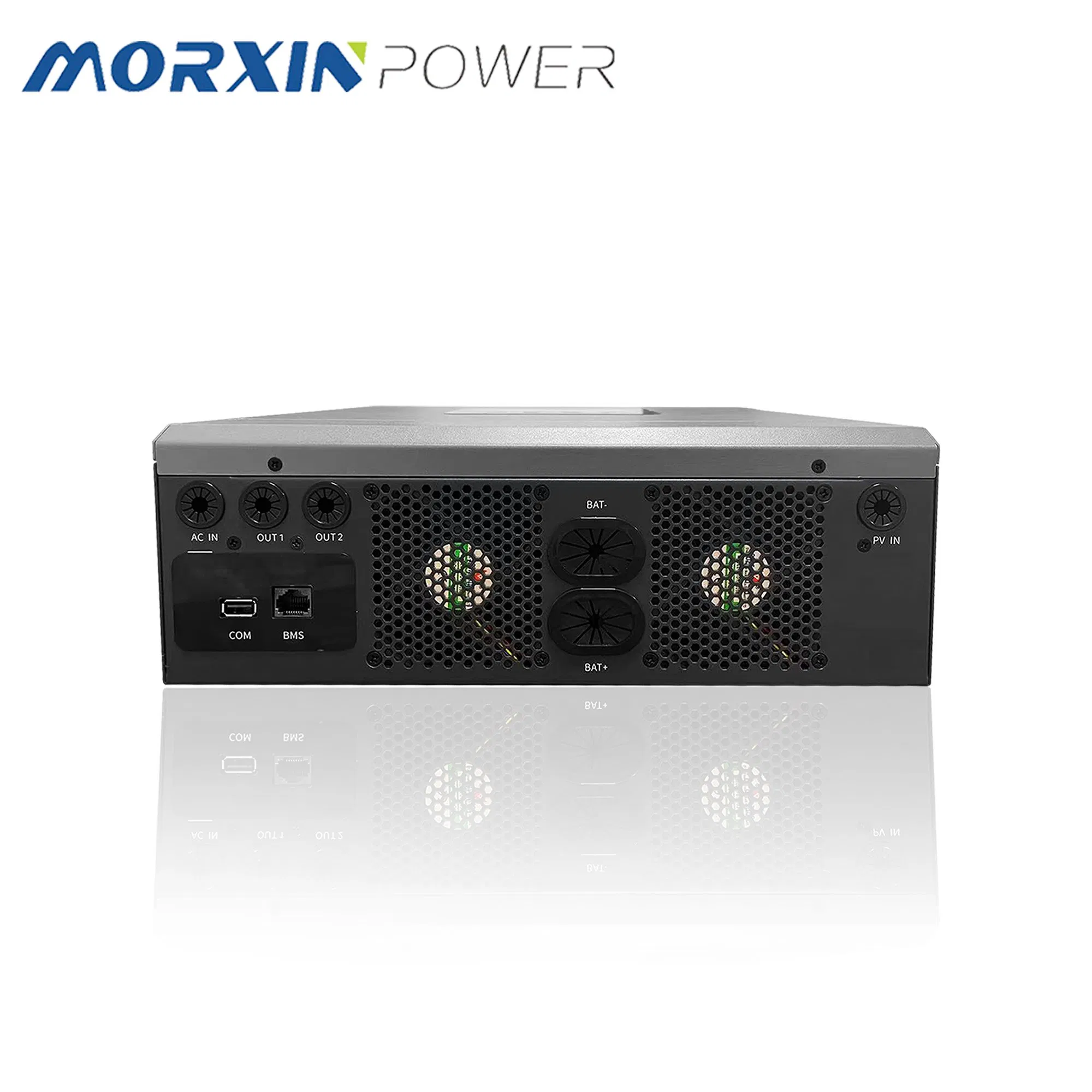

Solar Power Inverter Detail 3

Main Product Display

Main Solar Power Inverter
📋

Manufacturing Excellence

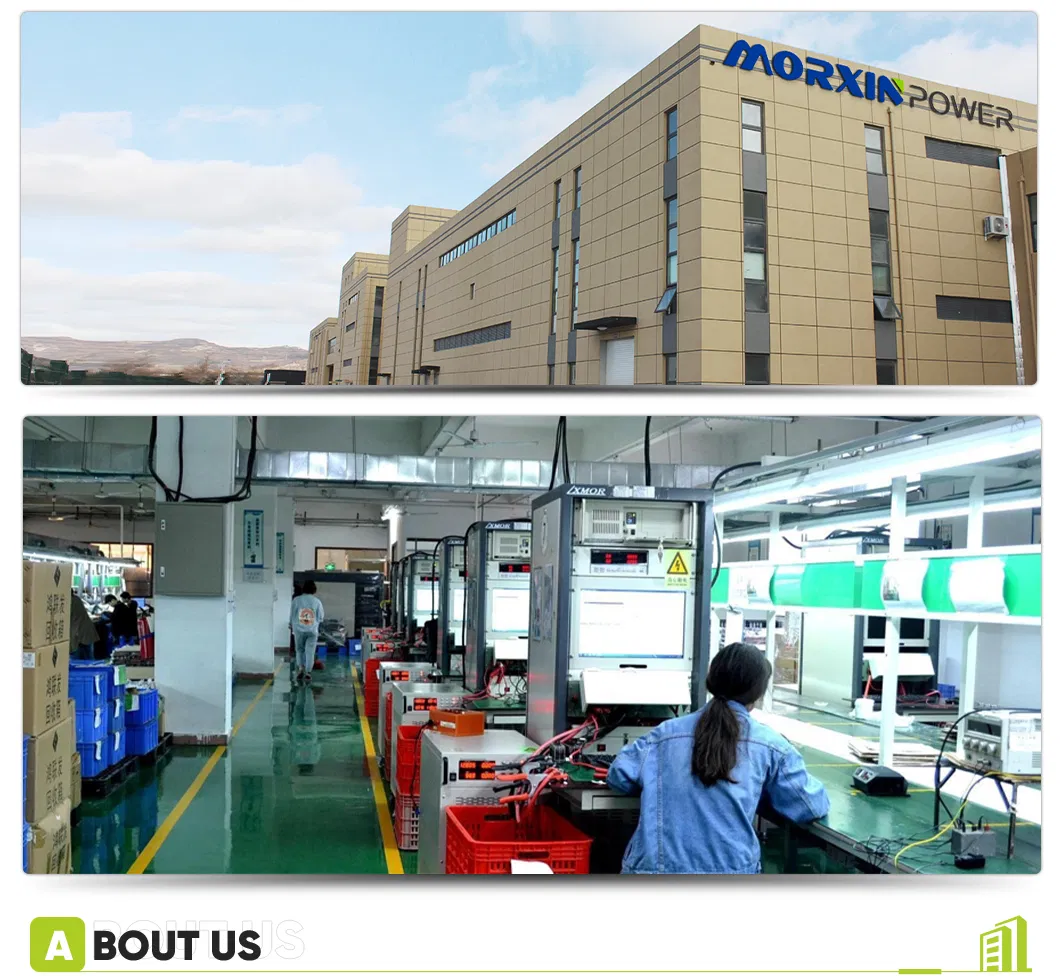

Production Capabilities
Established in 2005, the enterprise is committed to R&D, innovation, and manufacturing. With a professional team possessing more than 30 years of industry experience, it has built a solid foundation of technical expertise and a trusted global reputation. The facility obtained ISO9001 quality management system certification in 2006, ensuring that every process meets international quality standards.
Main product lines include power inverters, battery chargers, portable power stations, and related energy solutions. Products comply with international standards and are widely recognized worldwide. State-of-the-art production equipment includes high-speed SMT machines, automatic component placement systems, PCB soldering machines, and advanced aging detection equipment.
🏭

Our Factory & Certifications

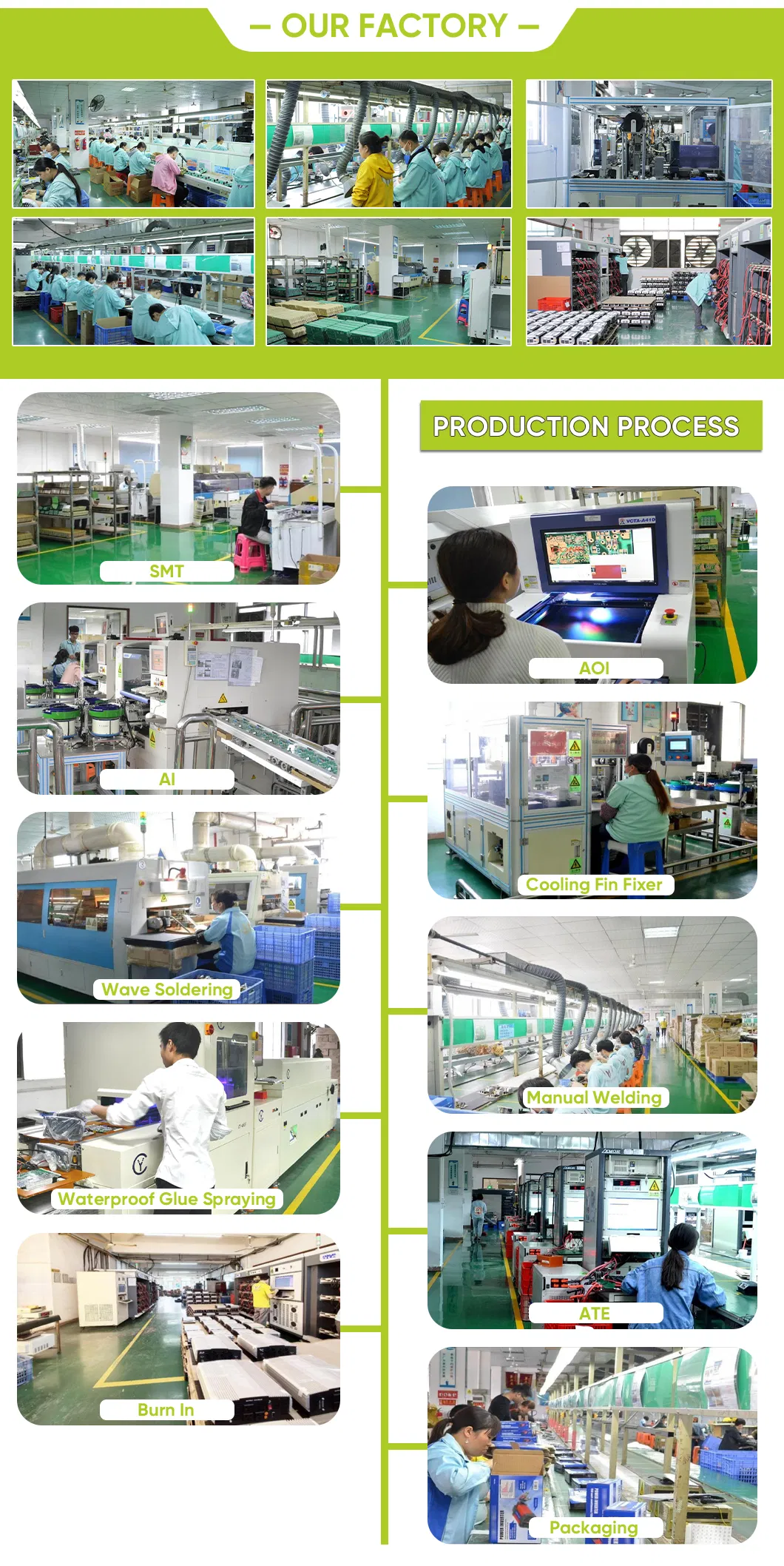

Factory Overview
Product Certifications
Cooperative Brands
📦

Packaging & Shipping

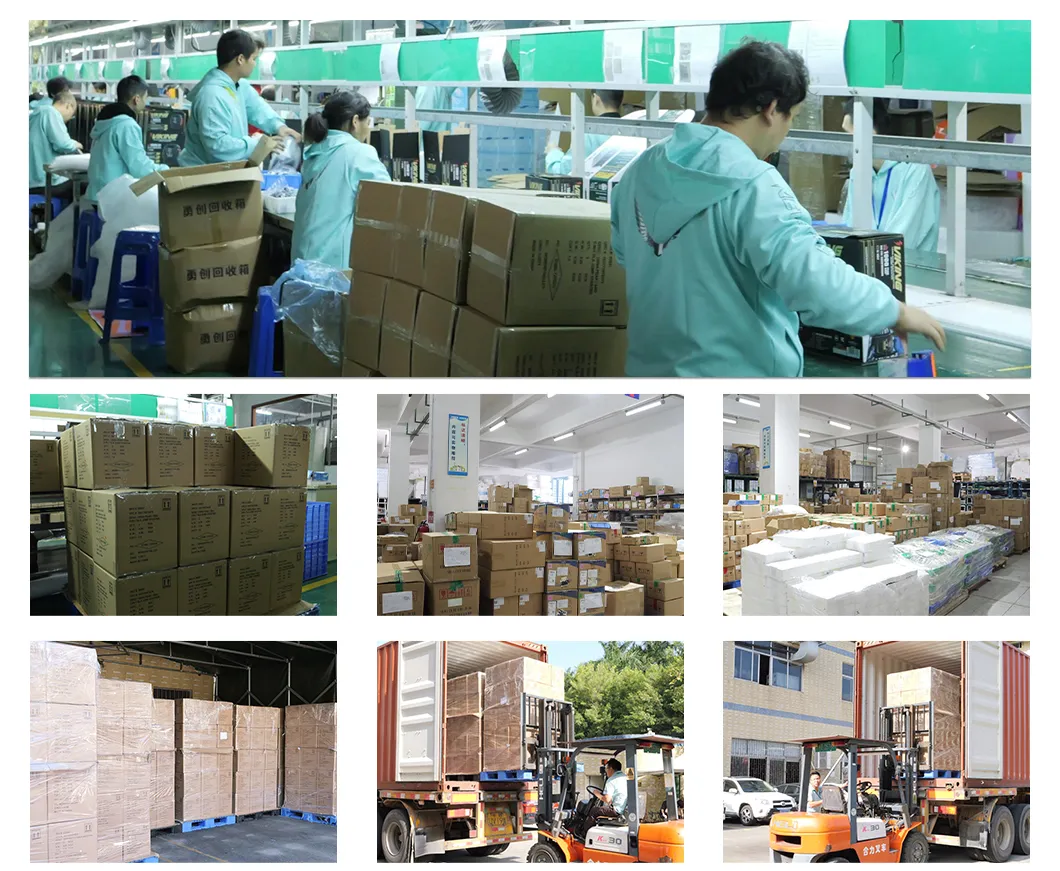

Packaging Details
Package Size49.00cm * 40.00cm * 18.00cm
Package Gross Weight9.500kg
Transport PackageCartons
?

Frequently Asked Questions

Are your power inverters reliable and certified?
Yes, our products are manufactured under a strict ISO 9001 quality control system. They carry international certifications such as CE, RoHS, UL, FCC, and CCC, ensuring they meet global safety and quality standards.
What is the efficiency of the power inverter?
Our high-quality pure sine wave inverters utilize high-efficiency transformer isolation, resulting in overall efficiency of over 90%, with some models reaching up to 95%.
What is the difference between pure sine wave and modified sine wave?
Pure sine wave output is essentially identical to mains power, supporting all AC loads (refrigerators, TVs) without noise or interference. Modified sine wave is more economical but may affect the performance of sensitive electronics.
What should I do if the inverter has no output?
Check the input power connection and the fuse. Abnormal conditions like short circuits or overloads will cause the fuse to blow to protect the circuit. Ensure the power cord is secure and the switch is functional.
Can the power inverter be customized?
Yes, we offer customization services. You can specify requirements such as input/output voltage, power rating, waveform type, and special features to meet your specific needs.
What is the process for after-sales support?
Contact our customer service with the product model and a description of the issue. We provide a preliminary assessment and solution. If it's a hardware issue, we coordinate inspection and repair within a specified timeframe.
