5.5kw Gd Series Parallel Machine Version B Pure Sine Wave off Grid Solar Inverter

Still deciding? Get samples of $ !
Order Sample

Product Description

!

Basic Specifications

Model NO.GD Series B
Nature of Source FlowActive Inverter
PhaseSingle
Output Power>1000W
CertificationCE
TypeDC/AC Inverters
Power SourceSolar Power
Circuit TopologiesFull-Bridge Type
Nature of Wave StringSine Wave Inverter
AC Input220/230/240VAC
Input Frequency50-60Hz (Adaptive)
Output WavePure Sine Wave
OEM&ODMAccept
Package Size57.00cm * 50.00cm * 14.80cm
Package Gross Weight10.000kg

Product Overview

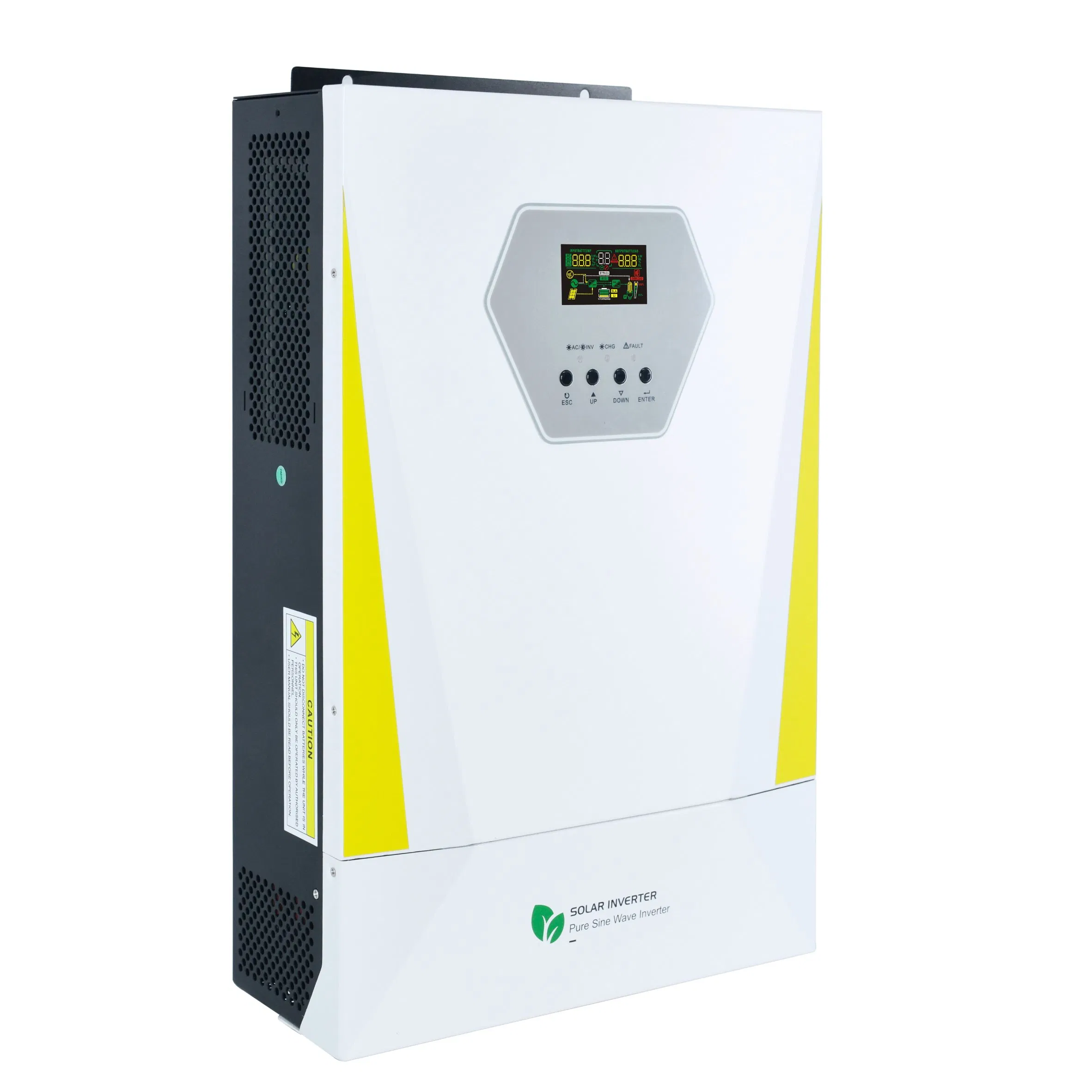

5.5KW GD Series Parallel Machine Version B Pure Sine Wave Off Grid Solar Inverter

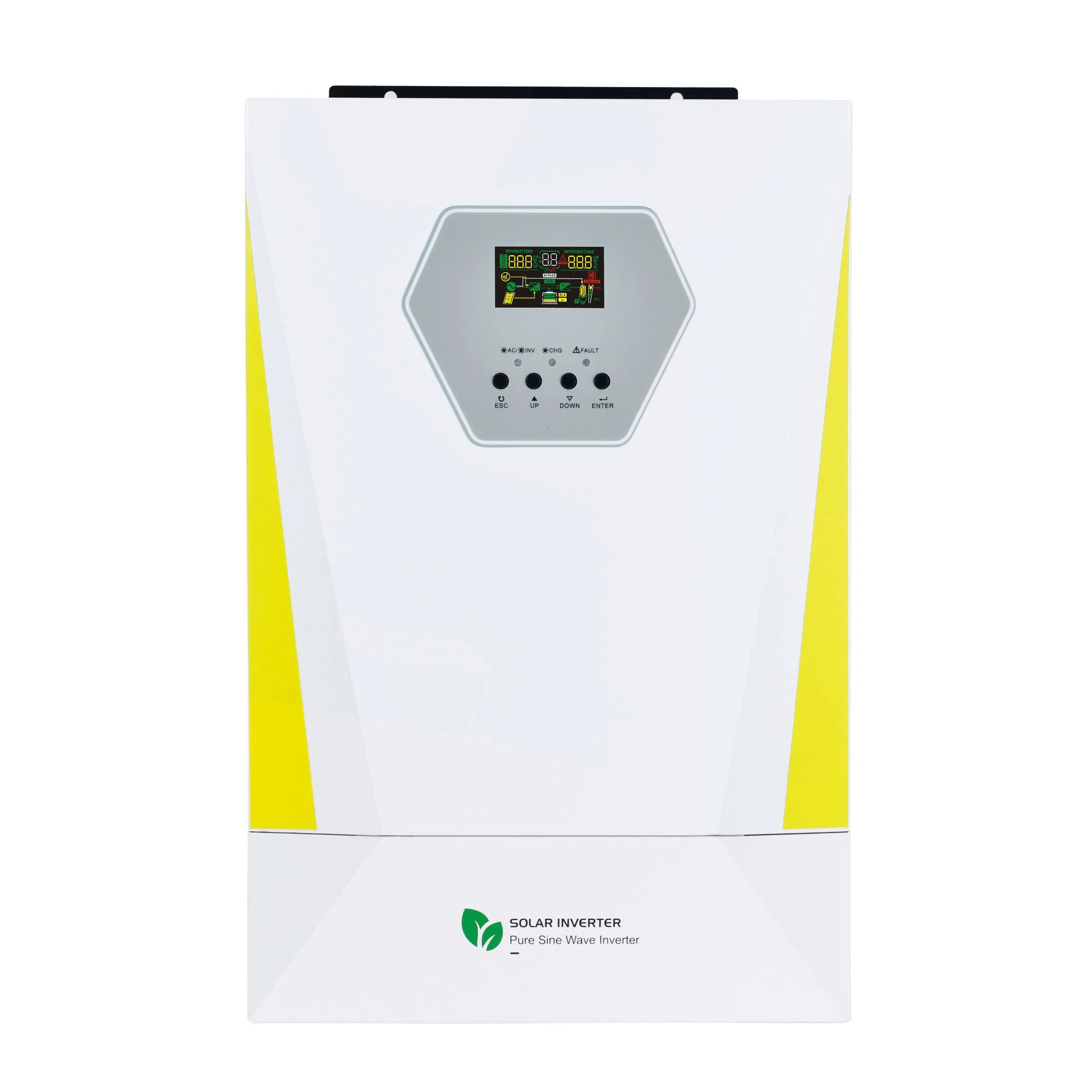

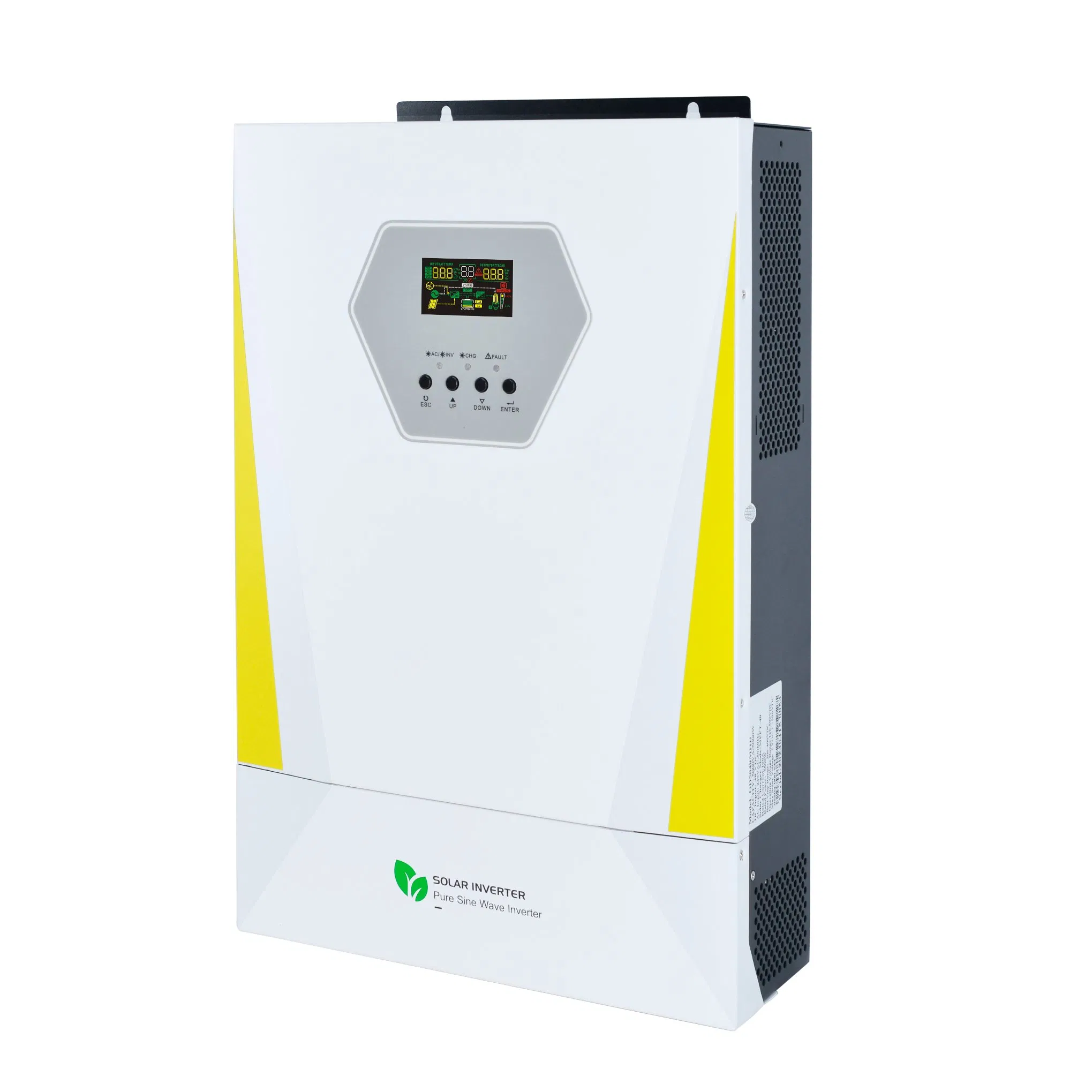

Solar Inverter Main View

Key Features

01Lithium battery self-starting, better match lithium battery charging.
02Intelligent power supply mode, intelligent distribution of solar panels/mains/battery power ratio.
03The mains charging voltage/PV charging voltage intelligently adjustable to match various batteries.
04Convenient for installation and transportation.
05Battery reverse connection protection with fuse switch, safer installation.
06PF1.0, high efficiency inverter, low loss energy saving and environmental protection.
07Support work without battery: Reduce system costs significantly.
08Up to nine parallel machines can support larger capacity loads with simple expansion.
09Lithium battery BMS protocol integration.
10External WiFi connection for real-time data monitoring.

Technical Parameters

Solar Inverter GD Series B (5500-11000W)
Model GD5548JMHB GD6248JMHB GD8648MHB GD11048MHB
Input AC Input 220/230/240VAC
Frequency 50-60Hz (Adaptive)
Output Rated Power 5500W 6200W 8600W 11000W
Output Wave Pure sine wave
Peak Power 11000W 12400W 17200W 22000W
Battery Rated Voltage 48VDC
Max Charge Current 100A 120A 150A 150A
Solar Charger Max PV Input 6200W 6200W 2*5500W 2*5500W
MPPT Range 60-500VDC 90-500VDC
📷

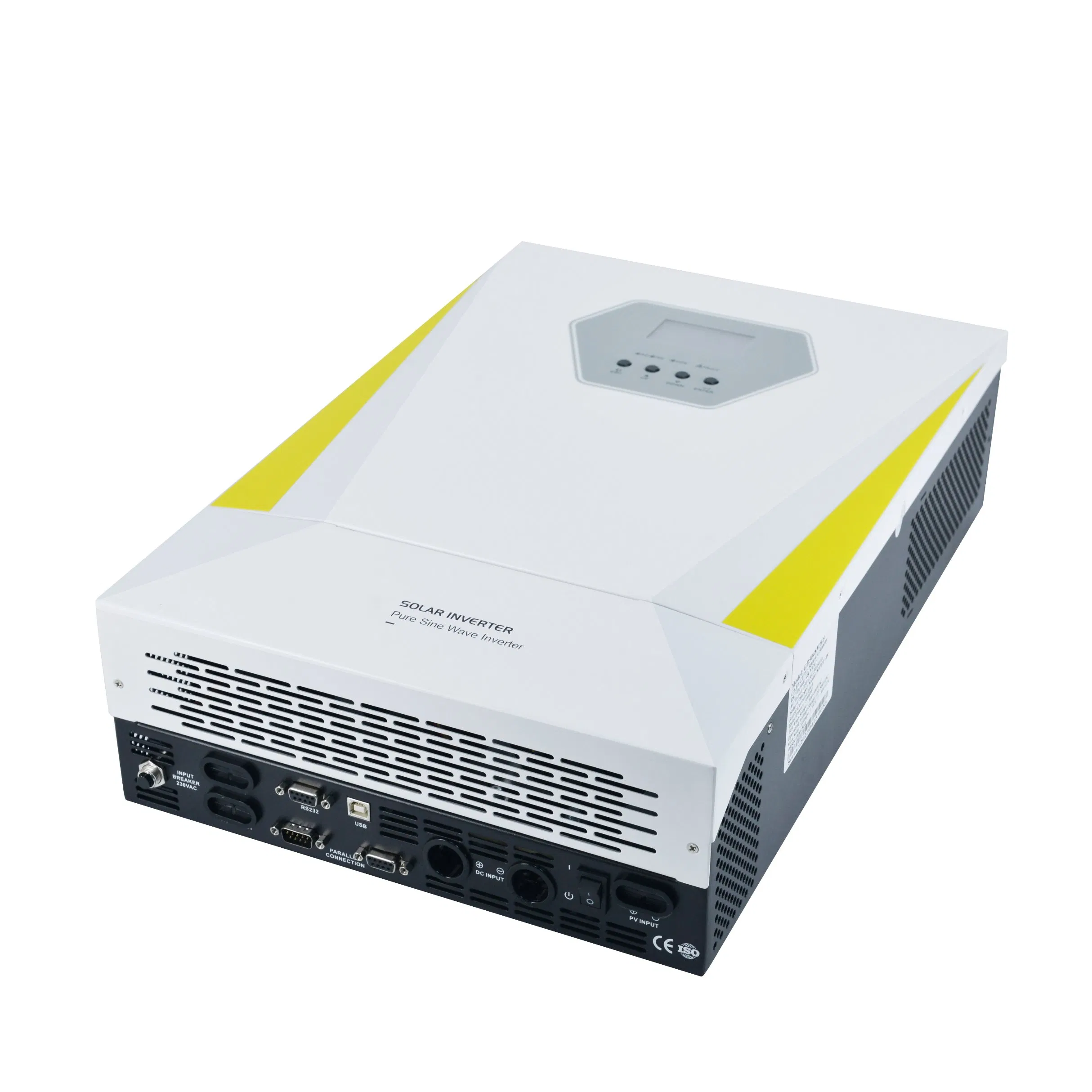

Detailed Gallery

Detail 1
Detail 2
Detail 3

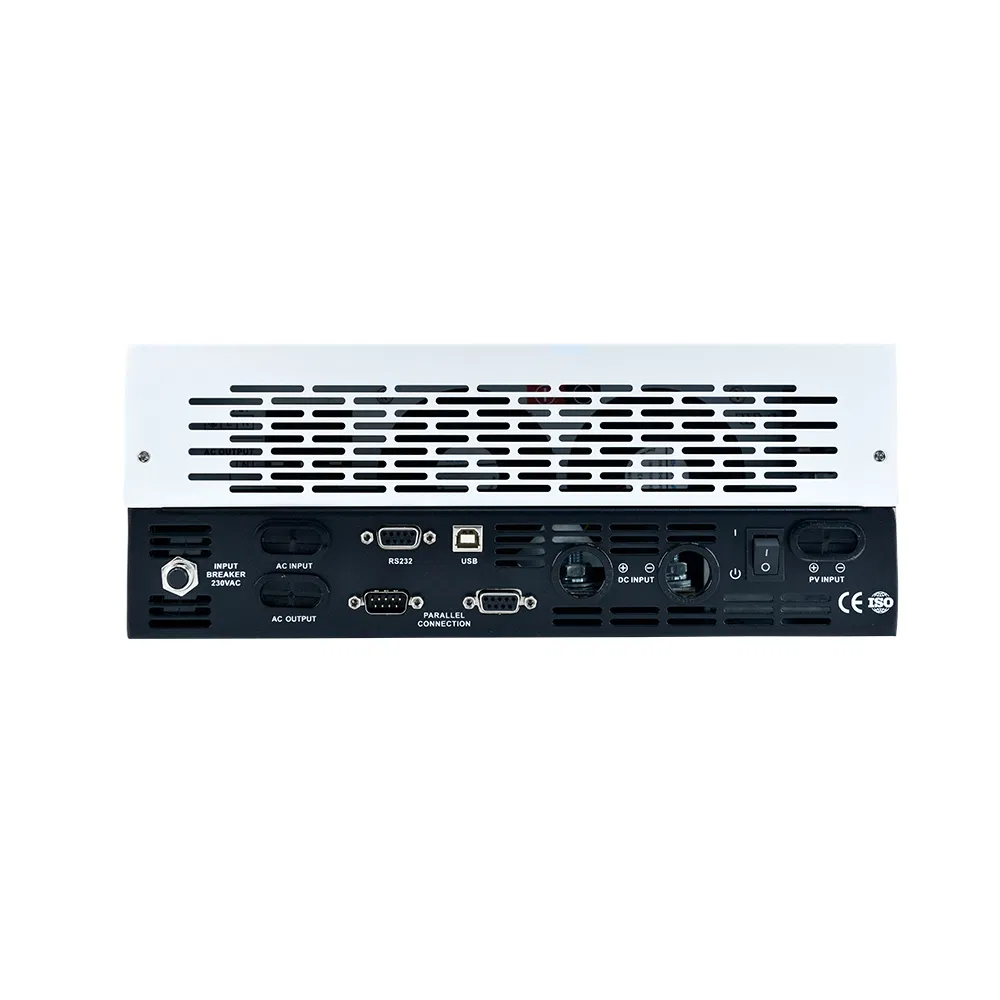

Detail 4

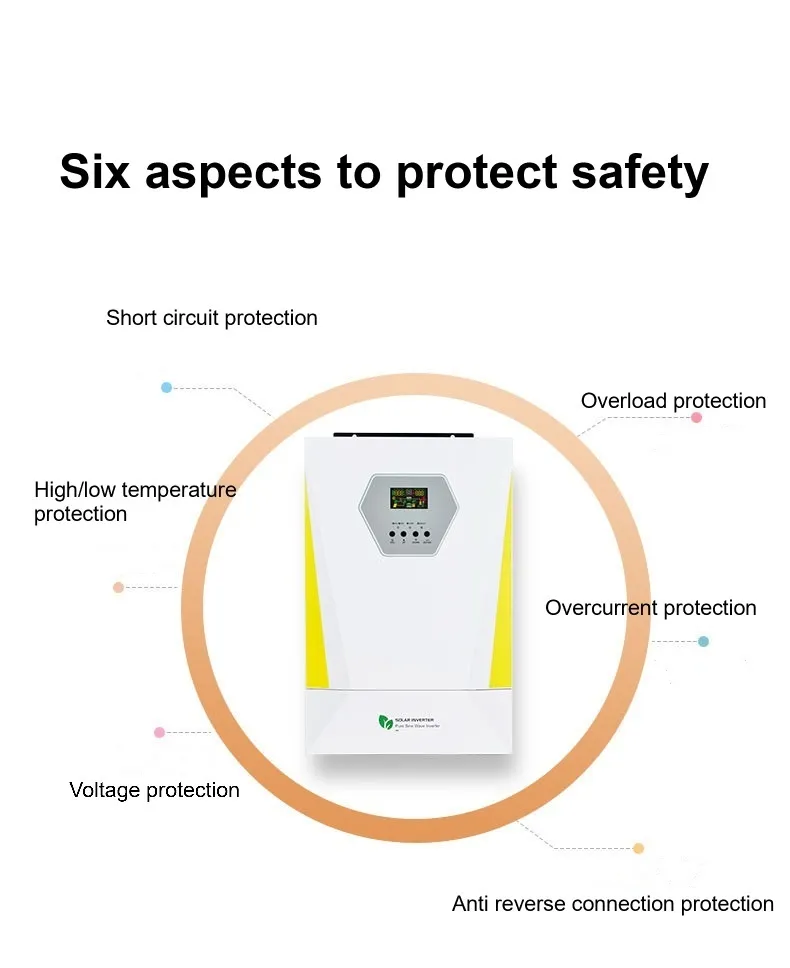

Detail 5

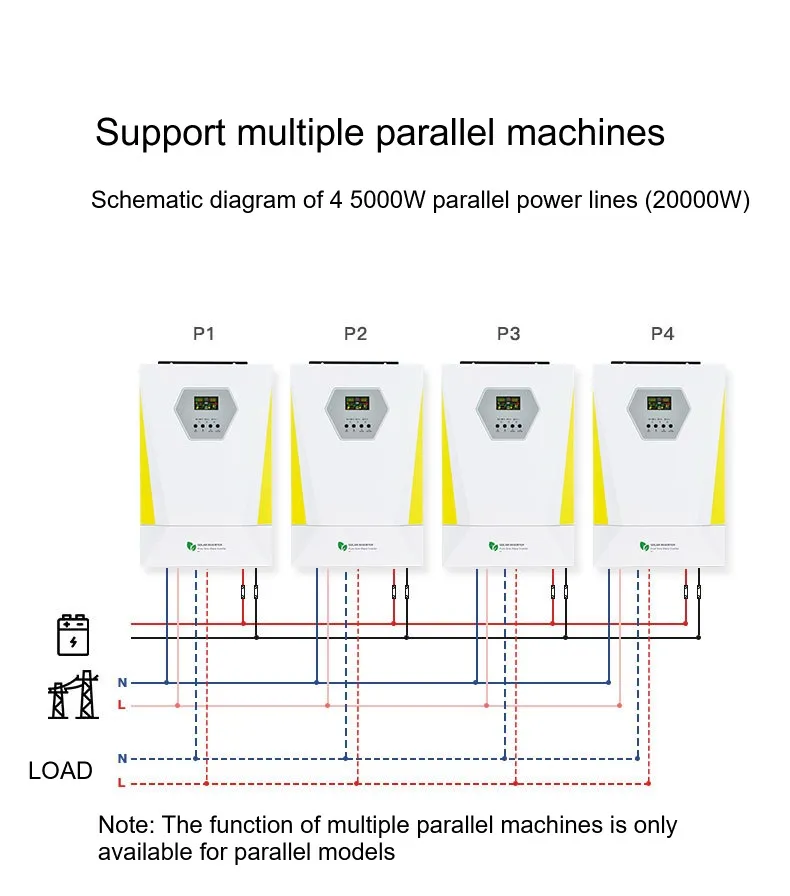

Product Layout
🏢

About Us

Factory Banner
Founded in 2017, after more than 6 years of development, the company has become a comprehensive integration of industry and trade, professionally engaged in the design, development, and production of various pipeline systems and connectors. We provide high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, and automobile manufacturing.

The excellence of every detail is the root of excellent quality. We possess strong technical force, advanced production techniques, and complete testing equipment. We have established a quality system according to ISO9001 international standards, applied to the whole process control of product design, manufacturing, and service. All our supply chains have obtained TUV Certification. The products have passed EU CE Certification, conforming to ROHS standards and SGS Environmental Protection Certification.

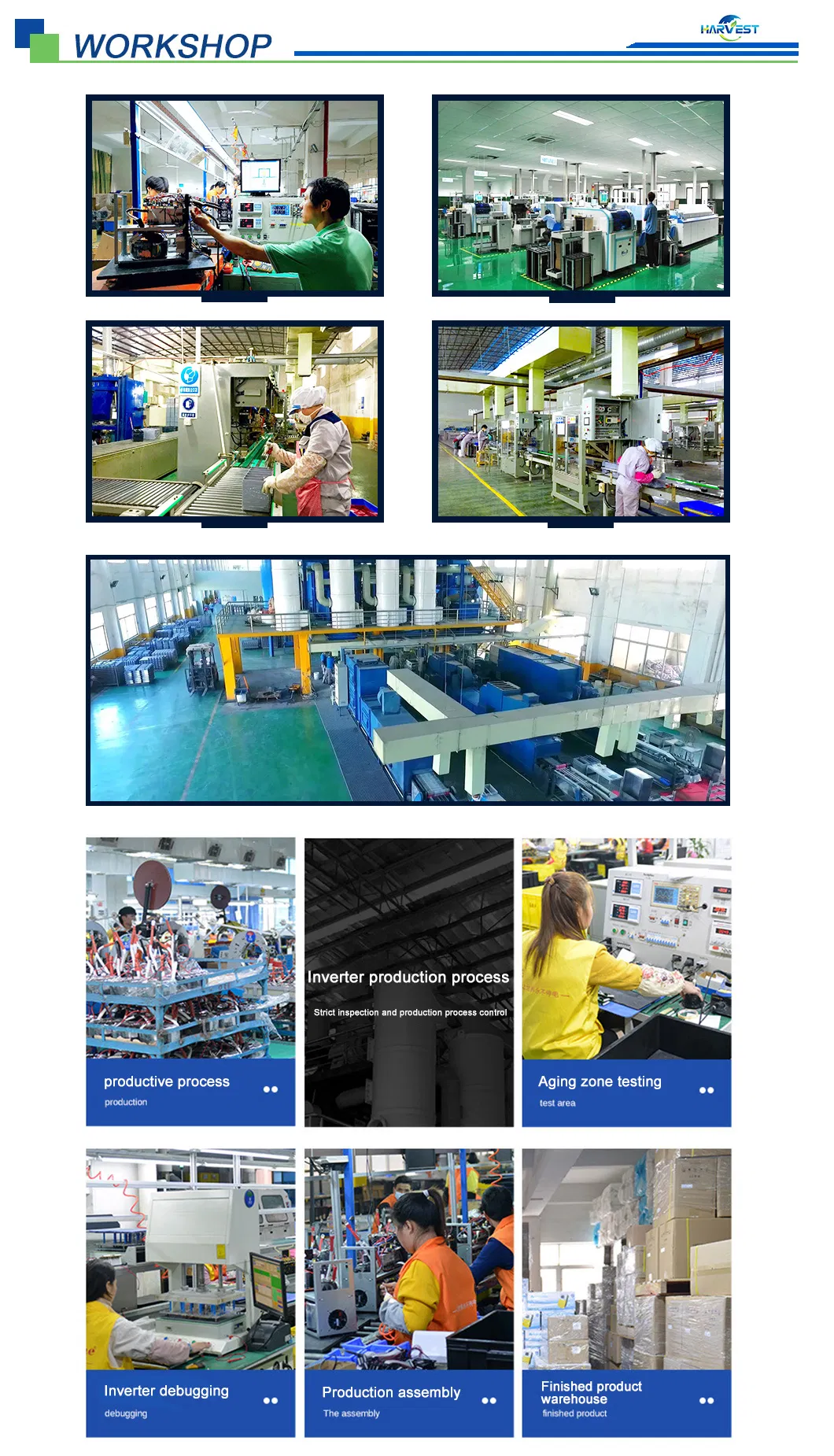

Production Line
Certificates
Testing
?

Frequently Asked Questions

Are you a factory or just a trading company?
We are a manufacturer focusing on the development and production of the electrical industry for more than 10 years.
Is customized service available?
Of course, both OEM & ODM services are available to meet your specific requirements.
How can I get a quotation?
Leave us a message with your purchase requirements and we will reply to you within one hour during working time.
Can I buy a single unit as a sample?
Yes, sample purchases are supported for quality testing and evaluation.
How do you handle quality control?
Our professional QC team checks quality during production and performs final tests before shipment. An inspection report is included with every shipment.
What certifications do your products have?
Our products have passed EU CE Certification and conform to ROHS standards and SGS Environmental Protection Certification.
