Product Description

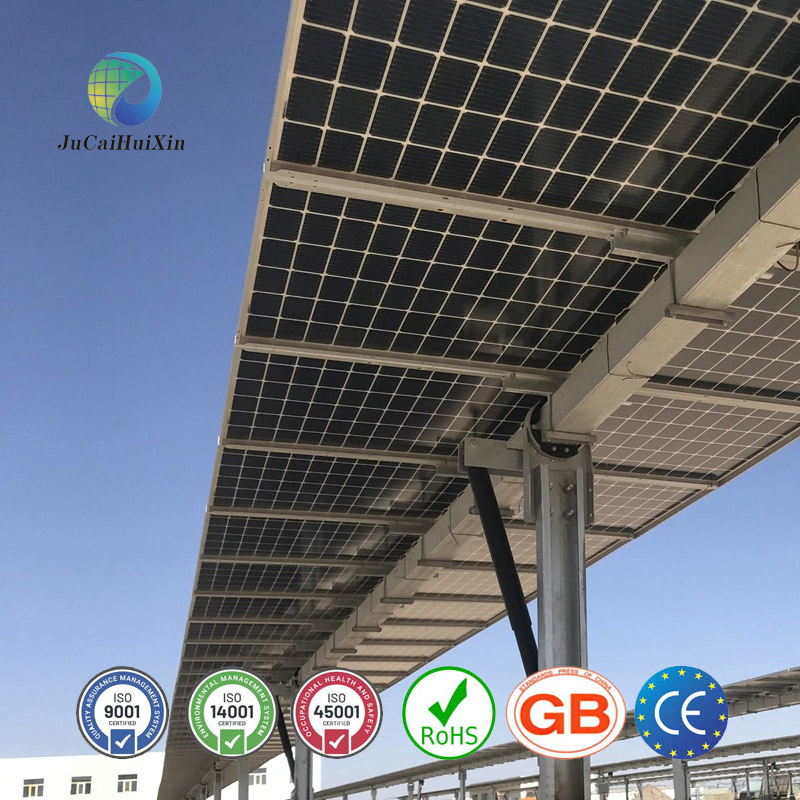

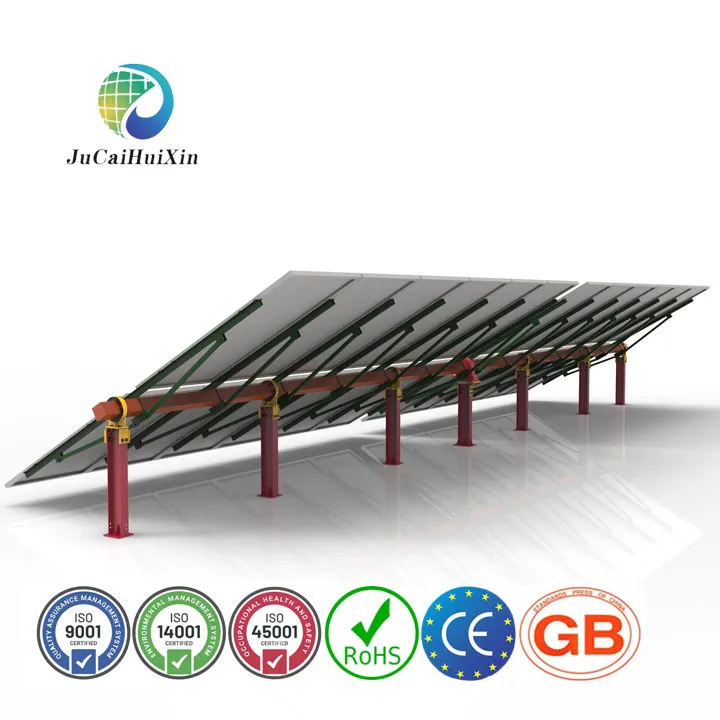

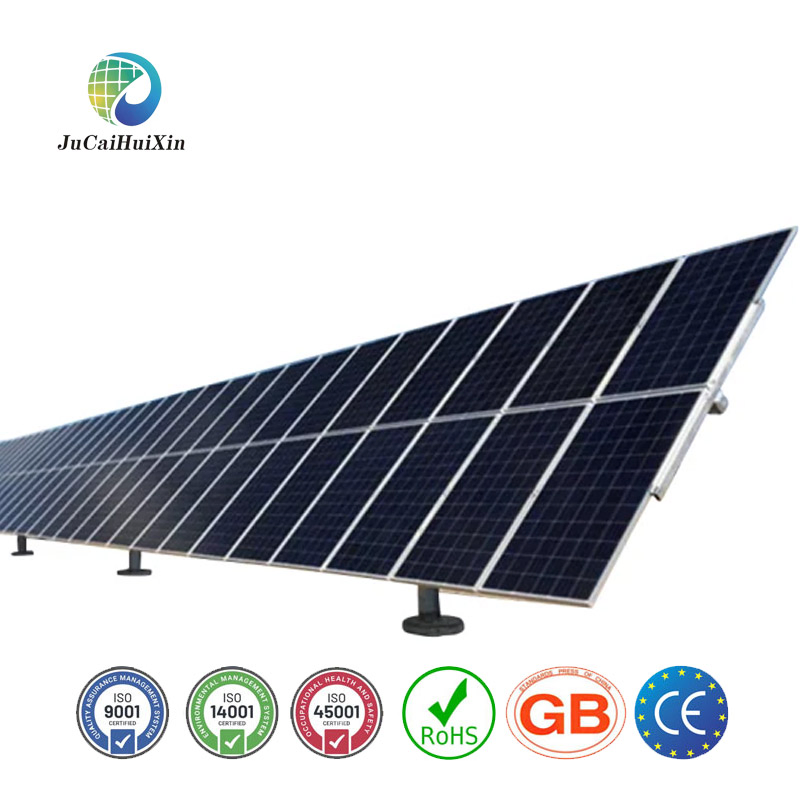

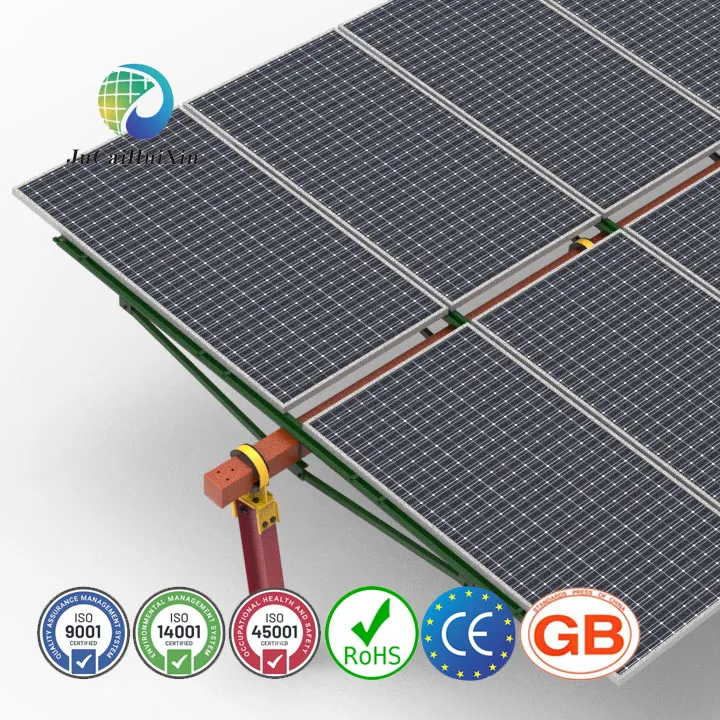

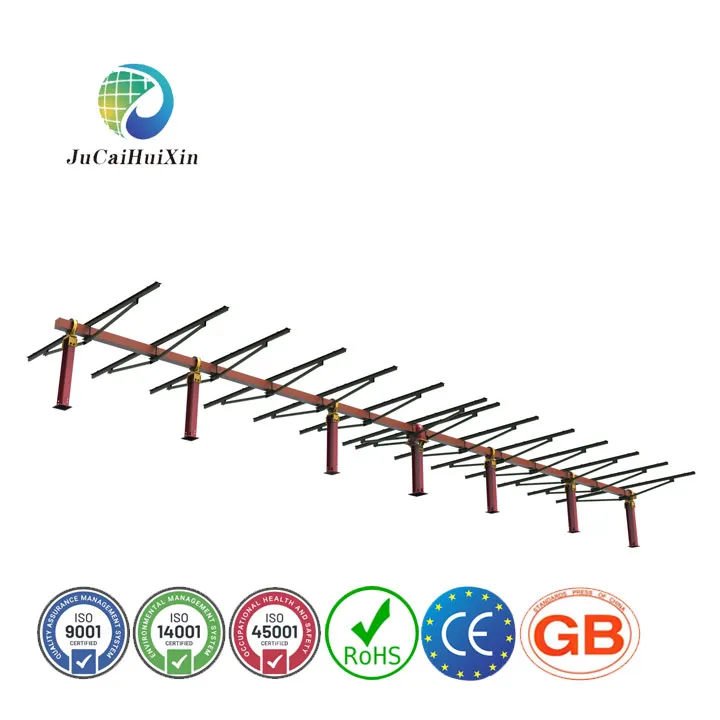

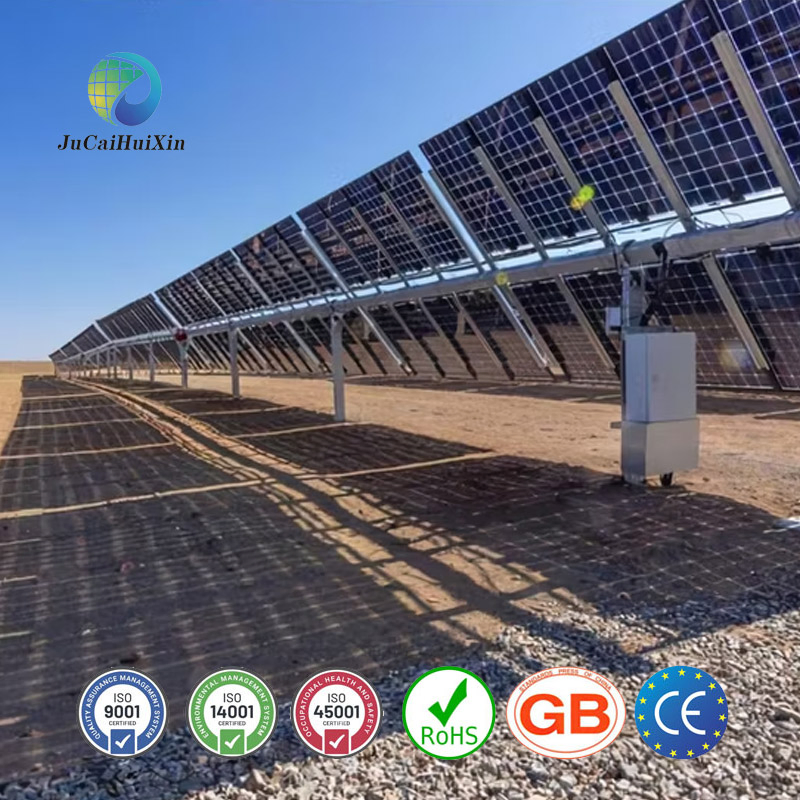

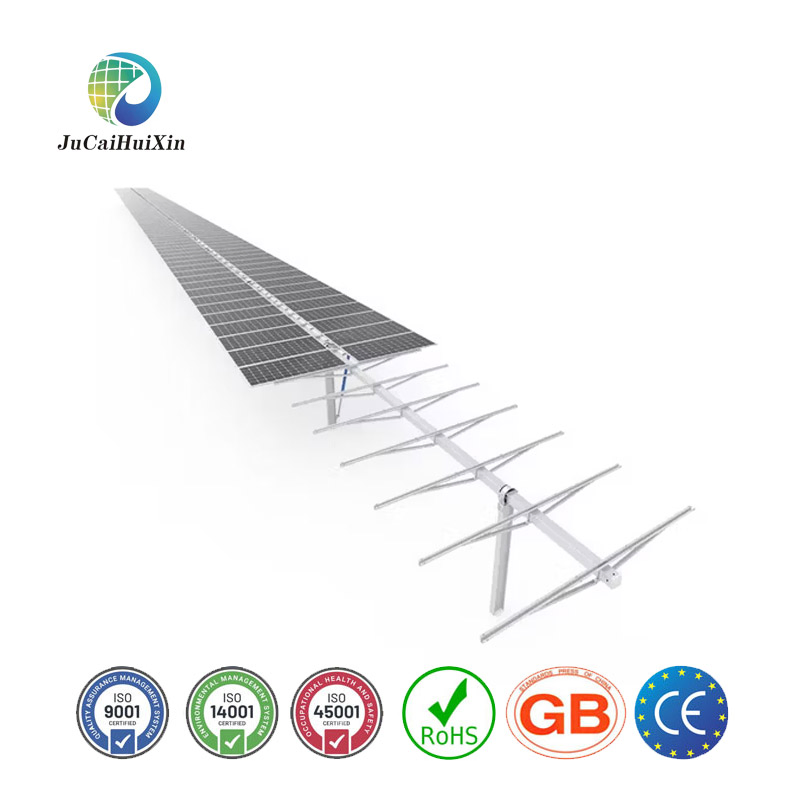

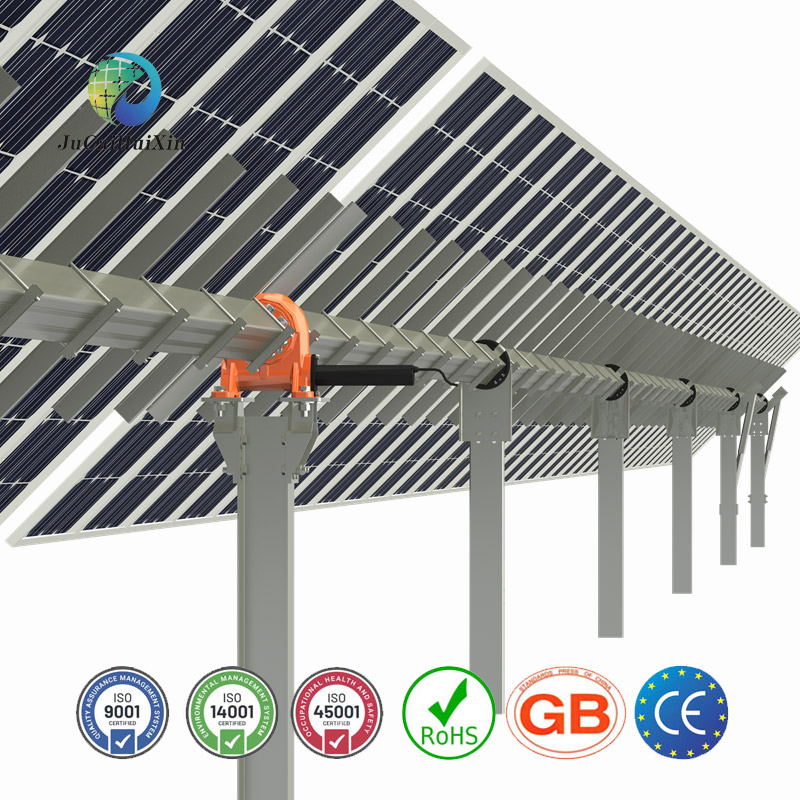

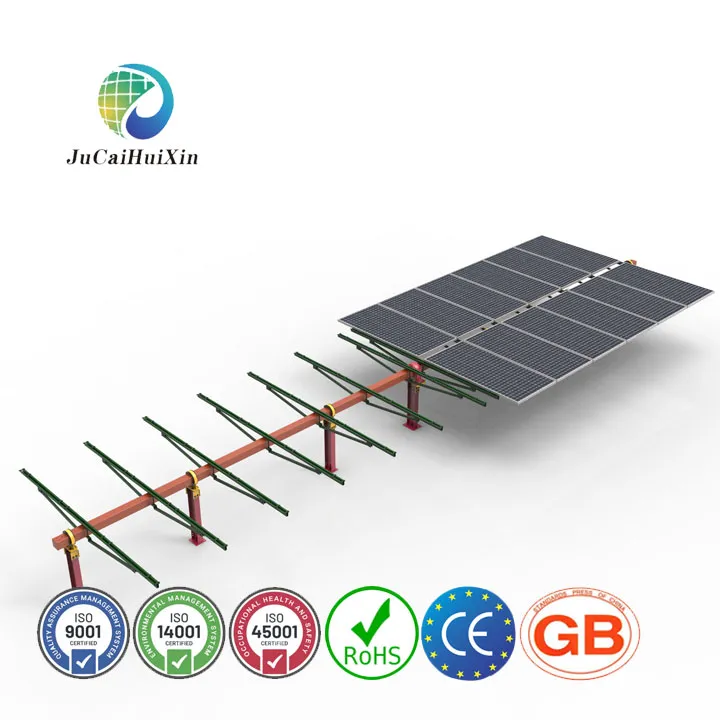

Introducing our high-performance Single-Axis Solar Bracket System, designed with a durable structure and baked painted finish for maximum strength and longevity. This innovative solar bracket installation allows for efficient solar tracking, optimizing energy production for your PV system. The robust design ensures stability and reliability in various weather conditions, making it ideal for both residential and commercial applications.
| System type | Independent Drive |
| NO.of Panel | 2-10 Piece(≤23 sq.m.) |
| Power Consumption | 5.0Kwh/set/year |
| Max. wind speed (Fat) | 40 m/s |
| Control model | Time + GPS Control |
| Tracking accuracy | 0.1°-2°(Adjustable) |
🛠
Installation & Maintenance
Installation Steps:
1. Foundation construction: Horizontal error ≤1.5°.
2. Bracket assembly: Bolt fastening torque 70N-m±5%.
3. System integration: IP68 protection motor installation and PLC calibration.

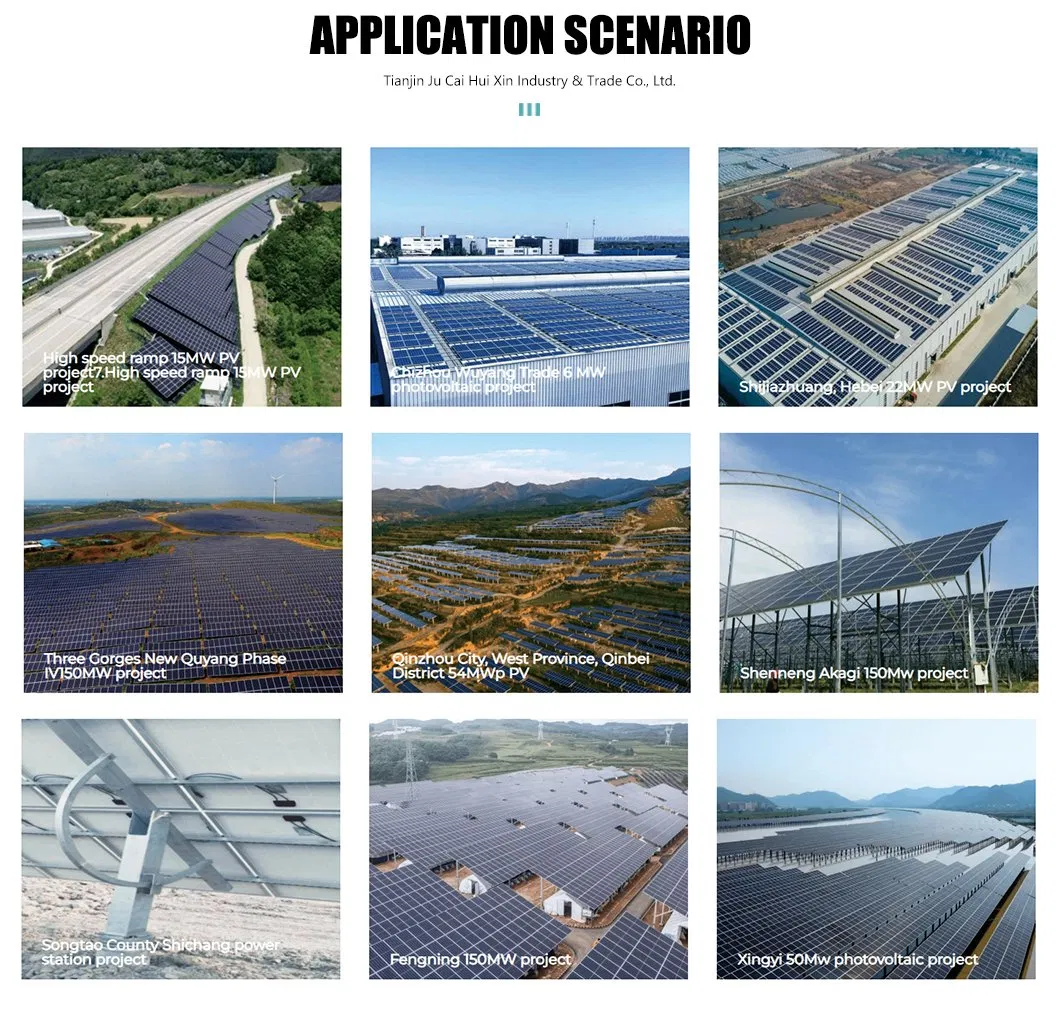

Typical Application Scenarios:
Large-scale ground power stations, Industrial rooftops, Agricultural PV systems, and Coastal PV zones.
❓
FAQ
Q1: What are the specific requirements for ROHS certification?
A: The products are ROHS certified, the content of lead, cadmium, and other hazardous substances in the materials are less than 0.01%, complying with EU regulations.
Q2: How does the hot dip galvanised layer perform in acid rain?
A: The zinc layer maintains a thickness of ≥25μm in pH 4 environments. Laboratory tests show no red rust for 5000 hours, ensuring a life span of ≥30 years.
Q3: Does it support double-glass modules and tracking linkage?
A: Completely compatible! Track spacing is adjustable (30-60mm), with a reserved ventilation gap to maximize double-sided power gain.
Q4: What is the delivery cycle for 100MW projects?
A: With standardized production and regional warehousing, 100MW projects take approximately 8-12 weeks from order to grid connection.
Q5: What are the warranty and after-sales service terms?
A: We provide a 10-year main structure warranty, 5-year drive system warranty, and 72-hour global emergency response.
Q6: Is the system resistant to extreme wind conditions?
A: Yes, the system features an automatic reset response that switches to a wind-resistant angle when speeds reach ≥18m/s, with a delay of less than 2 seconds.
