| Name | 1000KW On-grid Description | Quantity |
|---|---|---|
| Solar Panel | Mono 550Watt PV Module | 1818 Pieces |
| DC Disconnect Switch | IP66 1000VDC 16A | 2 Set |
| On-Grid Inverter | 120KW Three Phase | 9 Set |
| AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |
| DC Cable | 6 mm2 | 4000 Meters |
| MC4 Connector | 6 mm2 1000VDC | 10 Pairs |
| Mounting System | Standards Pitched Roof (Customized Optional) | 1 Set |
| PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 10 Set |
| 1. Solar Panel | 2. On Grid Inverter | 3. Switch Box | 4. Power Meter |

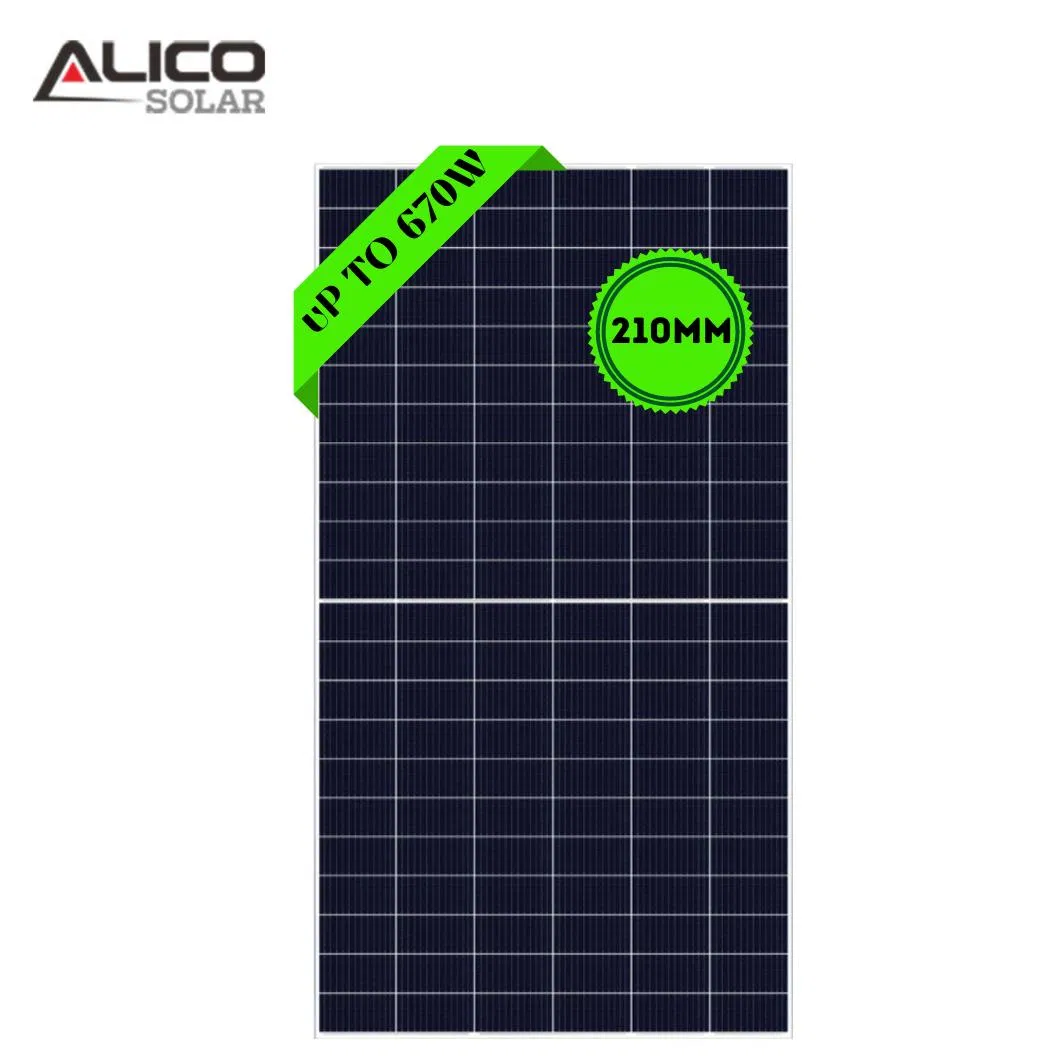

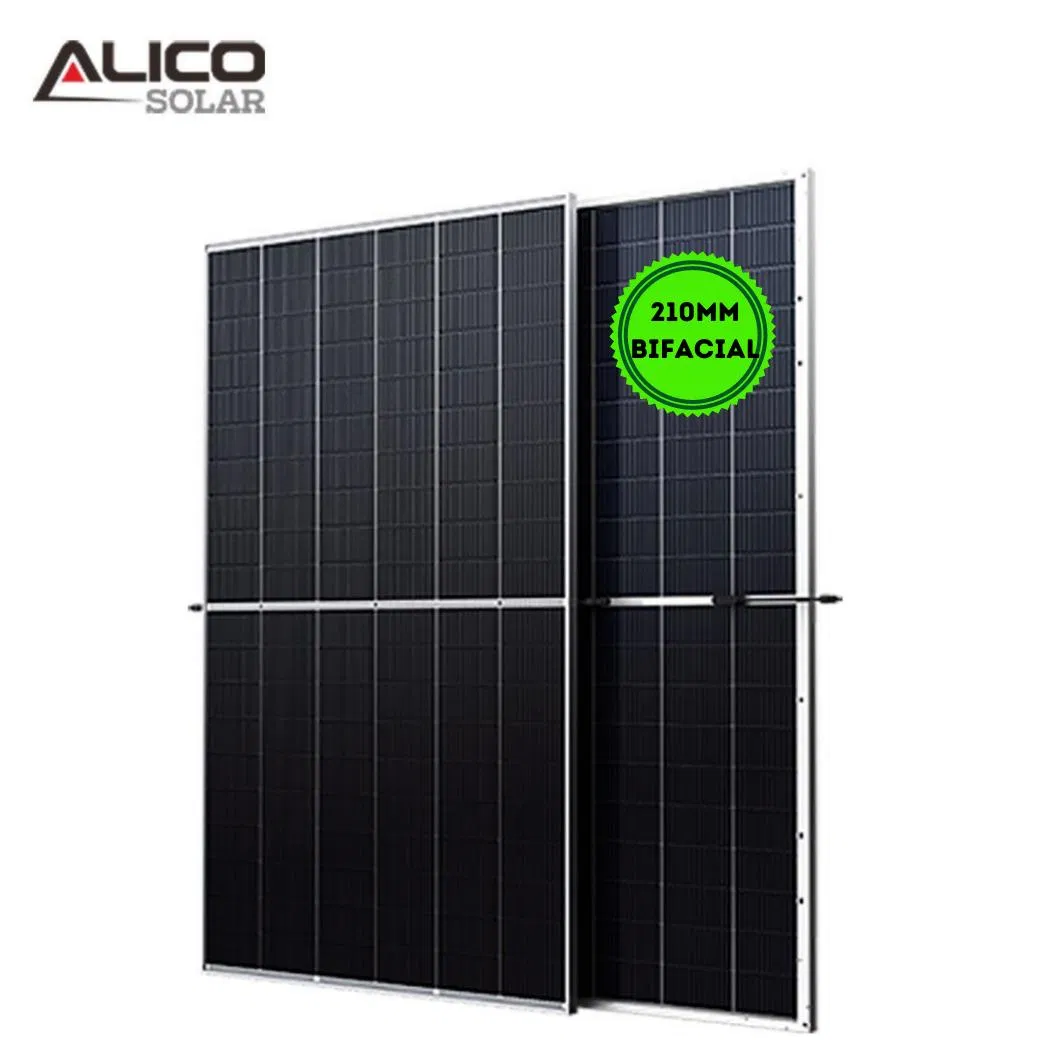

Peak Power Watts: 455-690Watt
Weight: 18.6 kg - 35 kg
Tier 1 standard
12 years warranty quality
30 years warranty power

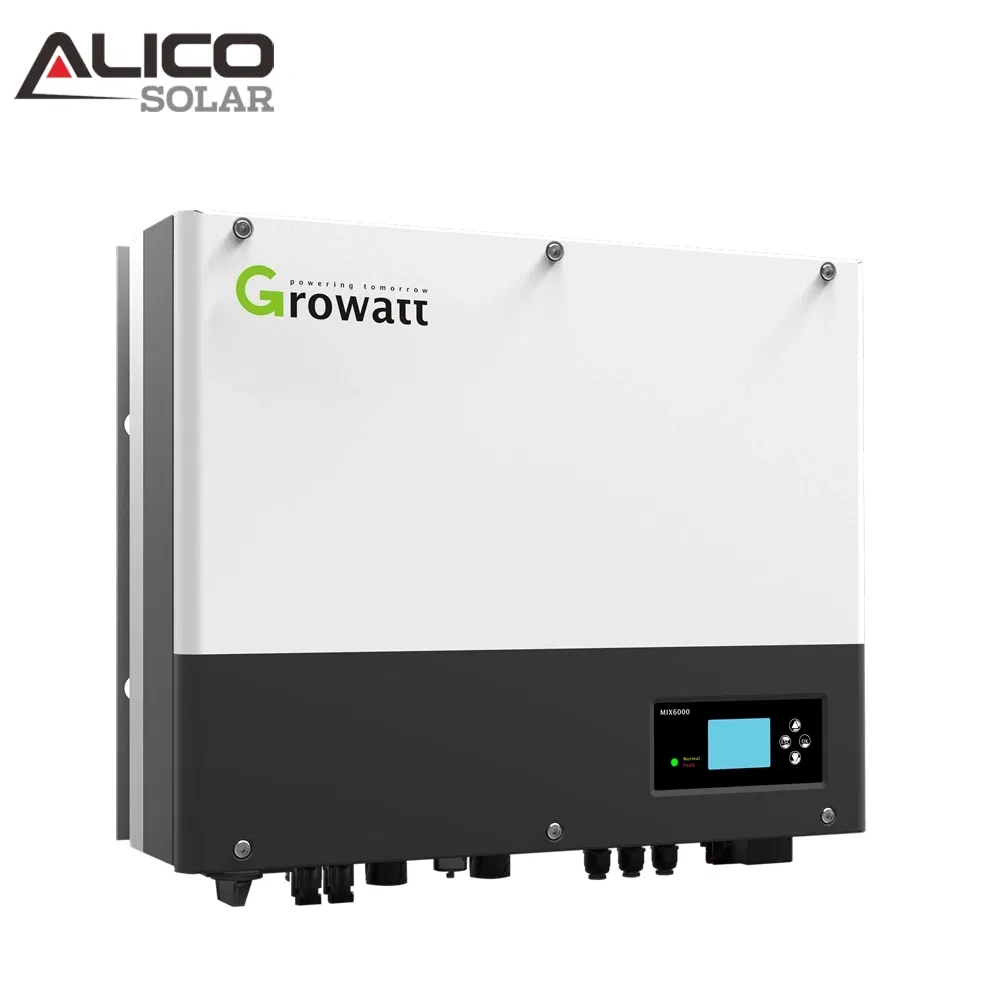

Max.DC Input Power: 5.8KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

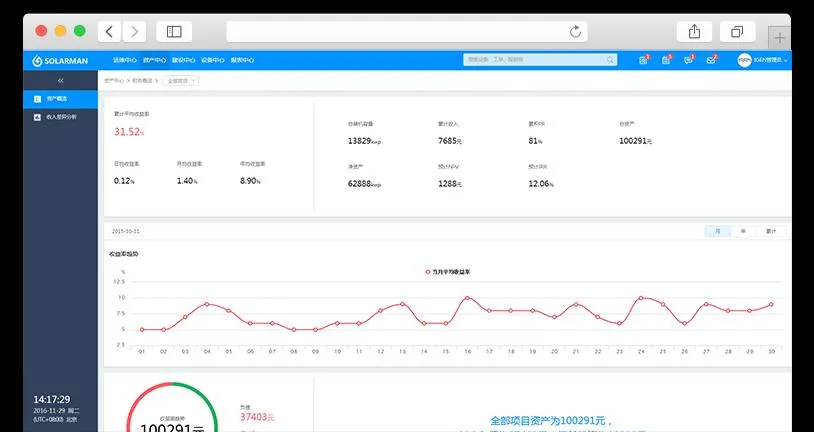

Data Logging Stick allows you to receive information from solar power system via web server (Wi-Fi, Lan or GPRS). App Available for PC, IOS & Android.
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

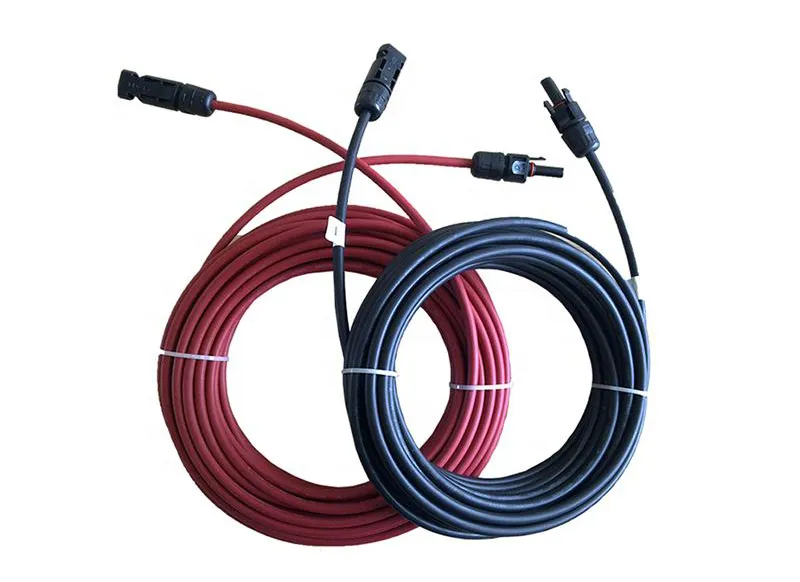

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC(UL)/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

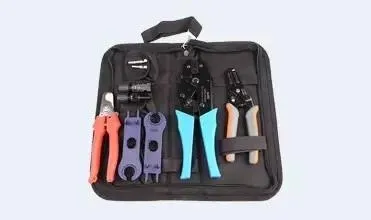

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
