| Technical Specifications | |
|---|---|

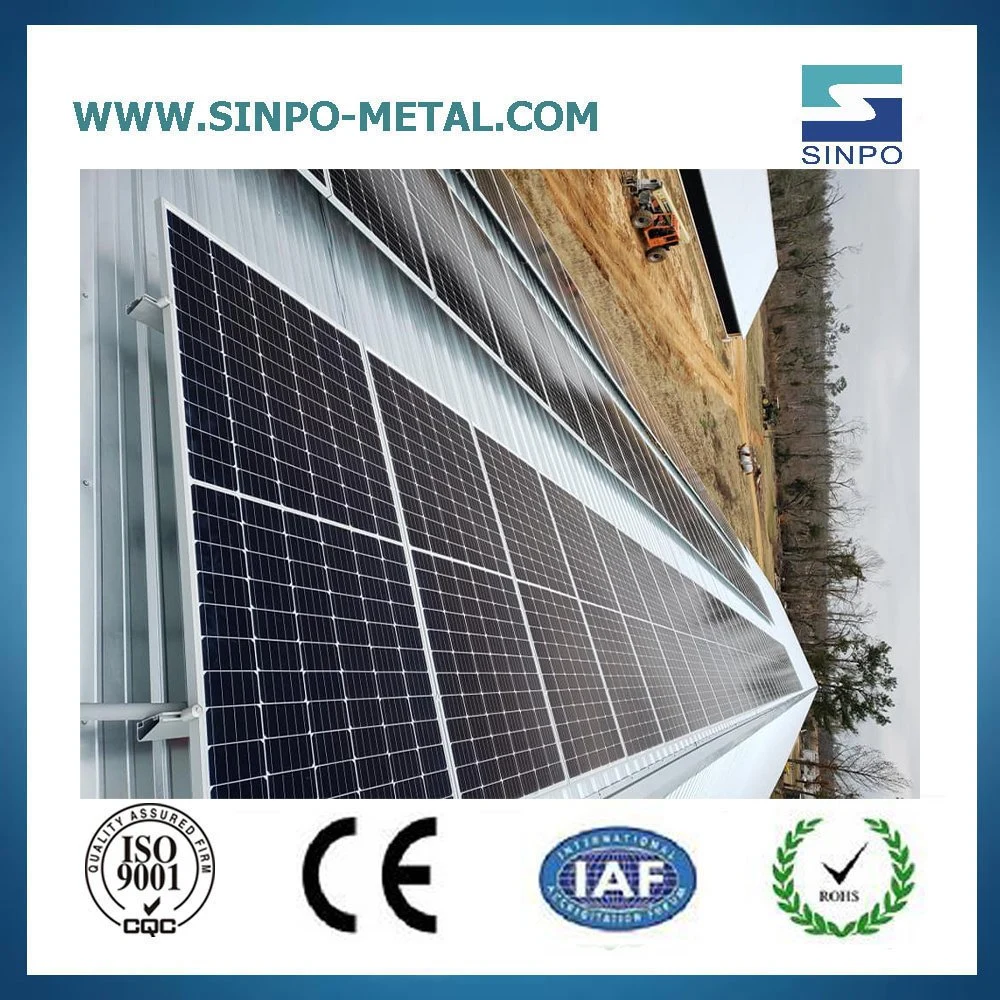

| Type | Solar mounting system for metal roof |
| Installation site | According to your requirements |
| Material | Aluminum 6000 series |
| Fasten material | Aluminum |
| Survival Wind Speed | < 60m/s |
| Design Snow load | Up to 1.4KN/ Square meters |
| Solar panel type | Framed or Frameless |
| Panel Orientation | Transverse or vertical |
| Design Standard | CE; IOS9001; SGS |
| Quality warranty | 12-25 years |
| Duration | More than 20 years |
| NO. | Name | Size(mm) | QTY | Material |
|---|---|---|---|---|
| 1 | Clamp | - | 12 | AL6063-T5 |

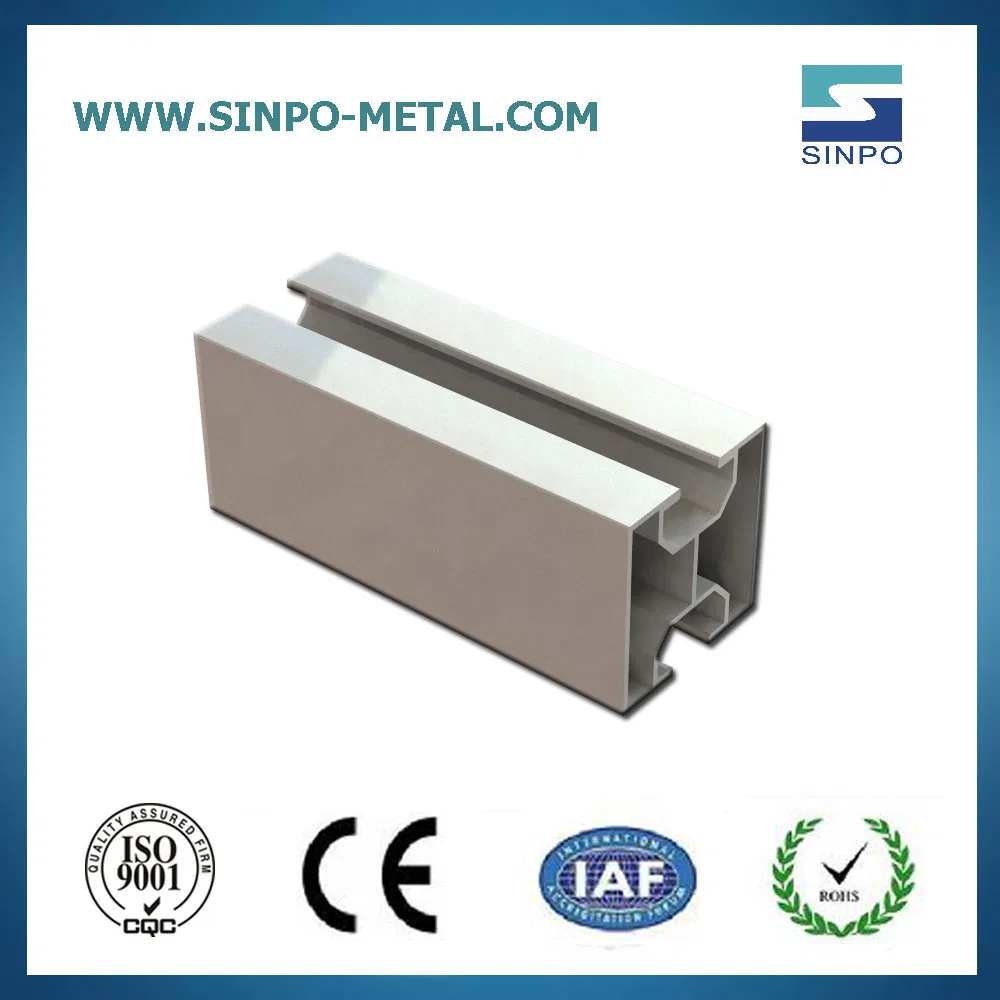

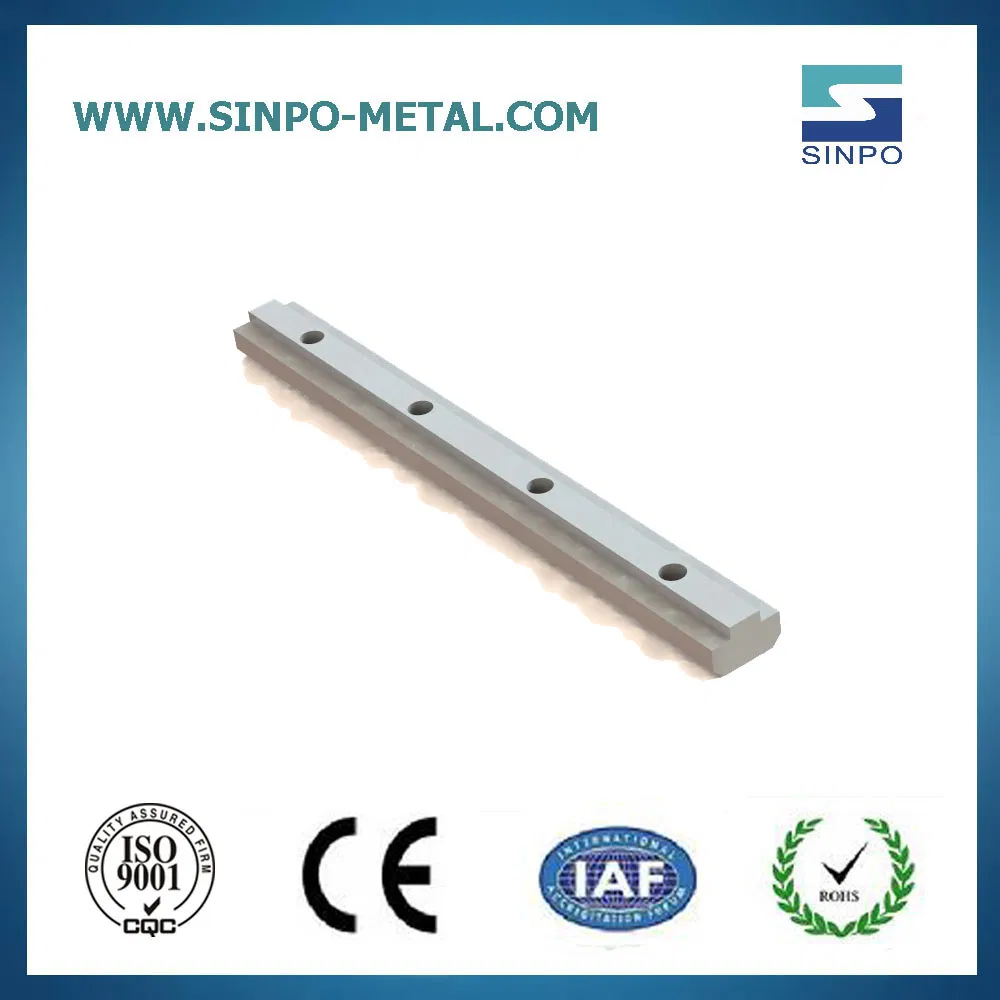

| 2 | Rail | 40*40/30*40 | 4 | AL6063-T5 |
| 3 | Rail Joiner | 4 set screw | 2 | AL6063-T5 |
| 4 | Mid Clamp | 30-47-60 | 6 | AL6063-T5 |

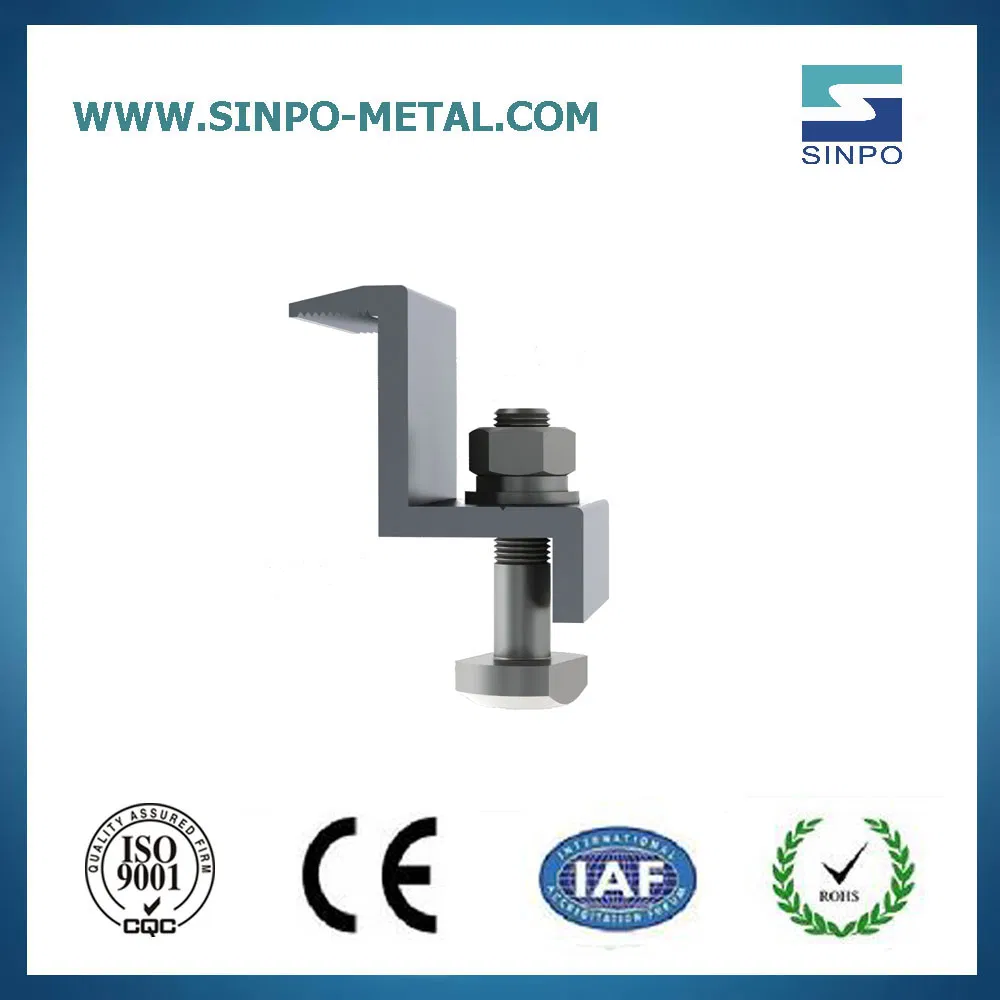

| 5 | End Clamp | W40-60-16 | 4 | AL6063-T5 |
| 6 | Hexagon Socket Screw | M8*25 | 24 | 304 |
| 7 | T Bolt | M8*25 | 12 | 304 |
| 8 | T Bolt | M8*35 | 10 | 304 |

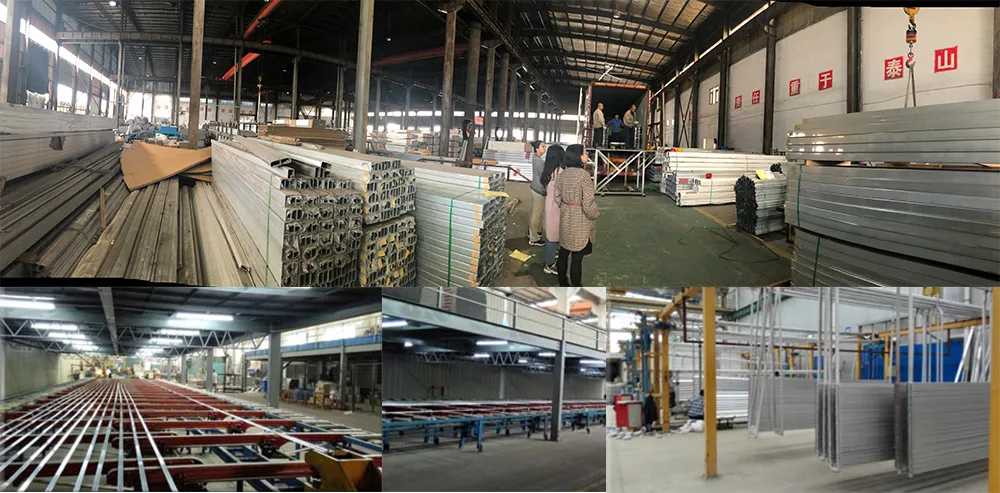

We are one of the professional manufacturer for the Aluminum products with 20 years experience in China. We supply over 15 countries and the United States. We do customer design and we also have a variety of ready-made products that you can choose from.
We have an excellent track record for producing Aluminum products that fit into your market and country. We do research and trends of each country to give you the best possible product that will sell in your country. We have been the gold supplier of International Committee Red Cross since 2012.
To help you get the right system, please provide:
