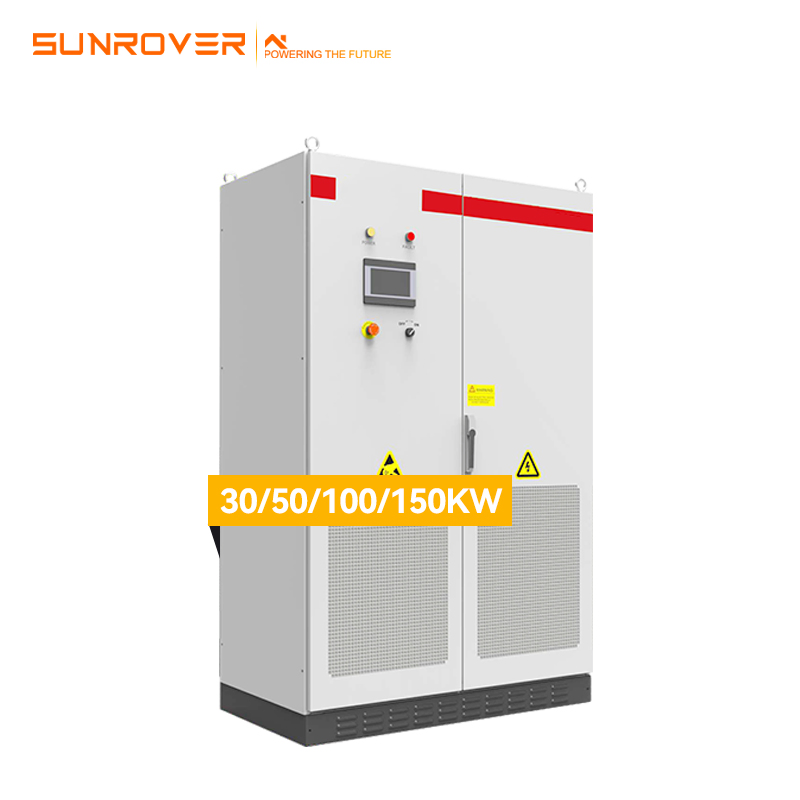

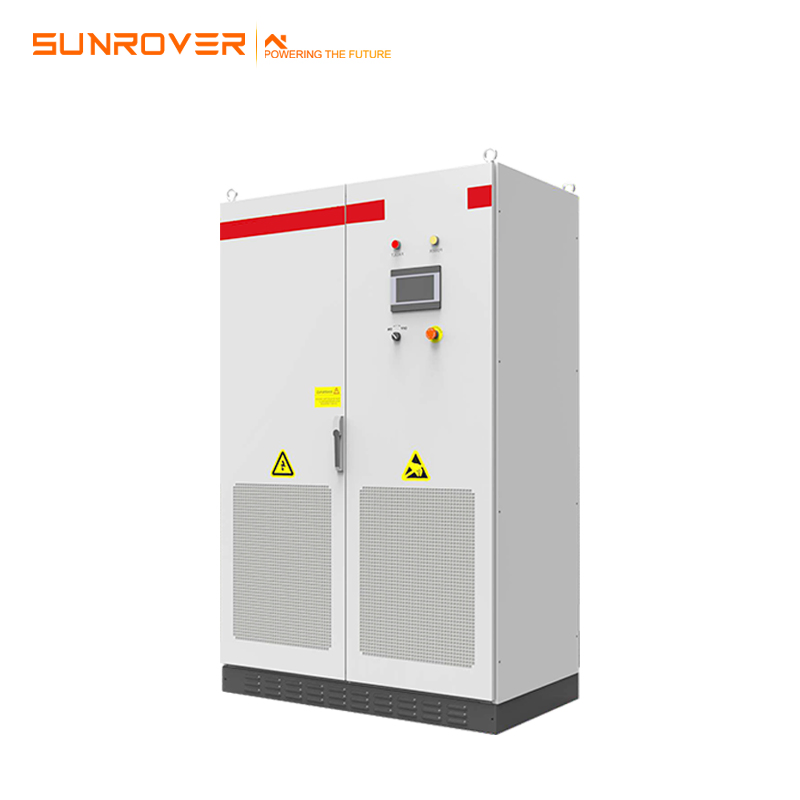

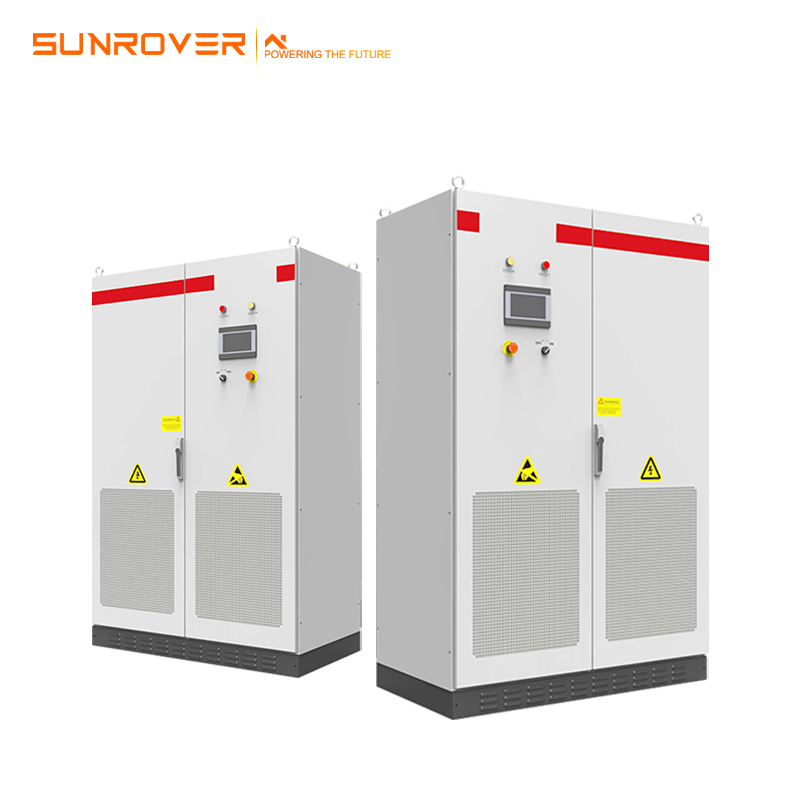

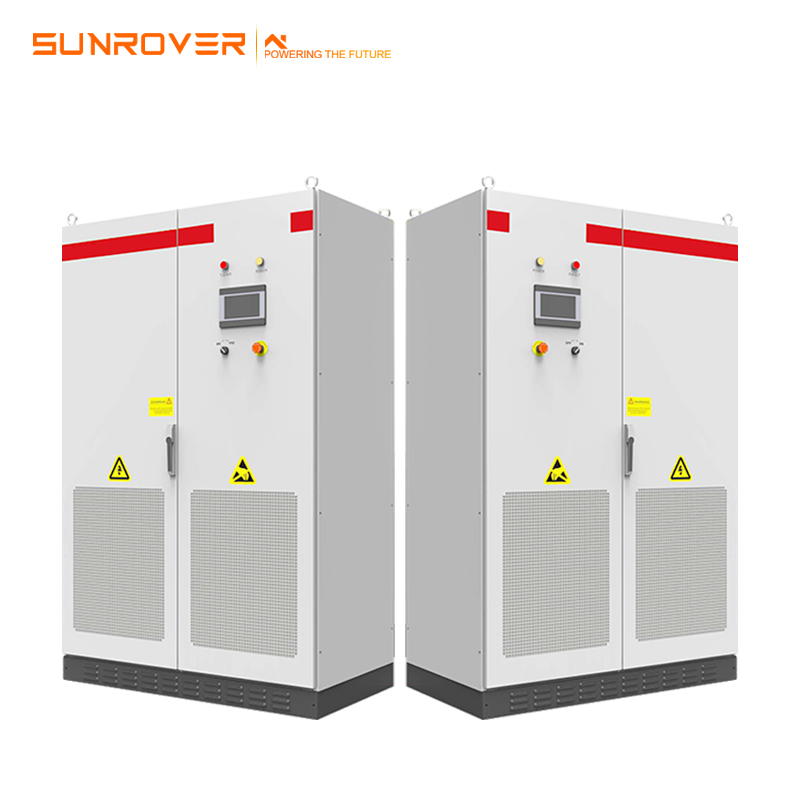

Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
1 / 5
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial
Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial

Atess Hybrid Inverter 30kw 100kw 150 Kw 200kw 3 Phases All in One Solar Hybrid Tie Inverter with Battery for Industrial

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
ATESS-HPS150KW
Source Flow
Active Inverter
Phase
Three Phase
Output Power
>1000W
Certification
CE, ISO9001, CCC, TUV, VDE
Brand
Growatt
Application
Grid-Tied Solar System
Capacity
50000PCS/Month
📦

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Gross Weight
100.000kg
Logistics
Standards Sea Shipping/Carton&Wooden Case
✔

Product Description

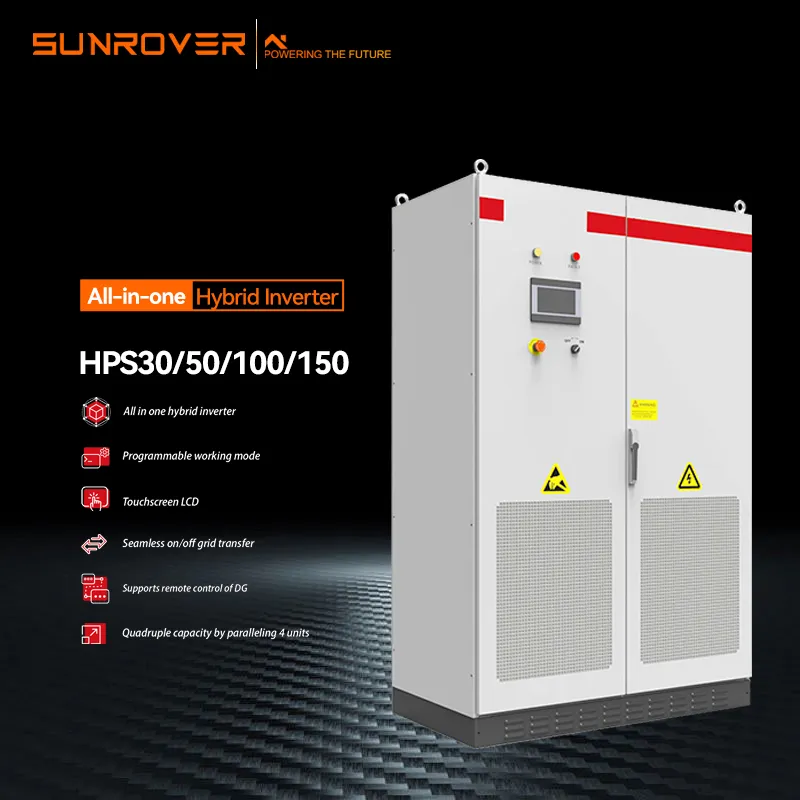

Hybrid Inverter 150KW
Solar Hybrid Tie Inverter
⚙

Product Parameters

Model HPS30 HPS50 HPS100 HPS150
AC (Grid-connected)
Apparent power 33kVA 55kVA 110kVA 165kVA
Rated power 30kW 50kW 100kW 150kW
Rated voltage 400V 400V 400V 400V
Voltage range 360V - 440V
THDI <3%
AC (Off-grid)
Rated power 30kW 50kW 50kW 150kW
Overload capability 110%-10 mins, 120%-1 min
DC (Battery and PV)
Battery voltage range 450V-600V 500V-600V 500V-600V 500V-600V
Max. charge power 45kW 75kW 150kW 225kW
General Information
Protection degree IP20
Operating temp. -25 °C~+55 °C
Dimension (W/H/D) 700/1660/600mm 950/1860/750mm 1200/1900/800mm 1200/1900/800mm
★

Physical Display & Projects

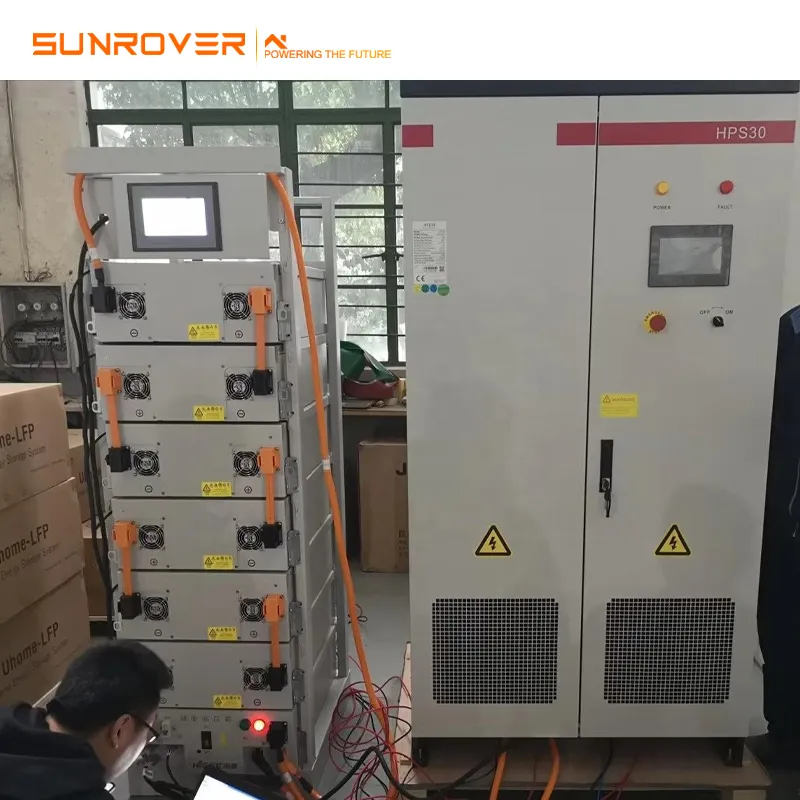

Physical Display
Product Packaging

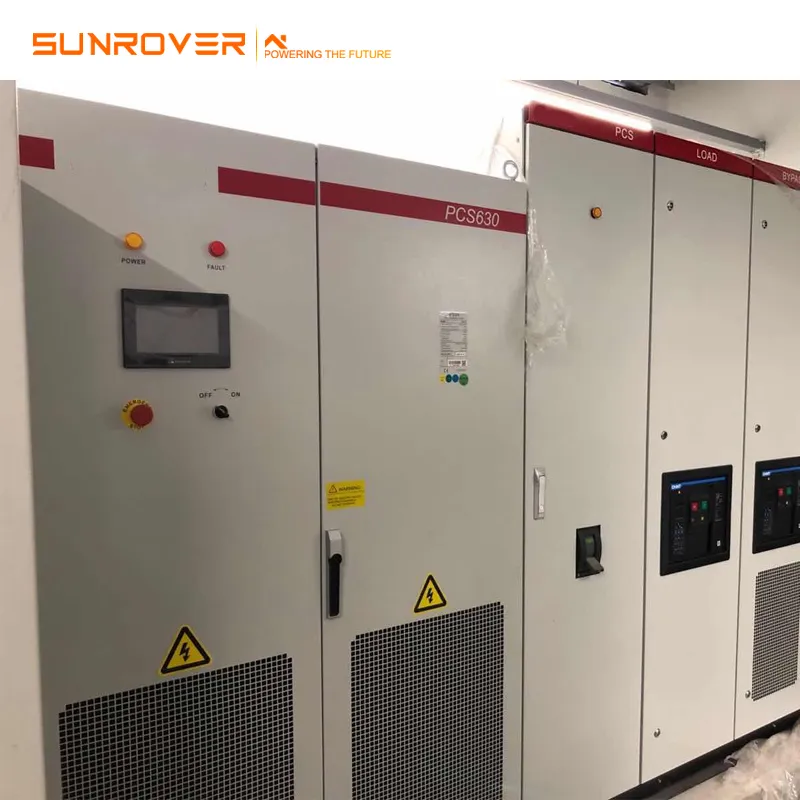

Project Case 1

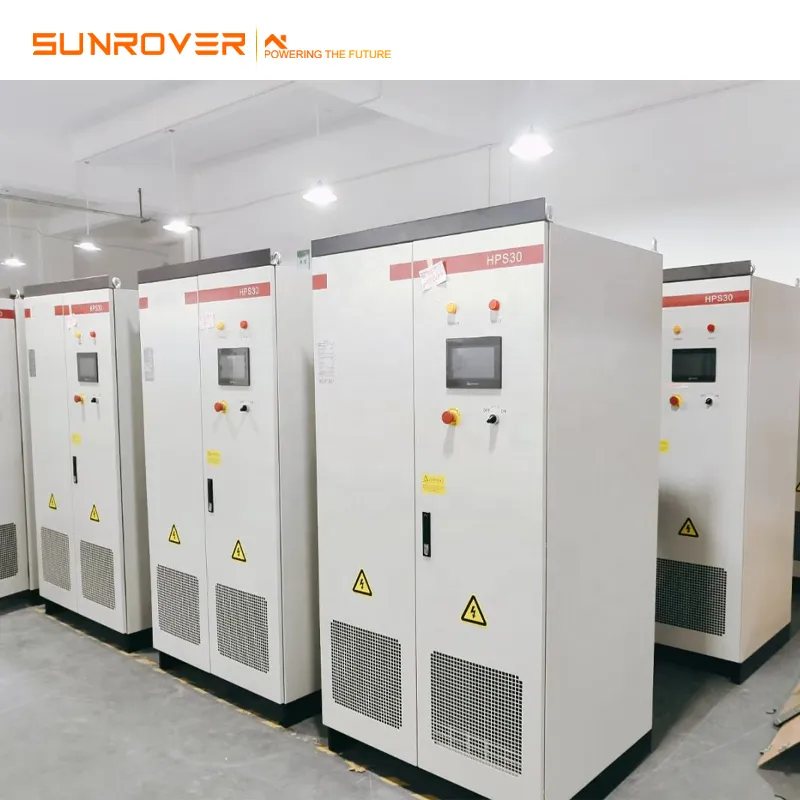

Project Case 2
Factory Overview
?

Frequently Asked Questions

What are the main applications for the ATESS HPS series inverters?
The ATESS HPS series is designed for large-scale industrial and commercial solar systems, supporting both grid-tied and off-grid configurations with battery storage integration.
Does this inverter support bidirectional energy flow?
Yes, as an active hybrid inverter, it manages energy flow between the PV array, batteries, the utility grid, and the connected loads efficiently.
What is the protection rating and suitable environment?
It has an IP20 protection degree and is designed for indoor installation within an operating temperature range of -25 °C to +55 °C.
How does the system handle overloads in off-grid mode?
The system features robust overload capability, supporting 110% load for 10 minutes and up to 120% load for 1 minute in off-grid scenarios.
Is the output wave compatible with sensitive equipment?
Absolutely. It provides a pure sine wave output with very low harmonic distortion (THDI < 3%), ensuring safety for all types of industrial machinery.
What certifications does the HPS150KW hold?
The product is fully certified with CE, ISO9001, CCC, TUV, and VDE standards, meeting international safety and quality requirements.
