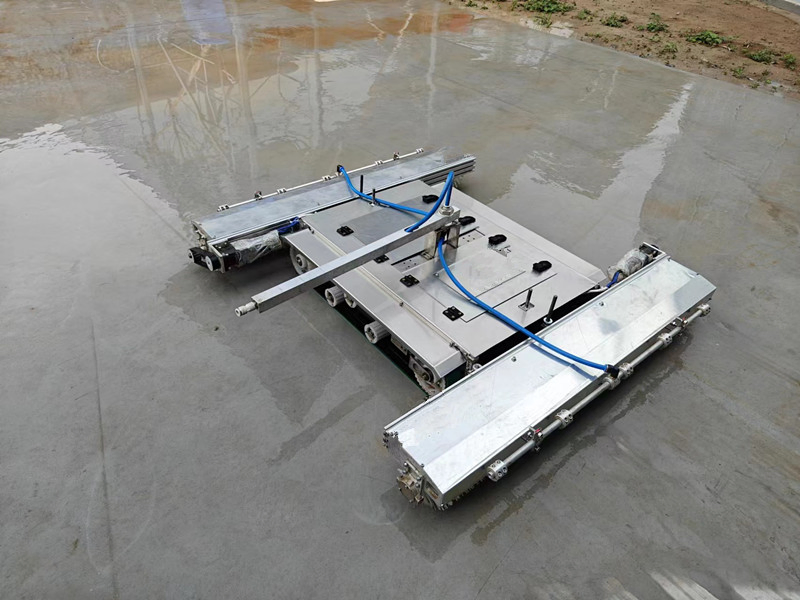

Fully Automatic Crawler-Type Solar Panel Cleaning Machine with Anti-Fall Sensors

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
ZTBX
Clean Type
High Pressure Cleaning
Cleaning Process
Cold Water Cleaning
Control
PLC
Fuel
Electric
Style
Crawler Style
Travel Speed
22 M/Min
Cleaning Width
1100 mm
Endurance
6 Hours
Working Angle
15°
Transport Package
Wooden Cases
Production Capacity
10000 Pieces/Month
Photovoltaic Cleaning Robot

This intelligent portable cleaning robot is specifically designed for high-efficiency dust removal and maintenance of photovoltaic modules. Utilizing advanced intelligent walking technology, the robot can automatically traverse and adhere to solar panels without water, effectively removing sand, dust, fallen leaves, and other debris. It is an ideal solution for large-scale ground power stations, fish-photovoltaic systems, and distributed rooftop installations.

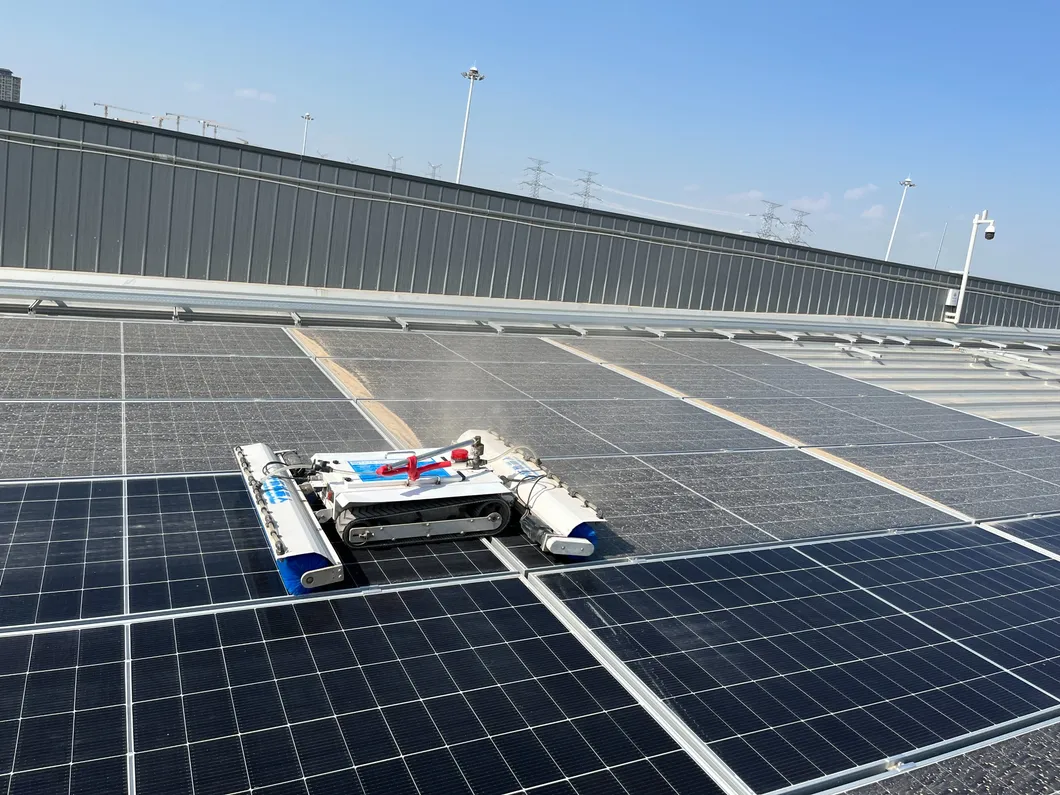

Photovoltaic cleaning robot
Technical Parameters
Operating Voltage24VTravel Speed22m/min
Idle Speed250 rpmCleaning Width1100mm
Endurance6 HoursCleaning TypeWashing / Dry Cleaning
Power SupplyLithium Battery (24V)*2Water Consumption20L/min (max)
Working Temp-20°C to 50°CBrush MaterialNew Nylon Yarn
Weight29kg (excl. battery)Dimensions1200*1000*350mm

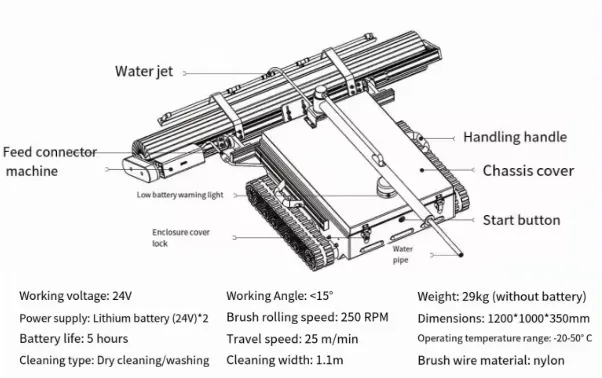

Technical Details
Core Features & Systems

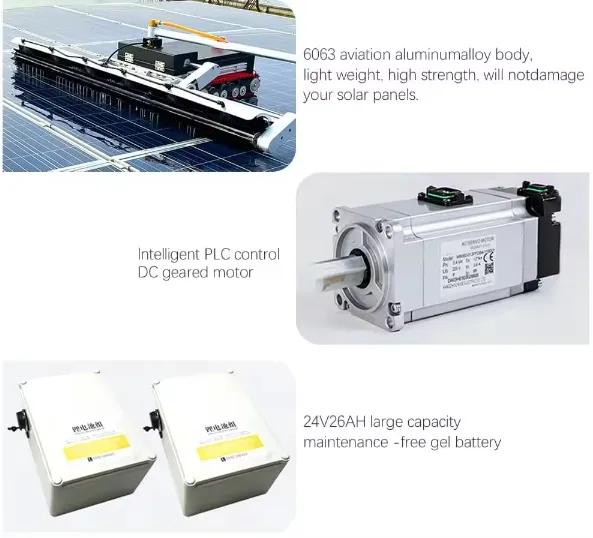

Remote Control System
Remote Control (250M Range): Employs radio frequency technology for stable signal and strong anti-interference performance.
Intelligent Anti-Fall System: Equipped with 4 high-precision sensors that detect panel edges and trigger an automatic stop.

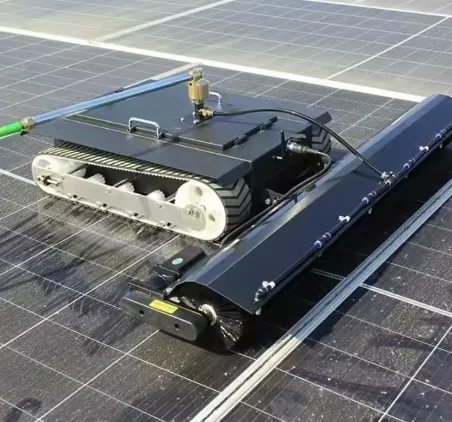

1100mm Roller Brushes: High-efficiency nylon brushes capable of cleaning up to 1.2MW per day without damaging panel surfaces.

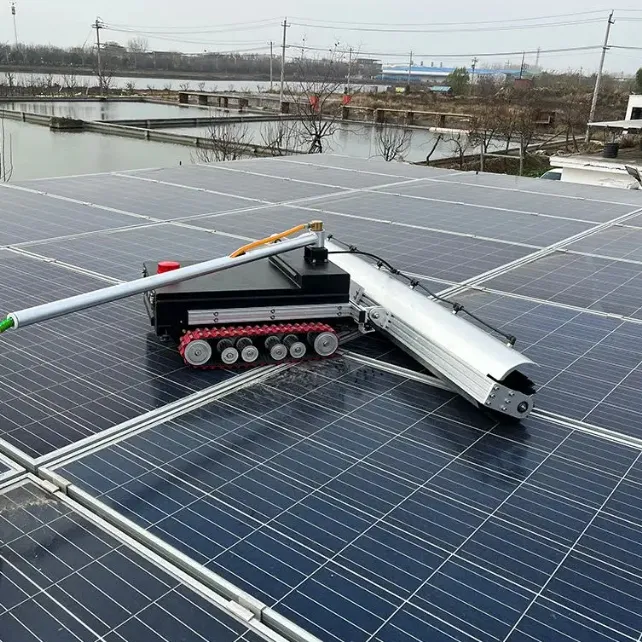

All-Terrain Crawler Chassis: Allows multi-directional movement (forward, backward, turning) for zero-blind-spot cleaning.
Operational Advantages

Portable design that significantly reduces manpower requirements:

Individual cleaning capacity: 0.5 to 0.8MW per day.
Versatile application: Suitable for deserts, hills, and rooftop stations.
Dual mode: Supports both dry cleaning and water washing.

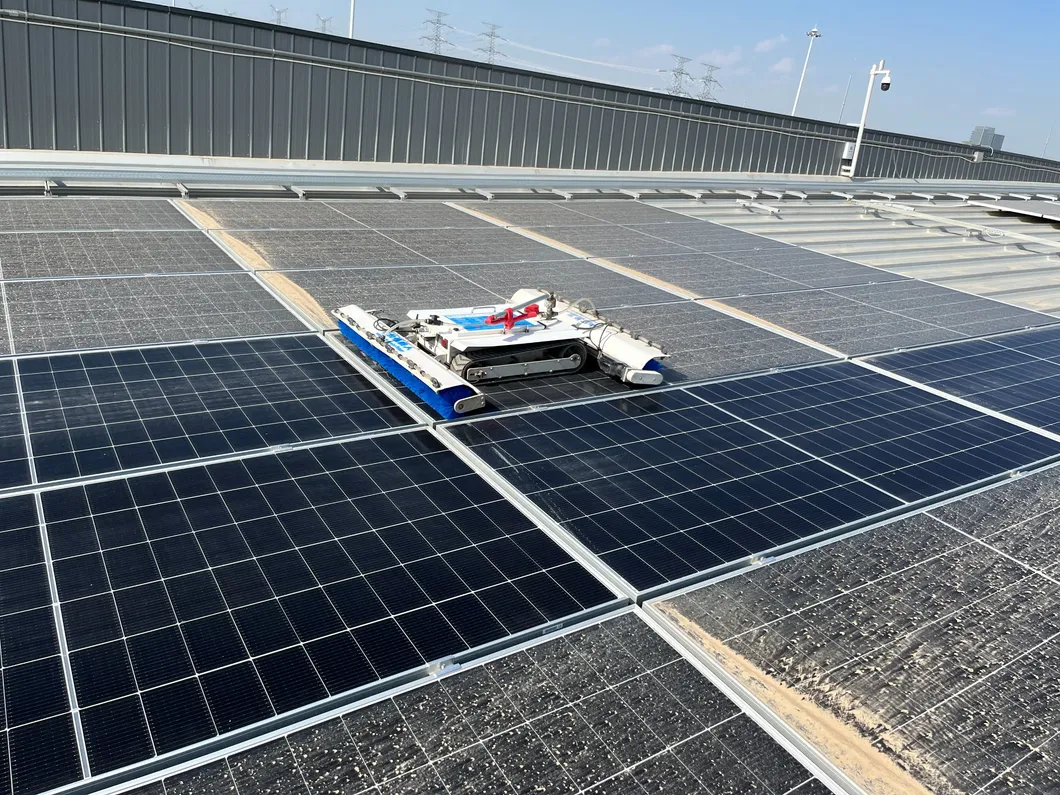

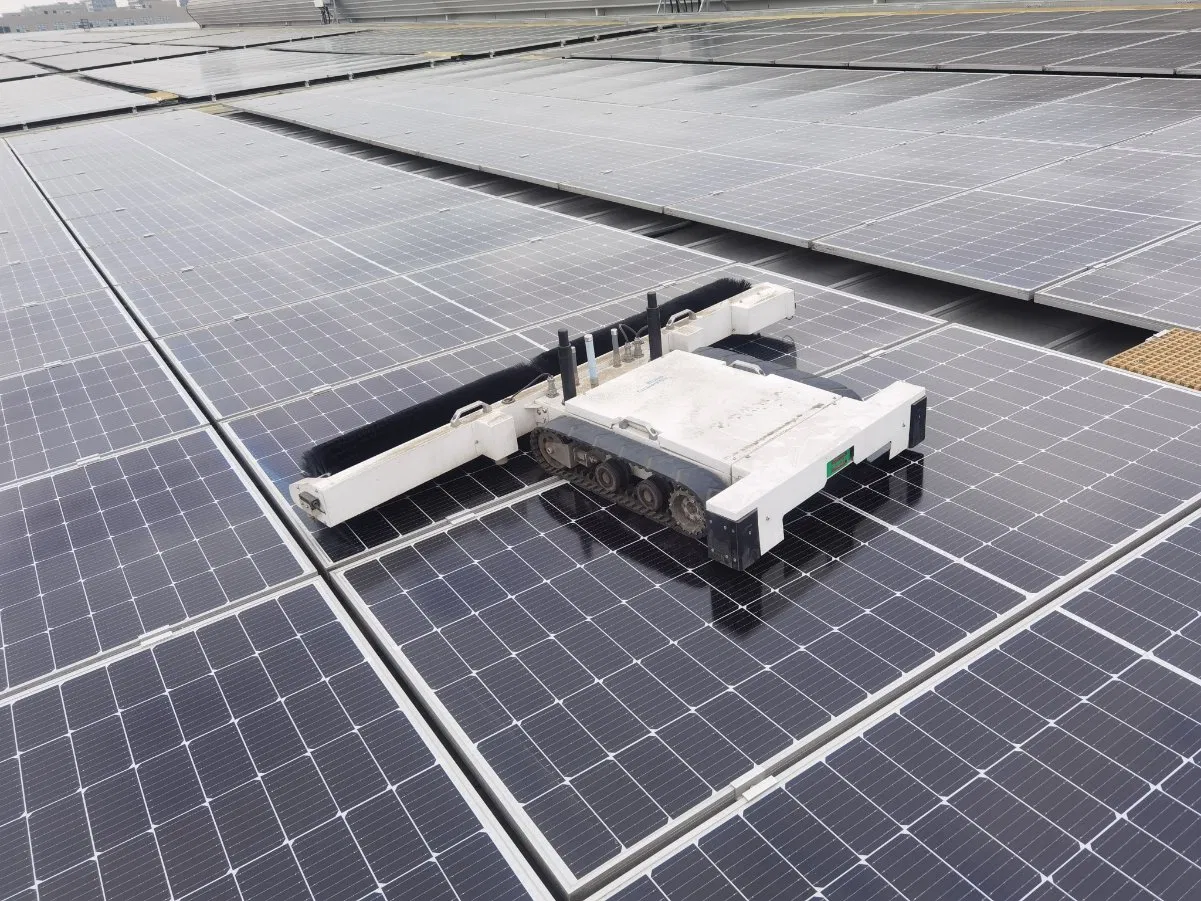

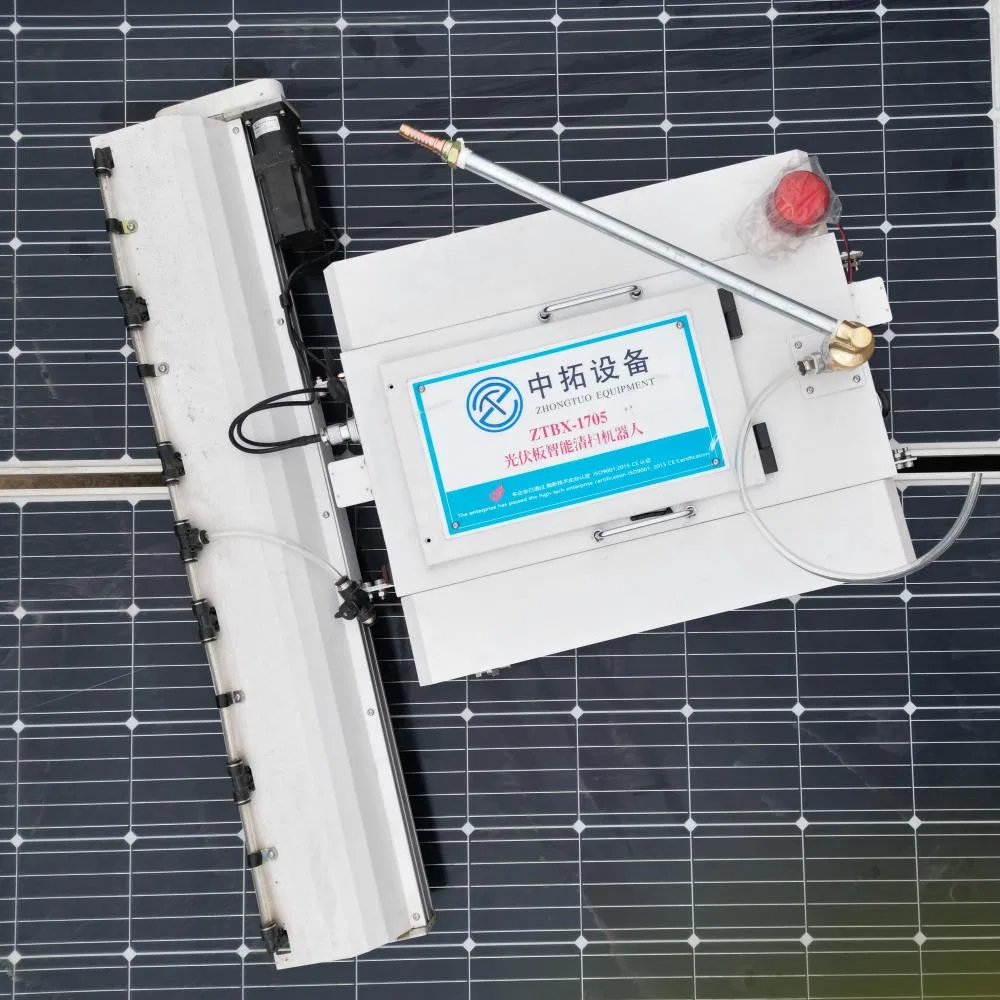

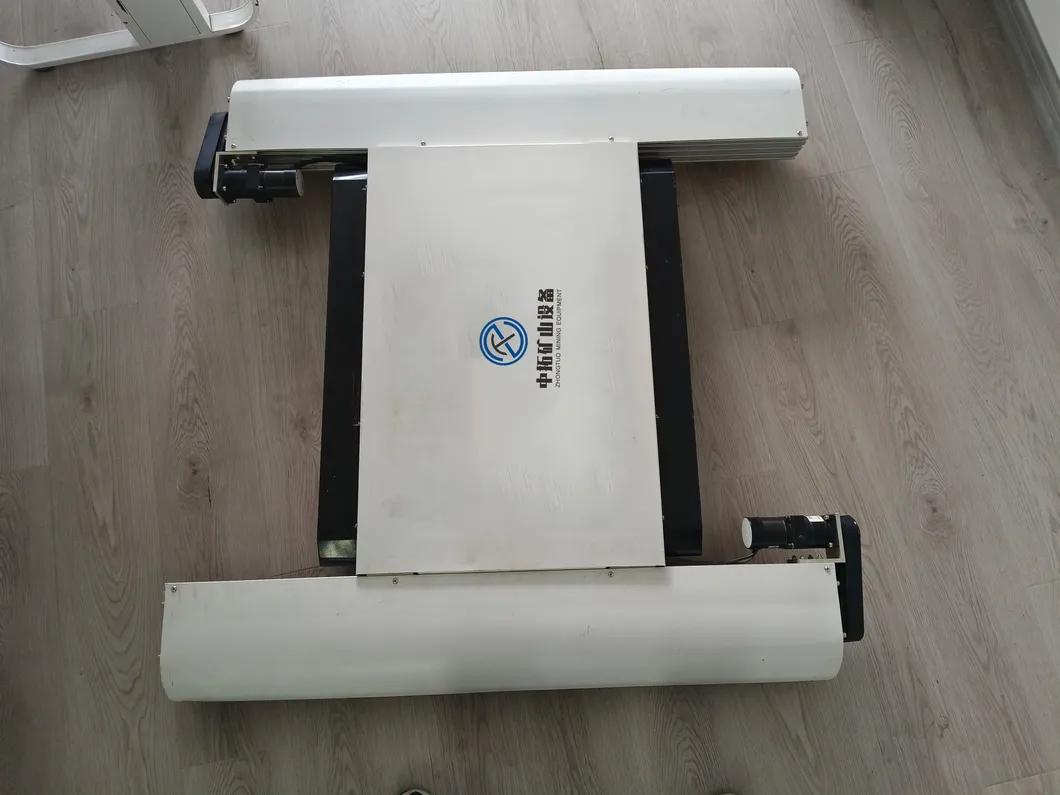

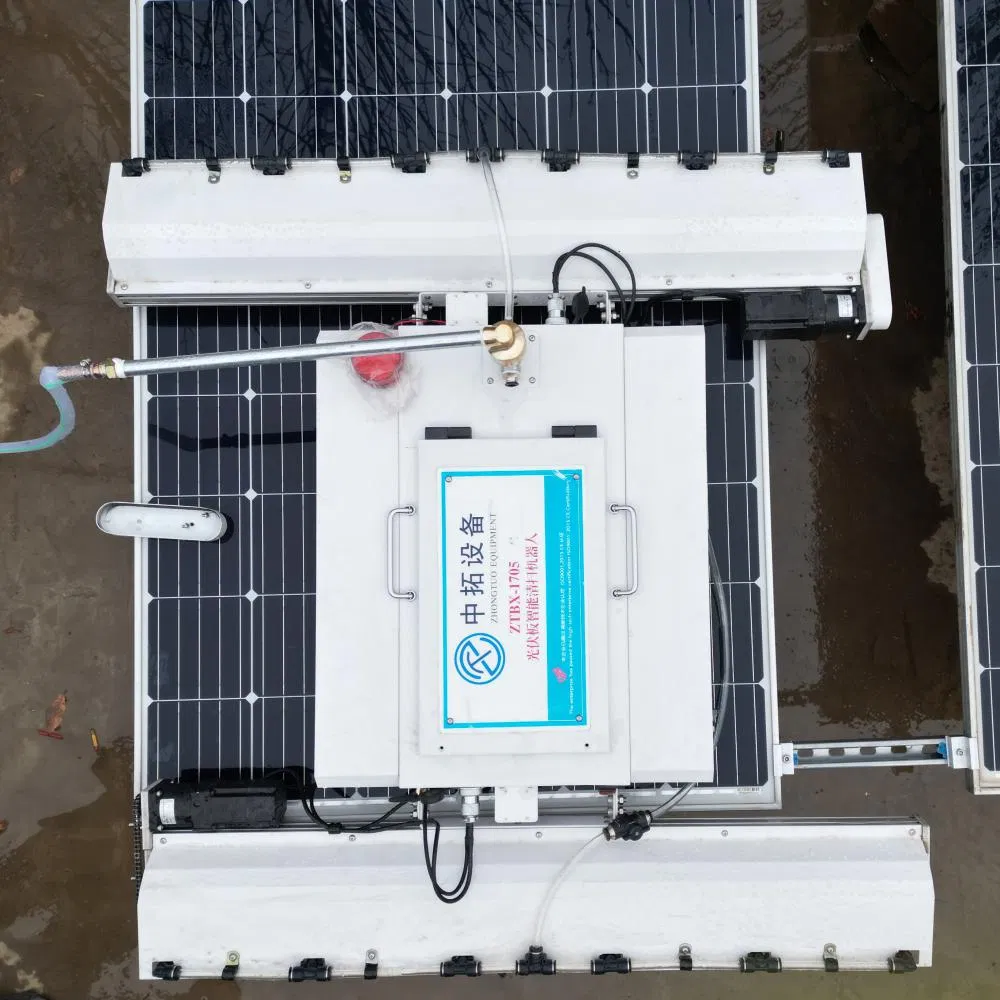

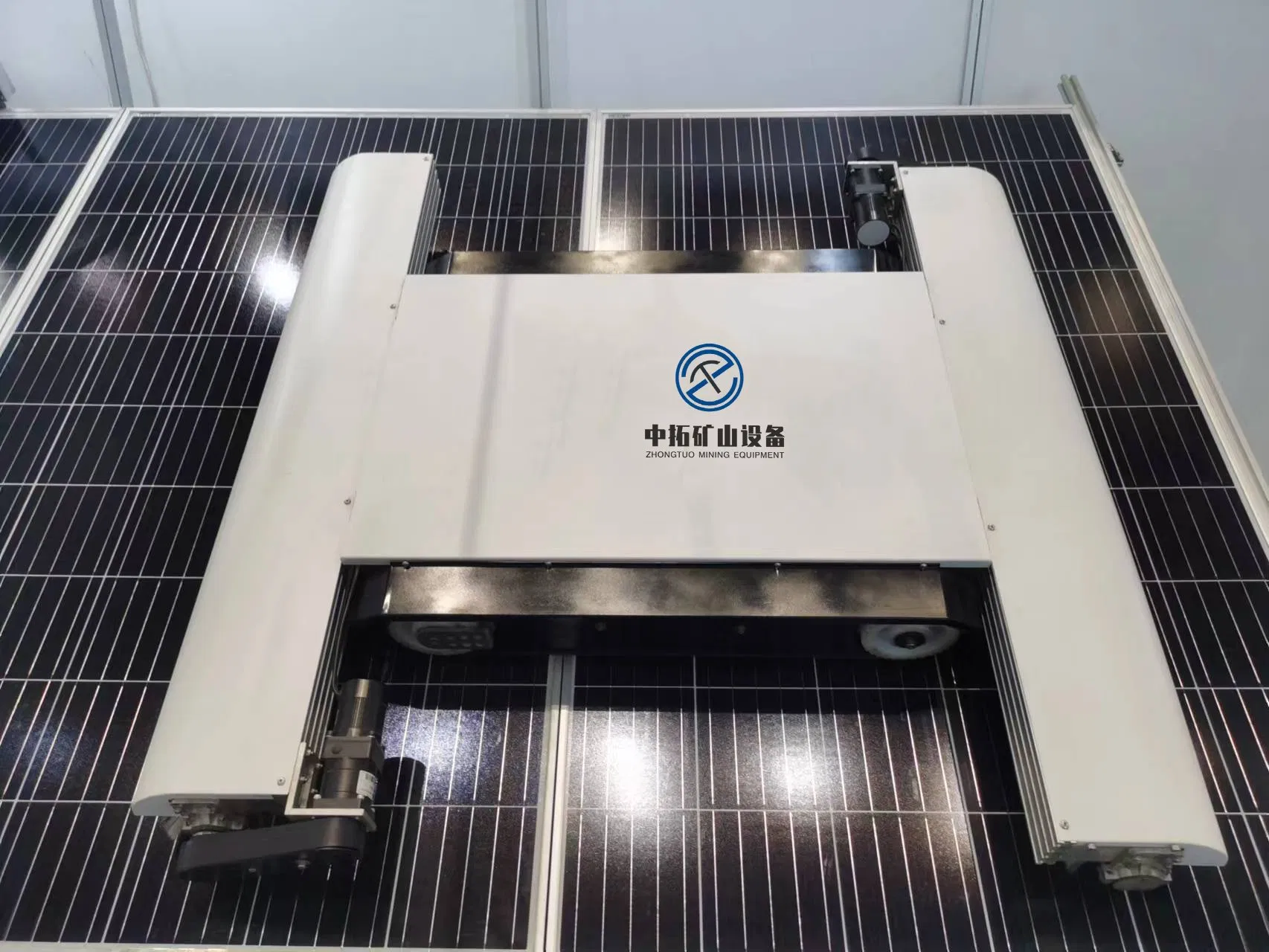

Device Full View
Application Scenes

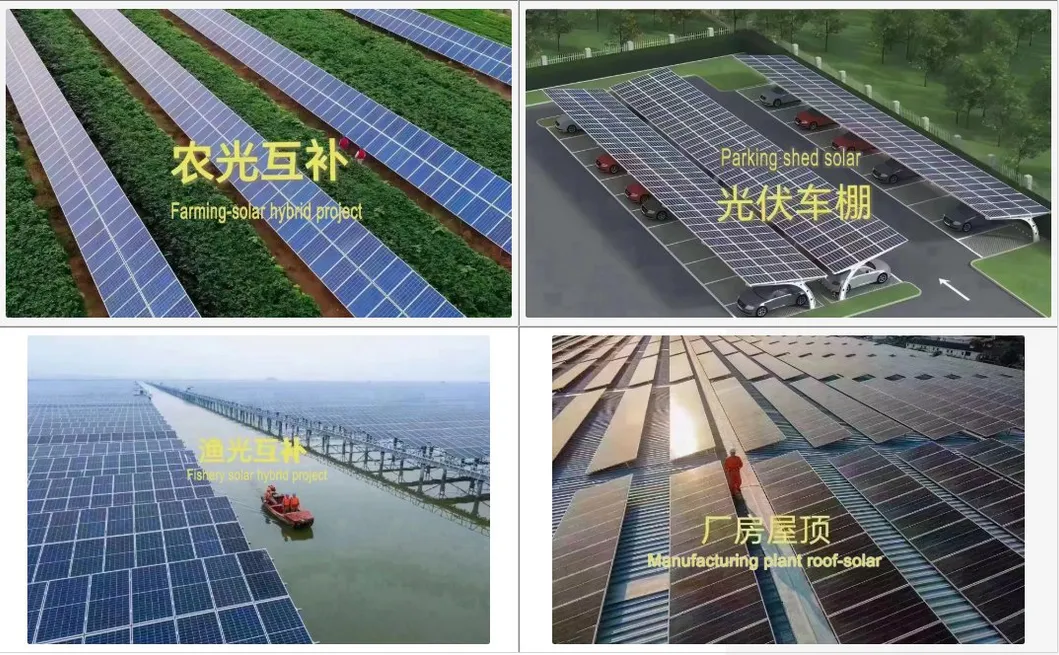

Work Scene Ground
Work Scene Rooftop
Packing List
  • 1 x Main Unit
  • 1 x Remote Control
  • 2 x Lithium Batteries (24/26Ah)
  • 2 x Battery Chargers (24V 3A)
  • 1 x Battery Backpack
  • 1 x Spare Tool & Accessory Kit
Packing Components
About Our Solutions
Production Base

We are a dedicated supplier of photovoltaic module cleaning products, integrating research, manufacturing, and global service. Our goal is to provide safer and more efficient cleaning solutions, reducing physical labor and safety risks in the solar industry. Our product line includes manual rotating brushes and fully autonomous remote-controlled robots designed for various environments.

Frequently Asked Questions
How do you ensure product quality?
We maintain a comprehensive quality control system from production to final delivery. Each order is tracked by specialists to ensure every technical requirement is met perfectly.
Are sample orders available for testing?
Yes, we welcome sample orders so you can verify the efficiency and build quality of our robots before placing a bulk order.
Do you offer OEM and ODM services?
Absolutely. We provide customized OEM and ODM services for the majority of our solar cleaning products to meet specific regional or project requirements.
What other solar products are available?
In addition to cleaning robots, we offer solar panels, BIPV solutions, high-capacity batteries, and portable power supplies to create a one-stop energy solution.
What is the typical delivery timeframe?
We maintain stock for standard models for immediate dispatch. For large-scale customized orders, we calculate a specific production timeline to ensure timely delivery.
Can the robot operate on steep inclines?
The robot is designed for standard solar installations with working angles up to 15° for both washing and dry cleaning operations.
