| Model NO. | RHINO700-EC6 | Clean Type | Clean-In-Place |
| Cleaning Process | Cold Water Cleaning | Control | PLC |
| Fuel | Electric | Style | Crawler Style |
| Working Mode | Dry Cleaning / Wet Cleaning | Endurance | ≥4h |
| Operating Voltage | 24V | Power Supply | Lithium Battery |

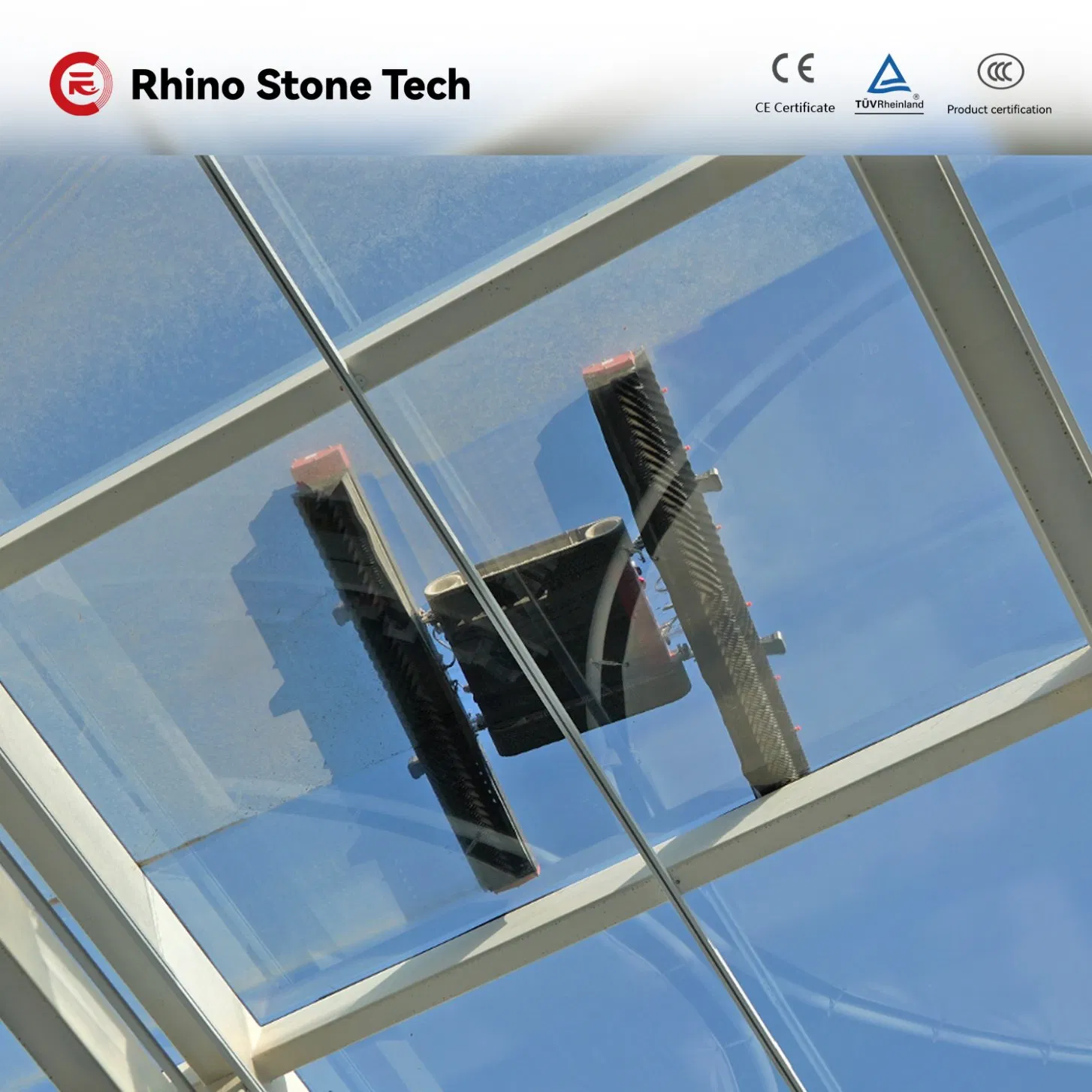

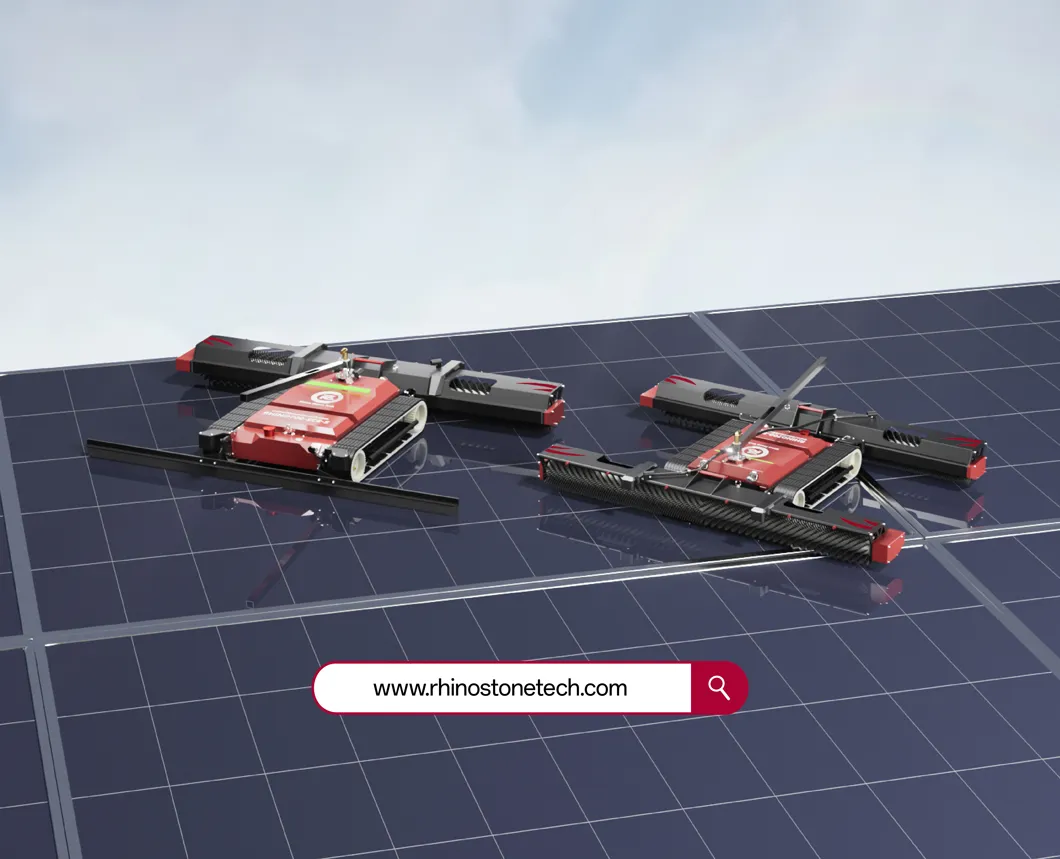

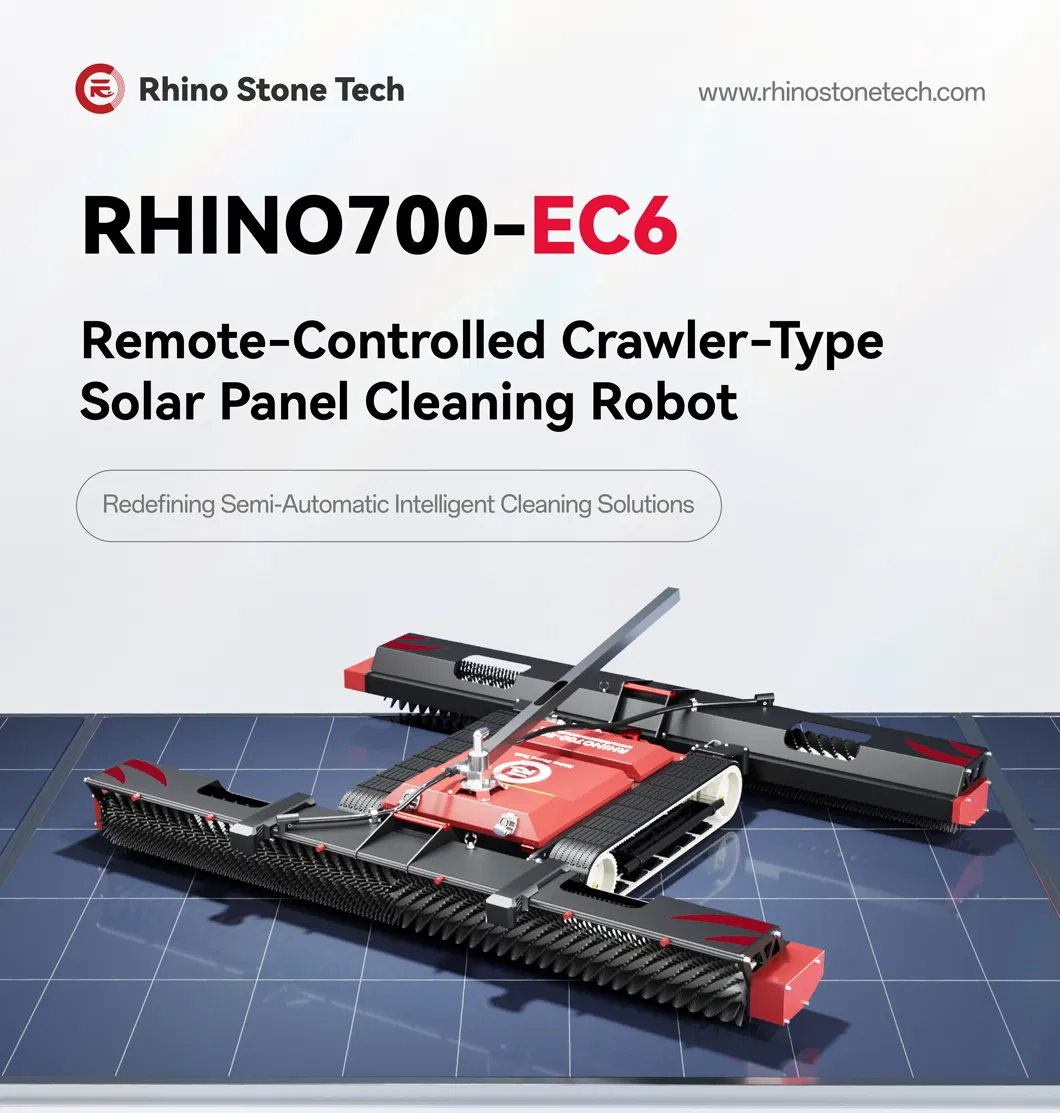

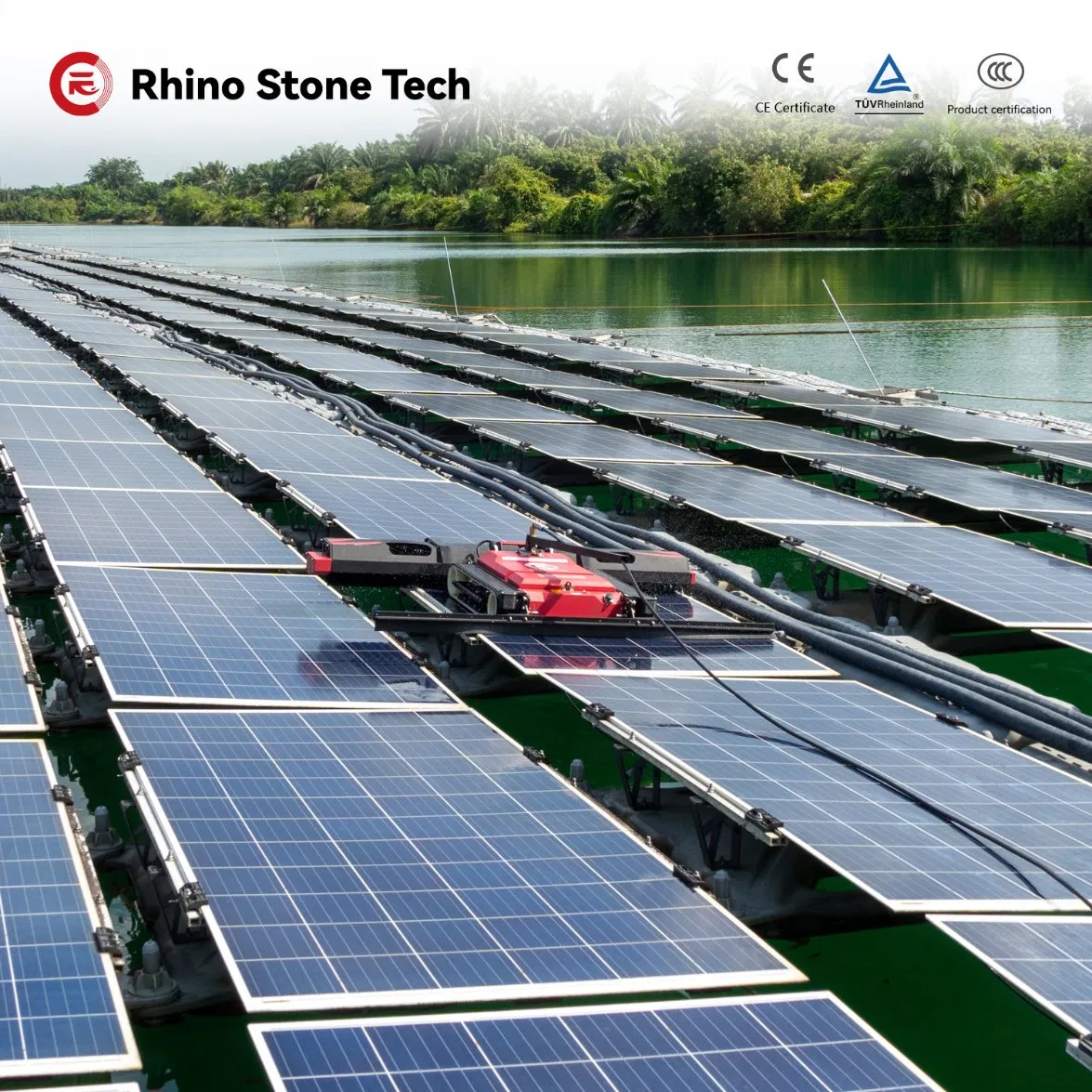

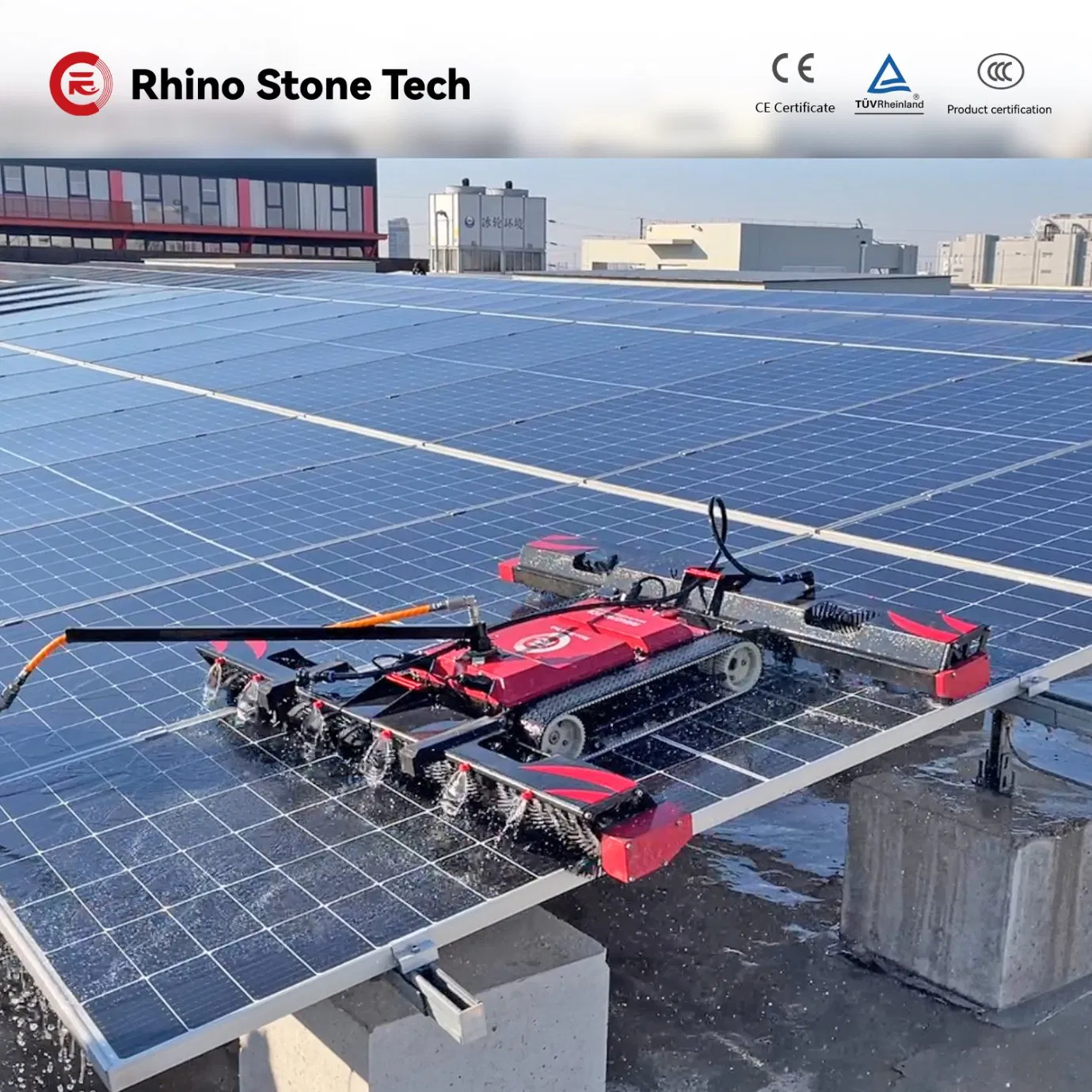

RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot

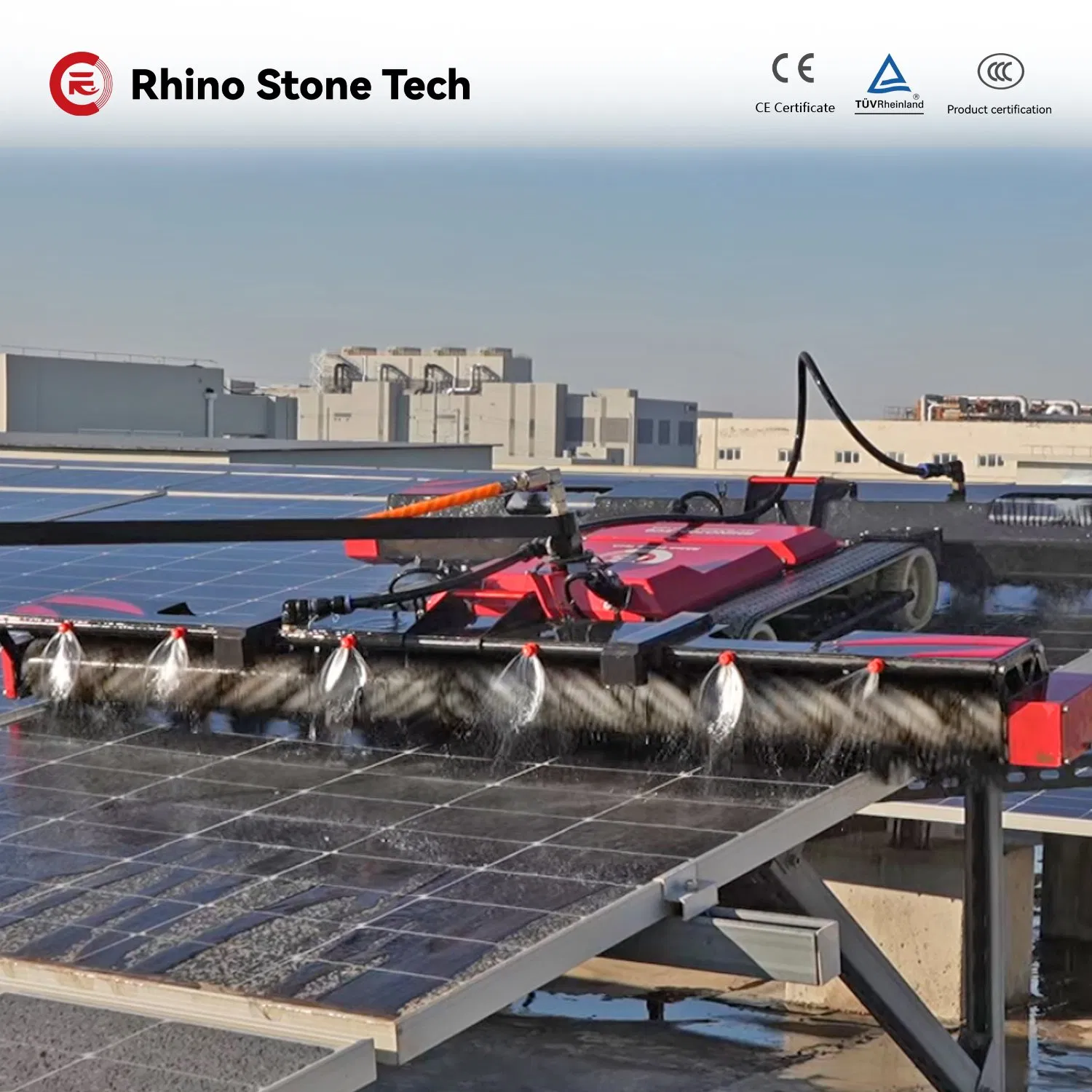

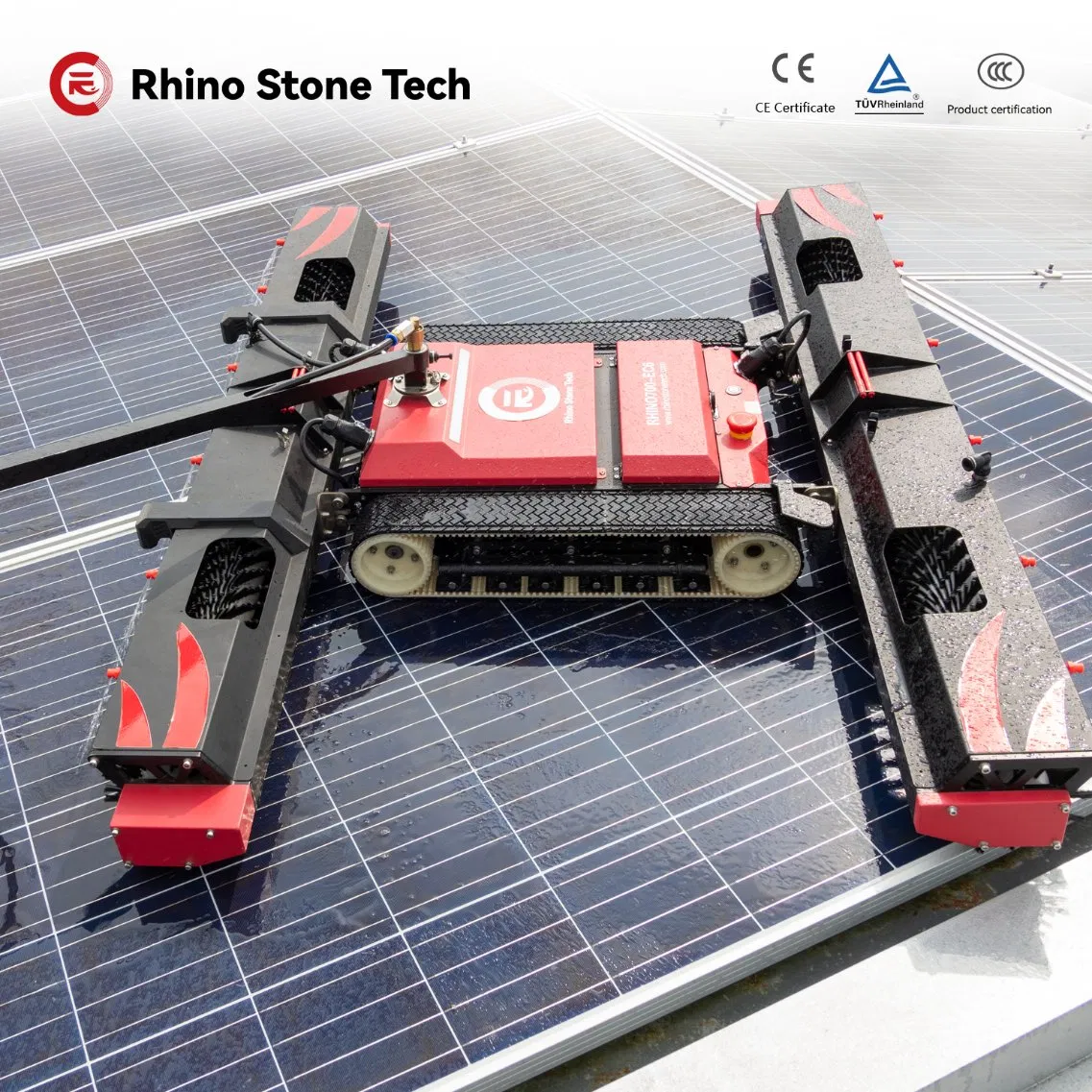

The RHINO700-EC6 features a lightweight overall design equipped with dual adaptive ultra-wide floating roller brushes at the front and rear. It ensures thorough cleaning with no dead corners by closely fitting the module surface. The robot includes a parking storage mode to prevent brush deformation and extend service life. An anti-fall system significantly enhances safety, enabling reliable operation across complex terrains in diverse scenarios, delivering safer and more efficient cleaning.

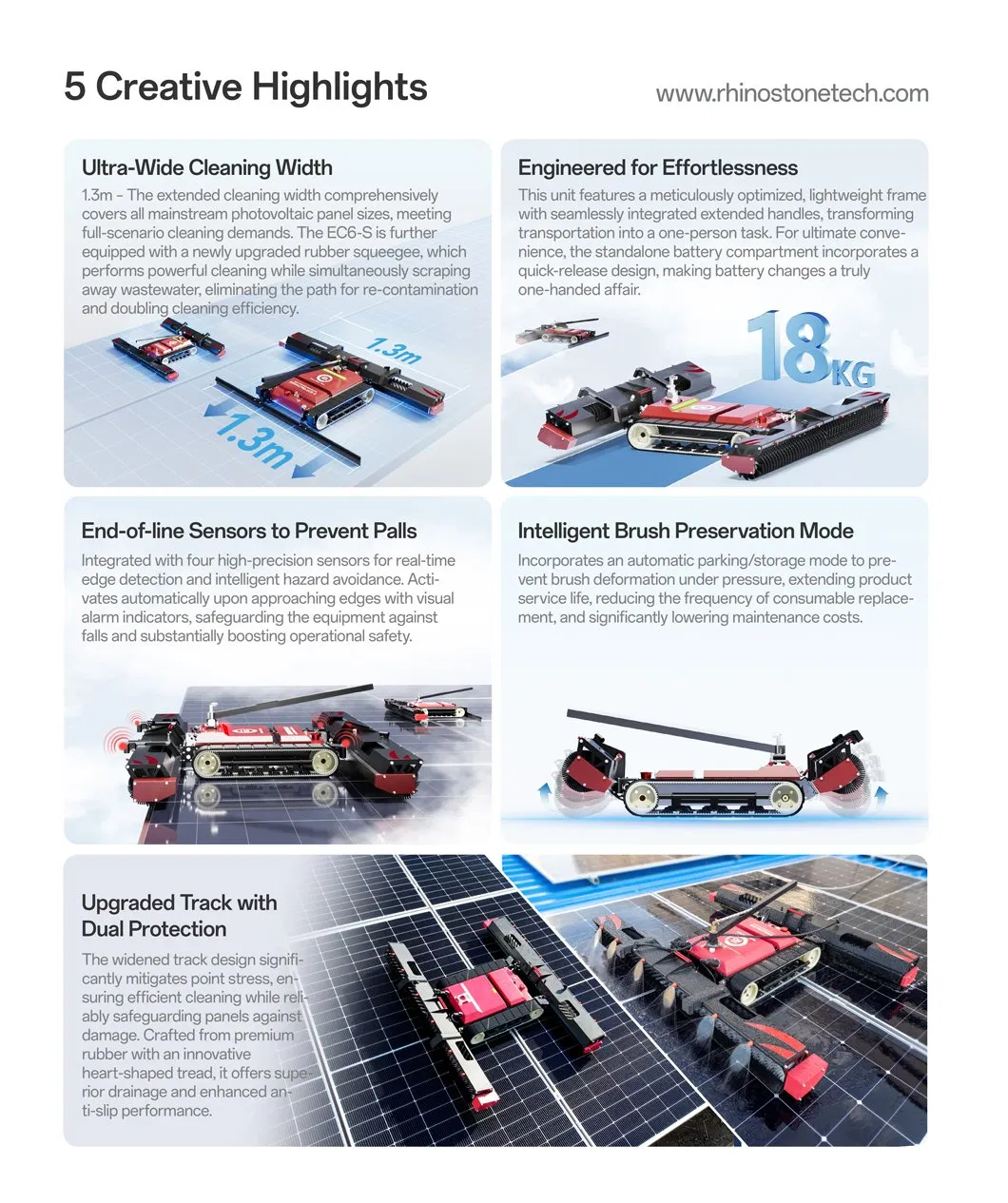

Comprehensively covers all mainstream photovoltaic panel sizes. Equipped with a newly upgraded rubber squeegee to scrape away wastewater and eliminate re-contamination.
Optimized lightweight frame with integrated handles for one-person transport. Quick-release battery compartment allows for one-handed battery changes.
Four high-precision sensors for real-time edge detection and intelligent hazard avoidance with visual alarm indicators.
Automatic parking/storage mode prevents brush deformation under pressure, extending consumable life and lowering maintenance costs.
| Performance Parameters | |
|---|---|
| Travel Speed | ≤ 0.4 m/s, adjustable |
| Wind Resistance Rating | ≤ Level 7 |
| Operating Temperature | 0ºC ~ 50ºC |
| Operating Humidity | 0 - 95% (non-condensing) |

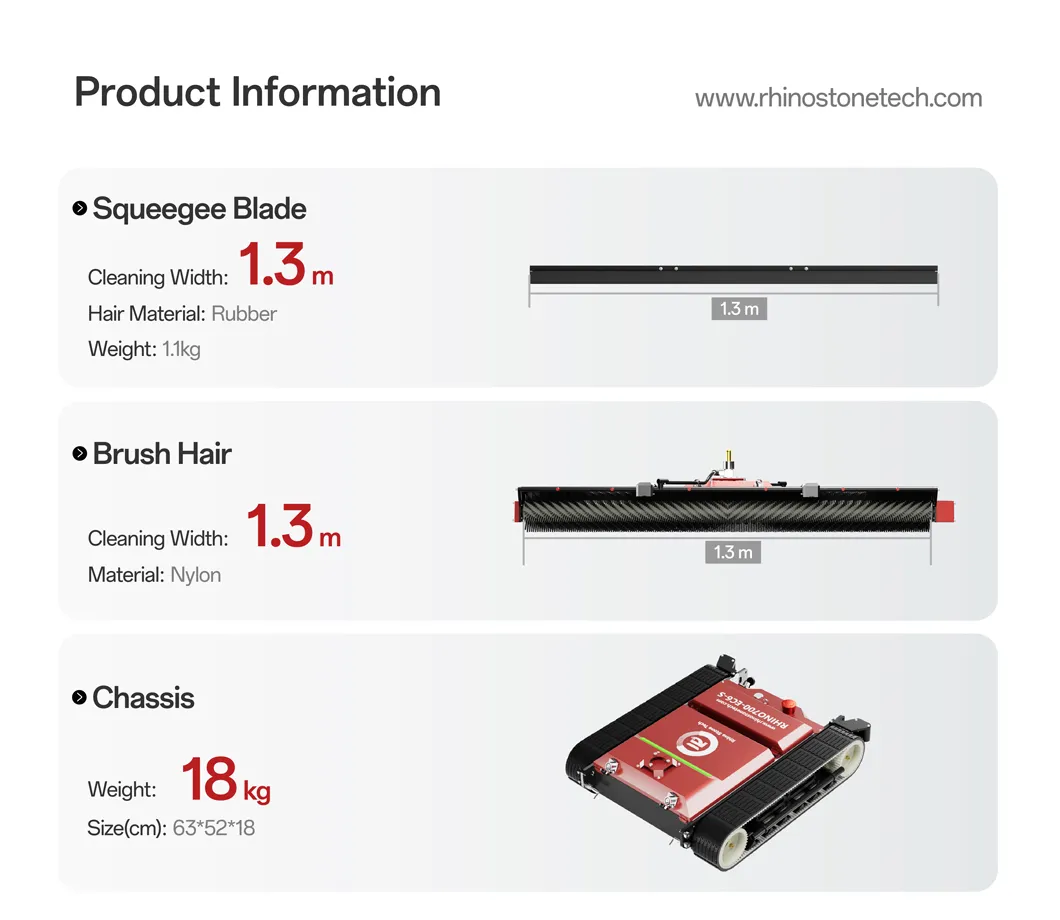

| Chassis Weight | 18kg |
| Double Brushes' Weight | 14.5kg |
| Battery Type | Portable lithium battery, 24V 30AH |
| Charging Time | 8h (Standard) / 4h (Fast) |
| Water Pipe Length | 20m |
Each product undergoes multi-stage testing to guarantee reliability and superior performance in the most challenging environments. Our technology maximizes energy yield and operational efficiency through expert technical support and rapid response.
