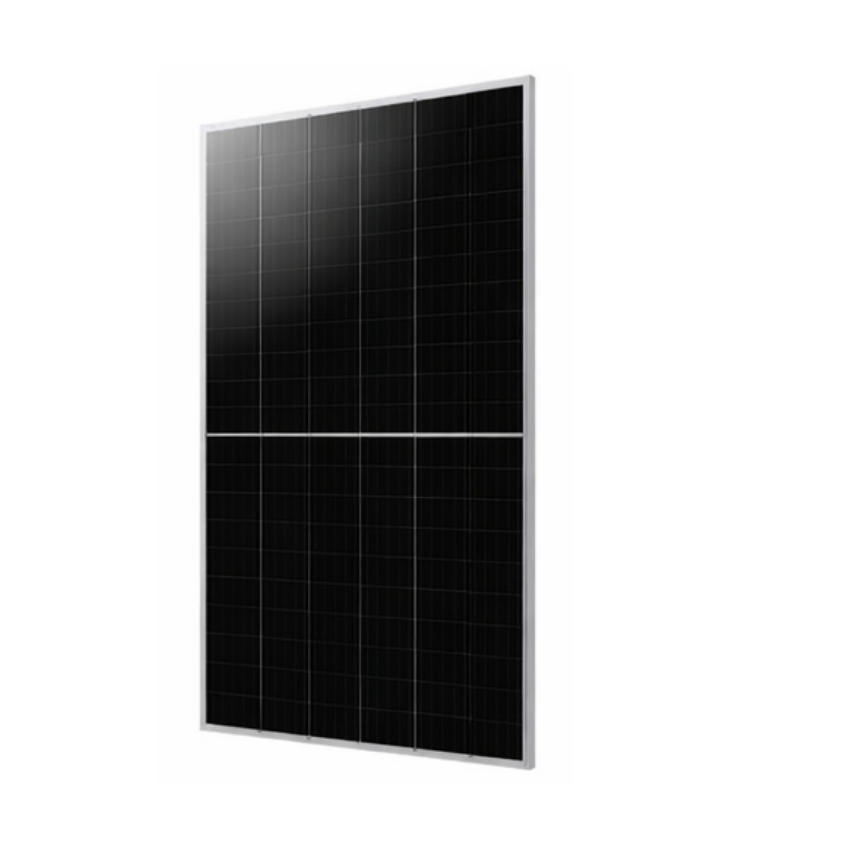

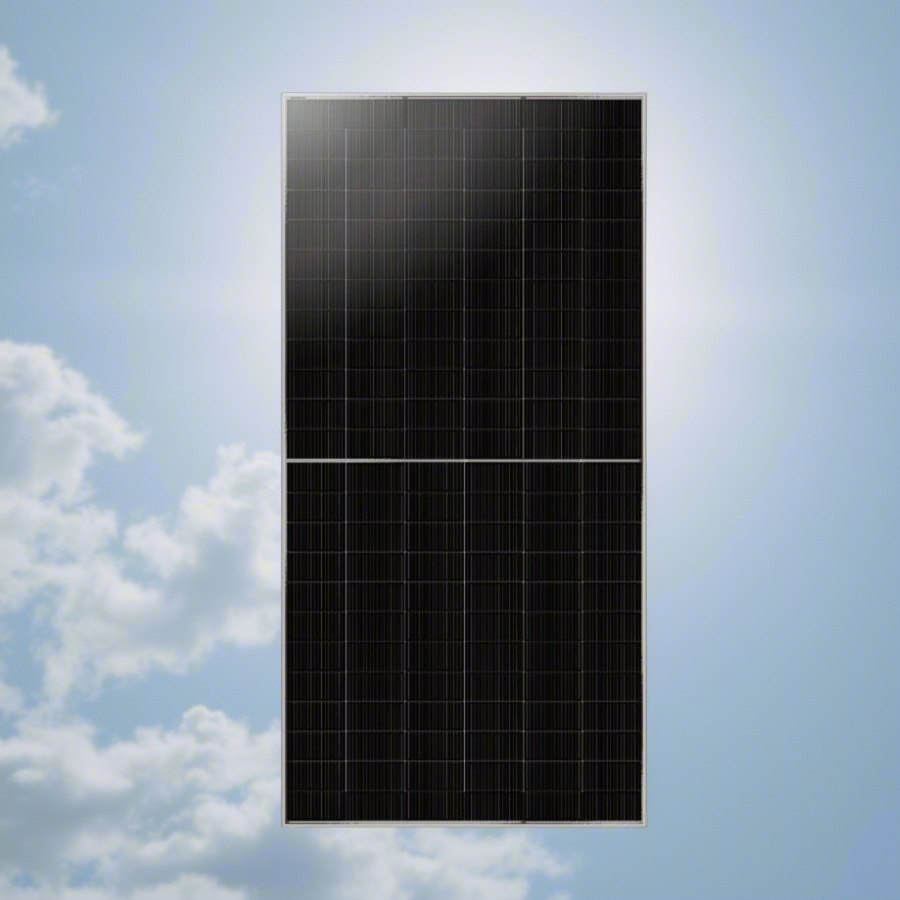

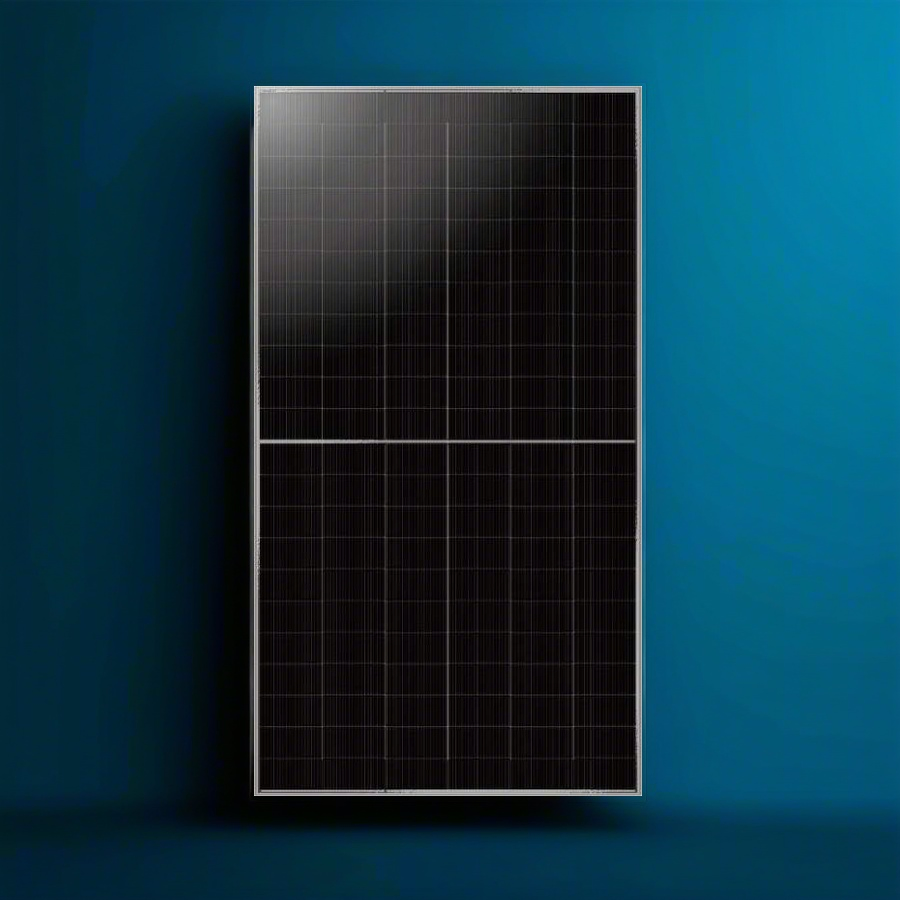

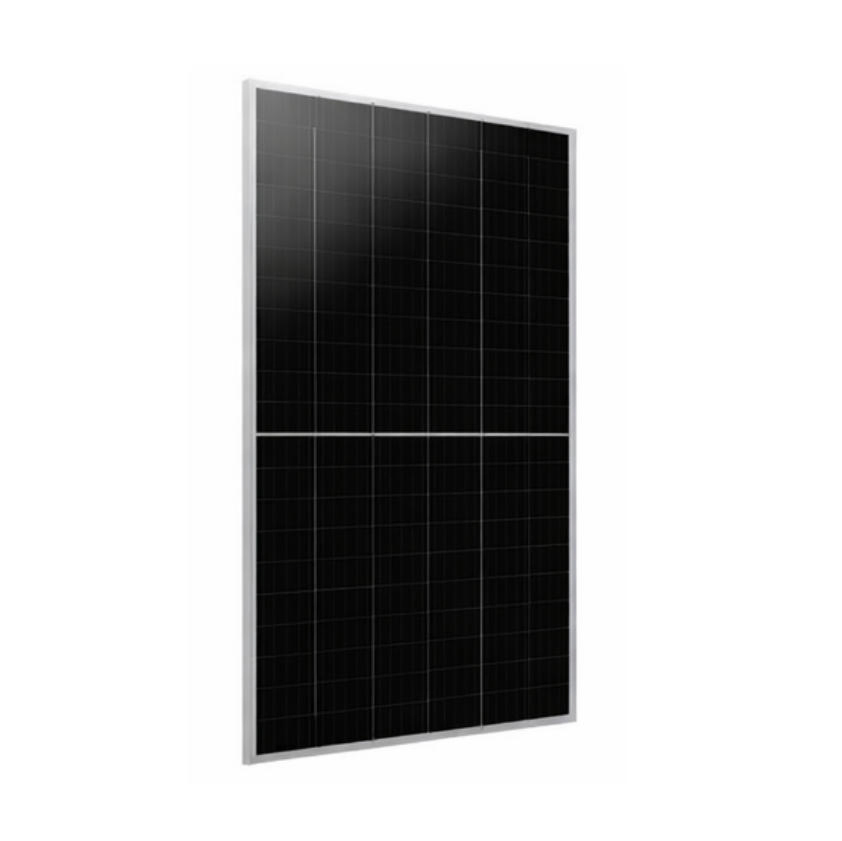

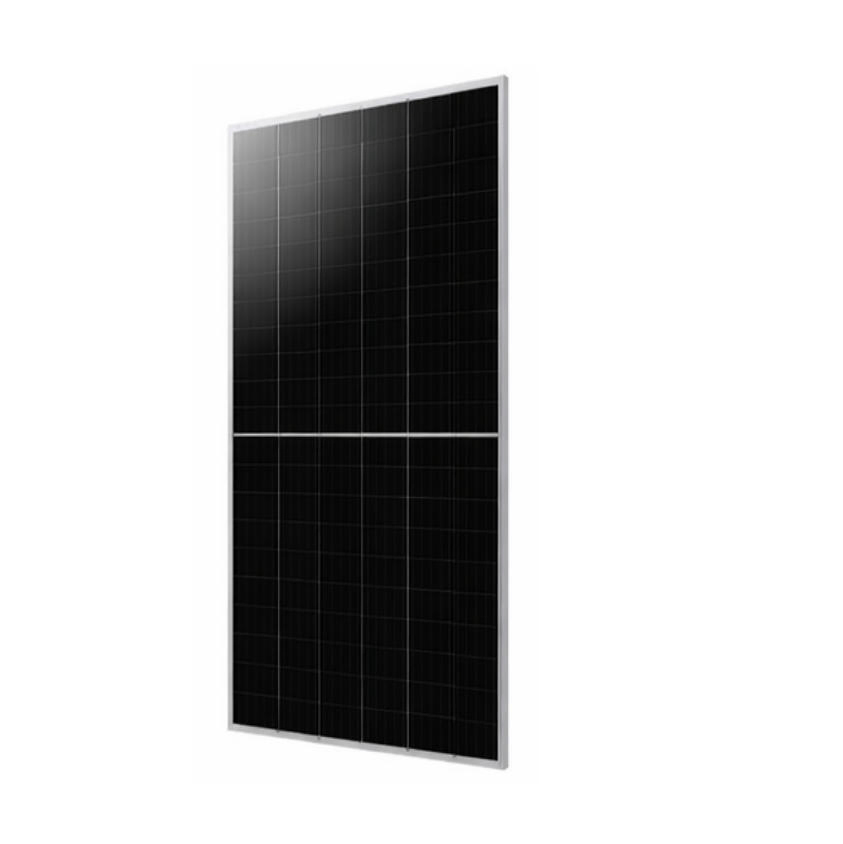

600W 610W 620W Bifacial Photovoltaic Mono Topcon Half Cut Solar Panel PV Module for Industry Power Plant

1 / 5

600W 610W 620W Bifacial Photovoltaic Mono Topcon Half Cut Solar Panel PV Module for Industry Power Plant

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

610M-132D

Application

Residential/Commercial

Certification

ISO, CE, TUV

Material

Monocrystalline Silicon

Max. Power

610W

Weight

31.7kg

Specification

2384*1303*33mm

Transport Package

Carton & Pallet

Product Description

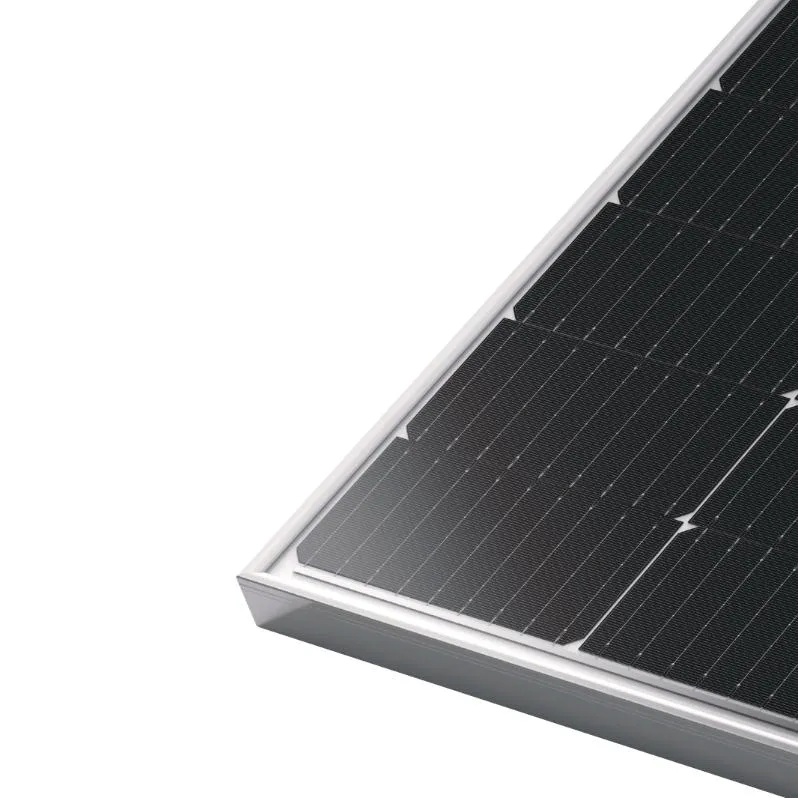

High Efficiency Monocrystalline PV Modules

Developed for high performance, these monocrystalline solar panels deliver reliable and stable power for residential, commercial, off-grid applications, and utility-scale solar power plants. Built to ensure long-term durability and consistent electrical performance.

Features & Advantages

◈

Bifacial Power Generation
Back-side power generation efficiency reaches 80±5% of the front side.

◈

Longer Term Reliability
Passed IEC63209-1:2021 standard test (2 to 3 times stricter than regular requirements).

◈

Mechanical Load Resistance
Supports 2400 Pa wind load and 5400 Pa snow load.

◈

Anti-PID Technology
Passed anti-PID test under 85°C damp heat for 192 hours.

◈

Lower LCOE
Lower shading and resistive loss with a superior temperature coefficient.

◈

Wide Applicability

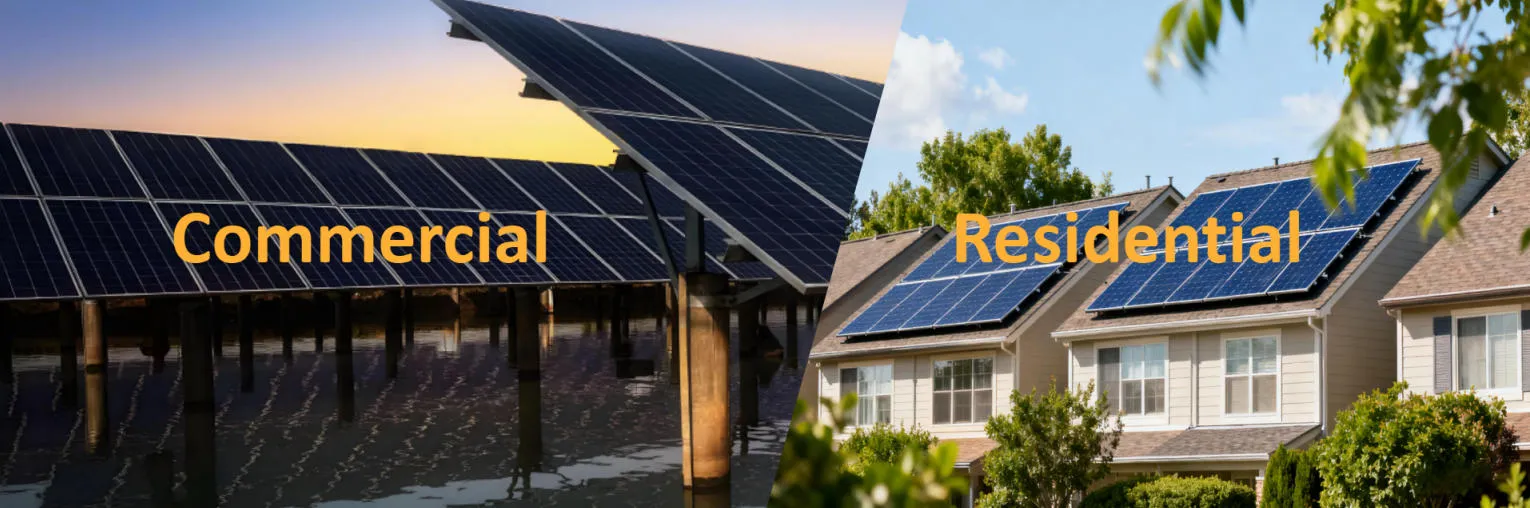

Applied to roofs, ground surfaces, water surfaces, and mountainous areas.

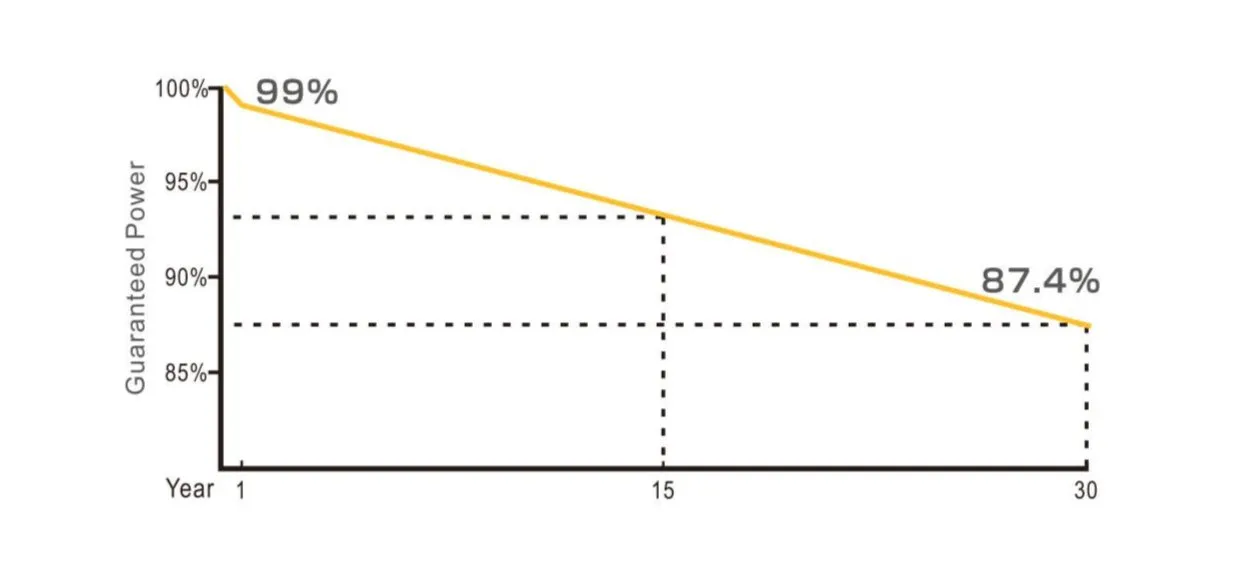

Warranty & Performance

✔

15 Year Product Warranty

✔

30 Year Linear Power Warranty

✔

1% Power Degradation in First Year

✔

0.4% Annual Linear Power Degradation

Technical Specifications

Module Type	ZD-600M	ZD-605M	ZD-610M	ZD-615M	ZD-620M
Max. Power (Pmax)	600W	605W	610W	615W	620W
Max. Power Voltage (Vmp)	40.17V	40.35V	40.54V	40.72V	40.90V
Max. Power Current (Imp)	14.94A	14.99A	15.05A	15.10A	15.16A
Open-circuit Voltage (Voc)	48.28V	48.48V	48.68V	48.88V	49.08V
Module Efficiency STC	22.21%	22.40%	22.58%	22.77%	22.95%

General Data

Cell Type

N-type TOPCon Mono Half Cell

No. of cells

132 (6×11×2)

Dimensions

2382*1134*30mm

Front Glass

2.0mm, AR Coating, Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68, 3 diodes

Frequently Asked Questions

What types of solar panels do you supply?

We supply high-efficiency monocrystalline solar panels, including standard PV modules and customized sizes for specific power requirements.

What is the efficiency of these solar panels?

Our N-type TOPCon monocrystalline solar panels achieve up to 23.14% conversion efficiency depending on the specific model.

What is the warranty period for the 610W module?

We provide a 15-year product warranty and a 30-year linear power output warranty for long-term reliability.

Are these panels resistant to extreme weather?

Yes, they are designed to withstand 2400 Pa wind loads and 5400 Pa snow loads, and have passed rigorous mechanical testing.

Do the panels work well in low-light conditions?

Yes, our panels are engineered to maintain high performance under low-light and cloudy conditions using advanced cell technology.

What certifications do your products hold?

Our solar panels are certified with IEC, TUV, CE, and ISO standards to meet global market and safety requirements.
