| ELECTRICAL DATA | STC* | |||||||
|---|---|---|---|---|---|---|---|

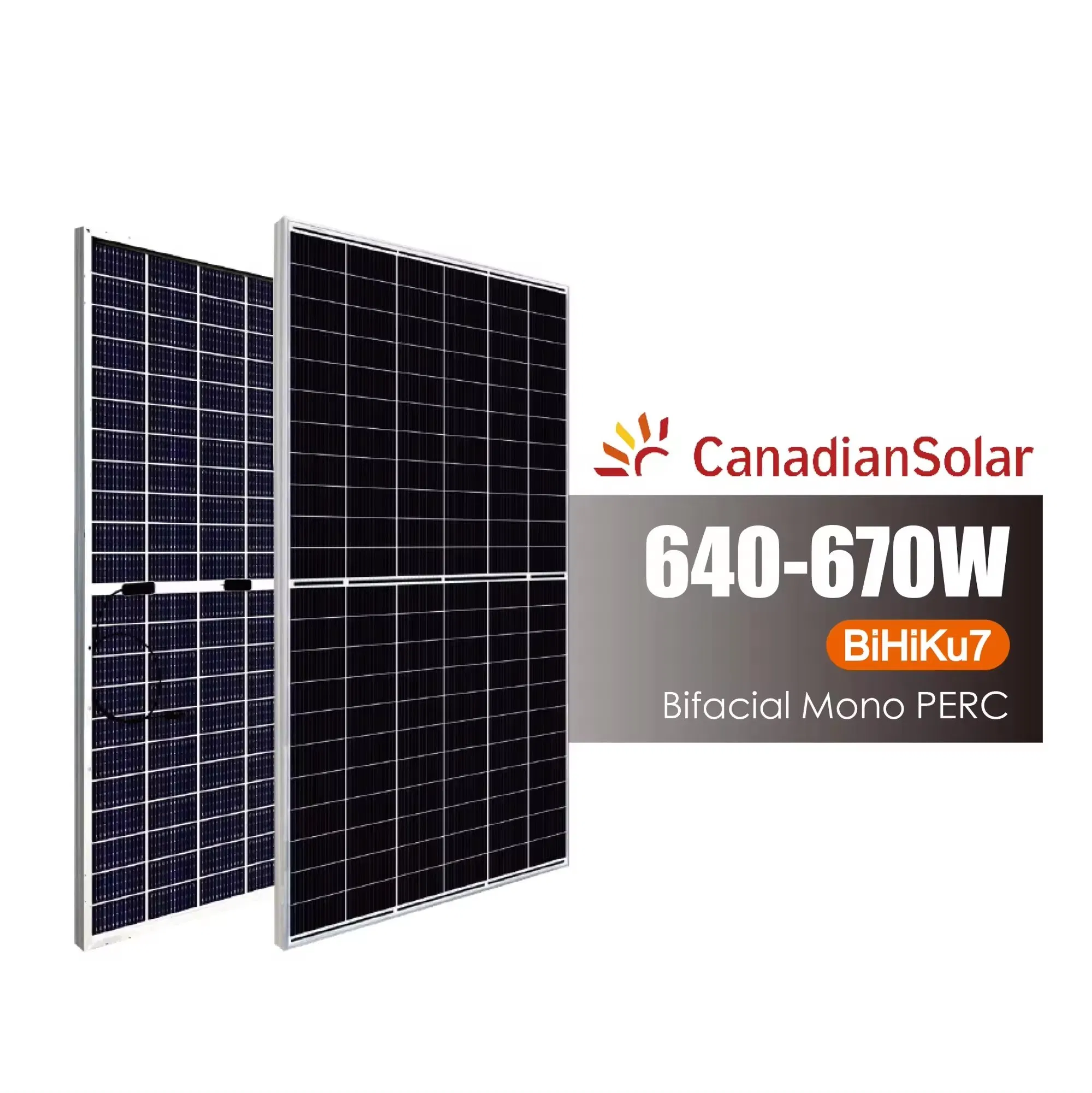

| Model | Bifacial Gain | Pmax (W) | Vmp (V) | Imp (A) | Voc (V) | Isc (A) | Efficiency |
| CS7N-640MB-AG | - | 640 W | 37.5 V | 17.07 A | 44.6 V | 18.31 A | 20.6% |
| 5% | 672 W | 37.5 V | 17.92 A | 44.6 V | 19.23 A | 21.6% | |
| 10% | 704 W | 37.5 V | 18.78 A | 44.6 V | 20.14 A | 22.7% | |
| 20% | 768 W | 37.5 V | 20.48 A | 44.6 V | 21.97 A | 24.7% | |
| CS7N-660MB-AG | - | 660 W | 38.3 V | 17.24 A | 45.4 V | 18.47 A | 21.2% |
| 5% | 693 W | 38.3 V | 18.10 A | 45.4 V | 19.39 A | 22.3% | |
| 10% | 726 W | 38.3 V | 18.96 A | 45.4 V | 20.32 A | 23.4% | |
| 20% | 792 W | 38.3 V | 20.69 A | 45.4 V | 22.16 A | 25.5% | |
* STC: Irradiance 1000 W/m2, spectrum AM 1.5, cell temperature 25°C. Bifacial Gain depends on mounting structure and ground albedo.
