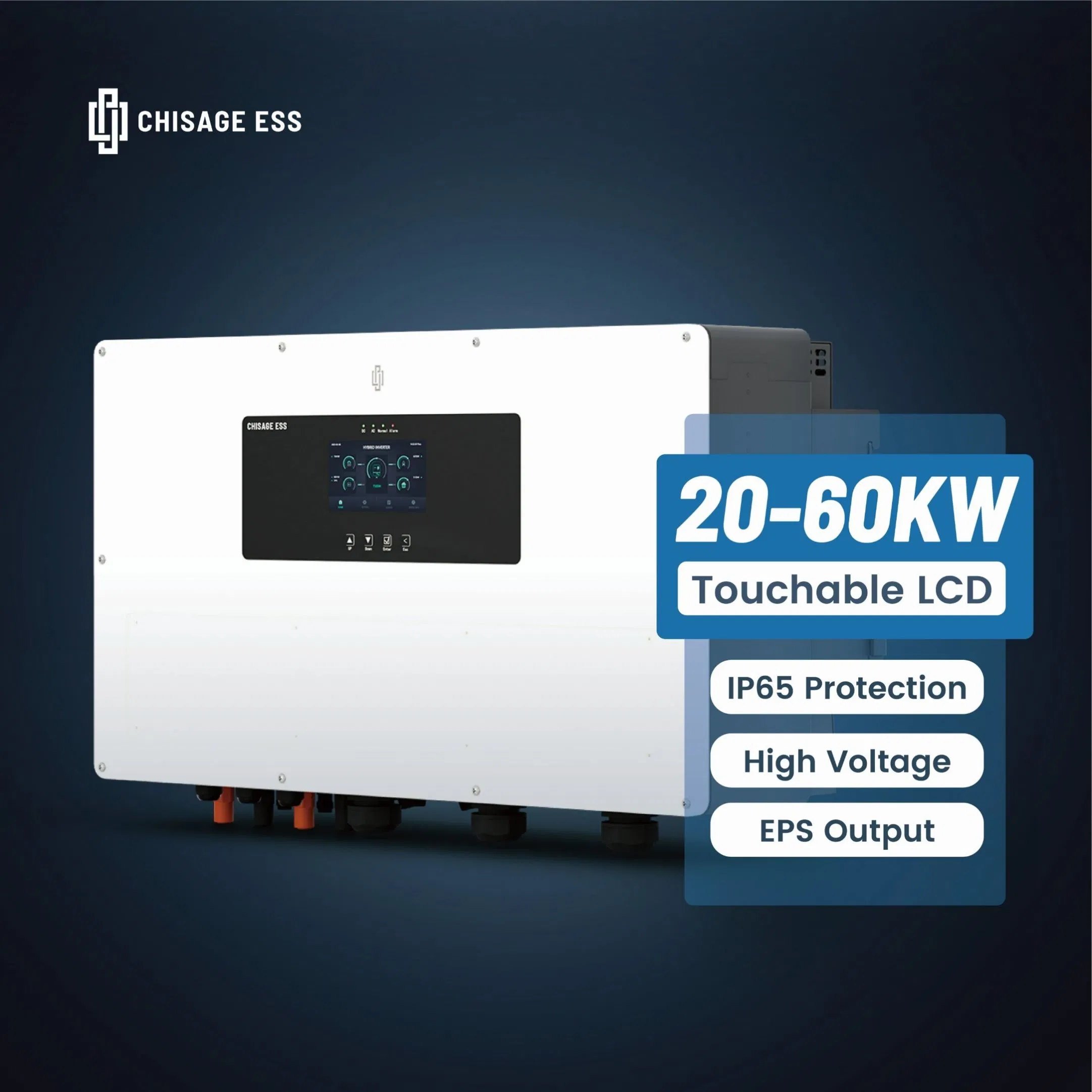

Chisage Merc Series Three Phase 20kw 25kw 30kw 35kw 40kw 50kw 60kw Hybrid Solar Power Inverter for Industrial and Commercial Energy Storage Systems

Basic Information

Model NO.

Merc-35G1-HE

Phase

Three

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Battery Type

Lead-Acid or Lithium-Ion

PV Input Voltage(V)

600V(150~900)

No. of MPPT Trackers

4

Max. Efficiency

97.60%

Protection Degree

IP65

Cooling

Smart Cooling

HS Code

8504403090

Product Description

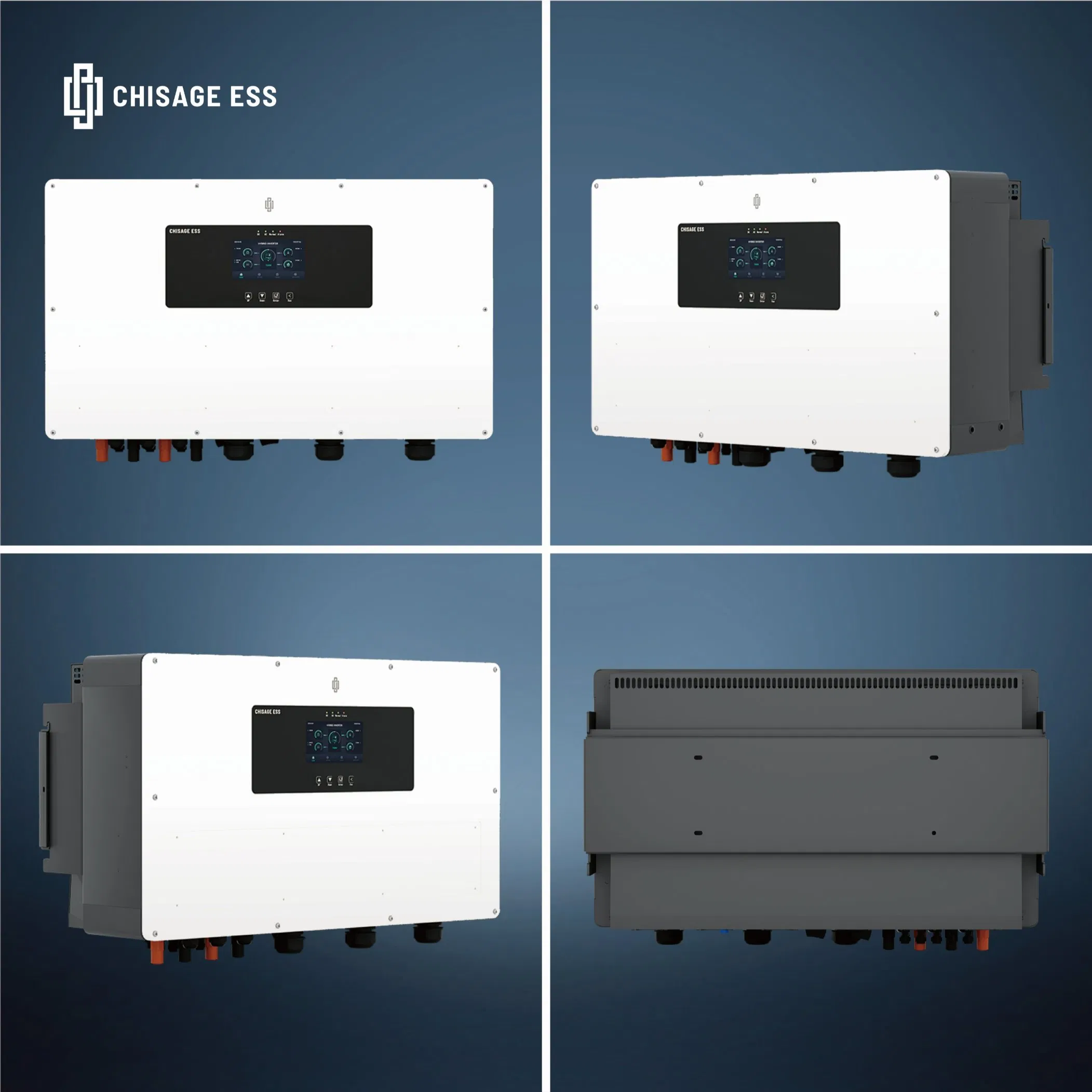

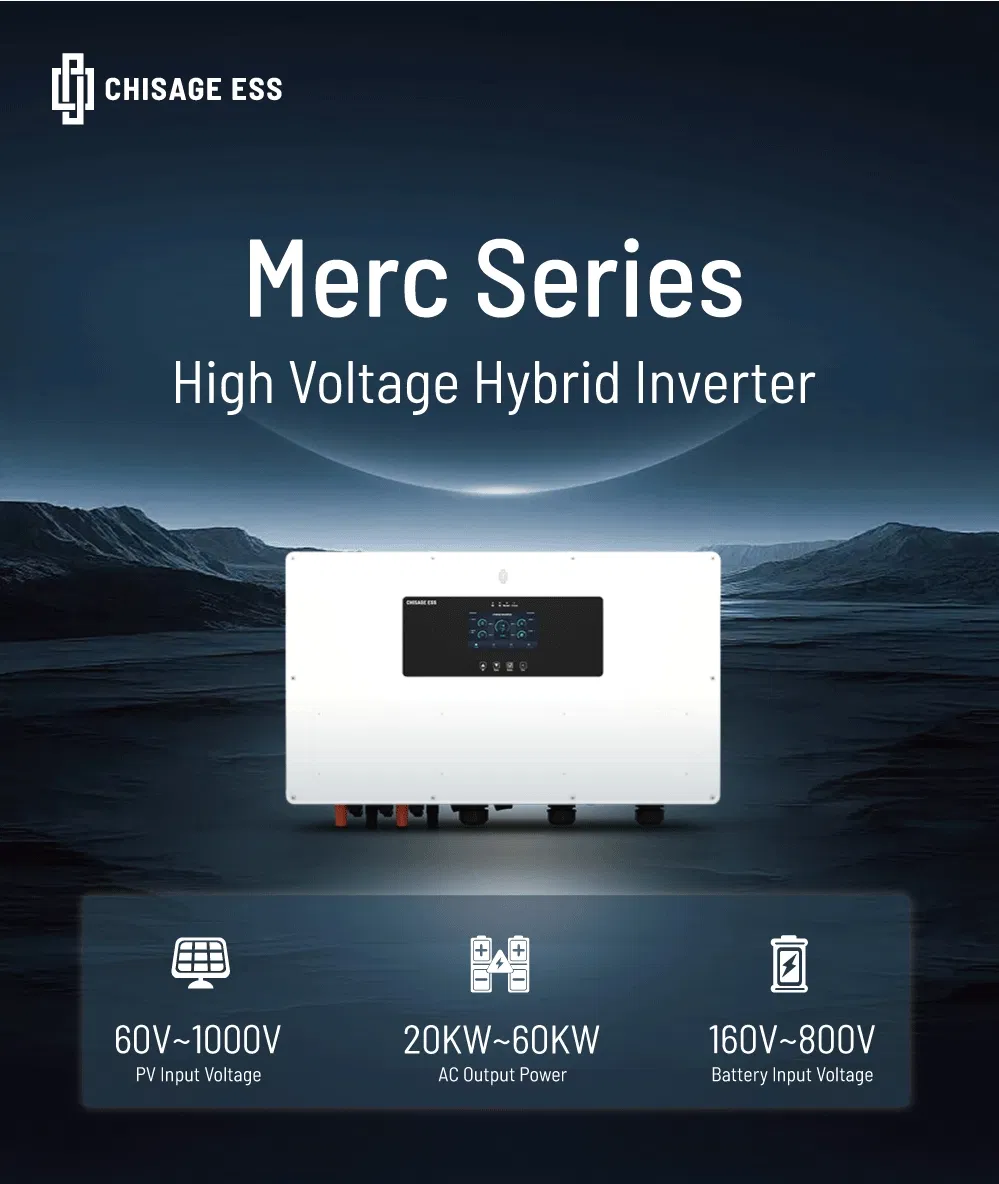

Merc Series Three Phase Hybrid Solar Power Inverter for Industrial and Commercial Energy Storage Systems

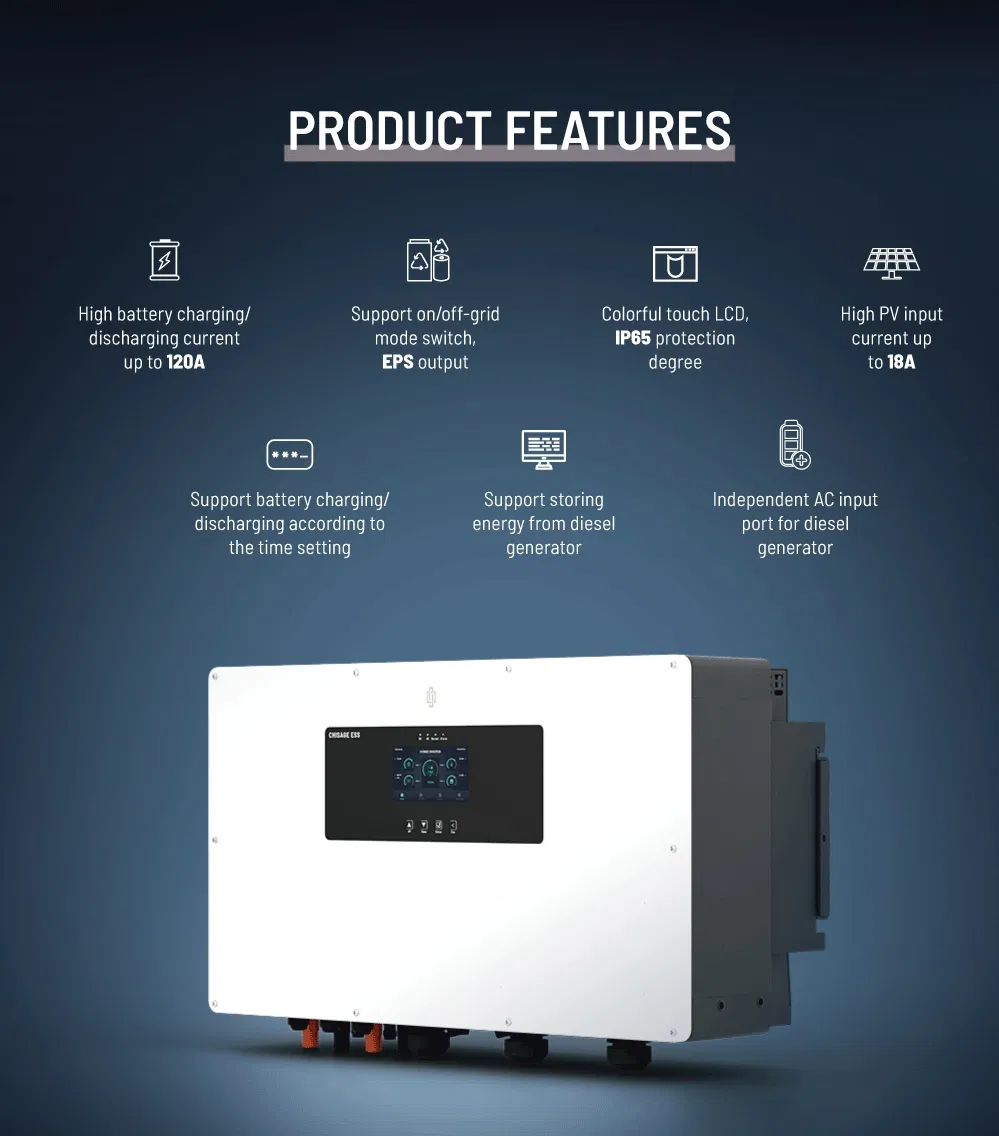

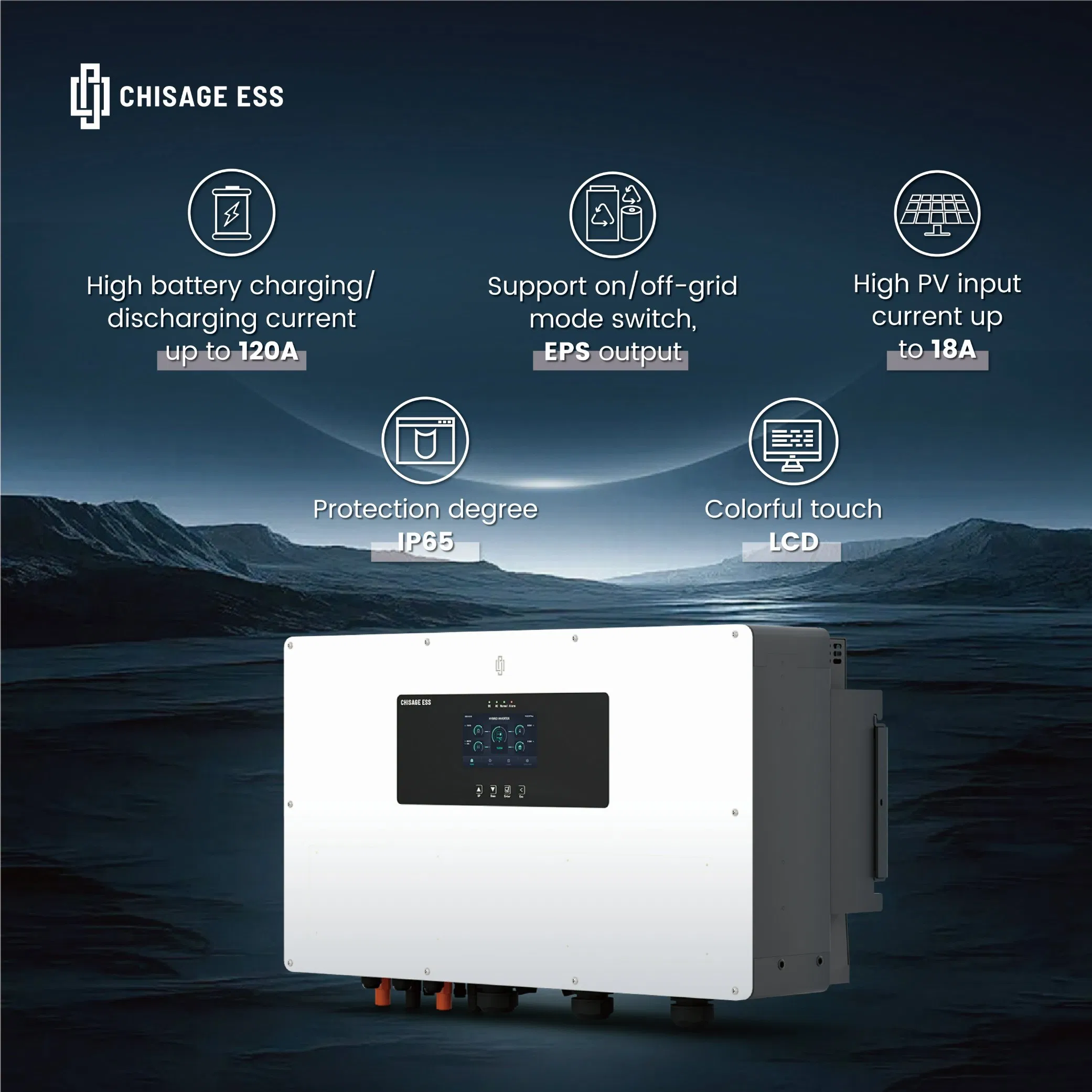

Product Features

Technical Specifications

Technical Data
Model	20G1-HE	25G1-HE	29.9G1-HE	30G1-HE	35G1-HE	40G1-HE	50G1-HE	60G1-HE
Battery Input
Battery Voltage Range (V)	160~800
Max. Charge/Discharge (A)	60+60
Max. Power (kW)	22	27.5	29.9	33	38.5	44	55	62.5
PV String Input
Max. DC Input Power (kW)	30	37.5	44.85	45	52.5	60	75	90
MPPT Range (V)	150~850
No. of MPPT Trackers	3				4		5
AC Output
Rated Output Power (kW)	20	25	29.9	30	35	40	50	60
Max. AC Output Power (kW)	22	27.5	29.9	33	38.5	44	55	66
Peak Power (Off-grid)	1.5 times of rated power, 10s
General Data
Dimensions (mm)	976W × 665H × 371D
Weight (kg)	109.3
Protection Degree	IP65

Why Choose Our Solutions

Frequently Asked Questions

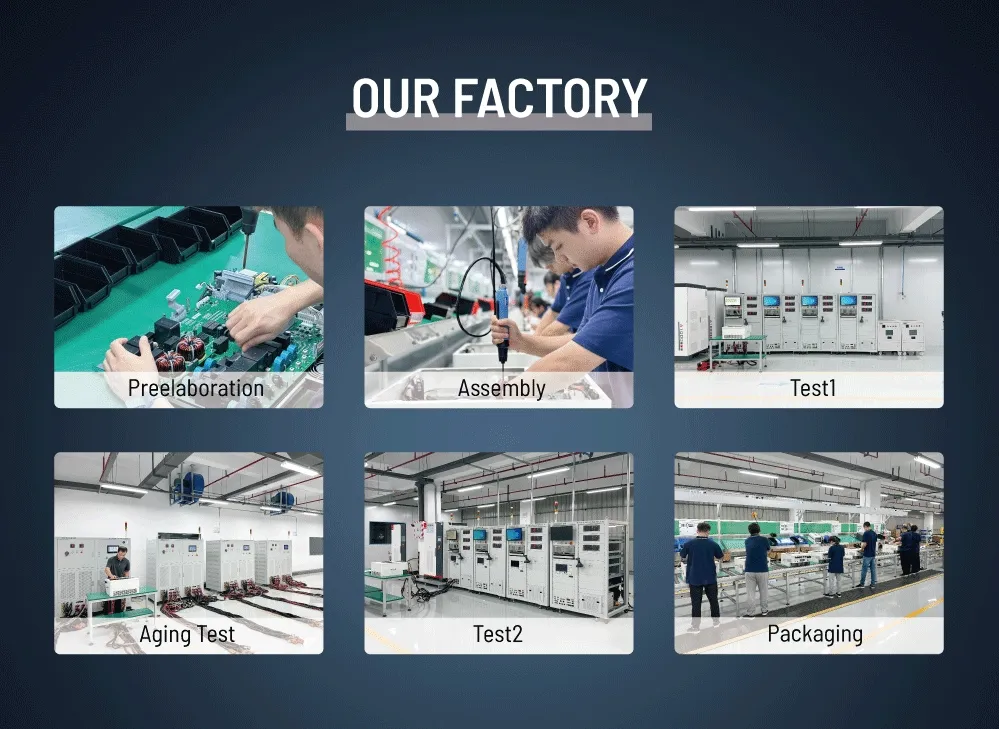

Are you a factory or trading company?

We are a factory specializing in the field of solar inverters and solar energy storage systems. With advanced intelligent production lines and an experienced production team, we prioritize innovation and reliability to deliver top-tier solutions.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 unit. For items currently in stock, we typically ship within 7 business days.

Do you support customized products (OEM/ODM)?

Yes, OEM and ODM are fully supported. Our professional R&D team has over 20 years of experience providing customization for packaging, functionality, and more.

What kind of after-sales service do you provide?

We provide 7x24 hours online service, product replacement for quality issues during the warranty period, and flexible technical training. For large-scale orders, we can offer localized technical support.

What are the available payment terms?

We support a variety of payment methods including T/T, L/C, Trade Guarantee Payments, PayPal, and others. Strategic partners may negotiate specialized terms like DP.

Does the system support external power sources?

Yes, the system supports storing energy from diesel generators, and ARC fault detection is available as an optional feature.
