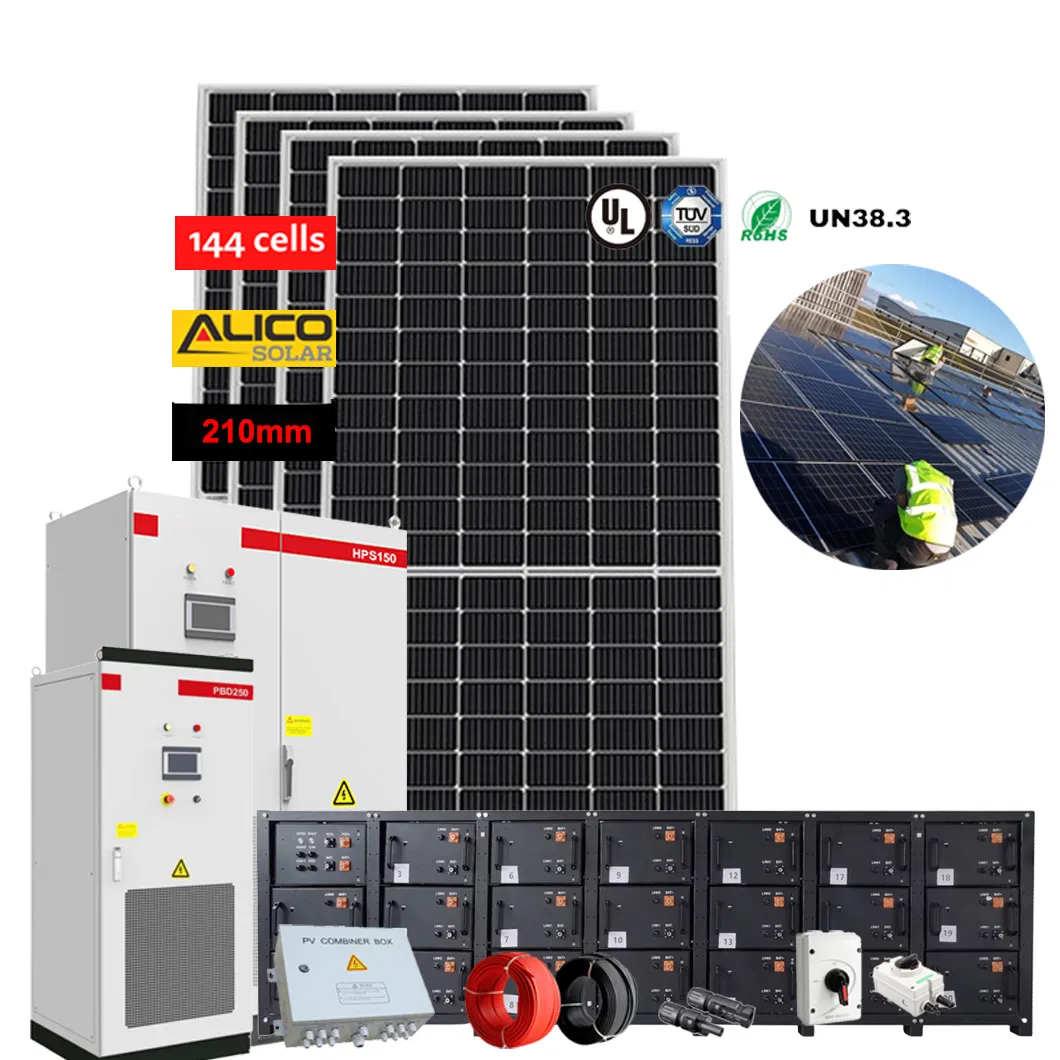

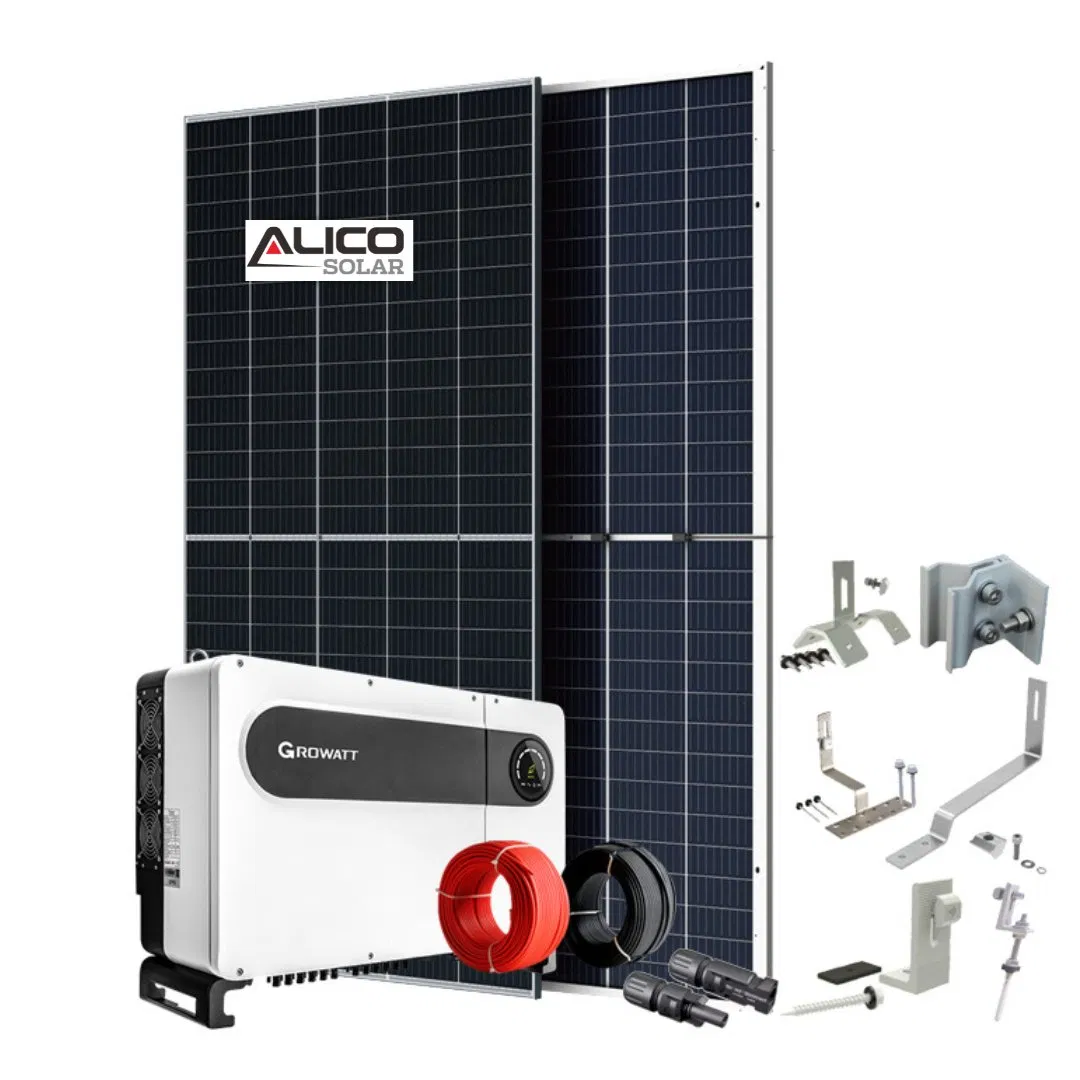

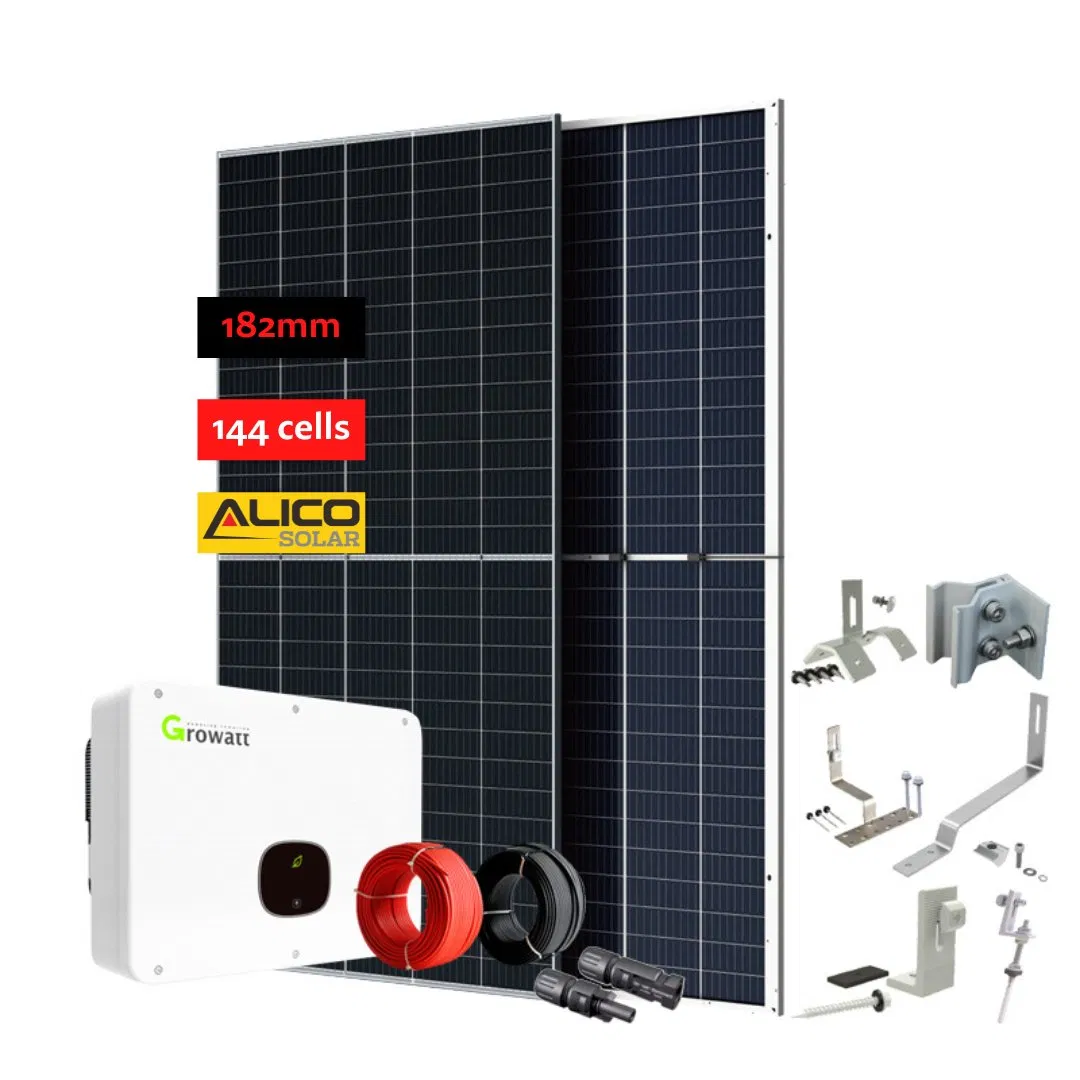

Complete Solar Mounting System Grid Tied 15kw Solar Power System Home 10kw 15kw 20kw Ground Mount Solar Tracking System Farm Use

1 / 5

Complete Solar Mounting System Grid Tied 15kw Solar Power System Home 10kw 15kw 20kw Ground Mount Solar Tracking System Farm Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AS 15KW-On grid

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Solar Power System

Package Size

200.00cm * 100.00cm * 100.00cm

Gross Weight

30.000kg

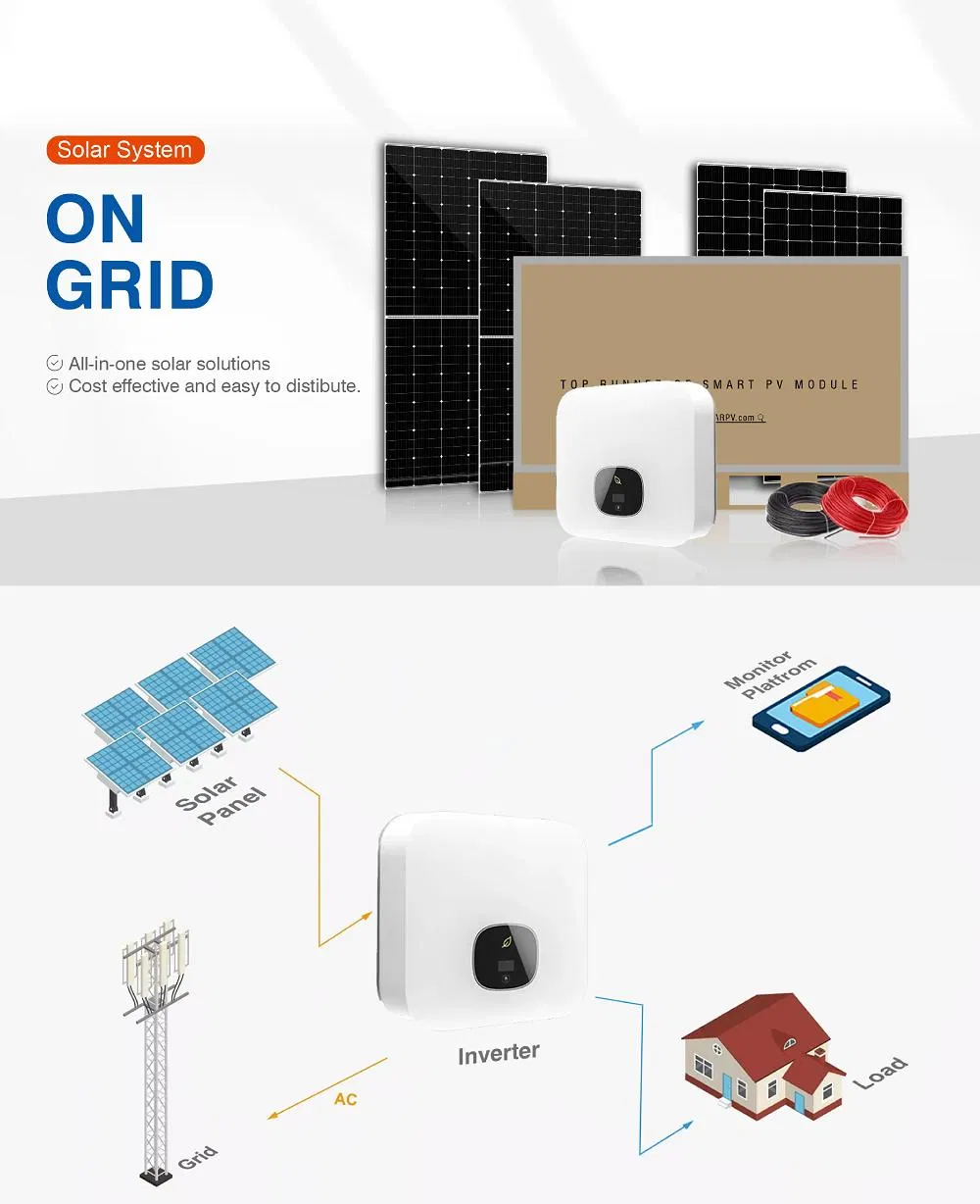

Advantages of Grid-Tied Systems

Save more money with net metering: Your solar panels will often generate more electricity than what you are capable of consuming. With net metering, homeowners can put this excess electricity onto the utility grid instead of storing it themselves with batteries.
The utility grid is a virtual battery: The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates.
High Efficiency: More electricity reaches its destination compared to conventional battery systems where energy waste is higher.

System Configuration Parameters

Model	ASM10KW-ON	ASM12KW-ON	ASM15KW-ON	ASM20KW-ON	ASM30KW-ON
Solar Panel 455W	24 Pieces	28 Pieces	36 Pieces	48 Pieces	72 Pieces
Grid-tied Inverter	10KW	12KW	15KW	20KW	30KW
Wi-Fi Module	1 Piece	1 Piece	1 Piece	1 Piece	1 Piece
Mounting System	1 Set	1 Set	1 Set	1 Set	1 Set
DC Cable 4mm2	200 Meters	200 Meters	300 Meters	300 Meters	300 Meters
PV Connector	10 Pairs	10 Pairs	10 Pairs	20 Pairs	20 Pairs

* Note: The above system configuration is for initial design. Final configuration depends on installation conditions.

Core Components

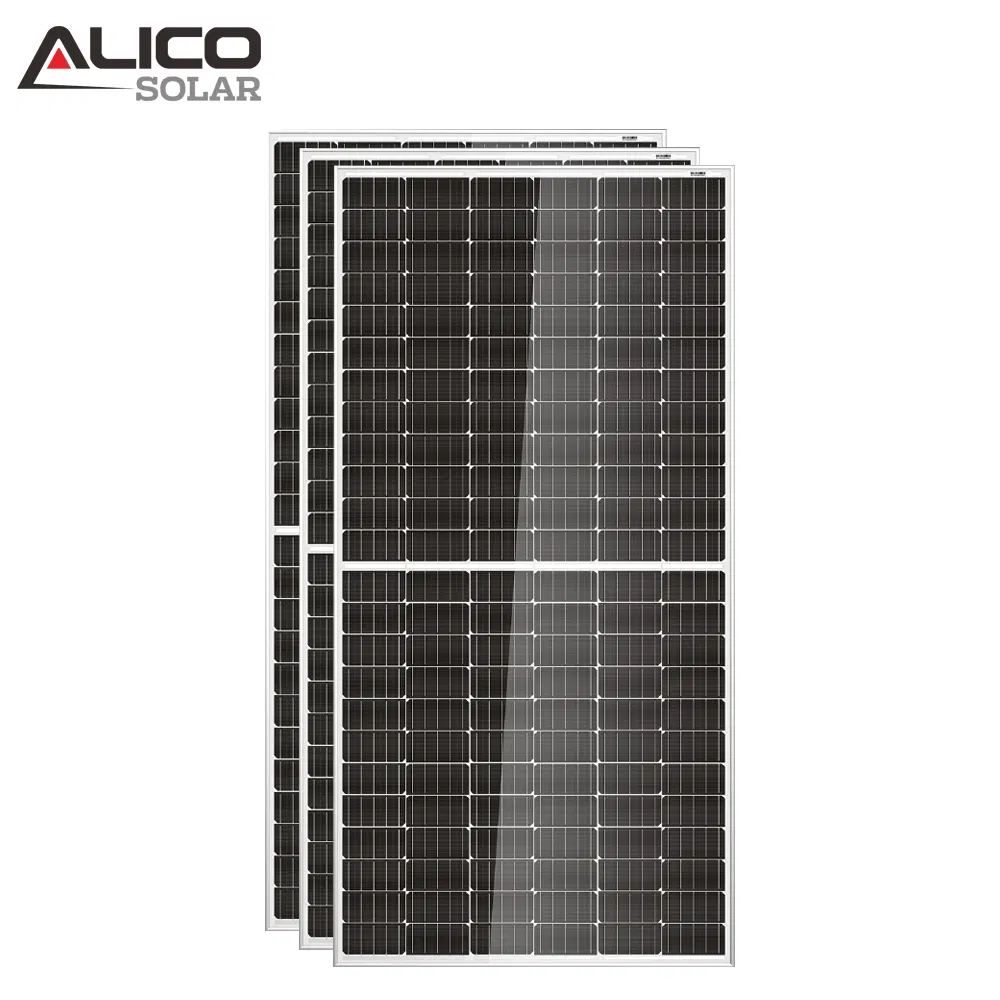

Monocrystalline Solar Panel

Model: ASWM6-132-455M
Peak Power: 455W
Open Circuit Voltage: 44.95V
Short Circuit Current: 12.59A
Features: High Efficiency Half Cell Technology
Dimensions: 2108*1048*35mm | Weight: 24kg

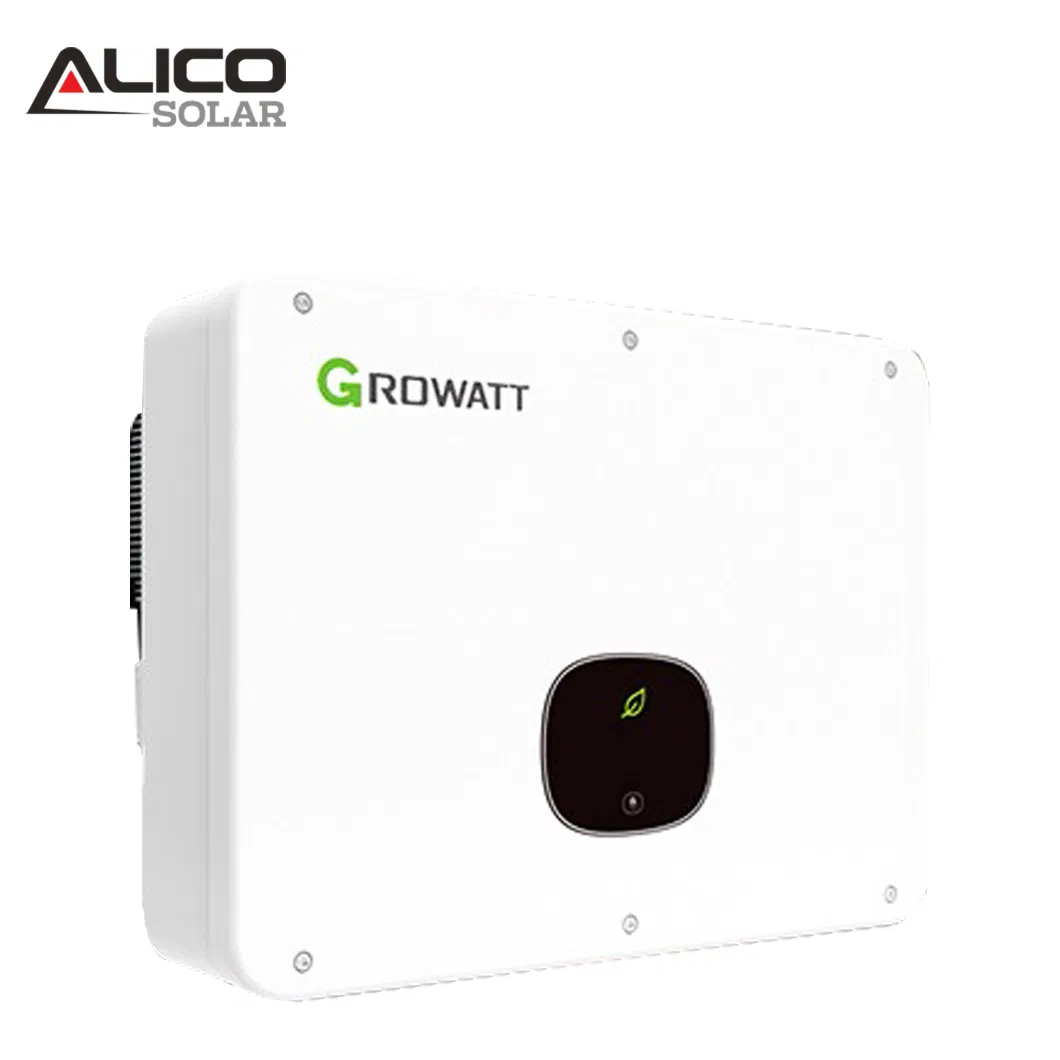

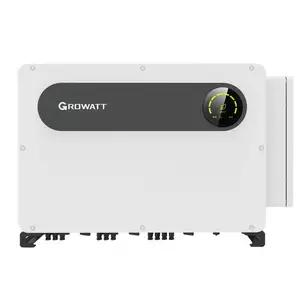

On-Grid Inverter

Max. DC Input Power: 6000W - 30000W Options
Max. DC Input Voltage: 1000V
MPPT Voltage Range: 140-1000V
Rated Grid Voltage: 230V / 400V
Connectivity: Wifi Stick included (Lan & GPRS Optional)

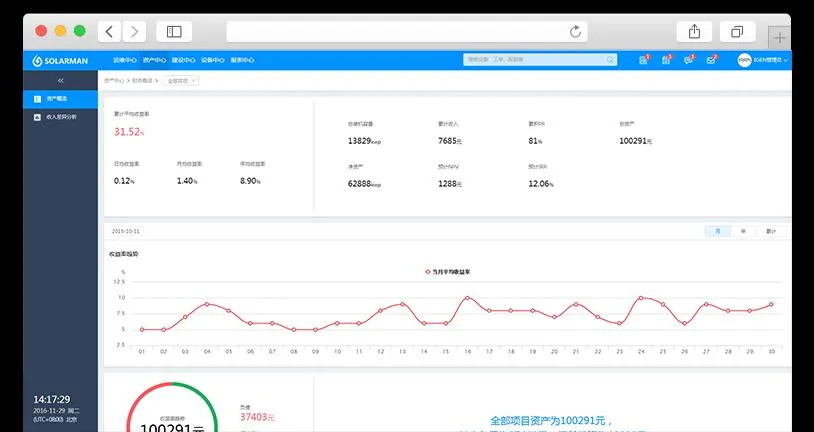

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system in real-time. Access data via web server or App available for PC, IOS & Android via Wi-Fi, Lan or GPRS.

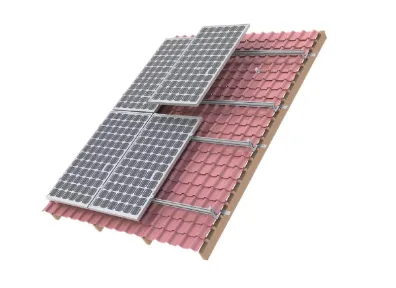

PV Mounting System

Rail Kit: AI6005 & SUS304 Bolts
Clamps: Mid & End Clamps (35-50mm)
Options: L Foot Asphalt Shingle Mount, Hanger Bolts, Cable Clips, and Ground Lugs.

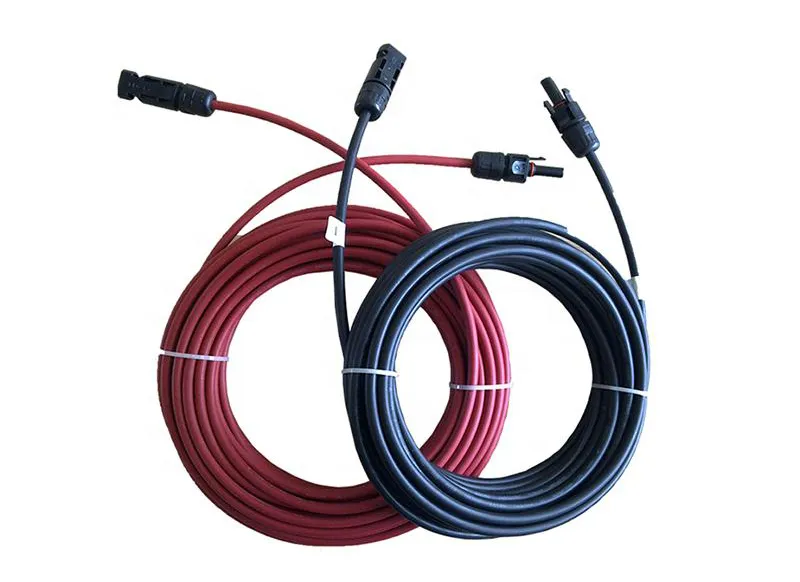

Accessories & Tools

1. AC/DC Cables (4mm2, 6mm2)
2. DC Switches & AC Breakers
3. AC/DC Combiner Box
4. Professional PV Tools: Cable Cutters, Strippers, and MC4 Crimping Pliers.

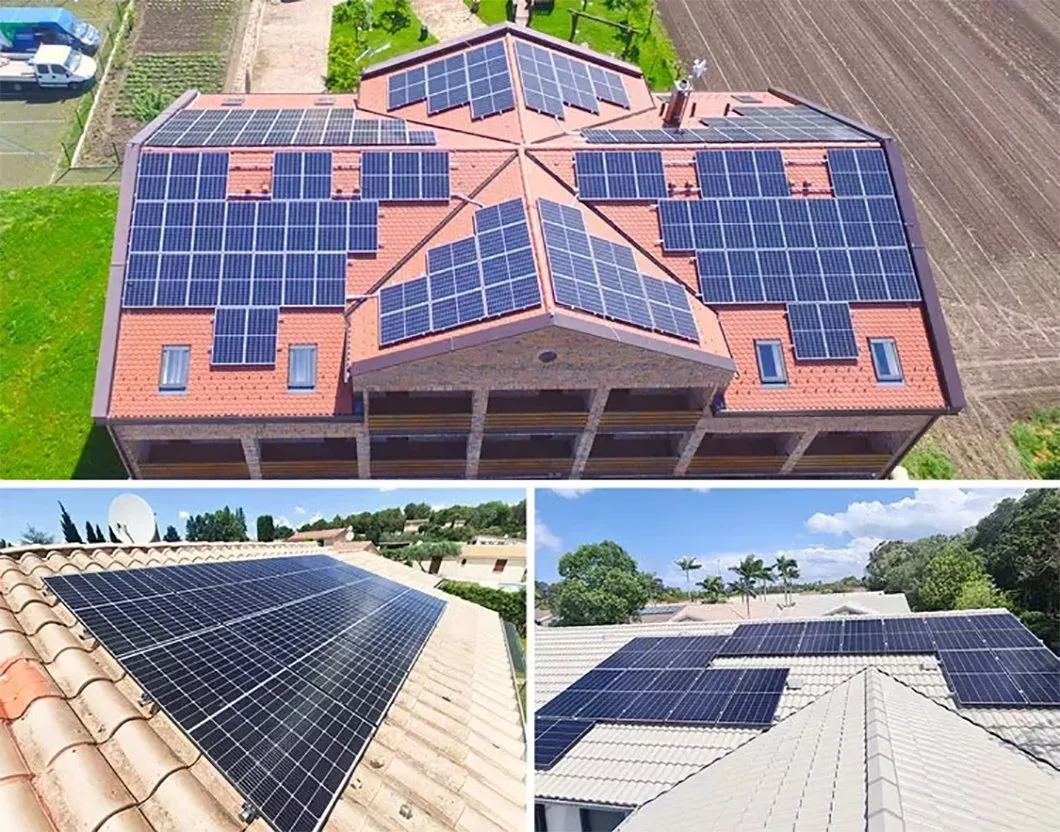

Projects Showcase

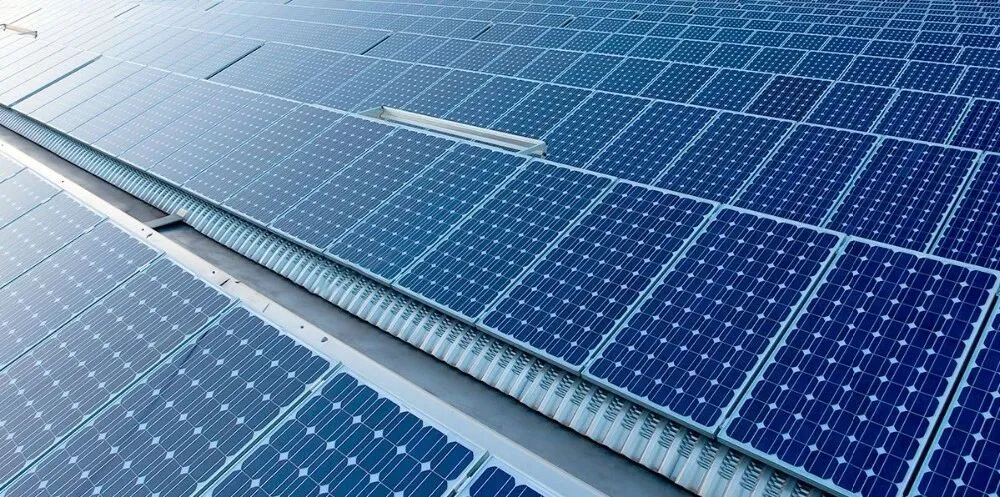

12MW Commercial Metal Roof Plant

20MW Ground Solar Plant in USA

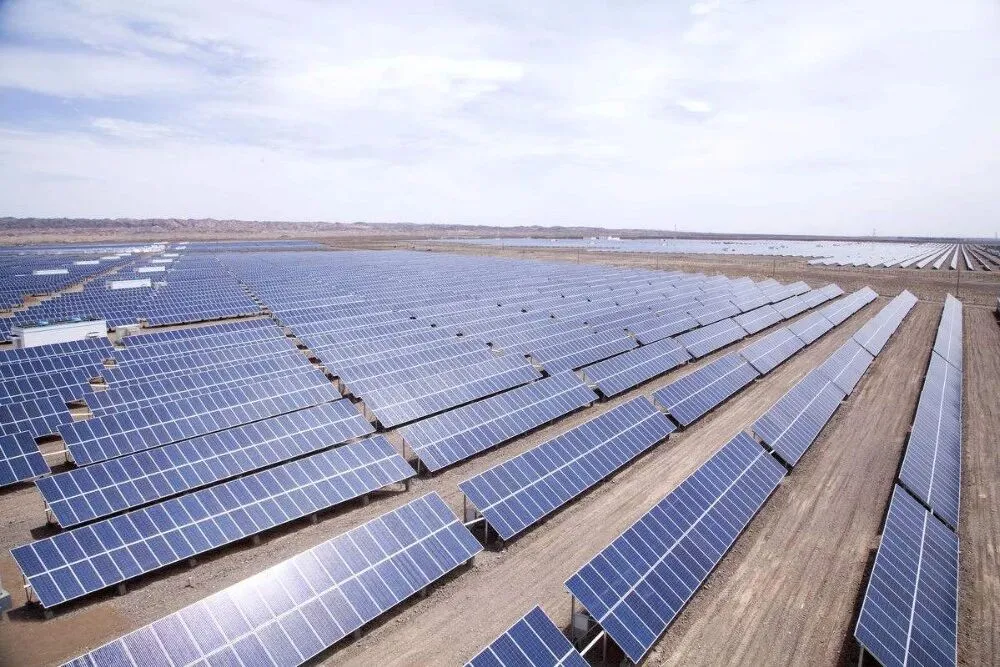

50MW Solar Plant in Brazil

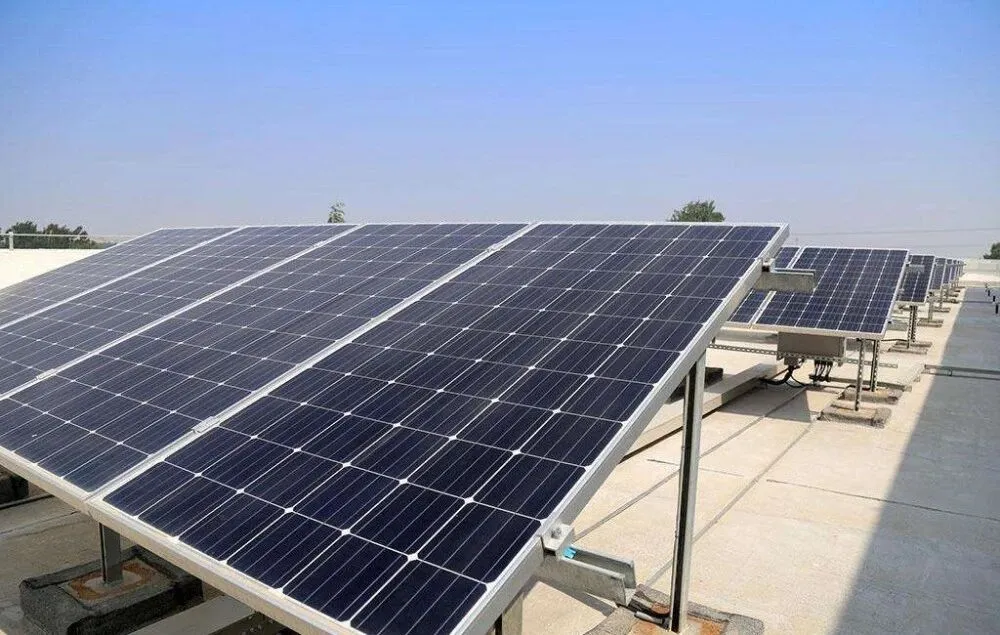

20KW Solar Plant in Mexico

Frequently Asked Questions

What is a Grid-Tied Solar System?

A grid-tied solar system is a solar power generation system that is connected to the utility grid. It allows you to use solar energy when available and pull from the grid when needed, often allowing you to sell excess power back to the utility company.

How does Net Metering benefit me?

Net metering allows you to send excess electricity produced by your solar panels back to the grid. Your utility company then provides credits on your bill, effectively lowering your monthly costs.

Does this system include batteries?

No, a standard grid-tied system uses the utility grid as a "virtual battery." It does not require physical battery storage, which reduces initial costs and maintenance.

Can I monitor the system's performance?

Yes, all our systems come with a Wi-Fi monitoring module that allows you to track power production and system health via a computer or smartphone App.

What is the warranty on the inverter?

The standard warranty for the on-grid inverters is 5 years, with options to extend to 10 years depending on the model and requirements.

Is the mounting system compatible with my roof?

Our systems include versatile mounting brackets suitable for both roof (tile, metal, asphalt) and ground installations. Please specify your roof type for the best configuration.
