Product Description

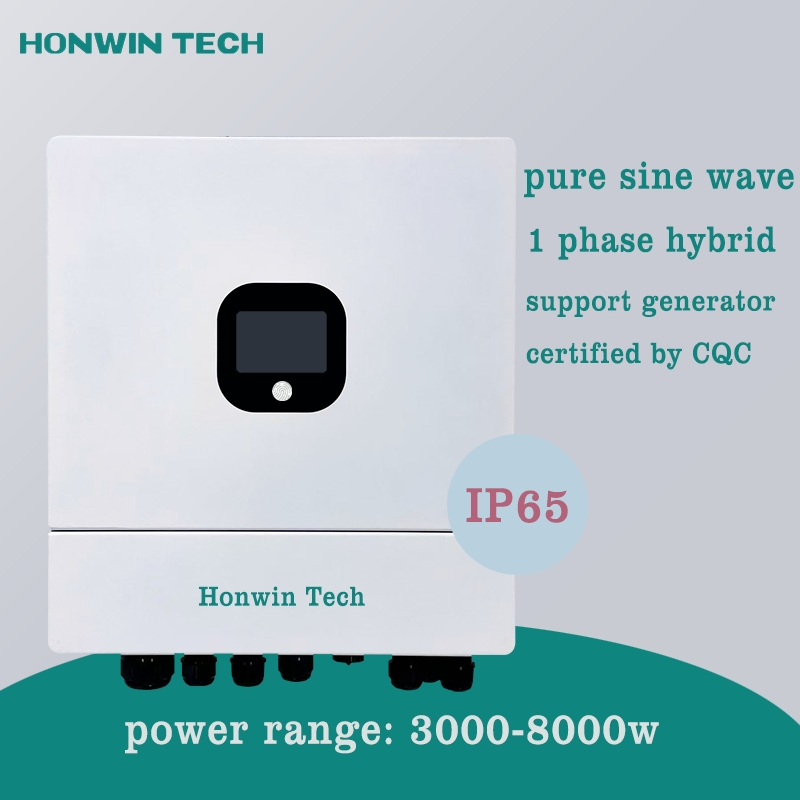

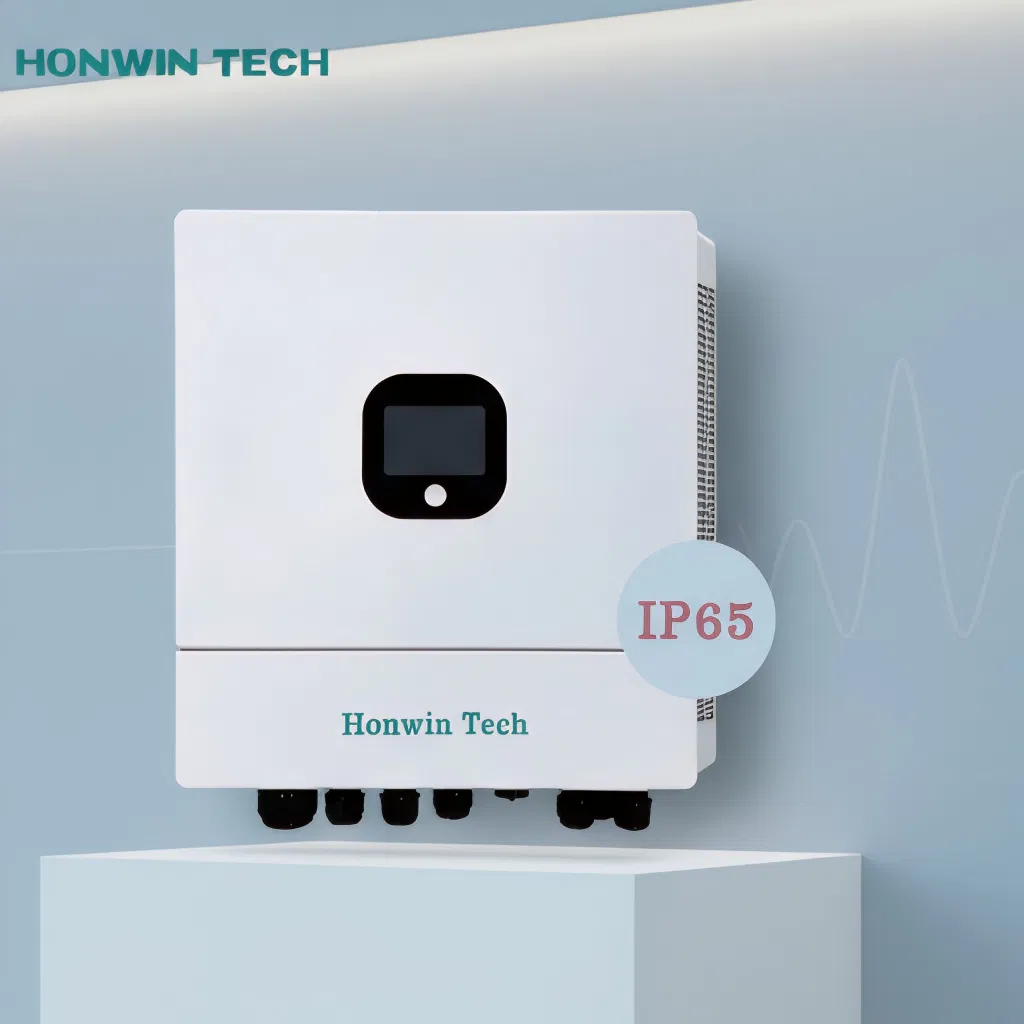

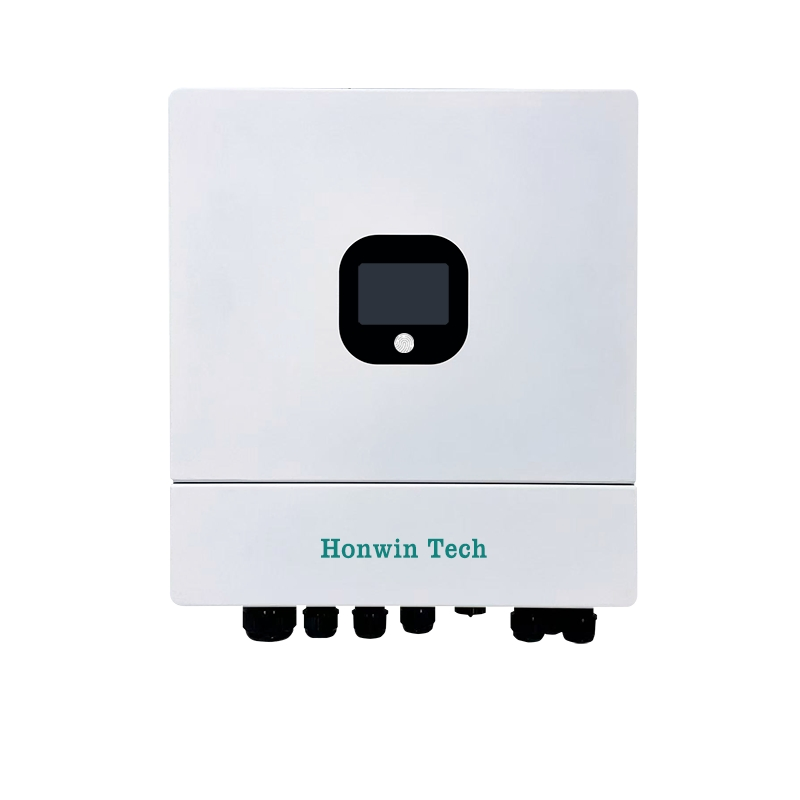

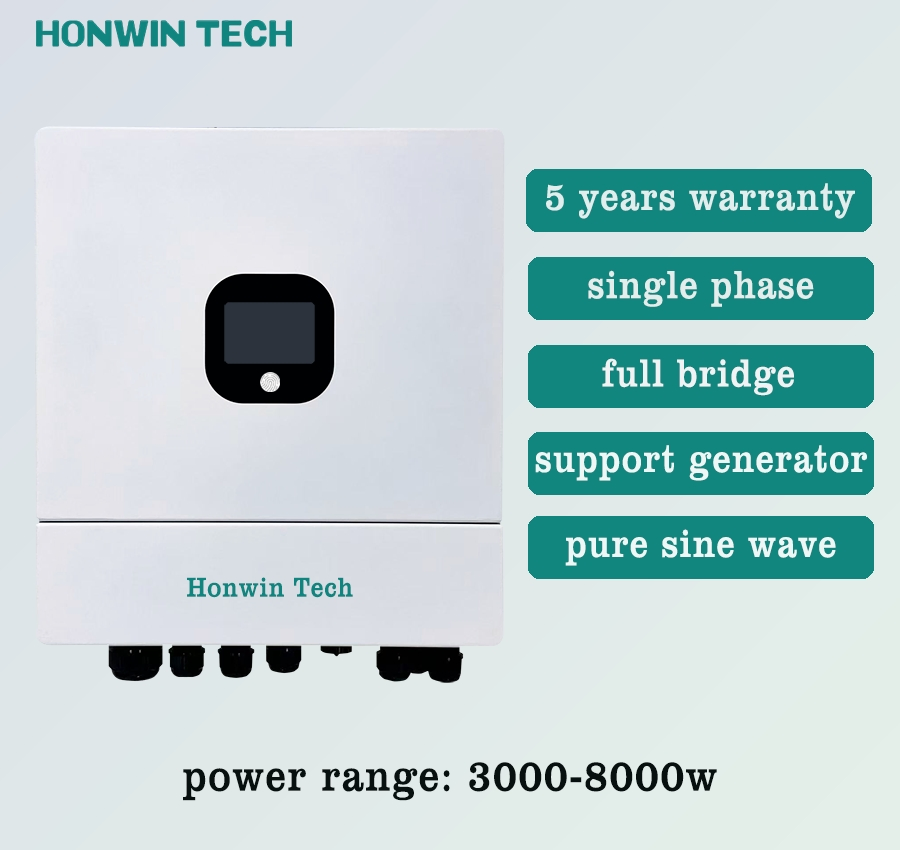

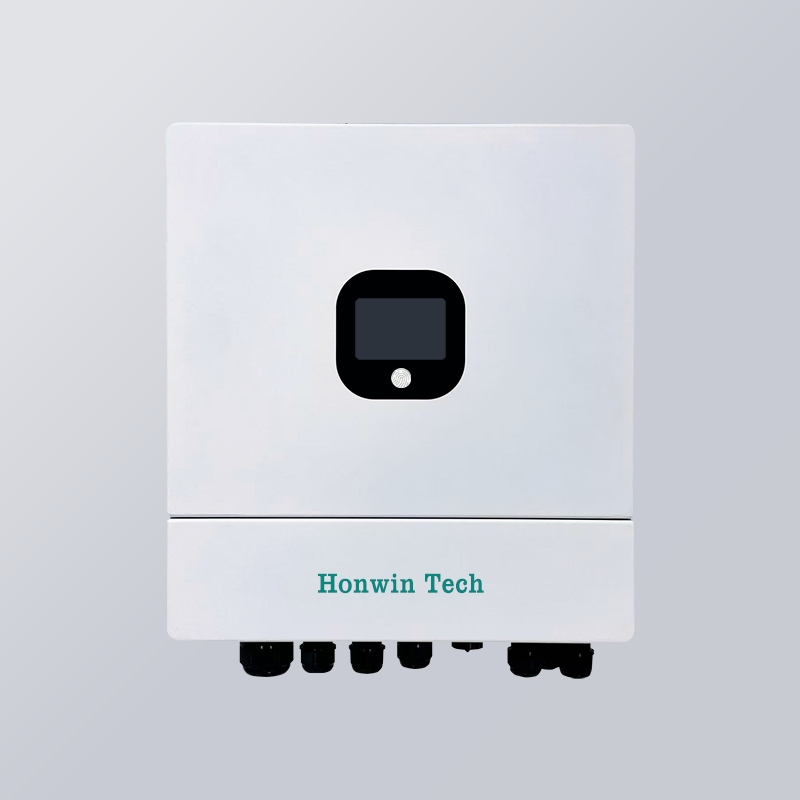

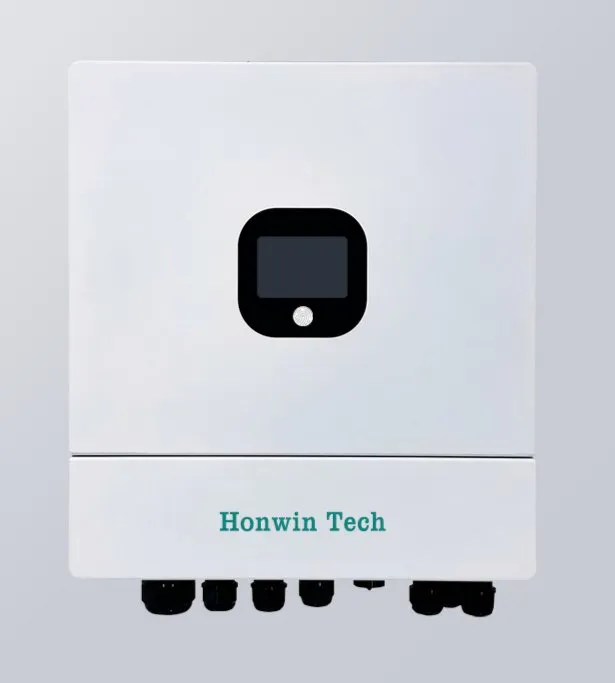

S5 Series Household Energy Storage Inverter

💡

The S5 series household energy storage all-in-one machine is designed to provide an intelligent and convenient photovoltaic energy storage solution. Based on advanced power conversion technology, components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant modular design. With remote intelligent operating systems, they integrate perfectly into modern smart home life.

Basic Specifications

Model:

S5 Series 3-8kW

Nature:

Active Inverter

Phase:

Single

Power:

>1000W (Range 3-8kW)

Certification:

CE / CQC

Source:

Solar Power

Protection:

IP65 Dust and Water Resistant

Topology:

Full-Bridge Sine Wave

Product Gallery

Technical Parameters

Parameters	S5-3K-S65	S5-3.68K-S65	S5-5K-S65	S5-6K-S65	S5-8K-S65
Efficiency
Max Efficiency	98.10%	98.10%	98.20%	98.30%	98.30%
DC (PV) Input
Max Input Power	4500W	5500W	7500W	9000W	12000W
MPPT Voltage Range	90V ~ 550V
AC Grid Output
Rated Output Power	3000W	3680W	5000W	6000W	8000W
Switch Time	<10ms
Battery Parameters
Battery Type	Lithium / Lead-acid
Voltage Range	42V ~ 59V (Rated 48V)
Max Charge Current	60A	80A	120A	120A	160A

Protection & Features

🛡️

Comprehensive Safety: Includes DC/AC Surge protection (Class II), Battery over/under voltage protection, Anti-islanding, and Overheat protection.

❄️

Cooling: Smart Air Cooling system ensures stable operation between -25℃ to +60℃.

📱

Interaction: Supports APP/WIFI/LCD monitoring and CAN/RS485 communication.

Frequently Asked Questions

❓ Q1: Can I use my own logo or design on the product?

A: Yes, we offer OEM/ODM services; Your logo and design can be customized on the product.

❓ Q2: Are you a professional manufacturer?

A: Yes, we are a professional manufacturer providing customers with customization and OEM/ODM services with specialized production facilities.

❓ Q3: May I obtain a sample?

A: Yes, samples are available for quality testing and verification.

❓ Q4: What is the monthly production capacity?

A: We operate five production lines capable of manufacturing approximately 3,000 pieces of equipment per month to handle large orders efficiently.

❓ Q5: What is the estimated dispatch time?

A: Most products are in stock. For orders under 100 units, we can typically ship within 15 days depending on the machine type.

❓ Q6: What certifications do the inverters hold?

A: Our products are CE and CQC certified, ensuring they meet international safety and quality standards.
