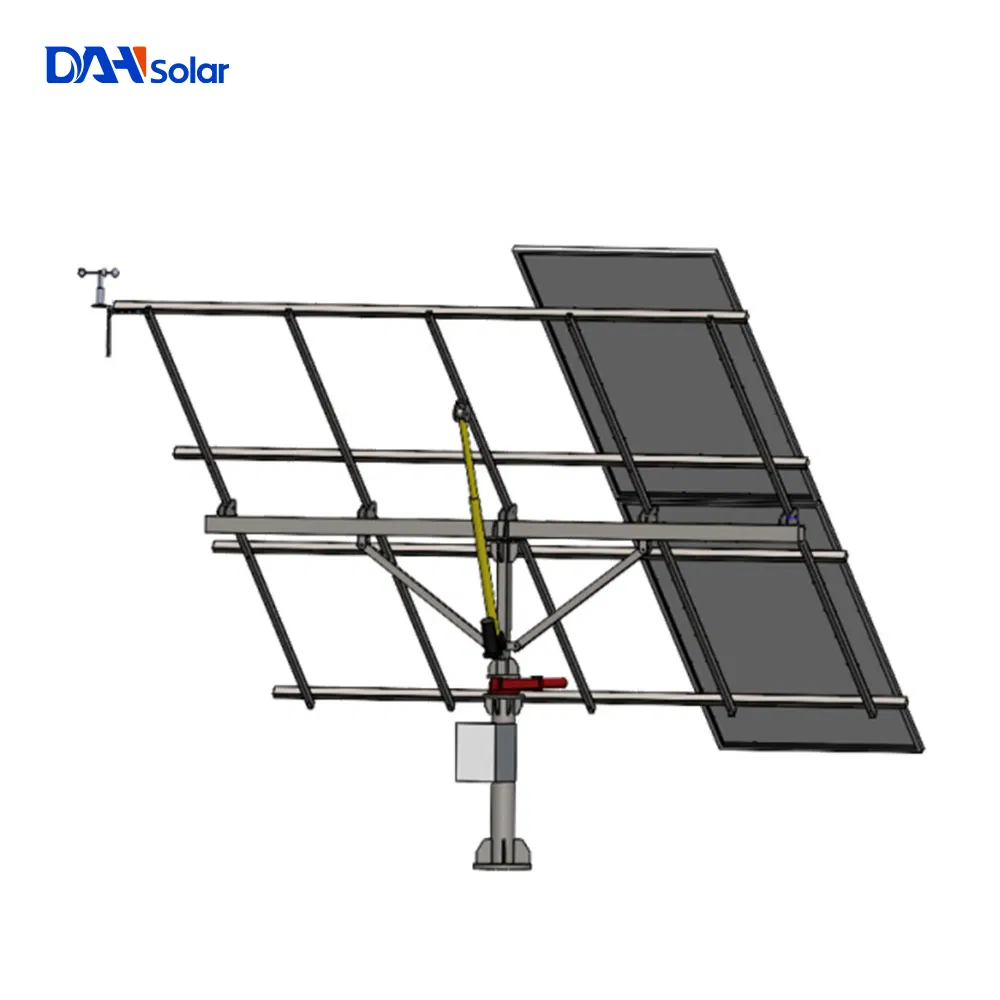

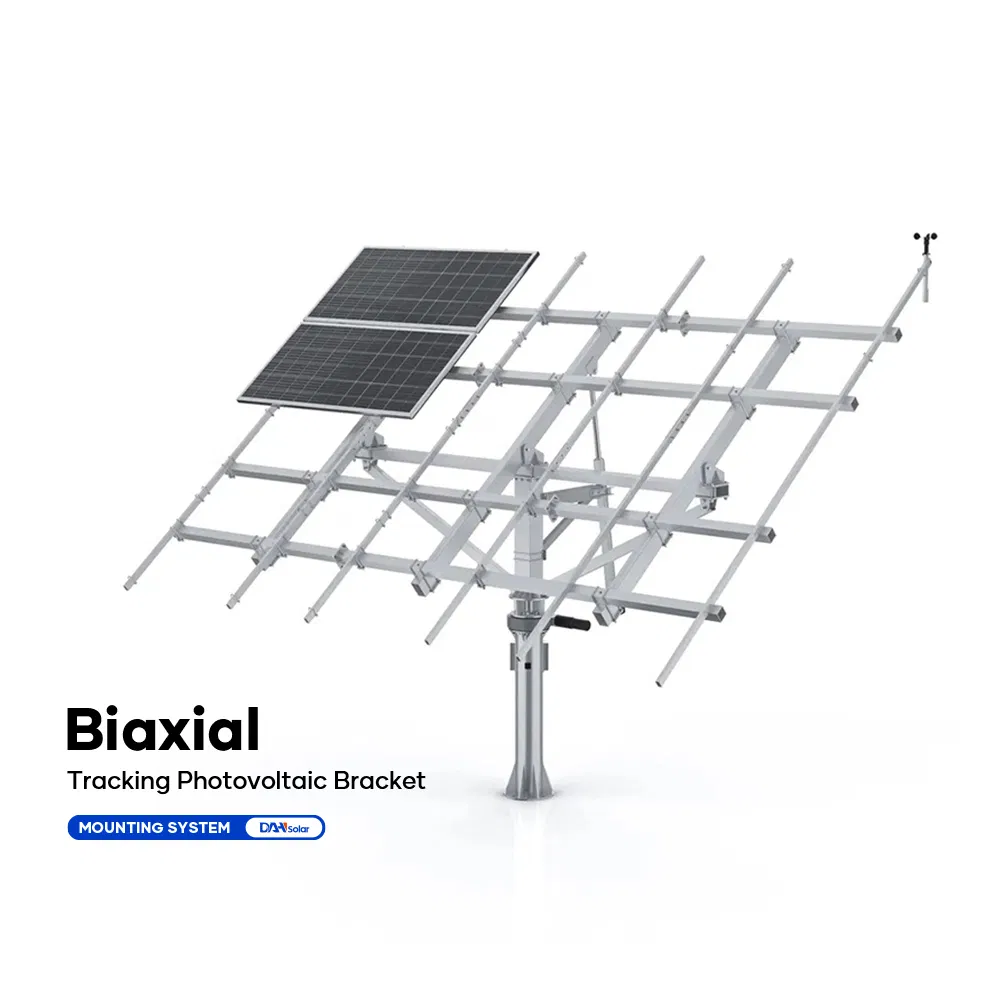

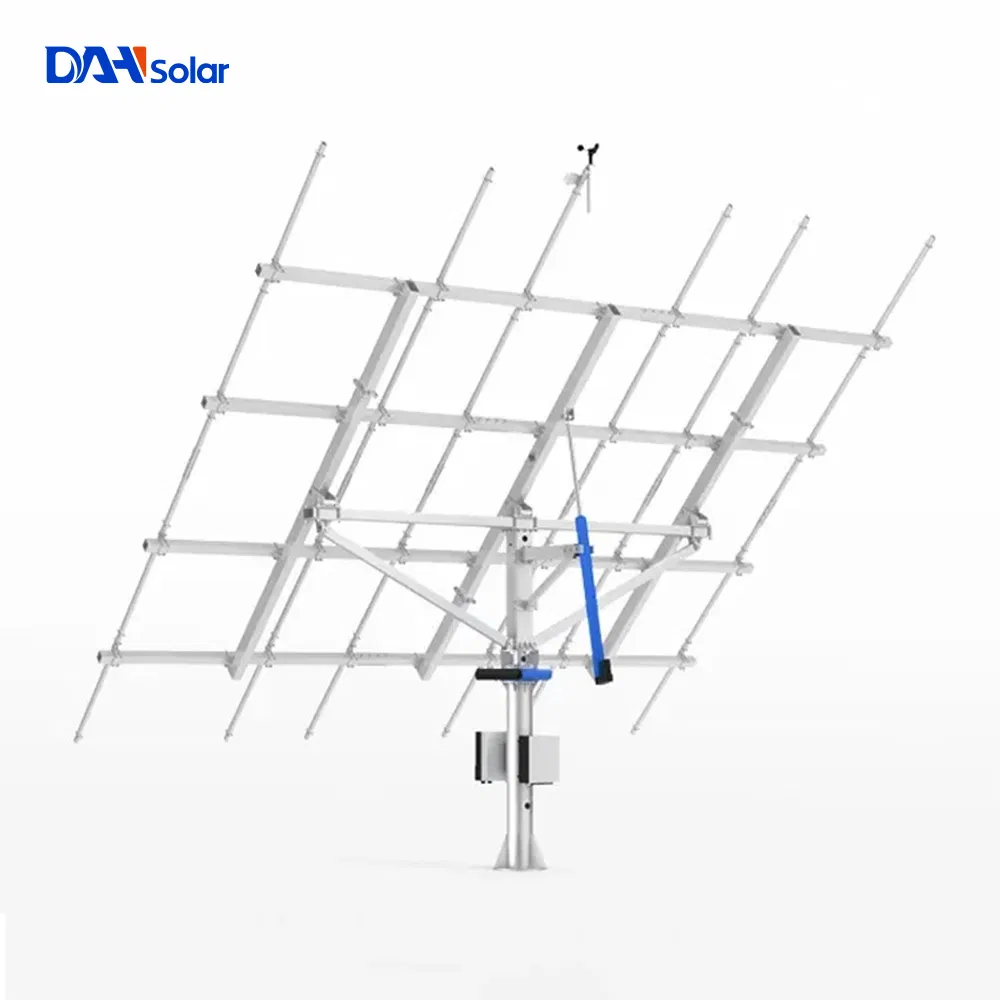

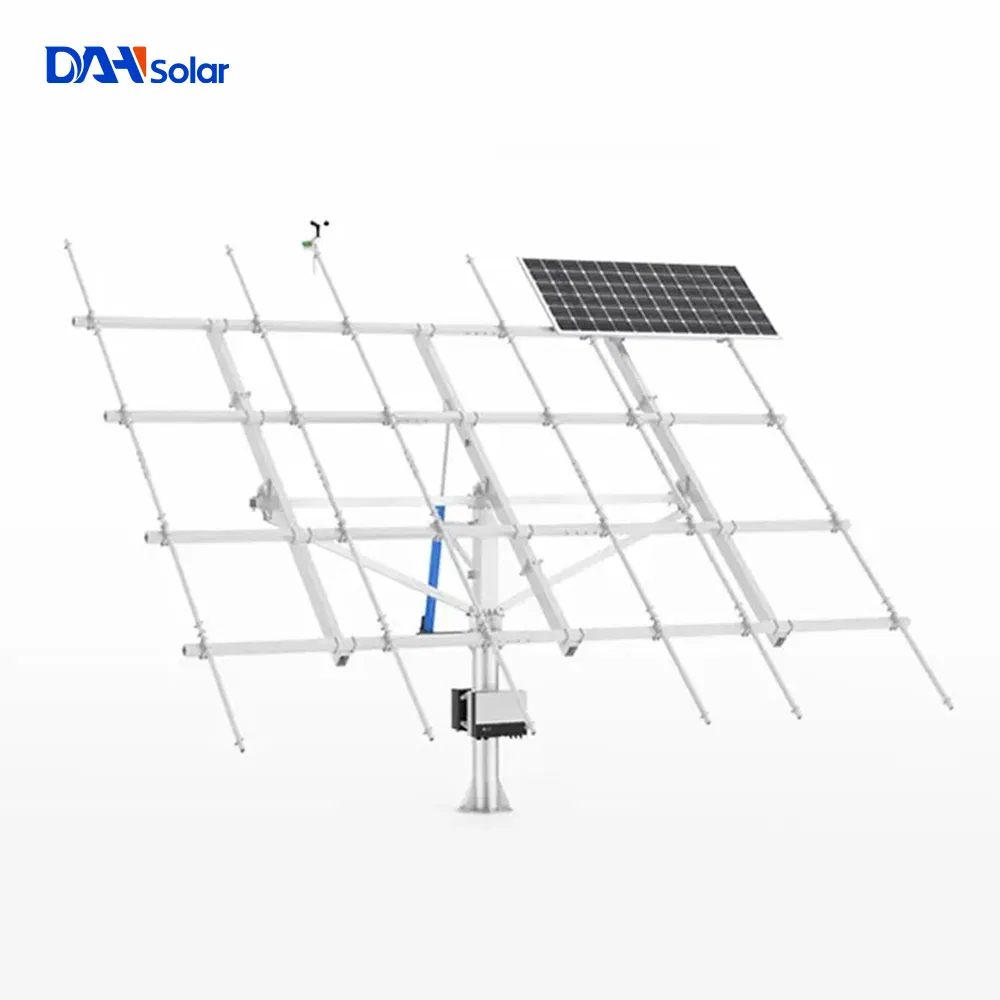

Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
1 / 5
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System
Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System

Dah Solar Sun Tracking Solar Panel Mount Dual Axis Automatic Solar Tracker Photovoltaic Solar Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 3 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
Dual Axis Automatic Solar Tracker
Certification
TUV, CE
Application
Commercial
Material
Galvanized Steel Superdyma
Type
Tracking Bracket
Control Mode
Time + GPS
Tracking Accuracy
0.1°- 2.0° Adjustable
Gear Motor
24V/1.5A
Output Torque
5000 N.M
Consumption
<0.02kwh/Day
Working Temp
-40℃ - +75℃
Capacity
1.5kw -5.0kw Solar Panels

Product Description

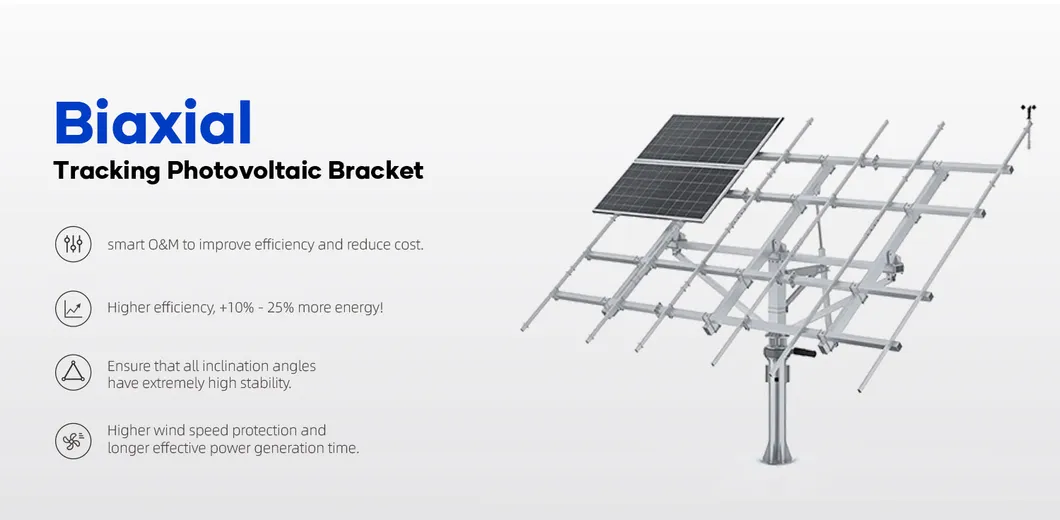

Dual Axis Automatic Solar Tracker Overview

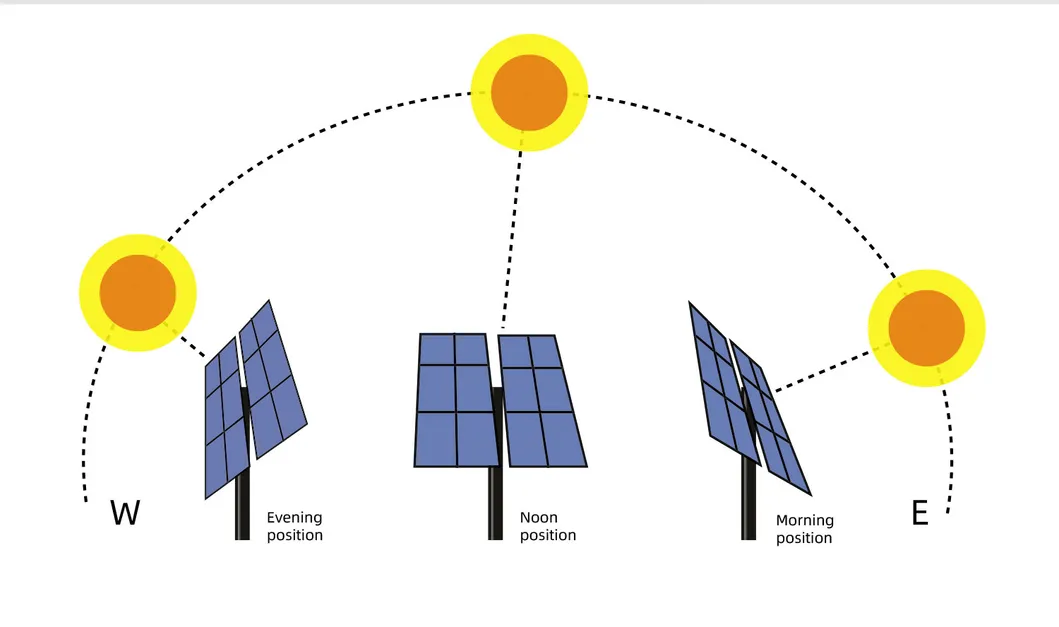

Solar Tracking System Mechanism
Enhanced Efficiency
Dual axis solar tracking system has two axis tracking the azimuth angle and elevation angle of the sun. The control system can control the driving system track the sun according to the longitude, latitude and local time data downloaded by GPS device, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 25%-40%, reduces your LCOE and bring more revenue for investors.
Control modeTime + GPS
Average tracking accuracy0.1°- 2.0°(adjustable)
Gear motor24V/1.5A
Output torque5000 N·M
Tracking power consumption<0.02kwh/day
Azimuth angle tracking range±45°
Elevation angle tracking range45°
Max. wind resistance (horizontal)40m/s (standard 30m/s)
Max. wind resistance (operation)24 m/s
System guarantee3 years
Total power per set1.5kW - 5.0kW (area < 23m²)

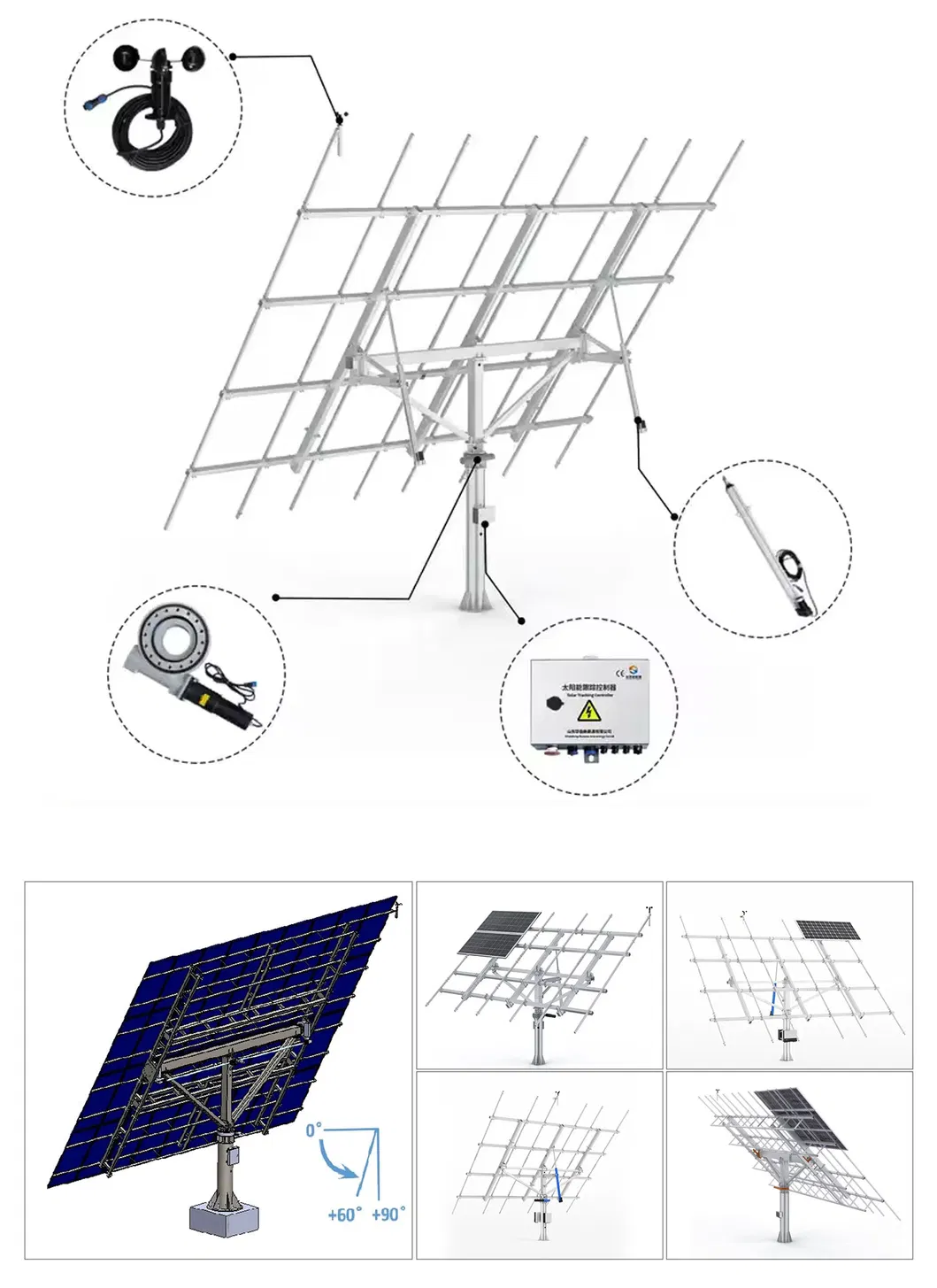

Technical Drawing Solar Tracker

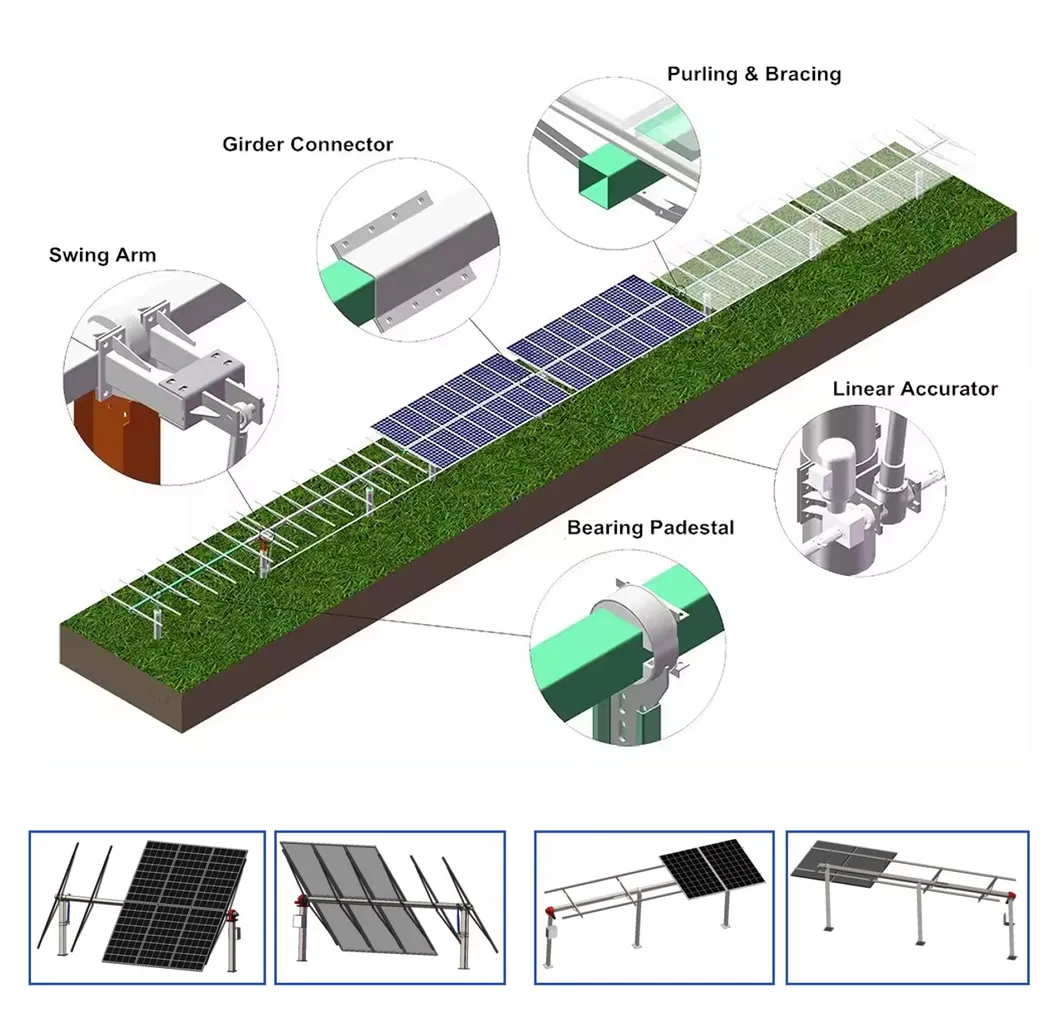

Solar Tracker Component Details

Projects & Exhibitions

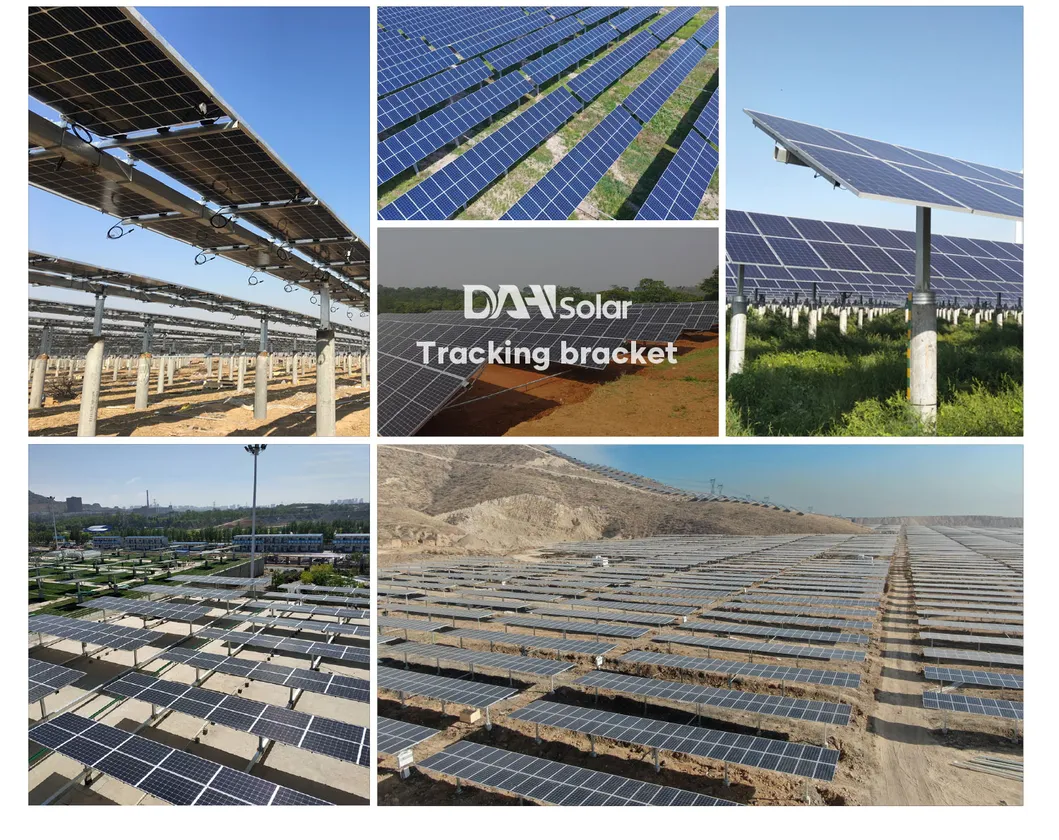

Solar Project Exhibition 1
Solar Project Exhibition 2

Frequently Asked Questions

How much can this tracker increase power generation?
By maintaining the optimal angle for receiving sunlight, the dual-axis tracker can increase power generation capacity by 25% to 40% compared to fixed systems.
What control method does the system use?
The system utilizes a Time + GPS control mode, which tracks the sun's position based on precise longitude, latitude, and local time data.
What is the maximum wind resistance of the tracker?
The tracker can withstand wind speeds up to 40m/s in a horizontal position and remains operational in winds up to 24m/s.
What materials are used in the construction?
The system is constructed using high-quality Galvanized Steel and Superdyma for superior durability and corrosion resistance.
What is the tracking accuracy of the dual-axis system?
The average tracking accuracy is between 0.1° and 2.0°, and it is fully adjustable to meet specific site requirements.
What is the power consumption of the tracking motor?
The system is highly energy-efficient, with a daily tracking power consumption of less than 0.02kwh.
