Durable Solar Flat Roof Mounting System for Easy Installation

Send Inquiry

Product Description

Basic Information

Model NO.	Solar Flat Roof Mounting System
Certification	ISO, CB, CE
Application	Home, Industrial, Commercial
Specification	Normal, Customized
Length	2m-14m or as Customers' Requirements
Material	Hot-DIP Galvanized / Zinc-Aluminum-Magnesium
Productivity	10000t/Month
Packing	In Bundles; EPE Foam; or Request
Delivery Time	Within 15 Days After The Prepayment

Packaging & Delivery

Package Size	25.00cm * 22.00cm * 27.00cm
Package Gross Weight	200.000kg

Installation Instructions

Tool Preparation: Electric drill, level, spanner, safety rope, counterweight block/expansion bolt.

Roof Assessment: Confirm roof load-bearing capacity (≥25kg/m²) and drainage paths.

Positioning Marking: Mark the position of the racking base, keeping horizontal spacing consistent.

Fixing the Base: Place concrete blocks (counterweight) or drill holes for expansion bolts.

Assemble Bracket: Connect vertical rods with horizontal beams using stainless steel bolts.

Adjust Angle: Set the inclination angle (recommended local latitude +5°~10°) and lock it.

Technical Specifications

Shape	Round Tube	Square Tube	Rectangle Tube
Outer Diameter	20-1200mm	1010-500500mm	510-100600mm
Wall Thickness	0.5-50mm	0.5-50mm	0.5-50mm
Length	2m-14m or as customers' requirements
Material	Hot-dip galvanized/zinc-aluminum-magnesium
Inspection	Quality inspection; or any third party inspection

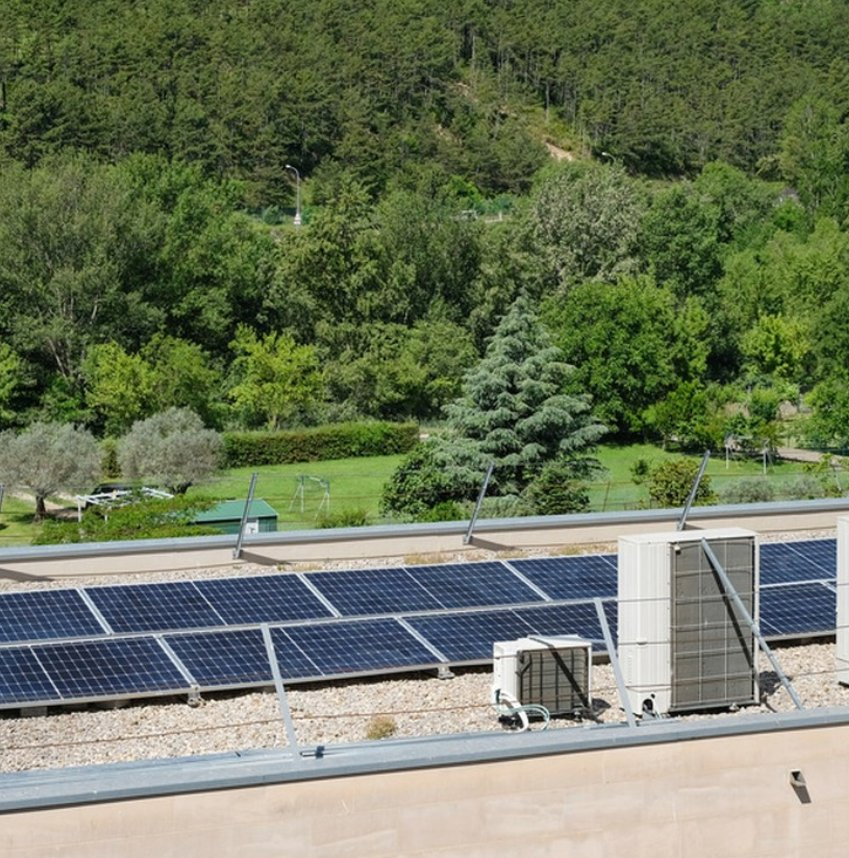

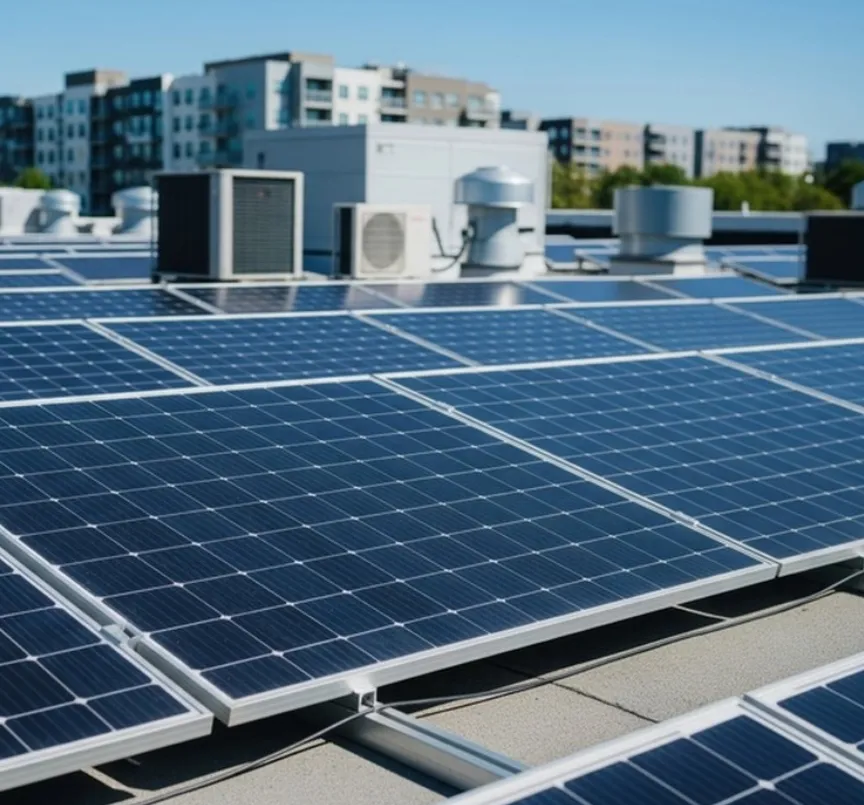

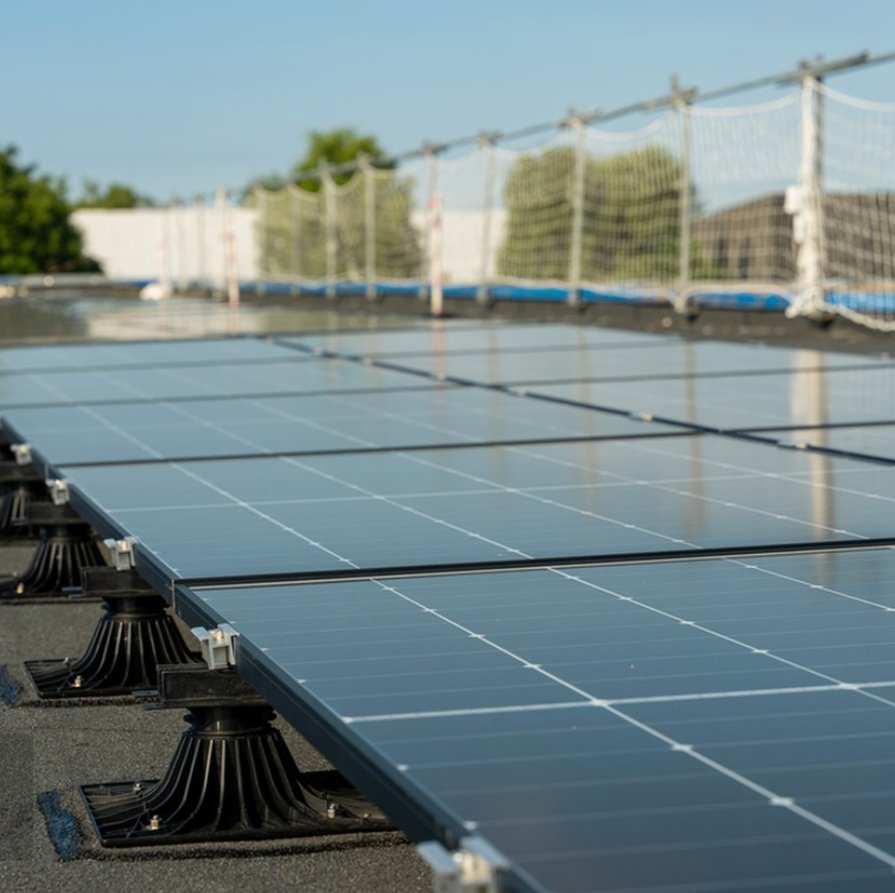

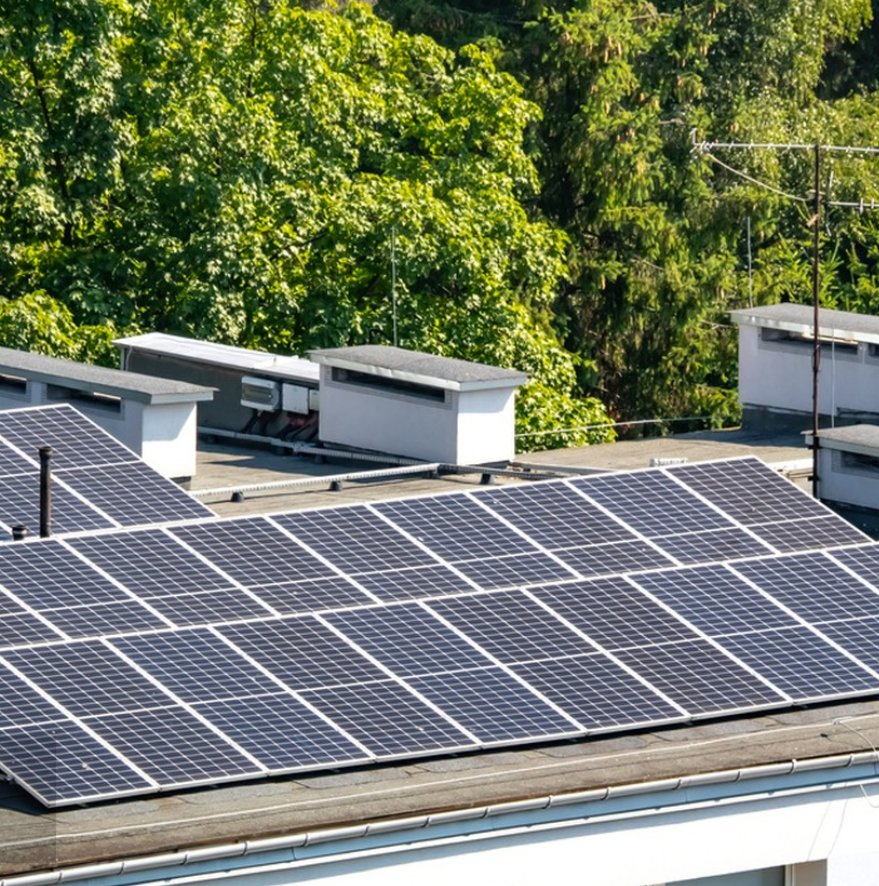

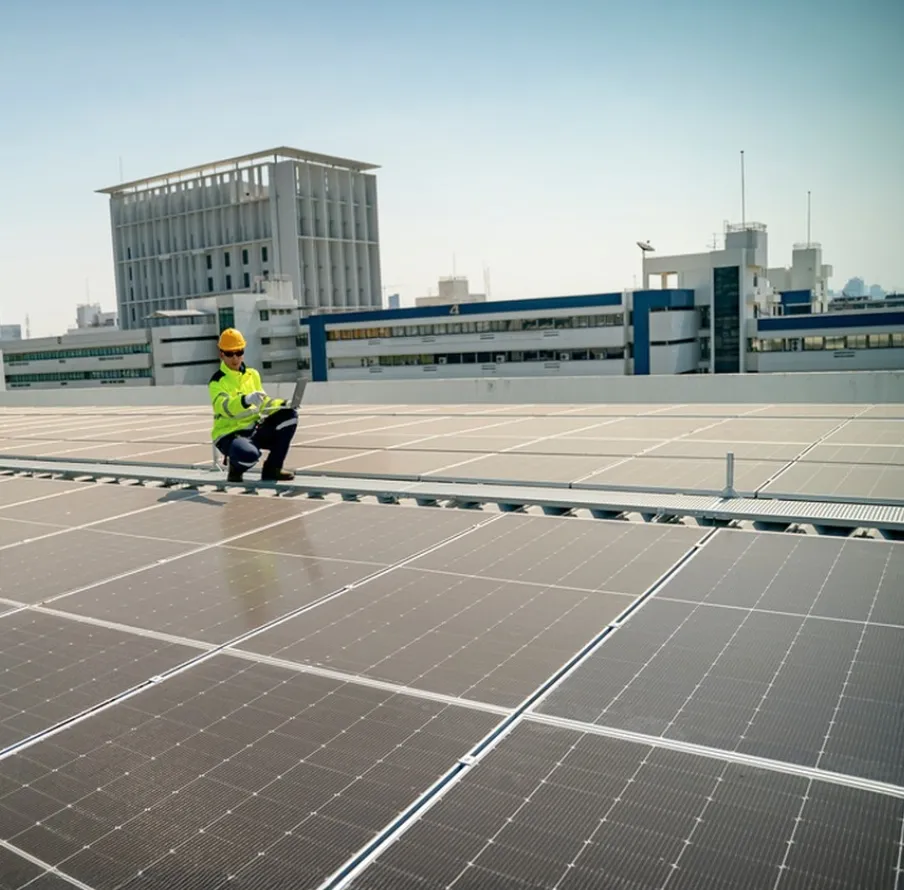

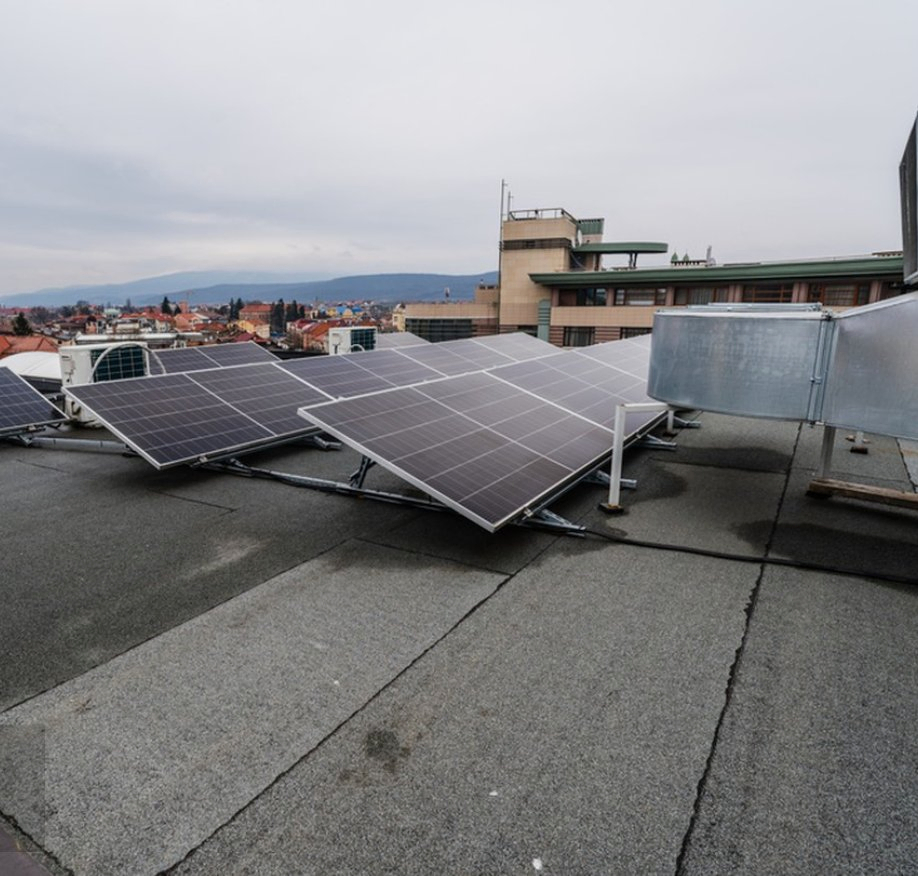

Product Display

Frequently Asked Questions

What is your minimum order quantity (MOQ)?

One unit is acceptable. For larger quantities, please contact us for volume pricing and details.

Can you produce customized aluminum profiles?

Yes, we have professional engineers to design CAD drawings and establish molds according to specific customer requirements.

What certifications and standards do you follow?

We can provide certifications based on your requirements. Our production follows DIN, AAMA, AS/NZS, and China GB standards.

Can I request a sample before placing a bulk order?

Certainly. We welcome sample orders to test and check quality. For standard roof mounting products, we offer free samples in small quantities.

What is the typical production lead time?

Usually, production takes 7 to 10 days. For new custom designs, the timeline will be confirmed after engineering review.

What are your standard payment terms?

Typically, we require a 30% deposit via T/T, with the balance paid before shipment. L/C is also an acceptable payment method.
