Basic Information
Application
Home, Industrial, Commercial
Tilt Angle
10/15/20/30/Customized
Product Name
Tripod Support
Surface Treatment
Anodized
Product Description

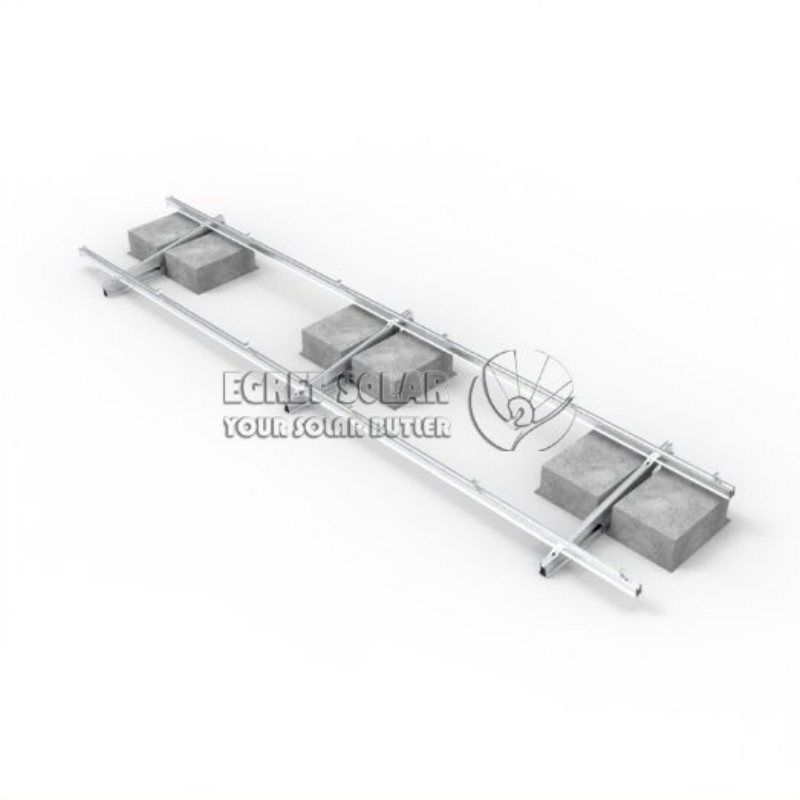

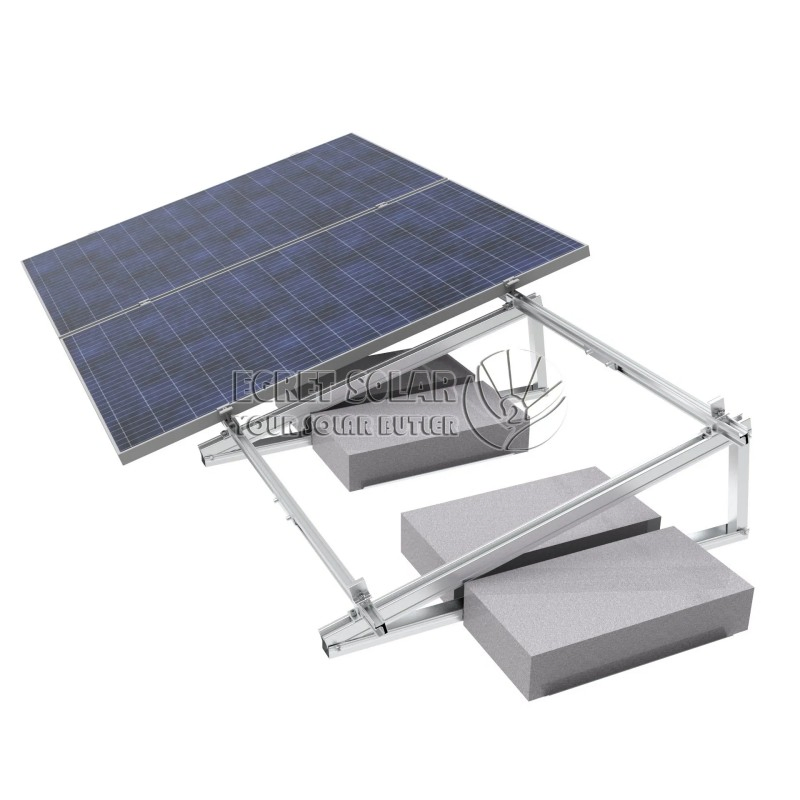

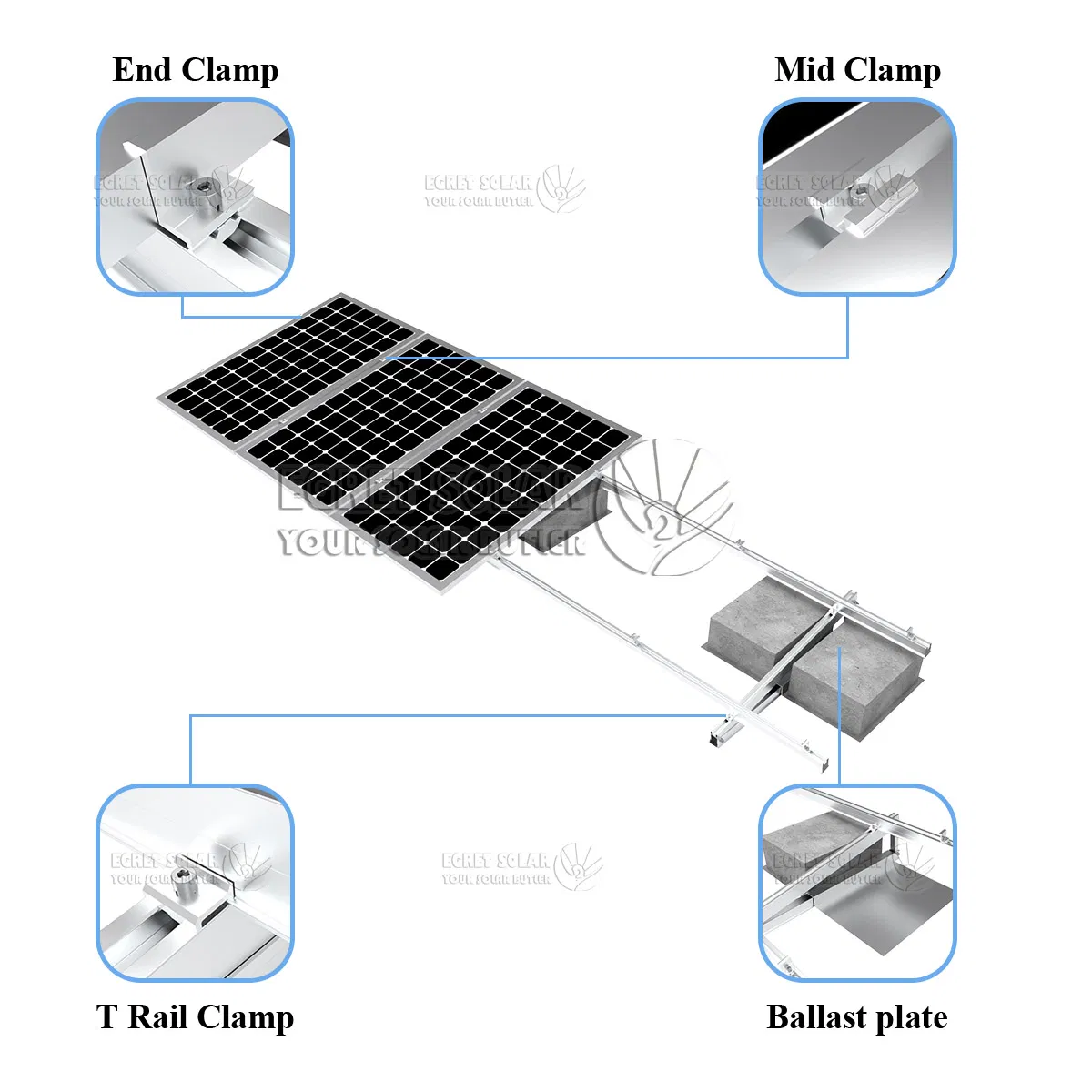

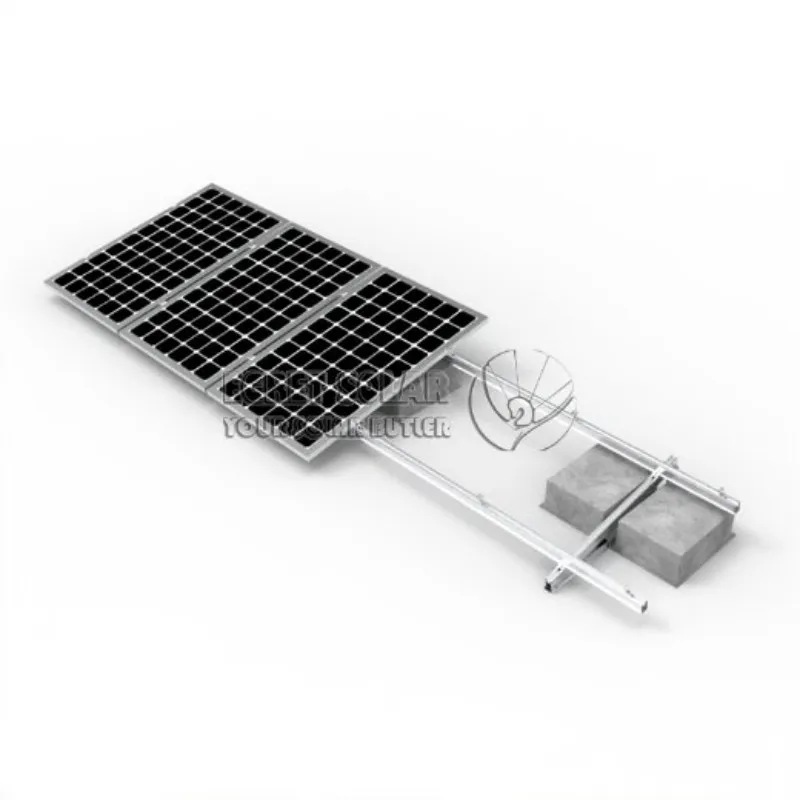

The ballasted mount flat roof solar mounting system is designed for maximum flexibility and ease of installation. Utilizing high-quality extruded aluminium and stainless steel, it ensures a long-lasting, corrosion-resistant solution for various environments.
Greatly simplified installation with pre-assembled and pre-cut processes. Can be installed with standard tool kits, saving time and labor cost.
Designed as a universal racking system compatible with framed modules from all popular manufacturers for almost every roof and ground.
Unique rail extending allows the system to be installed with millimetre accuracy without the need for onsite cutting.
Components made of AL6005-T5 aluminium and SUS304 stainless steel, offering 15-year warranty and high corrosion resistance.
Technical Specifications
| Installation Site | Open Ground / Flat Roof |
| Material | AL6005-T5 & SUS304 |
| Panel Orientation | Landscape / Portrait |
| Wind Speed | 60m/s - 64m/s |
| Snow Load | 1.2 KN/M2 |
| Standard | JIS C 8955:2017; AS/NZS 1170; DIN1055 |

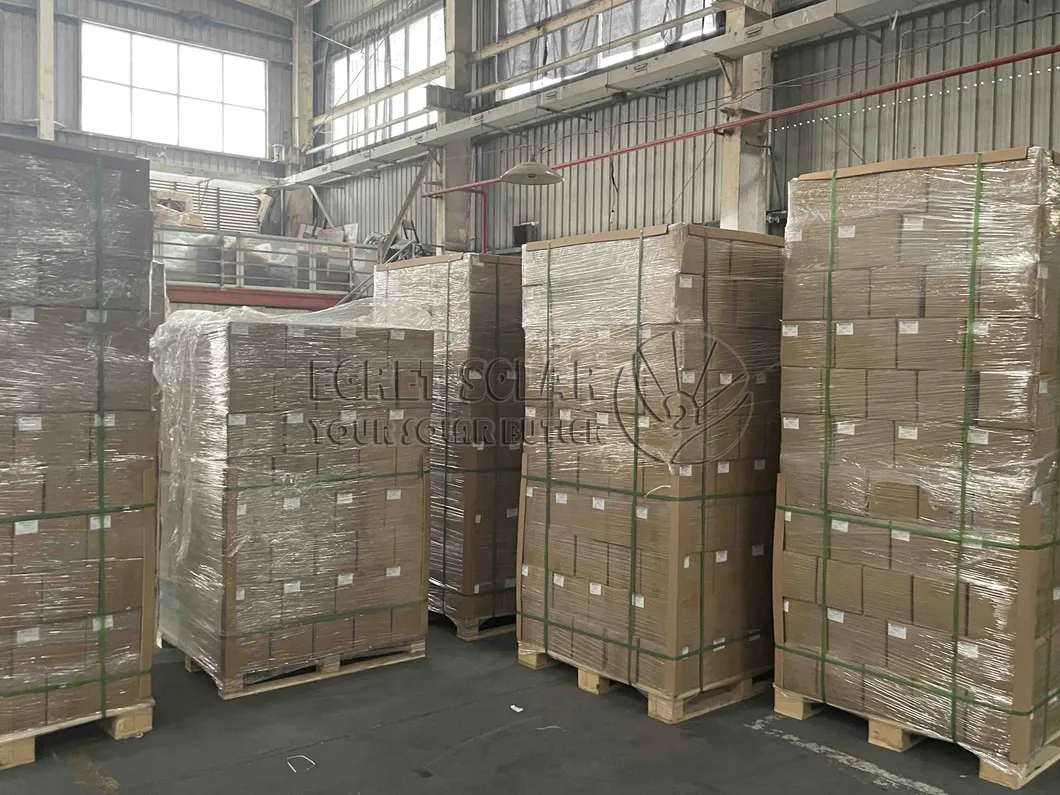

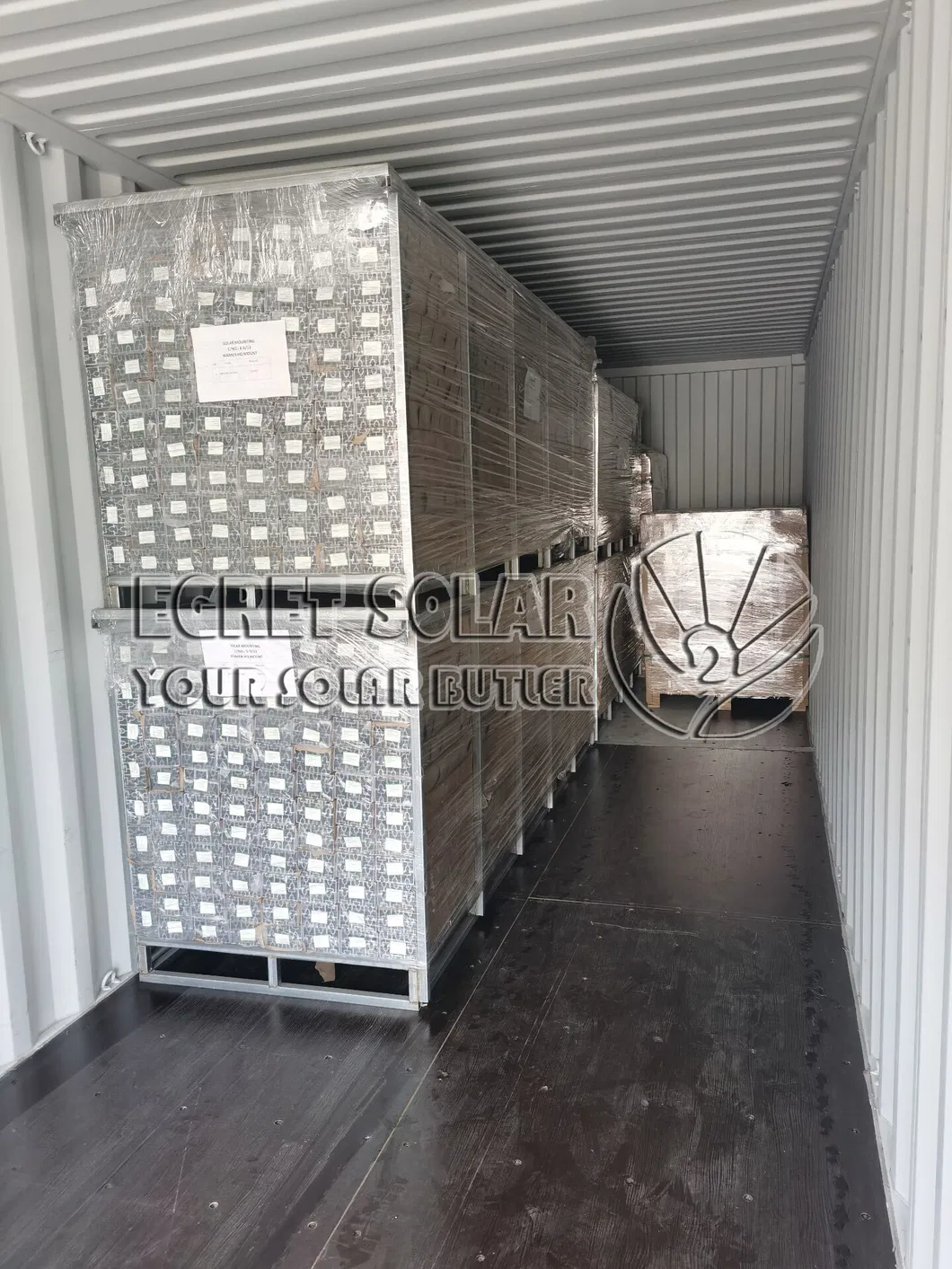

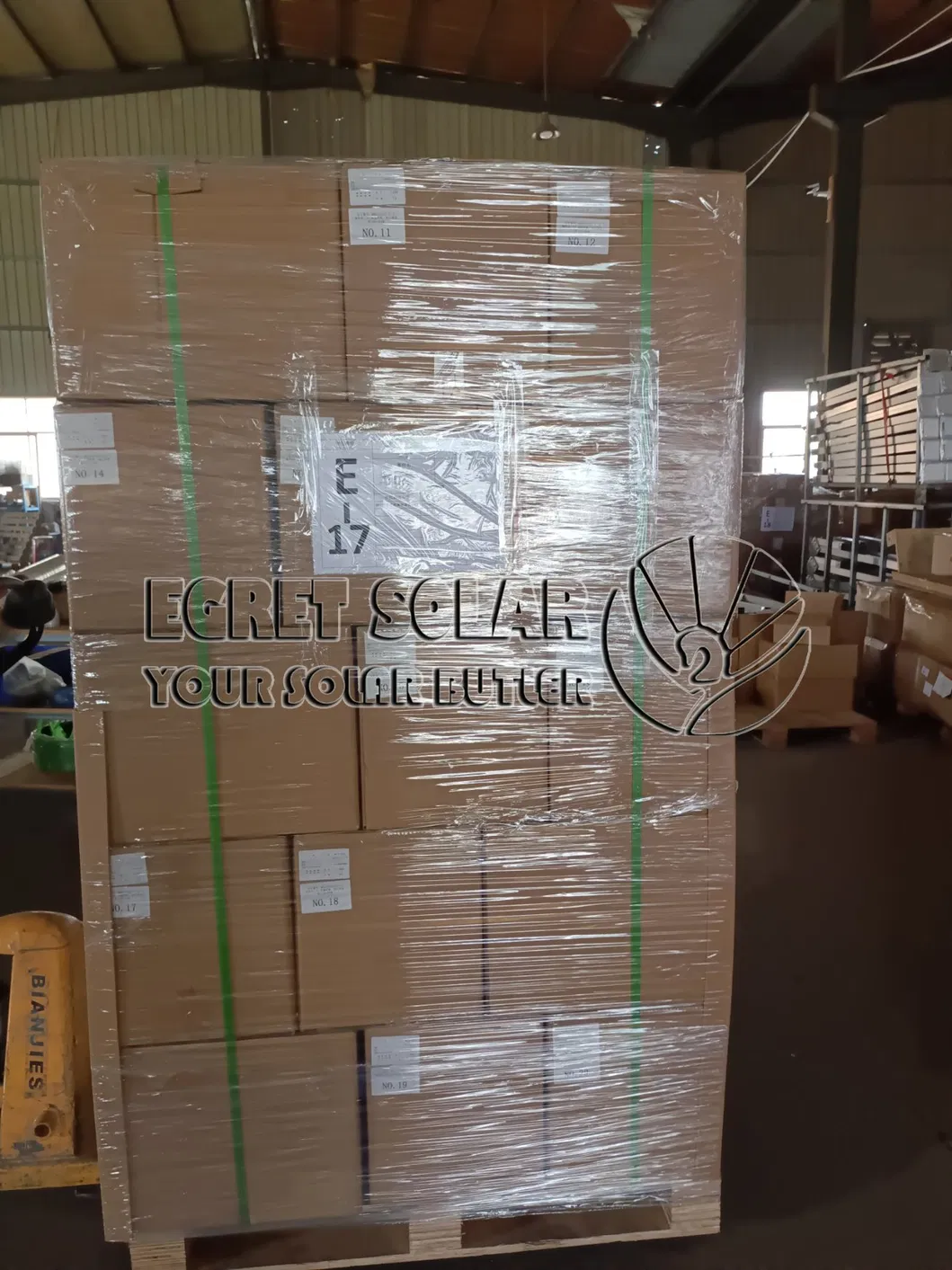

Package & Logistics
Package Size
23.00cm * 23.00cm * 19.00cm
Transport Package
Pallet / Carton

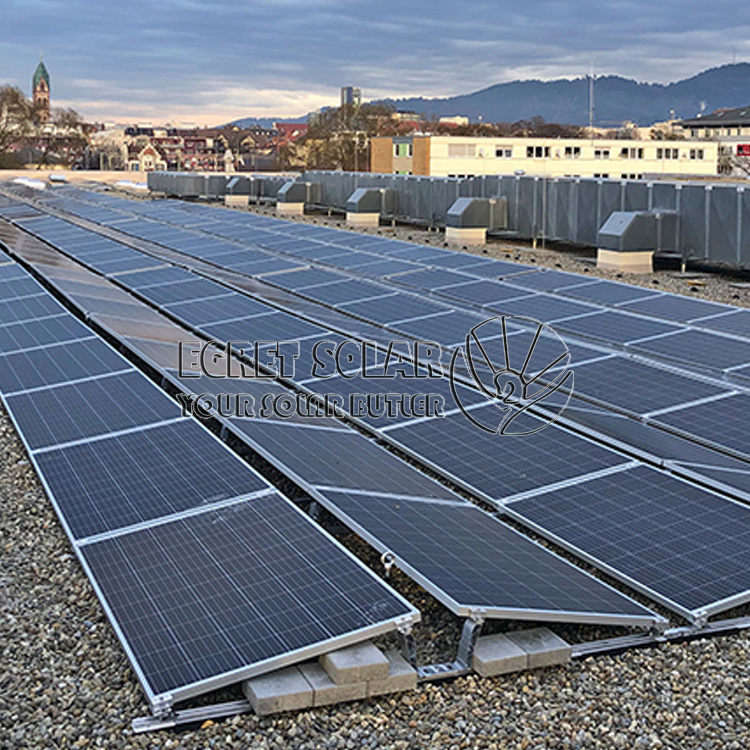

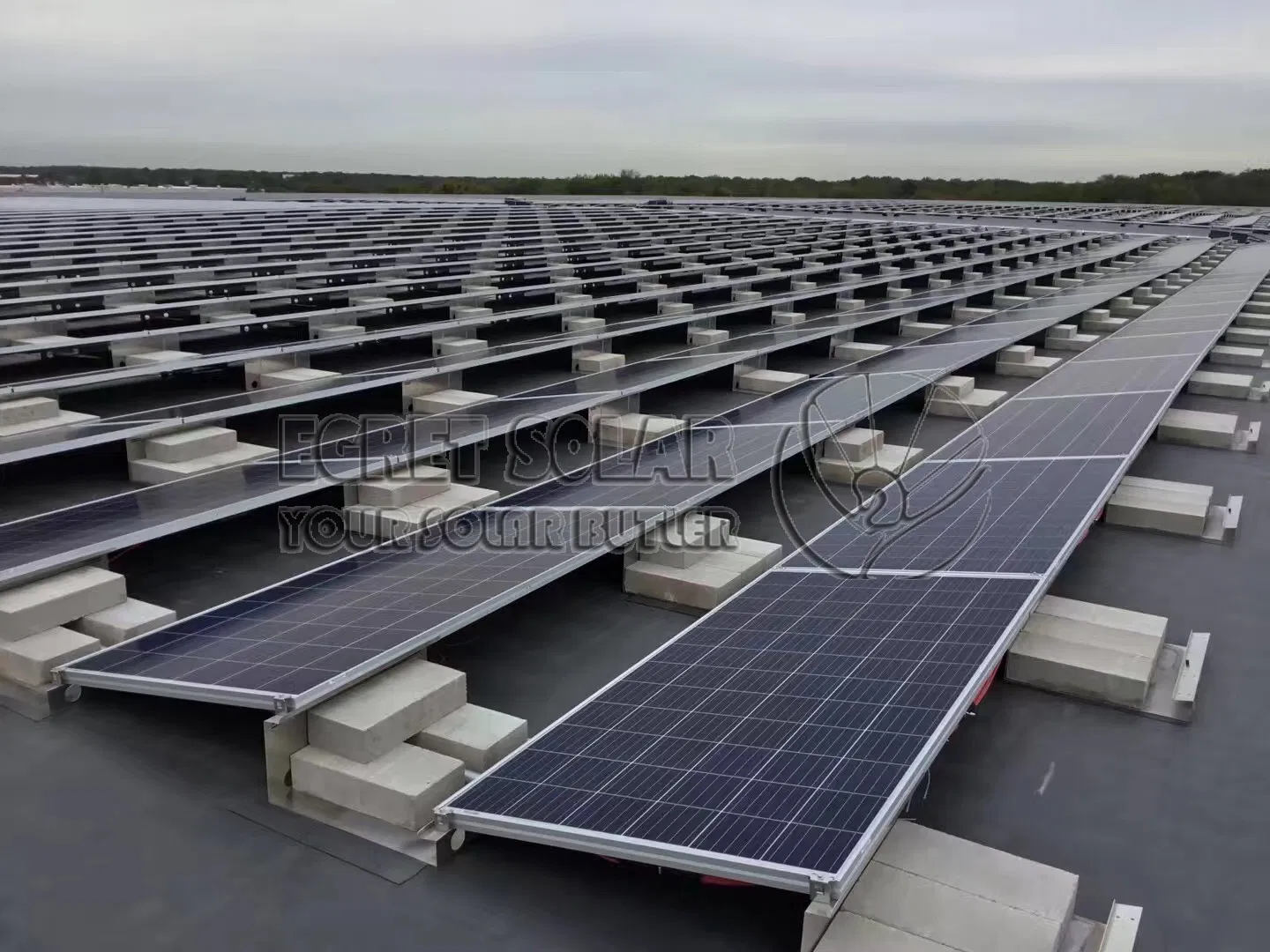

Installation Showcase
Frequently Asked Questions
What materials are used in the mounting structure?
The system is primarily constructed from high-grade Aluminum 6005-T5 and Stainless Steel SUS304, ensuring excellent corrosion resistance and durability.
Is this system suitable for high wind areas?
Yes, the structure is designed to withstand wind speeds up to 64m/s and heavy snow loads up to 1.2KN/M2.
How long is the product warranty?
We provide a 10 to 15-year warranty for the material and structure, with a focus on long-term safety and reliability.
Are the components pre-assembled?
Yes, parts are highly pre-assembled at the factory to significantly reduce your onsite installation time and labor costs.
Can the tilt angle be customized?
Standard angles are 10°, 15°, 20°, and 30°, but we can provide customized angles to meet your specific project requirements.
What information is needed for a detailed quotation?
To provide an accurate quote, please provide: 1. Solar panel dimensions (L x W x T) and quantity; 2. Desired tilt angle; 3. Max wind and snow loads; 4. Planned layout.
