Basic Information
| Model NO. | ZTBX |
| Clean Type | High Pressure Cleaning |
| Cleaning Process | Cold Water Cleaning |
| Control | PLC |
| Fuel | Electric |
| Travel Speed | 22 M/Min |
| Cleaning Width | 1100 mm |
| Endurance | 6 Hours |
| Working Angle | Washing 15°/Dry Cleaning 15° |
| Weight | 40kg |
| Production Capacity | 1000 Pieces/Month |
🤖

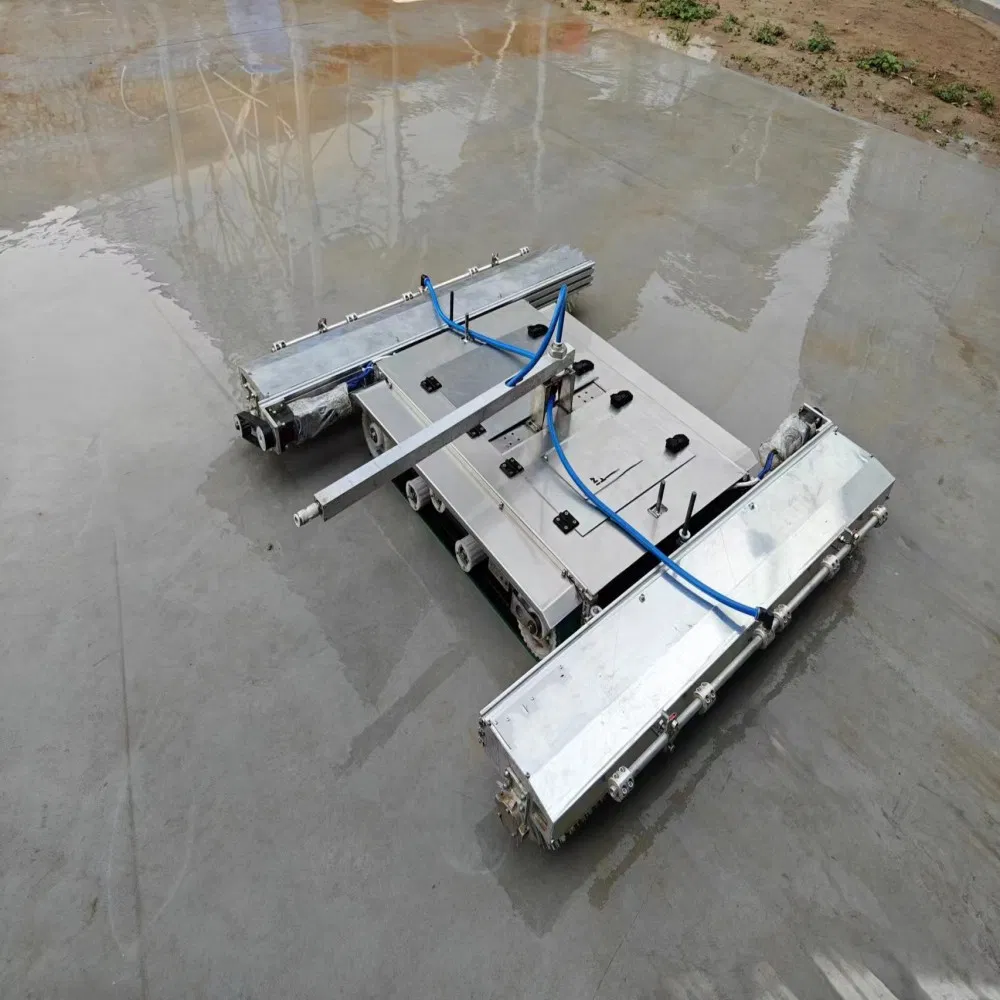

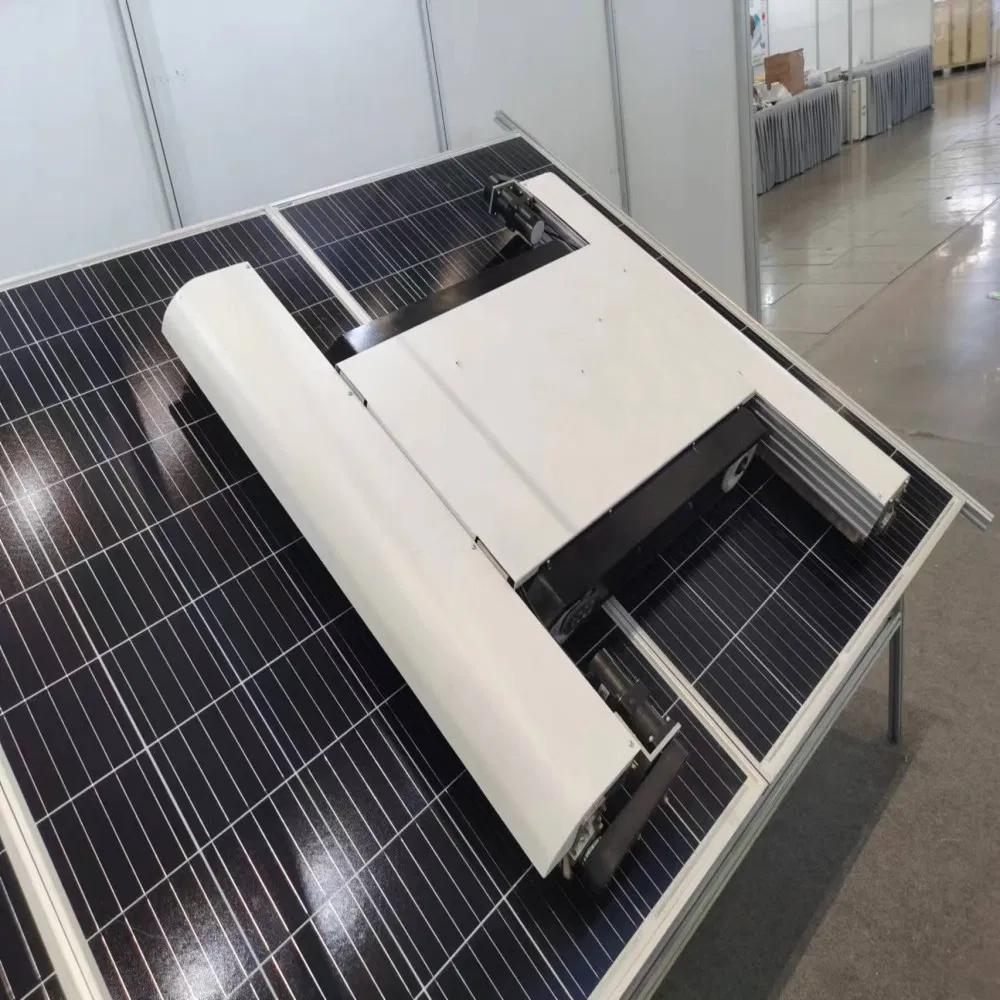

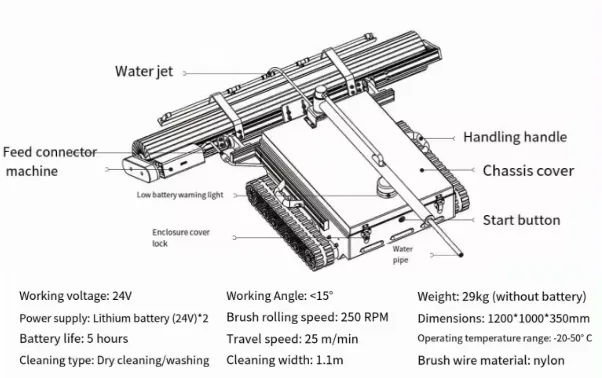

Photovoltaic Cleaning Robot

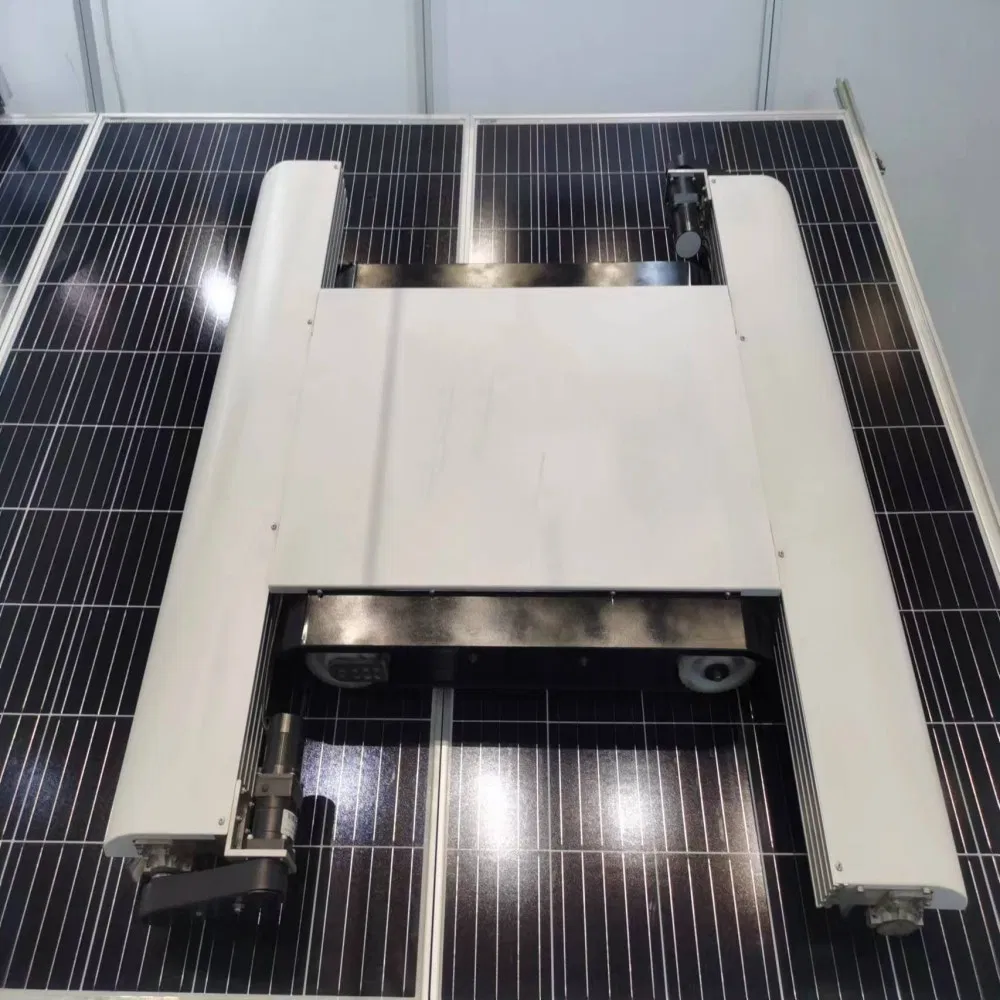

This product is an intelligent portable cleaning robot, mainly used for cleaning and dust removal of photovoltaic modules. Using intelligent walking technology, it can automatically walk and adhere on photovoltaic panels.
Designed for waterless autonomous cleaning, it removes sand, dust, and fallen leaves. Suitable for large-scale ground power stations, fish-photovoltaic complementary stations, and distributed rooftop power stations.
📊
Technical Parameters
| Operating Voltage | 24V |
| Travel Speed | 22m/min |
| Cleaning Width | 1100mm |
| Endurance | 6 hours |
| Power Supply Mode | Lithium battery (24V)*2 |
| Operating Temperature | -20 to 50ºC |
| Brush Material | New nylon yarn |
| Dimensions | 1200*1000*350mm |
🎮

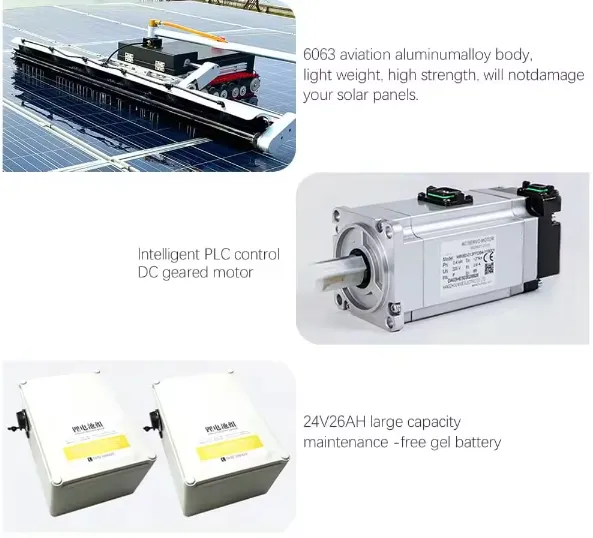

Remote Control 250M
The robot's remote control distance is up to 250 meters for safe and effective control. It uses imported radio frequency technology for a stable signal and strong anti-interference capabilities.
🛡️
Intelligent Systems
Intelligent Anti-fall System: Equipped with 4 high-precision sensors. It automatically stops at edges, preventing falls with drop detection indicators.

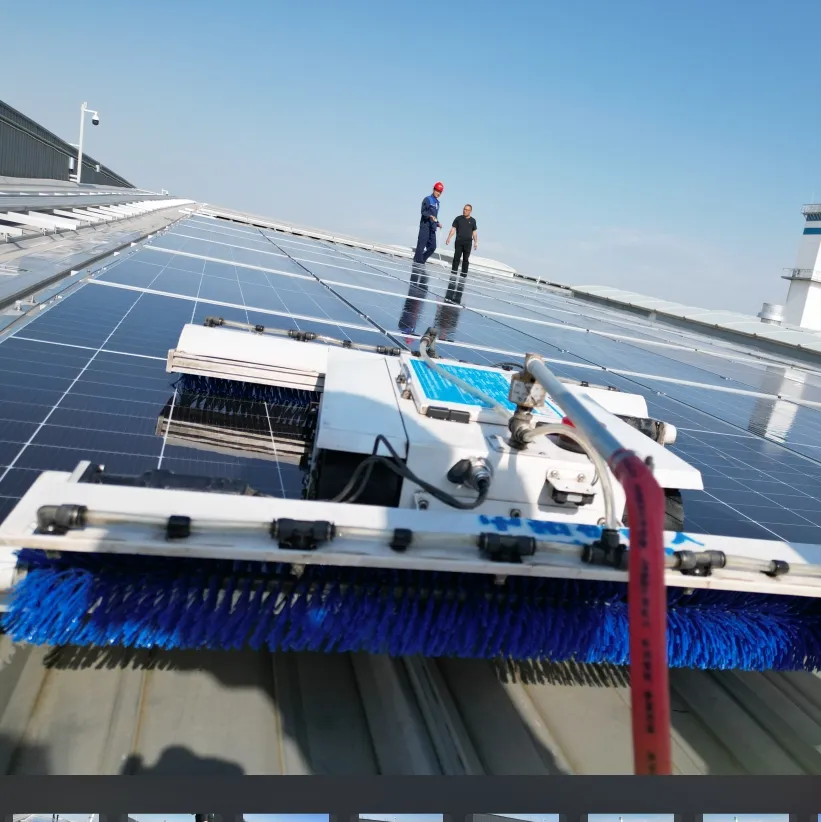

1100MM Roller Brushes: High-efficiency soft nylon brushes (up to 1.2MW per day) ensure thorough cleaning without damaging solar panels.
🚜

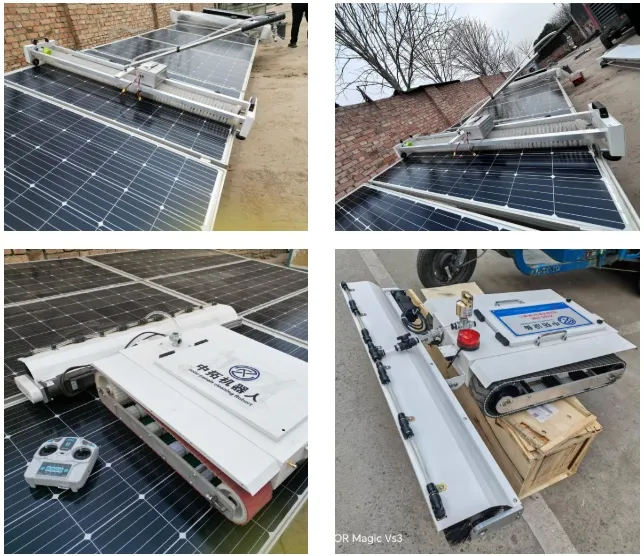

Crawler Chassis All-Terrain
The crawler chassis allows multidirectional movement—forward, backward, and turns—achieving 100% cleaning coverage without blind spots.
Portable & Manpower Efficient:
✔ Each person can clean 0.5 to 0.8MW per day.
✔ Suitable for deserts, hills, and rooftop stations.
✔ Supports both dry cleaning and water washing.
📦

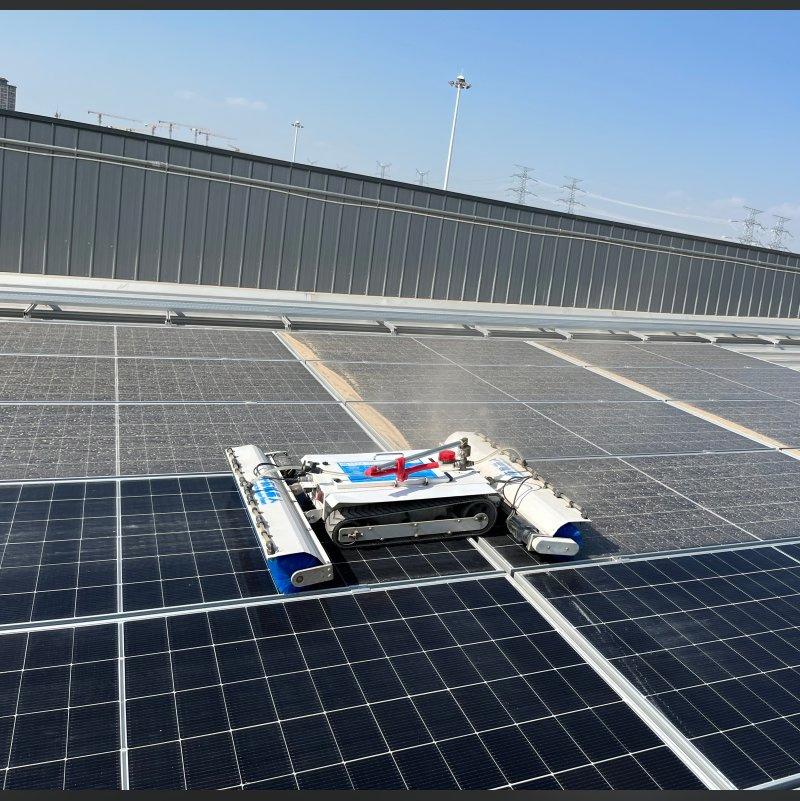

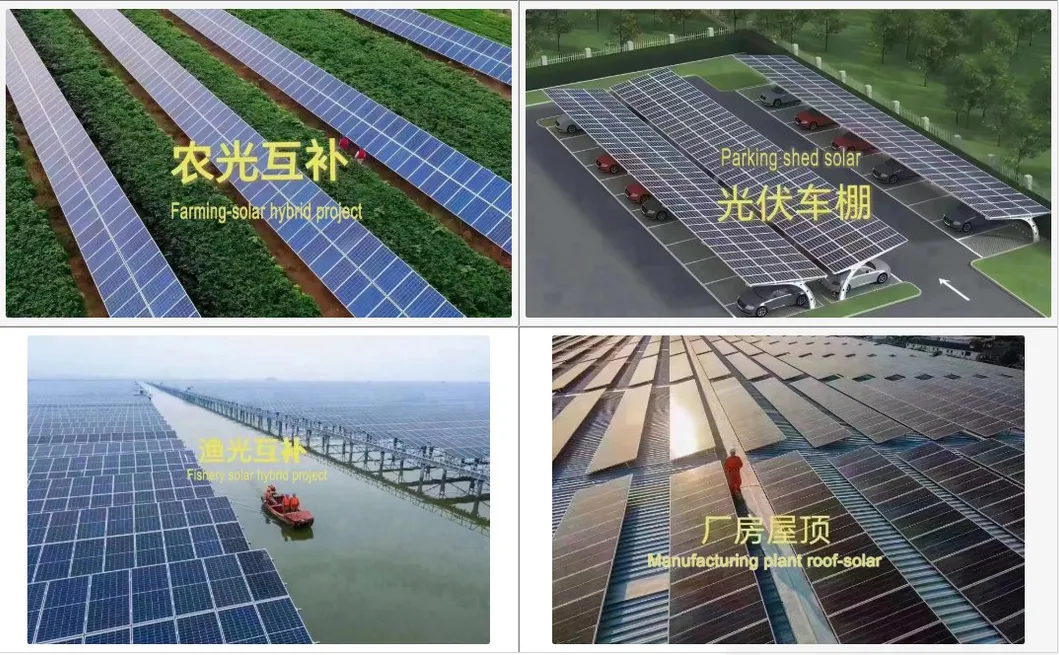

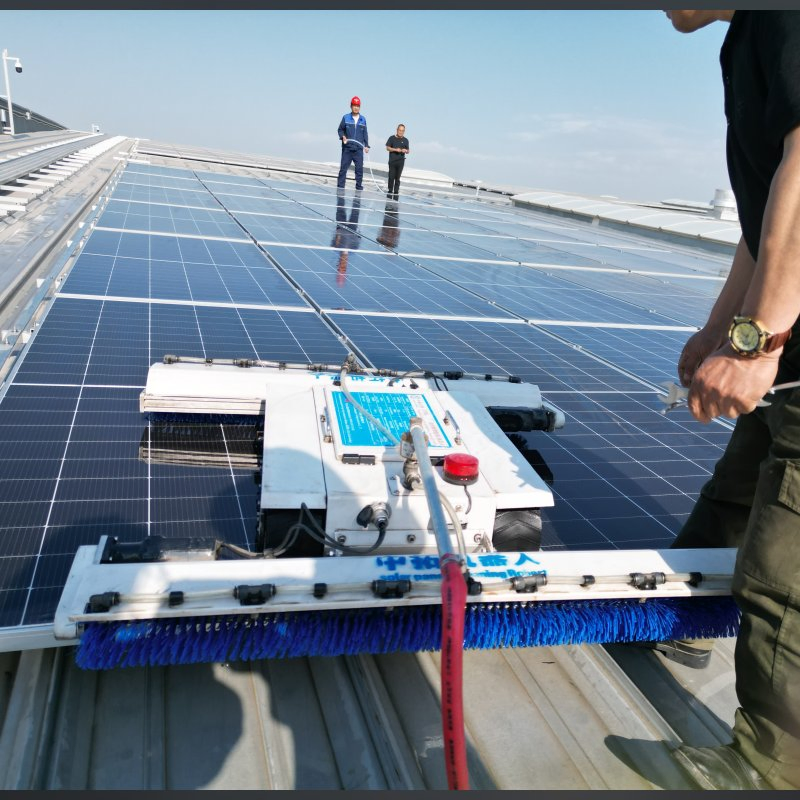

Work Scene & Packing List

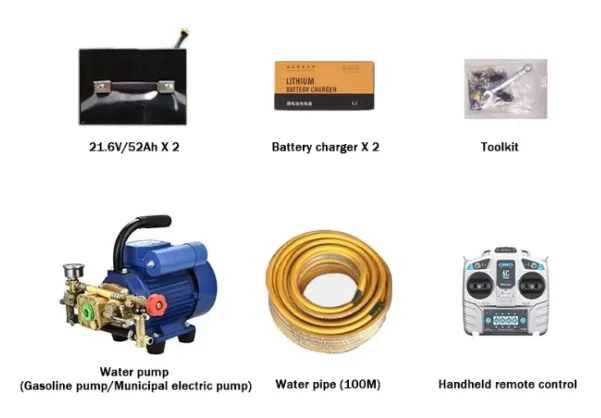

Packing List: Main unit, remote control, two lithium batteries (24/26Ah), two 24v 3A chargers, battery backpack, and spare tool accessories.
🏢
About Us
We are a supplier of photovoltaic module cleaning products, integrating R&D, manufacturing, sales, and service. With an advanced production base and a complete supply chain, we provide efficient and safer products to reduce physical labor and safety risks in the global cleaning industry.
❓
Frequently Asked Questions
How do you guarantee product quality?
We have a perfect pre-sales and after-sales service system. We track the entire process from factory production with dedicated specialists to ensure order integrity.
Are sample orders available?
Yes, we welcome sample orders to test and check the quality of our cleaning robots.
Do you provide OEM & ODM services?
Yes, we provide OEM and ODM services for most of our products. Please contact our team for specific customization details.
What products can we purchase from you?
We offer Solar Panels, BIPV, Solar cleaning robots, Batteries, Portable power supplies, and other solar energy related solutions.
Are the products currently in stock?
We maintain inventory for most standard products for timely delivery. For large bulk orders, delivery times are calculated and communicated accordingly.
