EU Stock Jinko Solar Panels 156 Cells N Type Bifacial Panel Monocrystalline Perc Photovoltaic 605 610 615 620 625W

1 / 5

EU Stock Jinko Solar Panels 156 Cells N Type Bifacial Panel Monocrystalline Perc Photovoltaic 605 610 615 620 625W

Customization:	Available
After-sales Service:	Yes

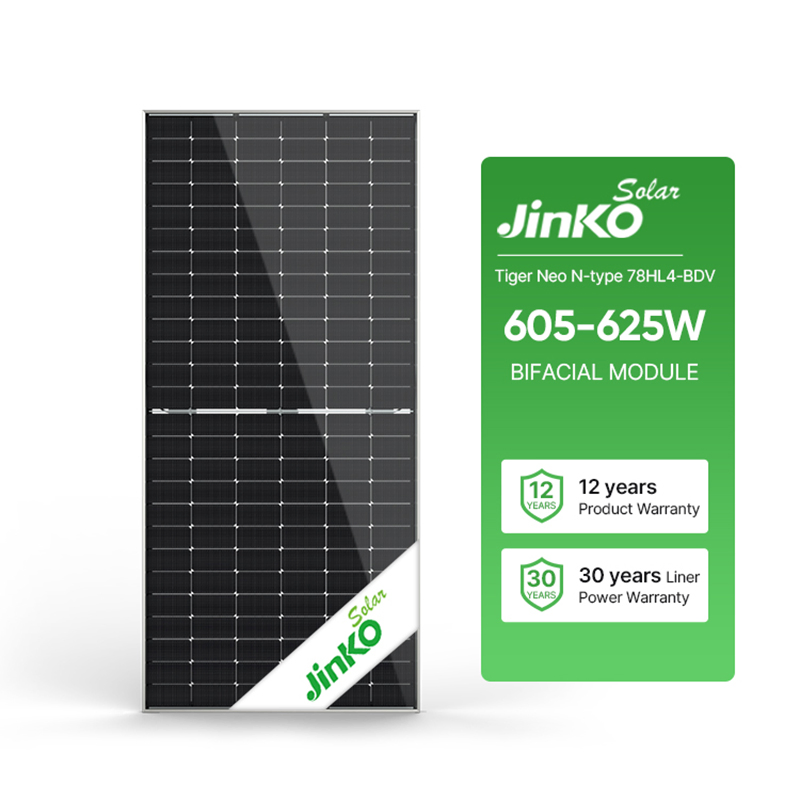

Warranty:	30 Years

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

JKM605-625N-78HL4-BDV

Number of Cells

156 cells

Application

Solar Power System

Condition

New

Certification

CE, TUV

Material

Monocrystalline Silicon

Junction Box

IP68 Rated

Weight

34.6kg

Frame

Anodized Aluminium Alloy

Front Glass

2.0 mm, Anti-Reflection Coating

Back Glass

2.0mm, Heat Strengthened Glass

Operating Temp

-40℃ ~ +85℃

Max System Voltage

1500VDC (IEC)

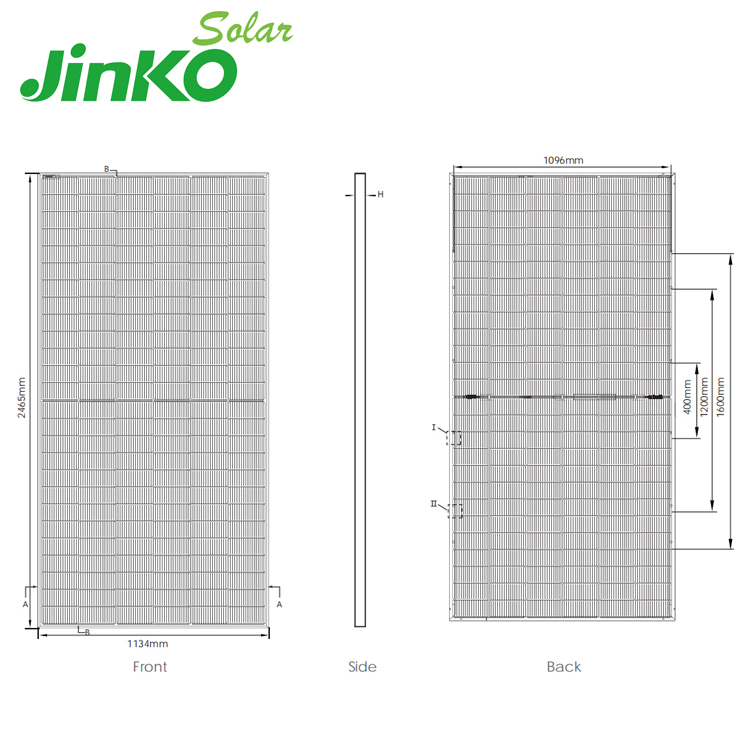

Specification

2465 * 1134 * 30mm

Product Description

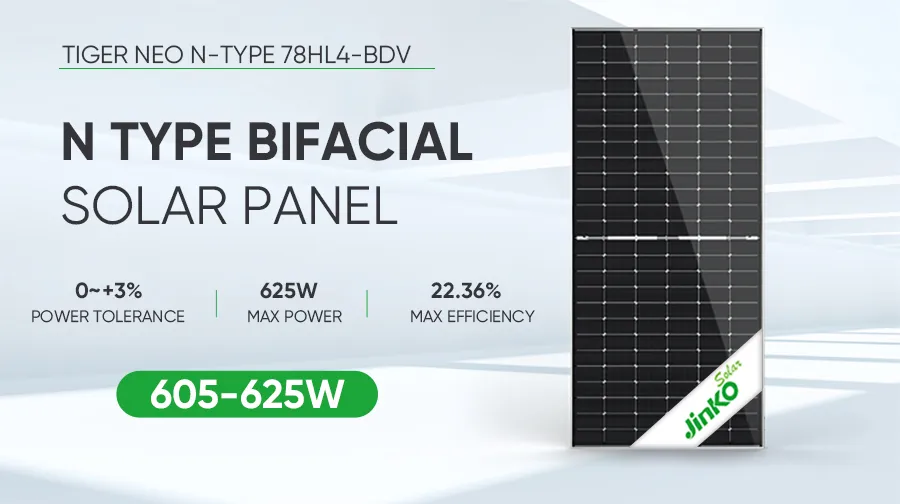

Tiger Neo N-type 78HL4-BDV 605-625 Watt BIFACIAL MODULE

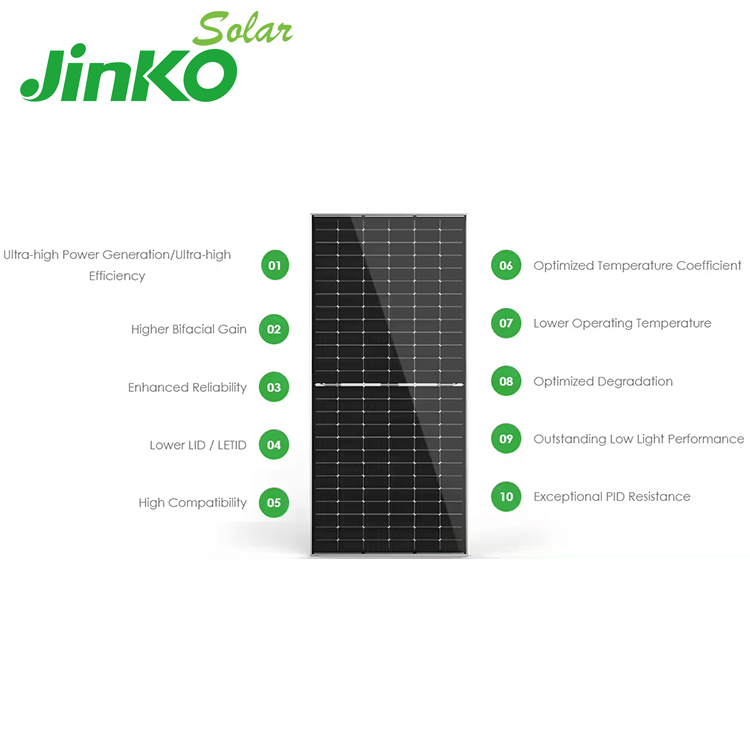

N-type TOPCon Tiger Neo panel stands out as a top-selling N-type module, driving the solar industry's shift towards N-type technology. This model offers exceptional efficiency, high power output, excellent bifacial performance, low degradation, and a low-temperature coefficient.

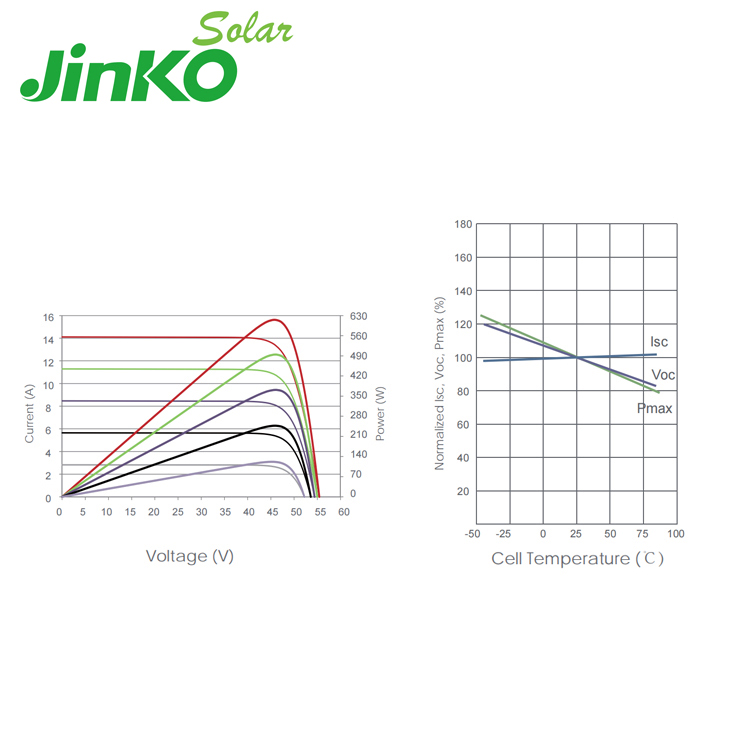

Technical Parameters

Module Type	605N-78HL4-BDV	610N-78HL4-BDV	615N-78HL4-BDV	620N-78HL4-BDV	625N-78HL4-BDV
Maximum Power-Pmax (Wp)	605	610	615	620	625
Maximum Power Voltage-Vmp (V)	45.42V	45.60V	45.77V	45.93V	46.10V
Maximum Power Current (Imp)	13.32A	13.38A	13.44A	13.50A	13.56A
Open-circuit Voltage (Voc)	55.17V	55.31V	55.44V	55.58V	55.72V
Short-circuit Current (Isc)	13.95A	14.03A	14.11A	14.19A	14.27A
Module Efficiency (%)	21.64%	21.82%	22.00%	22.18%	22.36%
Bifacial Factor	80±5%

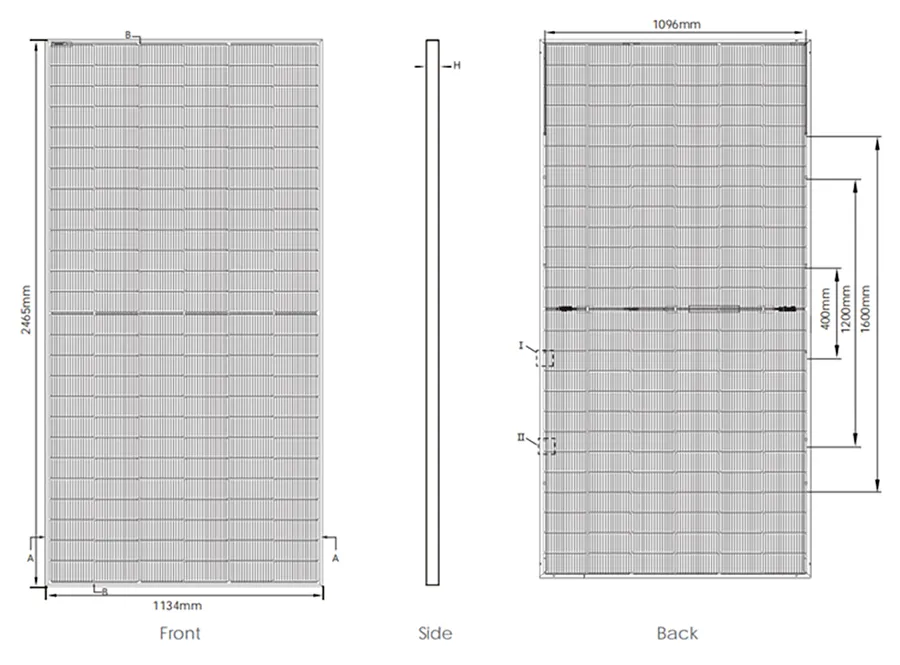

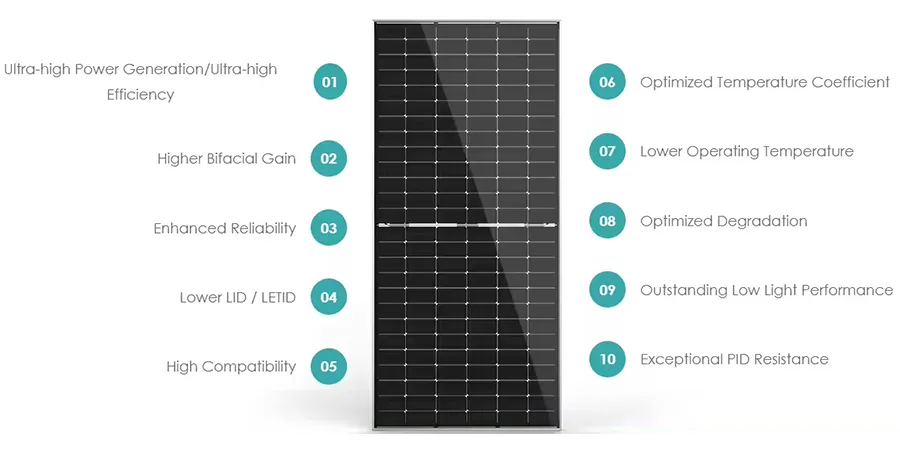

Engineering & Performance

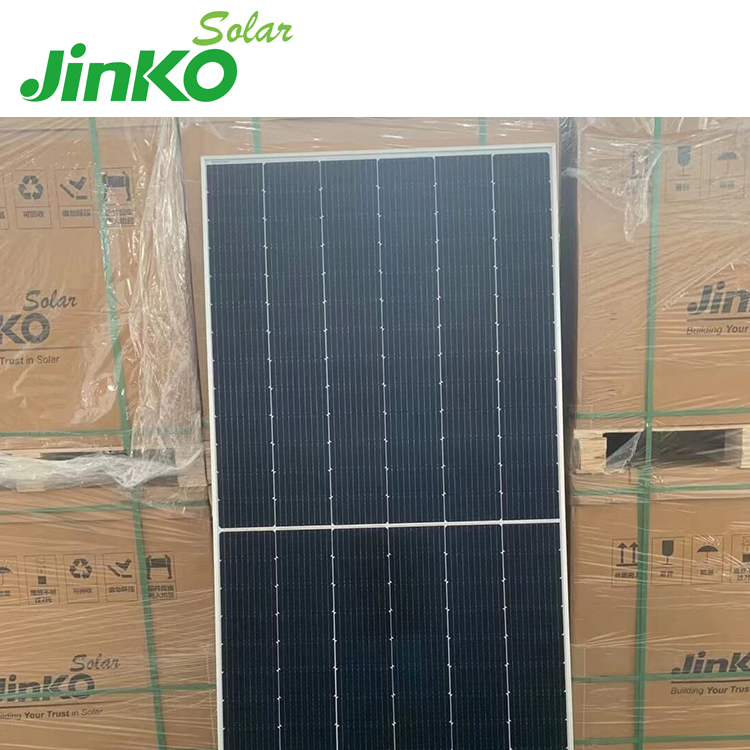

Packaging & Shipping

Pallet Dimensions

2465 × 1134 × 30mm

Modules Per Box

36 pcs/pallet

Container Loading

576 pcs / 40'HQ Container

Package Size

300.00cm * 300.00cm * 80.00cm

Gross Weight

1260.00kg

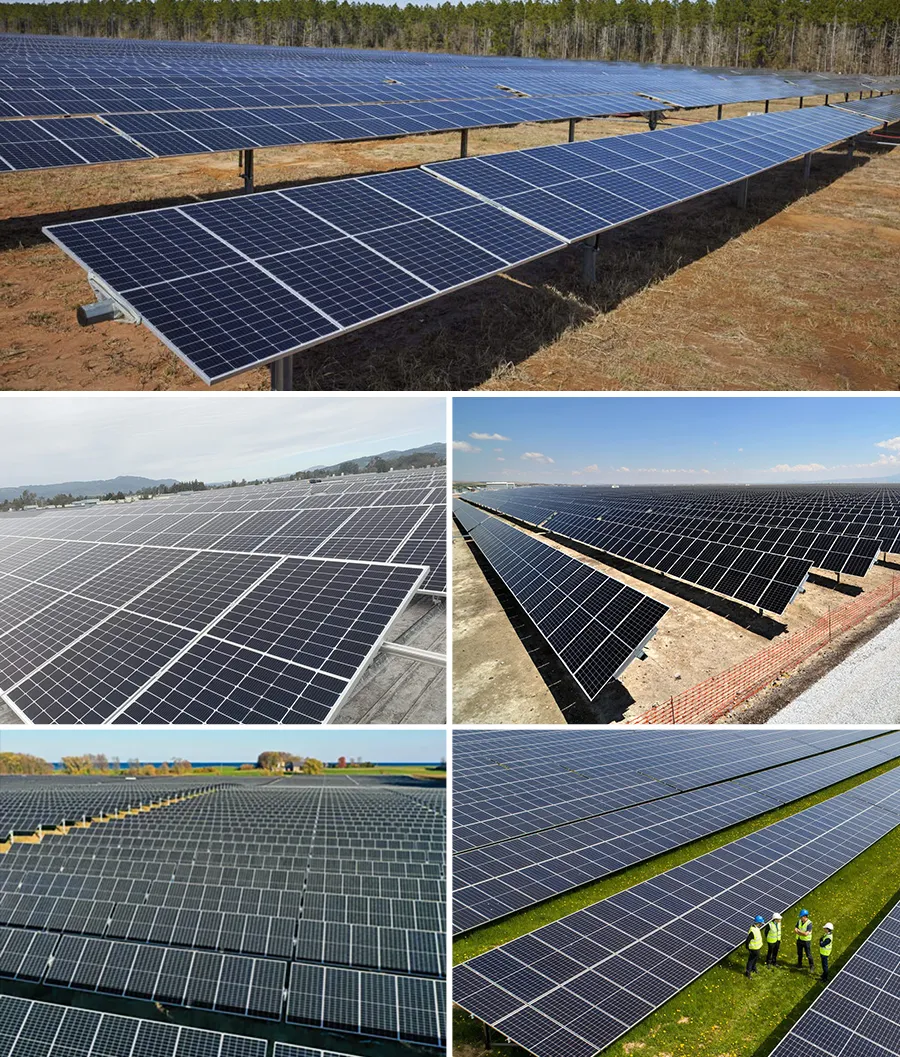

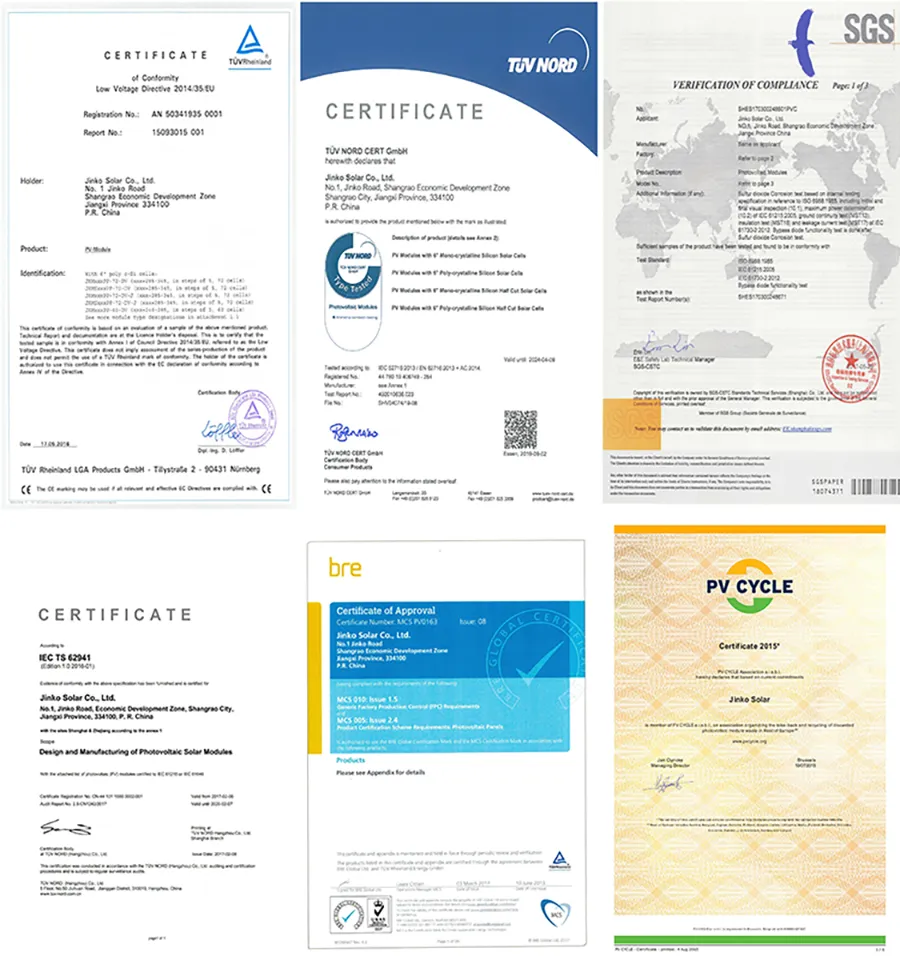

Application & Certifications

Frequently Asked Questions

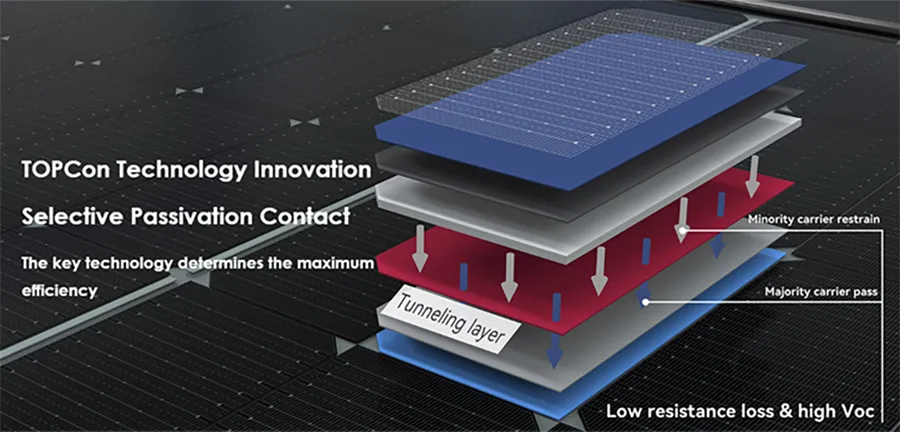

What are the advantages of N-type TOPCon technology?

N-type TOPCon technology offers higher efficiency, better performance in low-light conditions, a lower temperature coefficient, and significantly lower power degradation compared to traditional P-type modules.

What is the power range for this specific series?

This series covers a power range from 605W to 625W, with module efficiencies reaching up to 22.36%.

Are these solar panels bifacial?

Yes, these are Bifacial Dual Glass modules with a reference bifacial factor of 80±5%, allowing for energy generation from both sides of the panel.

How many panels are included in a standard 40'HQ container?

A standard 40'HQ container can accommodate 576 pieces, typically packed as 36 pieces per pallet.

What is the durability rating for these panels?

The panels feature IP68 rated junction boxes and a dual-glass structure with 2.0mm heat-strengthened glass, designed to operate in temperatures ranging from -40℃ to +85℃.

What certifications do these panels hold?

These modules are fully certified with CE and TUV standards, ensuring compliance with international quality and safety requirements for solar power systems.
