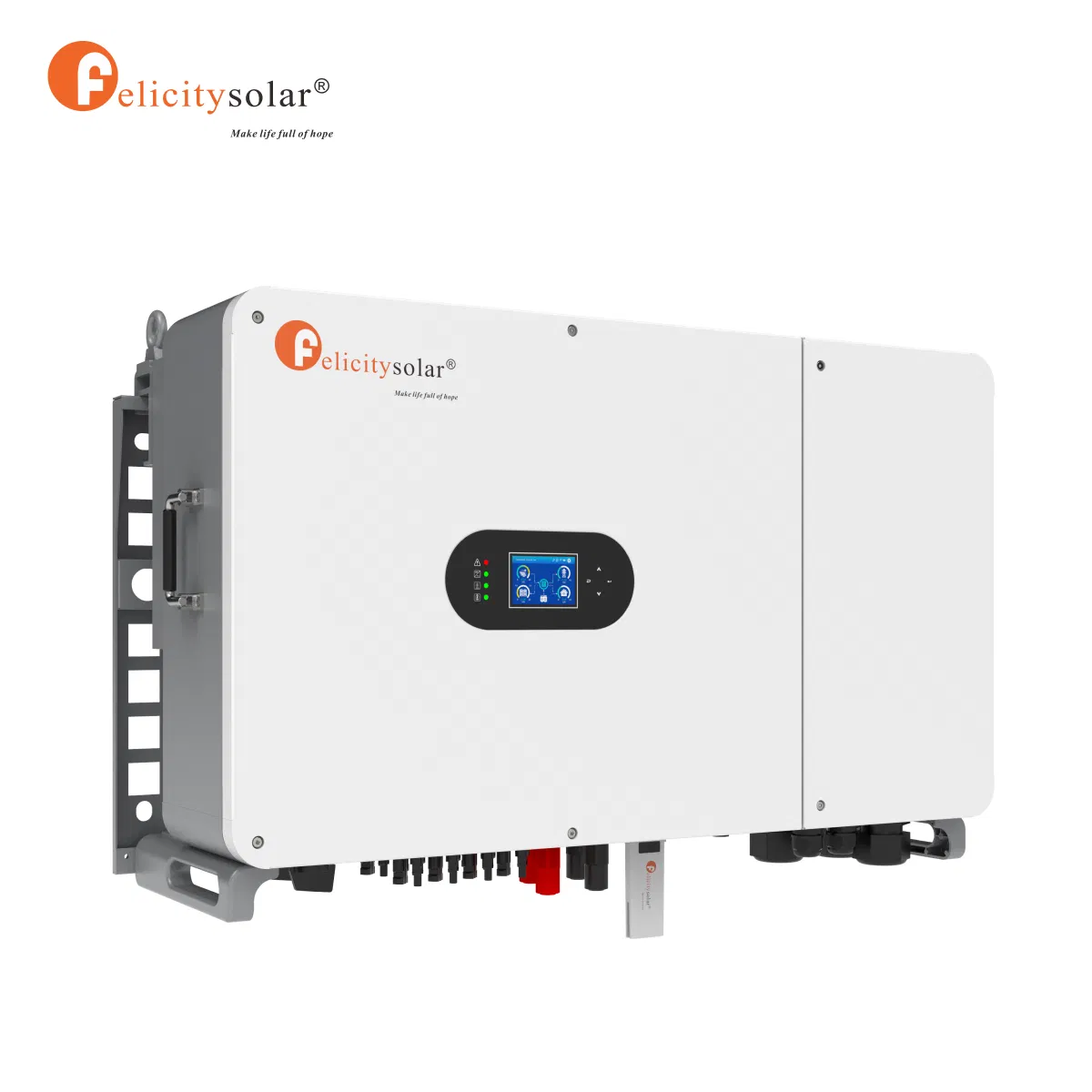

Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
1 / 5
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System
Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System

Felicitysolar High Power Hybrid Solar Inverter 25/30/40/50kw 3 Phase for Commercial PV System

Customization: Available
After-sales Service: 10 Years
Warranty: 10 Years
Send Inquiry

Product Description

Basic Information

Model NO.
IVGM50KHP3G2
Phase
Three
Output Power
25-50kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Battery Voltage
160-800VDC
Battery Type
LFP (LiFePO4)
Max. DC Input
1000VDC
Inverter Type
Hybrid Inverter
Display
LCD Touchscreen
Protection
IP65

Product Highlights

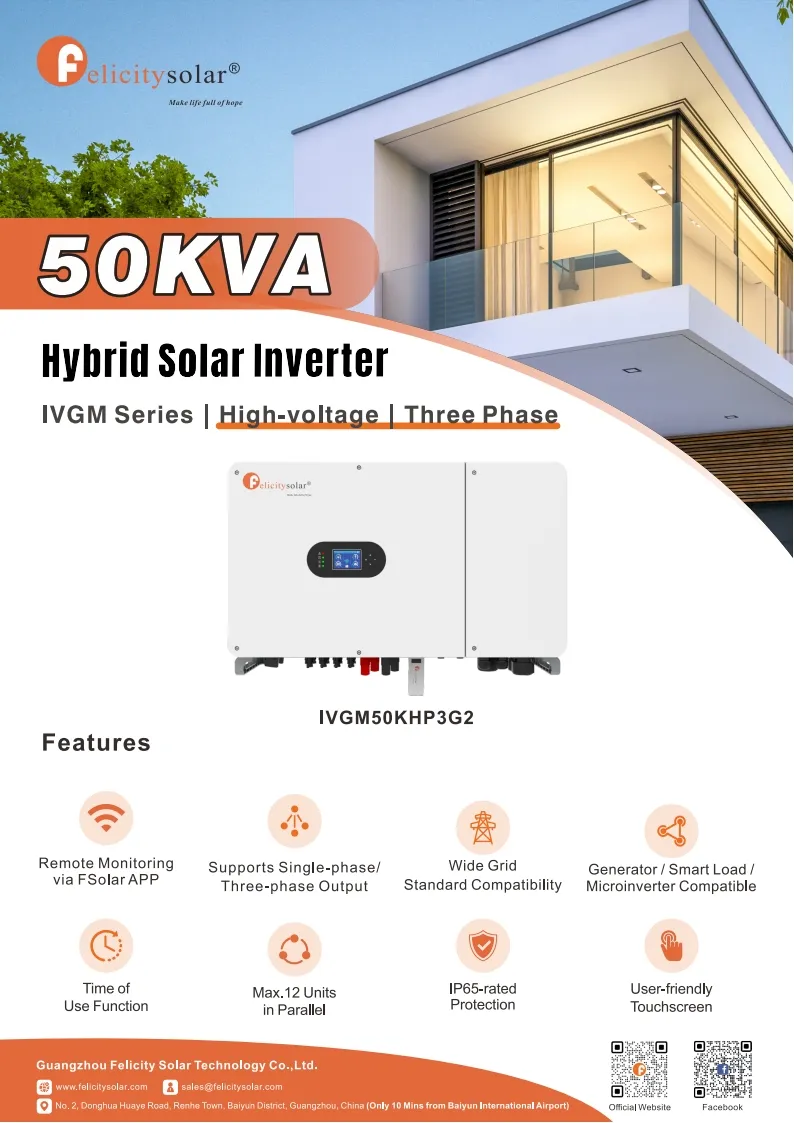

Hybrid Solar Inverter Overview
  • Real-time monitoring supported for system status tracking.
  • TOU function: Configurable time periods for grid/generator charging and battery discharging.
  • Flexible load capacity: Supports 3-phase 150% unbalanced output.
  • Single-phase maximum output power up to 25kW (for 50kW model).

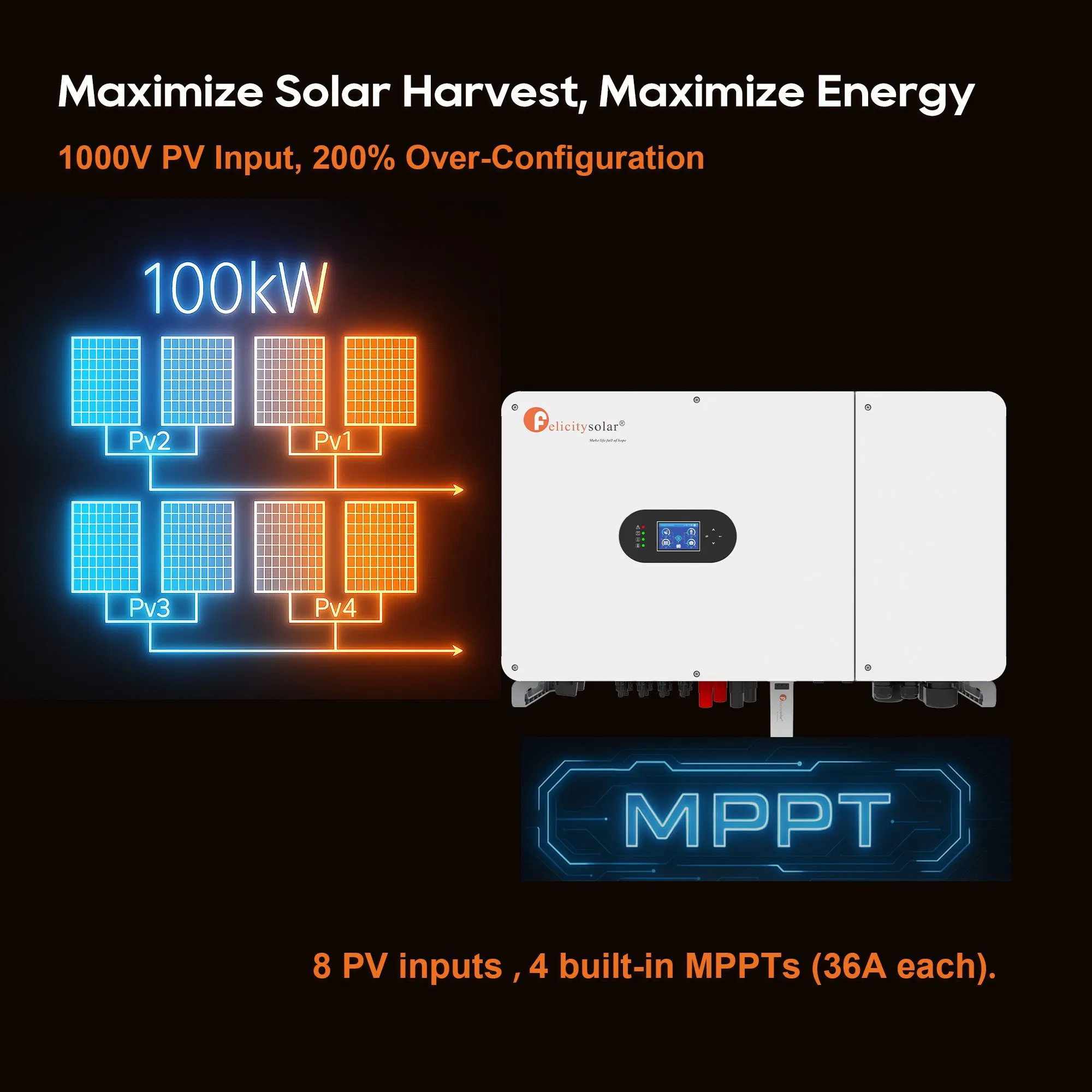

  • Up to 1000V PV input and IP65 protection for outdoor durability.
  • Supports up to 12 units in parallel connection.
  • Compatible with generators, smart loads, and grid-connected systems.

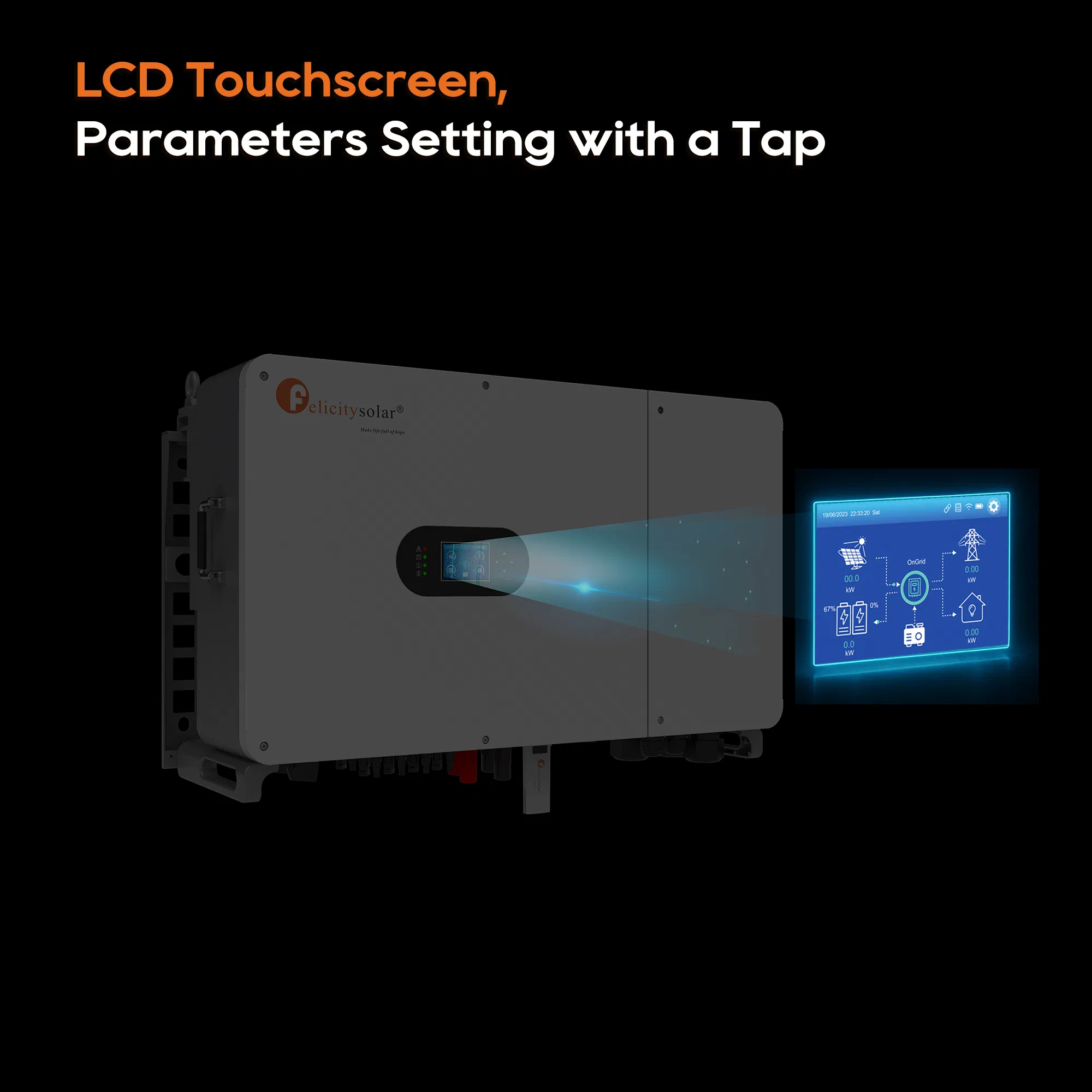

  • User-friendly LCD Touchscreen interface.

Technical Specifications

Model IVGM50KHP3G2 IVGM40KHP3G2 IVGM30KHP3G2 IVGM25KHP3G2
Battery Input Data
Battery TypeLFP (LiFePO4)
Voltage Range160~800Vdc
Max. Charging Current50+50(A)
PV String Input Data
Max. DC Access Power100kw80kW60kW50kW
Max. DC Input Voltage1000Vdc
MPPT Range150~850Vdc
No. of MPP Trackers4432
AC Output Data
Rated Output Power50kW40kW30kW25kW
Max. AC Output Power55kW44kW33kW27.5kW
Rated AC Voltage220V/380V, 230V/400V, 277V/480V (Multi-standard)
THDI<3% (At Rated Power)
General Data
Net Weight87.1KG
Protection DegreeIP65

Internal Structure & Design

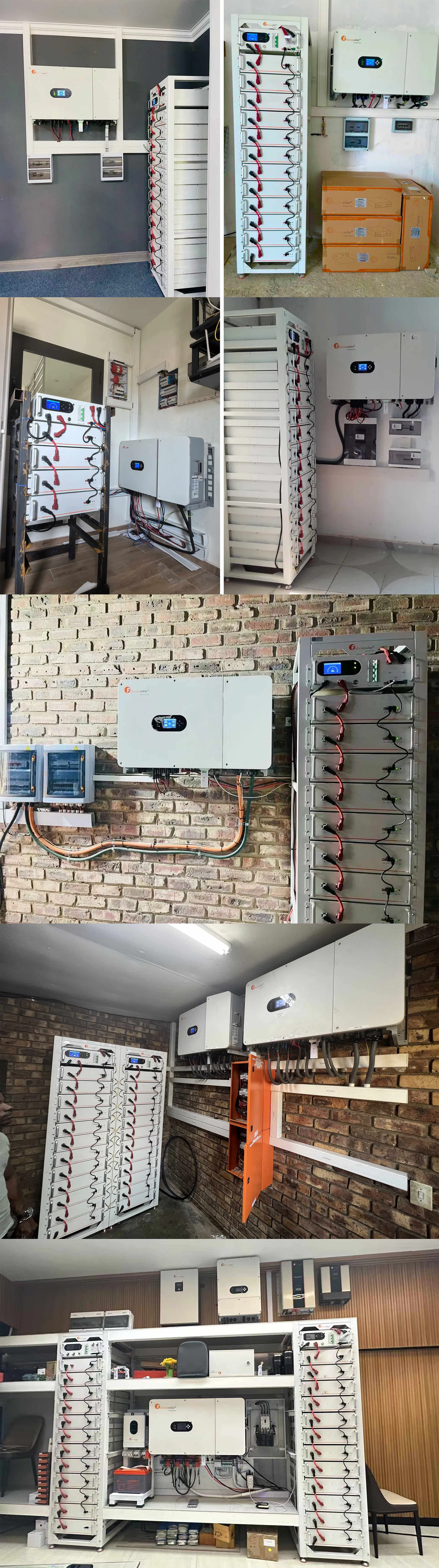

Inverter Detailed Design

Production & Quality

Production Line 1 Production Line 2

International Certifications

Product Certifications

Service & Support

Service Support 1 Service Support 2

Frequently Asked Questions

What is the battery voltage range for this hybrid inverter?
The inverter supports a wide battery voltage range from 160VDC to 800VDC, making it compatible with high-voltage Lithium (LFP) battery systems.
How many units can be connected in parallel?
This model supports up to 12 units in parallel connection, allowing for easy expansion of commercial solar power systems.
Does the inverter support unbalanced three-phase output?
Yes, it features flexible load capacity and supports 3-phase 150% unbalanced output, with a maximum single-phase output of up to 25kW on the 50kW model.

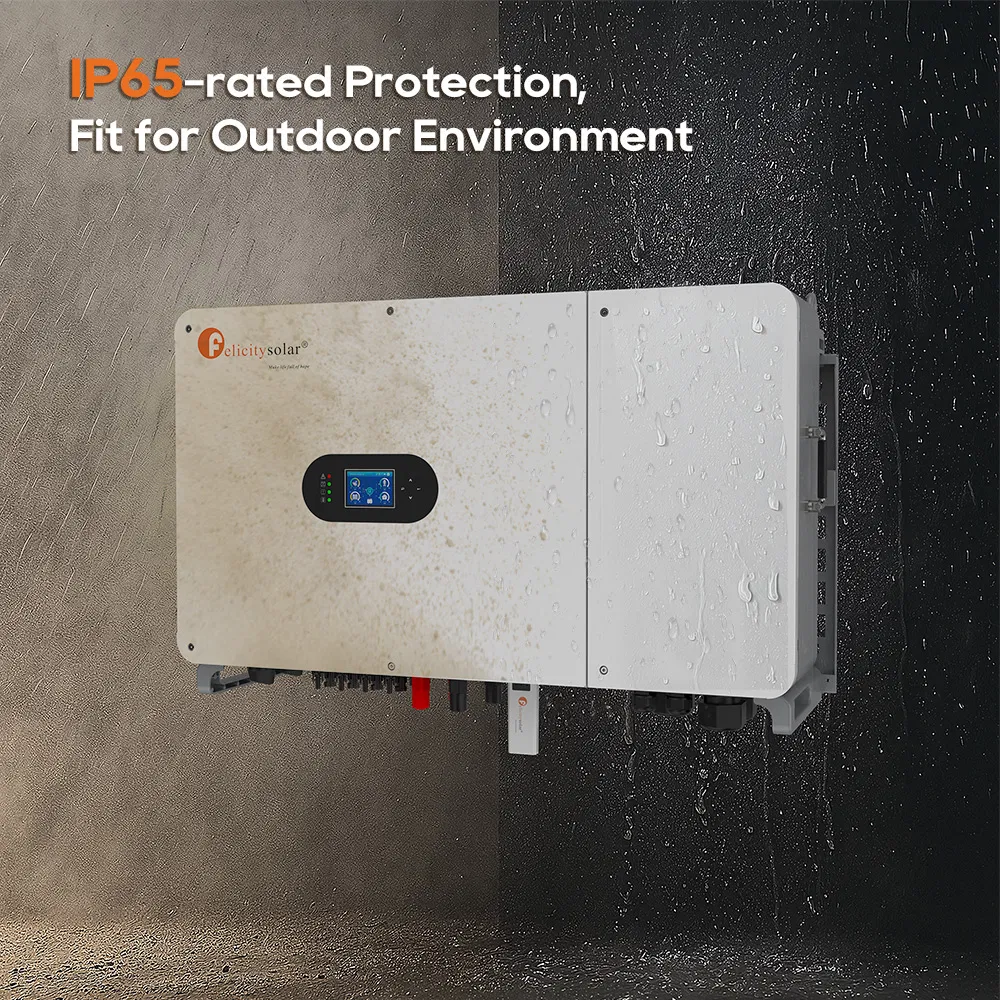

Is the inverter suitable for outdoor installation?
Yes, the inverter comes with an IP65 protection rating, which ensures it is dust-tight and protected against water jets, making it suitable for outdoor environments.
Can it work with a backup generator?
Absolutely. The system is designed to be compatible with diesel generators, smart loads, and existing grid-connected systems for maximum reliability.
What monitoring options are available?
The system supports real-time monitoring and features a built-in LCD touchscreen for local configuration and status updates.
