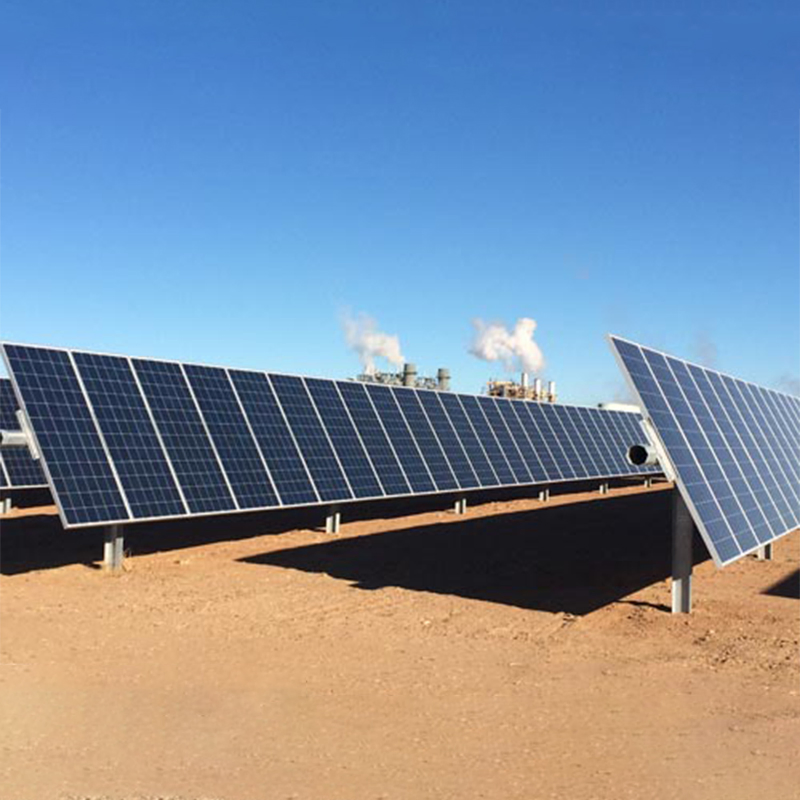

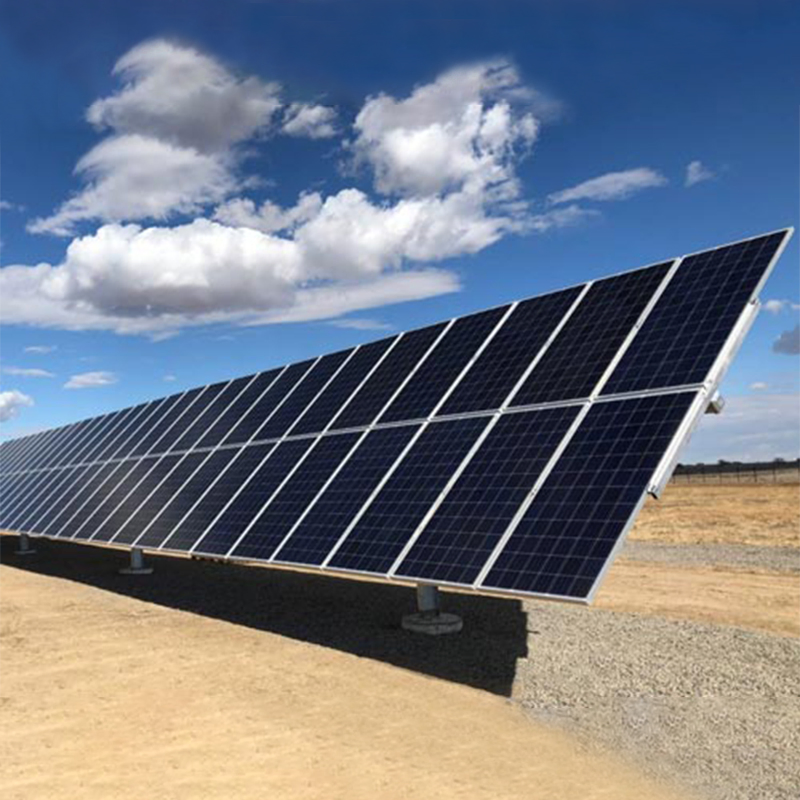

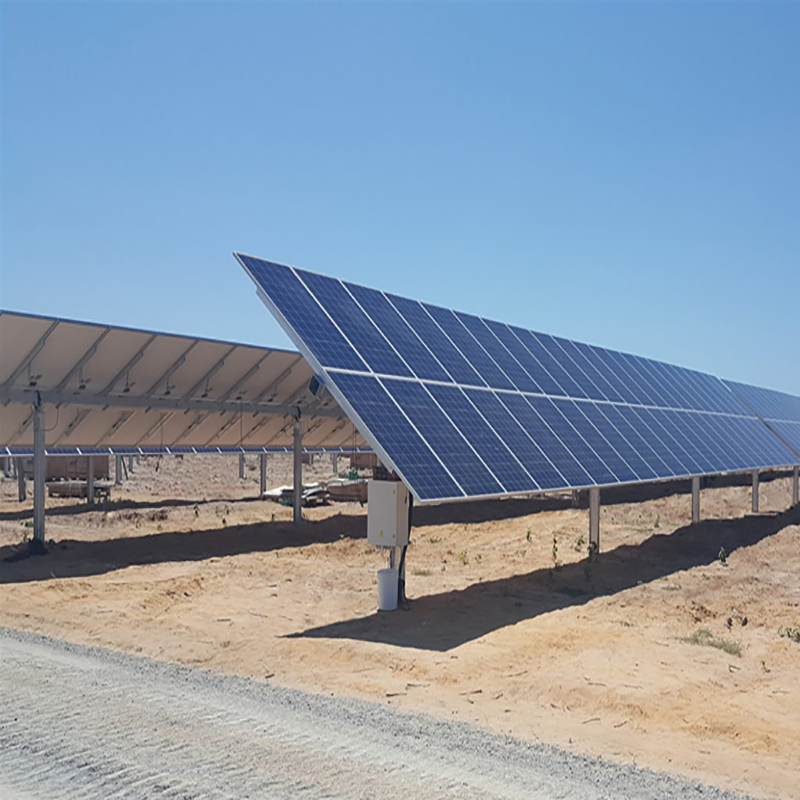

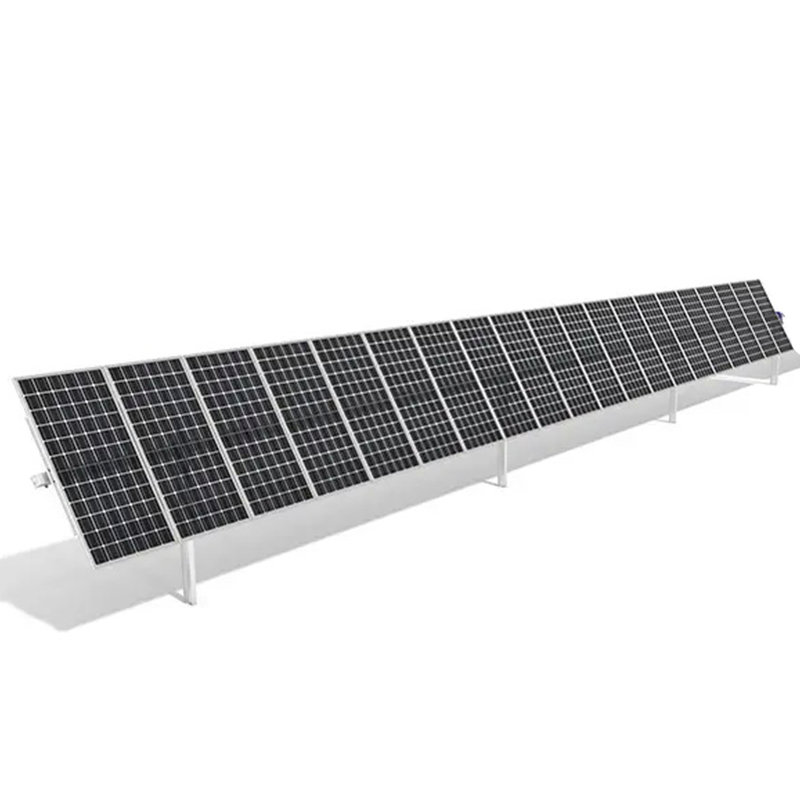

Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
1 / 5
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System
Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System

Ground Mount Solar Panel Tracking Bracket Single Axis Smart Solar Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Driving Power
90~180W
Protection Level
IP65
⚙️ Product Parameters
Tracker Structure Tracking Controller
ModelSAST Controller TypeMCU (32bit)
Solar Panel Type1650*992*35mm (78 Cells) Control AlgorithmAstronomical Algorithm + Closed Loop
Number Of Panels60 PCS ProtocolRS485
Ground Clearance400 mm Wind ProtectionAvailable
Grid Area≈100~200 m2 Protection LevelIP65
Safe Wind Speed17 m/s Tracking Accuracy≤±2°
Survival Wind Speed37m/s (Customizable <60m/s) Working Temp-30ºC to +70ºC
Bracket MaterialHot-Dip Galvanized Steel Drive DeviceSlewing + Linear Drive
📷 Detailed Photos

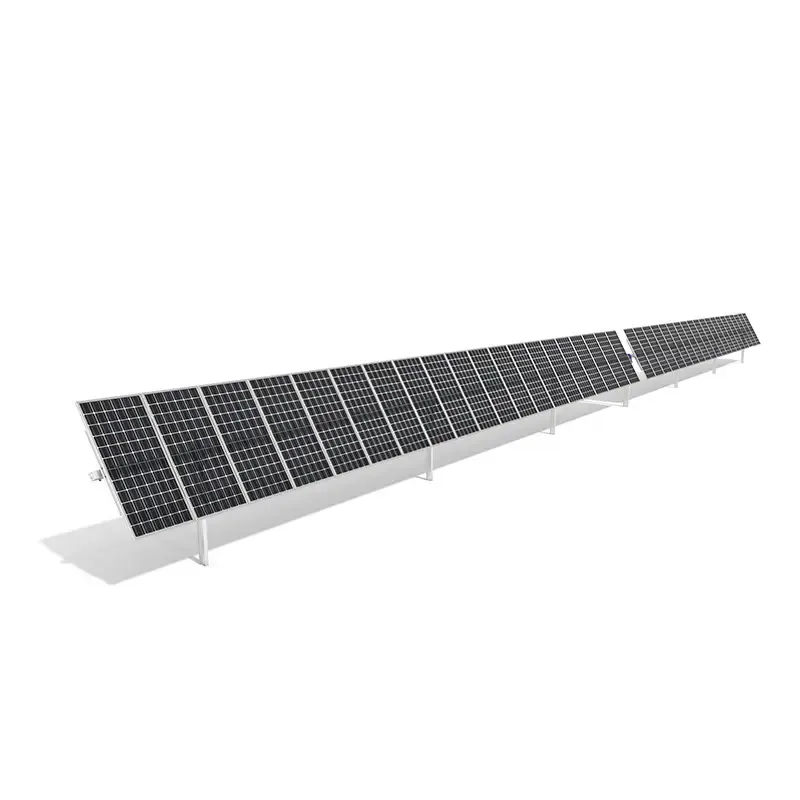

Solar Tracker Detail 1

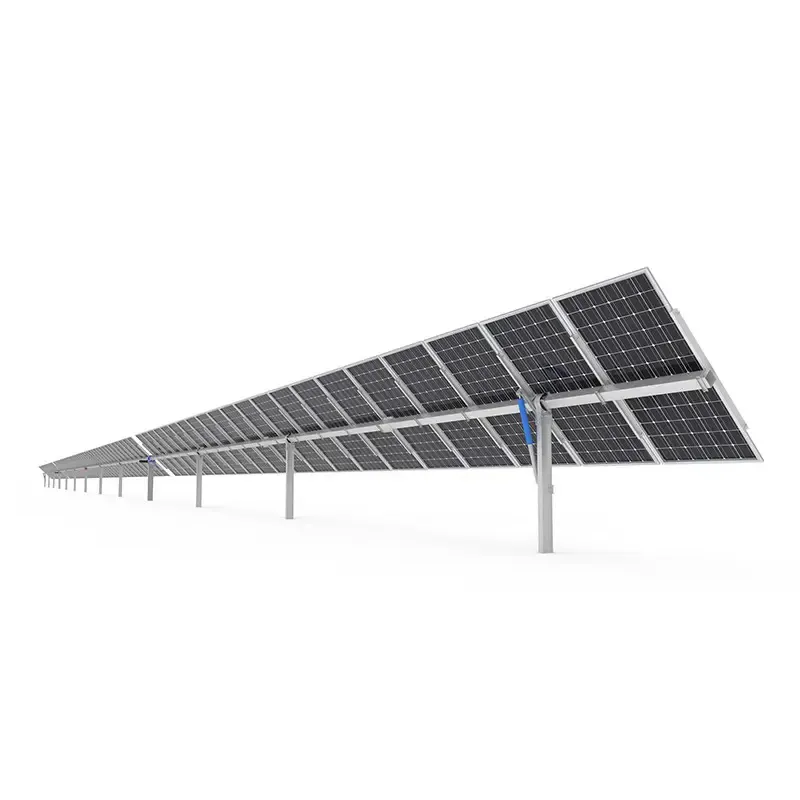

Solar Tracker Detail 2

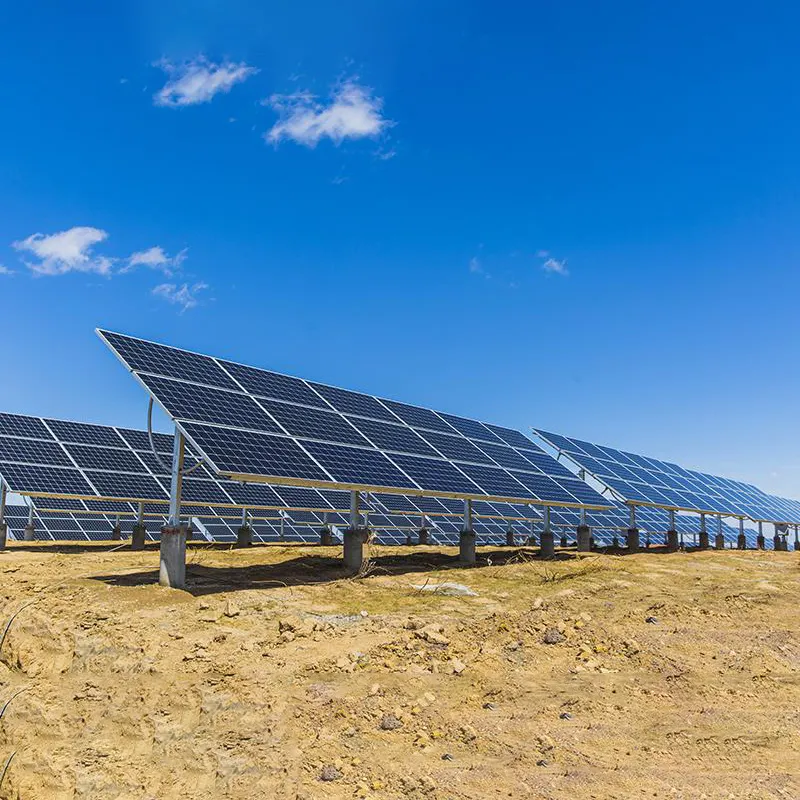

Solar Tracker Detail 3

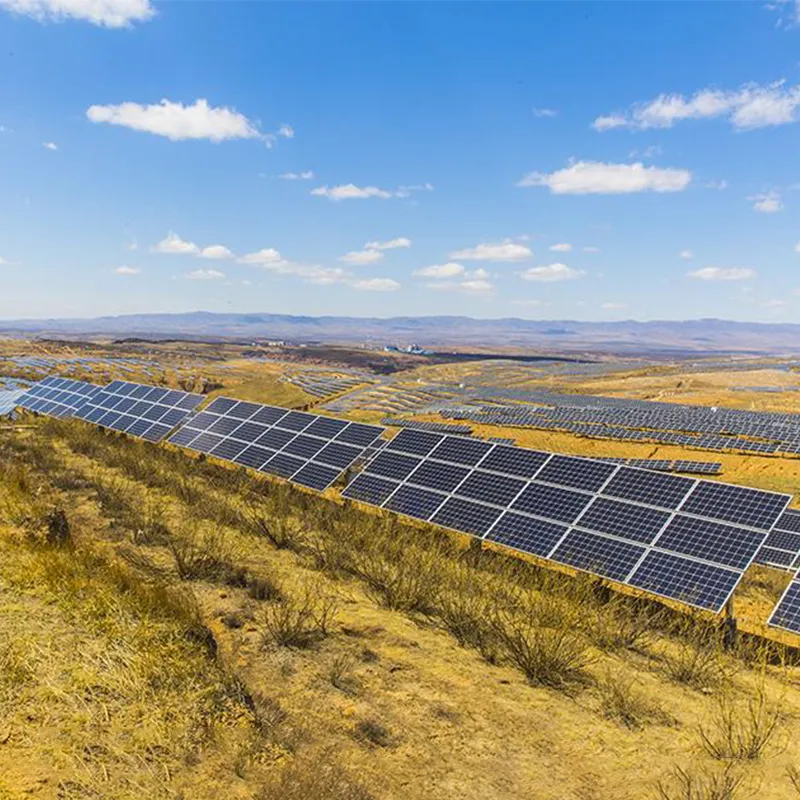

Solar Tracker Detail 4

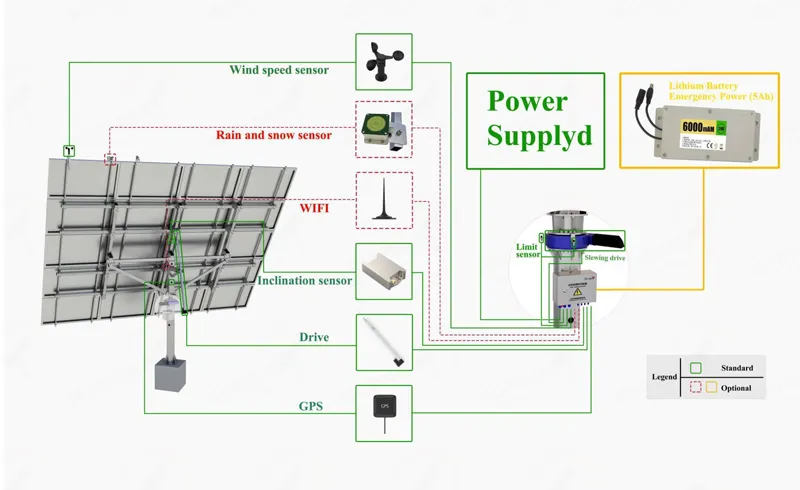

Solar Tracker Detail 5
🌍 Application Areas
Application Areas
🏢 Production & Facilities
Facility 1

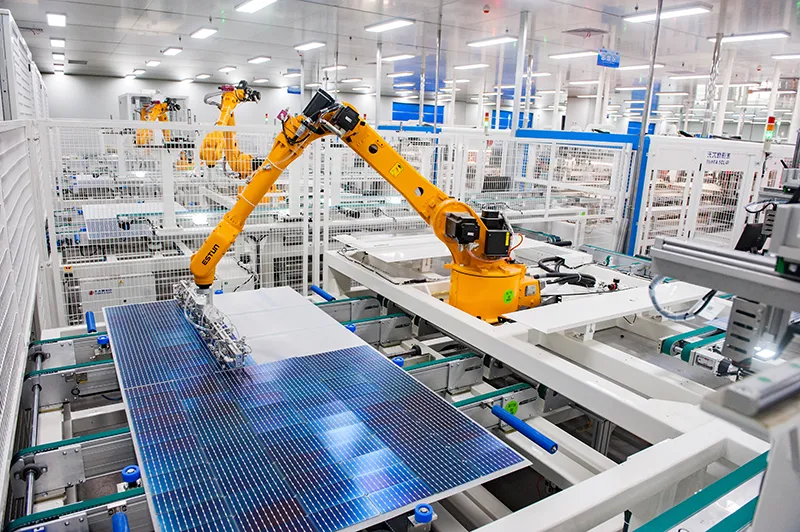

Facility 2

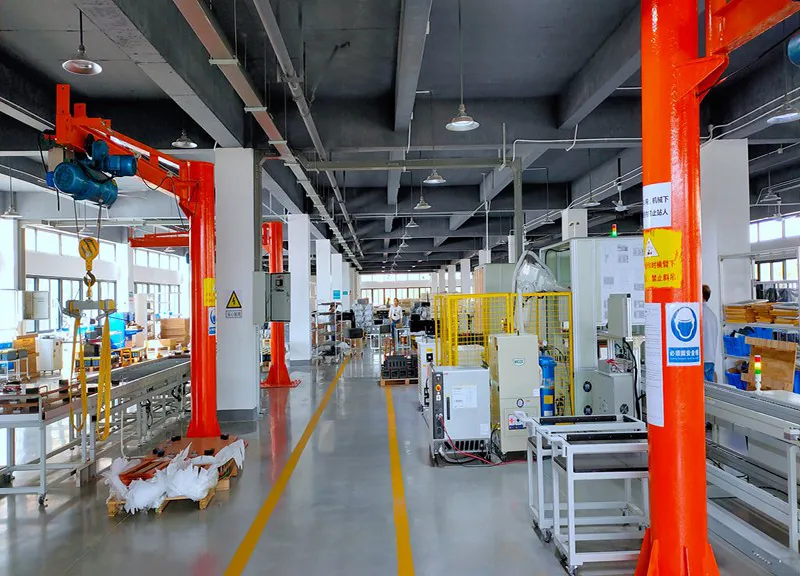

Facility 3
🏗️ Project Cases

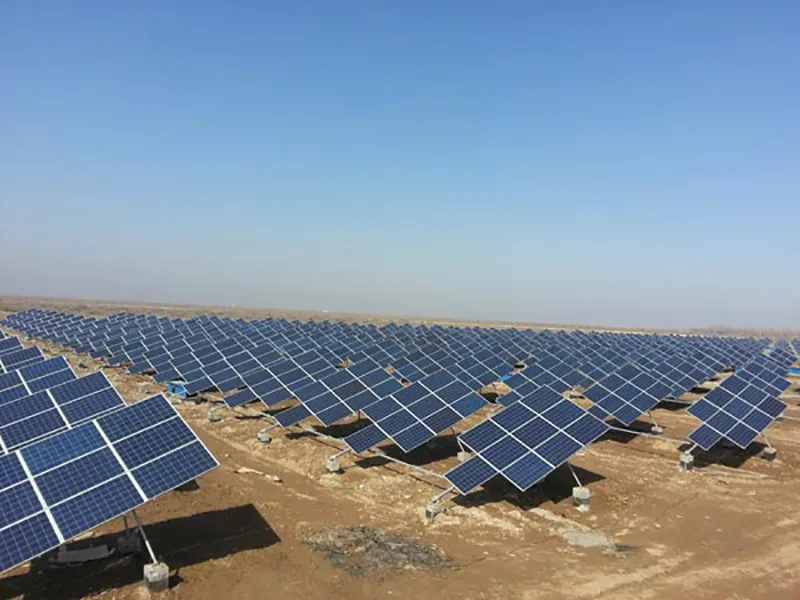

Project Case 1

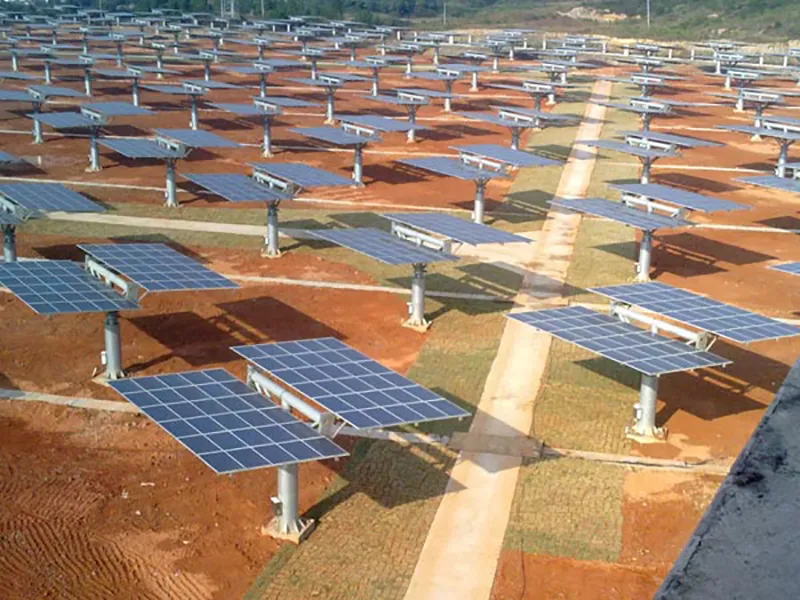

Project Case 2

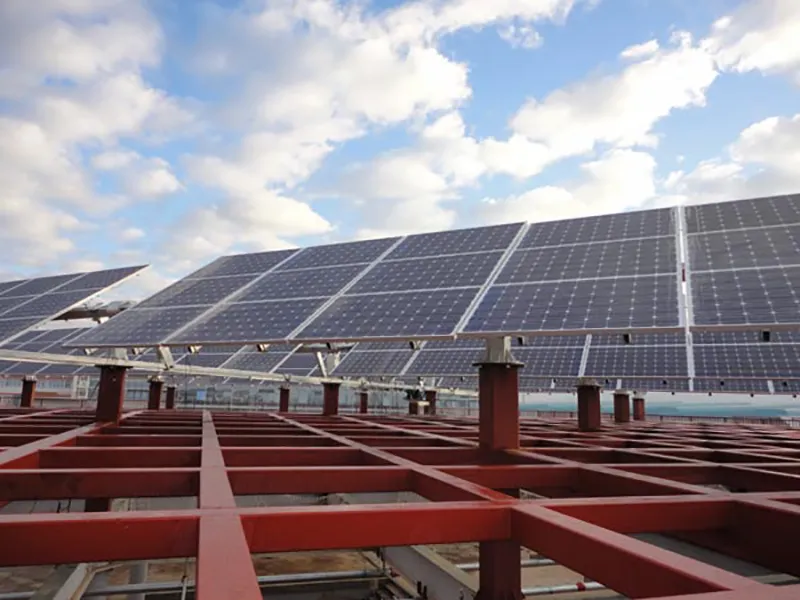

Project Case 3

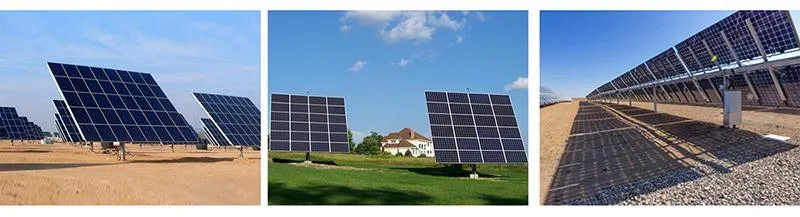

Project Overview
📜 Certifications
Certifications
❓ Frequently Asked Questions
How long is your delivery time?
Generally, the solar tracker delivery is 5-10 working days if the goods are in stock, or 20-35 working days if the goods are not in stock, depending on the order quantity.
What are your terms of payment?
For payments <= 1000USD, 100% in advance. For payments >= 1000USD, 50% T/T in advance, with the balance due before shipment.
What is the tracking accuracy of the SAST system?
The system features high precision with a tracking accuracy of ≤±2°, utilizing an astronomical algorithm and position sensor closed-loop control.
What materials are used for the bracket structure?
The main bracket is constructed from Hot-Dip Galvanized Steel (Q235B / Q355B) with a galvanizing thickness of >85um, ensuring a mechanical design life of over 25 years.
Does the system include wind and snow protection?
Yes, the system is designed for a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s (customizable up to 60 m/s). It also supports optional snow removal and heavy rain self-cleaning modes.
What communication protocols does the controller support?
The system uses the RS485 protocol. Local network communication is via Bluetooth, with optional remote network support for WIFI and 4G.
