Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
1 / 5
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System
Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System

Ground Mount Solar Panel Tracking Bracket 0.5kw~100kw Single Axis Solar Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information

Model NO.
SAST
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Single Axis Solar Tracker
Module Size
1650*992*40mm
Weight
1300kg
Scope of Rack
100~200m2
Power Supply
110V / 220V
Protection Level
IP65
Origin
China

Packaging & Delivery

Package Size
170.00cm * 105.00cm * 10.00cm
Gross Weight
1300.000kg

Technical Specifications

Tracker Structure Tracking Controller
Solar Panel Type 1650*992*35mm (78 Cells) Controller Type MCU (32bit)
Number Of Panels 60 PCS Control Algorithm Astronomical + Closed Loop
Ground Clearance 400 mm Wind Protection Equipped
Safe Wind Speed 17 m/s Night Return Equipped
Survival Wind Speed 37m/s (Customizable <60m/s) Communication RS485 / Bluetooth / WIFI / 4G
Bracket Material Hot-Dip Galvanized Steel Tracking Accuracy ≤±2°
Main Material Q235B / Q355B Drive Device Slewing + Linear Drive
Design Life >25 Years Working Temp -30ºC to +70ºC

Product Description

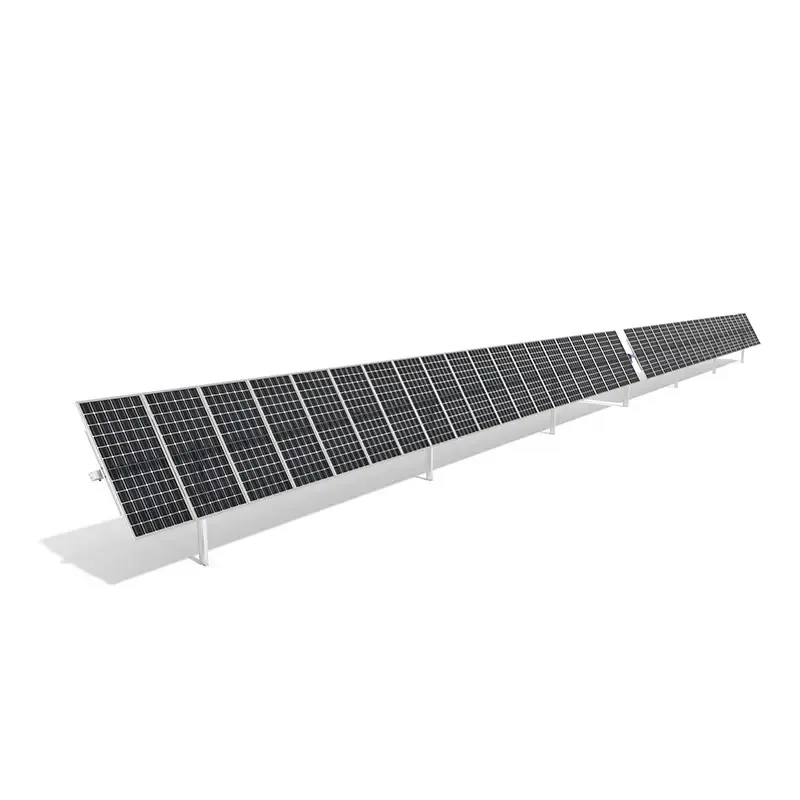

Solar Tracker Detail 1

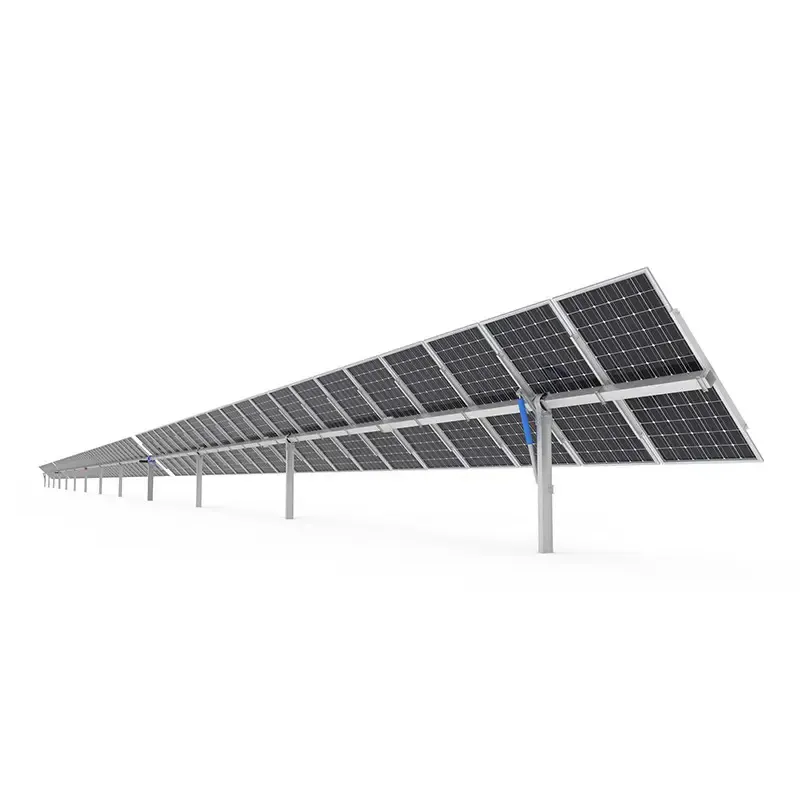

Solar Tracker Detail 2

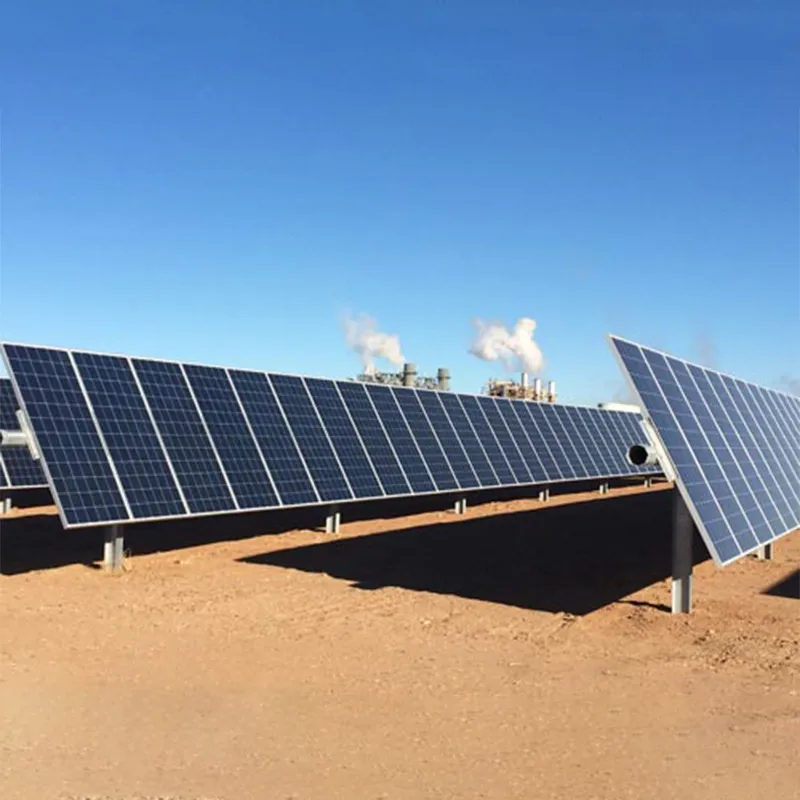

Solar Tracker Detail 3

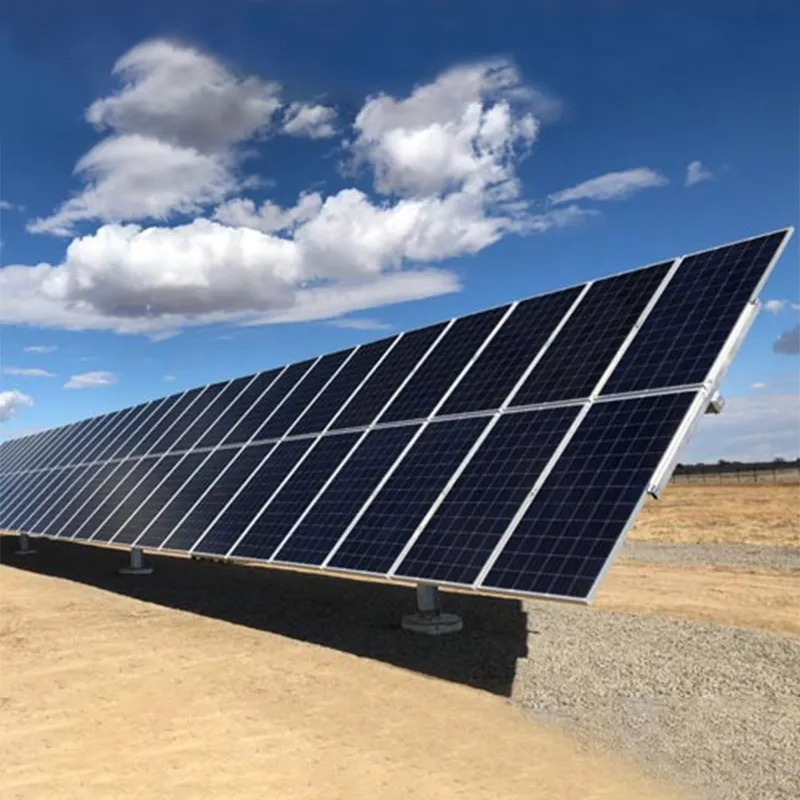

Solar Tracker Detail 4

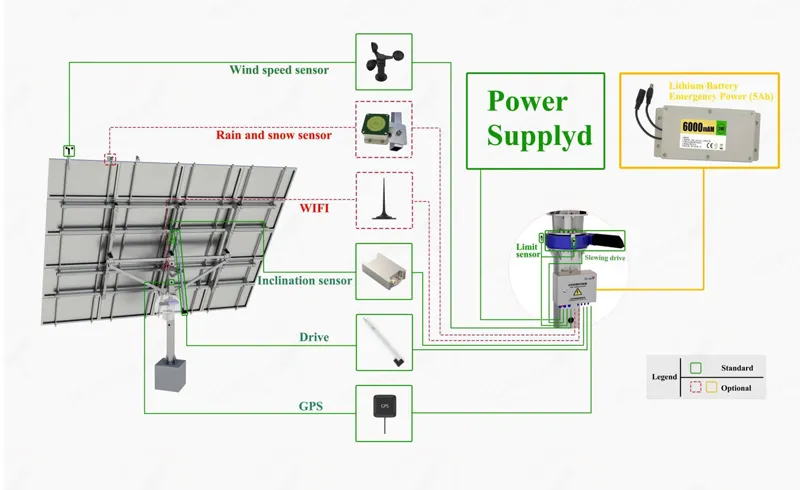

Solar Tracker Detail 5

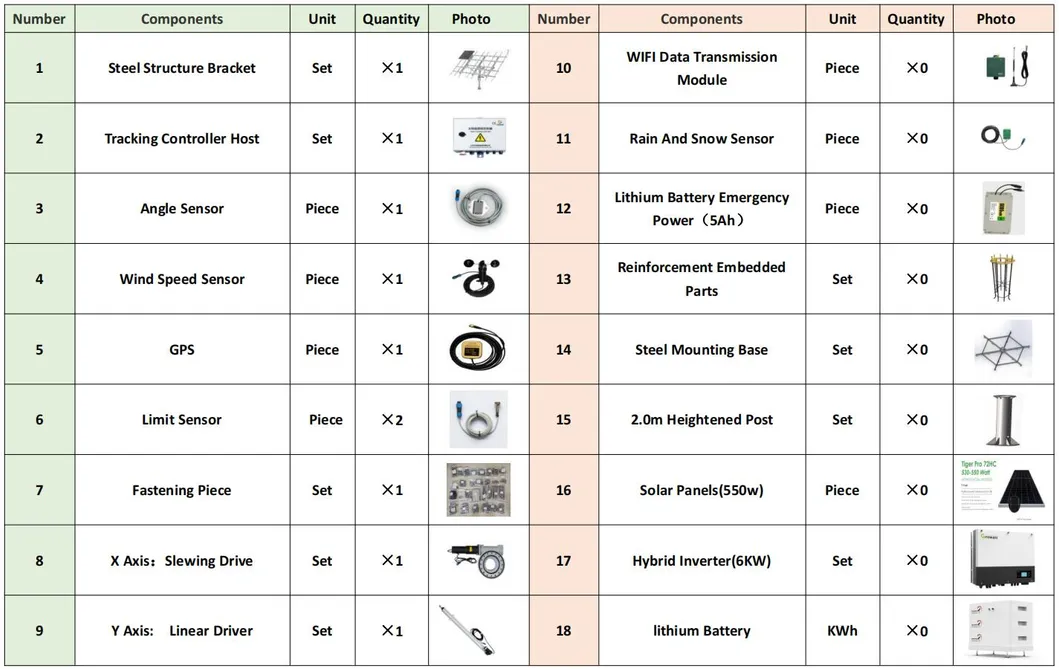

Solar Tracker Detail 6

Application Areas

Application Areas

Project Cases

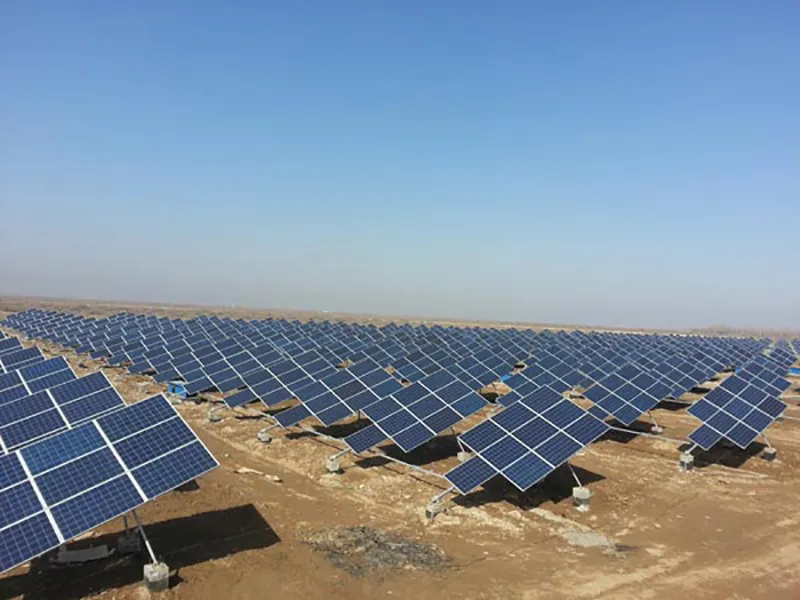

Project Case 1

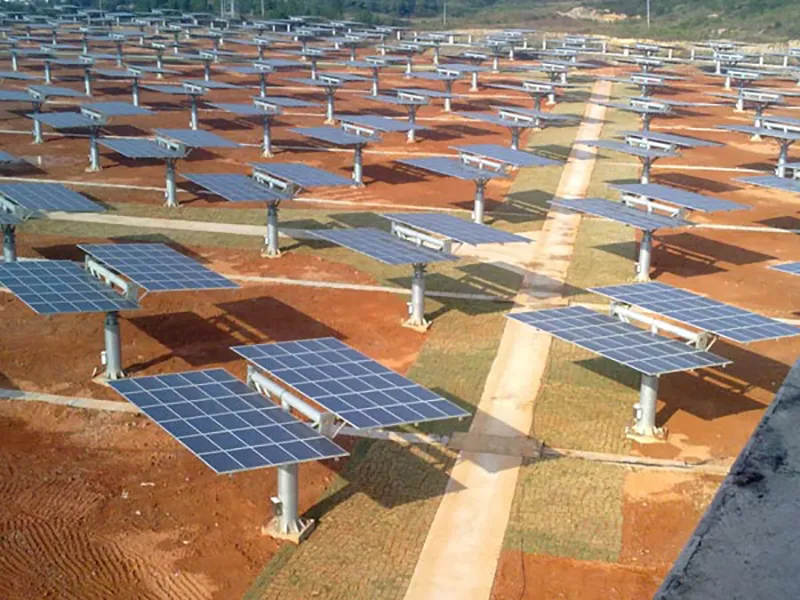

Project Case 2

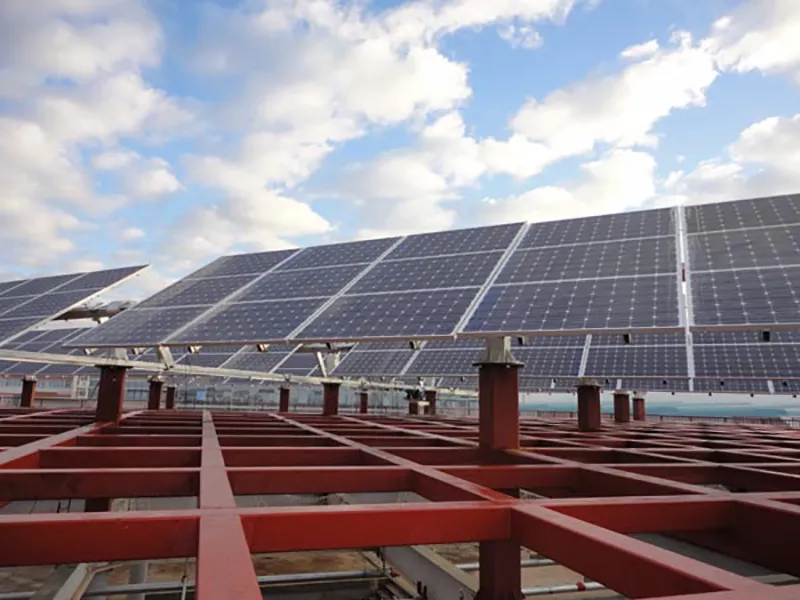

Project Case 3

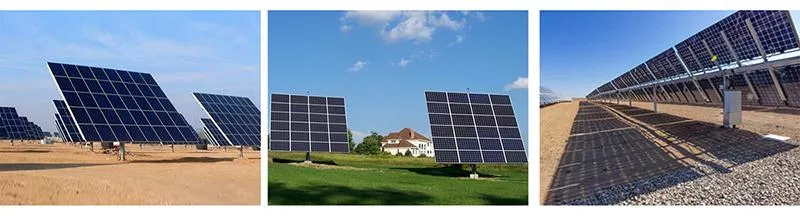

Project Overview

Certifications

Certificates

Frequently Asked Questions

What is the tracking accuracy of this system?
The Single Axis Solar Tracker features a high tracking accuracy of ≤±2°, ensuring optimal solar energy absorption throughout the day.
What materials are used for the bracket structure?
The main structure is made of Hot-Dip Galvanized Steel (Q235B/Q355B) with a galvanizing thickness of >85um, while fasteners are made of A2-70 304 Stainless Steel for superior corrosion resistance.
How does the system handle extreme wind conditions?
The system has a safe working wind speed of 17 m/s and a survival wind speed of 37 m/s. The survival wind speed can be customized up to 60 m/s based on project requirements.
What are the power requirements for operation?
The system supports AC 100V-240V power supply with a driving power of 90~180W. The daily power consumption is very low, typically less than 0.25~1kWh.
Does the controller support remote monitoring?
Yes, the tracking controller supports RS485 and Bluetooth as standard, with optional WIFI and 4G modules for remote network communication.
What is the expected lifespan of the mechanical design?
The mechanical structure is designed for a service life of more than 25 years, making it a durable choice for industrial-scale solar installations.
