Growatt High Power MID Series Inverter 30kw 33kw 36kw 40kw on Grid Inverter for Solar Power System

Customization:	Available
Warranty:	5 Years
Nature of Source Flow:	Passive inverter

i

Basic Information

Model NO.

MID 25-40KTL3-X

Phase

Three

Output Power

100kw

Certification

CE, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave

Sine Wave Inverter

Solar Panel

480W-670W

Inverter Type

On Grid Inverter

Production Capacity

60000PCS

★

Product Description

25~40kw Solar Power Inverter for Grid Systems

Model: MID 25~40KTL3-X (Three Phase)
Efficiency: Max. efficiency 98.6%
Interface: Touch key & OLED display
Protection: Type II SPD on DC and AC side
Design: Compact and light, easy to install

📋

Technical Parameters

Datasheet	MID30KTL3-X	MID33KTL3-X	MID36KTL3-X	MID40KTL3-X
Input data (DC)
Max. recommended PV power	45000W	49500W	54000W	60000W
Max. DC voltage	1100V
Start Voltage	250V
Nominal voltage	600V
MPPT voltage range	200-1000V
No. of MPP trackers	3		4
Max. input current per MPPT	26A
Output data (AC)
AC nominal power	30000W	33000W	36000W	40000W
Max. AC apparent power	33300VA	36600VA	39600VA	44000VA
Nominal AC voltage	220V/380V, 230V/400V
Max. output current	50.5A	55.5A	60.0A	66.6A
General Data
Dimensions (W/H/D)	580/435/230mm
Weight	29.5kg		30.5kg
Protection degree	IP66

📦

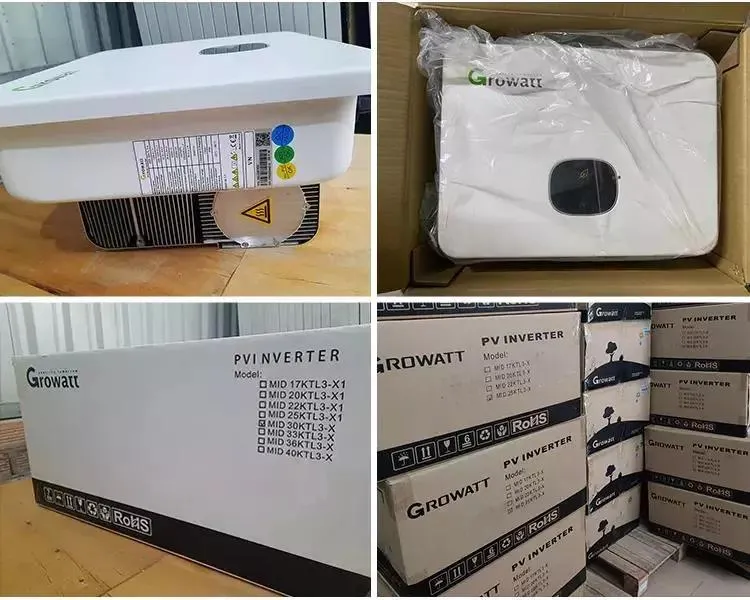

Packaging & Shipping

Package Size

65.00cm * 55.00cm * 30.00cm

Gross Weight

35.000kg

🏗️

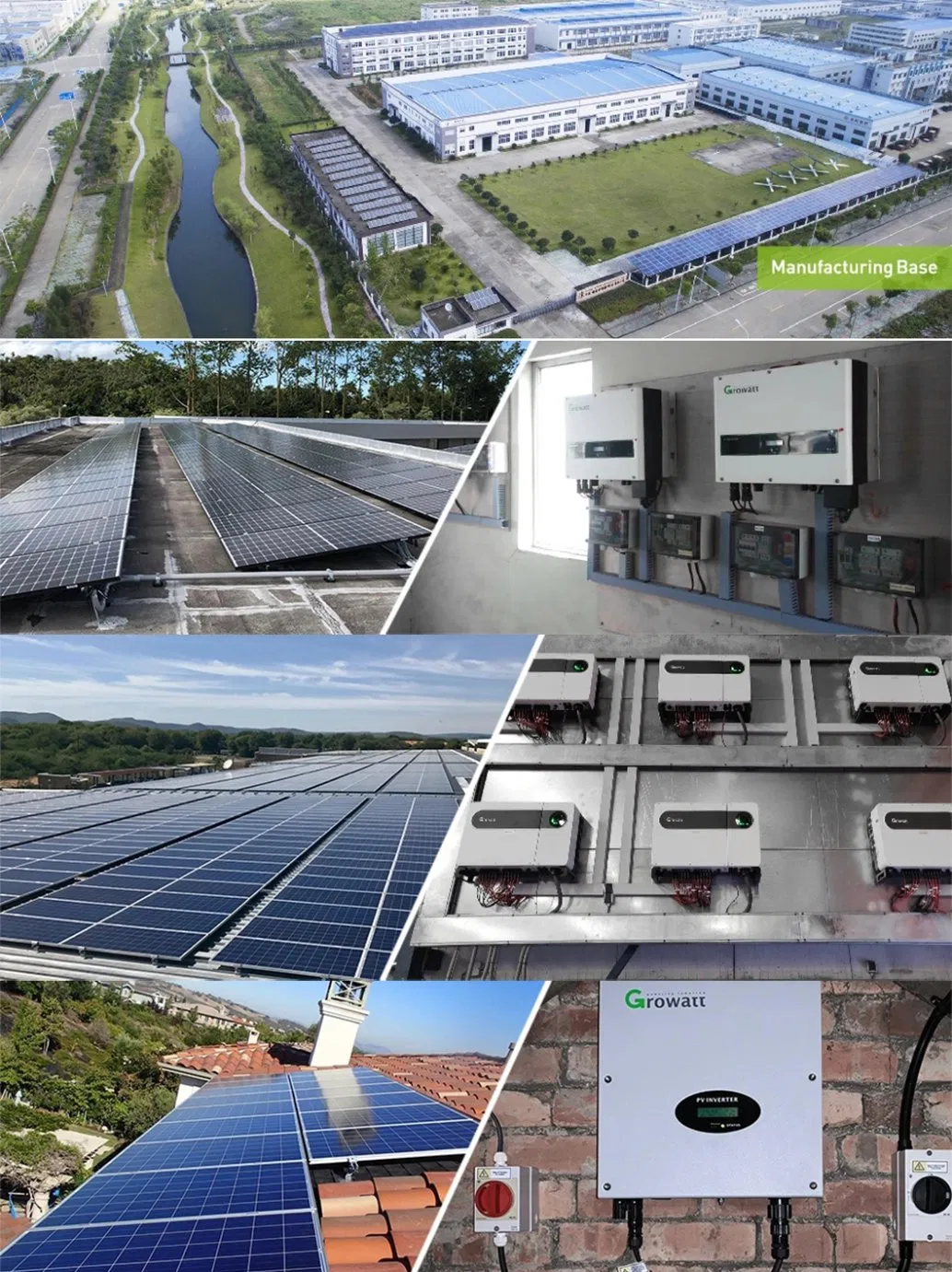

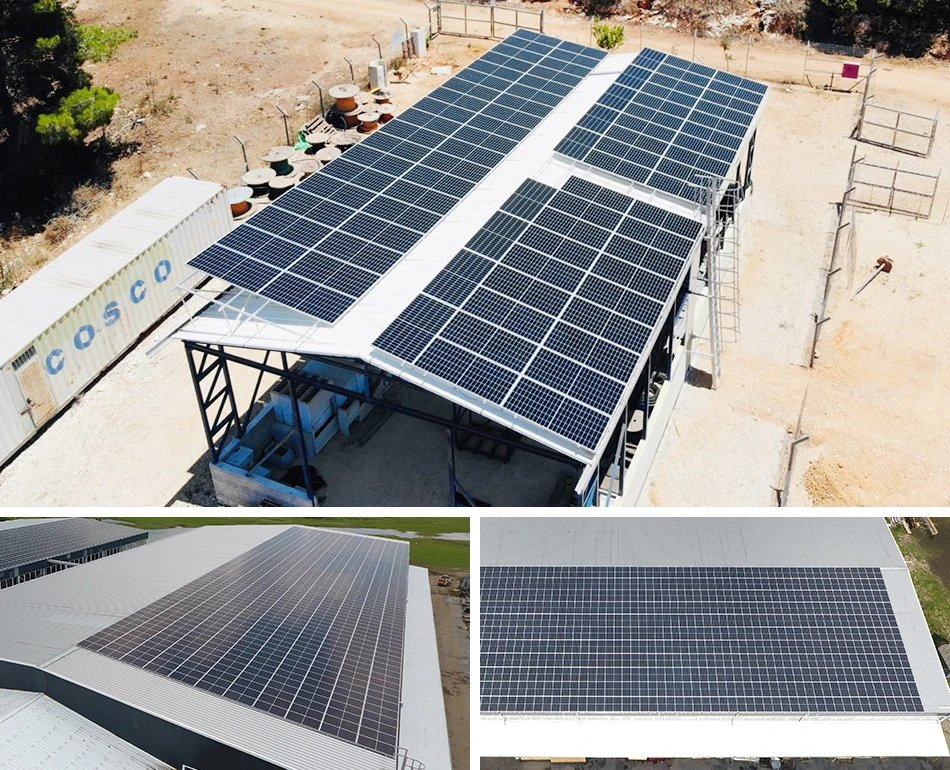

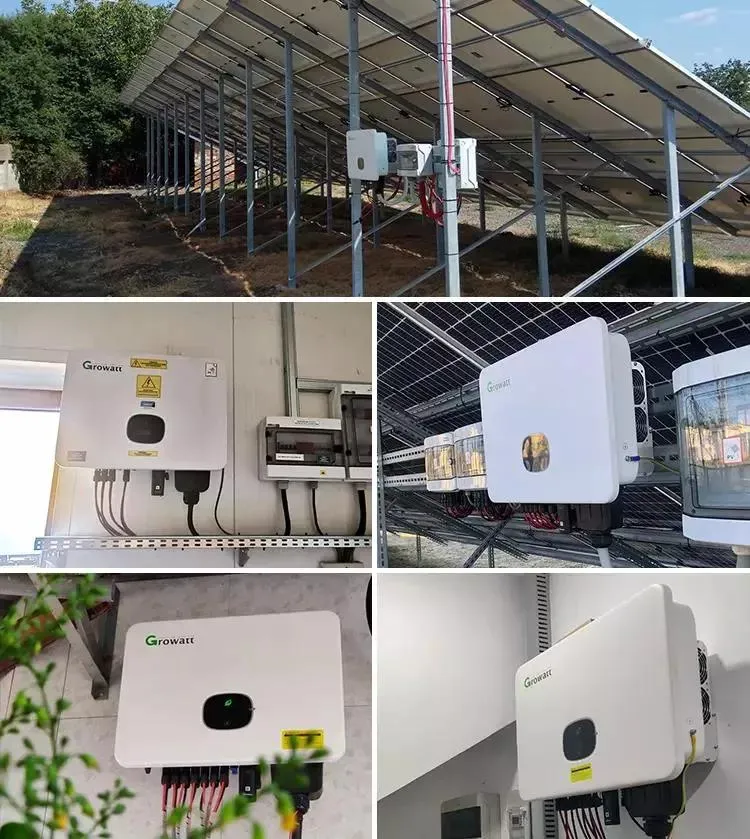

Project Show

?

Frequently Asked Questions

1. When can I get the quotation?

We usually quote within 24 hours after we receive your inquiry. If you are urgent to get the price, please contact us via priority channels so we can address your inquiry first.

2. How can I get a sample to check quality?

After price confirmation, you can request samples to check our quality display. Sample and express fees will apply, but are often refundable after order confirmation if the quantity exceeds the MOQ.

3. Can you provide custom design services?

Yes. We have a professional team with rich experience in design and manufacturing. Just share your ideas, images, or text, and we will help arrange them into finished files for your confirmation.

4. How long does it take to receive samples?

After the sample charge and file confirmation, samples will be ready for delivery in 3-7 days. You can use your own express account or prepay the shipping fees.

5. What is the lead time for mass production?

It depends on the order quantity and season. Generally, the lead time for MOQ is about 10 to 15 days. We suggest starting inquiries two months before you need the products.

6. What are your delivery terms?

We accept EXW, FOB, C&F, and CIF. You can choose the term that is most convenient or cost-effective for your logistics requirements.
