| MECHANICAL DATA | |
|---|---|
| Module Dimensions | 2278*1134*35mm |
| Weight | 27.3kg |
| Glass | 3.2 mm, High Transmission, AR Coated Tempered Glass |

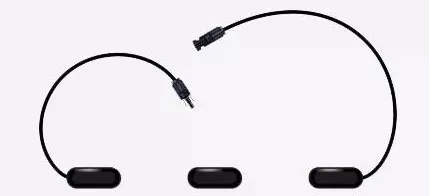

| Junction-Box | IP 68, three diodes |
| Cables | 4.0mm², 300mm in length |
| Cell Orientation | 144 cells (6*24) |

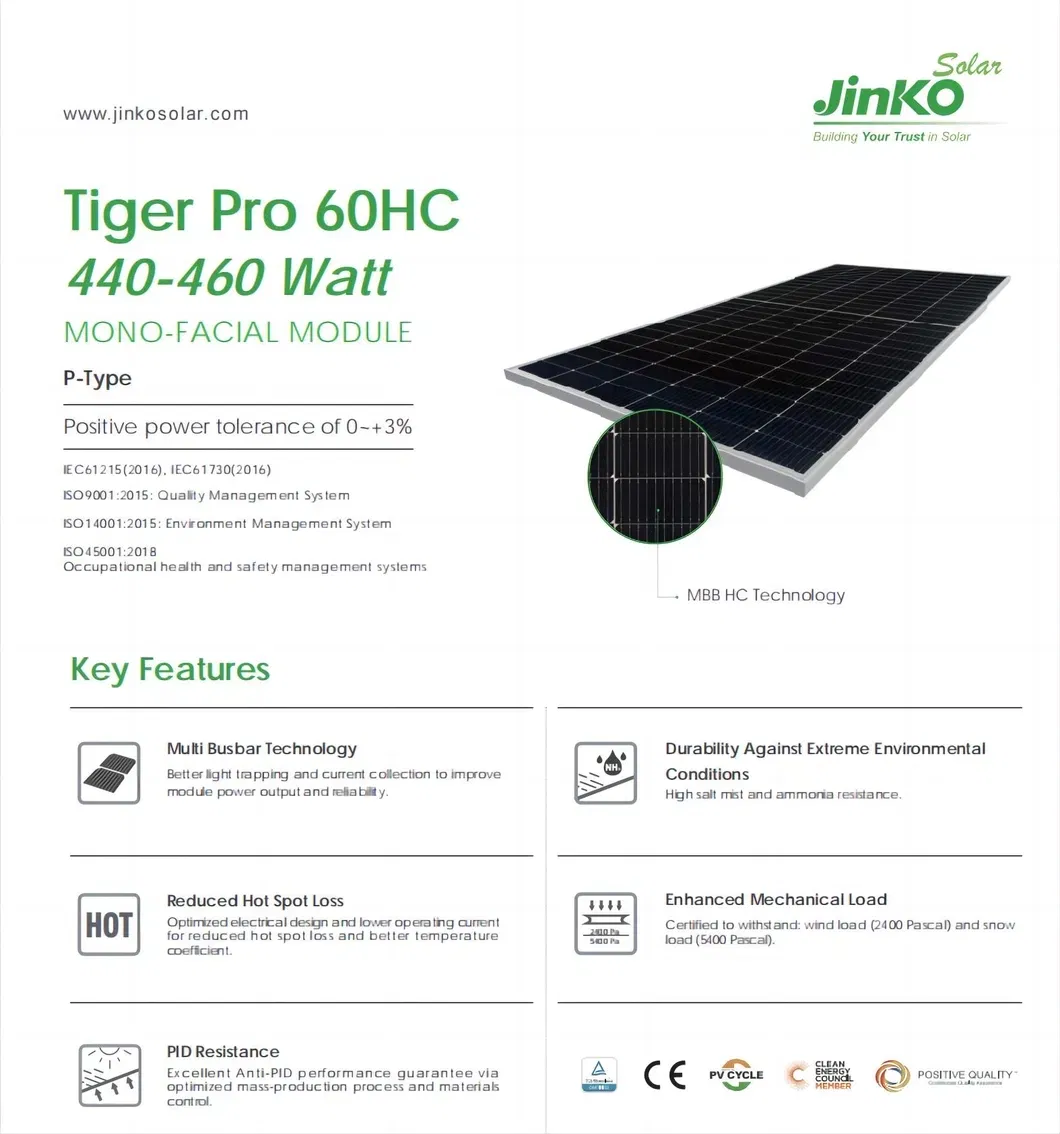

| Module Type | JKM440M | JKM445M | JKM450M | JKM455M | JKM460M |
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 440W | 445W | 450W | 455W | 460W |
| Maximum Power Voltage (Vmp) | 33.72V | 33.82V | 33.91V | 34.06V | 34.20V |
| Maximum Power Current (Imp) | 13.05A | 13.26A | 13.27A | 13.36A | 13.45A |
| Open-circuit Voltage (Voc) | 41.02V | 41.10V | 41.18V | 41.33V | 41.48V |
| Short-circuit Current (Isc) | 13.73A | 13.79A | 13.85A | 13.93A | 14.01A |
| Module Efficiency (%) | 20.39% | 20.62% | 20.85% | 21.08% | 21.32% |

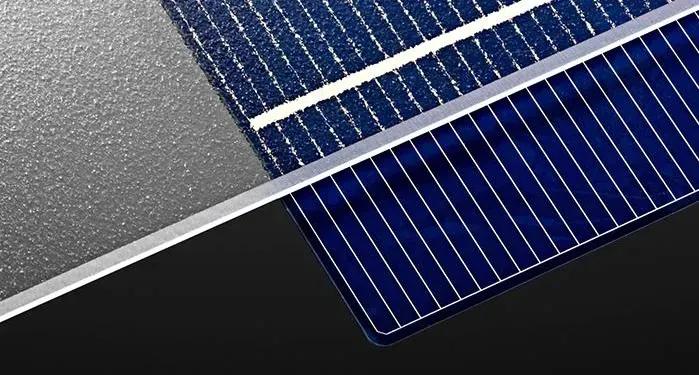

Module efficiency up to 17.2% achieved through advanced cell technology. Color sorting ensures consistent appearance and high PID resistance.

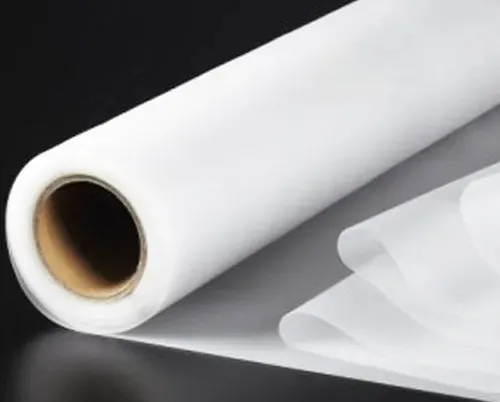

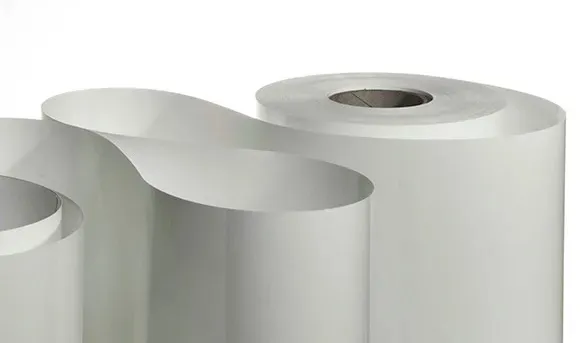

Excellent light transmittance and transparency. Superior long-term adhesion to glass and backsheets with high weather and UV resistance.
Good electrical insulation and breakdown resistance. Double-side fluorocarbon structure for excellent UV and aging resistance.
Physically tempered ultrathin glass for durability and flexibility. Higher light transmittance ensures maximum power output.
With over 15 years of expertise in the solar industry, we provide professional manufacturing and quality innovation. Our diverse product lineup includes poly and mono solar panels, batteries, inverters, and complete power systems. We have successfully served clients across more than 60 countries in Europe, Asia, the Americas, and Africa.
