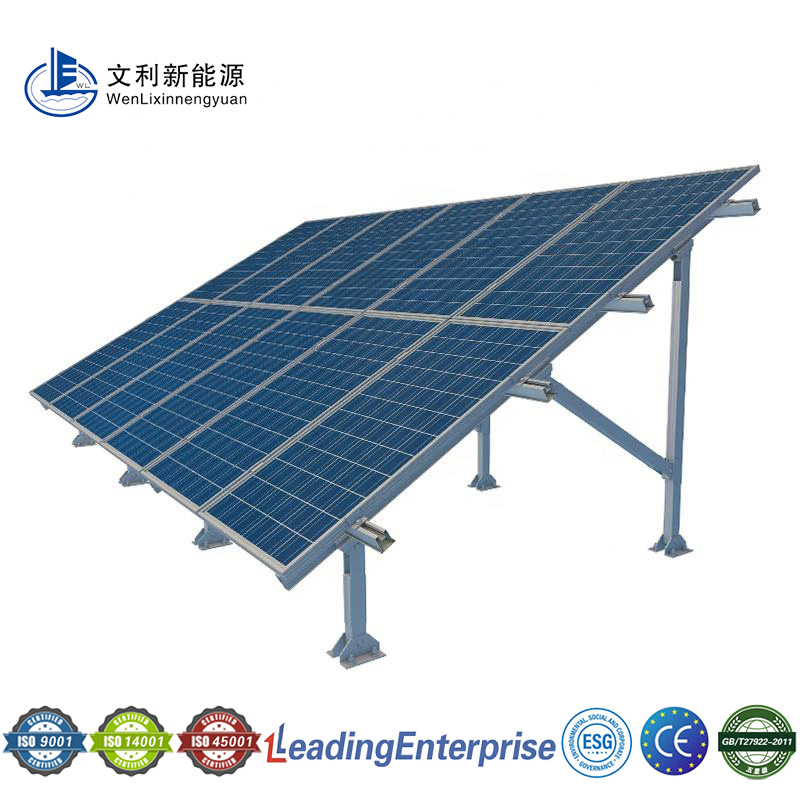

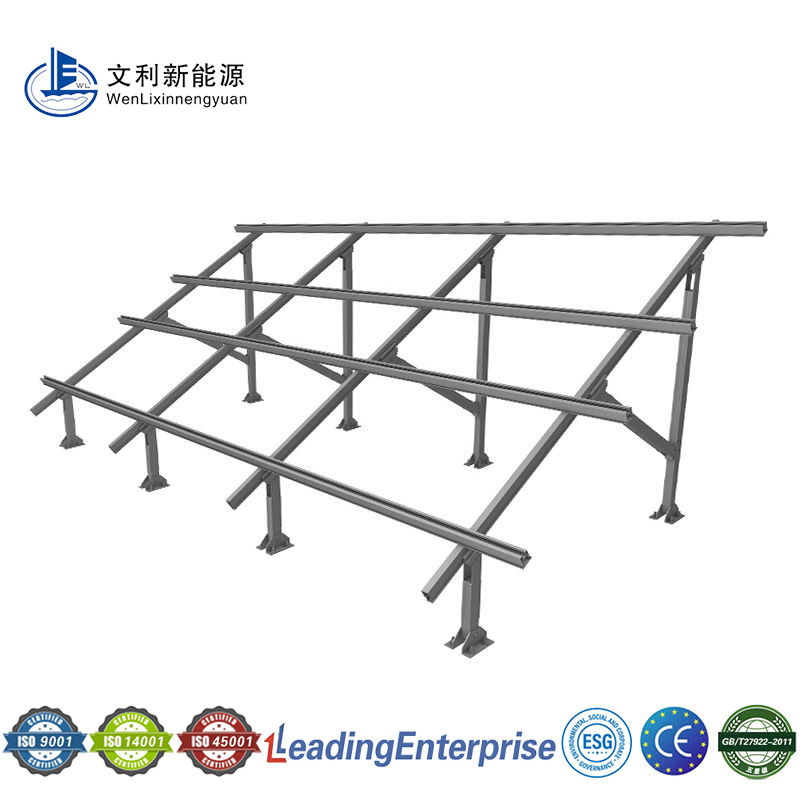

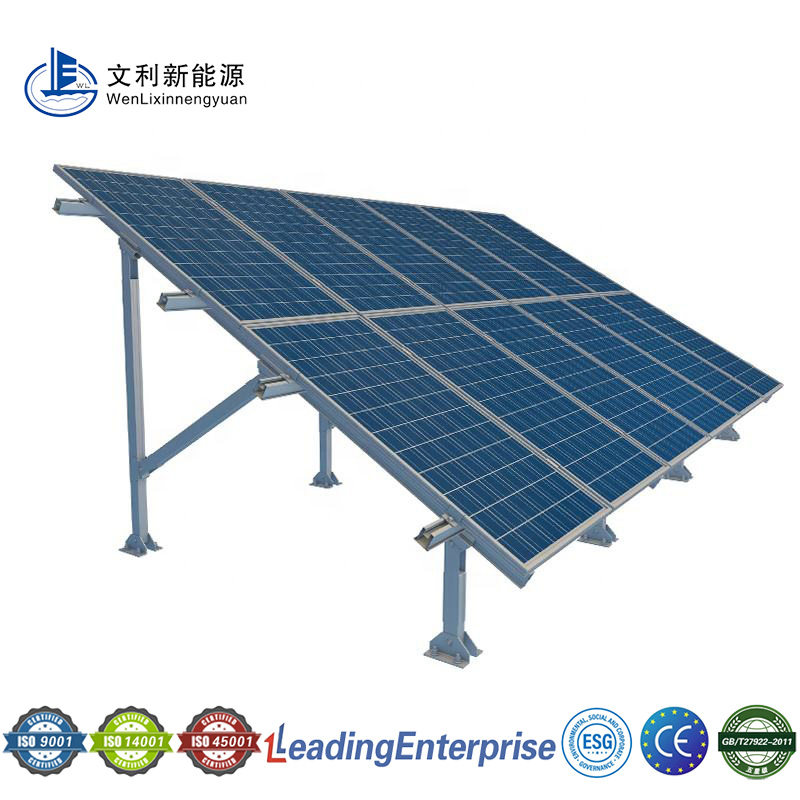

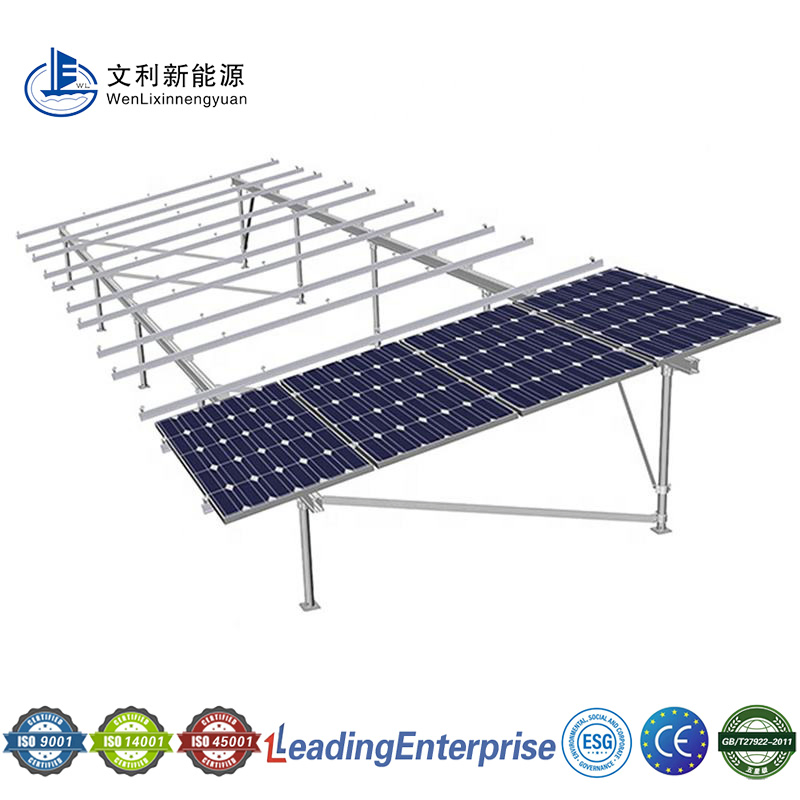

Heavy-Duty PV Bracket for Ground Solar Mounting System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
WL-1-B087
Certification
GB, ISO, CE, SGS
Application
Commercial
Material
Steel
Type
Ground Bracket
Steel Standard
Q235/355/390/420/460 S250/350/420/550
Finishing
Hot-DIP Galvanized/Zinc-Aluminum-Magnesium
Wind Load
30-60m/S
Tilt Angle
0-60
Design
Free
Advantages
Quick Installation\High-Quality
HS Code
7308900000

Product Description

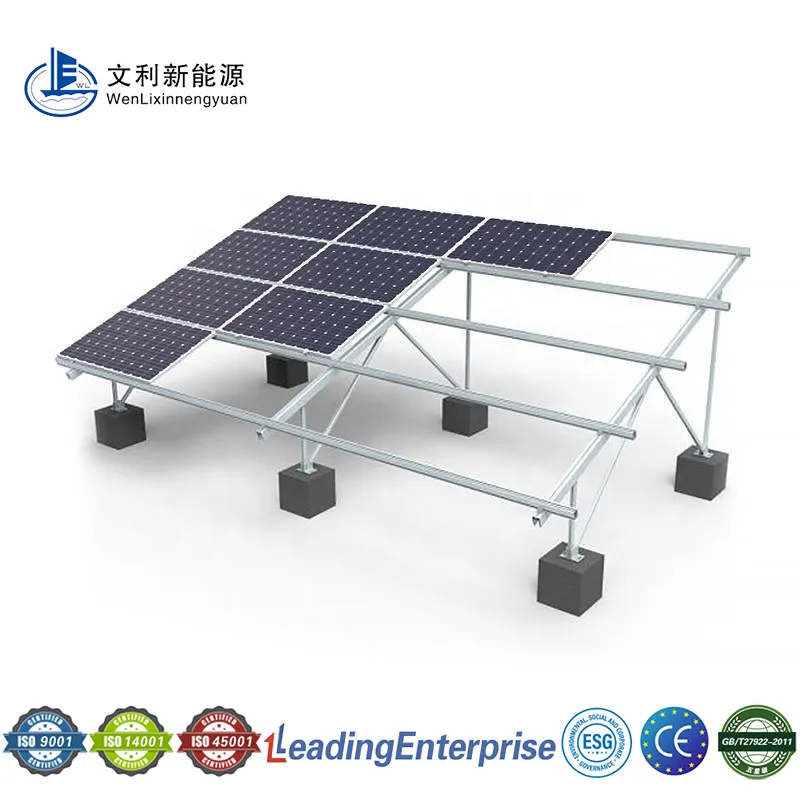

Heavy-Duty PV Bracket

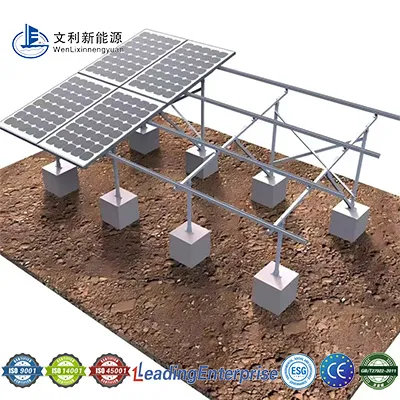

Ground Solar Mounting System
Material:Steel/Aluminum/Stainless steel
Finishing:Hot-dip galvanized/zinc-aluminum-magnesium
Specification:Customizable
Sample:Yes
Delivery time:5-30 days

Quotation Request

Before quotation, we usually confirm:

  • Project location (Wind & Snow load)
  • Project type (Ground/Rooftop...)
  • Structure type (Fixed/Tracking/Adjustable)
  • Required Standards (EN/ASTM/ST/GB...)
  • Target delivery time

Product Specifications

PV Bracket Detail
PV Bracket Detail

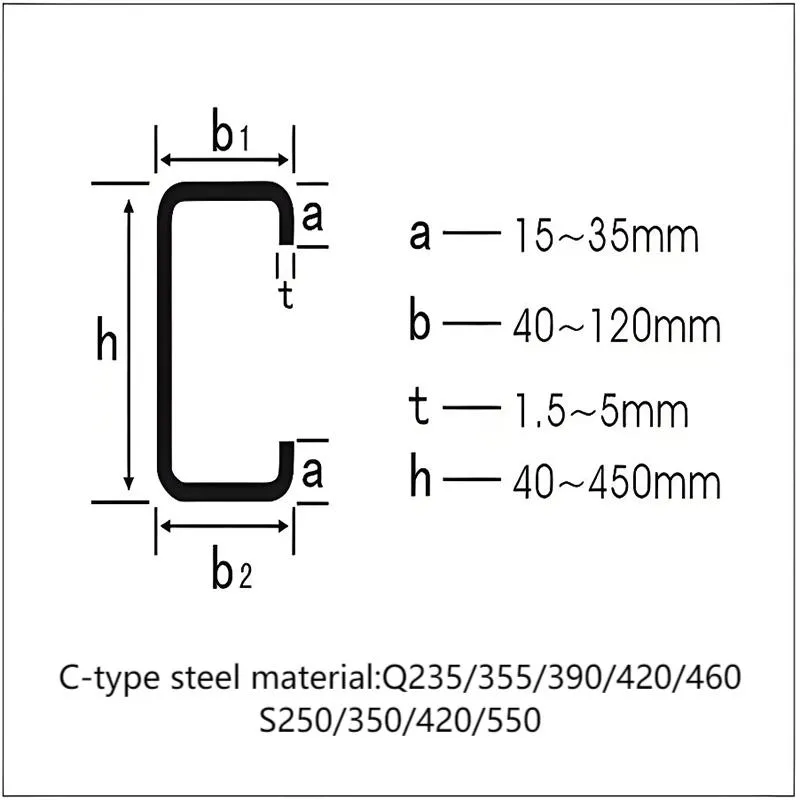

C type steel (mm) 80*40*20*2.0 / 90*40*20*2.2 / 100*50*20*2.5 / 110*60*20*2.5 / 120*50*15*2.5 / 140*60*20*2.5 / 160*60*20*3.0

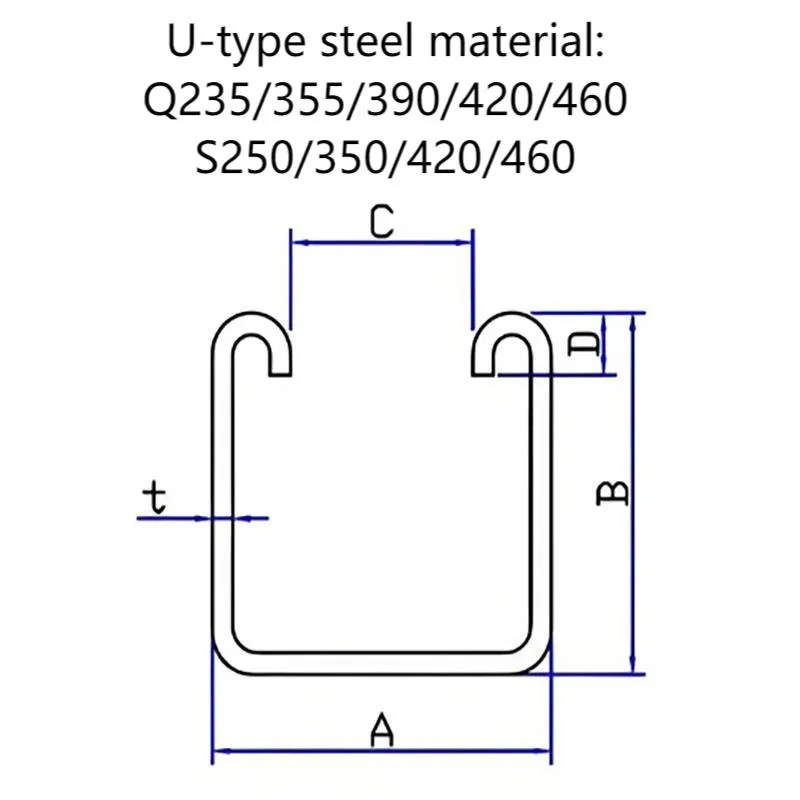

U type steel (mm) 41*21 / 41*35 / 41*41 / 41*52 / 41*62 / 41*72 / 41*82

Profile

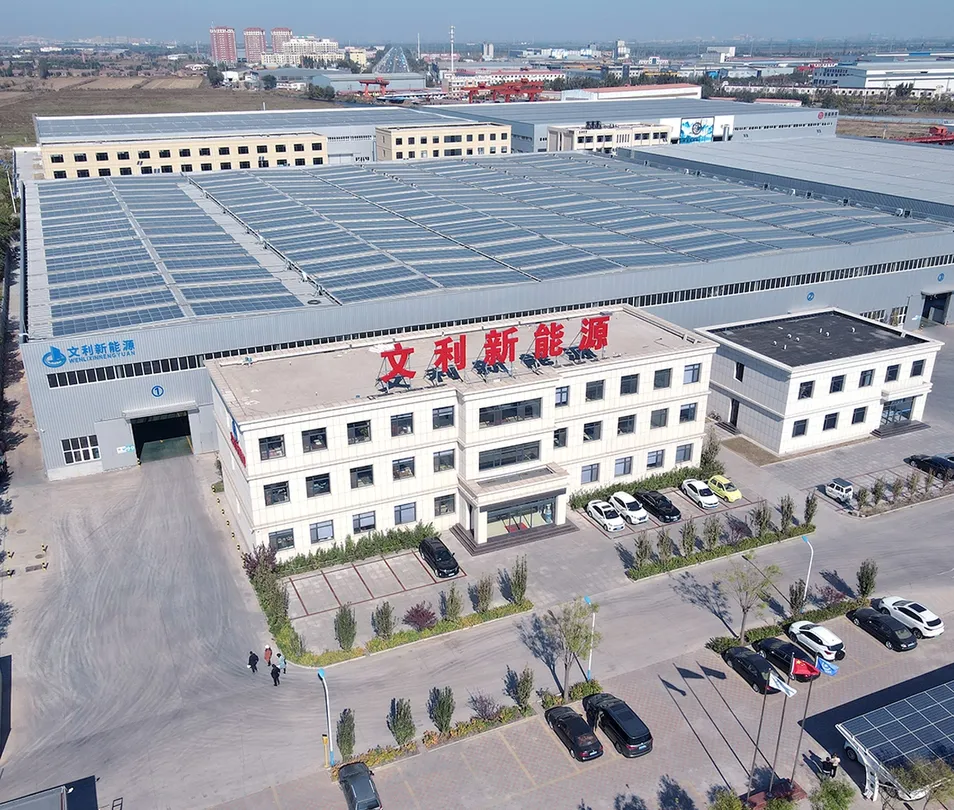

Factory View

Scale: 46k sqm total area (35k sqm constructed); adjacent to key expressways.

Core Goals: Low-carbon, sustainable development; new energy-industry integration.

Operations: Link new energy/energy conservation/steel value chains via global channels, tech & intensive management.

Objective: Sustain technological leadership.

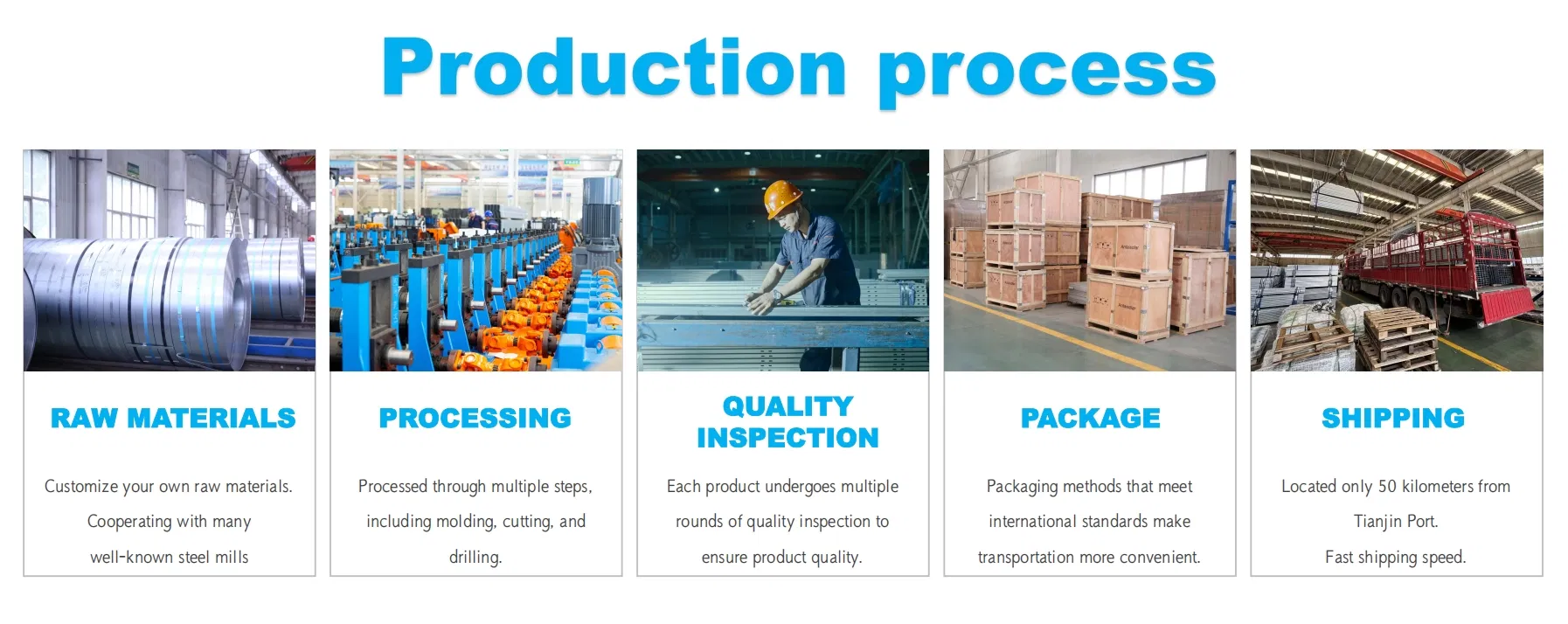

Production Process

Production Process Flow

Global Project Examples

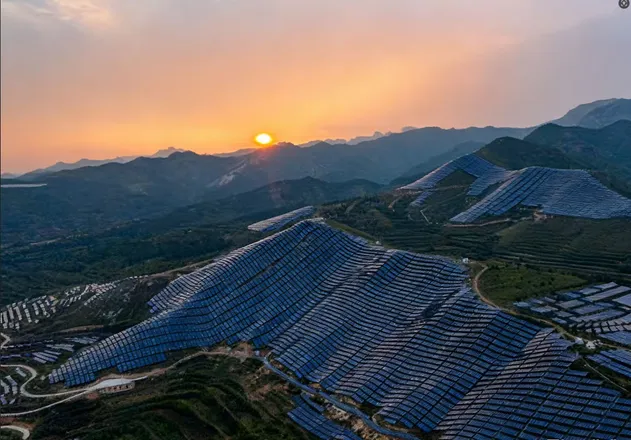

Project 1
200MWp Photovoltaic Project

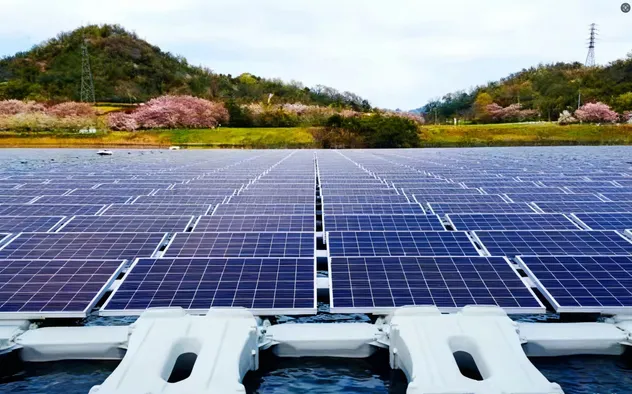

Project 2
6MW Floating PV Project

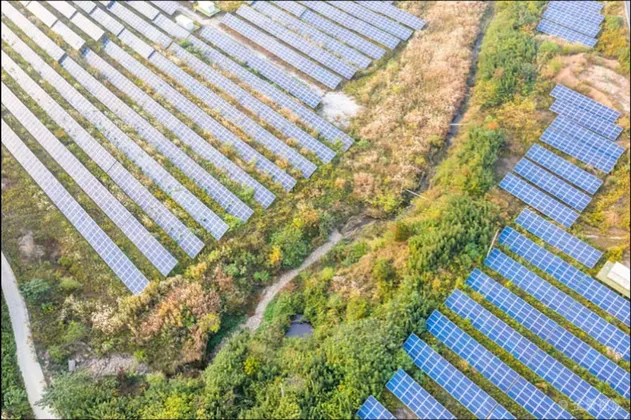

Project 3
50MW PV Power Station

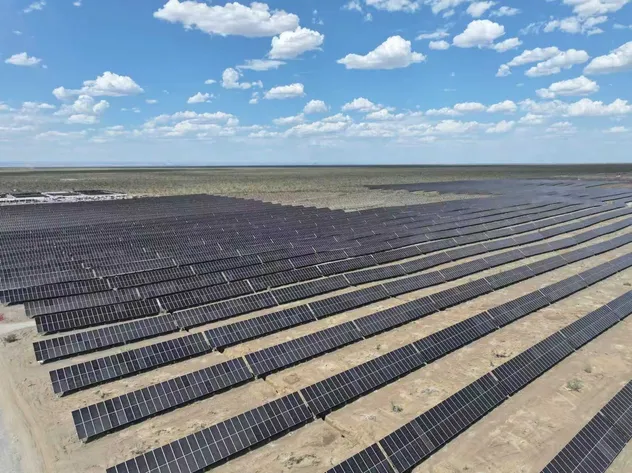

Project 4
600MW PV Generation Project

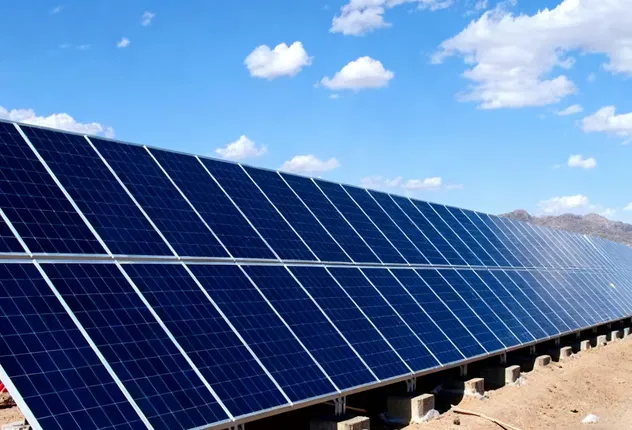

Project 5
30MW PV Generation Project

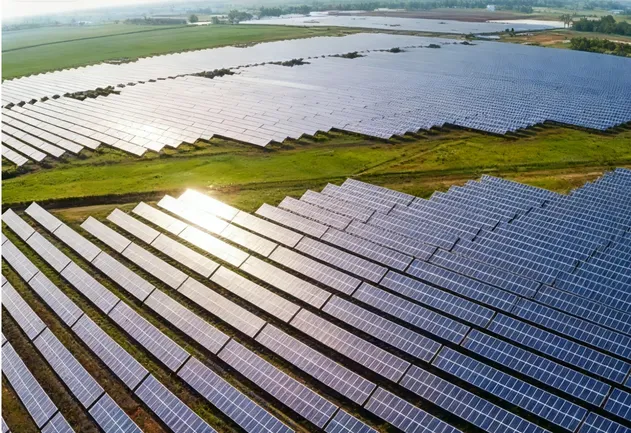

Project 6
150MW Agrivoltaic Project

Certifications & Partners

Certifications Certifications Partners

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a manufacturer with our own factory, ensuring high-quality production control.
Do you have quality control certifications?
Yes, we have gained CE and ISO authentication to meet international standards.
How long is your delivery time?
Generally, it is 7-14 days if goods are in stock, or 15-30 days if not, depending on the order quantity.
Can we get samples?
Yes, available samples in our stock are free, but customers are responsible for the freight cost.
Can you arrange the shipment?
Sure, we have permanent freight forwarders who provide professional service and competitive pricing.
Can we visit your factory?
Warmly welcome! Once we have your schedule, we will arrange to pick you up.
