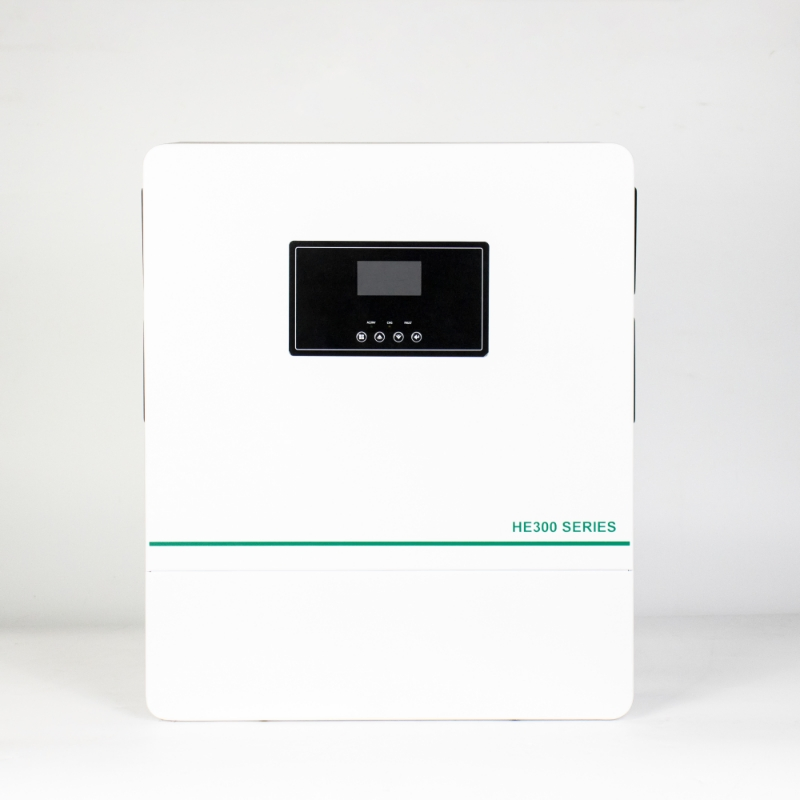

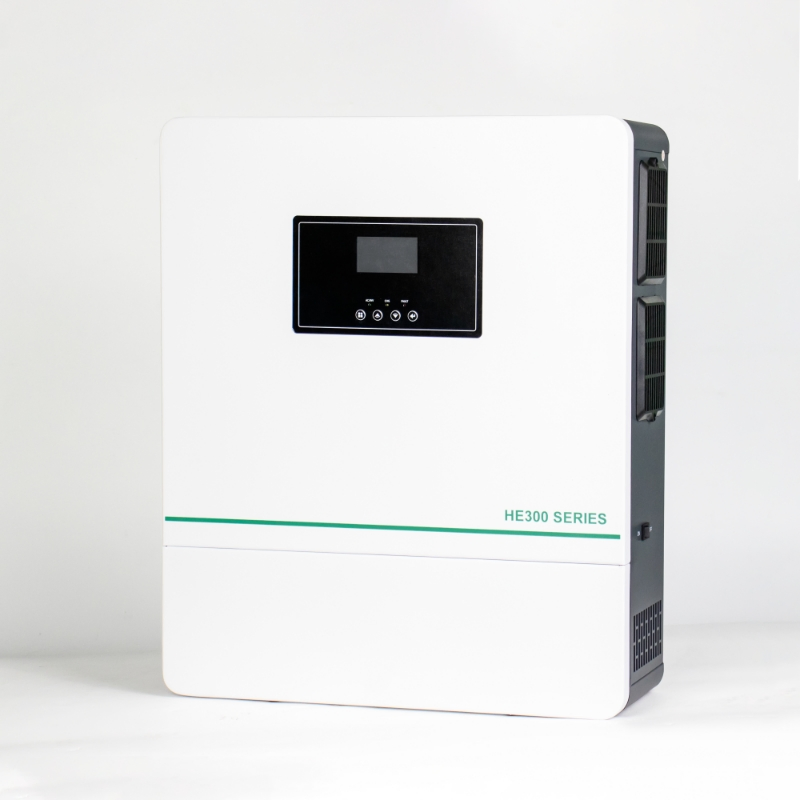

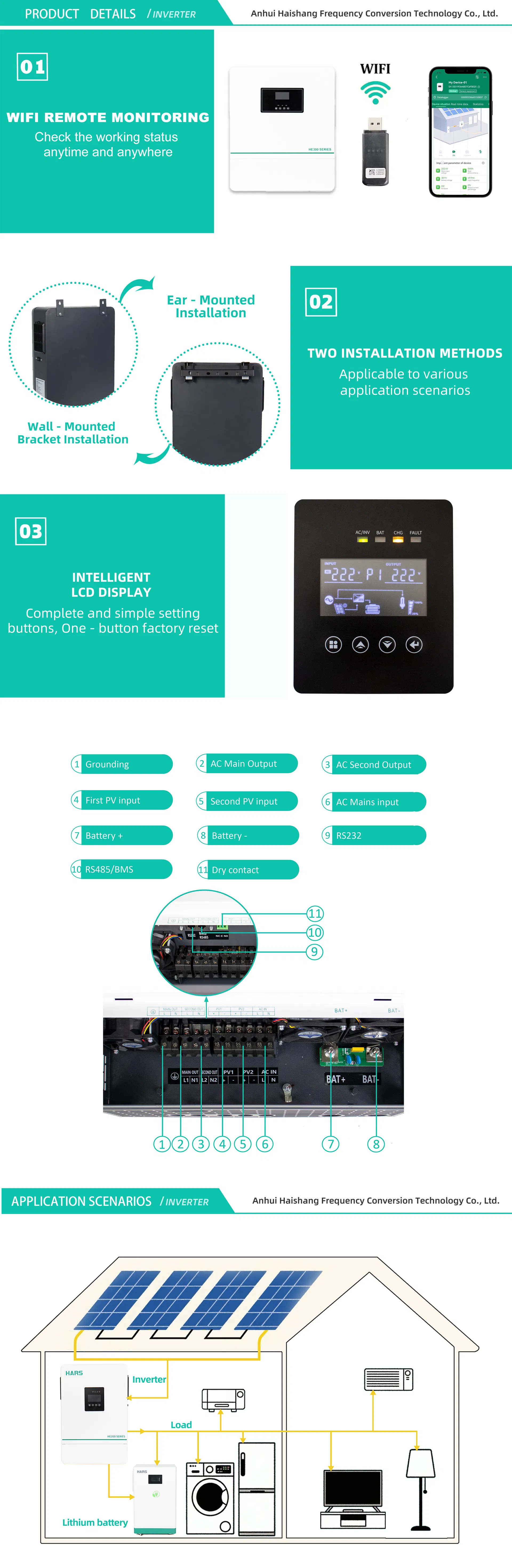

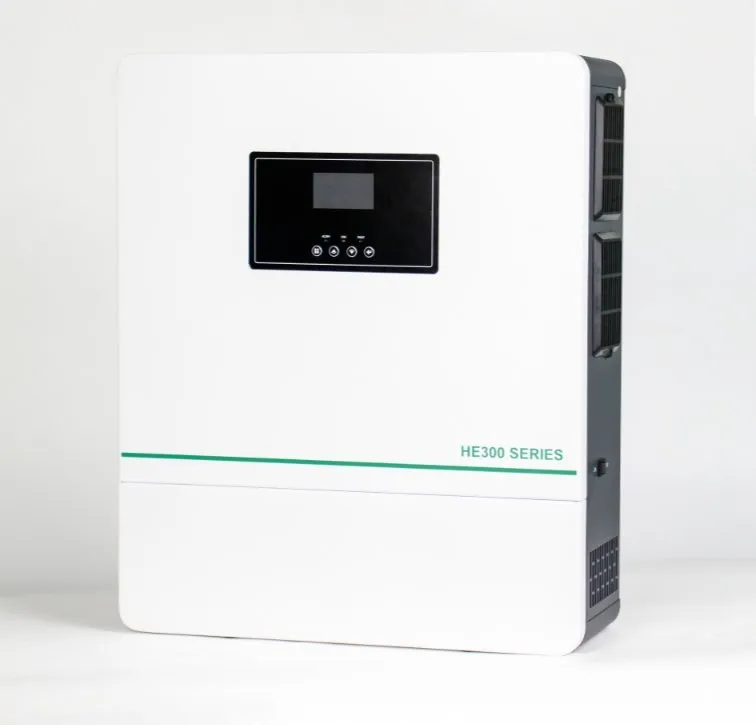

The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It features a portable size and supports uninterruptible power supply (UPS) switching. Designed for versatile power grid environments, it allows settings for battery charging voltage and current, multiple power input/output priorities, and adjustable AC voltage and frequency. Data monitoring is conveniently available via a mobile APP.
| Inverter Output | |
|---|---|
| Rated Output Power | Battery: 11000W / PV: 12000W |
| Rated Output Voltage | 220/230/240Vac ±5% (Single Phase) |
| Rated Output Current | 47.8A |
| Rated Output Frequency | 50/60Hz ±0.1% |
| Output Waveform | Pure Sine Wave |
| Battery Specifications | |
| Battery Type | Lead acid / Gel / Lithium battery |
| Rated Battery Voltage | 48V |
| PV Charging Method | MPPT / Dual MPPT |
| Max PV Charging Current | 150A |
| PV Input | |
| MPPT Number | 2 |
| Max Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range | 90~450V |

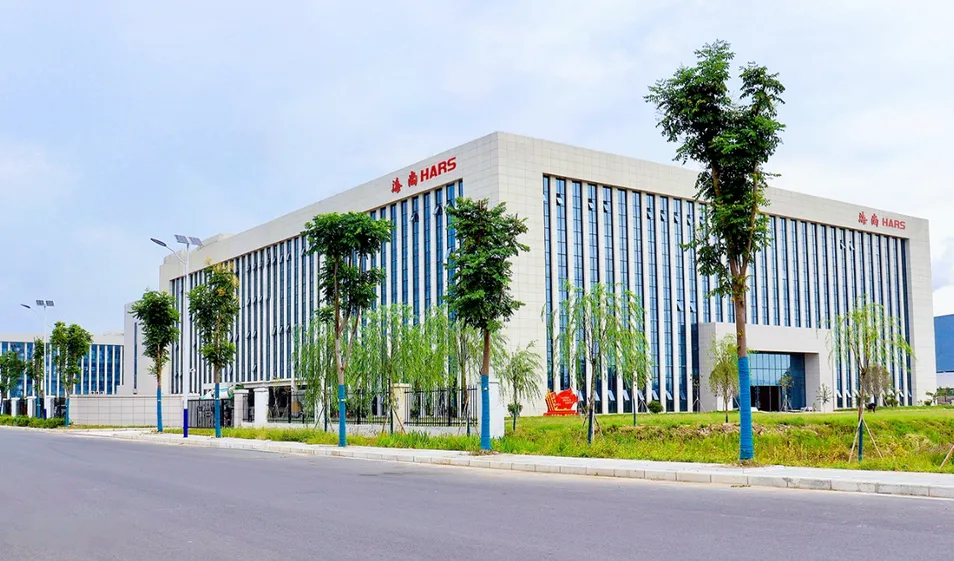

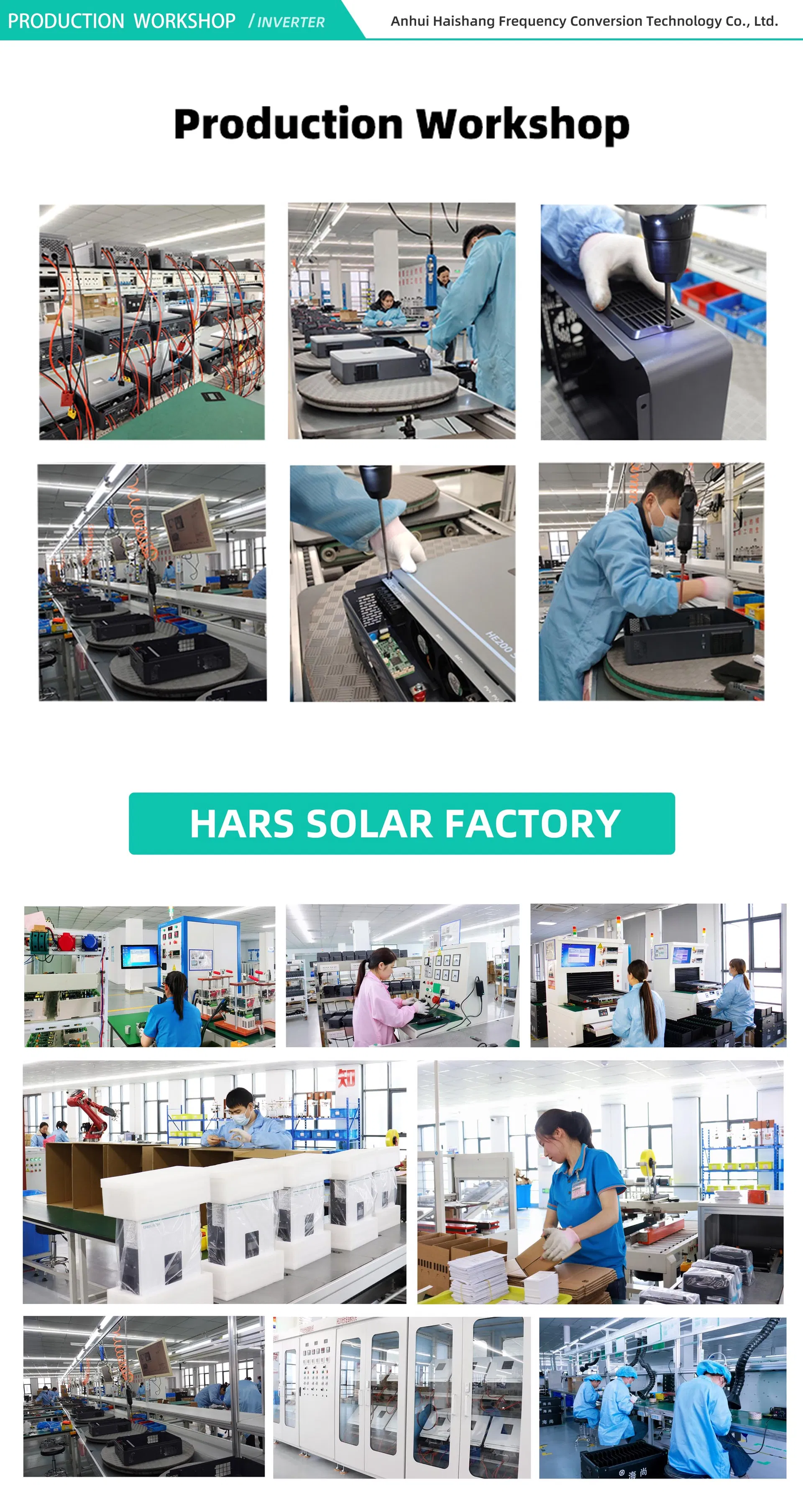

Our production integrates R&D, sales, and technical services with an automation rate of 80%. With a construction area of 30,000 square meters and a dedicated 20,000 square meter photovoltaic facility, we ensure stable supply and efficient delivery. We provide professional ODM and OEM services backed by three technical centers.
