High Efficiency off Grid High Power Solar Power System 3-5.5kw Solar Power Inverter

1 / 5

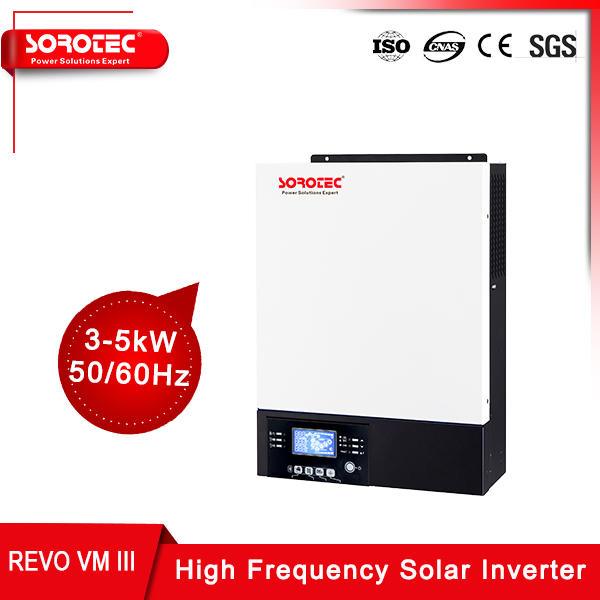

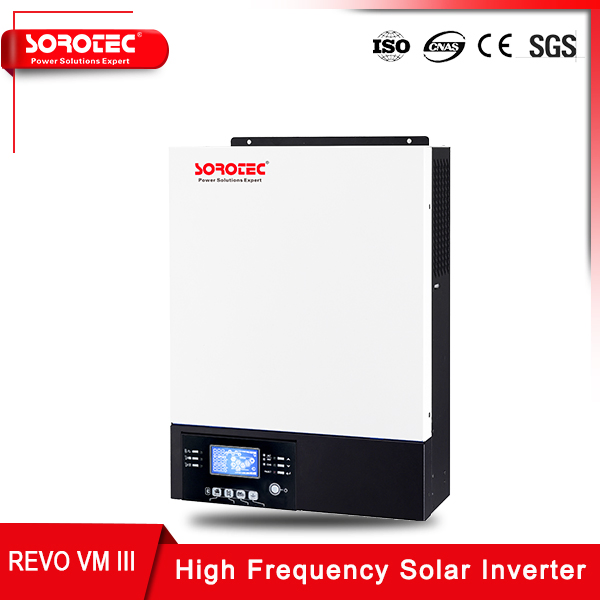

High Efficiency off Grid High Power Solar Power System 3-5.5kw Solar Power Inverter

Customization:	Available
Phase:	Single
Output Power:	>1000W

Send Inquiry

Product Description

Basic Specifications

Model NO.

REVO VM III

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave String

Sine Wave Inverter

Nominal Output Voltage

220/230/240VAC

Power Factor

1.0

Max Efficiency

up to 93.5%

Frequency Range

50Hz/60Hz (Auto Sensing)

Max Solar Charge

80A

Operating Temp

0 to 50 °c

Origin

China

Product Description

High efficiency on grid high power solar power system three phase solar power inverter

Key Features:

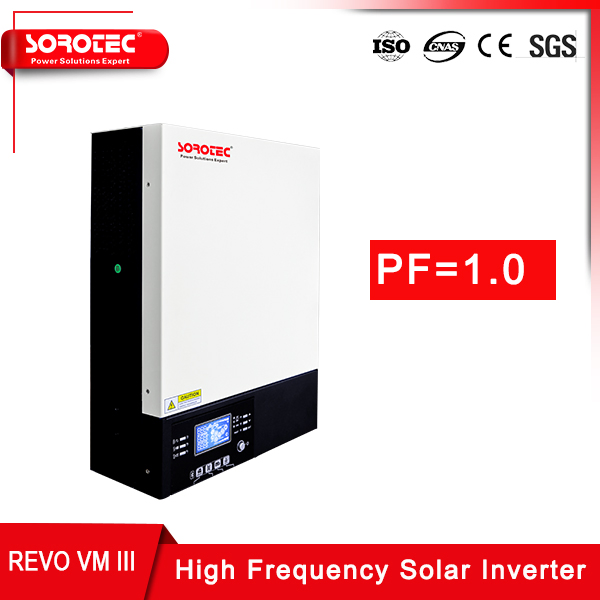

Output power factor PF=1.0

Configurable AC/Solar Charger priority via LCD

Compatible to mains voltage or generator power

Overload, Over temperature, Short circuit protection

Integrated Bluetooth interface with Android App

Supports USB On-the-Go function

Reserved communication port (RS-485, CAN-BUS, RS-232)

Battery independency support

User-friendly LCD operation

Replaceable fan design for maintenance

Technical Specification

Wall Mounted Integrated Solar Power Inverter with Built-in MPPT Solar Controller

MODEL	REVO VM III 3k-24	REVO VM III 5k-48
Rated Power	3000VA/3000W	5000VA/5000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (PC) / 90-280 VAC (Appliances)
SOLAR & AC CHARGER
Solar Charger type	MPPT
Maximum PV Array Power	4000W	5000W
MPP Range @ Operating Voltage	120 ~ 450 VDC

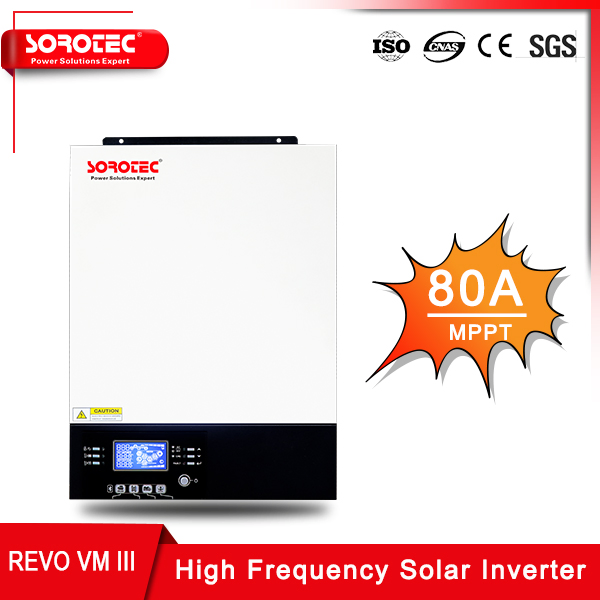

Max Solar Charge Current	80A
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
PHYSICAL
Dimension, D x W x H (mm)	115 x 300 x 400
Net Weight (kgs)	9	10

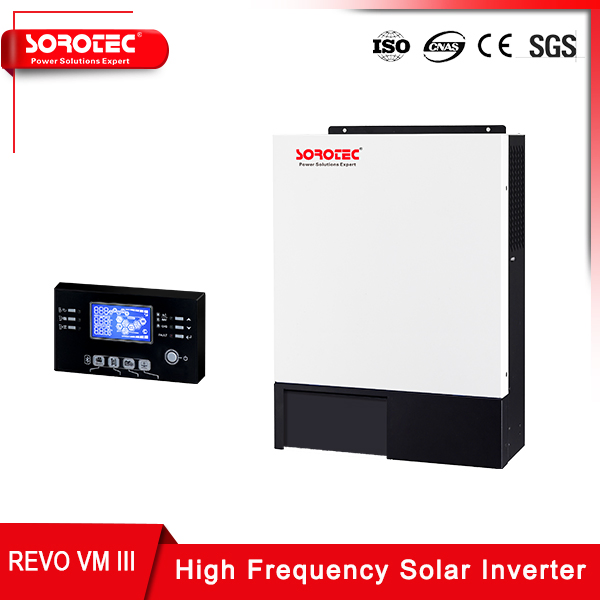

Detachable LCD control module: This detachable LCD control module can be taken off as a remote panel. Users can install the LCD panel in accessible area away from inverter up to 20 meters.

Applications

Living House Office Buildings Factories & Warehouses Shopping Malls Power Stations Camping & Boat Trips

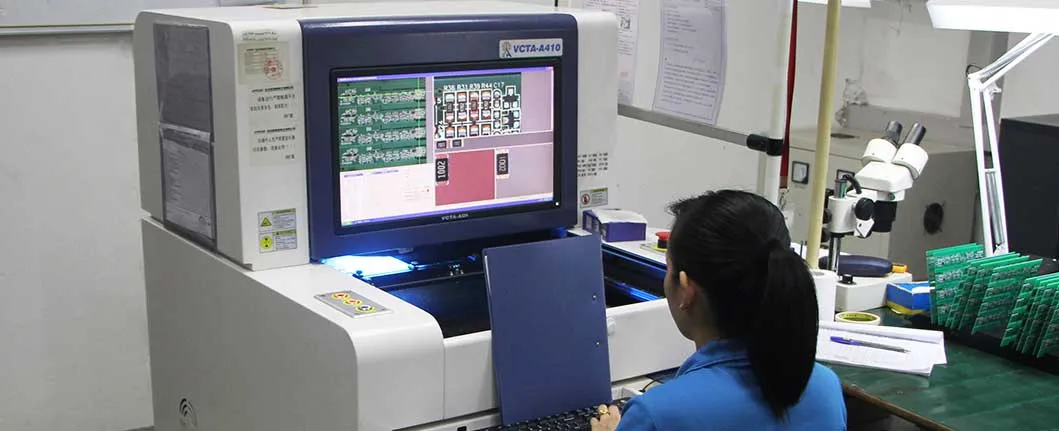

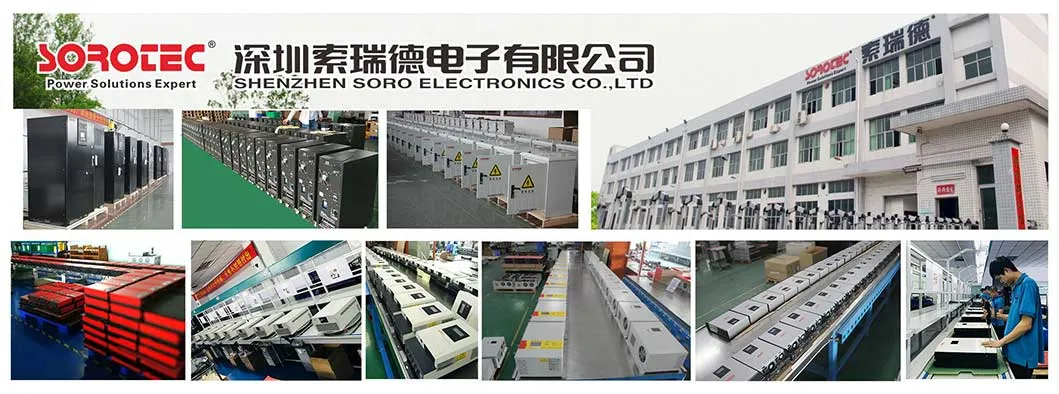

Professional Production & Quality

Advanced manufacturing with strict scientific management and quality control systems. 10% of annual revenue is invested in R&D to maintain international standards.

Frequently Asked Questions

How to choose a suitable inverter?

If your load is resistive (bulbs), you can use modified wave. For inductive or capacitive loads (fans, AC, fridge, computers), we recommend pure sine wave inverters for better equipment life and performance.

How do I choose the size of the inverter?

For resistive loads, match the load power. For capacitive loads, choose 2-5 times the power. For inductive loads, choose 4-7 times the power of the appliance.

What is the recommended cable length between battery and inverter?

Shorter is better. Standard cables should ideally be less than 0.5M to prevent voltage drops. Long distances can cause under-voltage alarms as the inverter voltage will be below the battery terminal voltage.

How to calculate working hours based on battery size?

Use the formula: Work hours = battery capacity (AH) * battery voltage (V) * 0.8 / load power (W). Note that battery condition and age may affect the actual duration.

What are the advantages of the built-in MPPT controller?

The built-in MPPT (Maximum Power Point Tracking) solar controller optimizes the harvest of energy from your PV array, supporting a wide operating voltage (120~450 VDC) for higher conversion efficiency.

Can the LCD panel be installed remotely?

Yes, the REVO VM III features a detachable LCD control module that can be used as a remote panel, allowing installation up to 20 meters away from the actual inverter unit.
