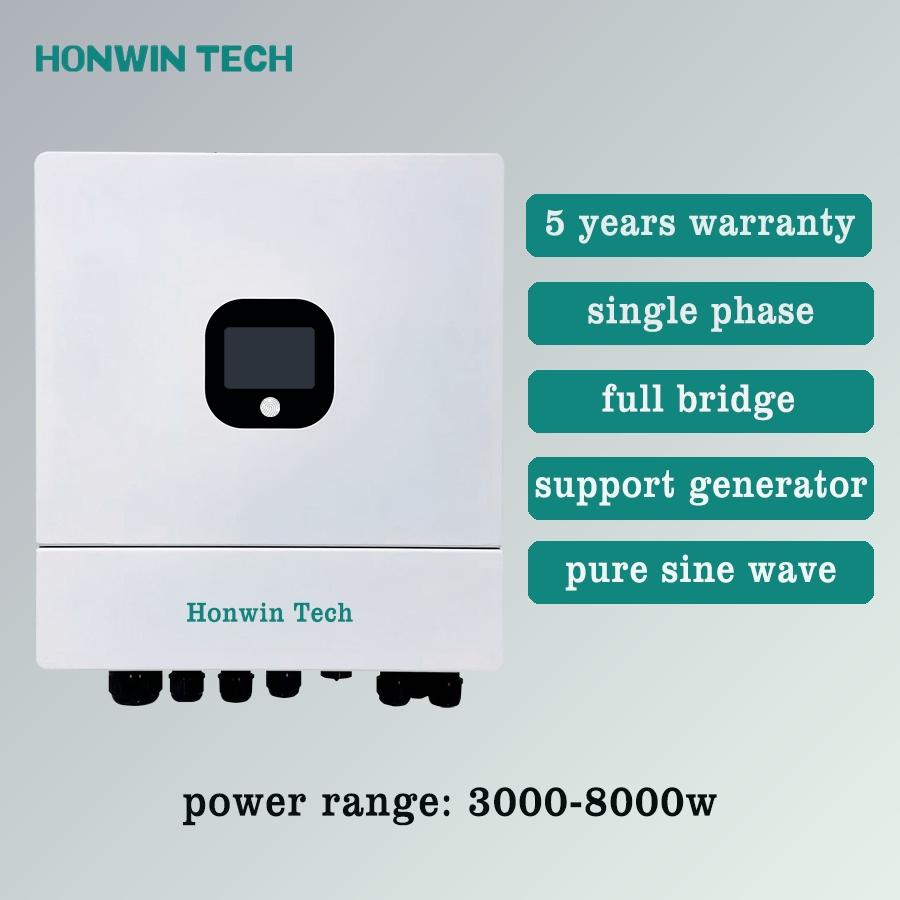

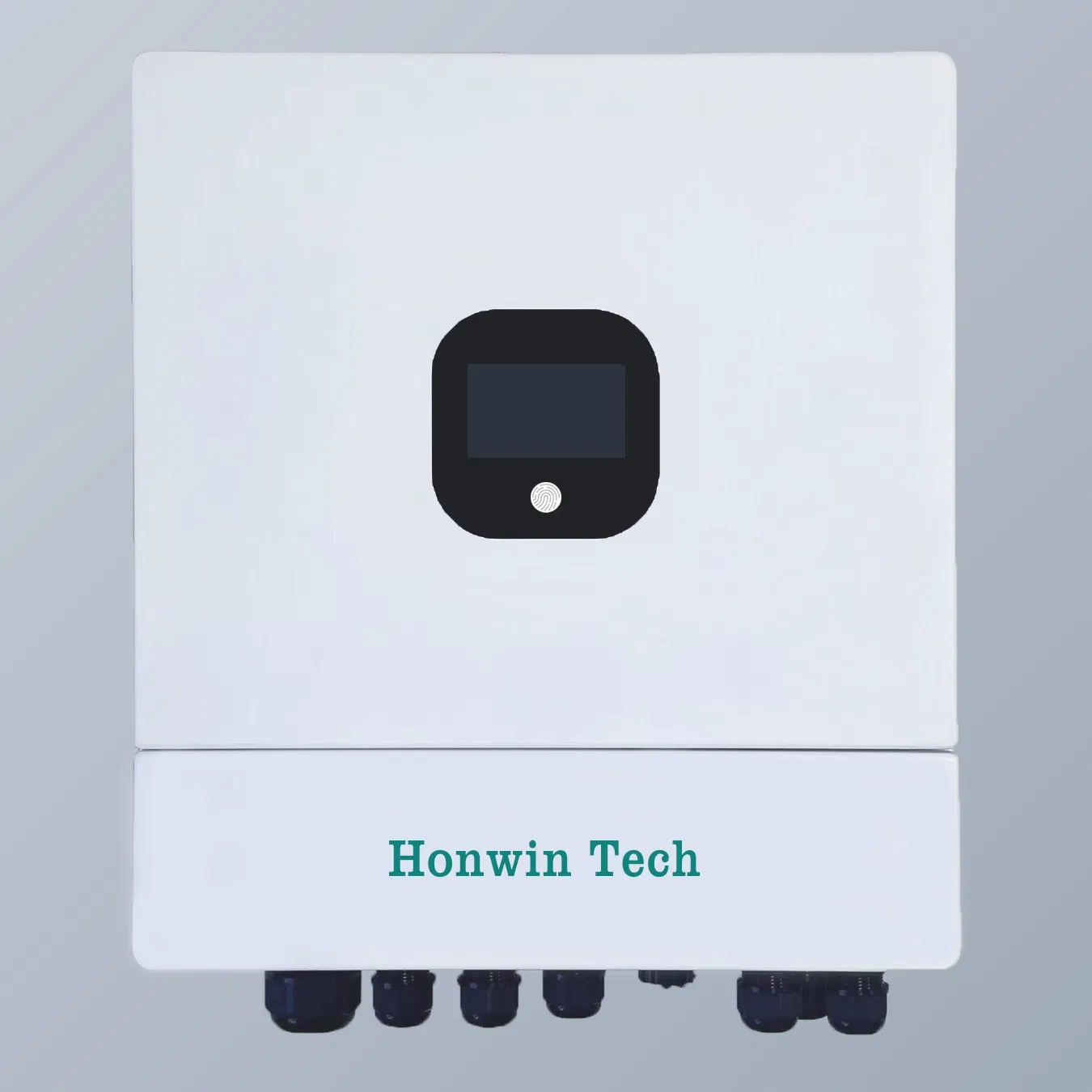

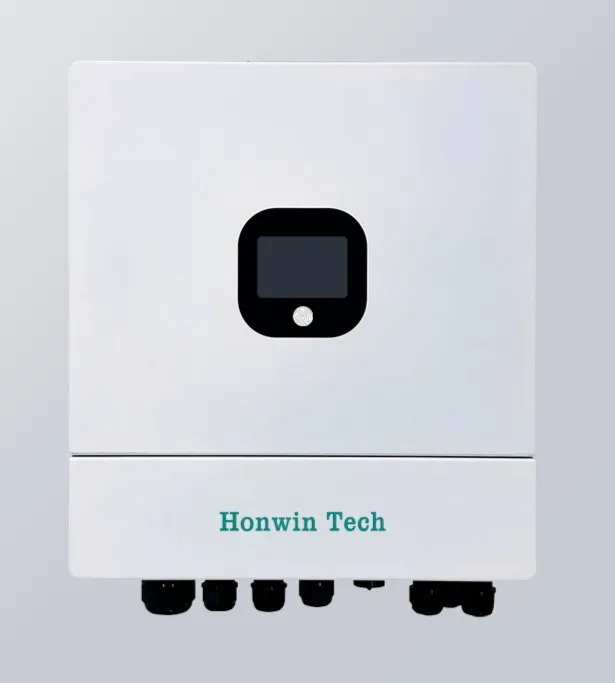

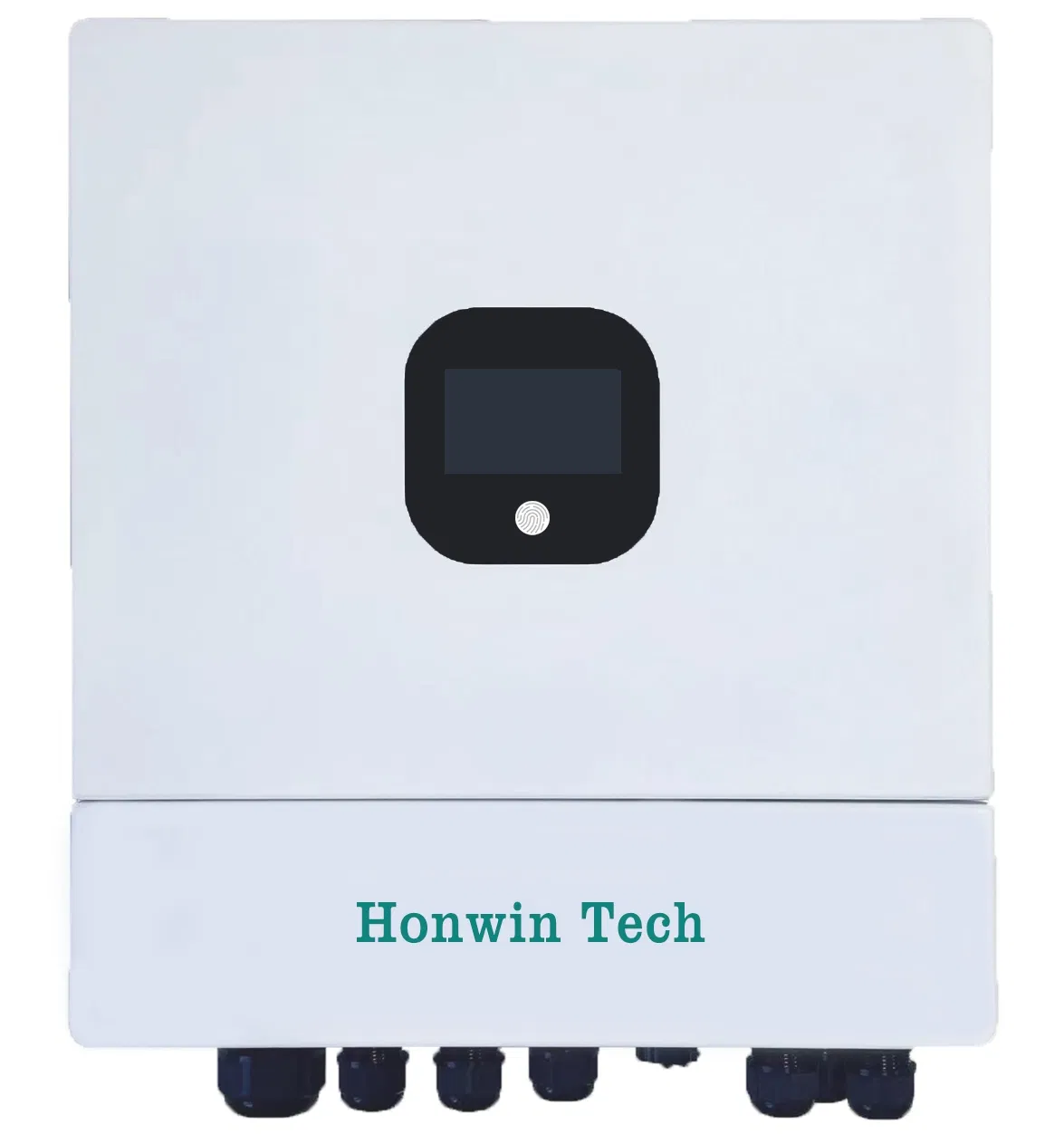

S5 Series Household Energy Storage Inverter
The S5 series household energy storage all-in-one machine is designed to provide you with an intelligent and convenient all-in-one photovoltaic energy storage solution. Based on advanced power conversion and energy storage technology, important components such as off-grid energy storage inverters, switch boxes, and batteries feature an elegant and unique appearance.

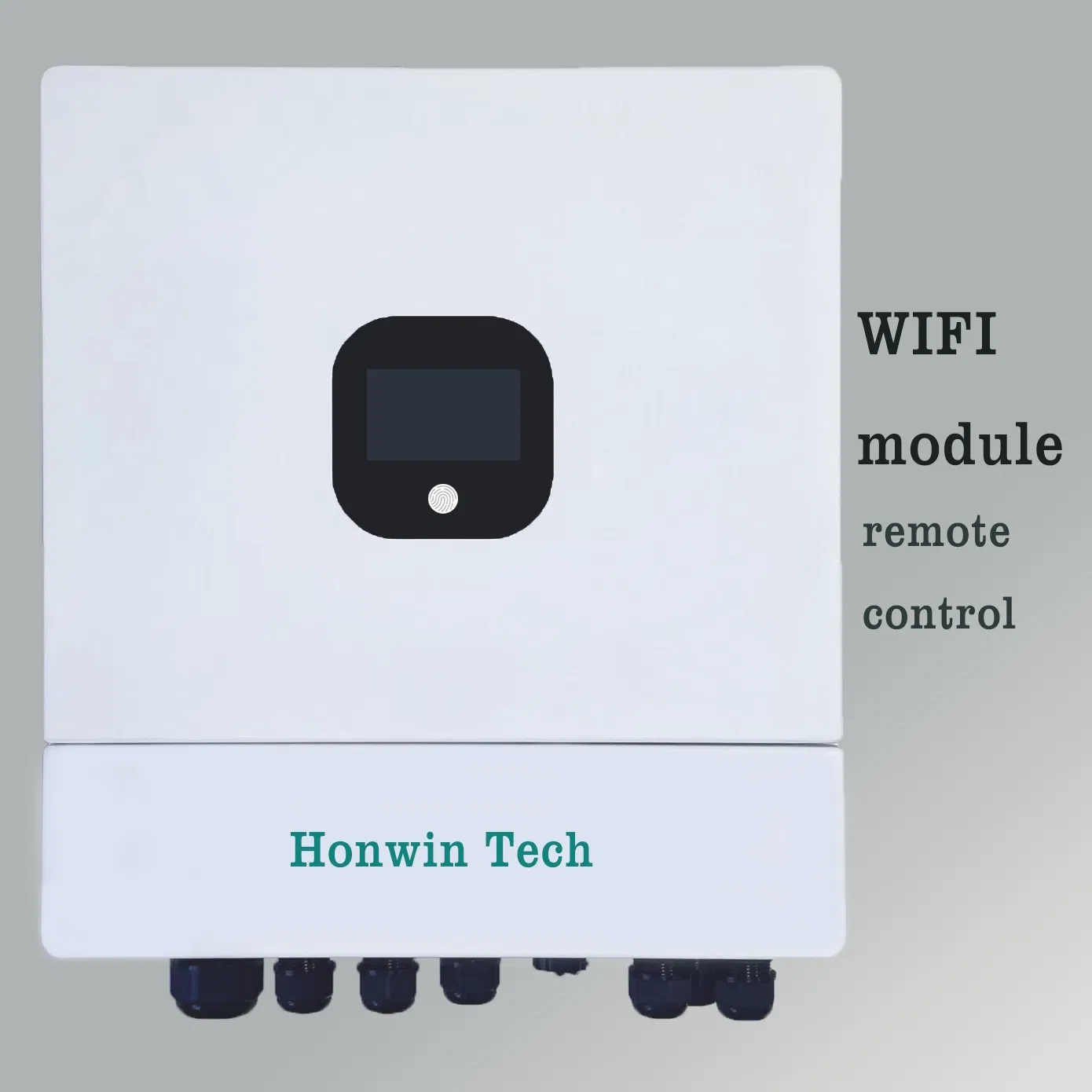

They adopt a modular design, a simple internal wiring method, and are extremely convenient to install and use. With an intelligent and easy-to-operate working mode and a remote intelligent operating system, they can perfectly integrate into modern smart home life.
| Parameters | S5-3K-S65 | S5-3.68K-S65 | S5-4K-S65 | S5-5K-S65 | S5-6K-S65 | S5-8K-S65 |
|---|---|---|---|---|---|---|
| Efficiency | ||||||
| Max efficiency | 98.10% | 98.10% | 98.20% | 98.20% | 98.30% | 98.30% |
| MPPT efficiency | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% | 98.90% |
| DC (PV) Input | ||||||
| Max. input power | 4500W | 5500W | 6000W | 7500W | 9000W | 12000W |
| Max. DC voltage | 550V | |||||
| MPPT voltage range | 90V ~ 550V | |||||
| AC Output (Grid) | ||||||
| Rated output power | 3000W | 3680W | 4000W | 5000W | 6000W | 8000W |
| Rated grid voltage | 220V/230V, L+N+PE | |||||
| Switch Time | <10ms | |||||
| Battery Parameters | ||||||
| Battery type | Lithium battery/Lead-acid battery | |||||
| Max. Charge current | 60A | 80A | 80A | 120A | 120A | 160A |
