Huawei Industrial Solar Inverter 150kw Sun2000-150K-Mg0 High Power Grid Connected for Industrial Solar System

Customization:	Available
After-sales Service:	Yes
Warranty:	5years

📑 Basic Info.

Model NO.

SUN2000-150KTL-MG0

Nature of Source

Passive inverter

Phase

Three

Output Power

>1000W

Certification

CE, ROHS, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Weight

102 Kg

Operating Temp

-25°C ~ 60°C

Cooling Method

Smart Air Cooling

Protection Degree

IP66

Specification

1000 x 710 x 395 mm

🚀 Product Description

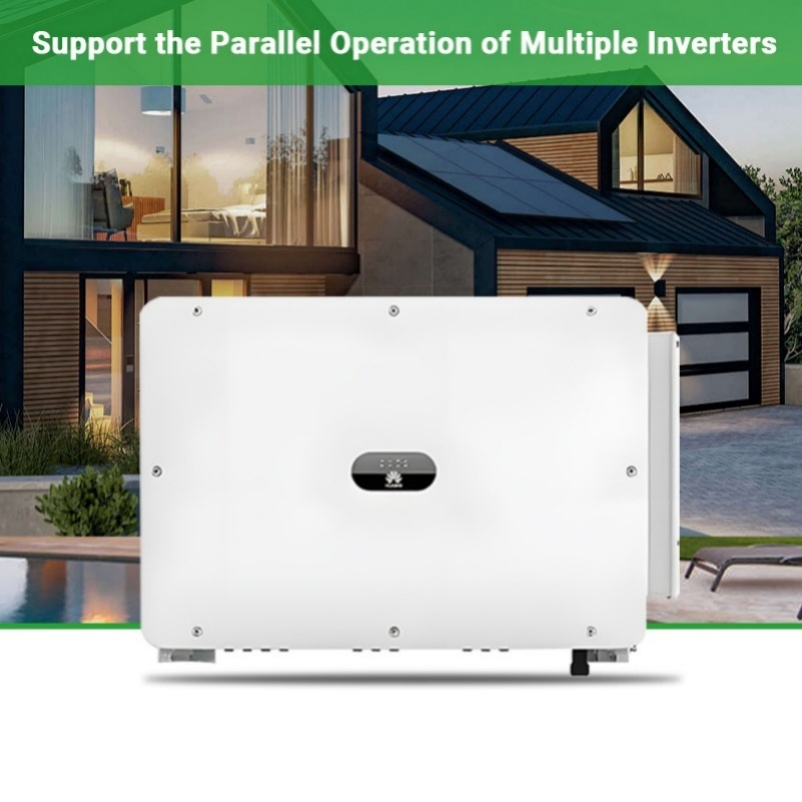

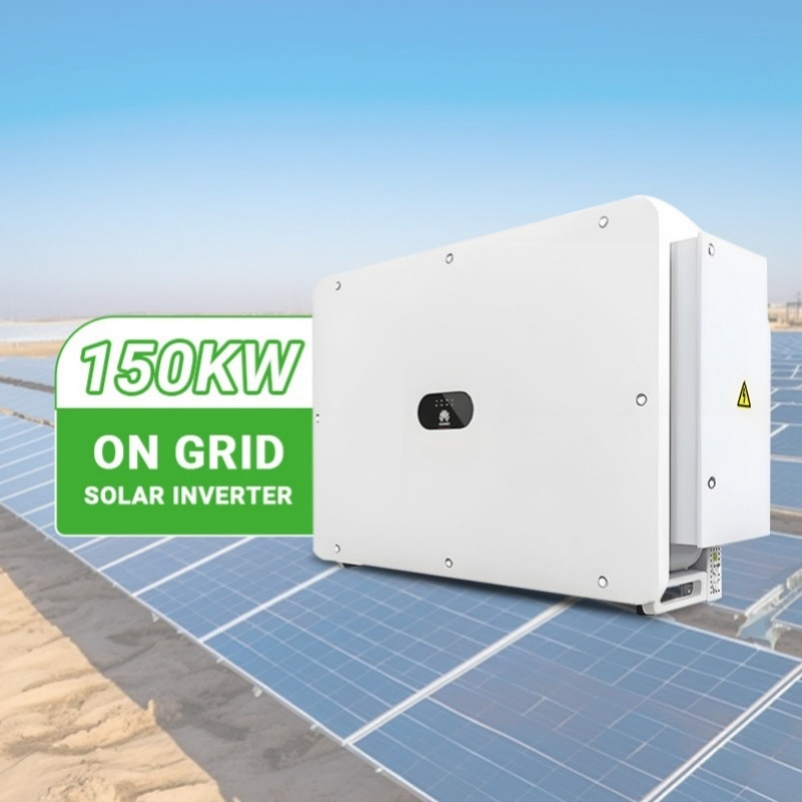

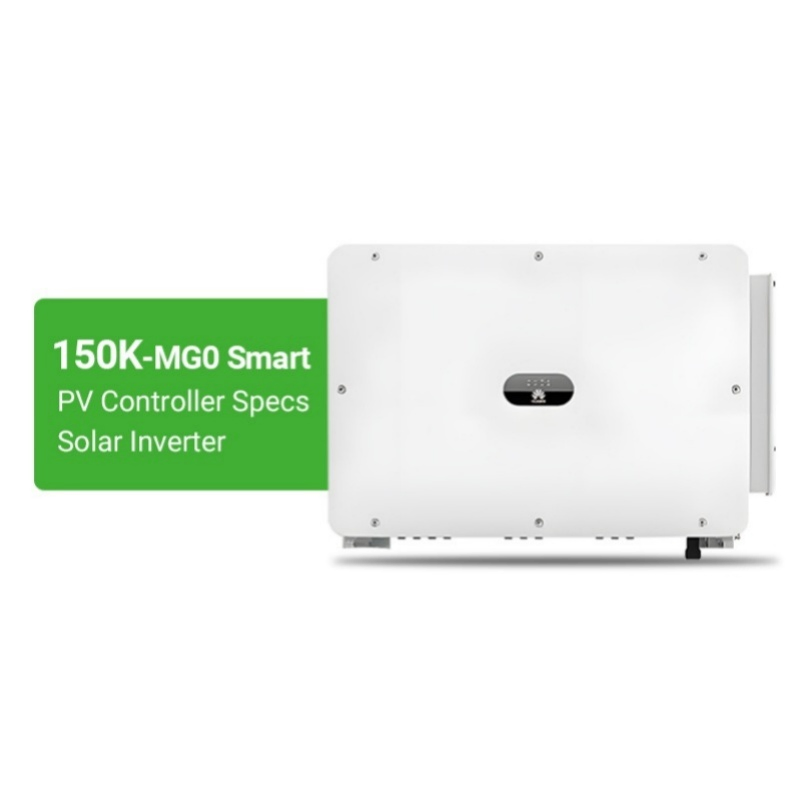

The SUN2000-150K-MG0 Solar Inverter is a high-performance 150kW three-phase smart string inverter designed for large-scale commercial and utility solar power plants.

Powered by advanced digital control technology and intelligent monitoring systems, this inverter delivers higher energy yield, enhanced safety protection, and long-term operational stability.

It is an ideal solution for industrial rooftops, ground-mounted solar farms, and distributed photovoltaic power stations that require reliable high-capacity power conversion.

💎 Key Features

150kW High Power Output: Designed for large commercial and utility-scale PV projects, reducing system BOS cost.

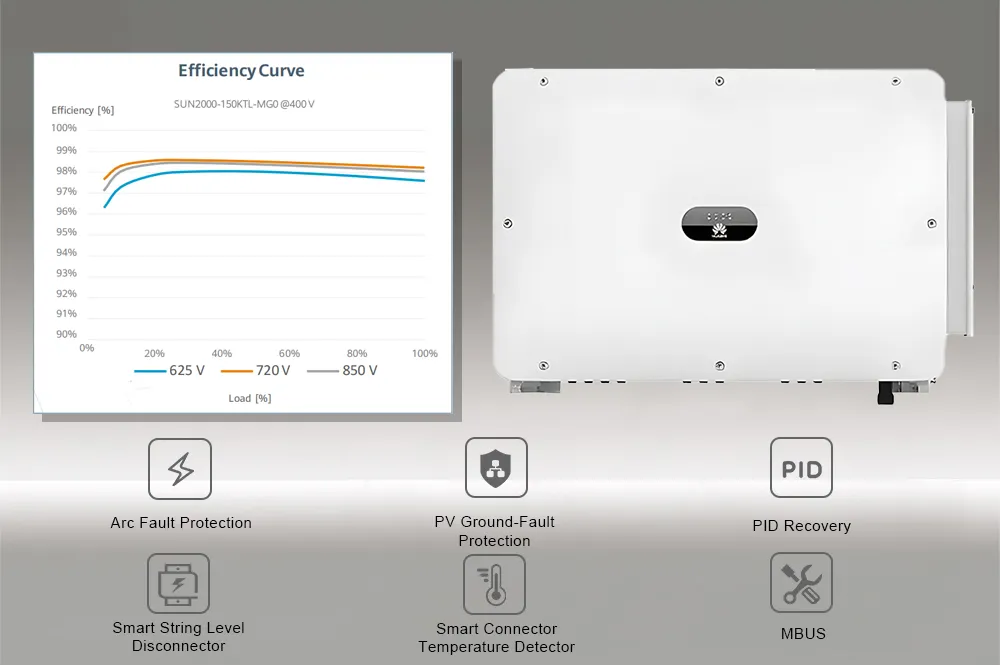

High Efficiency & Smart MPPT: Max Efficiency up to 98%+ with multiple MPPT design for complex layouts.
Intelligent Monitoring: Smart I-V curve diagnosis and real-time monitoring via smart communication systems.

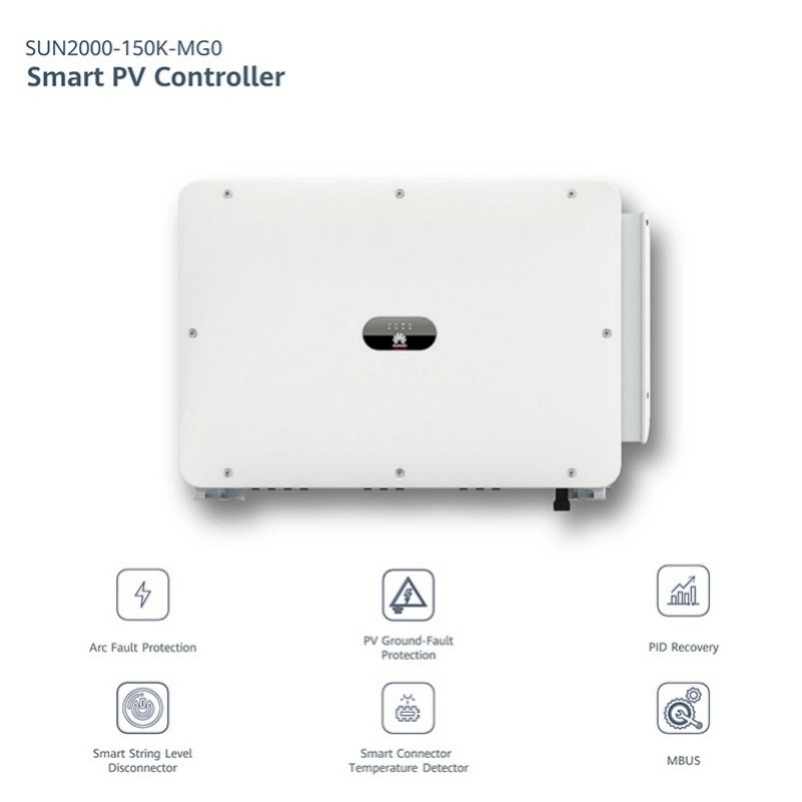

Advanced Safety Protection: Integrated DC & AC surge protection, Anti-PID, and IP66 rating for outdoor durability.
Durable & Reliable Design: Natural cooling design without external fans for minimal maintenance.

📊 Technical Parameters

Technical Specification	SUN2000-150K-MG0
Input
Max. Input Voltage	1,100 V
Max. Current per MPPT	48A
Start Voltage	200 V
MPPT Operating Voltage Range	200 V ~ 1,000 V

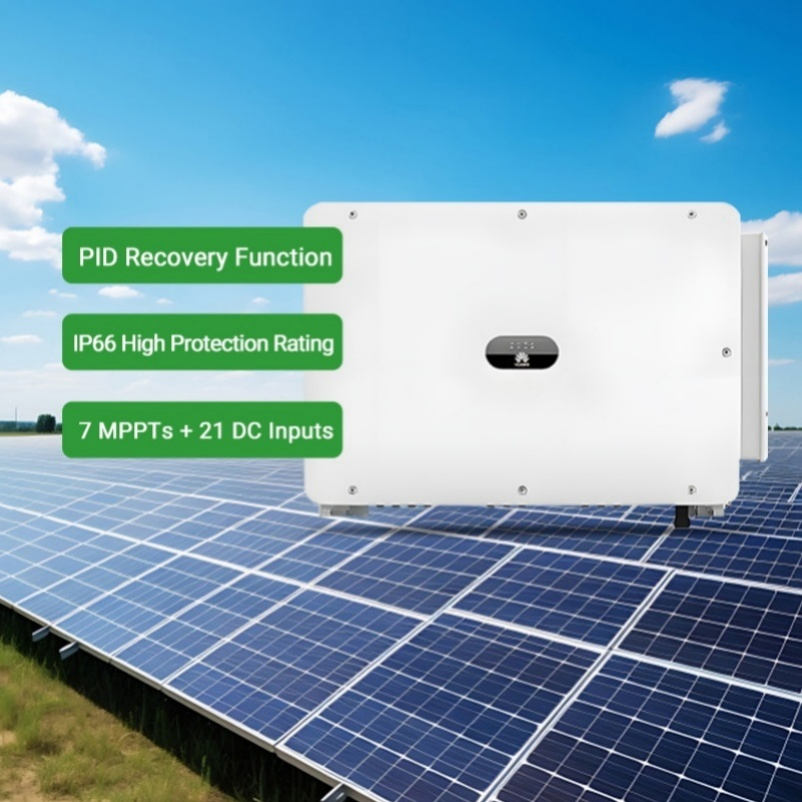

Number of MPP trackers	7
Output
Nominal AC Active Power	150,000 W
Max. AC Apparent Power	165,000 VA
Nominal Output Voltage	380 V/400 V/480Vac
Rated AC Grid Frequency	50 Hz / 60 Hz
Max. Output Current	253.2 A @380 V, 240.5 A @400 V

📦 Packaging & Delivery

Package Size

100.00cm * 71.00cm * 40.00cm

Gross Weight

102.000kg

🌍 Application Scenarios

Widely used in: Industrial factory rooftop solar systems, Commercial buildings, Large warehouse solar installations, Agricultural solar projects, Ground-mounted PV power plants, and Utility-scale solar farms.

❓ FAQ

Is the SUN2000-150K-MG0 suitable for utility-scale solar plants?

Yes, it is specifically designed for large commercial and utility-scale photovoltaic systems.

Does it support remote monitoring?

Yes, it supports smart monitoring and remote management systems via integrated communication interfaces.

What is the protection rating?

It features an IP66 protection rating, making it highly durable for outdoor installations in harsh environments.

Can it work with high-power PV modules?

Yes, it supports high-power modules and features multiple MPPT trackers to maximize energy yield.

What cooling method does the inverter use?

It utilizes a Smart Air Cooling system designed for optimal thermal management and long-term reliability.

What is the maximum efficiency of this inverter?

The inverter achieves a maximum efficiency of over 98%, ensuring minimal energy loss during conversion.
