| Model NO. | OLU-10000A-15 | Cycle Life | ≥6000 cycles (25±2℃, 0.5C) |
|---|---|---|---|
| Nominal Capacity | 15.36 Kwh | Rated Power | 10kW |
| Battery Type | Lithium (LiFePO4) | Rated Voltage | 51.2V |
| Output Voltage | 230VAC | Waveform | Pure Sine Wave |
| Max PV Power | 11kW | Efficiency | 93.50% |

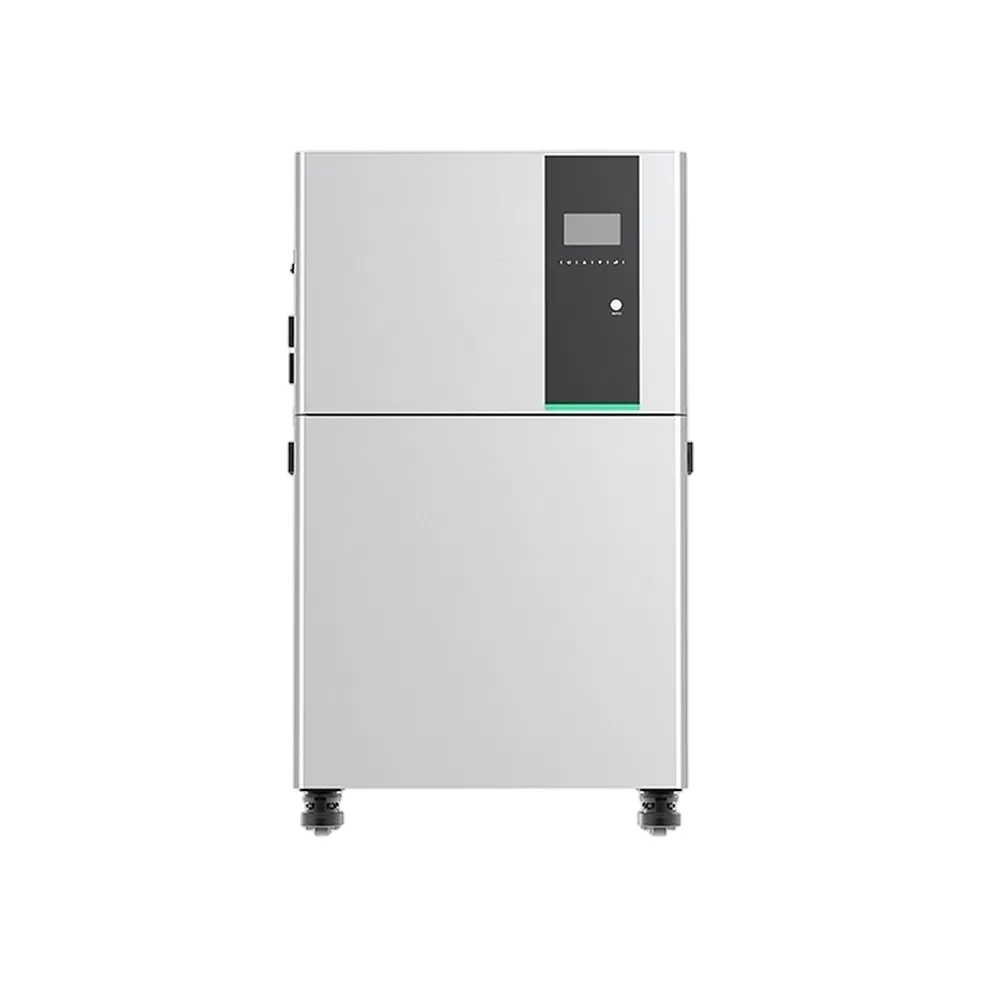

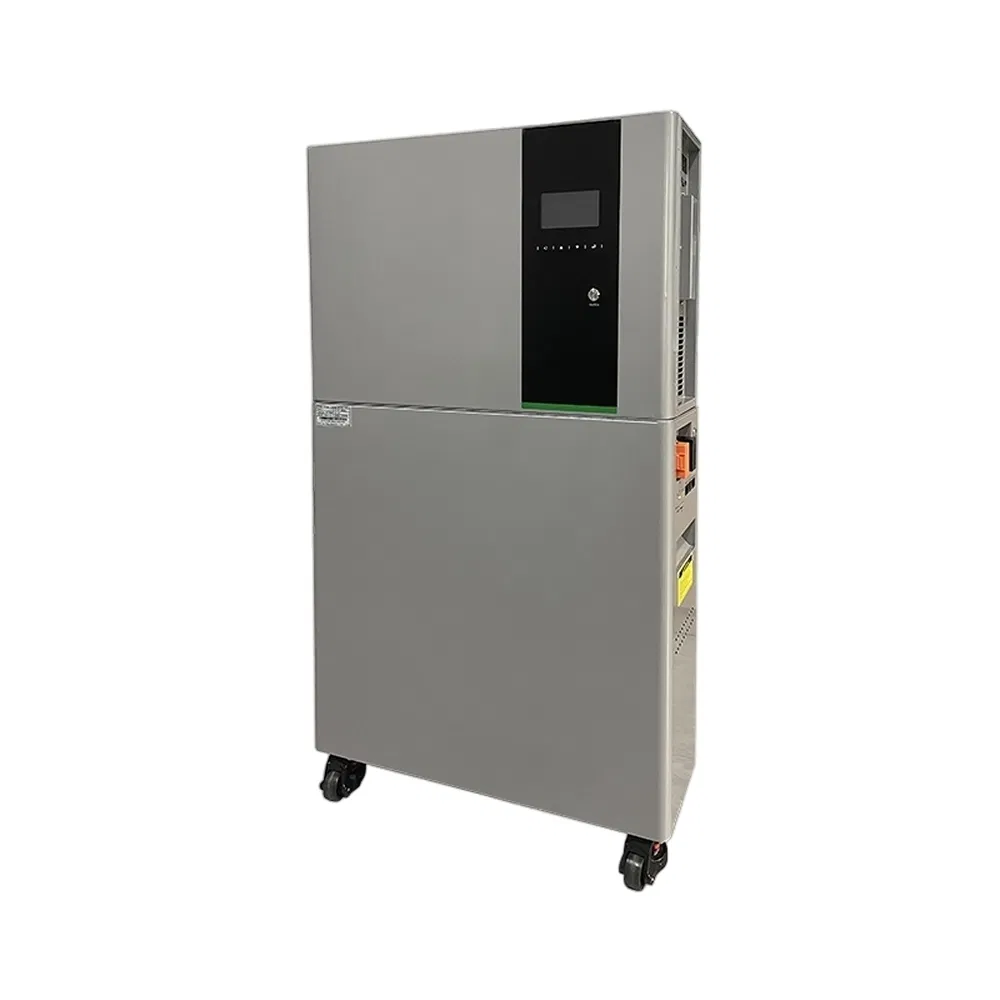

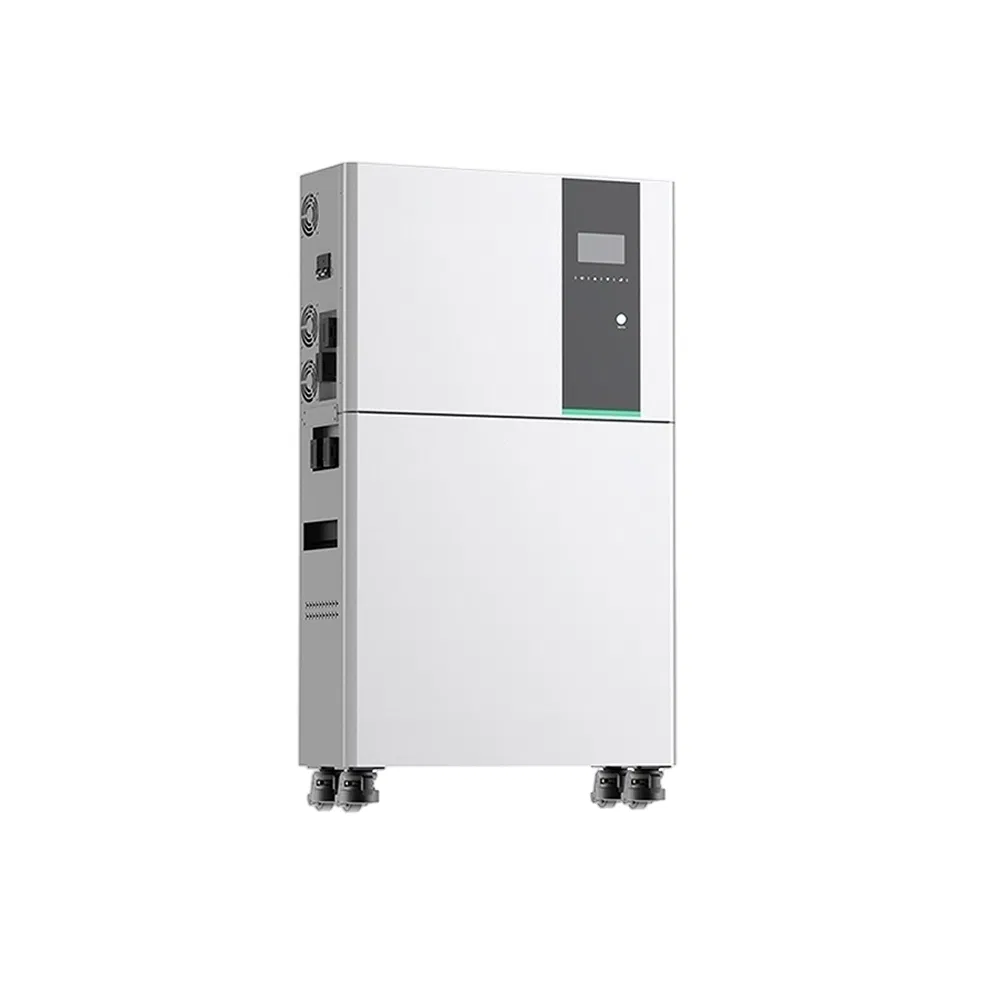

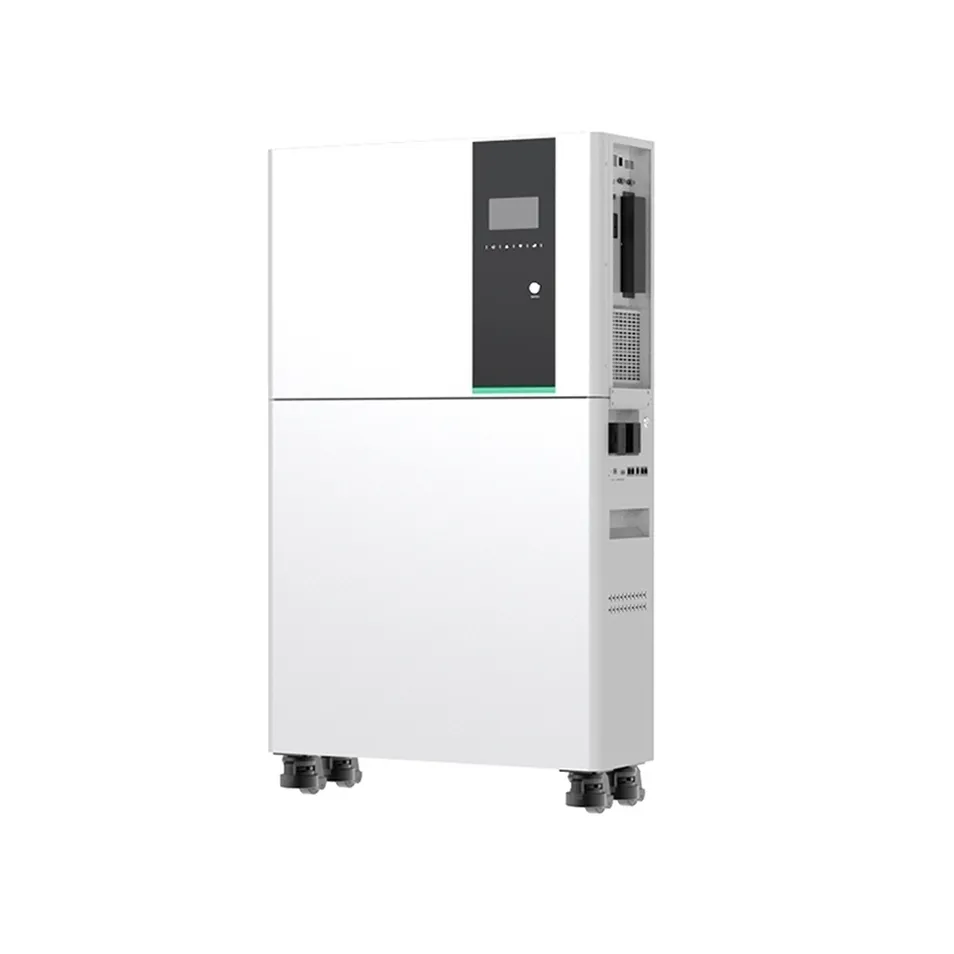

ALL-IN-ONE SOLUTION
The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
Combines inverter, battery, and control functions in a single unit, eliminating complex wiring and reducing installation time.
Designed for residential applications, providing backup power and energy independence for household consumption.
High inverter compatibility and broad input voltage range ensure seamless integration with various solar configurations.
| INVERTER PARAMETERS | |
|---|---|
| Rated Power | 10kW |
| AC Rated Voltage | 230VAC |
| Frequency Range | 50Hz / 60Hz |
| Transfer Time | 10ms |
| Max. PV Array Power | 11kW |
| MPPT Operating Voltage | 90-450VDC |
| BATTERY PARAMETERS | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |
| Discharge Voltage Range | 43.2 - 57.6V |
| Max. Charging Current | 200A @ 25℃ |

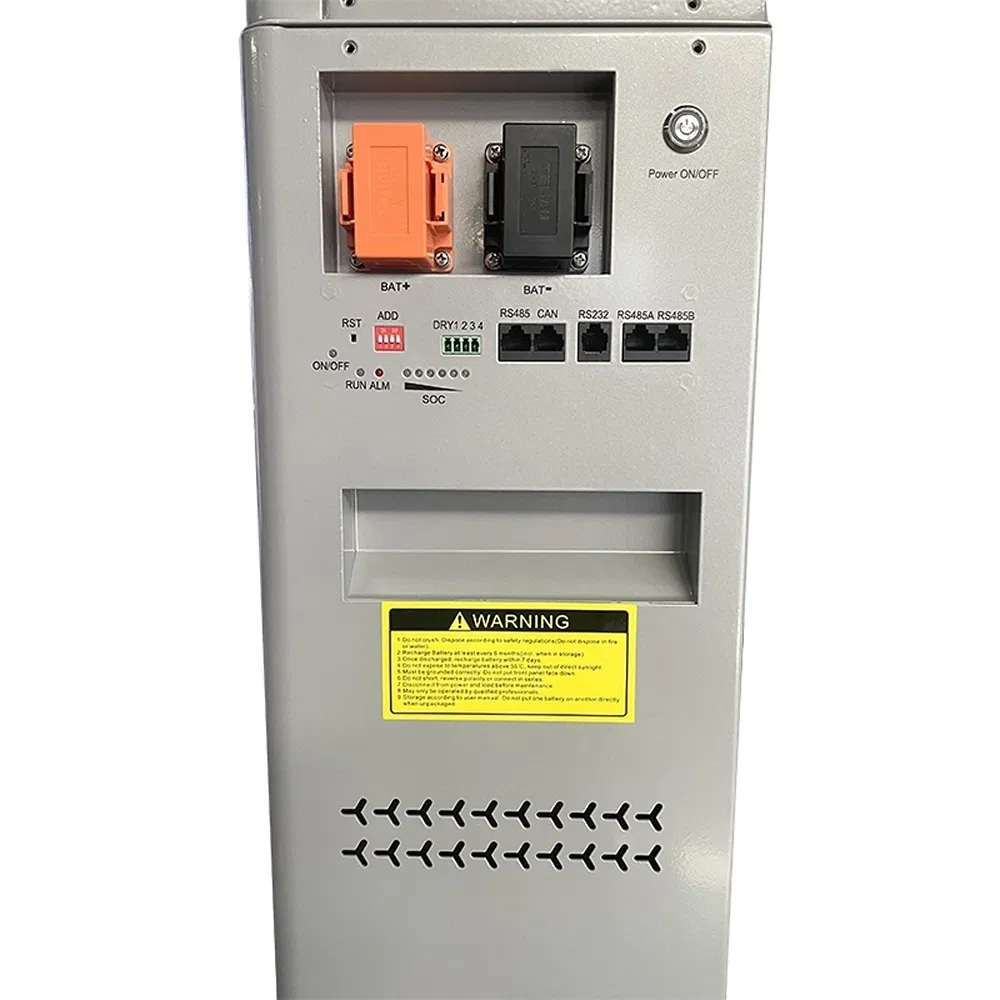

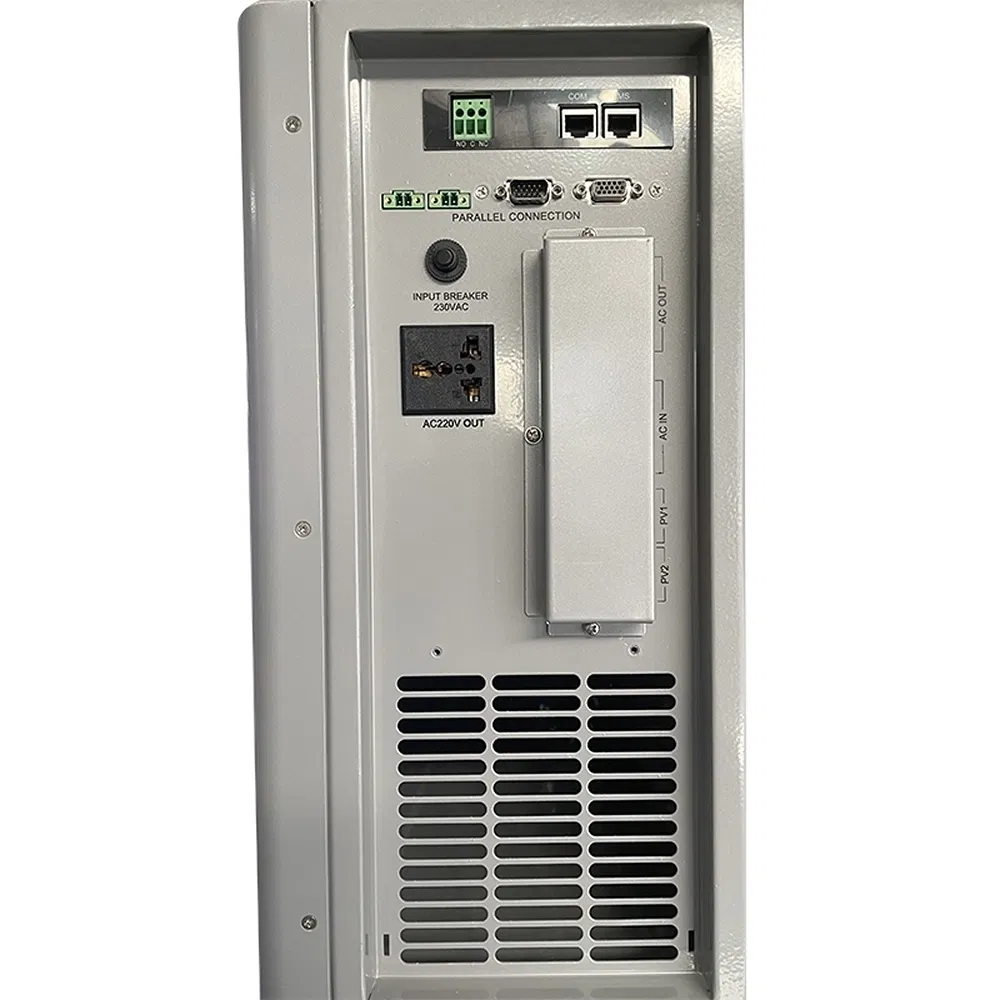

| Communication Interface | RS485 / RS232 / CAN |
| Working Temperature | Charge: 0~60℃ / Discharge: -20~60℃ |
Advanced battery energy management system (BMS) provides comprehensive protection, monitoring, and optimization.
High-quality LiFePO4 cells and robust construction deliver exceptional durability with over 6000 cycles.
| Package Size | 75.00cm * 31.00cm * 86.50cm |
|---|---|
| Gross Weight | 132.00kg |
| Package Type | Strong Wooden Case |
