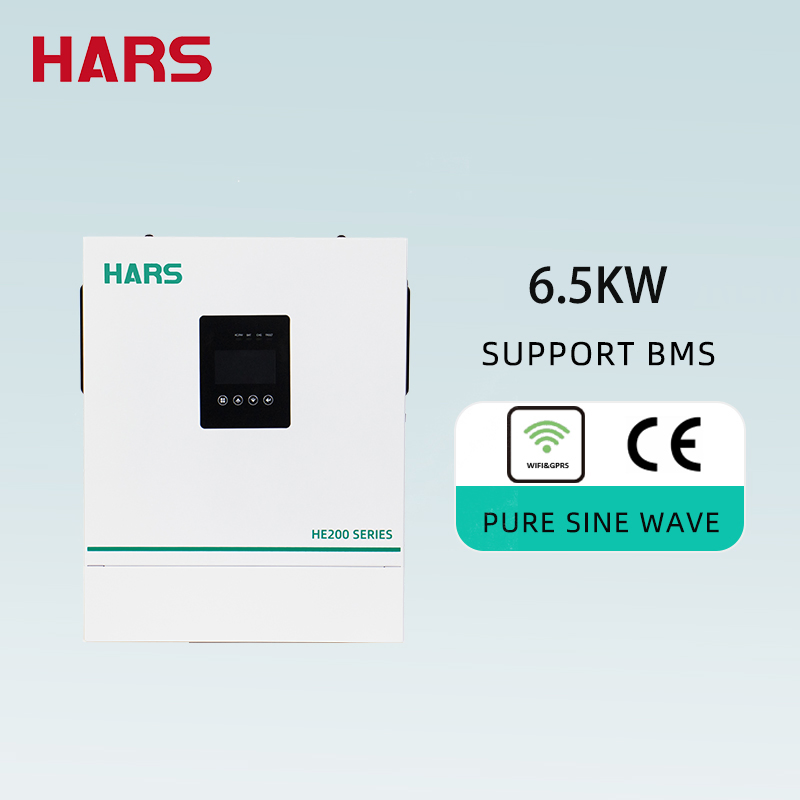

Versatile Hybrid off-Grid Inverter for Maximum Solar Charging Power

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HE200-7200-F

Phase

Single

Output Power

>1000W

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Max Solar Charging Current

120A

Nominal Output Voltage

220/230/240VAC

Max Conversion Efficiency

0.98

MPPT Voltage Range

60~450V

Product Description

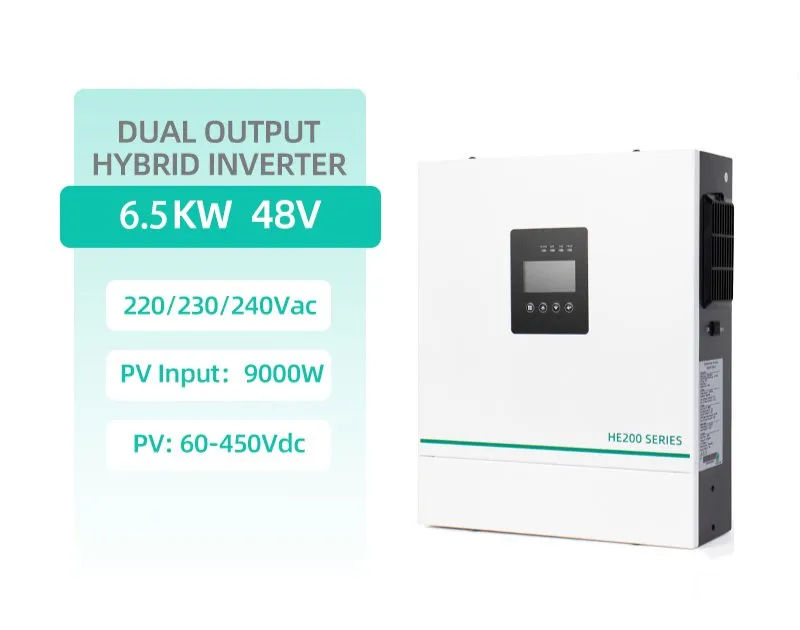

Hybrid Solar Inverter: HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, has the function of setting battery charging voltage and current, multiple power input and output priority settings. Output AC voltage and frequency can be set, suitable for different power grid environments, and has a mobile phone APP for online data monitoring.

Technical Parameters

MODEL: HE200-7200-F
Inverter Output
Rated Output Power	6500W
Rated Output Voltage	230Vac±5% (single phase)
Rated Output Current	27A
Output Waveform	Pure Sine Wave
Battery & Charging
Battery Type	Lead acid/Gel/lithium battery
Rated Battery Voltage	48V
Max PV Input Power	9000W
Max PV Charging Current	120A
PV Input
MPPT Number	1
Max Open Circuit Voltage	500Vdc
Input Voltage Range	60~450V
General Parameters
Dimensions	395332.4116.2(mm)
Net Weight	8.7kg
Protection Level	IP21
Operating Temperature	-10℃~50℃

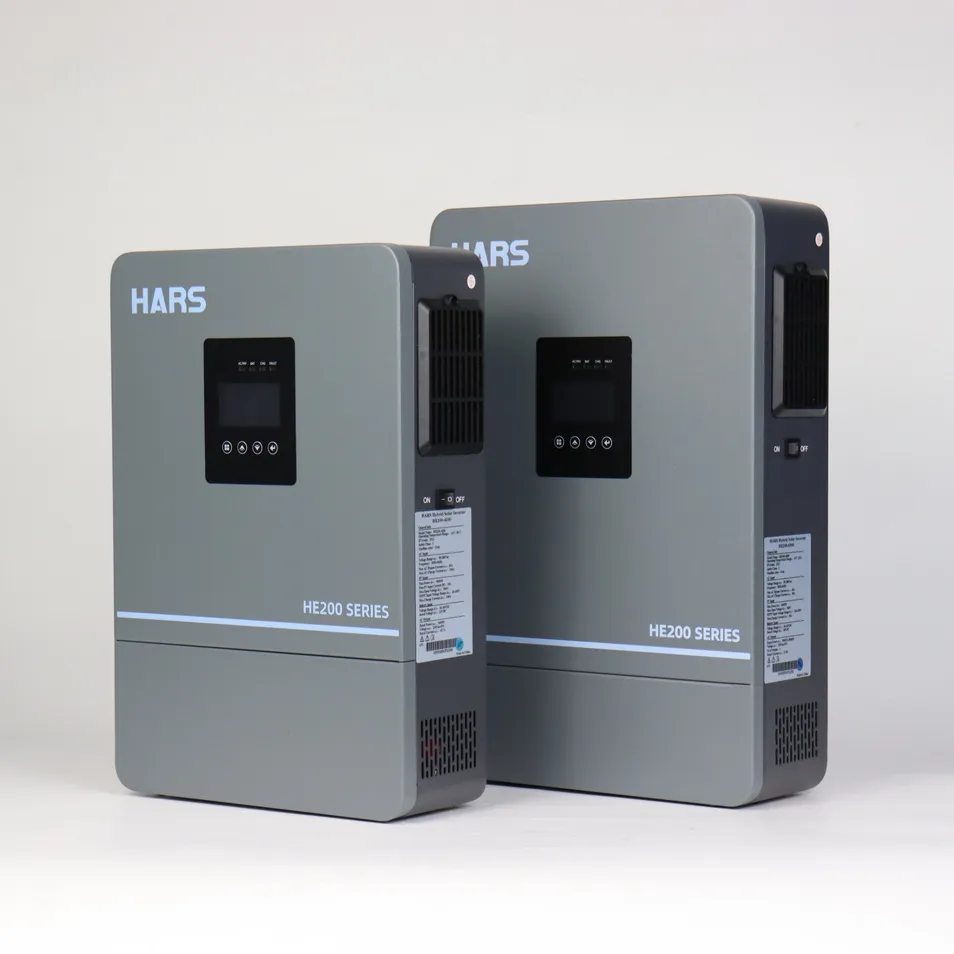

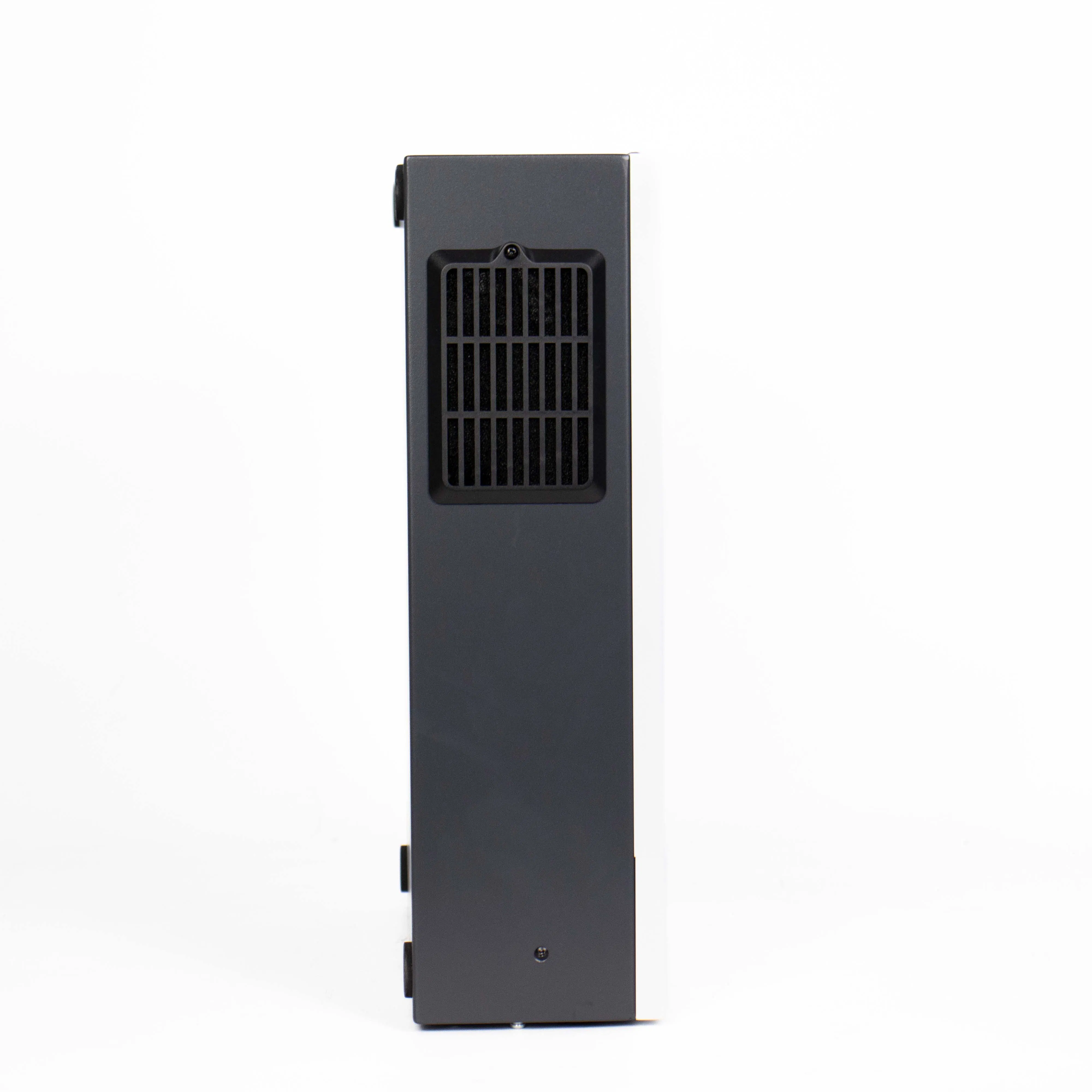

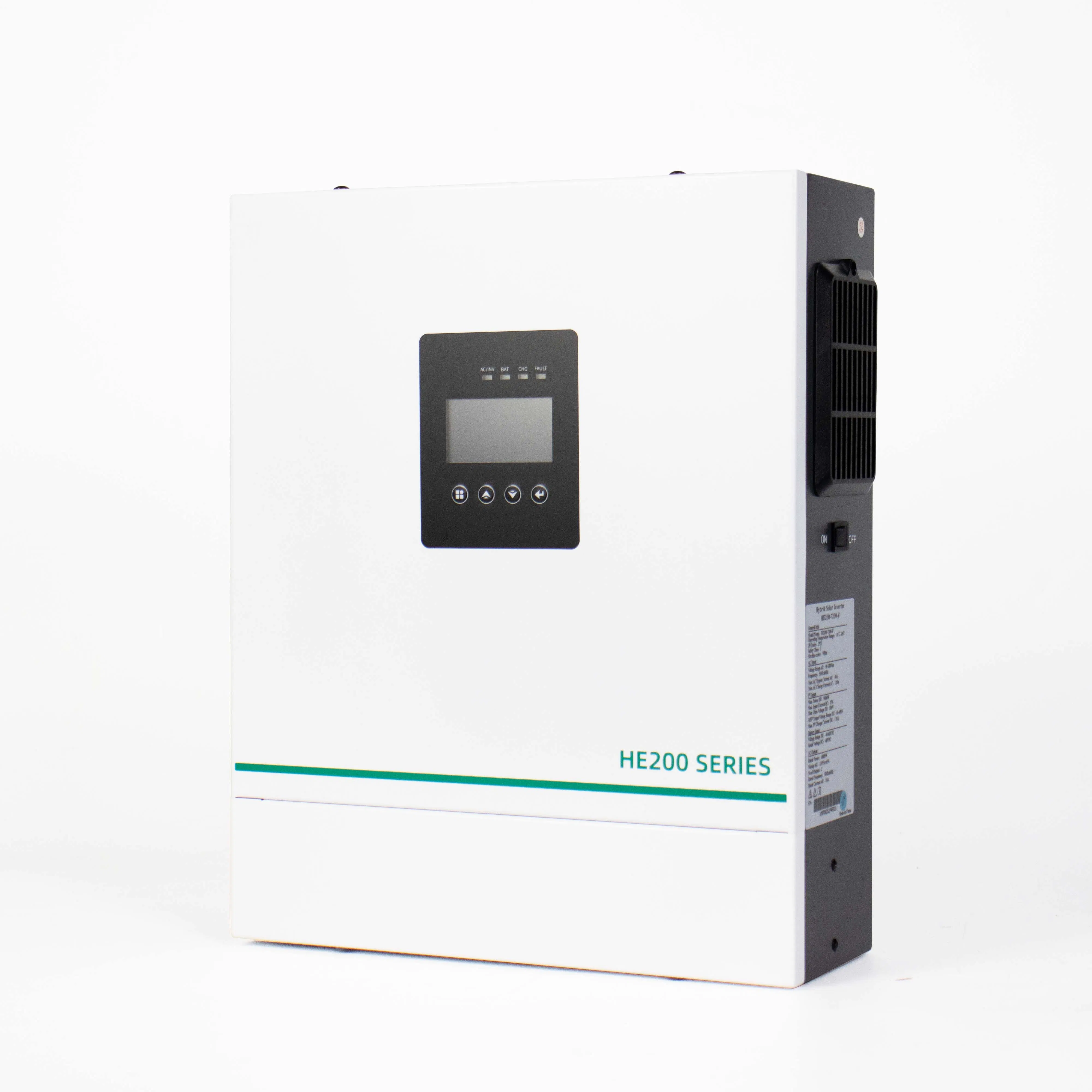

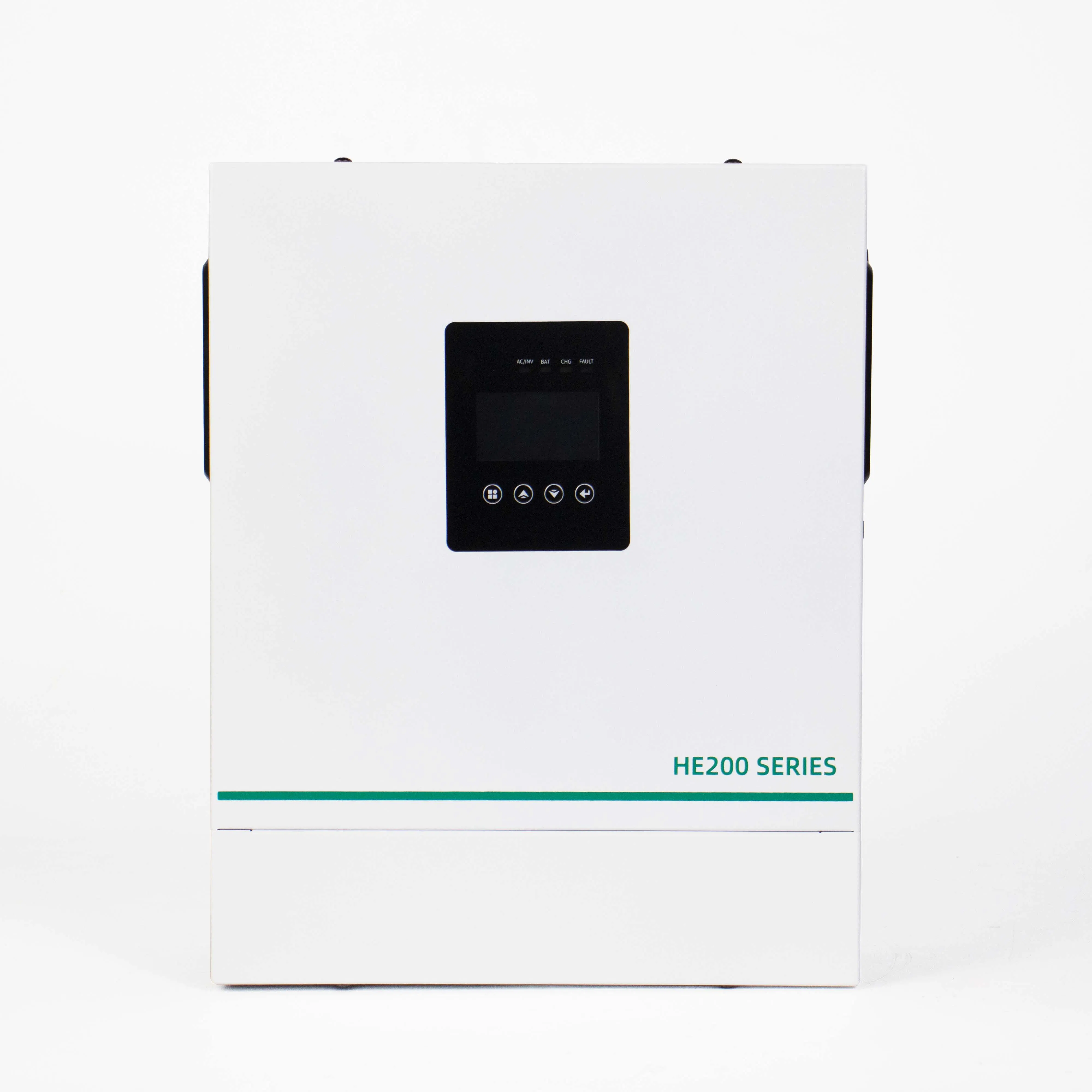

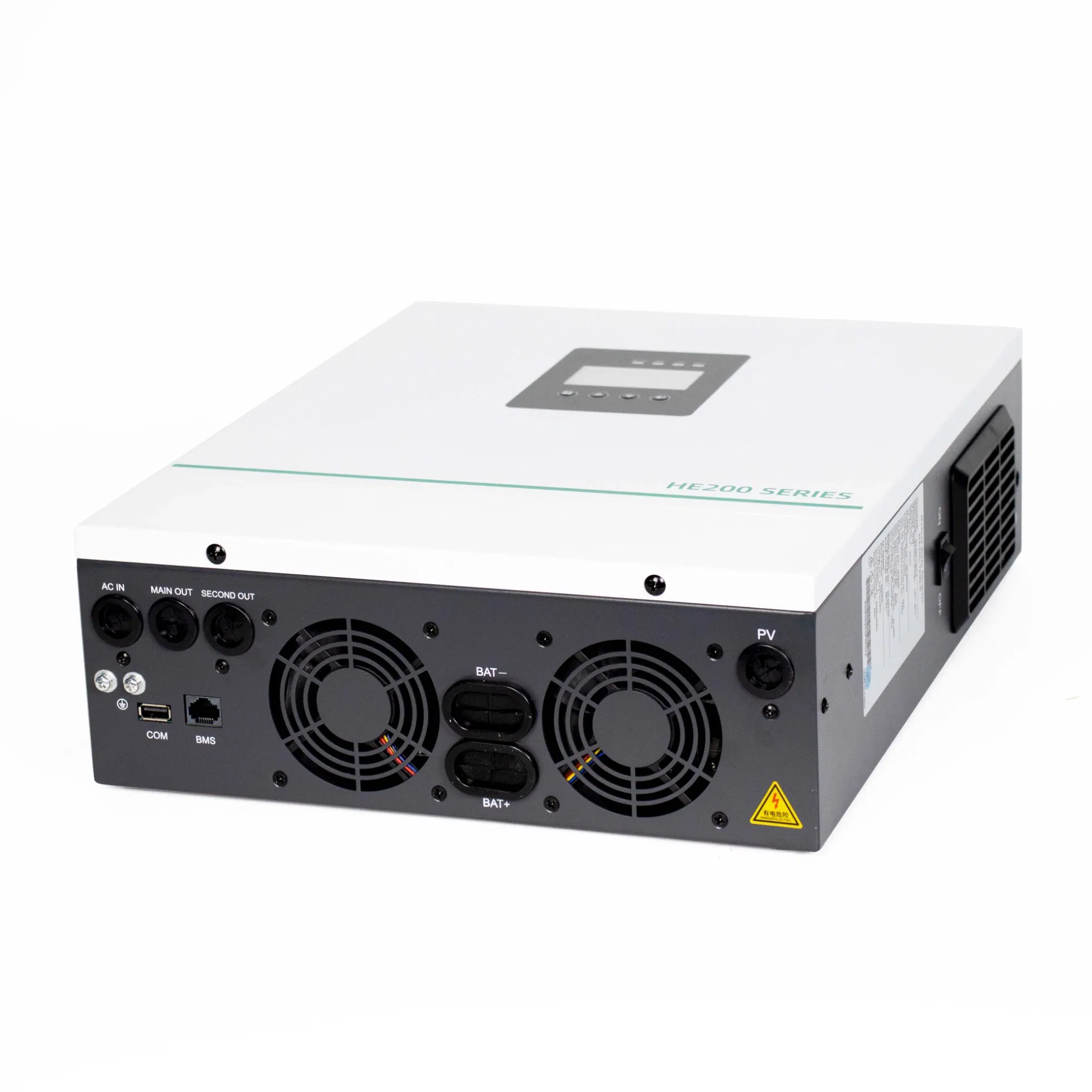

Product Display

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a frequency inverter manufacturer.

Can you accept to use of our logo?

We accept OEM production.

What are your terms of payment?

We accept T/T, L/C, Paypal, Western Union, etc. The details you can discuss with us.

How about your product's quality inspection?

We have professional QA and QC teams, and 100% quality inspection is performed before goods are out of the factory.

Do you test all your goods before loading?

Yes, we do 100% test.

What is the operating temperature range for this inverter?

The operating temperature range is from -10°C to 50°C.
