Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System

Basic Information

Model NO.	HDG PV Carport	Certification	GB, ISO, CE, RoHS
Application	Industrial	Material	Steel
Type	Ground Bracket	Coating	Hot DIP Galvanized or Zinc Al Mg Coating
Steel Grade	Q235/355, etc.	Wind Load	0-60m/S
Snow Load	0-3kN/M²	Annual Capacity	1,000,000 Tons per year

Product Description

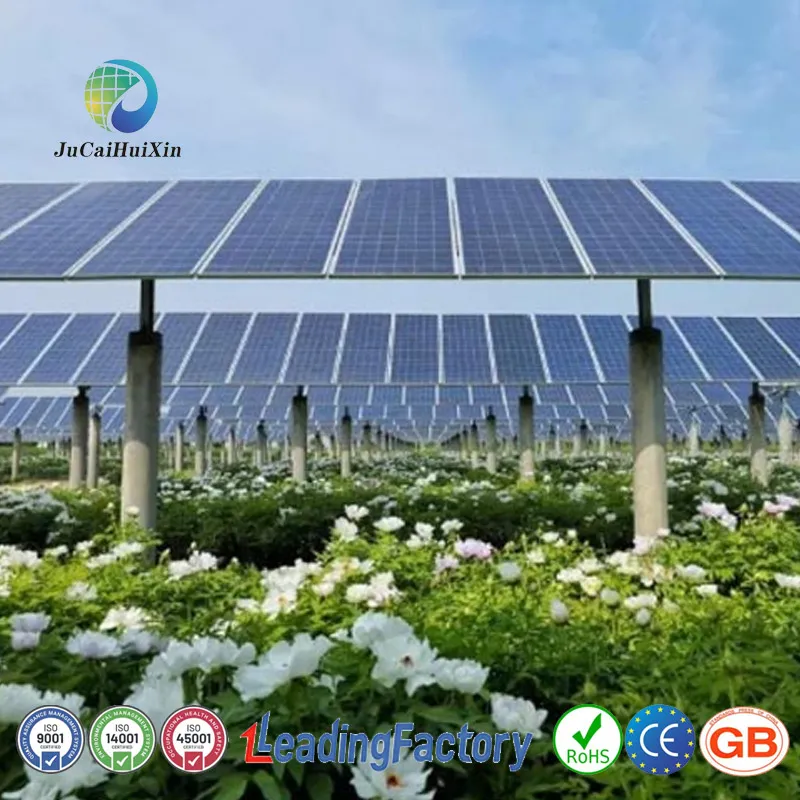

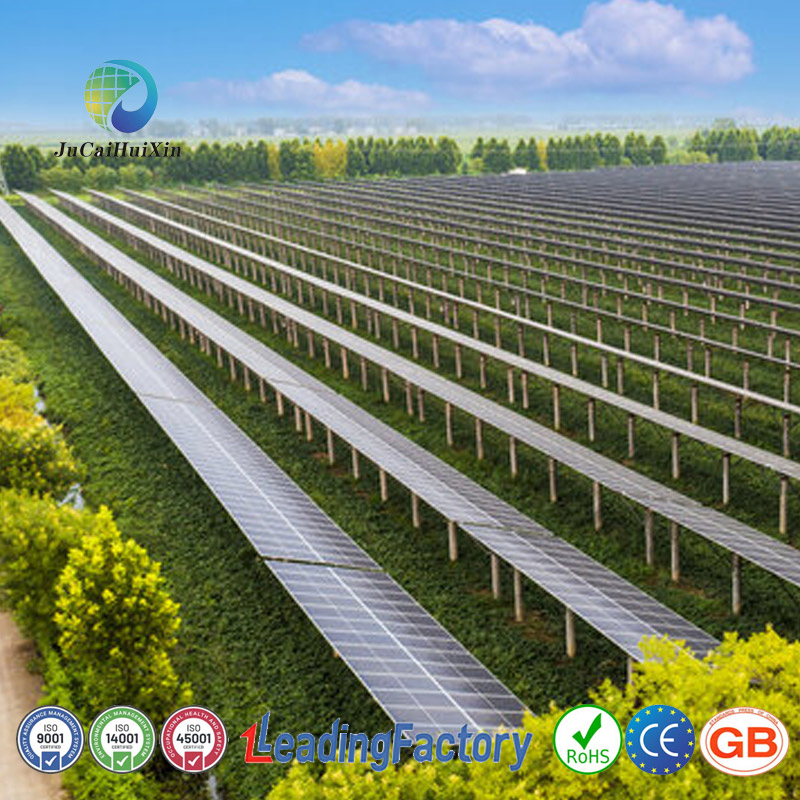

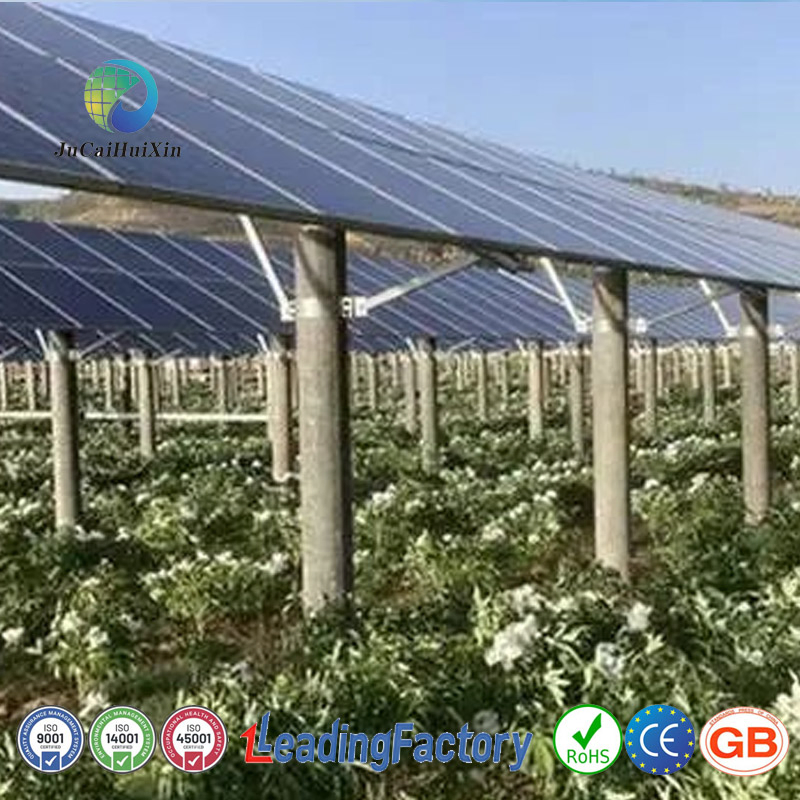

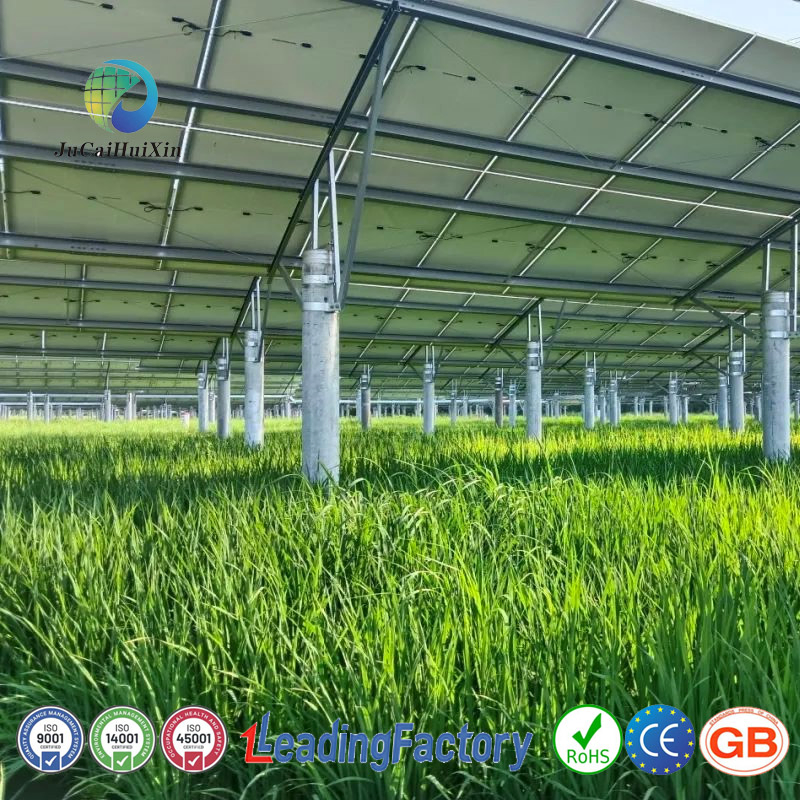

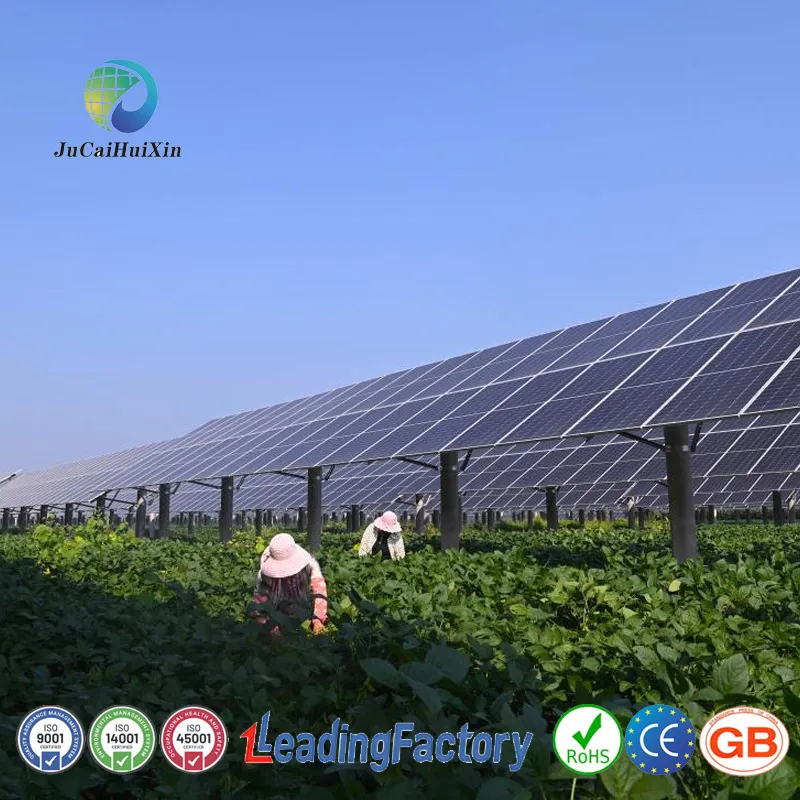

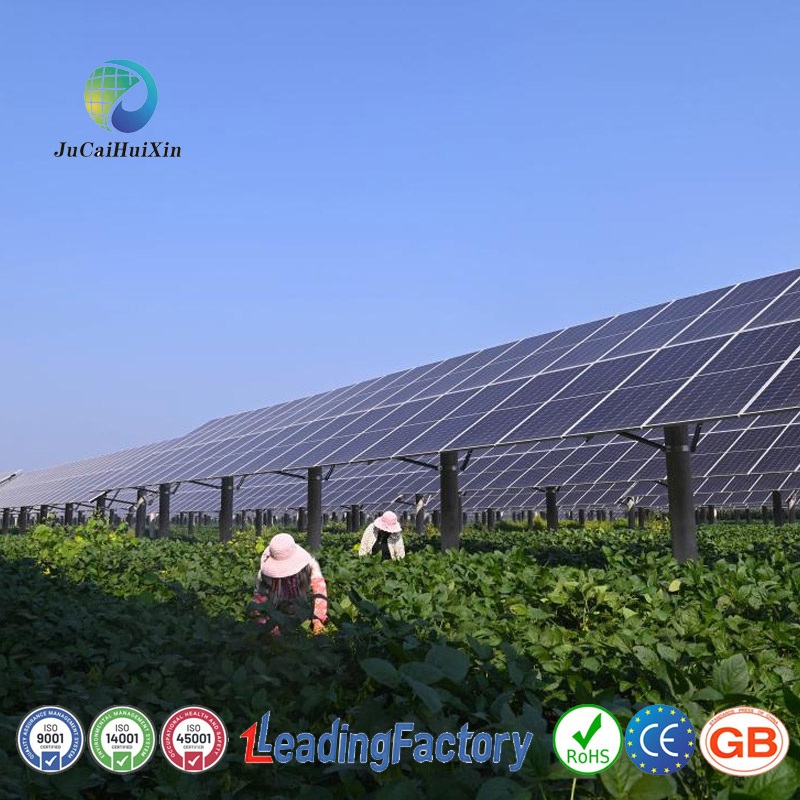

Hot Galvanized Solar Ground Rack Ground Solar Panel Support Ground Solar Mounting System

This mounting system is a highly corrosion-resistant and popular photovoltaic bracket variety. It features excellent yield strength, tensile strength, and superior wear resistance. The thick hot-dip galvanized protective layer allows the bracket to adapt to harsh climates including drought, humidity, salt spray, rain, and snow, making it exceptionally suitable for coastal environments.

Size	1205020mm	Wall Thickness	1.8-2.5mm
Weight/Piece	11.7-15.4 kg	Service Life	Over 25 years
Corrosion Resistance	Very Strong	Customization	Yes

Product Advantages

Highly Corrosion-resistant: Excellent weather resistance and fatigue resistance. Uniform stress distribution ensures the safety of solar modules under extreme wind, snow, and seismic loads.

High Structural Strength: Made of high-grade carbon steel with hot-dip galvanizing, providing stable bearing capacity and impact resistance.

Quality Certifications

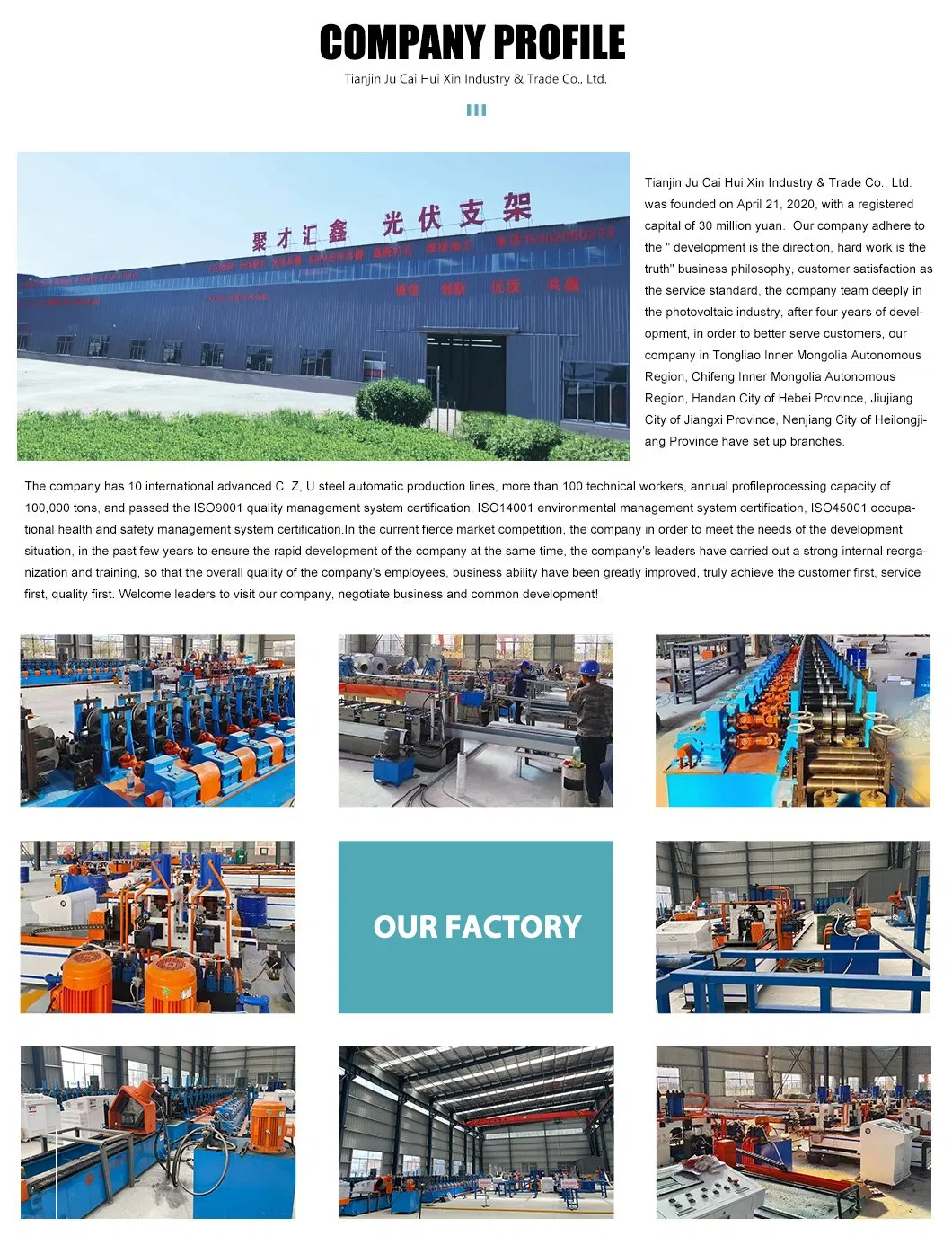

Manufacturing Excellence

Global Expert in Intelligent Photovoltaic Bracket Manufacturing

10,000 square meter Intelligent Manufacturing Base.

10 advanced CZU steel automated production lines.

Annual production of 200,000 tons of high-quality profiles.

Full compliance with ISO triple system, CE, and RoHS standards.

Packaging & Logistics

Frequently Asked Questions

Q1 What is Ground Mount PV Racking?

It is a ground-mounted structural system designed to support solar PV panels, adjustable to maximize sunlight absorption, suitable for large-scale power stations and agricultural scenarios.

Q2 What are the main materials used for the brackets?

Common materials include hot-dip galvanized steel for high load-bearing and corrosion resistance, aluminum alloy for lightweight needs, and stainless steel for special environments.

Q3 How weatherproof are these mounting systems?

High-quality brackets are designed to resist strong winds (up to 120km/h) and heavy snow loads (1.4kN/m²), featuring a service life of over 25 years even in saline conditions.

Q4 Can the angle of the support be adjusted?

Yes, adjustable stands support seasonal or manual inclination changes (usually 15°-40°). We also offer tracking stands that follow the sun automatically to increase power generation by 10%-30%.

Q5 What is the typical life span and warranty?

The life span of high-quality hot-dip galvanized steel brackets is 25-30 years. Typically, a 10-15 year warranty is provided covering material and workmanship defects.

Q6 How do you handle poor ground conditions?

For soft soil or challenging terrain, we utilize deep pile foundations, concrete counterweight blocks, or specialized ground anchors to ensure structural stability.
