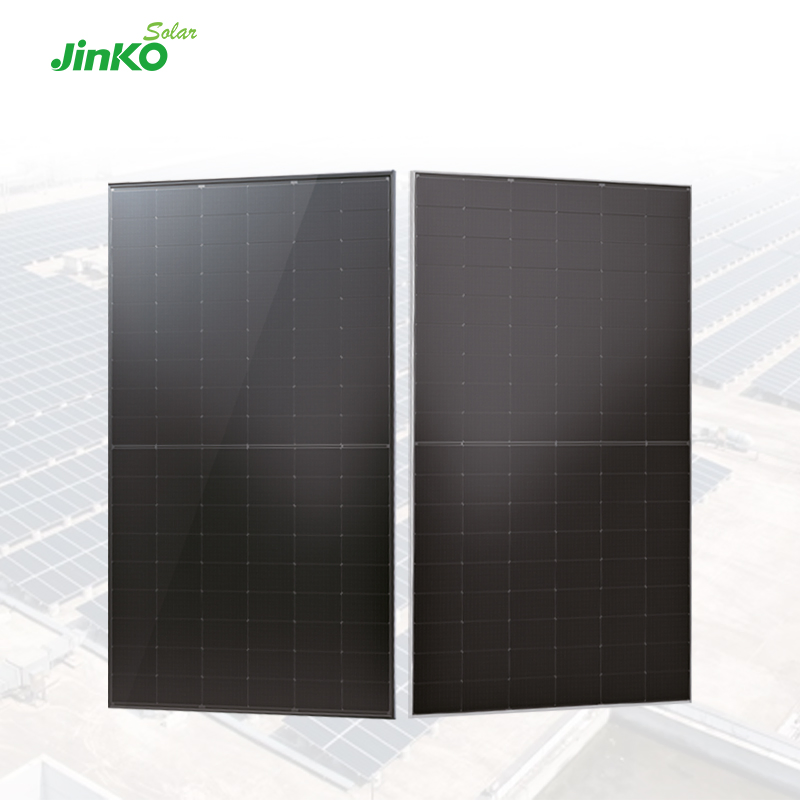

Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
1 / 5
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality
Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality

Jinko 445W 450W System Photovoltaic Cell Solar Bifacial Panel with High Quality

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
JKM445N-54HL4R-V
Number of Cells
72pcs
Application
Solar System
Condition
New
Certification
ISO, CE, TUV, IEC
Material
Monocrystalline Silicon
Cell Type
N Type Mono-Crystalline
Weight
22 Kg (48.50 Lbs)
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Transport Package
Carton & Wooden Pallet
Specification
1762*1134*30mm
Origin
China
HS Code
8541430000
Production Capacity
50000PCS/Month

Product Parameters

Photovoltaic Cell Solar Panel
Module Type JKM435N-54HL4R-V JKM445N-54HL4R-V JKM450N-54HL4R-V
Maximum Power (Pmax) 435Wp 445Wp 450Wp
Maximum Power Voltage (Vmp) 32.59V 33.02V 33.21V
Maximum Power Current (Imp) 13.35A 13.35A 13.55A
Open-circuit Voltage (Voc) 39.16V 39.59V 39.78V
Short-circuit Current (Isc) 13.80A 13.80A 14.00A
Module Efficiency STC (%) 21.77% 22.27% 22.52%
Operating Temperature -40~+85ºC
Maximum System Voltage 1000/1500VDC (IEC)
Maximum Series Fuse Rating 25A
Power Tolerance 0~+3%

Technical Details

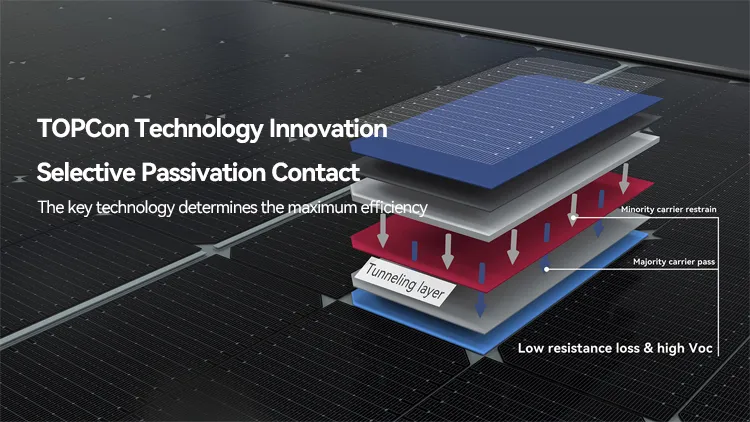

Solar Panel Detail 1
Solar Panel Detail 2

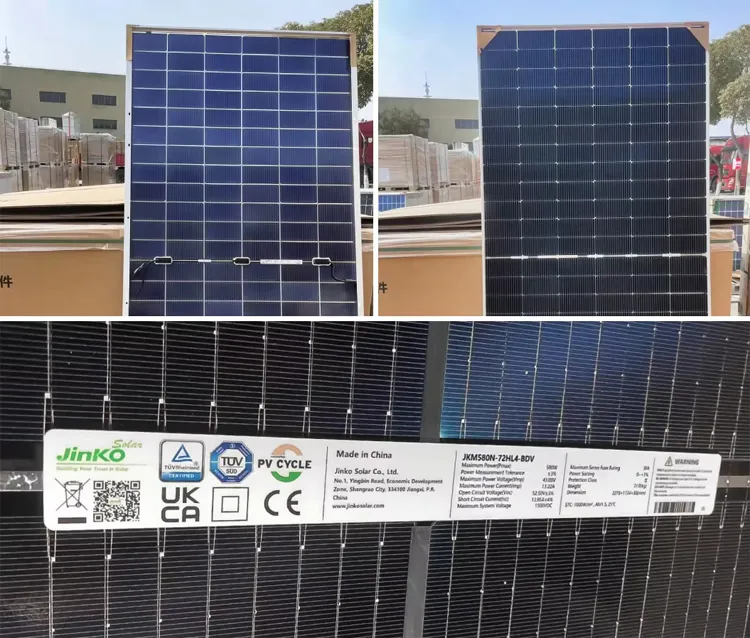

Solar Panel Detail 3

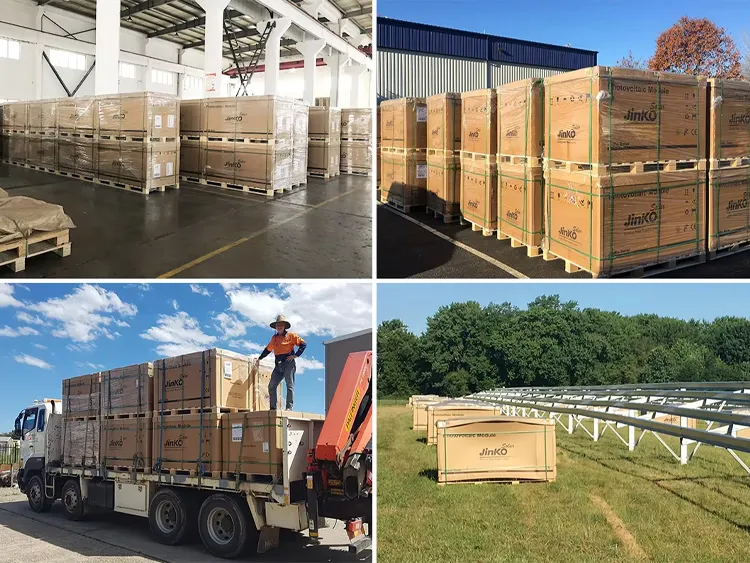

Solar Panel Detail 4

Project Cases

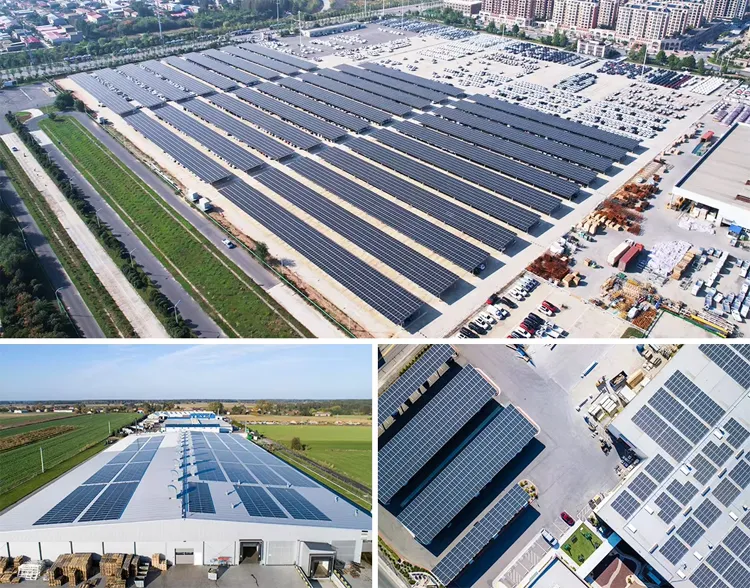

Solar Project Case 1

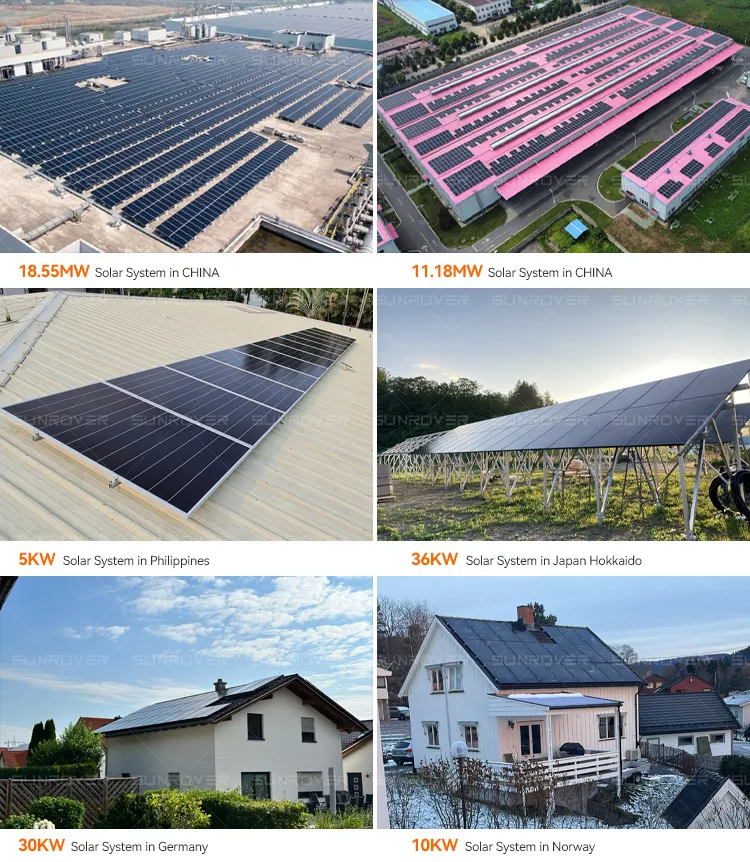

Solar Project Case 2

Frequently Asked Questions

What is the maximum efficiency of these solar panels?
The modules in this series offer high efficiency ratings ranging from 21.77% to 22.52%, depending on the specific model.
What type of cell technology is utilized?
These panels use N-Type Mono-Crystalline silicon cells, which are known for better performance in low-light conditions and lower degradation rates.
Are the panels resistant to harsh environmental conditions?
Yes, the panels feature an IP68-rated junction box and an anodized aluminium alloy frame, designed to operate between -40ºC and +85ºC.
What are the dimensions and weight of a single module?
Each module measures 1762*1134*30mm and weighs approximately 22 kg (48.50 lbs).
What certifications do these solar panels hold?
The product is fully certified with ISO, CE, TUV, and IEC standards, ensuring high quality and safety for global solar systems.
