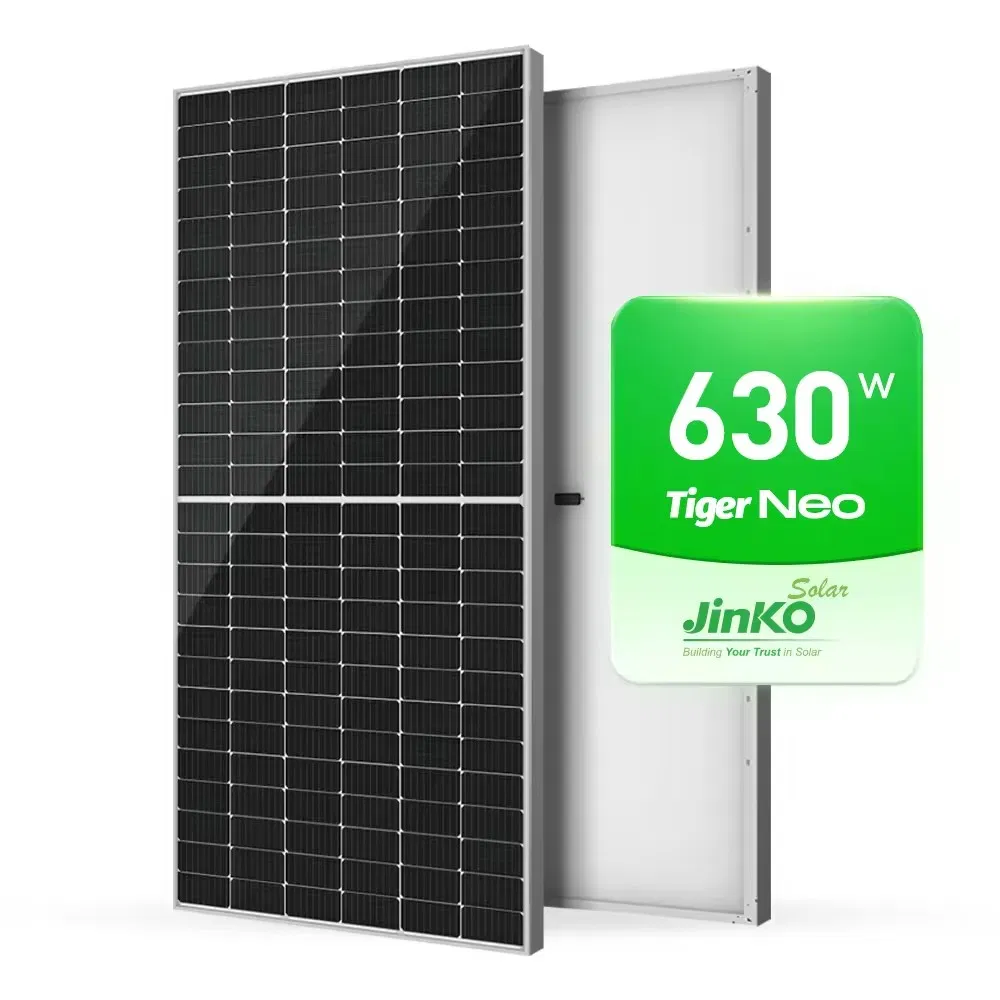

Jinko Solar Panel Price 580W 600W 670W 700W Bifacial Photovoltaic PV Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Information
Model NO.
JKM570N-590N-72HL4-V
Number of Cells
144PCS
Application
Industrial
Certification
ISO, CE
Material
Monocrystalline Silicon
Solar Cell
A Grade
Junction Box
IP 68 Rated
Panel Efficiency
22.84%
Frame
Anodized Aluminium Alloy
Specification
2278*1134*35mm
Weight
27kg
Origin
China
Product Description

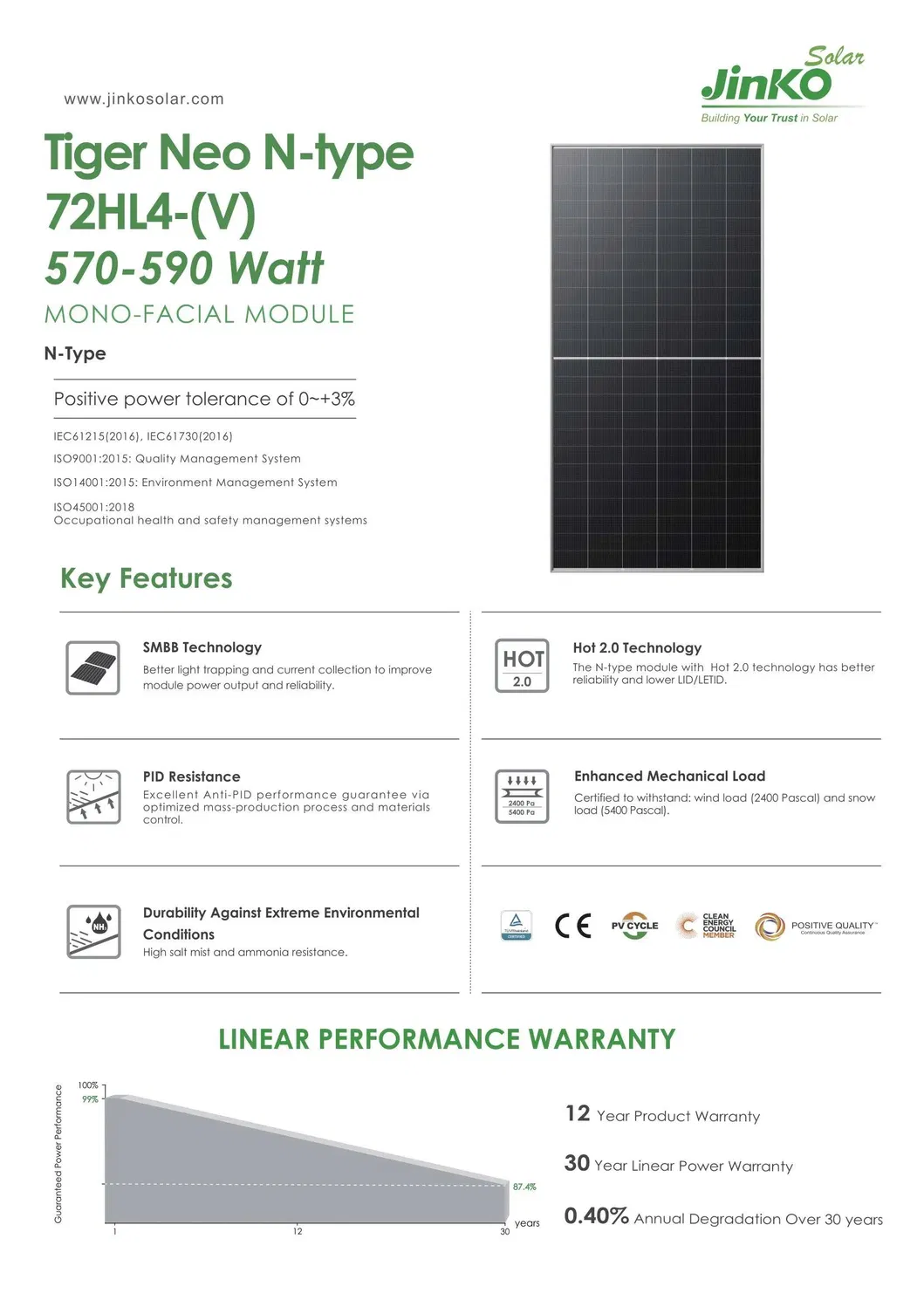

Photovoltaic PV Solar Panels

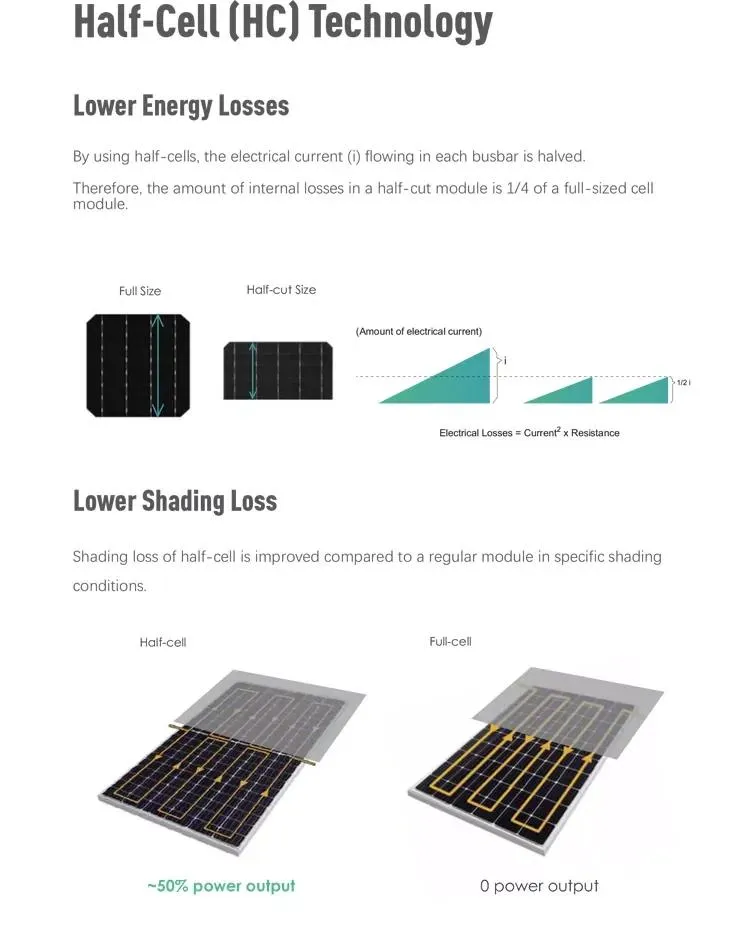

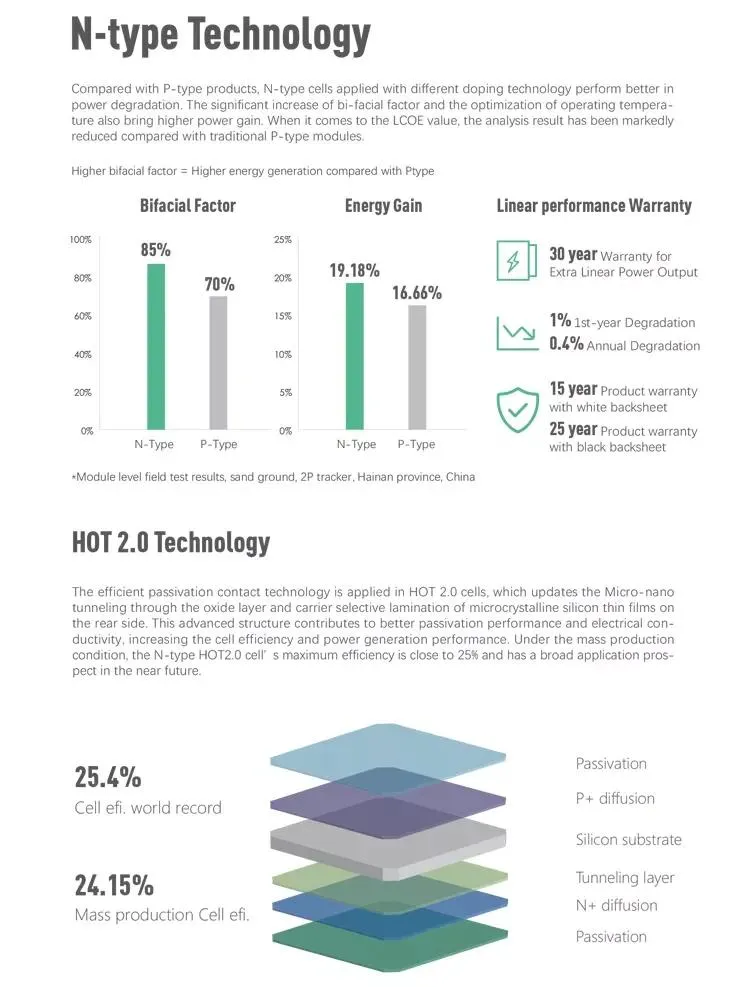

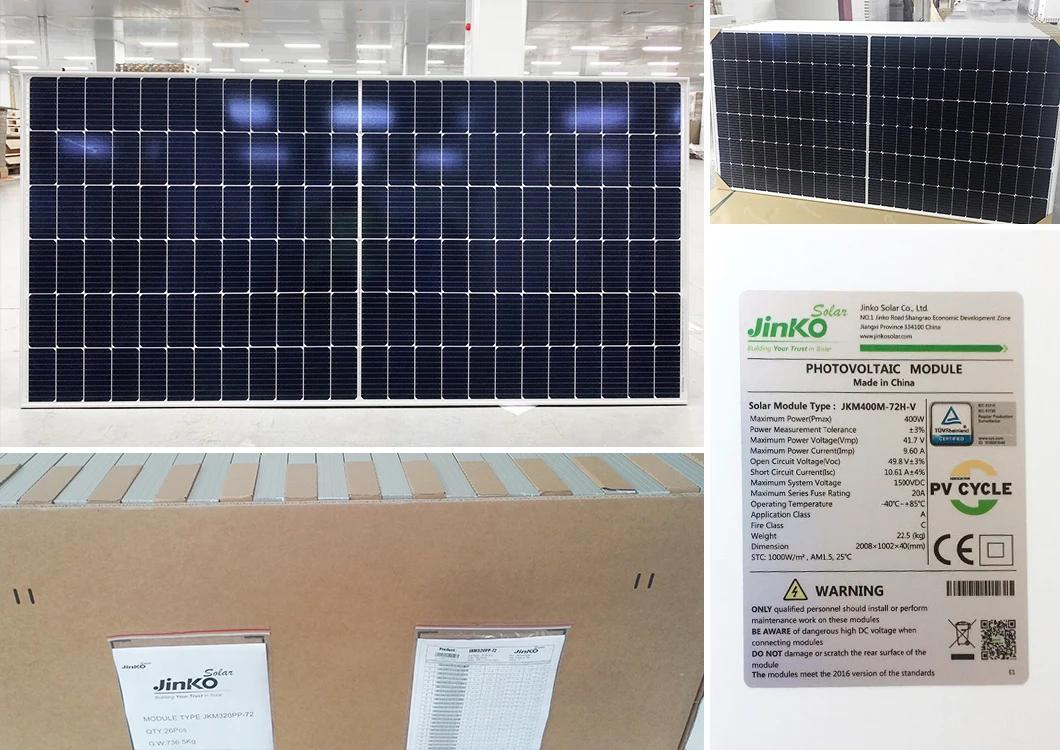

Solar Panel Detail 1 Solar Panel Detail 2
Module Specifications
Peak Power Watts-PMAX (Wp)590w
Module Dimensions2278× 1134 ×35 mm
Weight27kg
Maximum Power Voltage-VMPP (V)42.07V
Maximum Power Current-IMPP (A)13.55A
Open Circuit Voltage-VOC (V)50.74V
Short Circuit Current-ISC (A)14.31A
Module Efficiency (%)22.07%
Operating Temperature-40~+85°C
ELECTRICAL SPECIFICATIONS (STC Testing Condition)
Maximum Power (Pmax/W) 570575580585590
Maximum Power Voltage (Vmp) 42.99V43.17V43.35V43.53V43.71V
Maximum Power Current (Imp) 13.26A13.32A13.38A13.44V13.50A
Module Efficiency STC (%) 22.07%22.26%22.45%22.65%22.84%

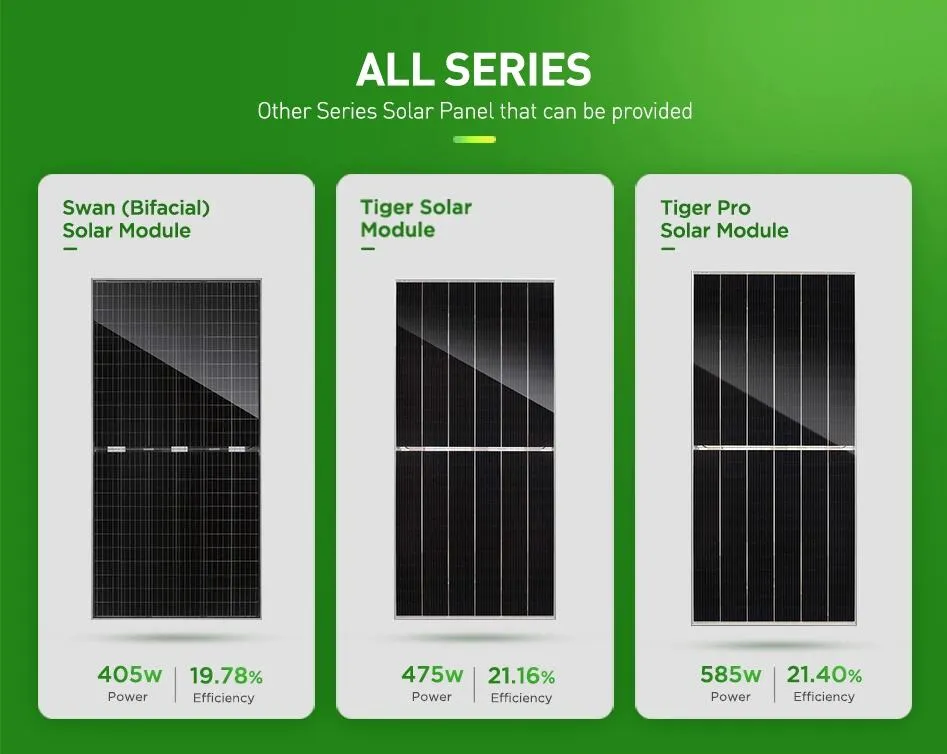

Technical Specifications
Production Process & Cases

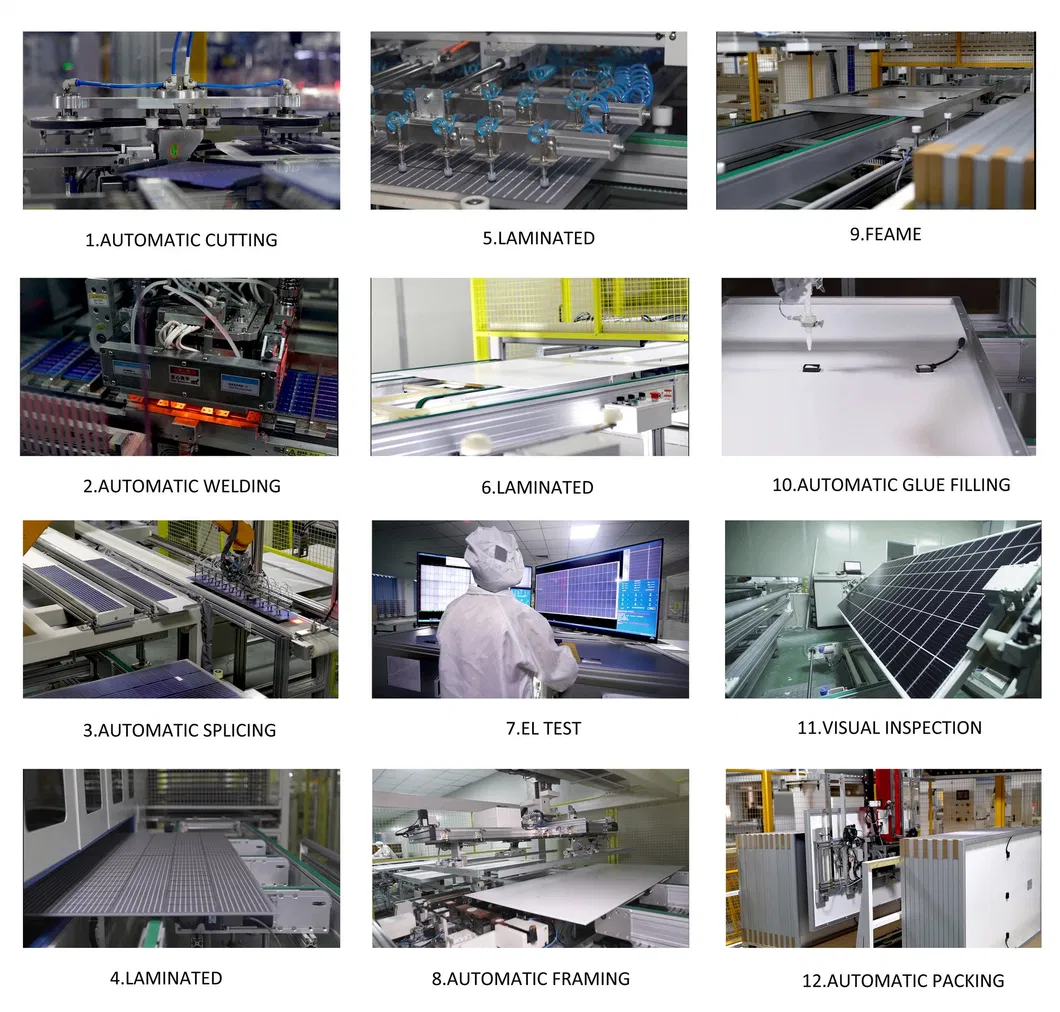

Production Process

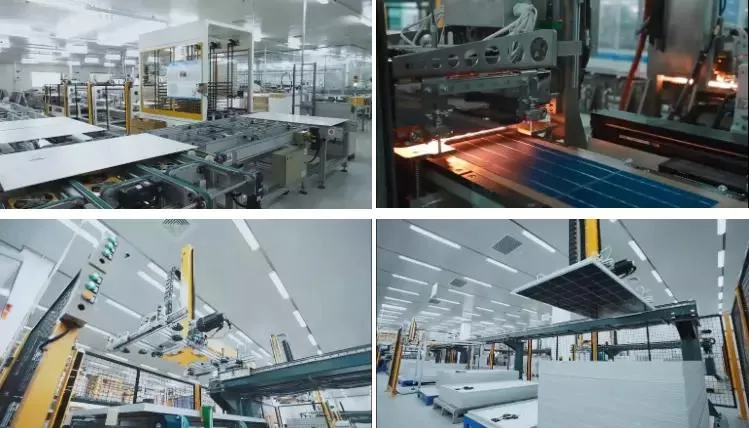

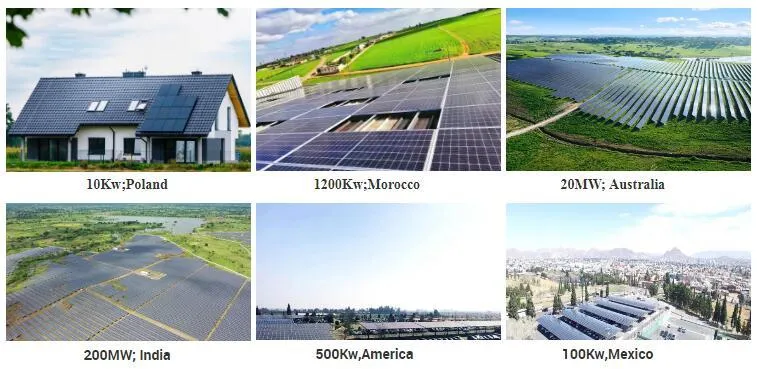

Project Cases Factory Overview

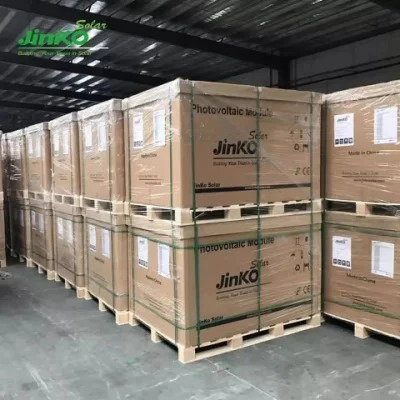

Delivery & Logistics
Delivery Method 1 Delivery Method 2
Frequently Asked Questions
What are your payment terms and conditions?
We support T/T, Letter of Credit, Paypal, Western Union etc. on FOB, CIF, CFR, DDU, DDP delivery terms.
Can we request custom labeling or stickers?
Yes, OEM and ODM services are our key advantages. We can print your own stickers according to your requirements.
What is the maximum efficiency of these panels?
According to our testing conditions, these high-performance modules can achieve a panel efficiency of up to 22.84%.
What are the main applications for these solar modules?
These modules are designed primarily for industrial applications, featuring A-grade monocrystalline silicon and IP 68 rated junction boxes for durability.
What is the construction of the front glass?
The panels use 3.2mm tempered low-iron glass, which provides excellent durability and light transmission.
What are your production capabilities?
Our facility has a robust production capacity of 800mWatt per year, ensuring steady supply for large-scale projects.
