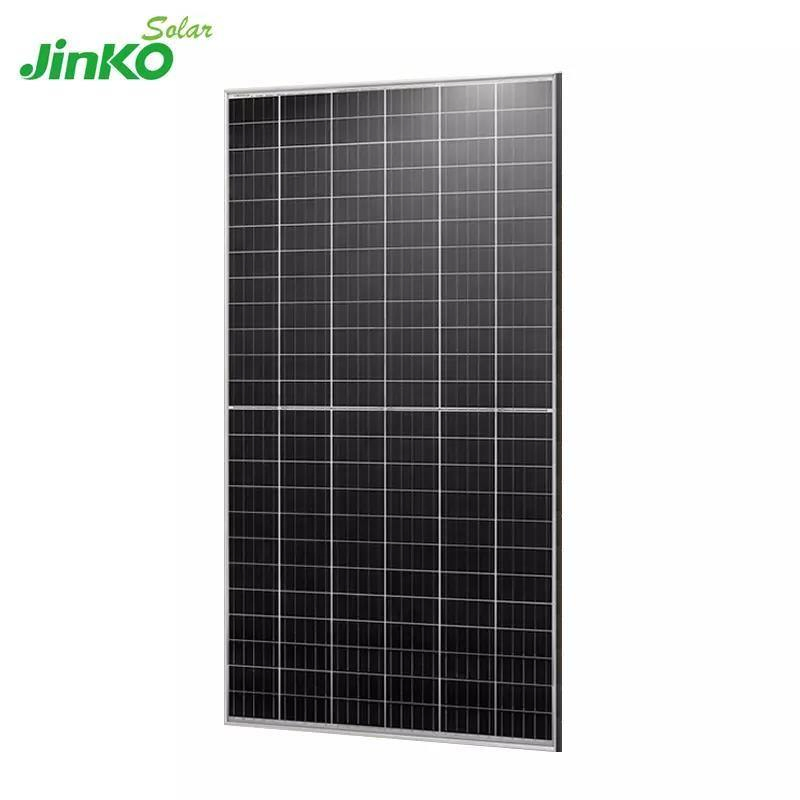

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

1 / 5

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

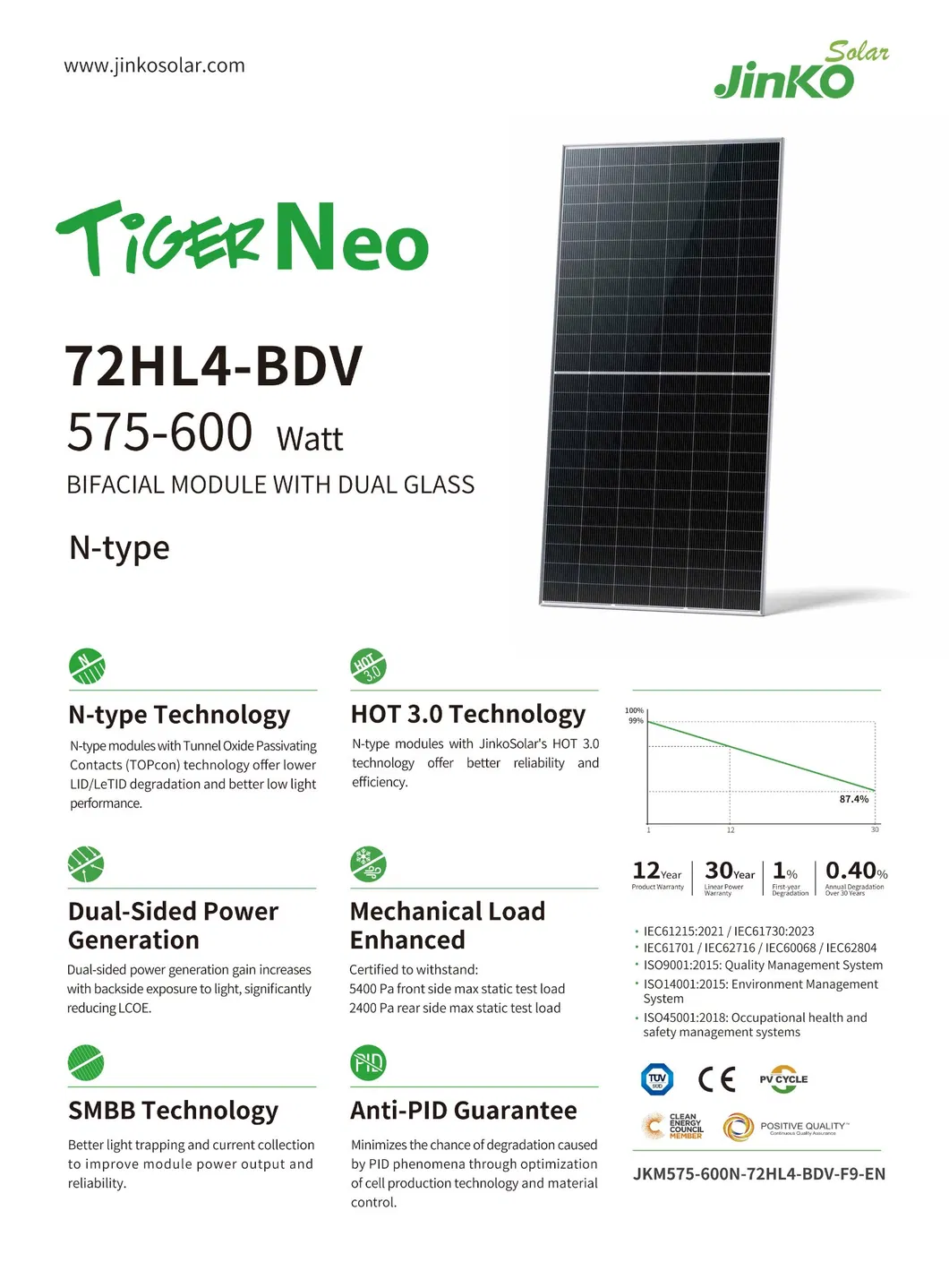

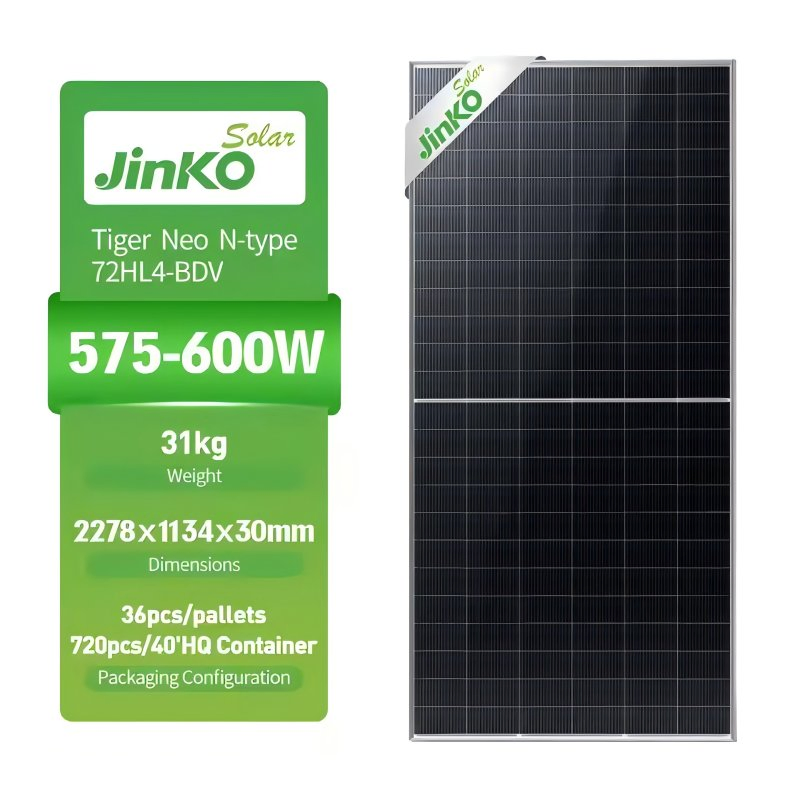

Tiger Neo N-type 72HL4-BDV 575-600 Watt

Number of Cells

144cells

Material

Monocrystalline Silicon

Certification

EST, ISO, CB, CE

Weight

31 Kg

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Rated

Specification

2278*1134*30mm

Trademark

Jinko

Origin

China

Product Description & Specifications

ELECTRICAL SPECIFICATIONS (STC)
Maximum Power (Pmax)	585Wp	590Wp	595Wp	600Wp
Maximum Power Voltage (Vmp)	44.02	44.17	44.31	44.45
Maximum Power Current (Imp)	13.29	13.36	13.43	13.50
Module Efficiency (%)	22.65%	22.84%	23.03%	23.23%
MECHANICAL CHARACTERISTICS
Cell Type	N type Mono-crystalline
No. of cells	144 (2×72)
Dimensions	2278×1134×30mm
Front Glass	2.0mm, Anti-Reflection Coating

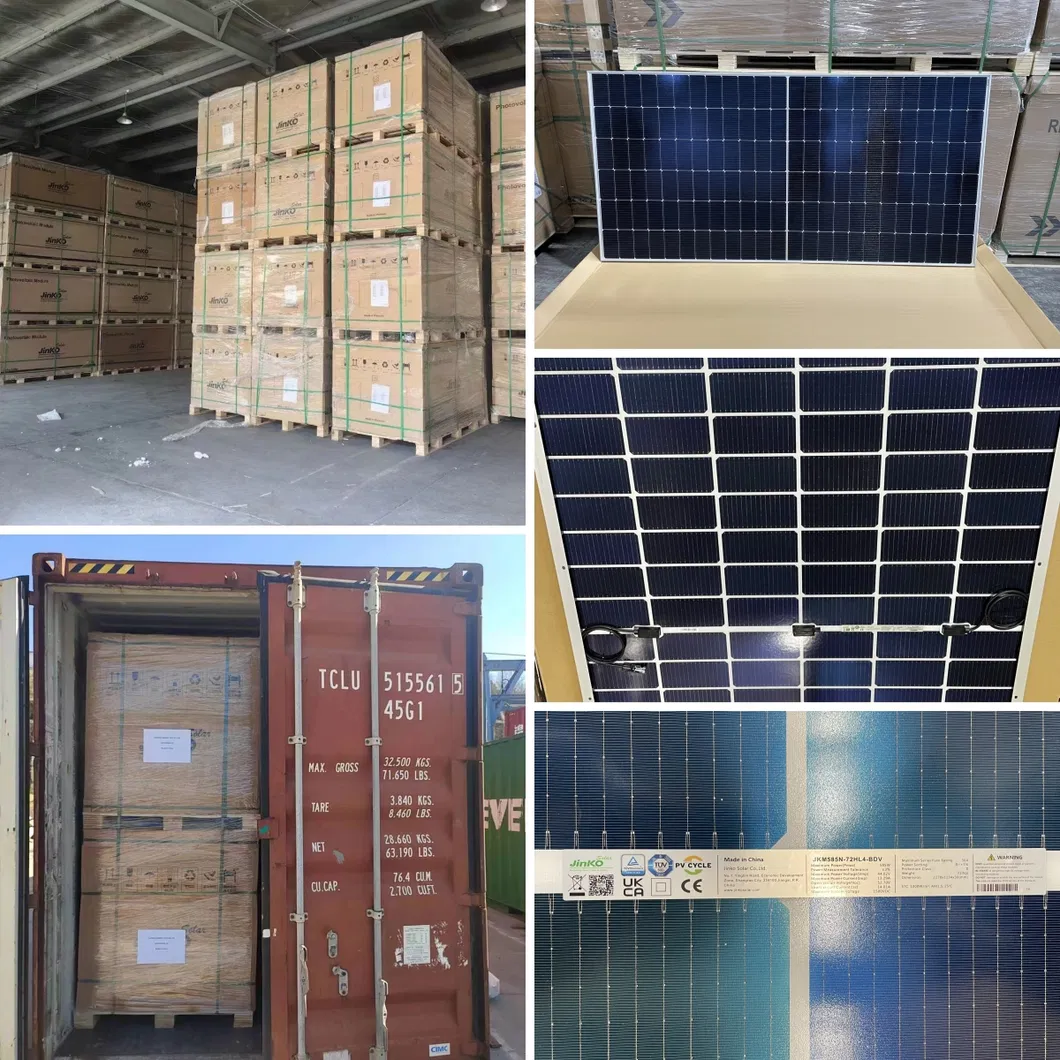

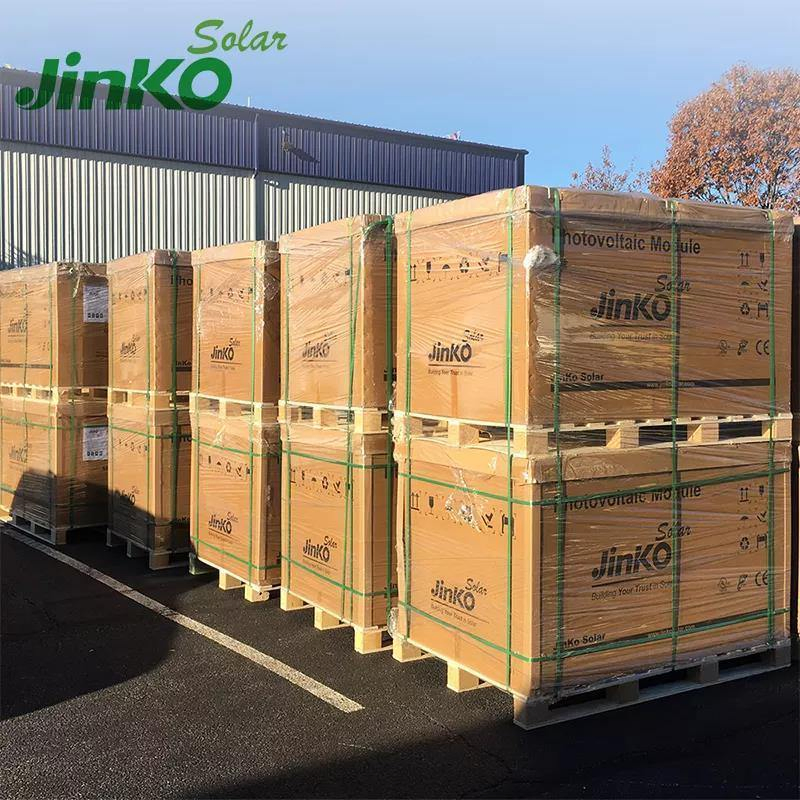

Packaging & Delivery

Package Size

227.80cm * 113.40cm * 3.00cm

Gross Weight

31.000kg

Container Loading

720PCS / 40'HQ Container

Pallet Configuration

36pcs/pallets, 72pcs/stack

Frequently Asked Questions

What is the maximum efficiency of the Tiger Neo N-type panels?

The Tiger Neo N-type 72HL4-BDV series reaches a maximum module efficiency of up to 23.23% for the 600Wp model.

How many solar cells are integrated into this model?

This model features 144 cells (arranged in a 2×72 configuration) using N-type Monocrystalline silicon technology.

What are the dimensions and weight for logistics planning?

Each panel weighs 31 kg and has dimensions of 2278mm x 1134mm x 30mm. For shipping, they are packed 36 pieces per pallet.

Are these panels durable for harsh environmental conditions?

Yes, they are equipped with an IP68 rated junction box, an anodized aluminium alloy frame, and 2.0mm anti-reflection coating glass, with an operating temperature range of -40ºC to +70ºC.

What certifications do these Jinko solar panels hold?

The panels are certified with EST, ISO, CB, and CE standards, ensuring international quality and safety compliance.

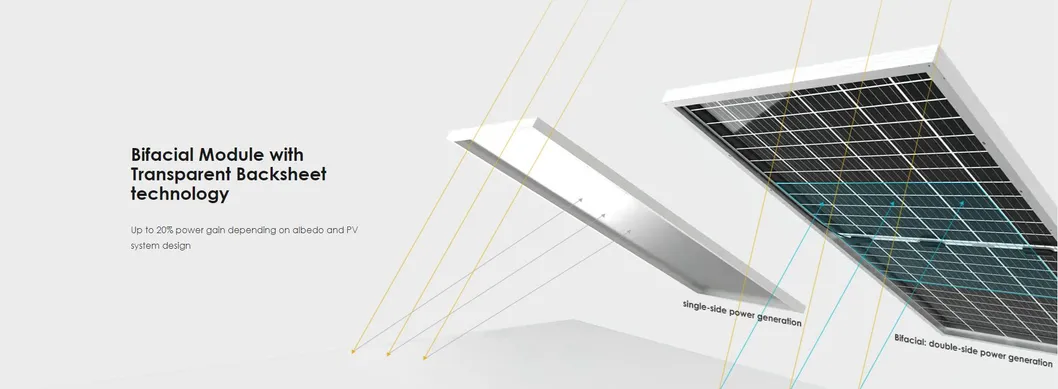

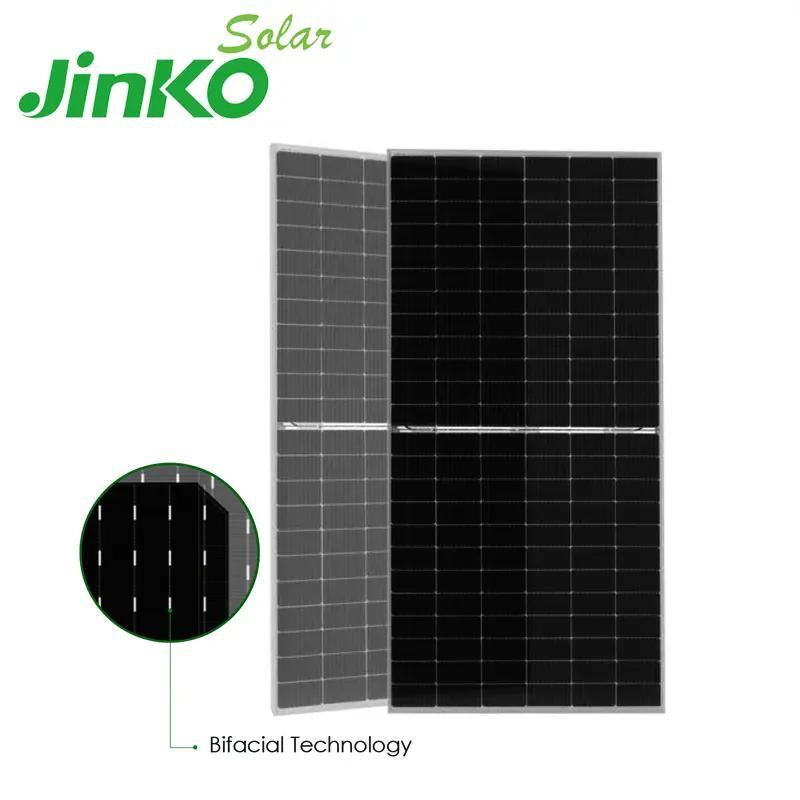

What is the bifaciality coefficient of these modules?

The bifaciality coefficients are φVoc: 98±5%, φIsc: 80±5%, and φPmax: 80±5%, allowing for significant energy gain from the rear side.
