Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
1 / 5
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China
Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China

Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
Jinko Solar 410W-630W
Number of Cells
144 Cells (6X24)
Application
Industrial / Residential
Material
Monocrystalline Silicon
Certification
ISO, CB, CE, TUV
Junction Box
IP68 Rated, 3 Diodes
Wind/Snow Load
2400PA / 5400PA
Glass
2.0mm High Transparency

Product Description

Solar Panel Overview
Tech Specs

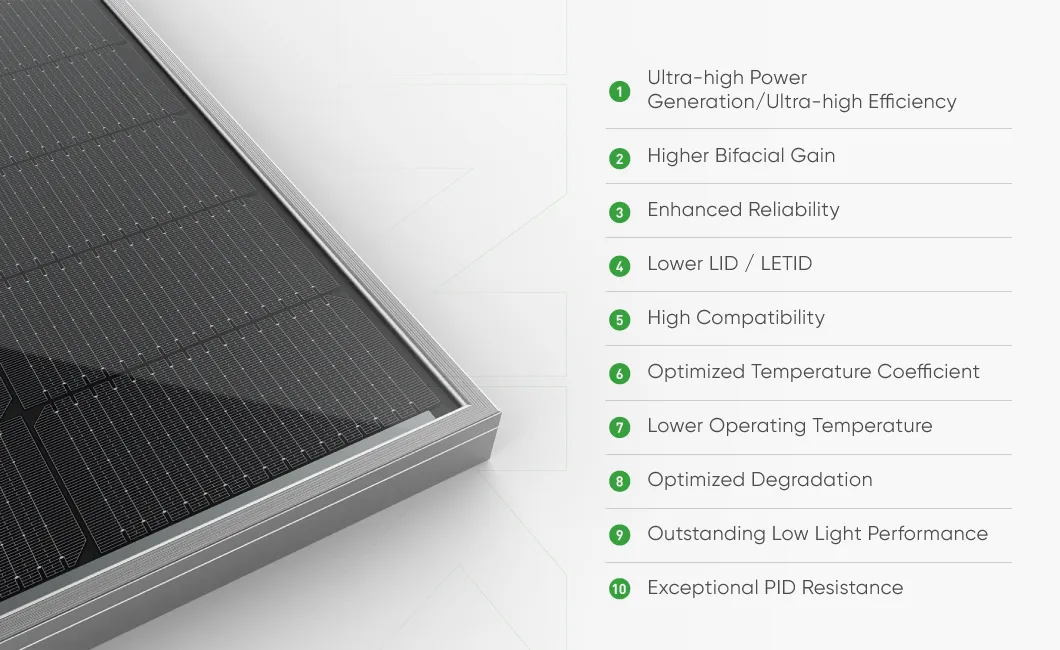

Efficiency Chart
Electrical Characteristics (Tiger Pro 72HC)
Model Number 550Wp 555Wp 560Wp 565Wp 570Wp
Max Power Voltage (Vmp) 40.90V 40.99V 41.09V 41.21V 41.34V
Max Power Current (Imp) 13.45A 13.54A 13.63A 13.71A 13.79A
Open-circuit Voltage (Voc) 49.62V 49.72V 49.82V 49.93V 50.04V
Short-circuit Current (Isc) 14.03A 14.12A 14.21A 14.30A 14.39A
Module Efficiency 21.29% 21.48% 21.68% 21.87% 22.07%

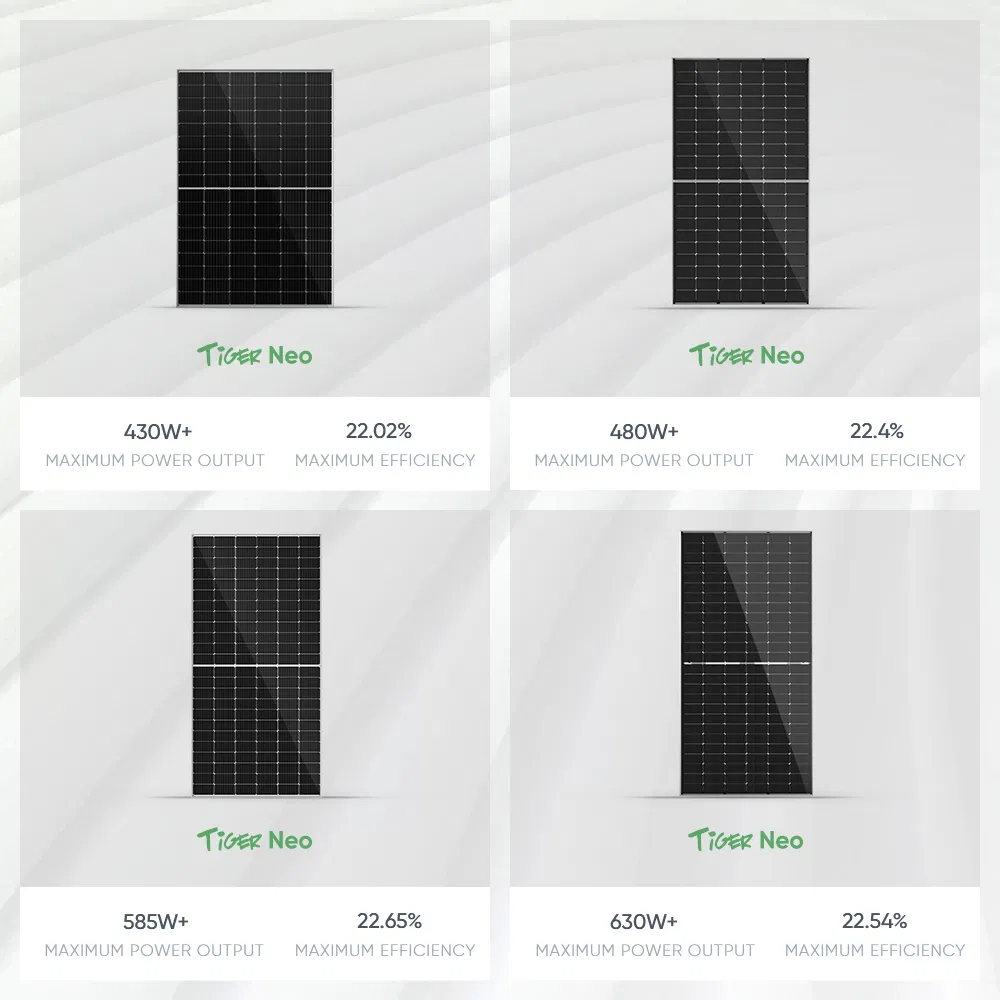

Product Series Categories

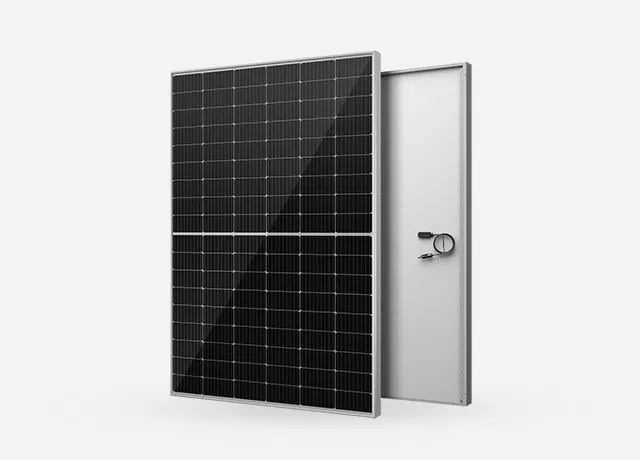

Tiger Neo 54HL4
Tiger Neo N-type 54HL4-(V)
Power Range:410-430W
No. of Cells:108 cells
Dimension:1722×1134×30 mm
Weight:22 kg
Tiger Neo N-type 60HL4-(V)
Power Range:460-480W
No. of Cells:120 cells
Dimension:1903×1134×30mm
Weight:24.2 kg

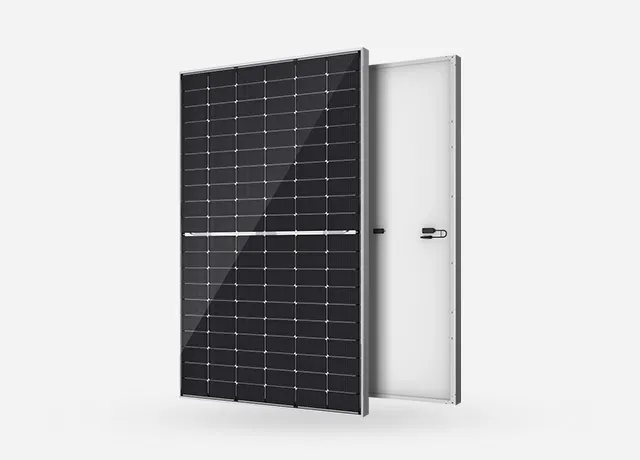

Tiger Neo 60HL4

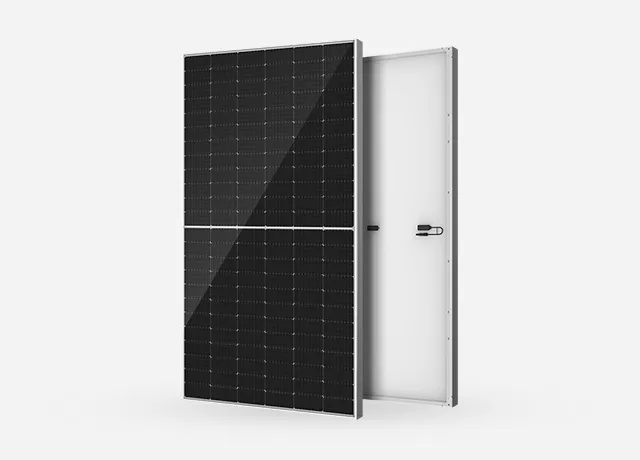

Tiger Neo 72HL4
Tiger Neo N-type 72HL4-(V)
Power Range:565-585W
No. of Cells:144 cells
Dimension:2278×1134×35mm
Weight:28 kg
Tiger Neo N-type 78HL4-(V)
Power Range:610-630W
No. of Cells:156 cells
Dimension:2465×1134×35mm
Weight:30.6 kg

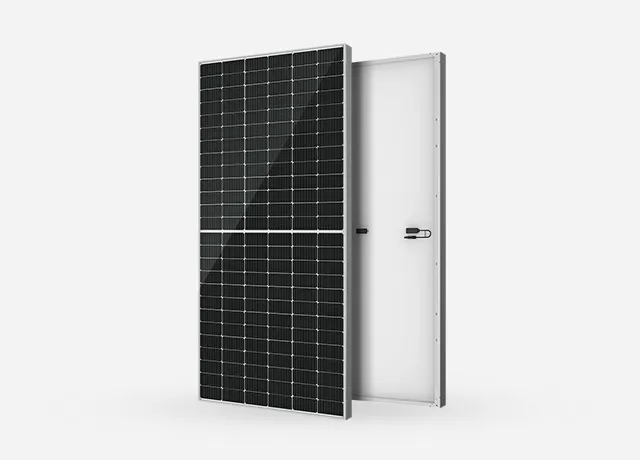

Tiger Neo 78HL4

Global Quality & Project Cases

Tier 1 Status

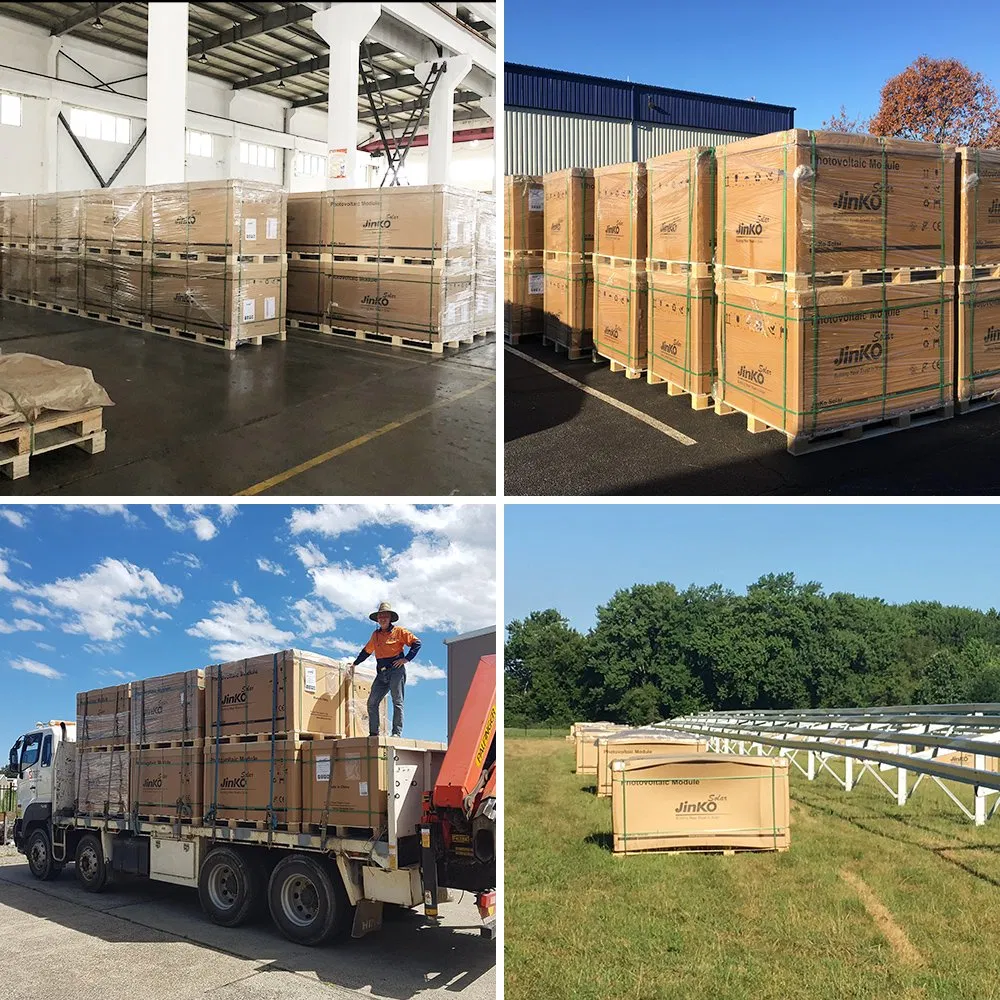

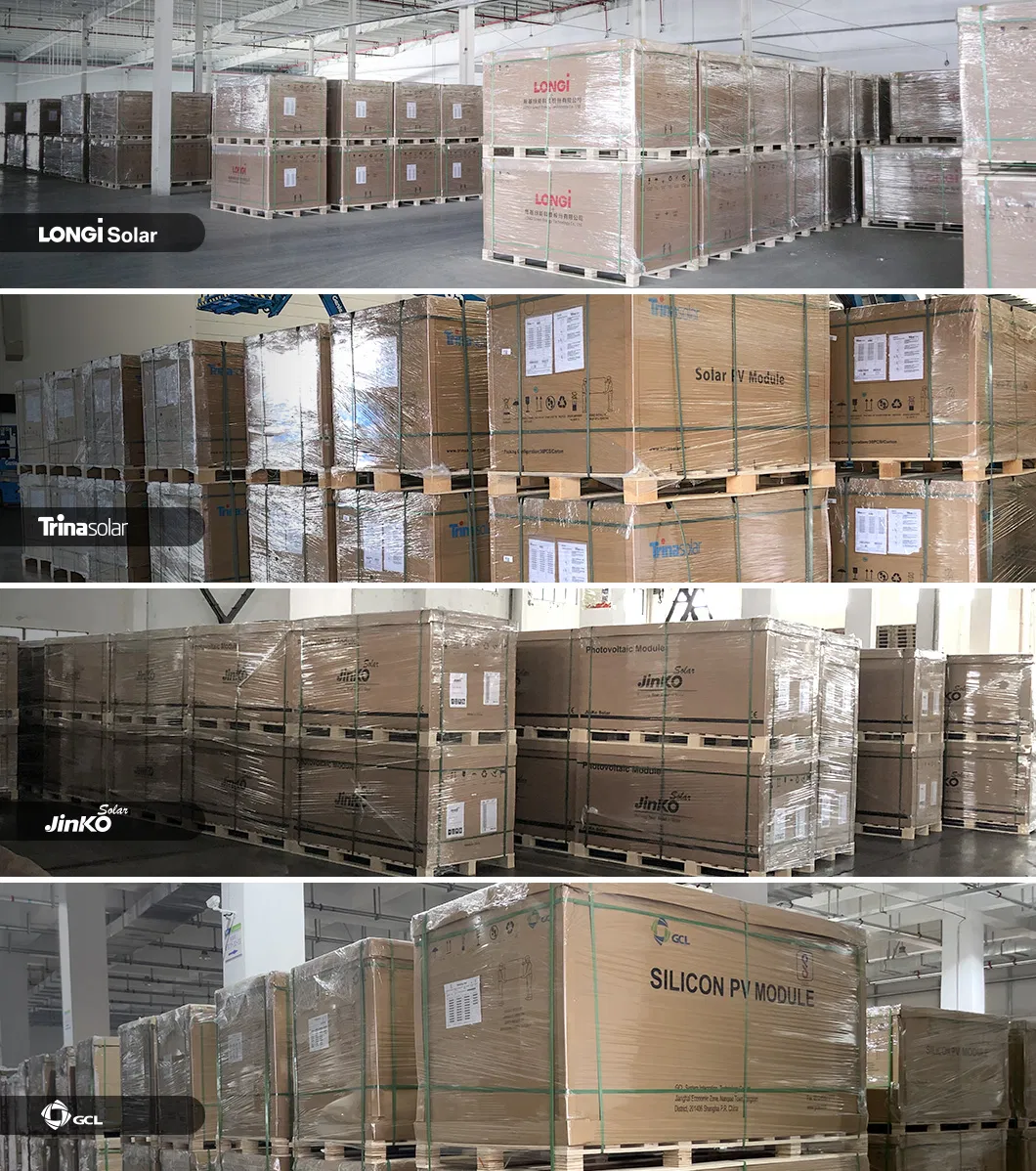

Manufacturing

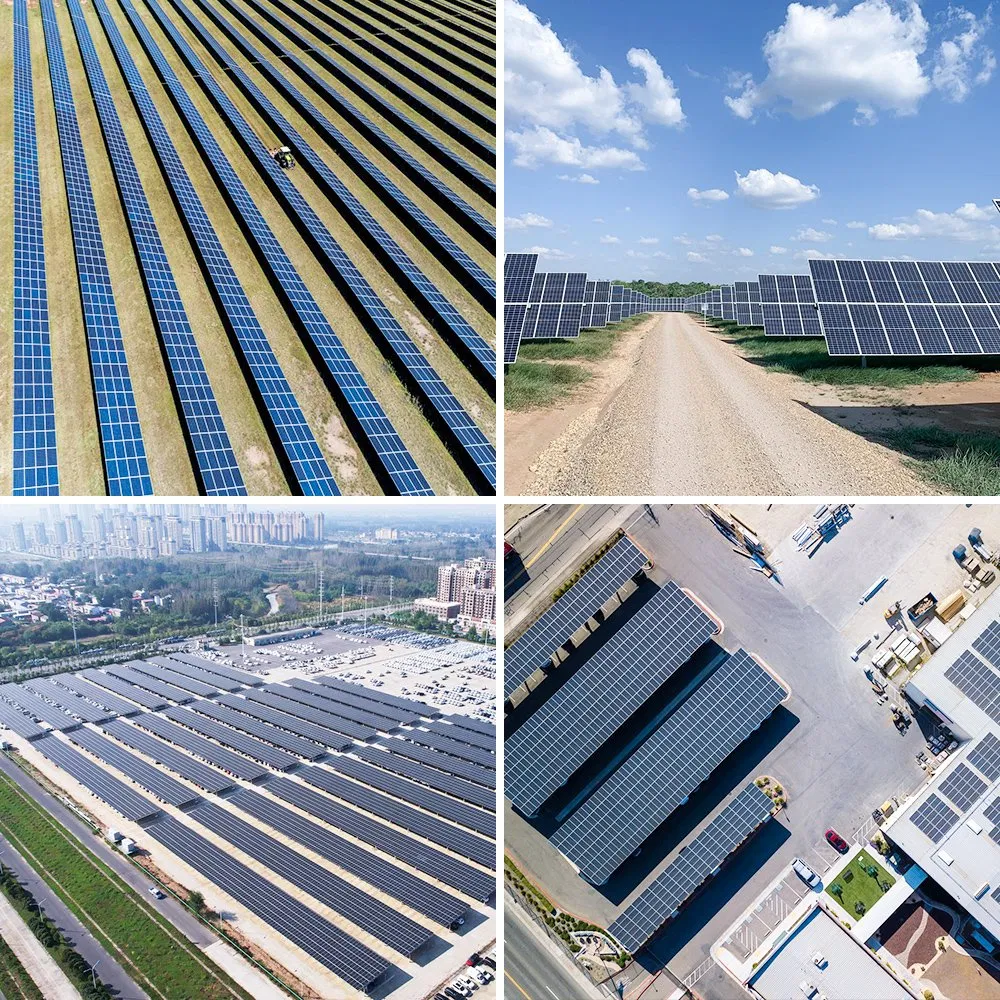

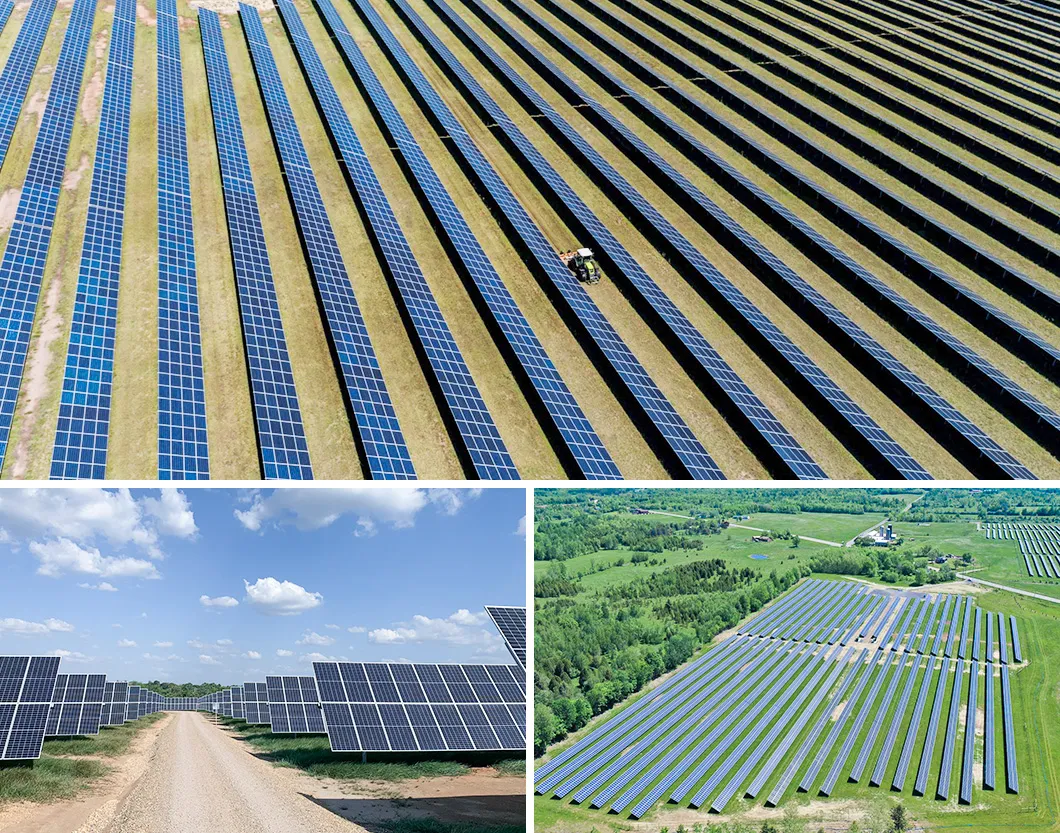

Project Case 1

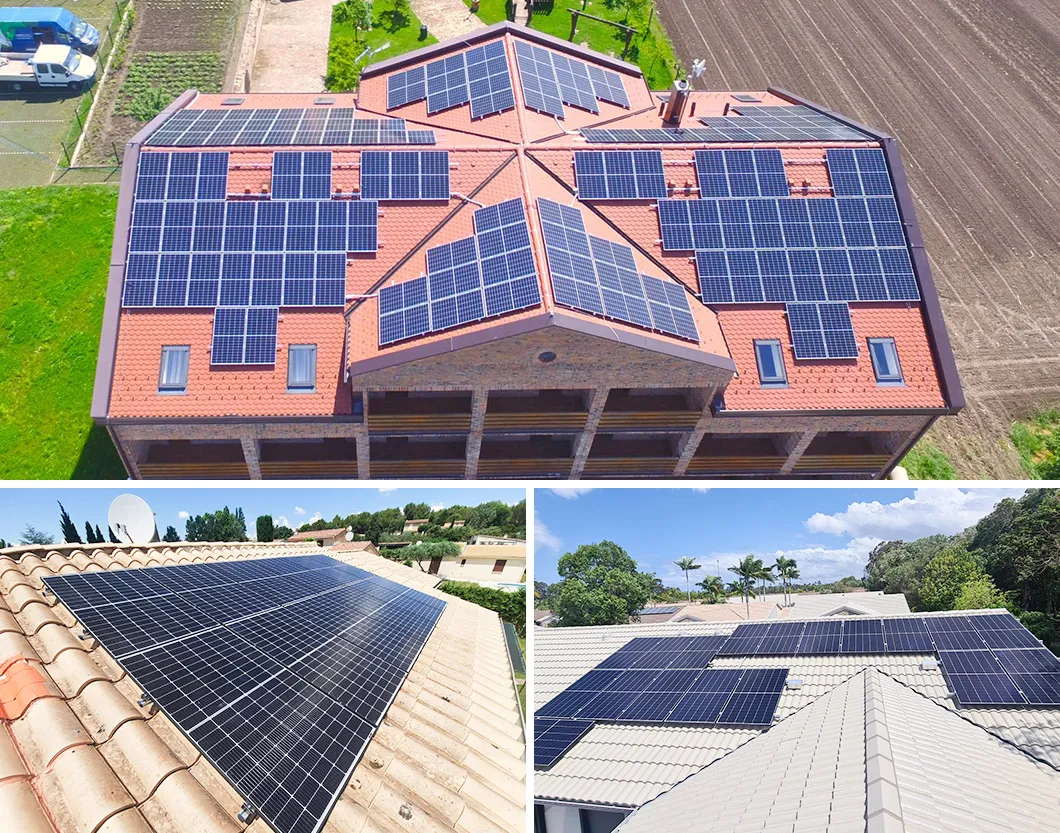

Project Case 2

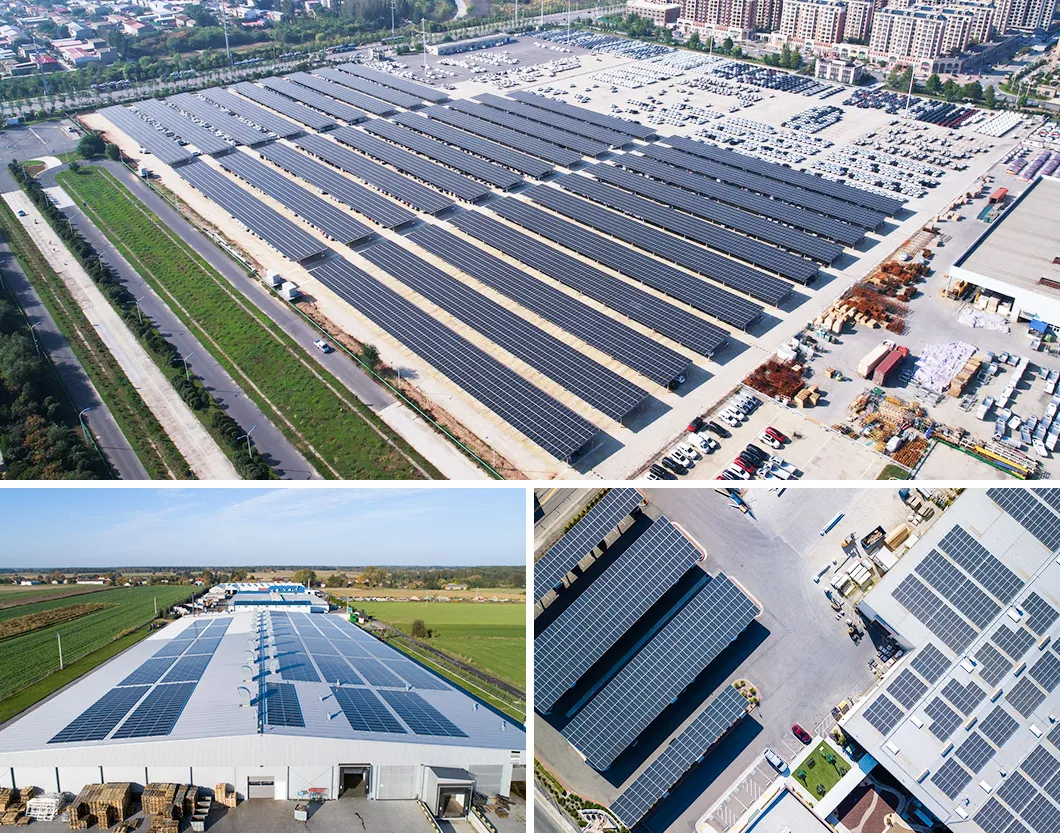

Project Case 3

Frequently Asked Questions

Can the products be shipped to my specific region?
Yes, we export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm the specific logistics based on your provided region.
What is the standard lead time for orders?
For requirements under 200kW, the lead time is typically 10 working days. Orders exceeding 200kW require individual negotiation.
What are the available payment terms?
We accept 100% TT, or a structured payment of 30% TT in advance with the remaining 70% TT paid when goods are ready before shipment.
What kind of warranty is provided with these solar modules?
The modules come with a 12-year enhanced product warranty on materials and workmanship, plus a 25-year linear power output warranty.
What are the mechanical load capacities of these panels?
These solar panels are designed to withstand significant environmental stress, certified for wind loads up to 2400PA and snow loads up to 5400PA.
What type of cell technology is used in the Tiger Neo series?
The series utilizes N-type Monocrystalline silicon cells, which offer higher efficiency and better performance compared to traditional P-type cells.
