Lightweight 12 Level Puzzle Parking System with Aluminum Frame for Small Commercial Building Use

Customization:	Available
Level:	12 Levels
Parking Post:	100-199 Posts

Send Inquiry

Product Description

Overview & Basic Info

Color	White
Installation Type	Multi-Level, Surface Mount, Underground
Material	Steel
Operation Mode	Automatic
Power Source	Electric, Solar
Safety Features	Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Railings, Safety Sensors
Suitable for	Commercial Use, Public Parking, Residential Use
Warranty	2 years
Lifting Speed	8-30 M/Min
Access Time	90s
Certification	CE/ISO9001/SGS
Drive	Hydraulic
Production Capacity	200,000 PCS/Year

✓

Product Description

Maximizing Land Utilization Efficiency: Traditional parking requires 30-40 sqm per car. This lifting and translating system uses vertical stacking to reduce this to 10-15 sqm, increasing utilization by 2-3 times.

Simple and Reliable Structure:

Low failure rate: Simple movement trajectory (lifting + translating) for easy maintenance.
Controllable costs: Core components designed for 8-10 years of service life.
Site Adaptability: Flexible layouts for rectangular or irregular sites with low ground bearing requirements.

★

Global Project Showcase

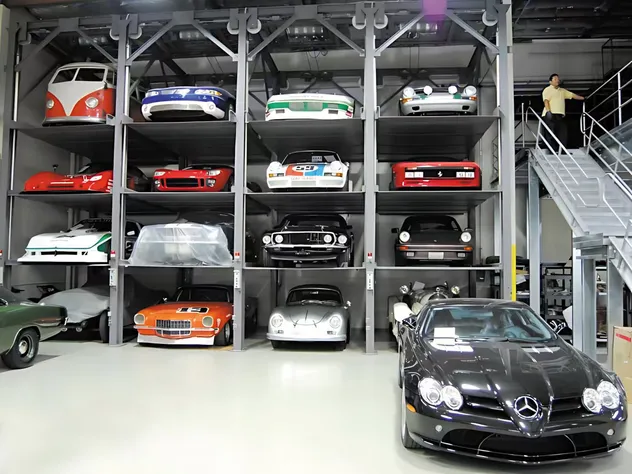

United States Project

5-Floor Vertical Horizontal System with 38 Spaces.

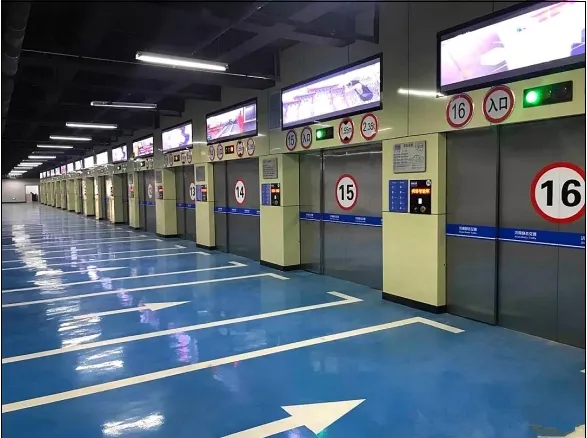

Shungeng Manor Project

7-Floor Underground System with 702 Spaces and Multi-Payment solutions.

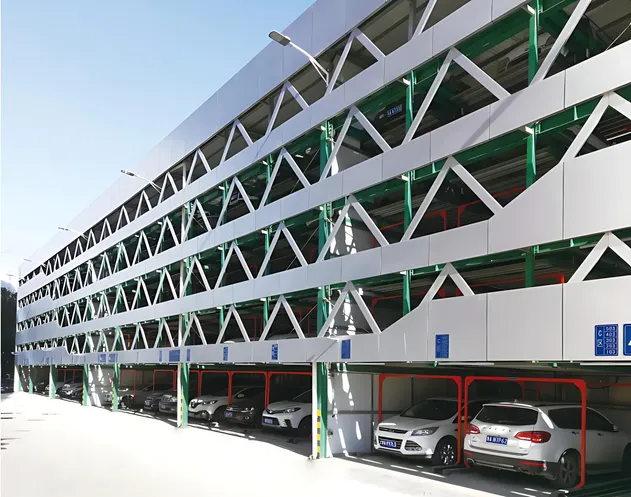

Construction Committee Project

5-Floor Smart System with 1,338 Spaces. Fire & Earthquake Resistant.

⚙

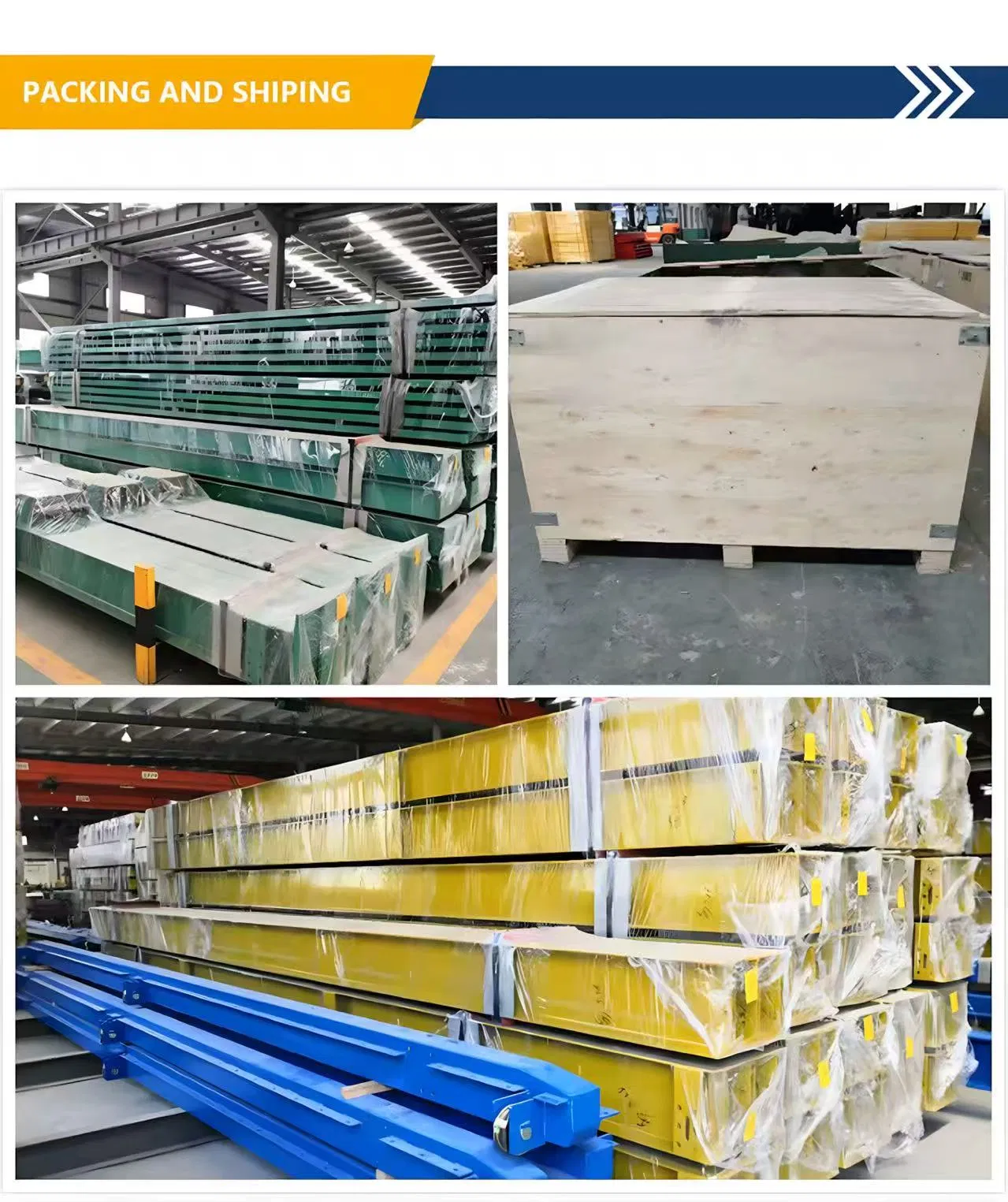

Facility & Delivery

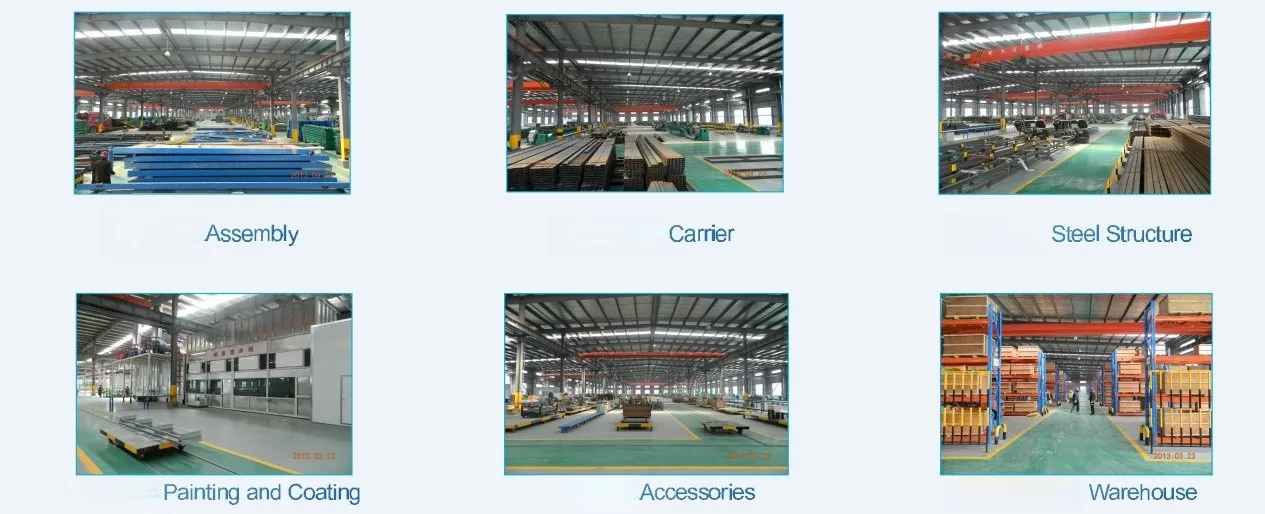

The production workshop covers an area of 50,000 square meters. The entire process from blanking, machining, painting, to assembly and logistics achieves a scientific layout with an annual capacity of 200,000 units.

Frequently Asked Questions

How to prevent equipment corrosion in high-humidity areas?

Hot-dip galvanized steel and fluorocarbon spraying technology are used, with salt spray tests reaching 1000 hours. Optional dehumidification systems are available.

How to deal with icing in cold regions?

Heated car carriers (adjustable from -30ºC to 50ºC) and anti-slip coatings on guide rails are used. Our low-temperature start-up technology operates reliably down to -40 °C.

Can unmanned management be realized?

Yes, the system supports AGV robots; owners simply park at the entrance. IoT systems monitor equipment status in real-time and alert for any abnormalities.

What are the typical construction costs?

Lifting and traversing types cost approximately 15,000-30,000 units per space, while vertical lifting types cost 60,000-100,000 per space. We provide optimized solutions to reduce energy consumption by 20%.

Are there any safety certifications?

The equipment is fully certified with CE, ISO9001, and SGS standards, ensuring compliance with international safety and quality requirements.

Is the system customizable?

Yes, we provide customer-designed solutions for specific site dimensions, vehicle sizes (Sedan/SUV), and specific load capacity requirements up to 3000kg.
