Lightweight Aluminum Tripod Structure Ballasted Systems for Solar Roof Mounting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ALV0323-8

Certification

ISO

Application

Commercial/Industrial/Residence

Material

Al6005-T5

Type

Ground/Roof Bracket

Wind Load

60 M/S

Snow Load

1.4 kN/M2

Finishing

Anodized Silver

Product Description

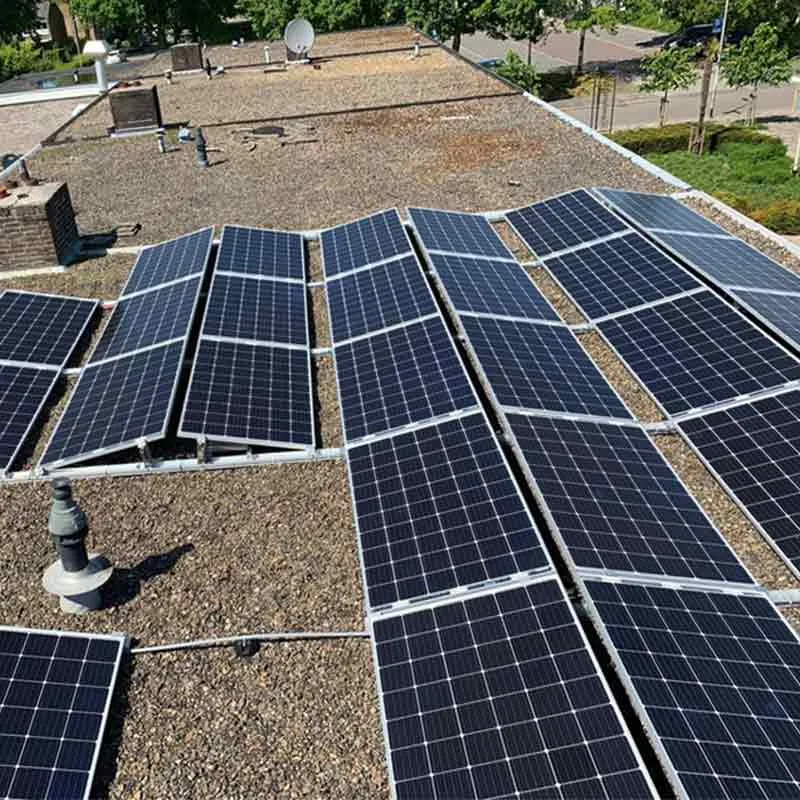

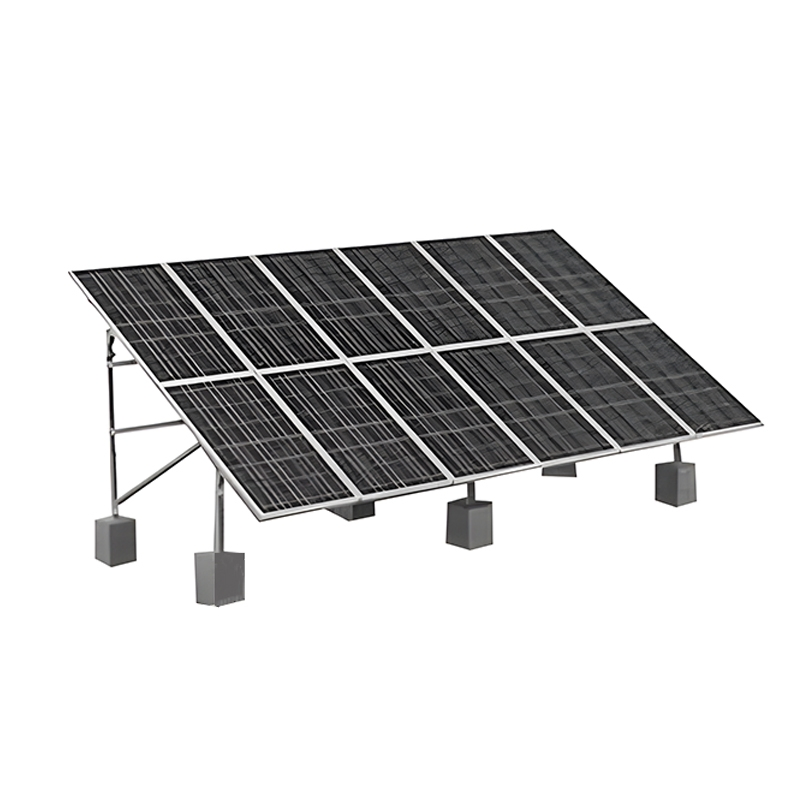

Aluminum Tripod Structure Ballasted Systems

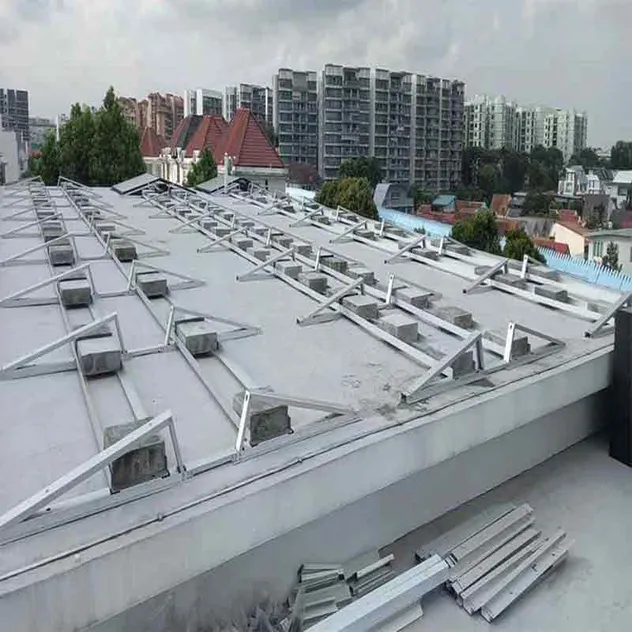

This product is an aluminum alloy solar bracket ballast system with a non-penetrating design, achieving stable fixation through counterweights. It does not require drilling to damage roof or ground structures, suitable for commercial, industrial rooftop and hardened ground PV projects. It features easy installation, protects the building itself, and ensures safe and stable operation of the PV array.

Product Advantages

✓ No Destructive Construction: No drilling or piling on roofs or grounds required, avoiding damage to waterproof layers. Ideal for commercial and historical buildings.
✓ High-Quality Aluminum Alloy: Lightweight, high-strength, with strong corrosion and UV resistance. Service life of 15-20 years.
✓ Modular Design: Flexible adjustment of counterweight schemes and layout according to roof load-bearing and module specifications.
✓ Weather Resistance: Excellent wind and snow load resistance, customizable for different regional climate parameters.

Product Parameters

Product Name	Solar Bracket Ballast System
Material	AL6005-T5
Surface Treatment	Anodized
Color	Silver
Application	Roof, Ground
Wind Load	60M/S
Snow Load	1.4N/M2
Warranty	10 Years
Service Life	25 Years

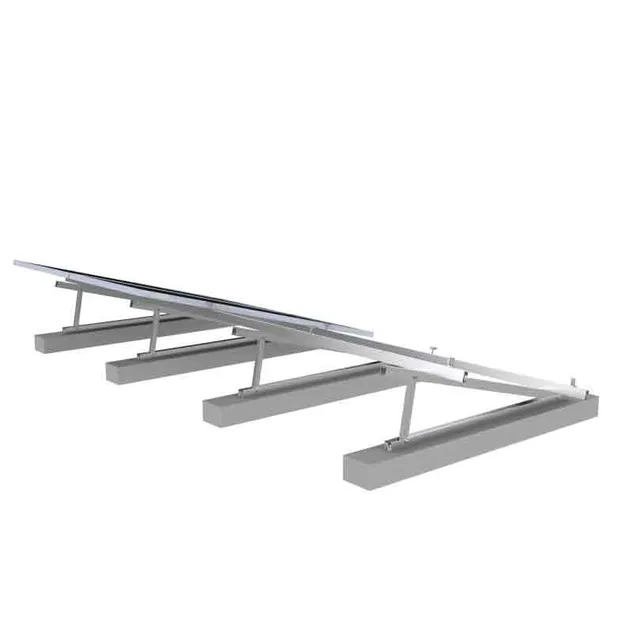

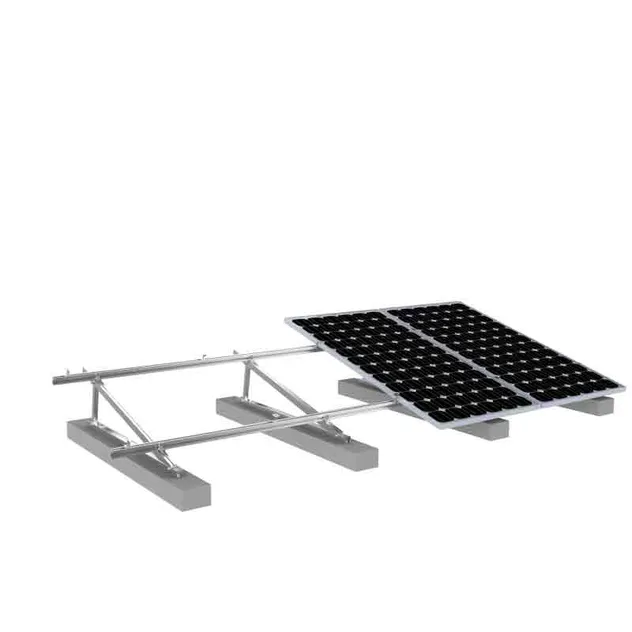

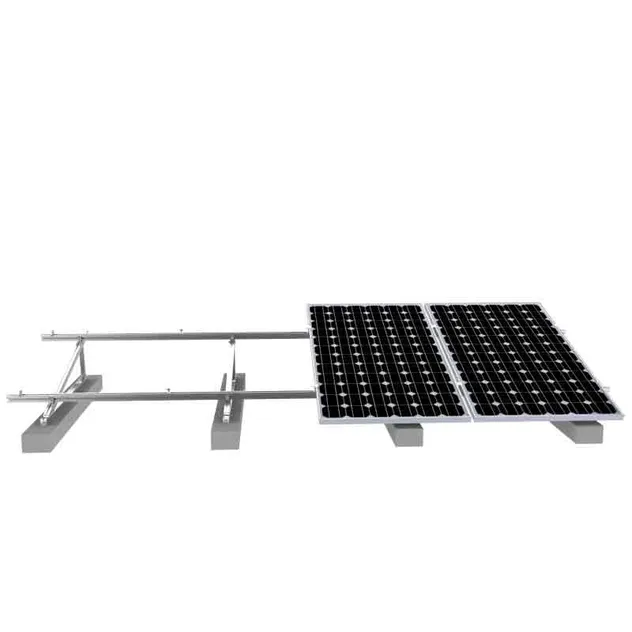

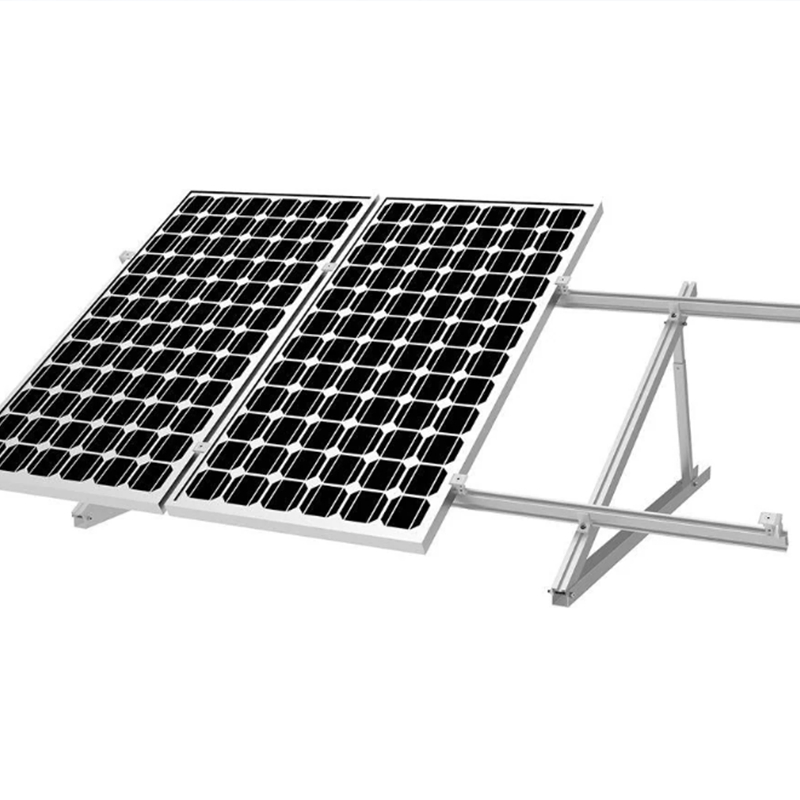

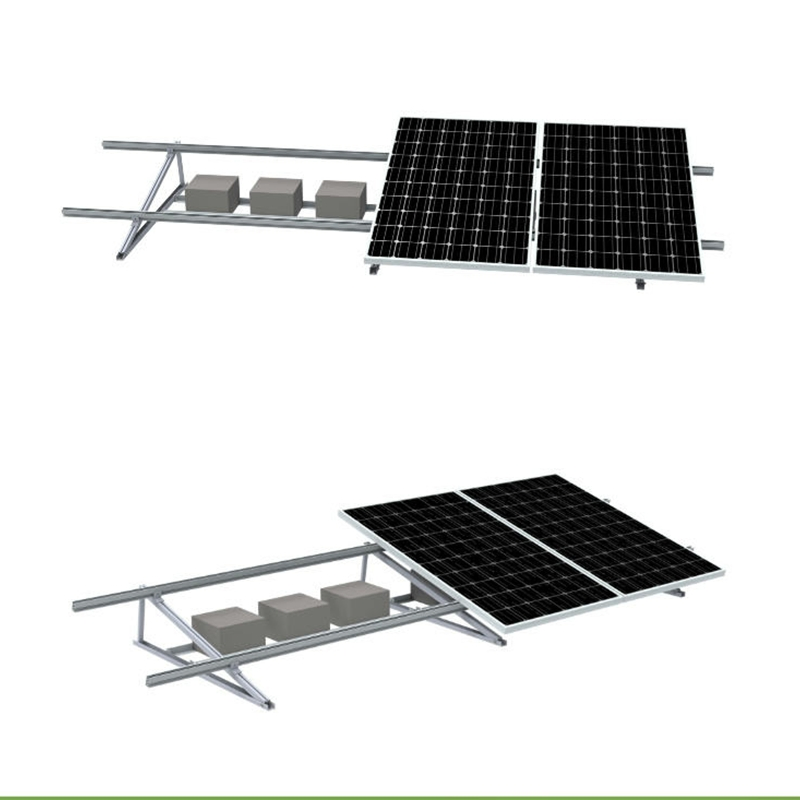

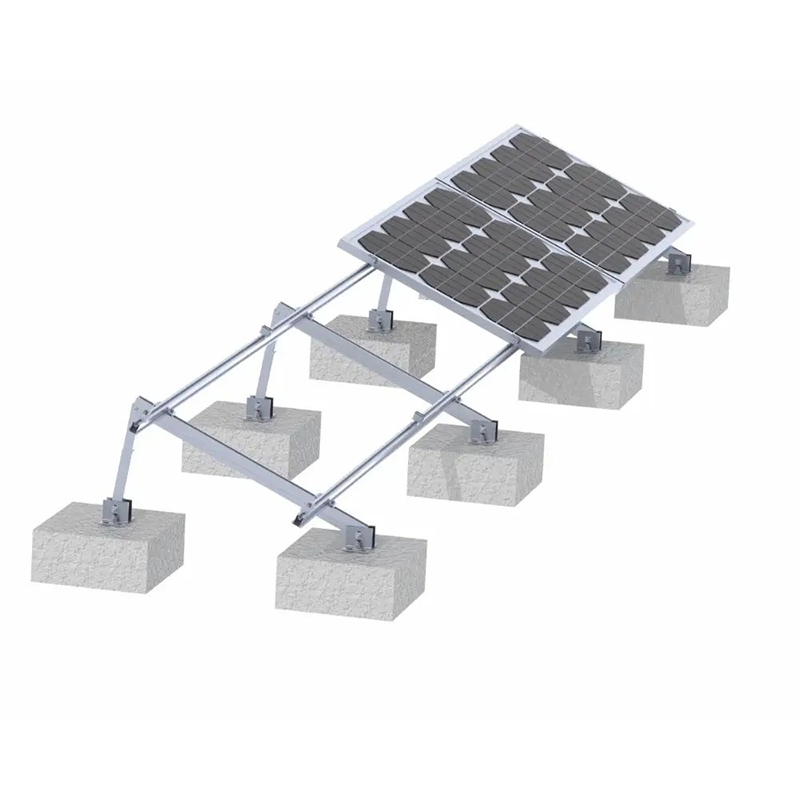

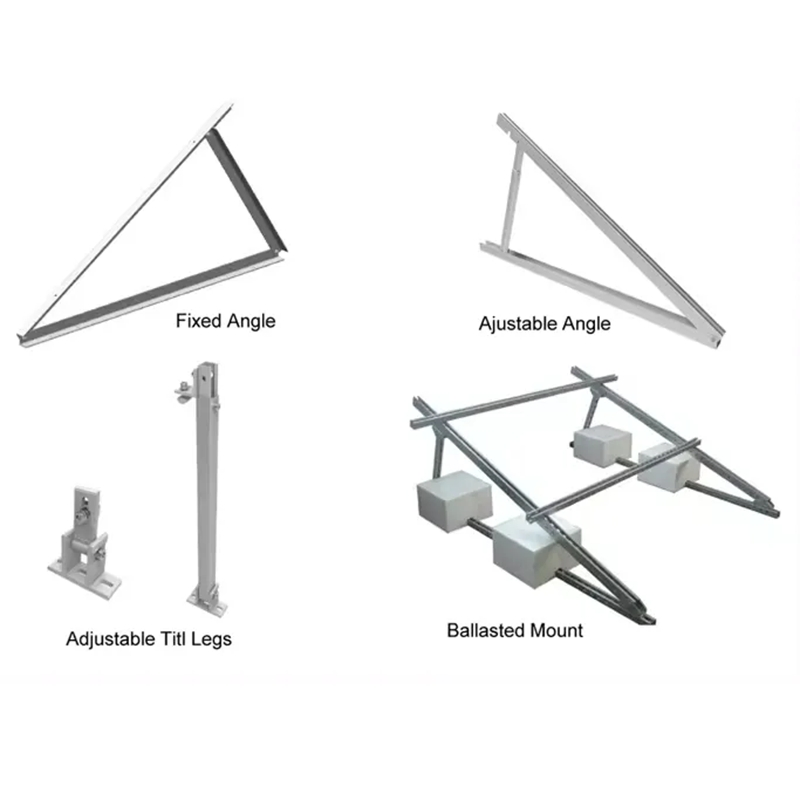

Product Details

Why Choose Our Solutions

1. Rich Experience: Extensive experience in production and sales of solar brackets with professional market insights.

2. High-Quality Products: Made of premium materials using latest technologies for durability and stability.

3. Cost-Effective: Competitive pricing plans while ensuring product quality and comprehensive service.

4. Professional Service: Dedicated support team for technical consultation, installation, and maintenance.

5. Safety Guarantee: Products pass rigorous safety tests and certifications with full warranty support.

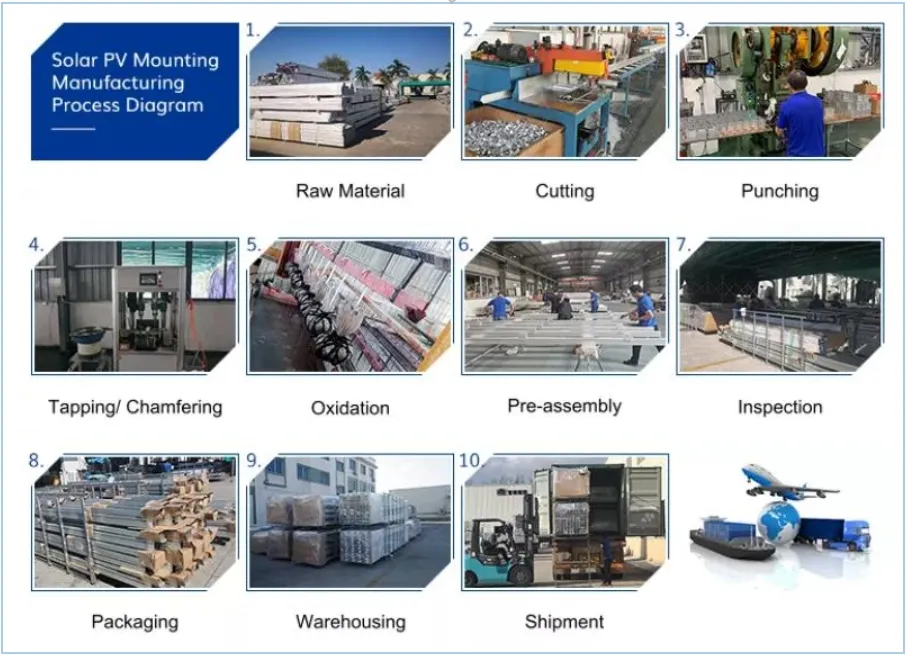

Packing & Delivery

Frequently Asked Questions

What materials are used for the solar bracket mounting system?

The system is mainly constructed from 6005-T5 aluminum alloy extrusion, with certain components utilizing carbon steel or zinc, magnesium, and aluminum alloys for optimal strength.

What factors must be considered before installation?

Key factors include geographic location, local weather history (wind and snow loads), solar panel dimensions/weight, clearing height, and the required panel tilt angle.

How long is the typical installation period?

The duration depends on the method and location. While concrete bases may take several days to cure, pile driving is much faster. Generally, cycles range from a few days to a few weeks.

What is the expected service life and warranty?

Our solar racking systems typically offer a service life of 25 years, with standard warranties ranging from 10 to 15 years depending on the specific material and environment.

How much wind and snow load can the brackets withstand?

Our designs are calculated by engineers to withstand local extremes. Standard systems handle up to 60m/s wind speed and 1.4kN/m2 snow load, but these can be customized for specific regional requirements.

What maintenance is required for the system?

Regular cleaning of panels and periodic inspection of bolts, nuts, and fasteners are recommended. Extra inspections should be conducted after severe weather events like typhoons or heavy snow.
