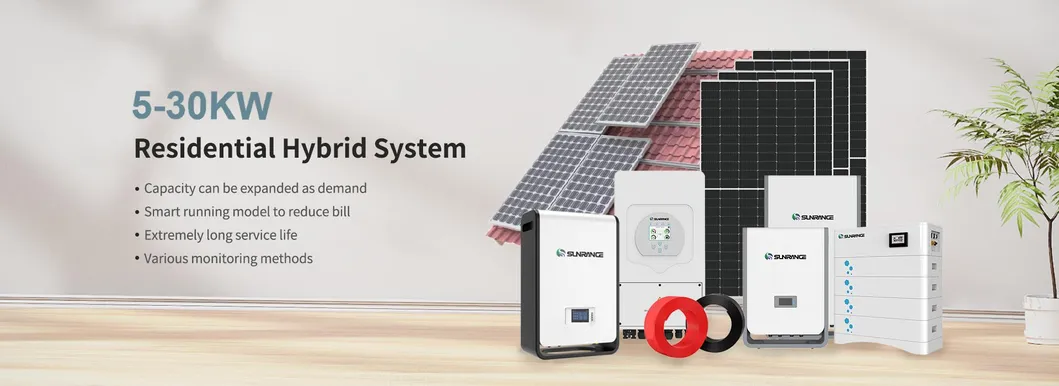

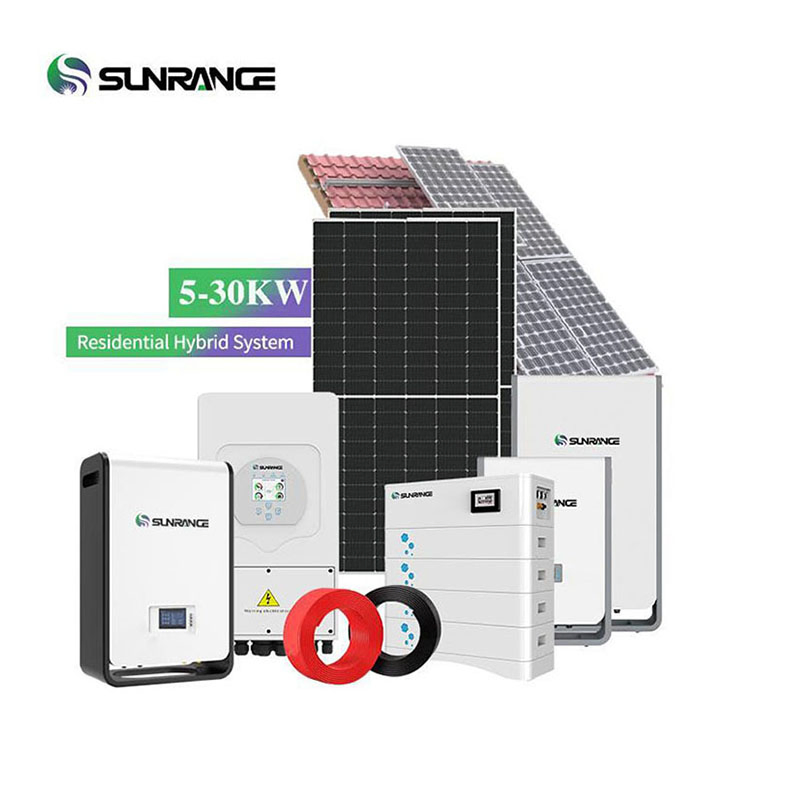

Lightweight Home Battery System for Sustainable Energy Storage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SR-5/10/15/20/30KW-HY

Nominal Capacity

Customize

Keyword

Complete Set Solar System

Solar Panel

Monocrystalline 400-700W

Battery Type

Gel / LiFePO4 Lithium Battery

Load Power (W)

2.5kw - 30kw

Controller

MPPT Intelligent Controller

Inverter Type

Hybrid Storage Solar Inverter

Mounting Type

Ground / Roof Mounting

Production Capacity

50000 Sets/Year

Product Description

Model. No.		SR-5KW-HY	SR-10KW-HY	SR-15KW-3HY	SR-20KW-3HY	SR-30KW-3HY
System Parameter	AC Rated Power	5KW	10KW	15KW	20KW	30KW
	Grid Voltage	220/230VAC		380/400VAC
	Max. Output (KVA)	5.5	11	16.5	22	33
Solar Panel	Quantity	12PCS	21PCS	30PCS	42PCS	56PCS
Solar Panel	Total Power	6.96KW	12.18KW	17.4KW	24.36KW	32.48KW
Lithium Battery	Model	SR48200	SR48280	SR48100	SR48200	SR48280
Lithium Battery	Bank Capacity	10.24KWH	14.336KWH	30.72KWH	40.96KWH	57.344KWH

Technical Components

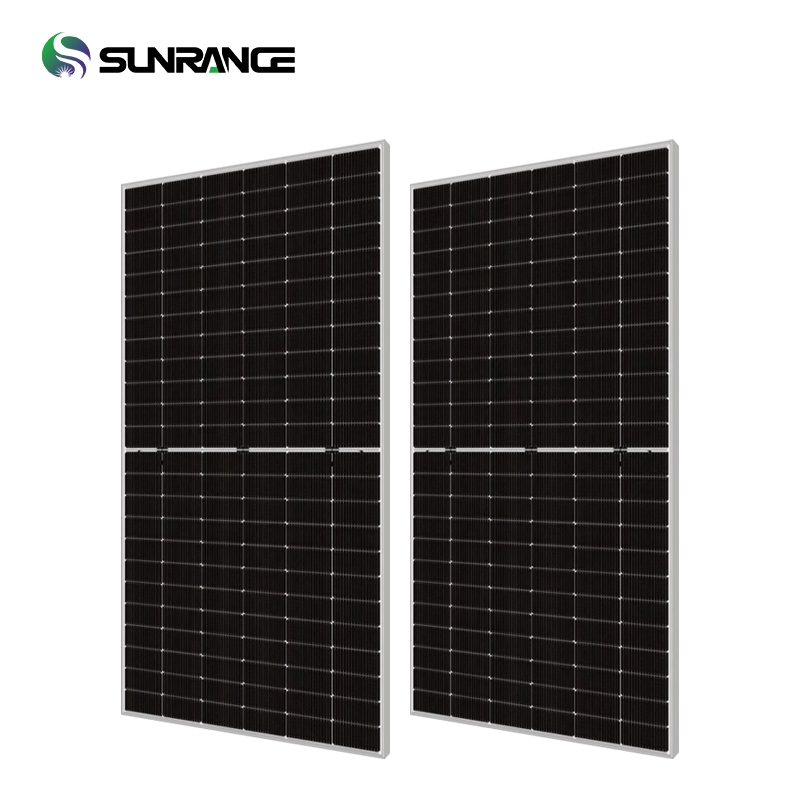

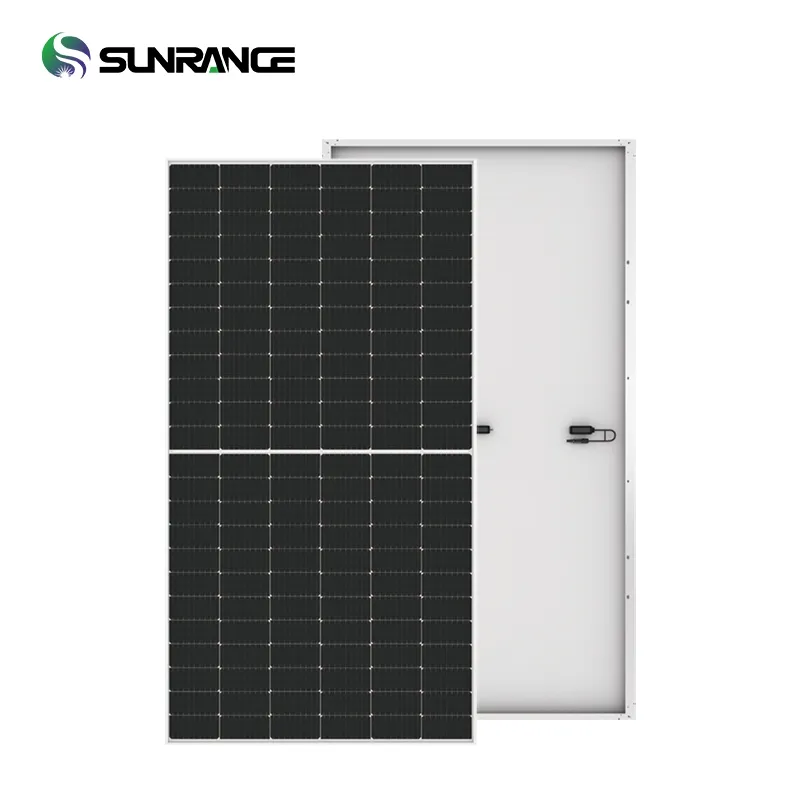

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power: 580W
Efficiency: 22.44%
Voc: 51.57V | Vmpp: 43.09V
Advanced N-Type technology ensures higher efficiency and lower degradation over time.

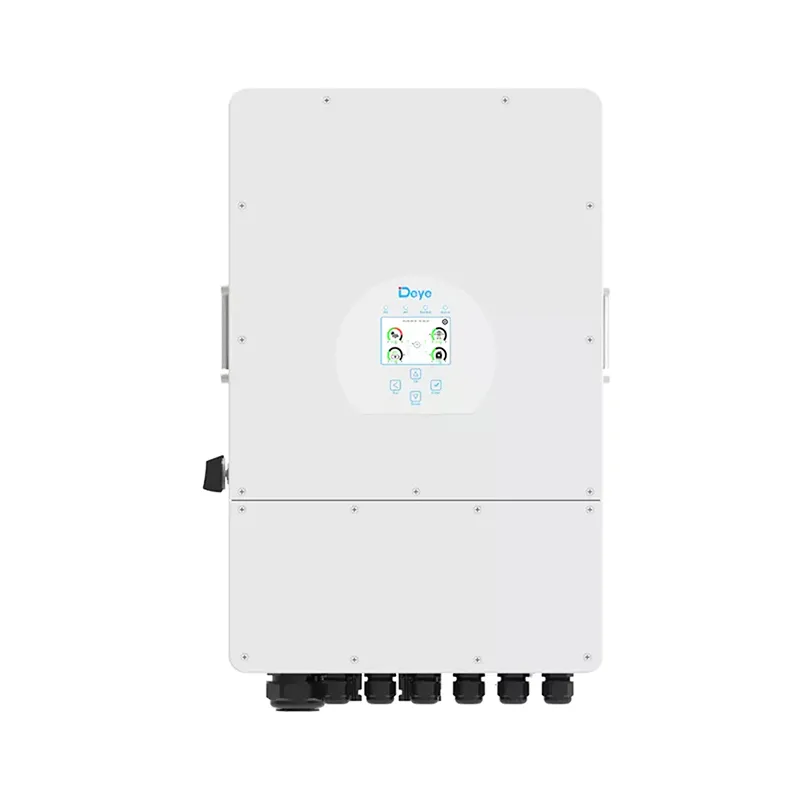

All-in-One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections in one unified system. Features dynamic power distribution to fulfill real-time load demand and easy capacity expansion.

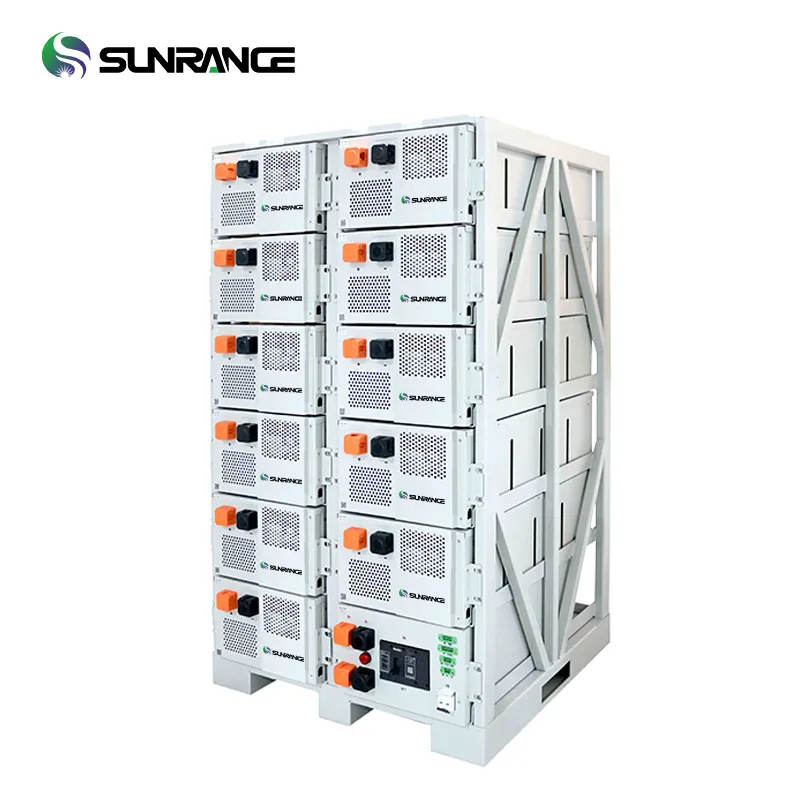

High-Performance Battery Packs

Rack-mounted LiFePO4 Lithium Ion options.
Lifespan: 6000+ cycles, up to 90% DOD.
Advantages: Maintenance-free, high discharge performance, and wide ambient temperature suitability.

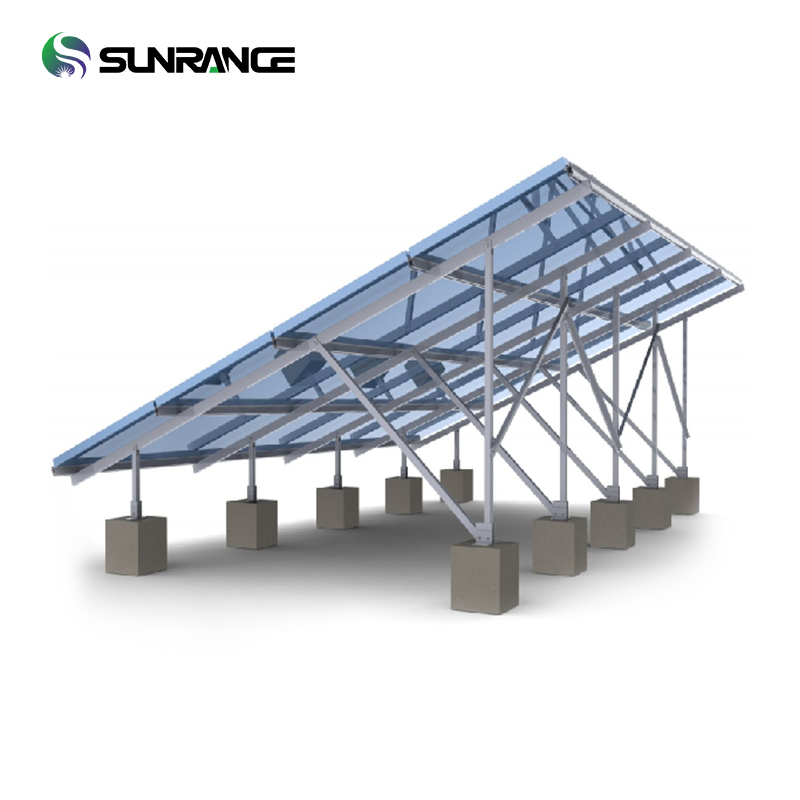

Mounting & Accessories

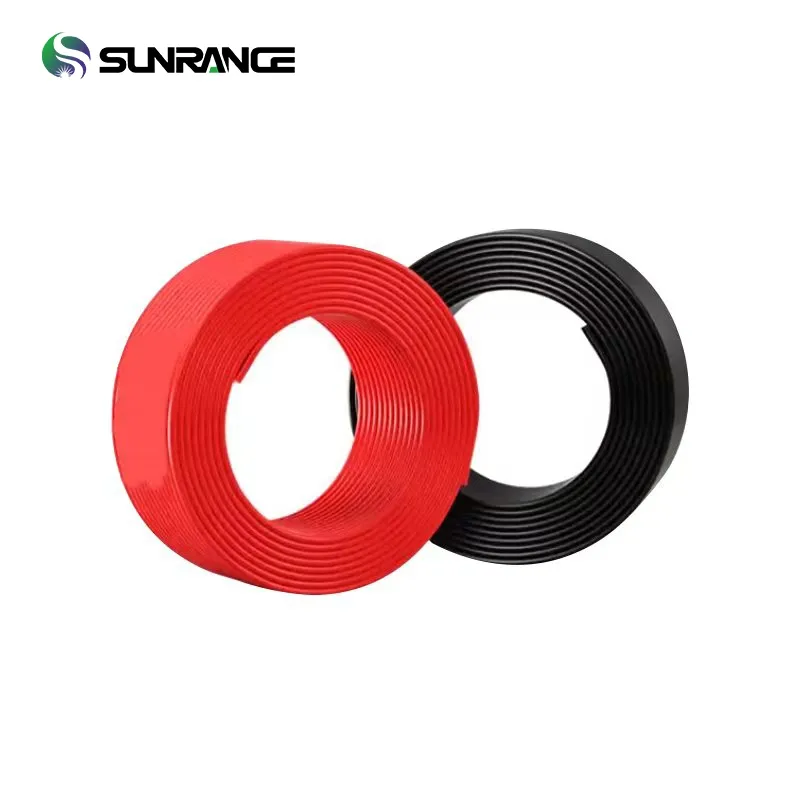

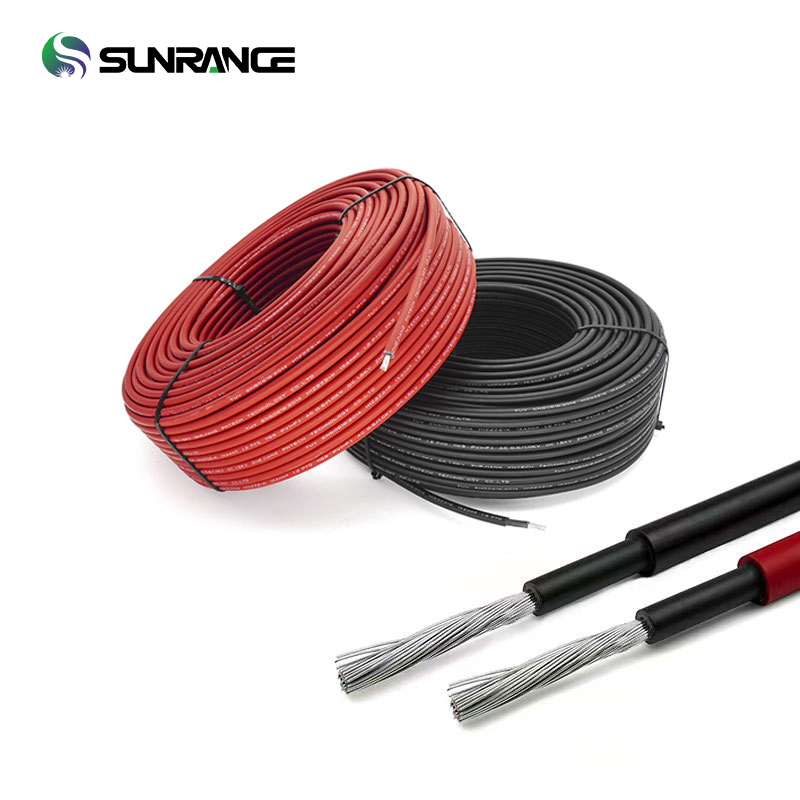

DC Cable: 4mm2 / 6mm2 TUV rated.
Mounting System: Ai6005 & SUS304 rails, compatible with asphalt shingle, tile, and ground installations.

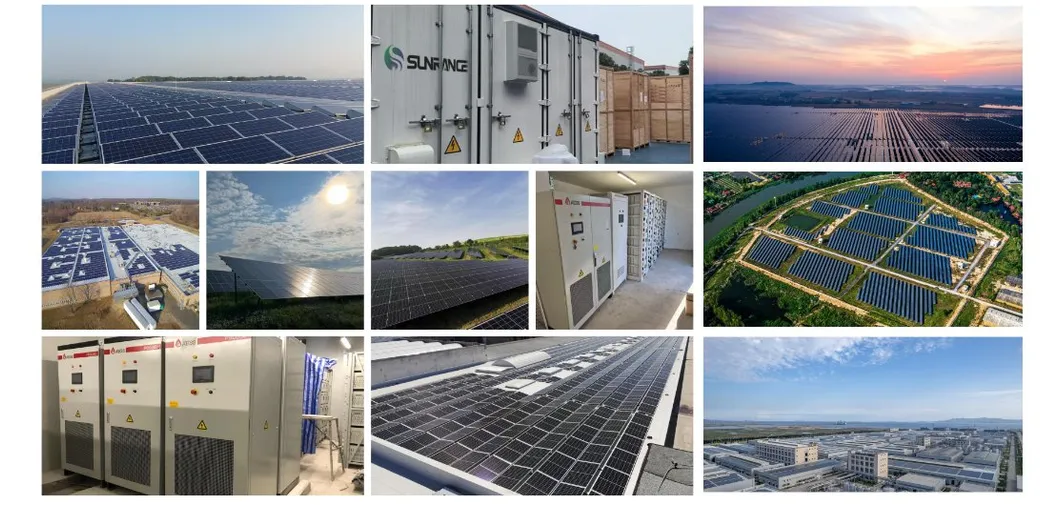

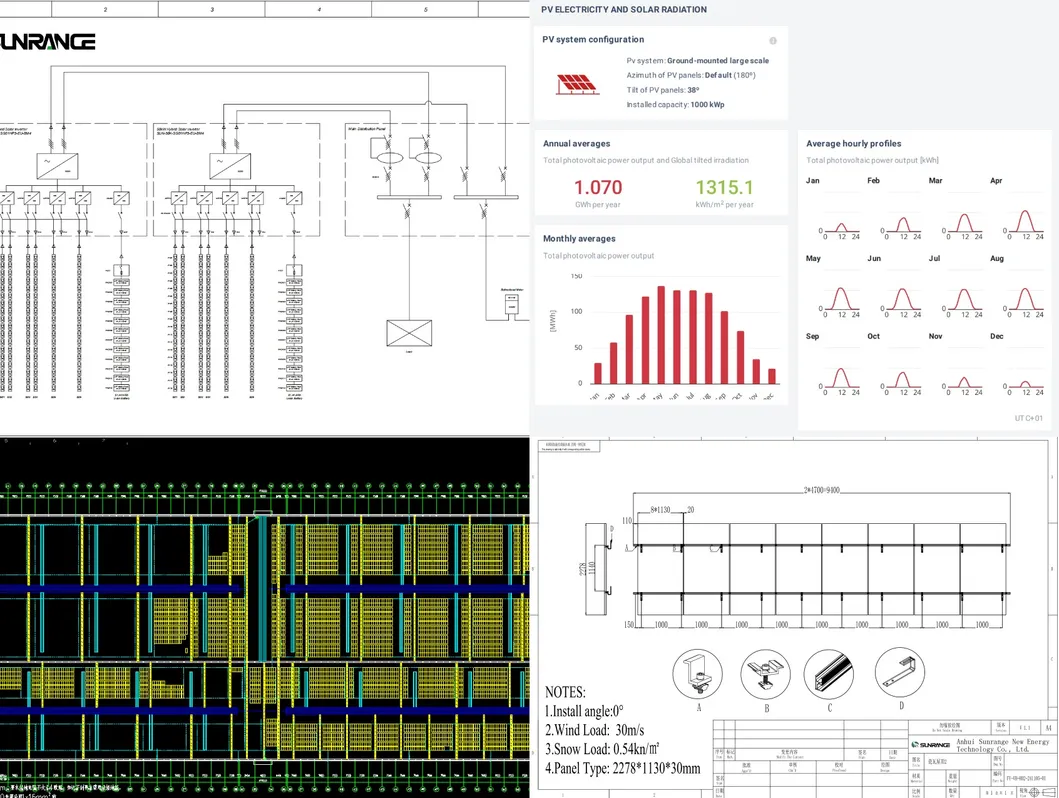

Technical Support & Cases

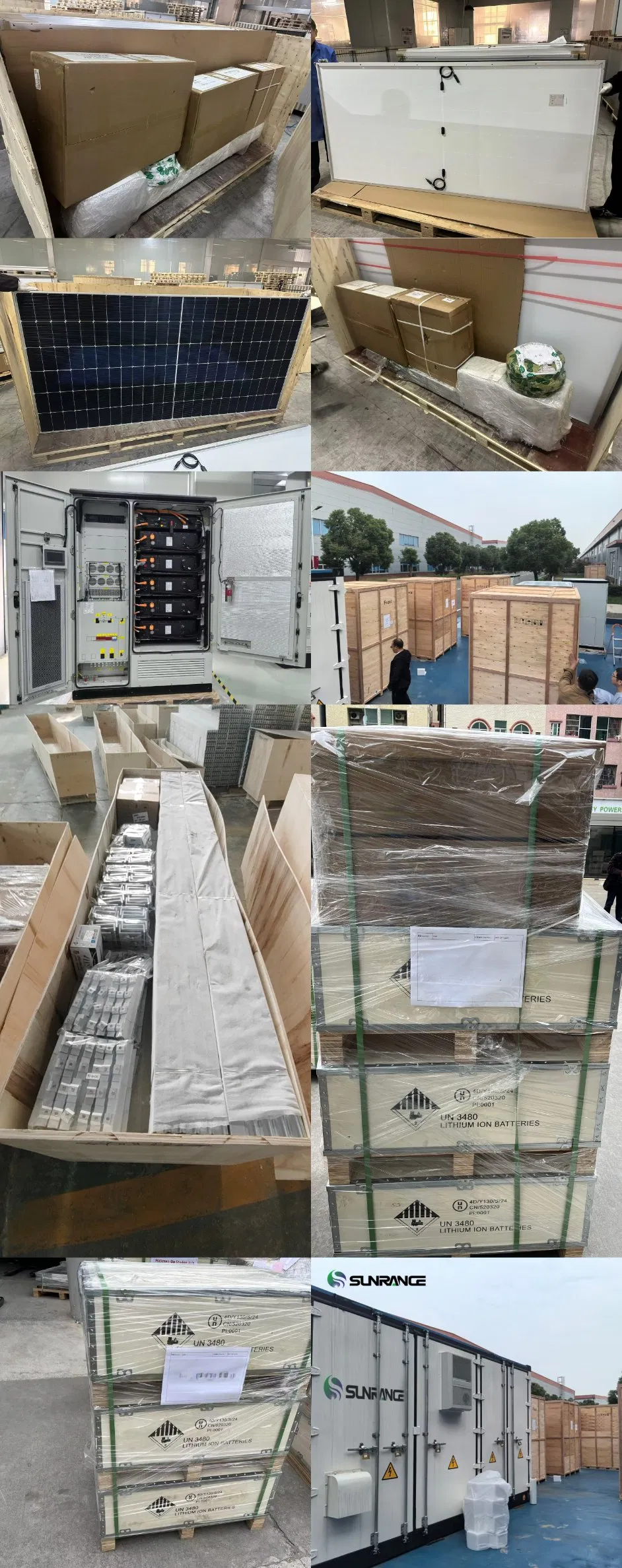

Packaging & Shipping

About the Manufacturer

We are an emerging brand in the photovoltaic industry with customers located globally. We specialize in providing the highest quality products and professional services, offering tailored design solutions for large, medium, and small-scale energy requirements. Our commitment to developing and improving technology ensures an optimal user experience.

Frequently Asked Questions

What are the advantages of a Hybrid Solar System?

A hybrid system combines solar panels, batteries, and grid connectivity. It allows you to store excess energy for use during the night or power outages, while still being able to draw from the grid if necessary, ensuring 24/7 power reliability.

How long do the lithium battery packs last?

Our LiFePO4 lithium batteries are designed for deep-cycle performance with over 6,000 charge cycles at up to 90% Depth of Discharge (DOD), typically lasting 10-15 years depending on usage.

Is the system compatible with both single-phase and three-phase power?

Yes, we offer single-phase (220/230V) solutions for 5KW-10KW systems and three-phase (380/400V) solutions for 15KW up to 30KW configurations to meet residential and commercial needs.

Can I install this system on different roof types?

Absolutely. Our mounting systems are made from durable Ai6005 and SUS304 materials, designed to be compatible with ground mounting, asphalt shingle roofs, and tile roofs.

What kind of maintenance is required?

The system is designed to be largely maintenance-free. Solar panels should be cleaned periodically to remove dust, and the MPPT intelligent controller and lithium battery packs feature advanced management systems that automate performance optimization.

Does the system support backup for power outages?

Yes, the hybrid inverter includes an "off-grid" mode that automatically switches to battery power during a grid failure, ensuring your critical loads remain powered.
