Basic Information
Installation:
Multi-Level, Surface Mount, Underground
Power Source:
Electric, Solar
Safety Features:
Anti-slip Surface, Emergency Stop, Overload Protection, Safety Railings/Sensors
Suitable for:
Commercial, Public, Residential
Vehicle Dimensions:
Sedan: 5300*1900*1550 / SUV: 5300*1900*2050
Certification:
CE / ISO9001 / SGS
Production Capacity:
200,000 PCS/Year
Product Description
| Product Name | Puzzle Parking System |
Number of layers | Customizable |
| Car Model | SUV, Sedan |
Load Capacity | 2350kg - 3000kg (Customizable) |
| Surface Treatment | Spray painting, Zinc spraying, Electroplating |
Framework Material | Carbon Steel / Specialty Steel |
| Lifting Speed | 6-21 m/min |
Lateral Speed | 7.5 m/min |
| Motor Power | 0.2-15KW |
Certification | CE/ISO9001/SGS |

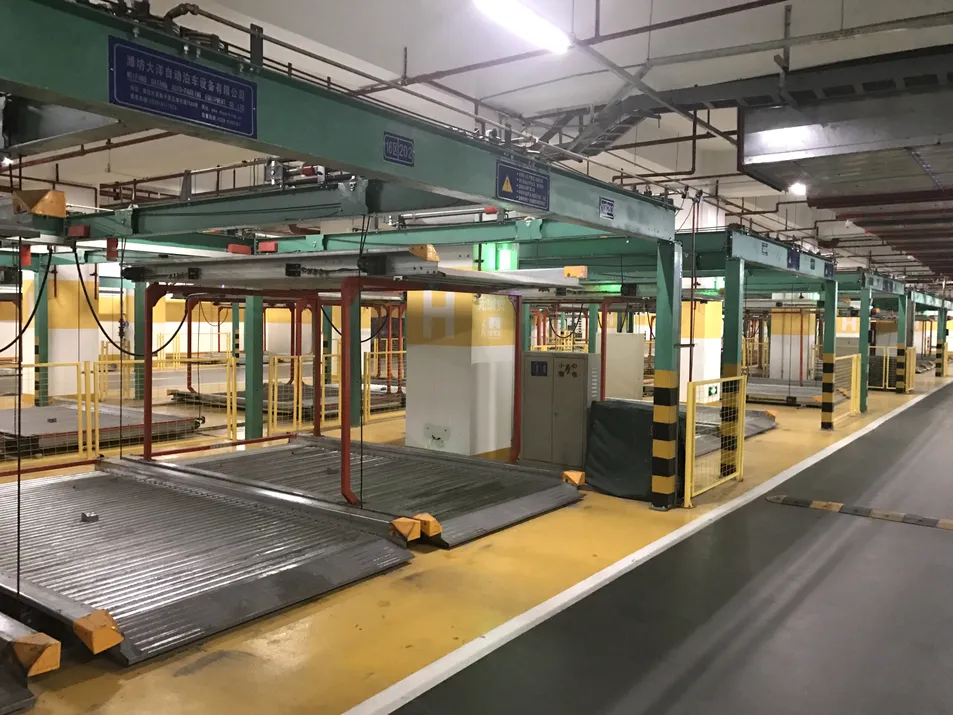

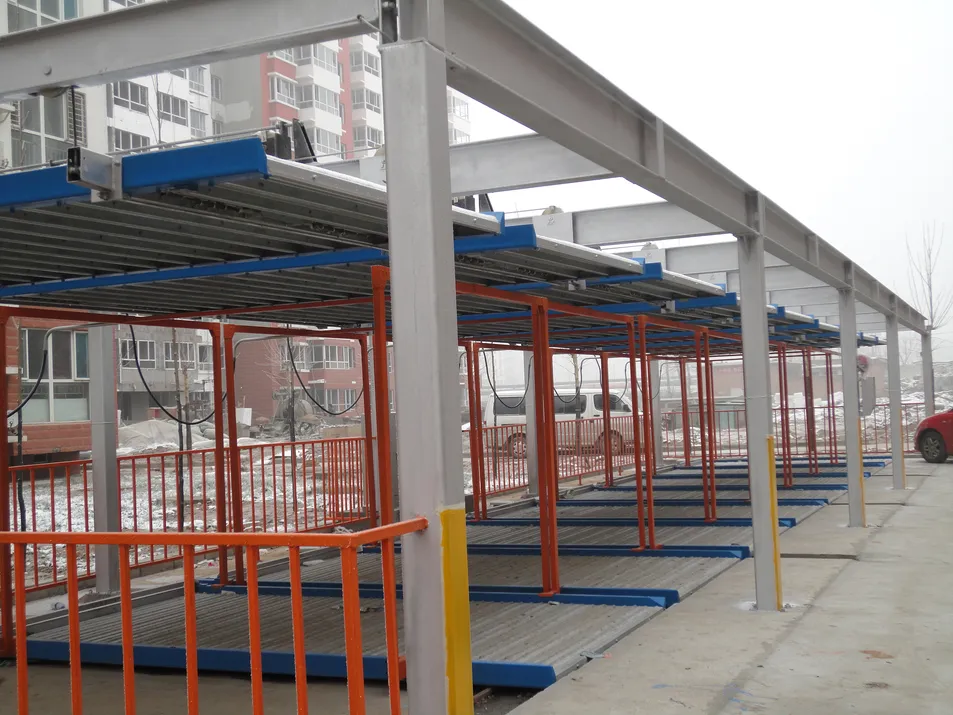

Maximizing Land Utilization Efficiency
Traditional parking requires 30-40 sqm per car. Our lifting and translating system uses vertical stacking to reduce this to just 10-15 sqm, increasing land efficiency by 2-3 times.
Simple & Reliable Structure
Low failure rate: Simple movement trajectory (lifting + translating) reduces complexity. Easy maintenance for sensors and limit switches.
Controllable maintenance: Long-life core components (8-10 years for motors/chains). Low annual maintenance cost (2%-3% of equipment price).
Site Adaptability: Flexible design for single, double, or multi-row layouts. Suitable for old community renovations with low ground bearing requirements.

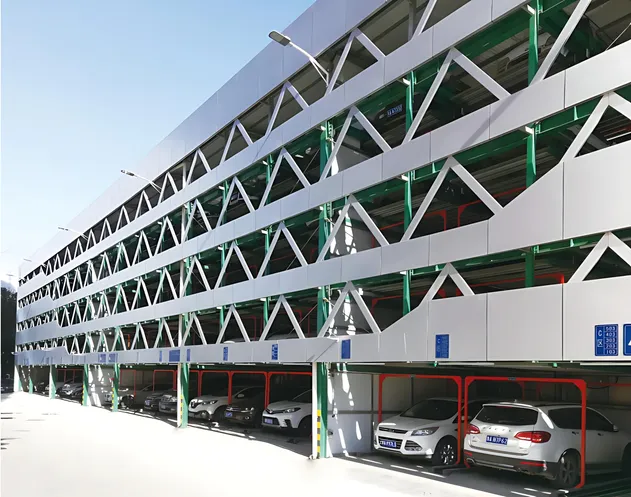

International Project Showcase

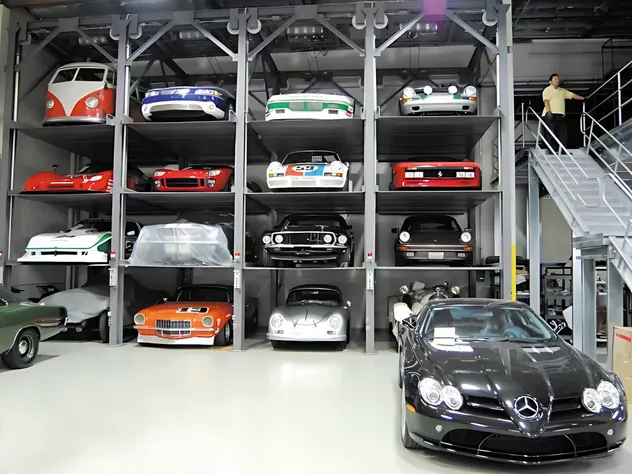

United States Project
Type: Vertical Horizontal System
Floor: 5 (1 Underground, 4 Onground)
Spaces: 38

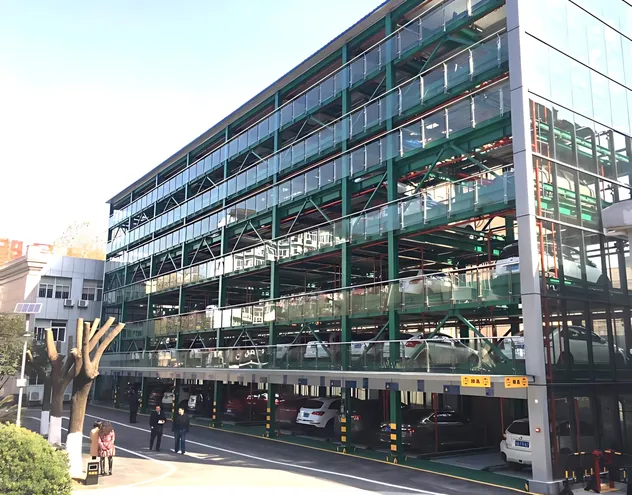

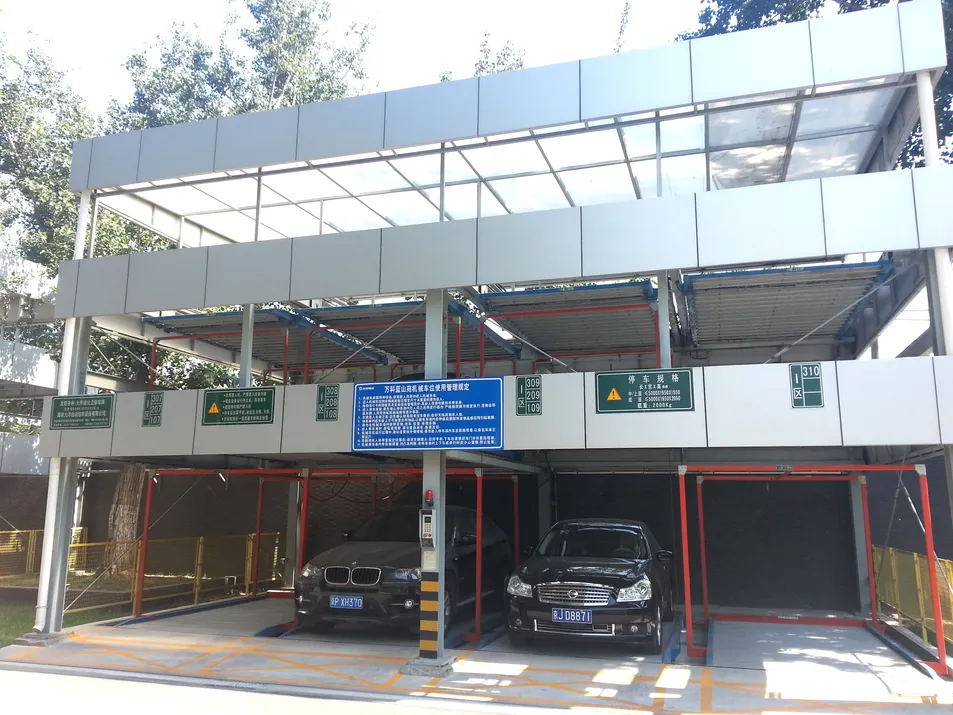

Saudi Arabia Project
Type: Vertical Horizontal System
Floor: 2
Spaces: 926

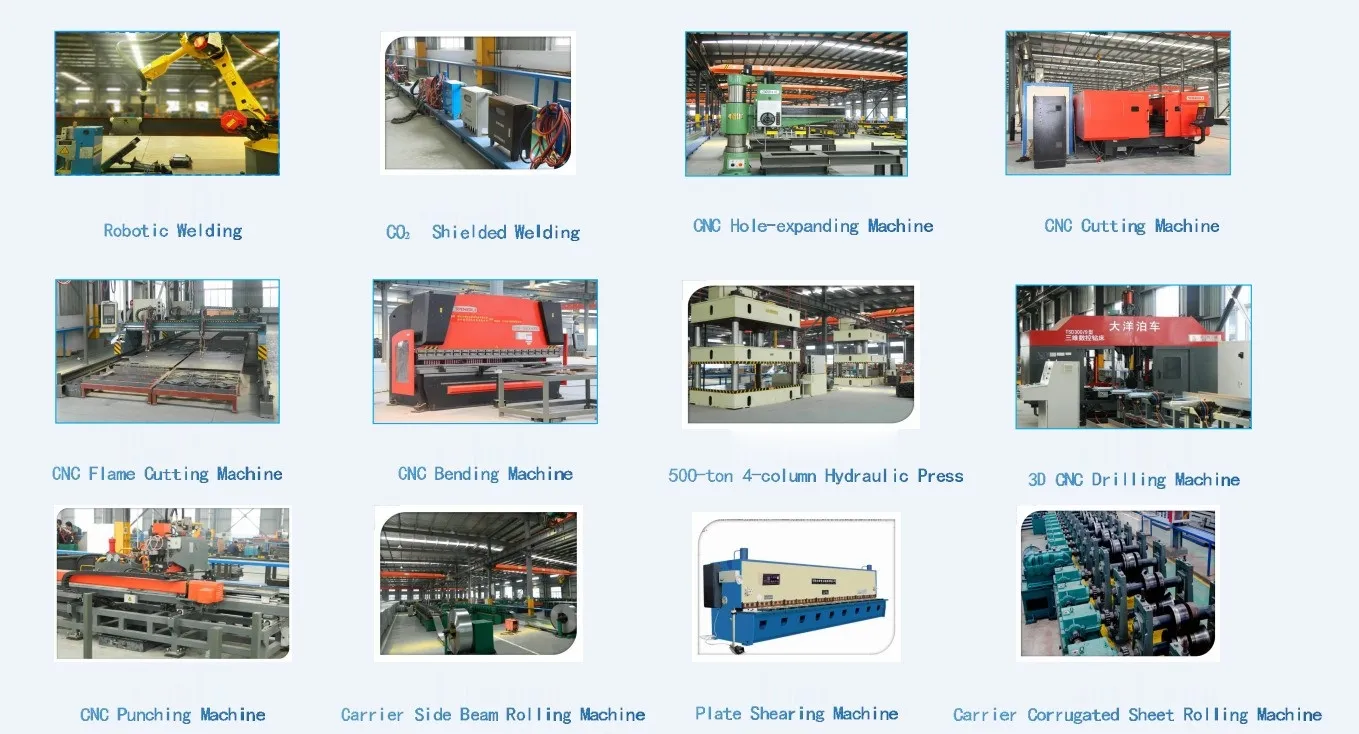

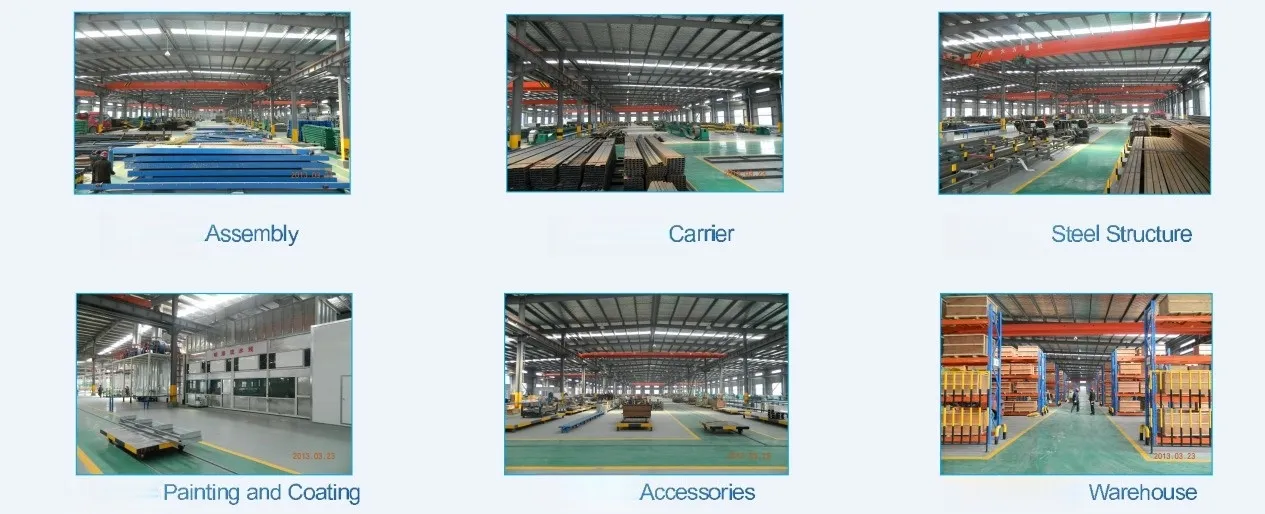

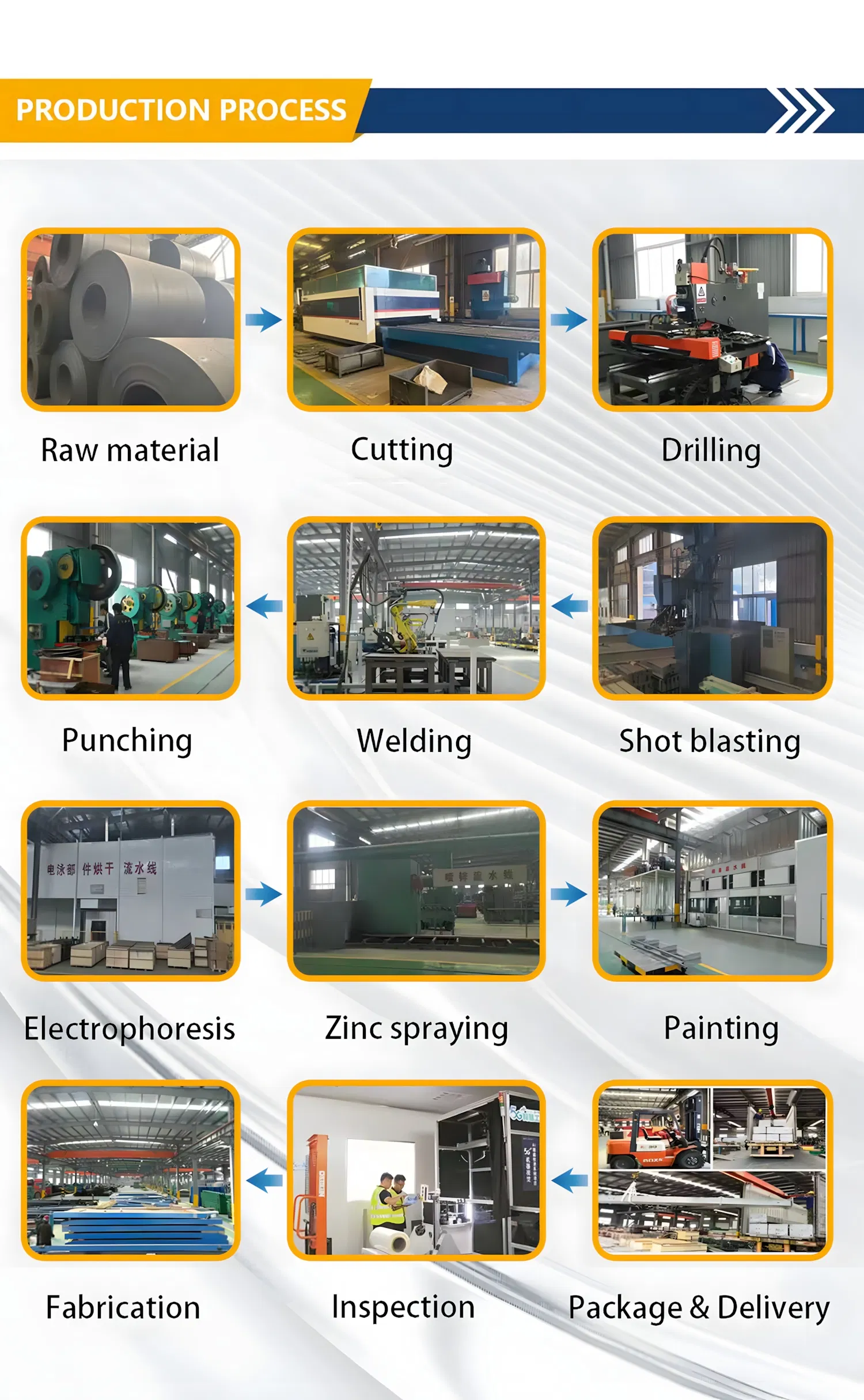

Our Facility
The workshop covers an area of 50,000 square meters. The entire process from blanking, machining, painting, and assembly to logistics and delivery has achieved a scientific and rational layout. Current annual production capacity is 200,000 vehicle units.
Frequently Asked Questions
How to prevent equipment corrosion in high-humidity areas?
Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.
How to deal with icing in cold regions?
Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Our low-temperature start-up technology can operate reliably in environments as low as -40 °C.
Can unmanned management be realized?
It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. The IoT system monitors equipment status in real-time and automatically alerts to abnormalities.
What is the construction cost of a multi-story parking garage?
Lifting and traversing types cost about 15,000-30,000 yuan per parking space, and vertical lifting types cost about 60,000-100,000 yuan per space. We provide full-cycle optimization from design to operation.
Are there government subsidy policies?
Many regions provide subsidies (up to 20,000 yuan per space in some cities) for public multi-story parking. We can assist customers in applying for special funds and provide policy declaration services.

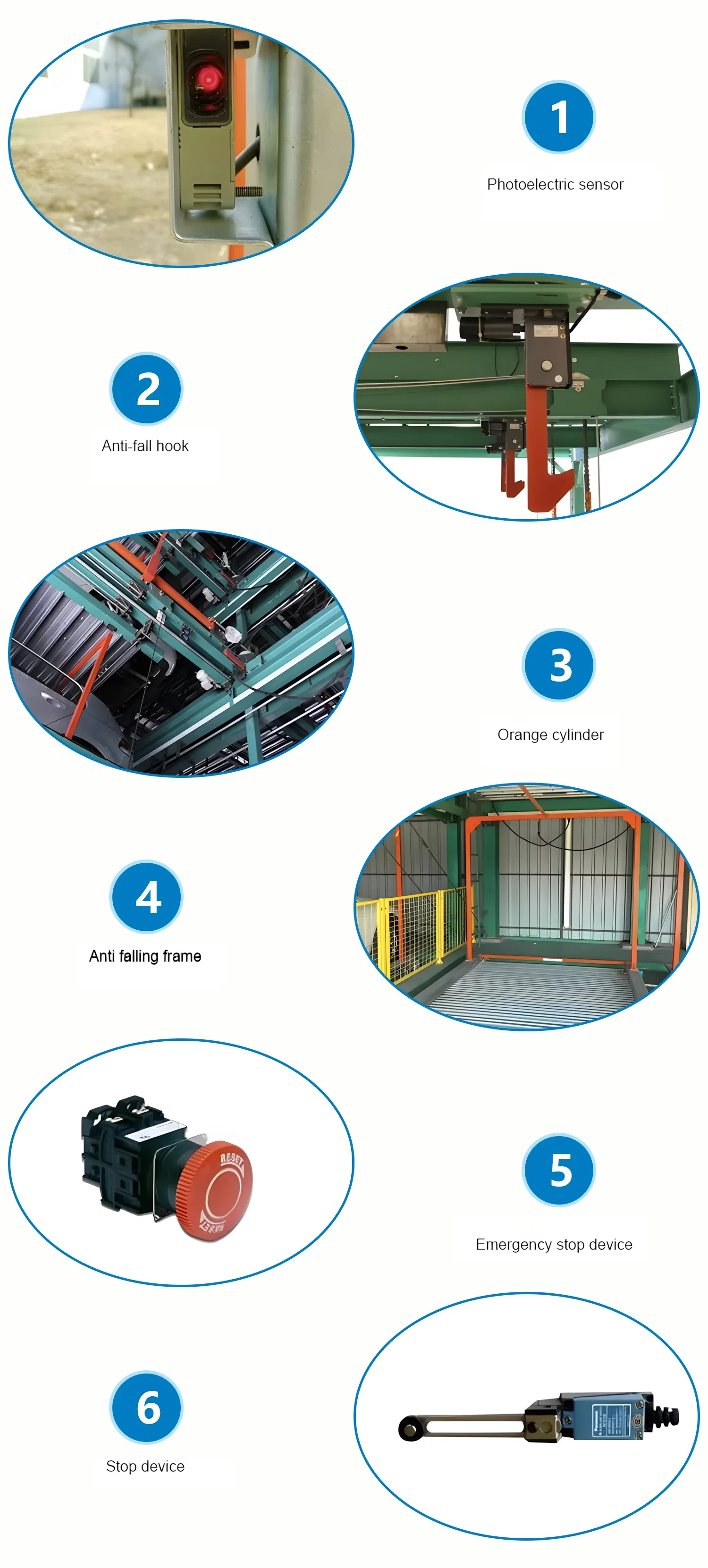

What are the safety systems included?
The system includes anti-fall frames/hooks, emergency stop buttons, overload protection, safety railings, and infrared safety sensors to ensure absolute operational safety.
