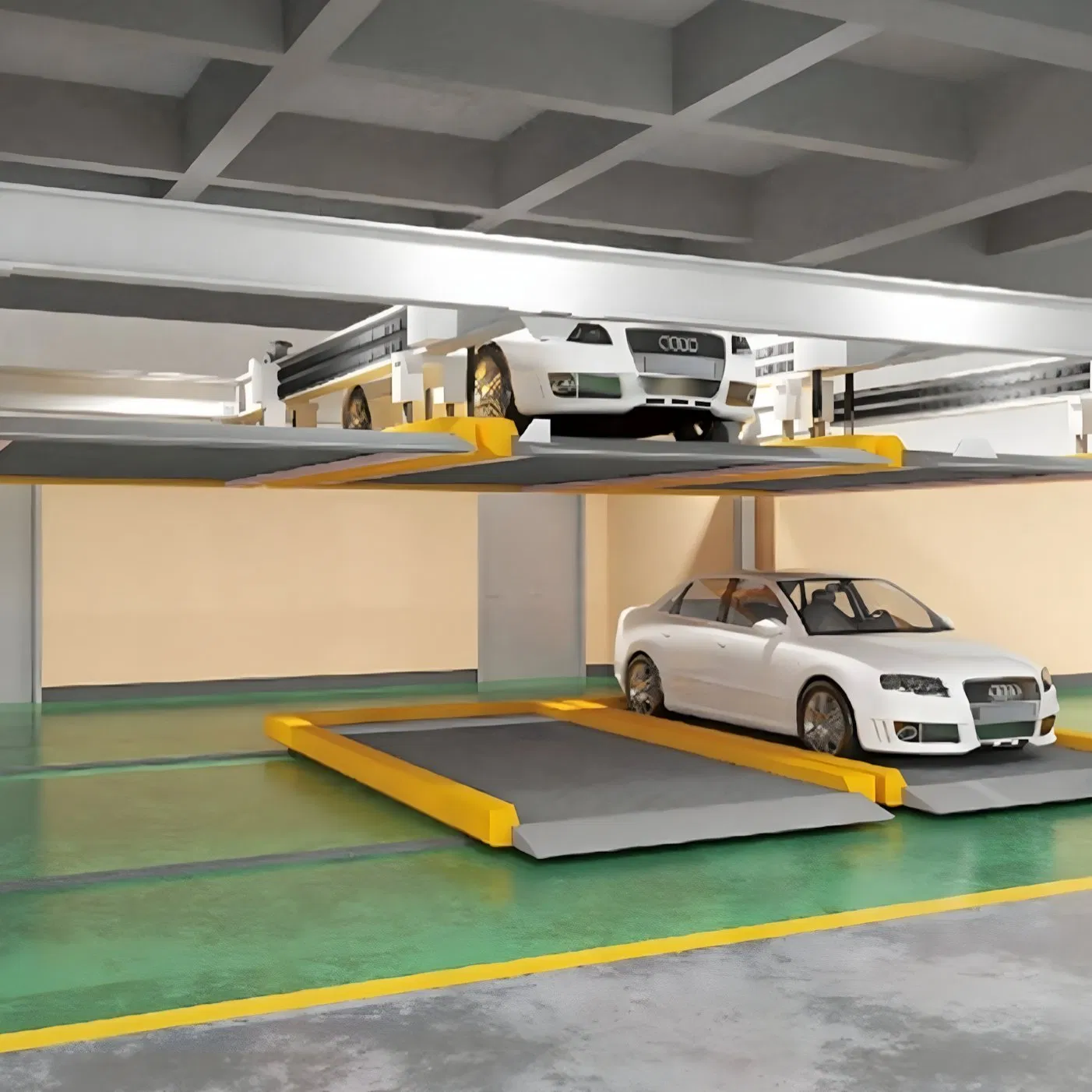

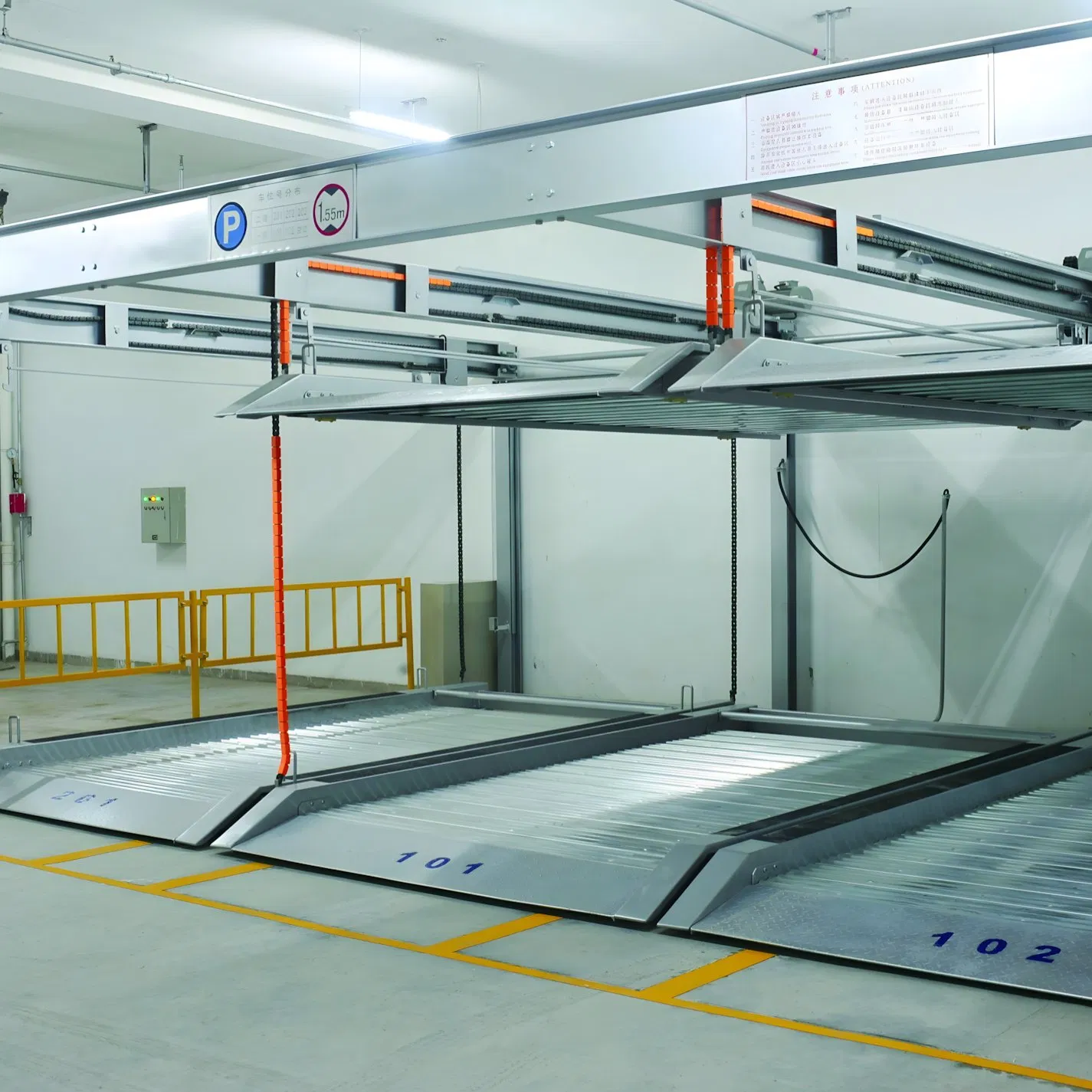

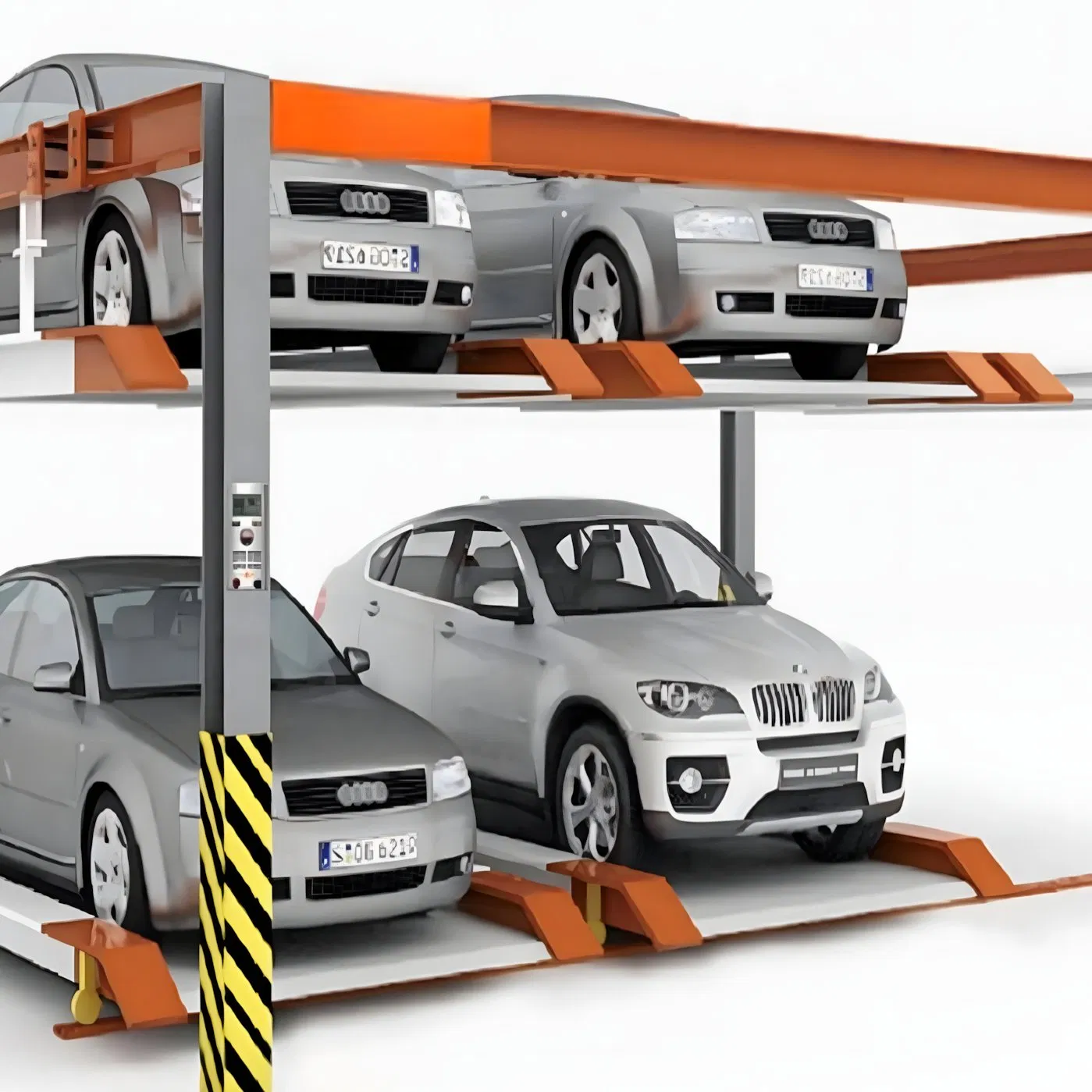

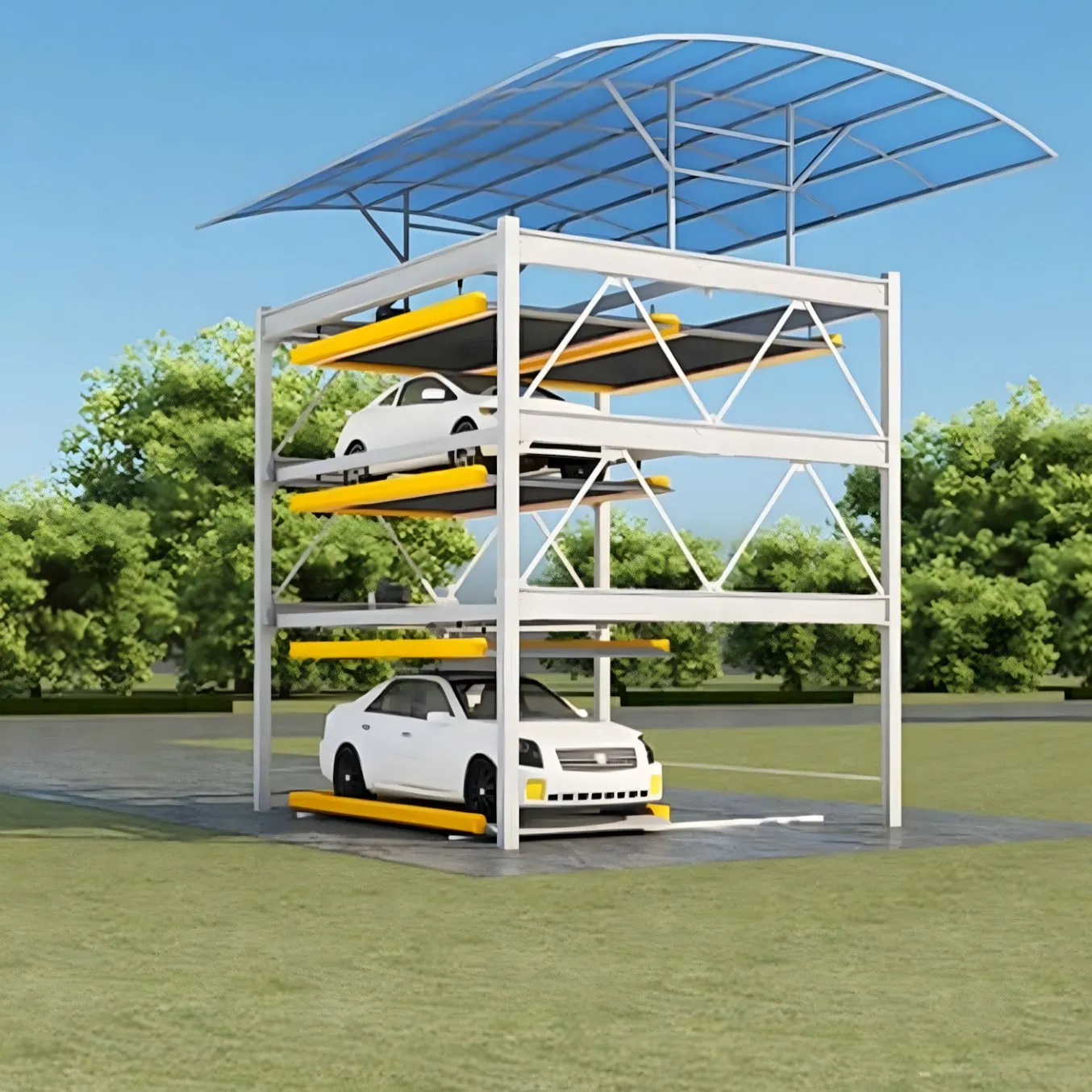

Lightweight Yet Sturdy Puzzle Parking System for Rooftop Parking Installation

Customization:	Available
Level:	10-17 Levels
Parking Post:	25-99 Posts

Basic Information

Model NO.	PSH05-06	Color	Black
Installation Type	Multi-Level, Surface Mount, Underground	Material	Steel
Operation Mode	Automatic	Power Source	Electric, Solar

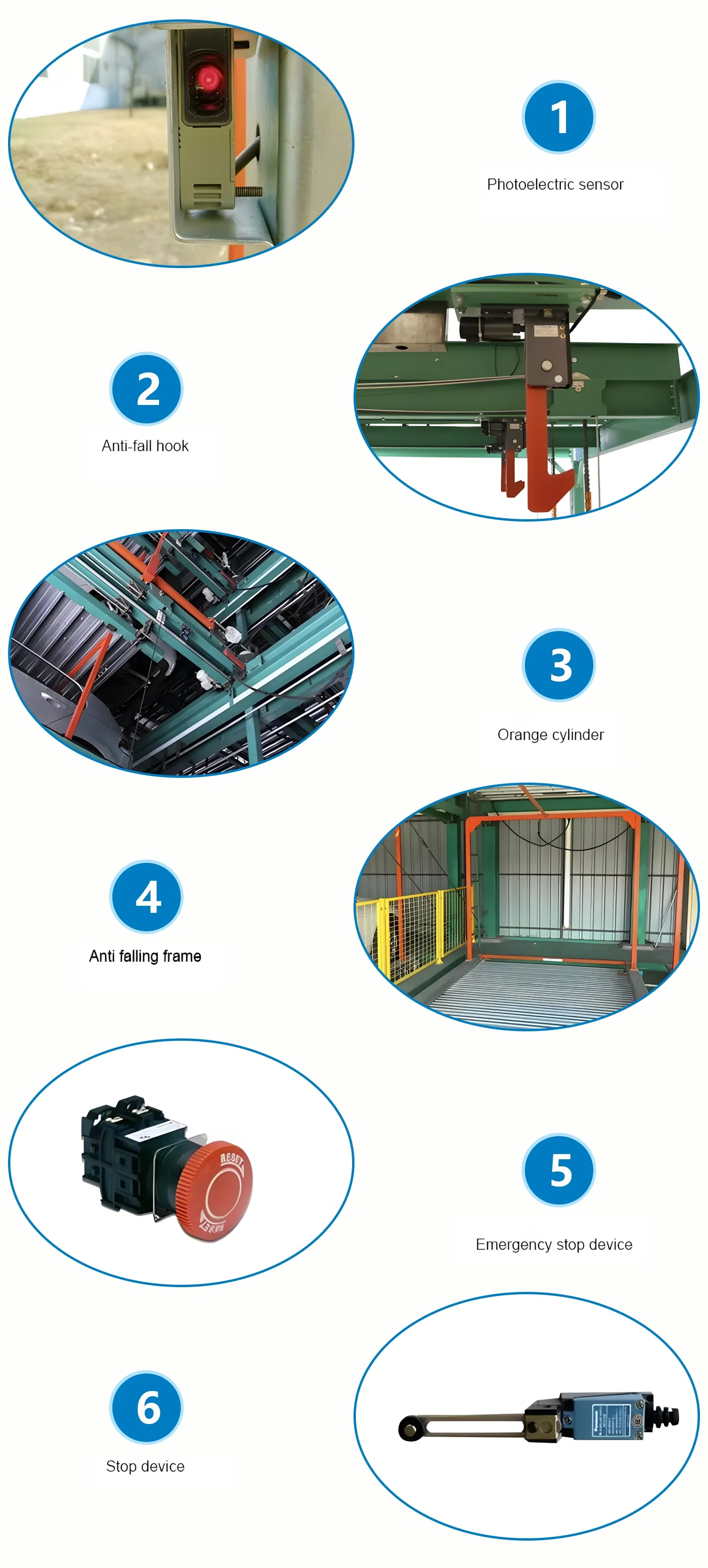

Safety Features	Anti-slip Surface, Emergency Stop, Overload Protection, Safety Railings, Sensors	Suitable for	Commercial, Public, Residential Use
Vehicle Dimensions	Sedan: 530019001550 \| SUV: 530019002050	Lifting Speed	4.5-8 M/Min
Warranty	2 Years	Certification	CE/ISO9001/SGS

Product Description

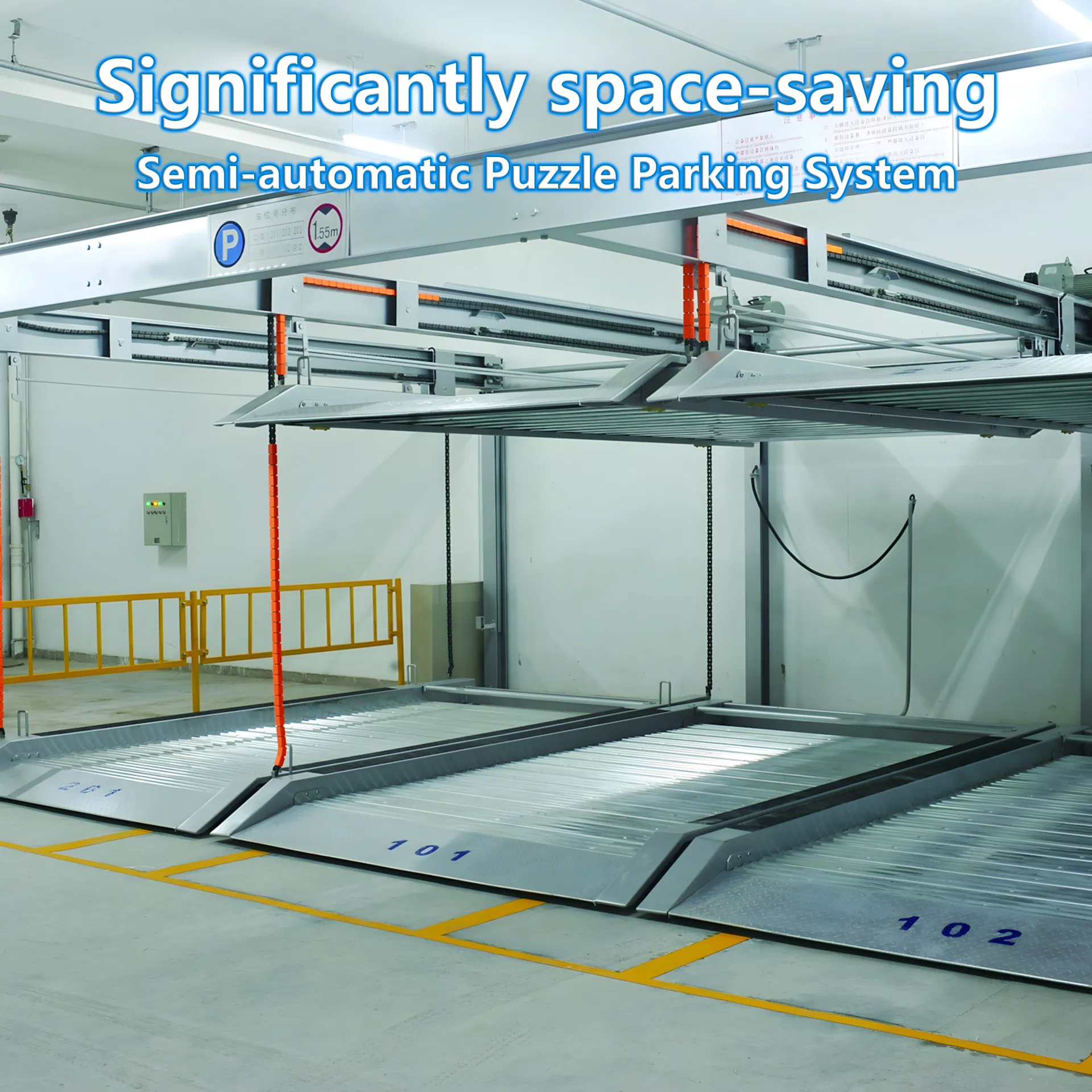

Product Name	Puzzle Parking System	Number of layers	Customizable
Load capacity	2350kg (Customizable to 3000kg)	Framework Material	Carbon Steel / Specialty Steel
Access Time	90s	Lateral speed	7.5 m/min

★

Maximizing Land Utilization Efficiency

Traditional parking requires 30-40 sqm per car. Our system uses "upper-layer lifting and lower-layer translating" to reduce this to only 10-15 sqm, increasing efficiency by 2-3 times.

⚙

Reliable Structure & Low Maintenance

1. Low failure rate with simple lifting + translating trajectory.
2. Core components like motors and chains have a design life of 8-10 years.
3. High adaptability to various site shapes with low ground bearing requirements (3-5 kN/m²).

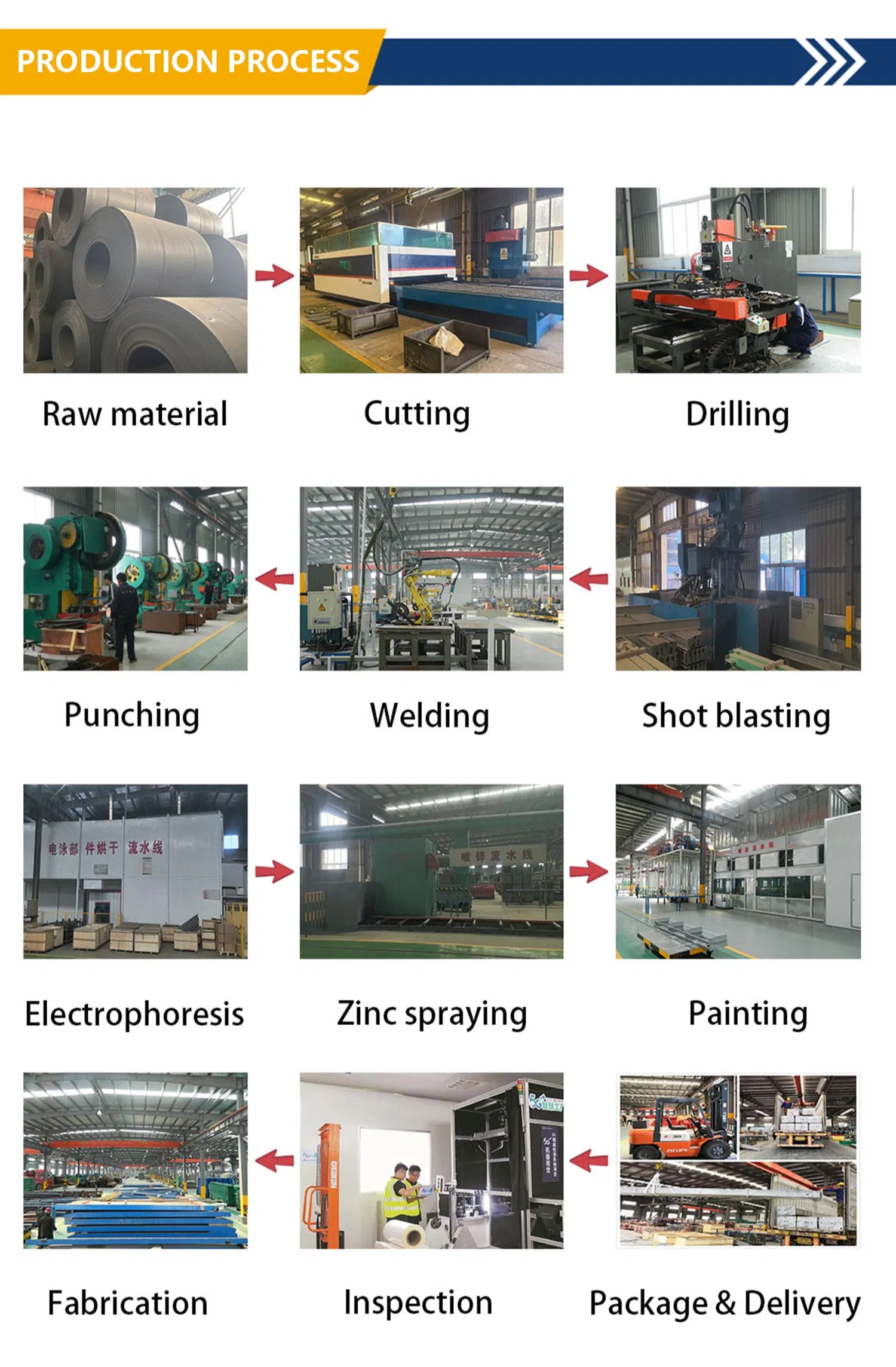

Professional Manufacturing

We are a leading manufacturer specializing in mechanical parking equipment since 2001. We focus on core product categories including vertical, horizontal, and vertical lifting parking systems, AGV intelligent handling robots, and bus parking systems. All products are compatible with new energy charging technologies and applied in commercial, residential, and public sectors. Our annual production capacity exceeds 200,000 parking spaces.

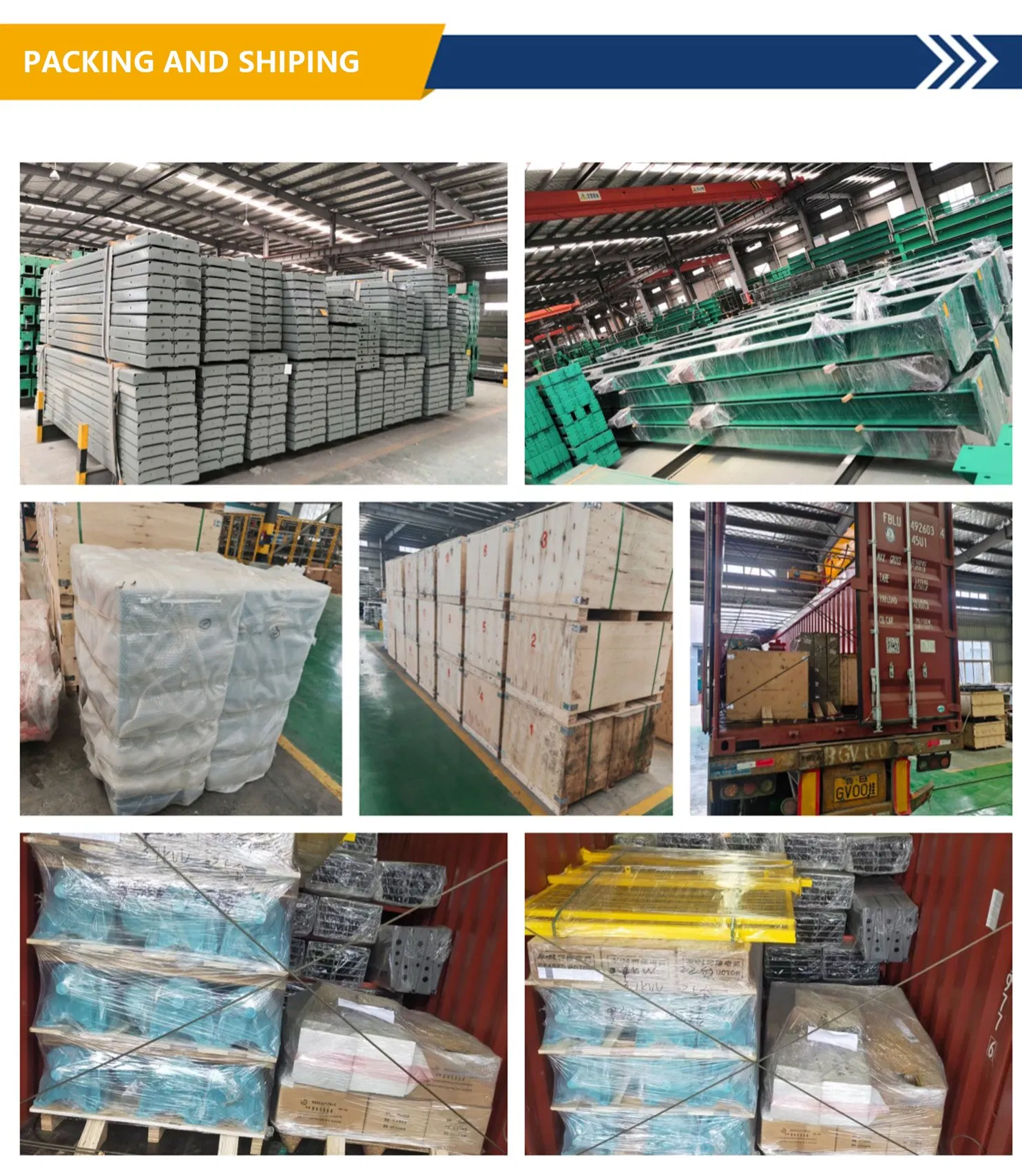

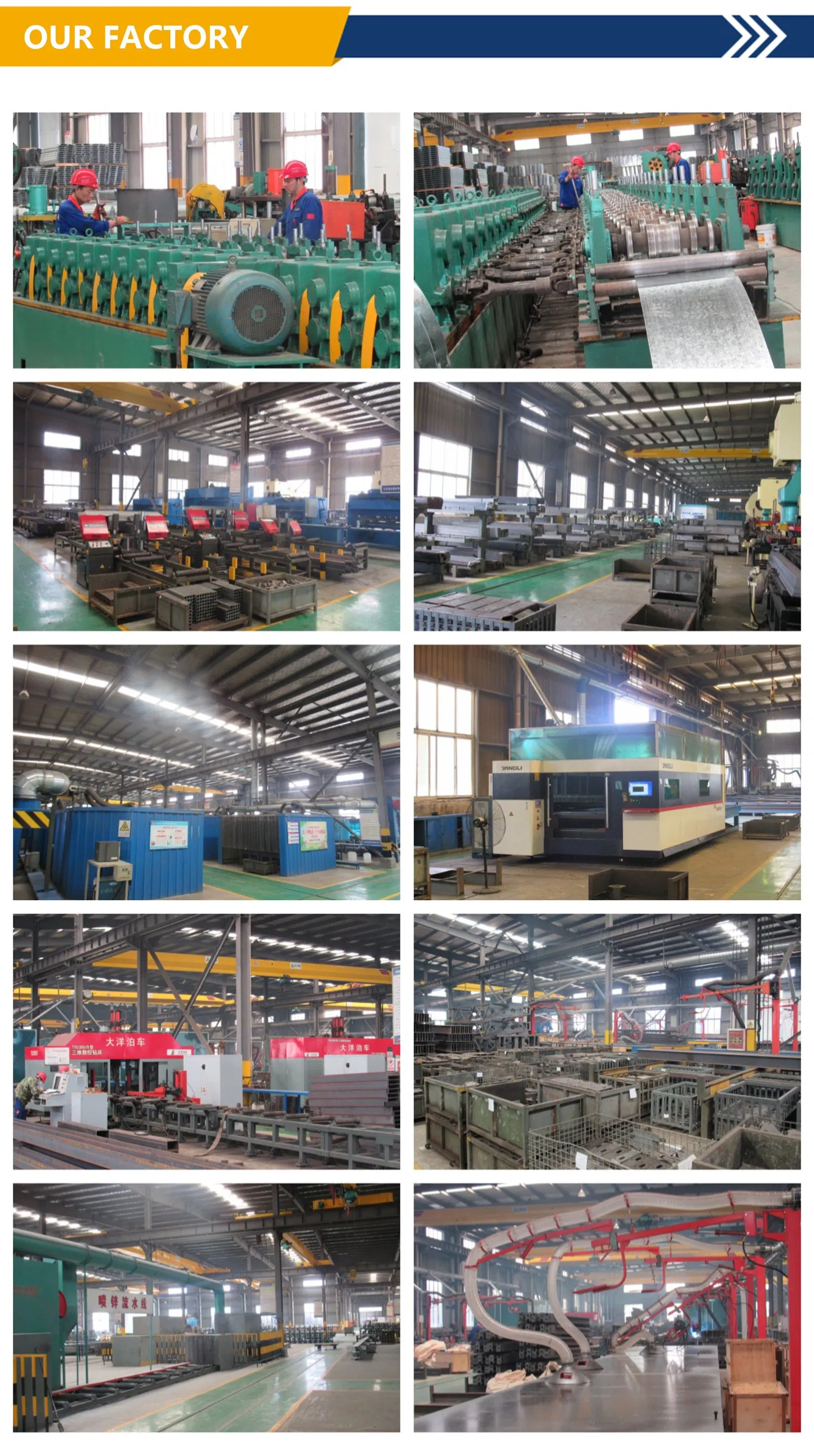

Our Facility & Packing

Global Exhibition

Frequently Asked Questions

How to prevent equipment corrosion in high-humidity areas?

Hot-dip galvanized steel and fluorocarbon spraying technology are used, with a salt spray test reaching 1000 hours. A dehumidification system can be optionally equipped to control humidity below 60%.

How to deal with icing in cold regions?

Heated car carriers (adjustable from -30ºC to 50ºC) are equipped, and the guide rails use anti-slip coatings. Our low-temperature start-up technology can operate reliably in environments as low as -40 °C.

Can unmanned management be realized?

It supports AGV robots to transport vehicles; car owners only need to park at the entrance and leave. Our IoT system can monitor equipment status in real-time and automatically alert to abnormalities.

What is the construction cost of a multi-story parking garage?

Lifting and traversing types cost about 15,000-30,000 yuan per space, and vertical lifting types cost about 60,000-100,000 yuan per space. We provide full-cycle optimization to reduce energy consumption by 20%.

Are there government subsidy policies?

Many regions provide subsidies for public multi-story parking garages (e.g., up to 20,000 yuan per space in certain cities). We can assist customers in applying for special funds and provide policy declaration services.

What is the maintenance requirement for core components?

Daily maintenance primarily involves regular track lubrication and inspection of chain tension. Core components like motors have a service life of 8-10 years, keeping annual maintenance costs low.
