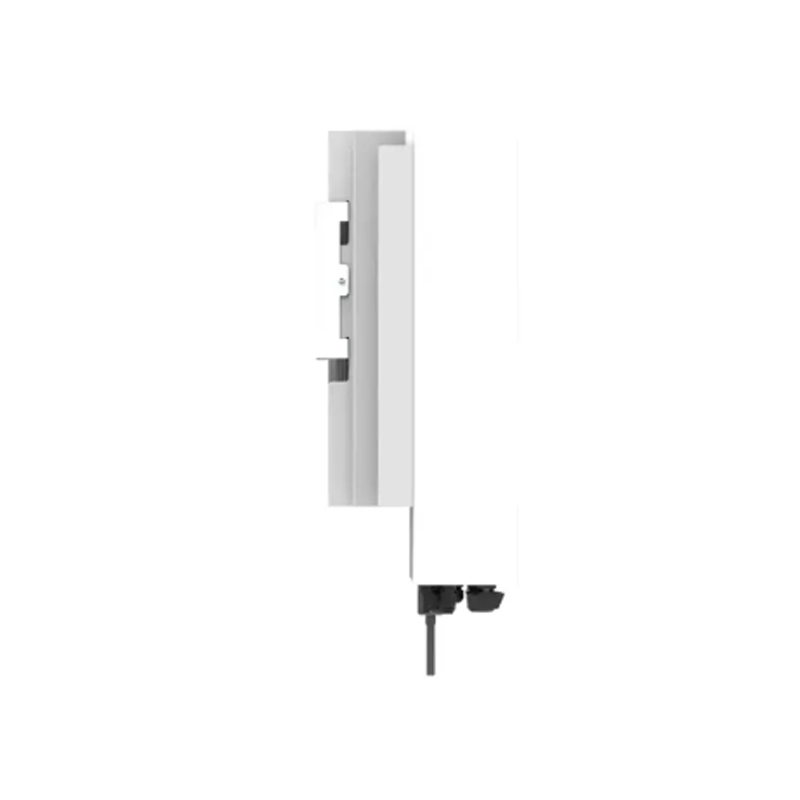

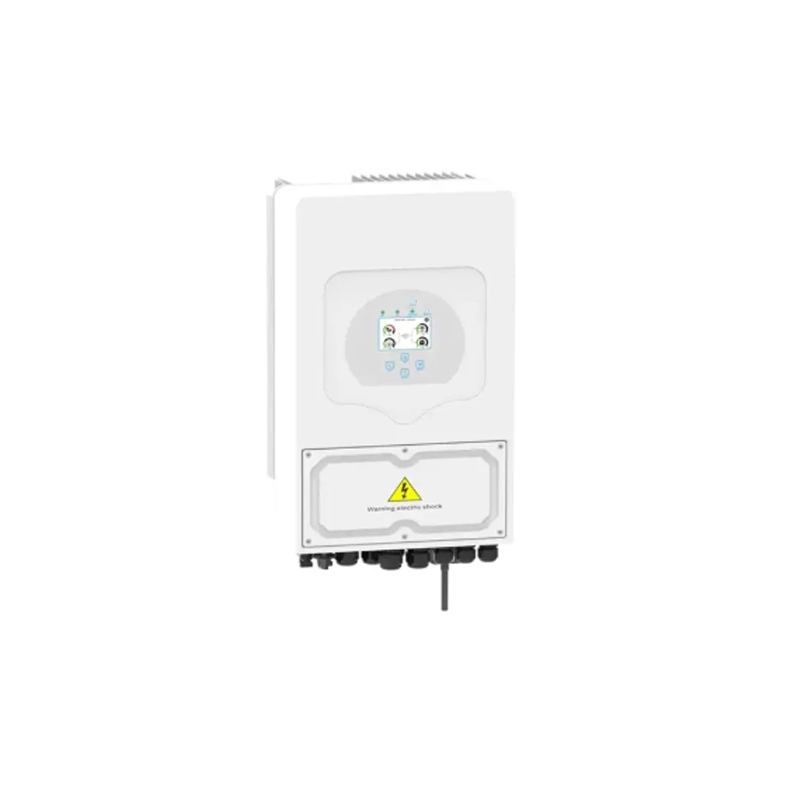

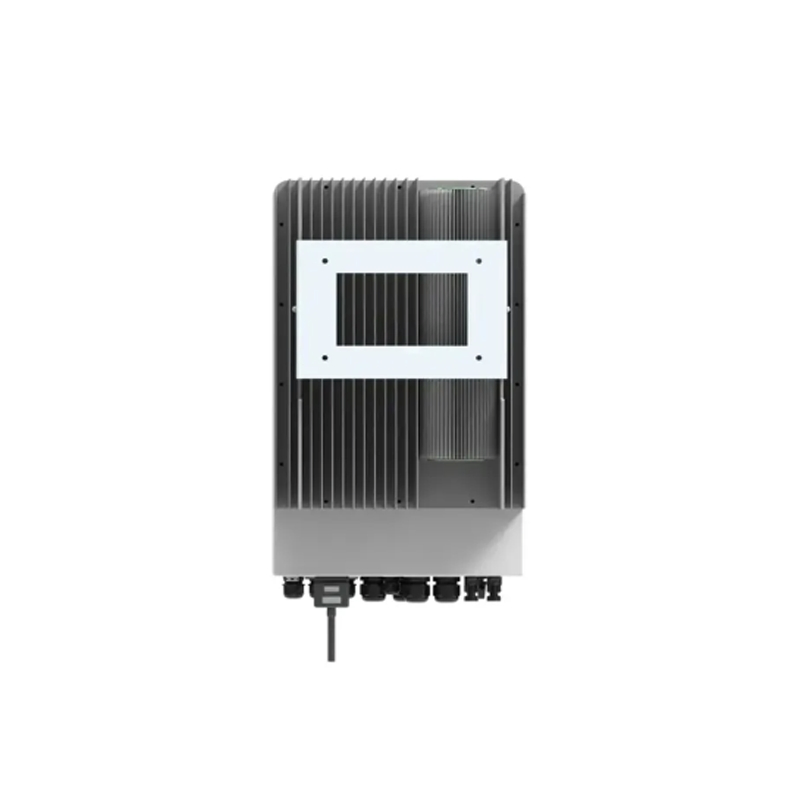

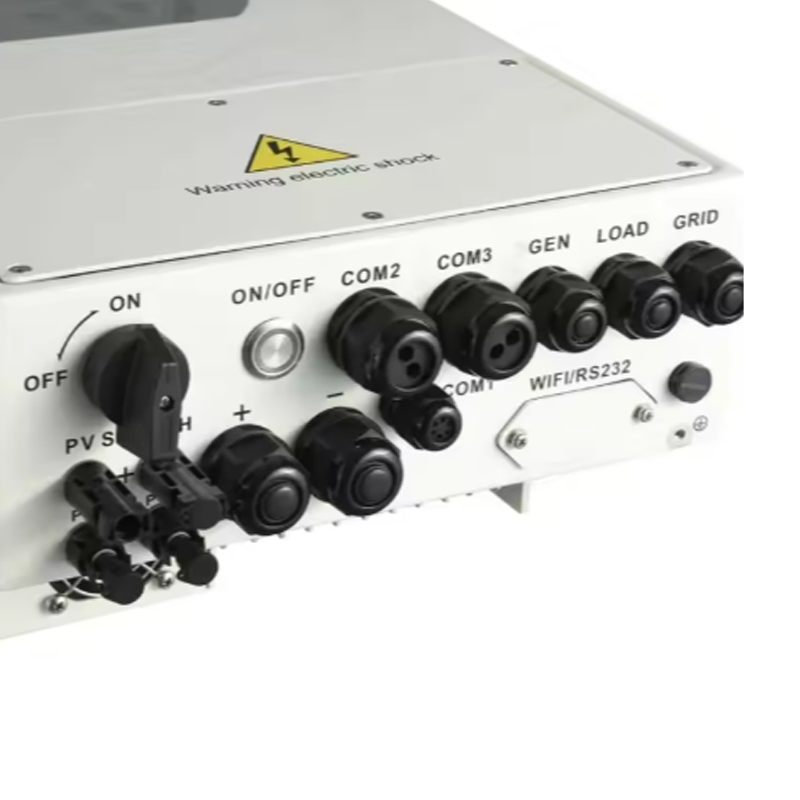

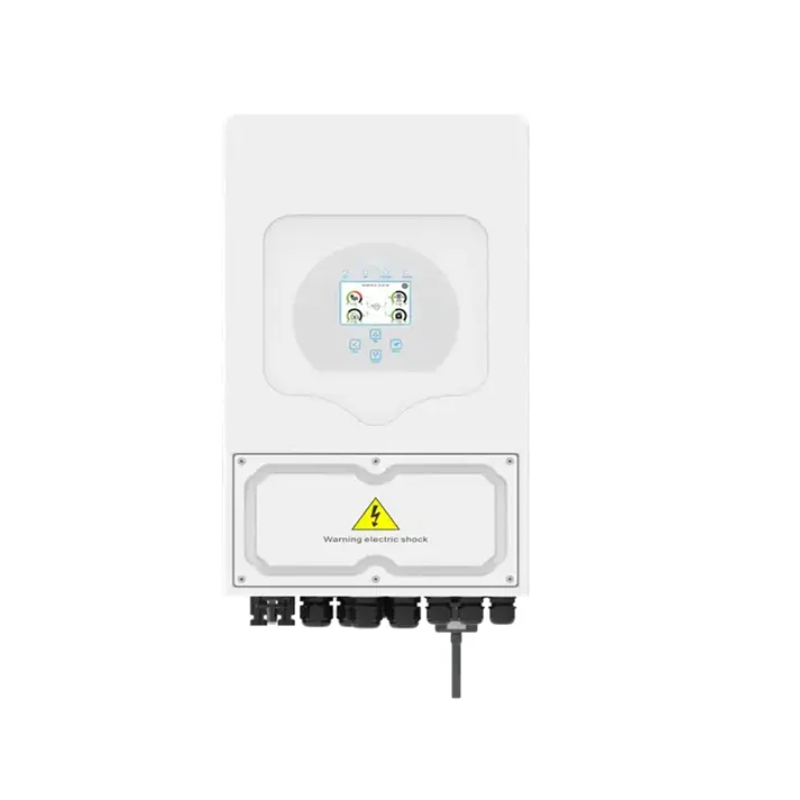

Sun-5K-Sg03lp1-EU Low Voltage Solar Inverter for on/off Grid Ess with IP65

1 / 5

Sun-5K-Sg03lp1-EU Low Voltage Solar Inverter for on/off Grid Ess with IP65

Customization:	Available
Warranty:	5 Years
Nature of Source Flow:	Active Inverter

Send Inquiry

Product Description

📊 Basic Info.

Model NO.

SUN-5K-SG03LP1-EU

Phase

Three

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Battery Type

Lead-Acid or Lithium-Ion

Battery Voltage Range

40 - 60 V

📝 Product Description

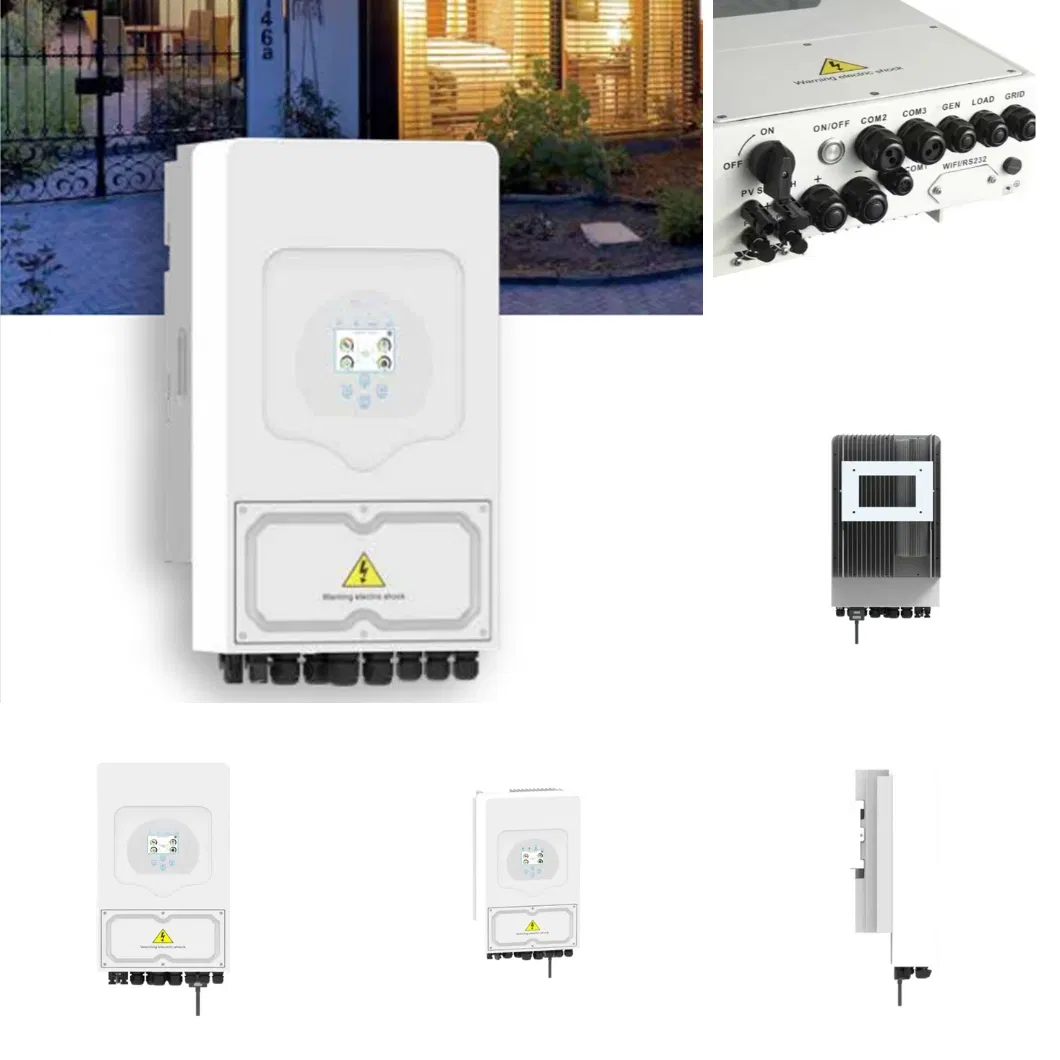

🖼️ Products Display

⚙️ Specification

Model	SUN-5K - SG03LP1-EU
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40 - 60
Max. Charging Current (A)	120
Max. Discharging Current (A)	120
Charging Strategy for Li-ion	Self-adaptation to BMS
Max. PV Input Power (W)	6500
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150 - 425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	13 + 13
Rated AC Input/Output Power (W)	5000
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%

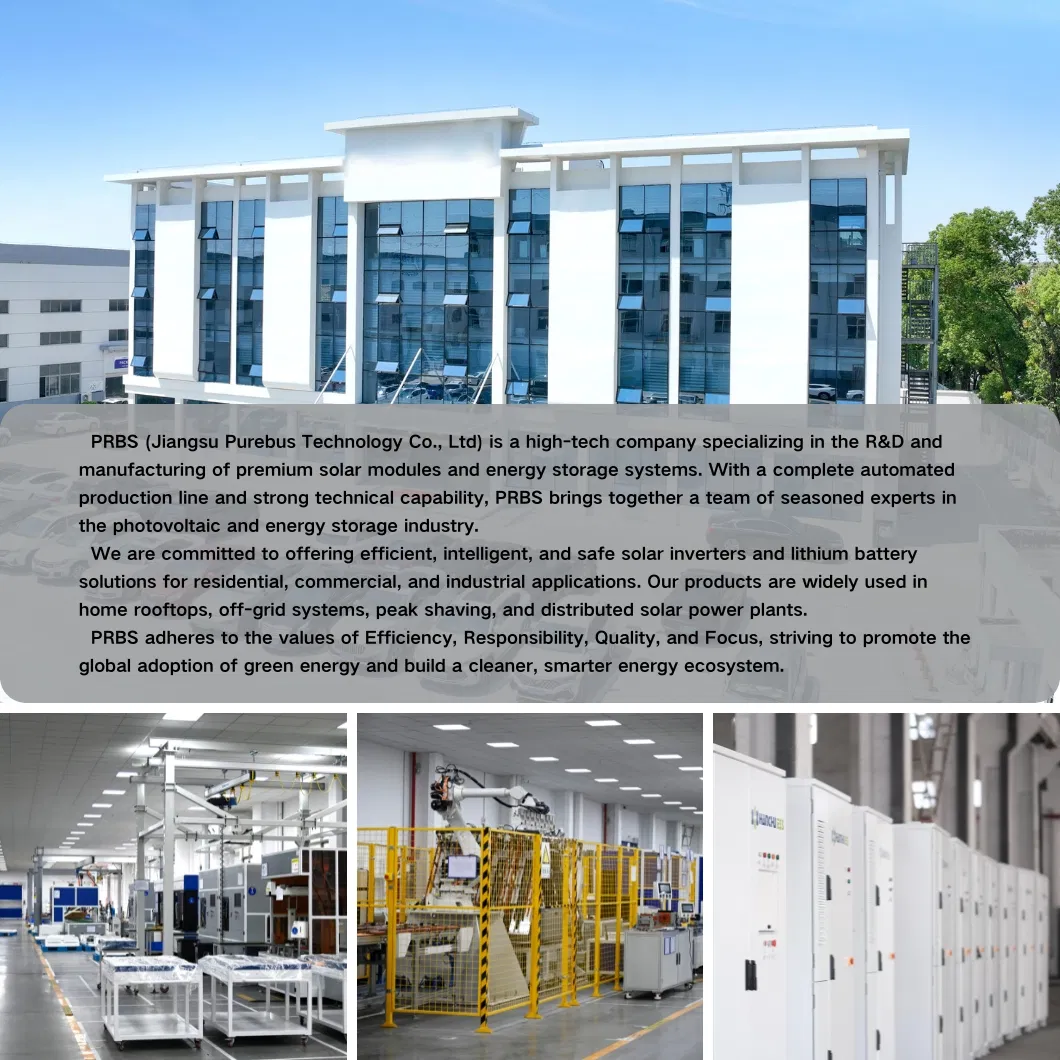

🏢 Professional Overview

📜 Certifications

📦 Packaging & Shipping

❓ FAQ

Do the energy systems comply with international electrical and safety standards?

Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability (e.g., IP54/IP66 rated enclosures).

Can you provide customized configurations?

Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet). Both modular and rack-mounted systems are available.

What is the lead time for delivery?

Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days. Expedited orders and scheduled production are available upon request.

Do you support third-party inspections?

Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided before shipment.

Are systems compatible with other inverter brands?

Yes. The energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools and wiring diagrams are provided for seamless setup.

What battery types are supported by the inverters?

The inverters are designed to be highly versatile, supporting both Lead-Acid and Lithium-Ion battery technologies with self-adaptation to BMS for optimal performance.
