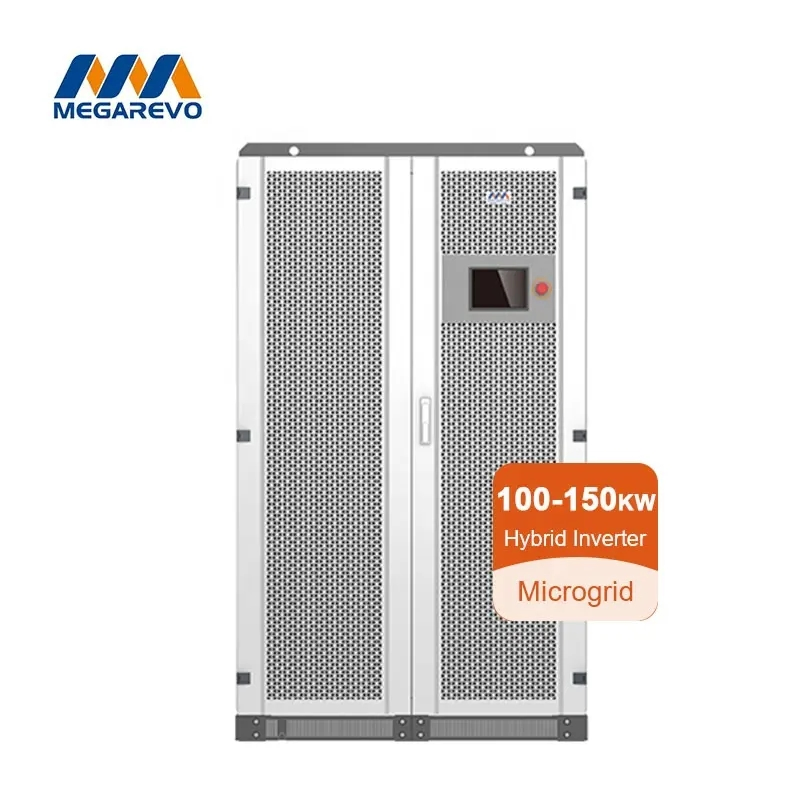

Megarevo Intelligent and Efficient 100kw 250kw 500kw PCS Hybrid Solar Inverter for Power Conversion System

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Nature of Source Flow

Passive inverter

Phase

Three

Output Power

30-250kw

Certification

CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Nature of Wave String

Sine Wave Inverter

MPPT Voltage Range

125-500V

Communication Interface

Can/RS485

Display

LCD Display

Battery Type

LiFePO4

Cooling

Air Cooling

Output Voltage

120V/240V/480V

Transport Package

Carton

Specification

430*710*210mm

Origin

Jiangsu, China

HS Code

8504403090

Production Capacity

50000PCS

Packaging & Delivery

Package Size

43.00cm * 71.00cm * 21.00cm

Package Gross Weight

1000.000kg

Product Description

✓ Hybrid Inverter is a high-quality inverter which can convert solar energy to AC energy and store energy into battery.

✓ The inverter can be used to optimize self consumption, store in the battery for future use or feedin to public grid.

✓ Work mode depends on PV energy and user's preference. It can provide power for emergency use during the grid lost by using the energy from battery and inverter (generated from PV).

✓ In addition, the parallel function is available (off grid model).

Product Parameters

Technical specification	R5KLNA	R6KLNA	R8KLNA	R10KLNA
Input (PV)
Max. power(kW)	7.5	9	12	13
Max. DC voltage (V)	500
MPPT voltage range(V)	125~500
Max.Input current of single MPPT(A)	14
MPPT tracker/strings	4/1
AC output
Rated output power(kVA)	5	6	8	10
Max. apparent Power (kVA)	5.5	6.6	8.8	11
Rated output current (A)	20.8	25	33.3	41.7
AC output voltage(V)	120/240(split phase), 240 (single phase)
Frequency (Hz)	50 /60
Battery
Battery voltage range(V)	40~58
Max. charge/discharge current(A)	120/120	135/135	190/190	210/210
Battery type	Lithium /Lead-acid
General data
MPPT efficiency	99.9%
Ingress protection	IP65/NEMA 3R
Dimensions W * D * H (mm)	460225760
Weight(kg)	41

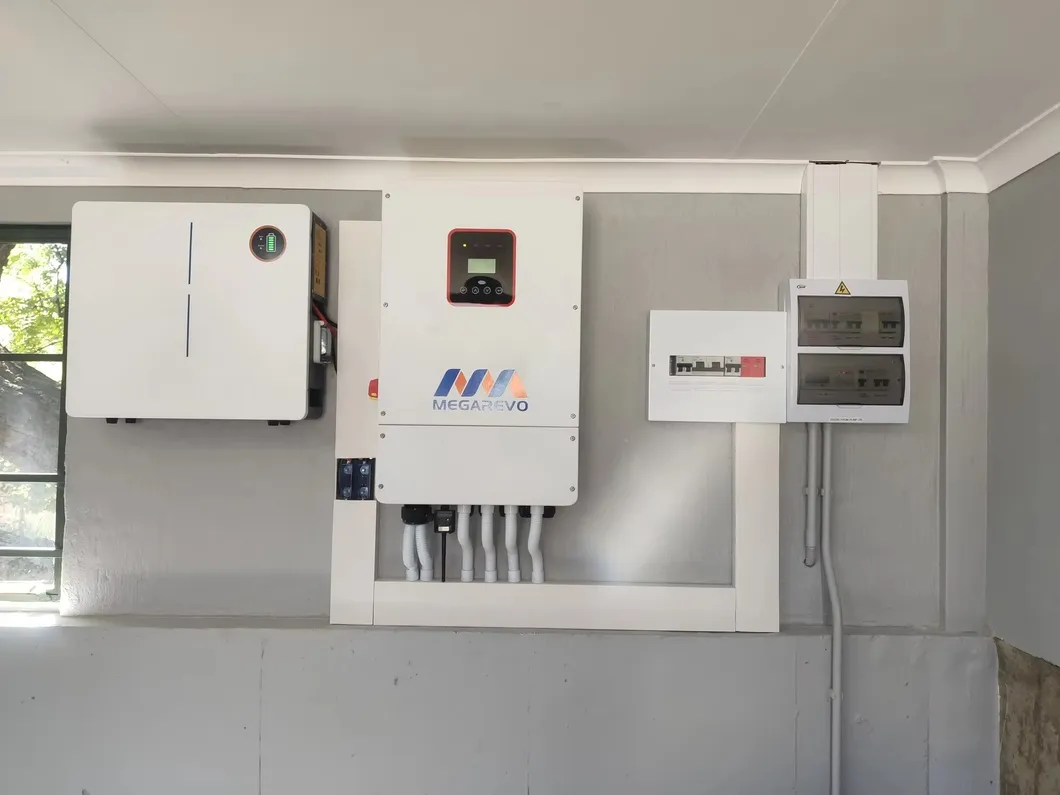

Installation Instructions

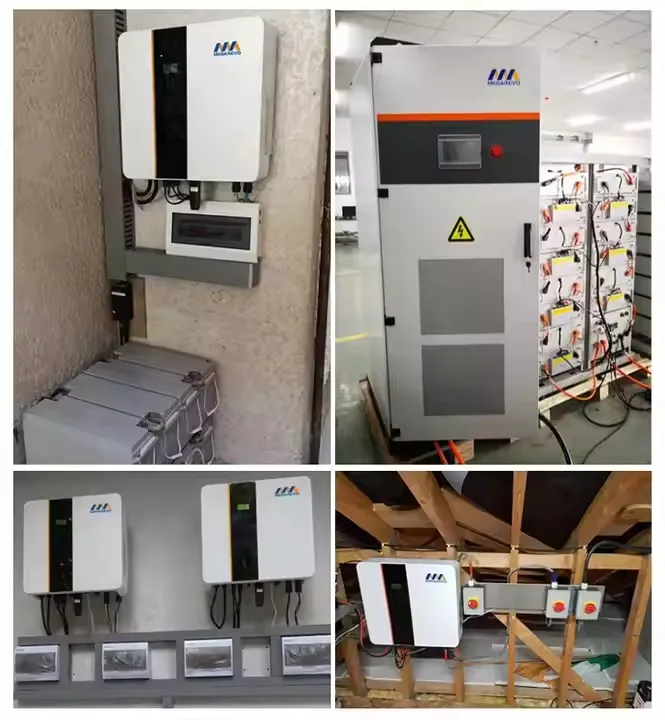

Packaging & Shipping

Frequently Asked Questions

What is the main function of this Hybrid Inverter?

It converts solar energy into AC power for immediate use and stores excess energy in batteries for future use or emergency backup during grid outages.

What battery types are compatible with this system?

The system is compatible with both Lithium (LiFePO4) and Lead-acid batteries, with a voltage range of 40~58V.

Can this inverter be used outdoors?

Yes, it features an IP65/NEMA 3R ingress protection rating, making it suitable for various environmental conditions.

How fast does it switch to backup power during a grid failure?

The EPS output provides an automatic switching time of less than 10 milliseconds, ensuring minimal disruption to your power supply.

Does it support parallel connection for higher capacity?

Yes, the parallel function is available for off-grid models to meet higher power requirements.

What monitoring interfaces are supported?

The inverter supports multiple communication interfaces including RS485, WiFi, 4G, CAN, and Bluetooth for easy monitoring.
