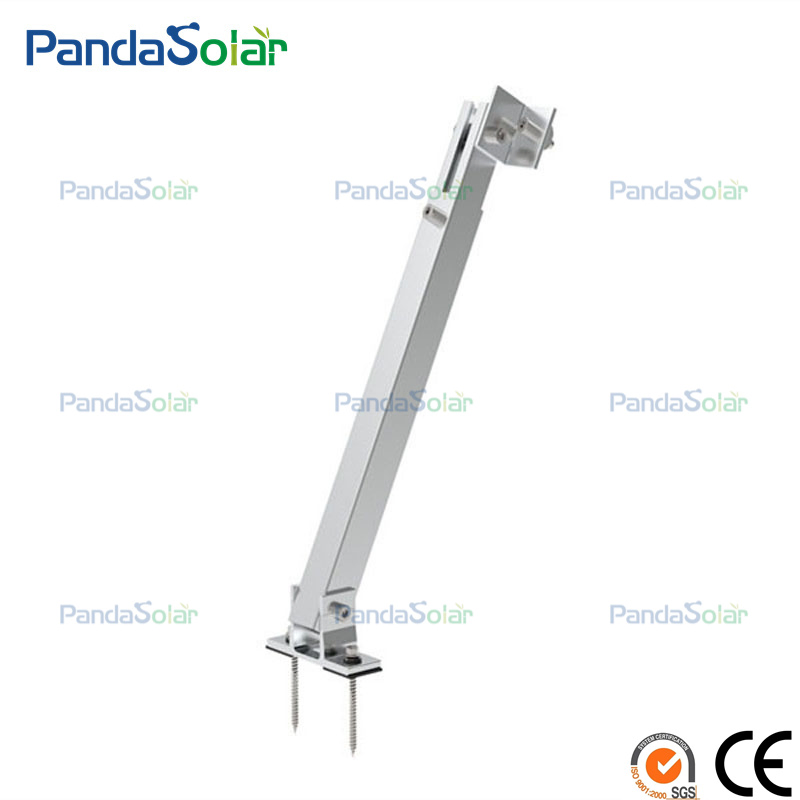

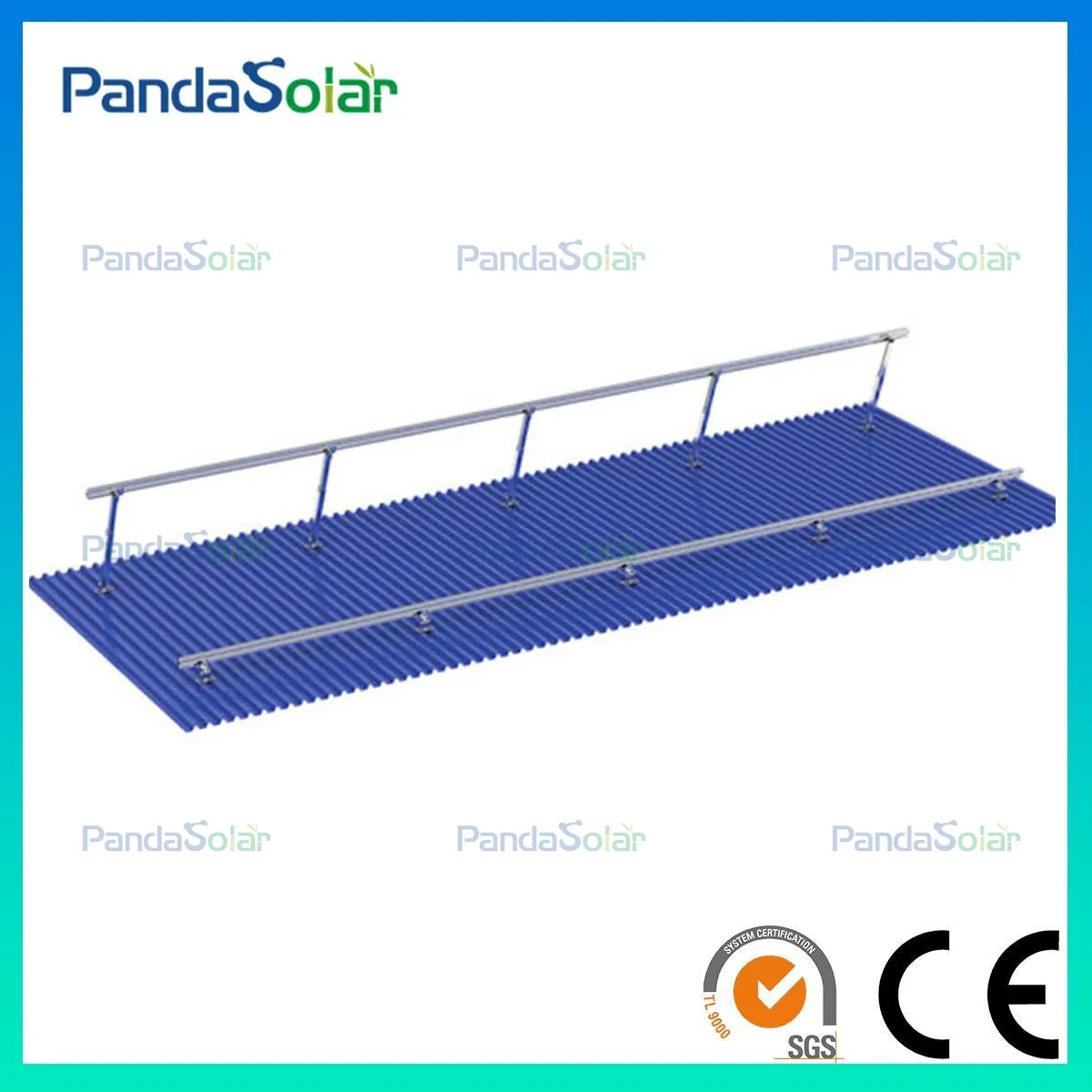

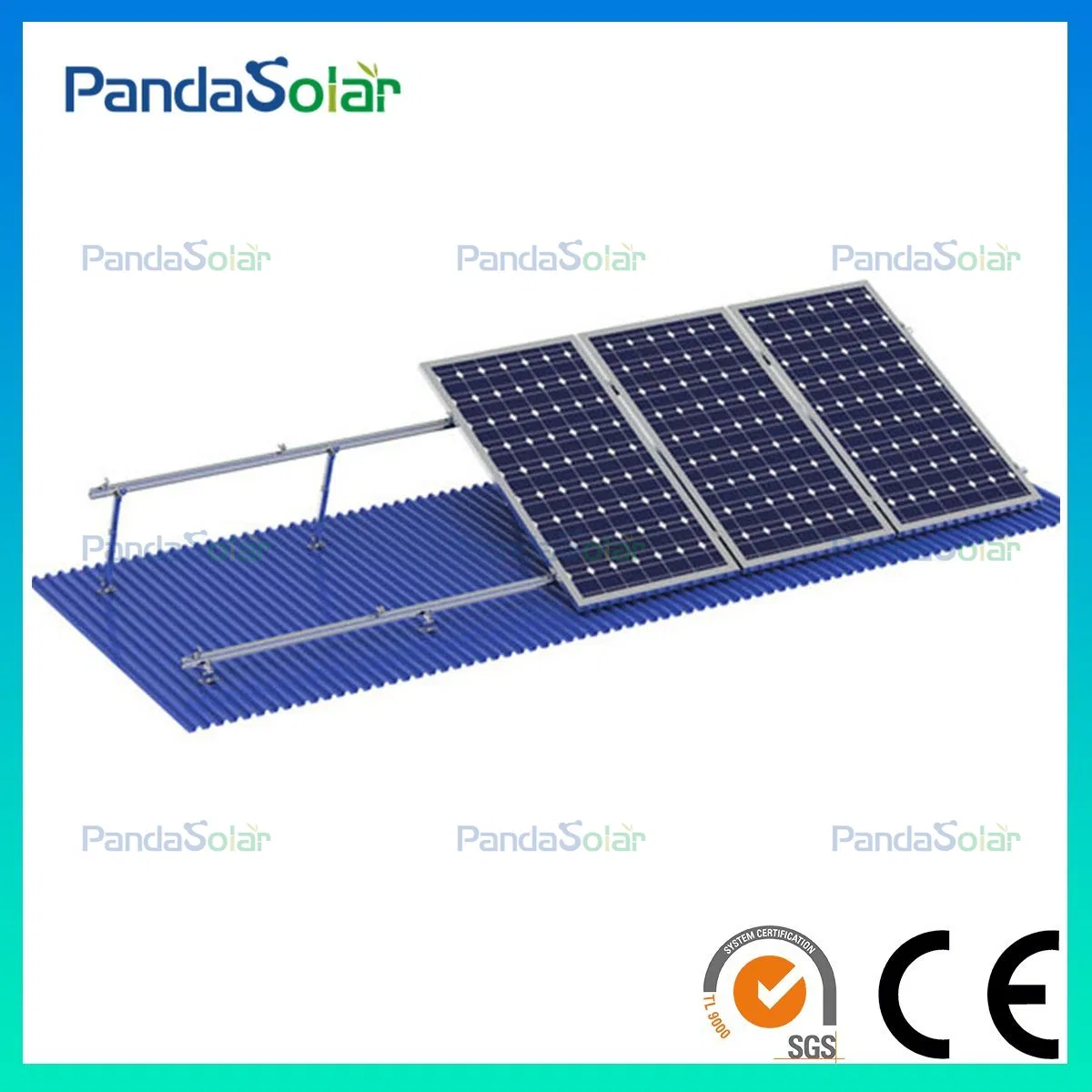

Adjustable Front Leg And Rear Leg Angle Solar Panel Mounting Brackets are suitable for all tin roofs and their materials are AL6005-T5, SUS304 and SUS410. Has good corrosion resistance and acid and alkali resistance.

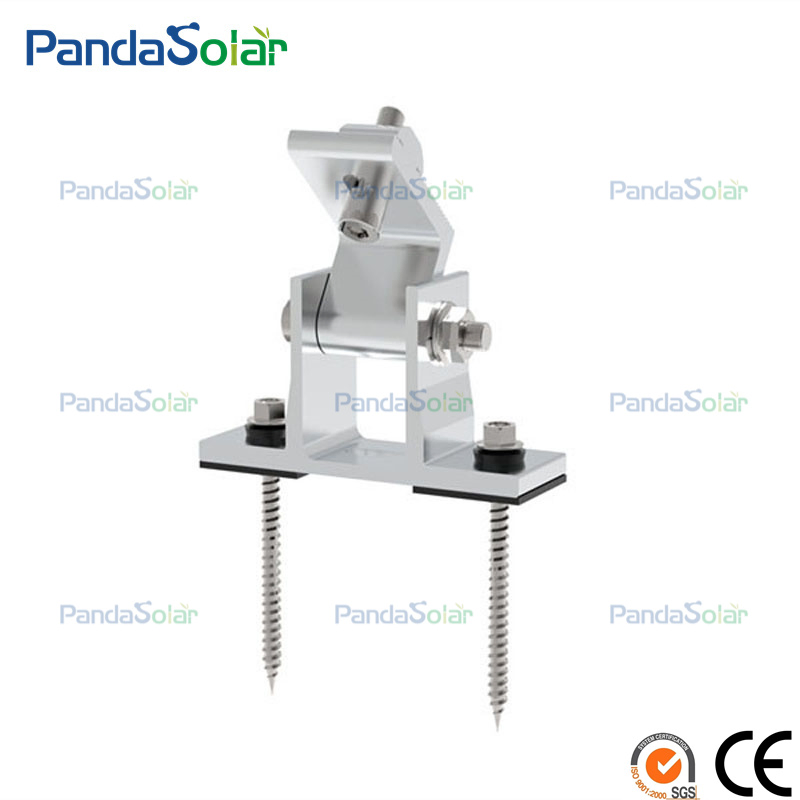

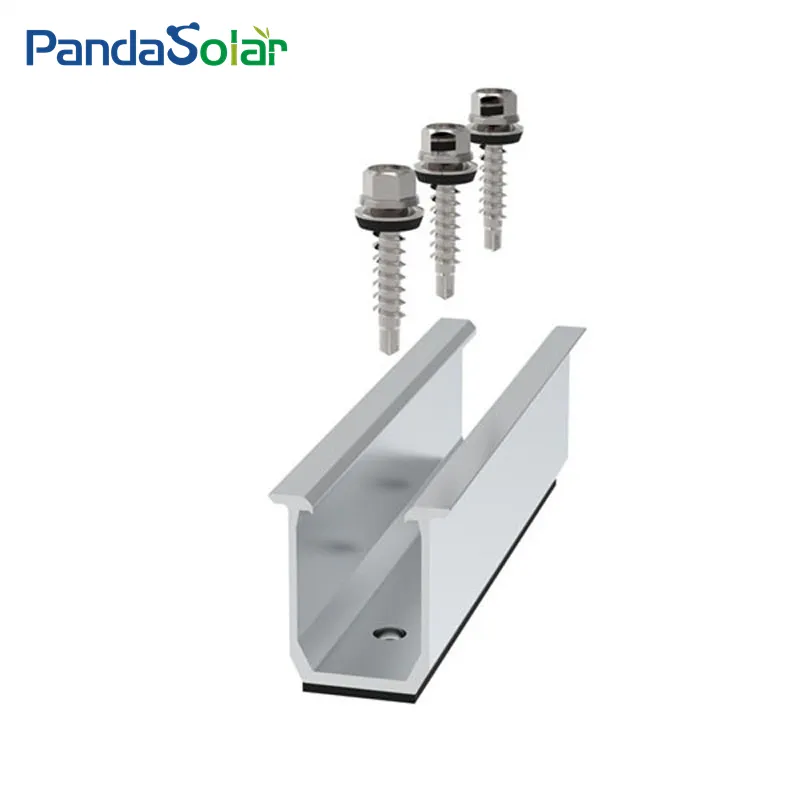

The highly pre-assembled structure saves installation time and cost, and the adjustable angle is 10-30° optional. The bottom is fixed to the iron roof by self-tapping screws. The role of the EPDM at the bottom is to prevent water leakage.

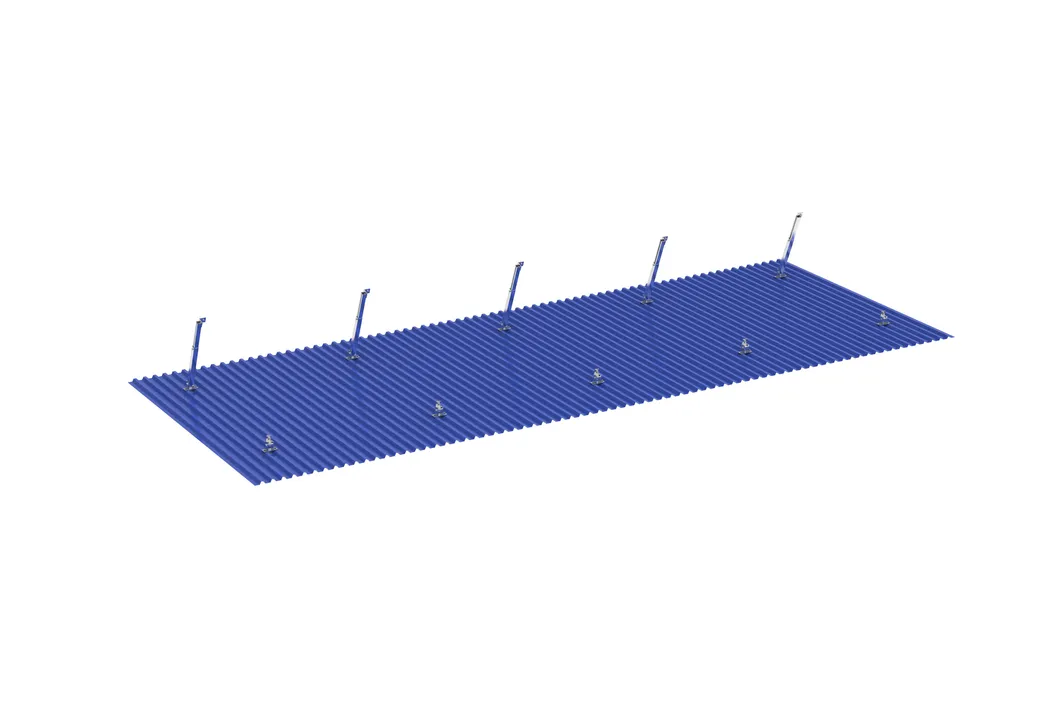

1. Use self-tapping screws to fasten the structure to the tin roof

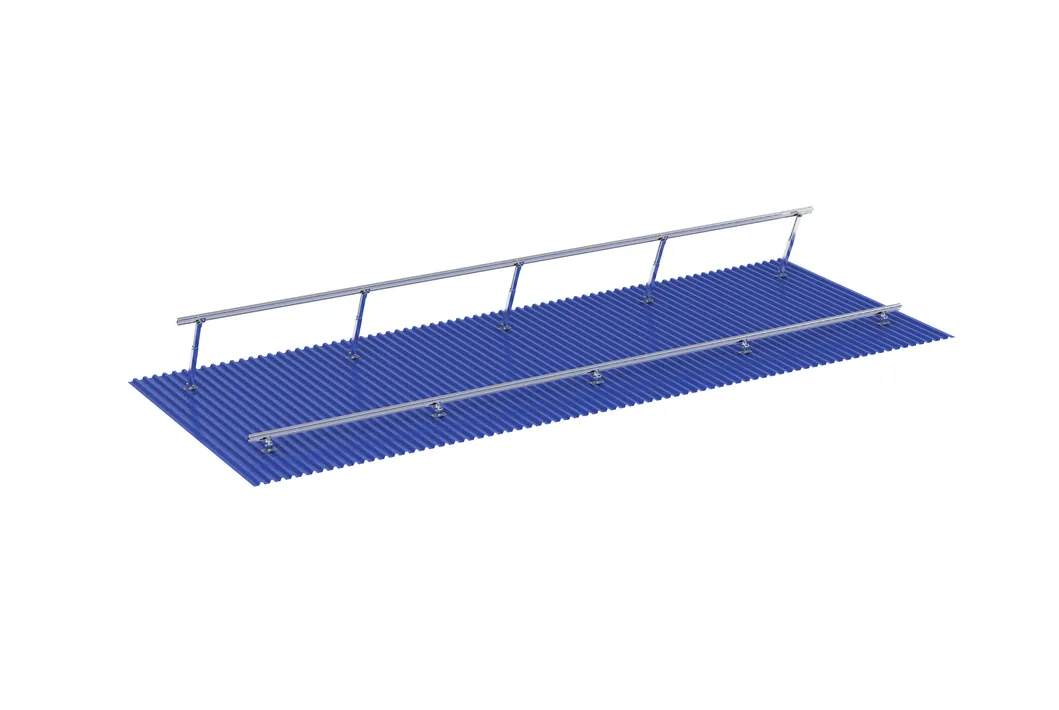

2. Adjusting the mounting height and fastening brackets and rails

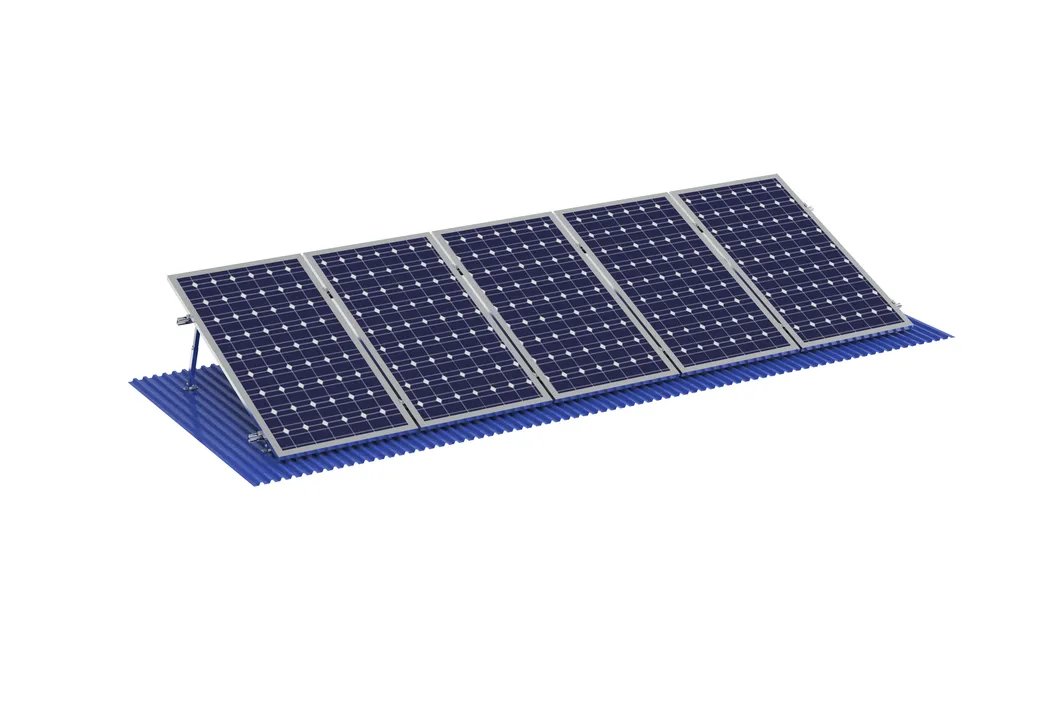

3. Installing solar panel upon the solar rail
| Material | Structure: AL6005-T5 (Anodized); Components: AL6005-T5/SUS304/SUS410 |
|---|---|
| Application | Solar Tin Roof Mounting |
| Wind Speed | 0-45 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |
Commitment to developing clean energy mounting systems, including Ground Mounting, Agriculture Greenhouse, Tile Roof, Metal Roof, and Flat Concrete Roof systems, along with various mounting accessories.

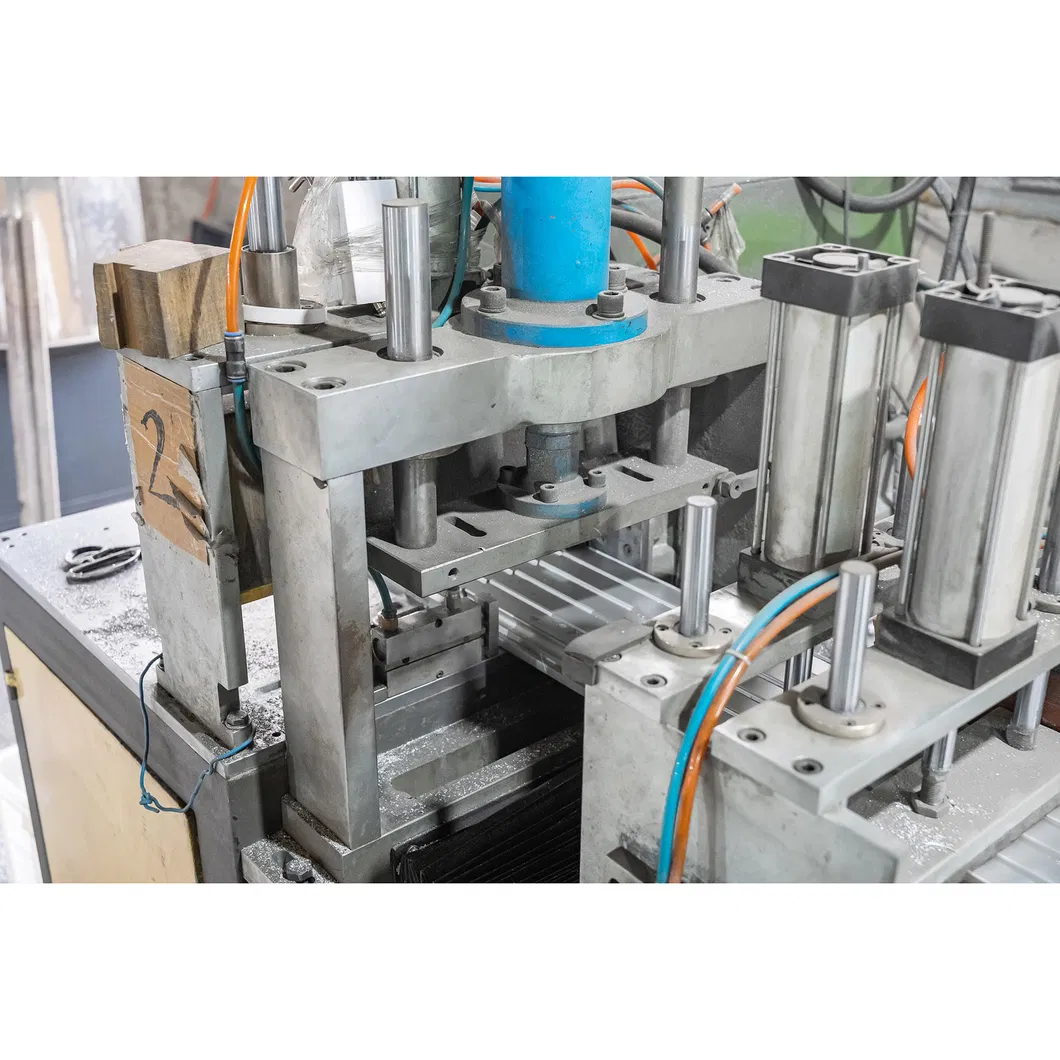

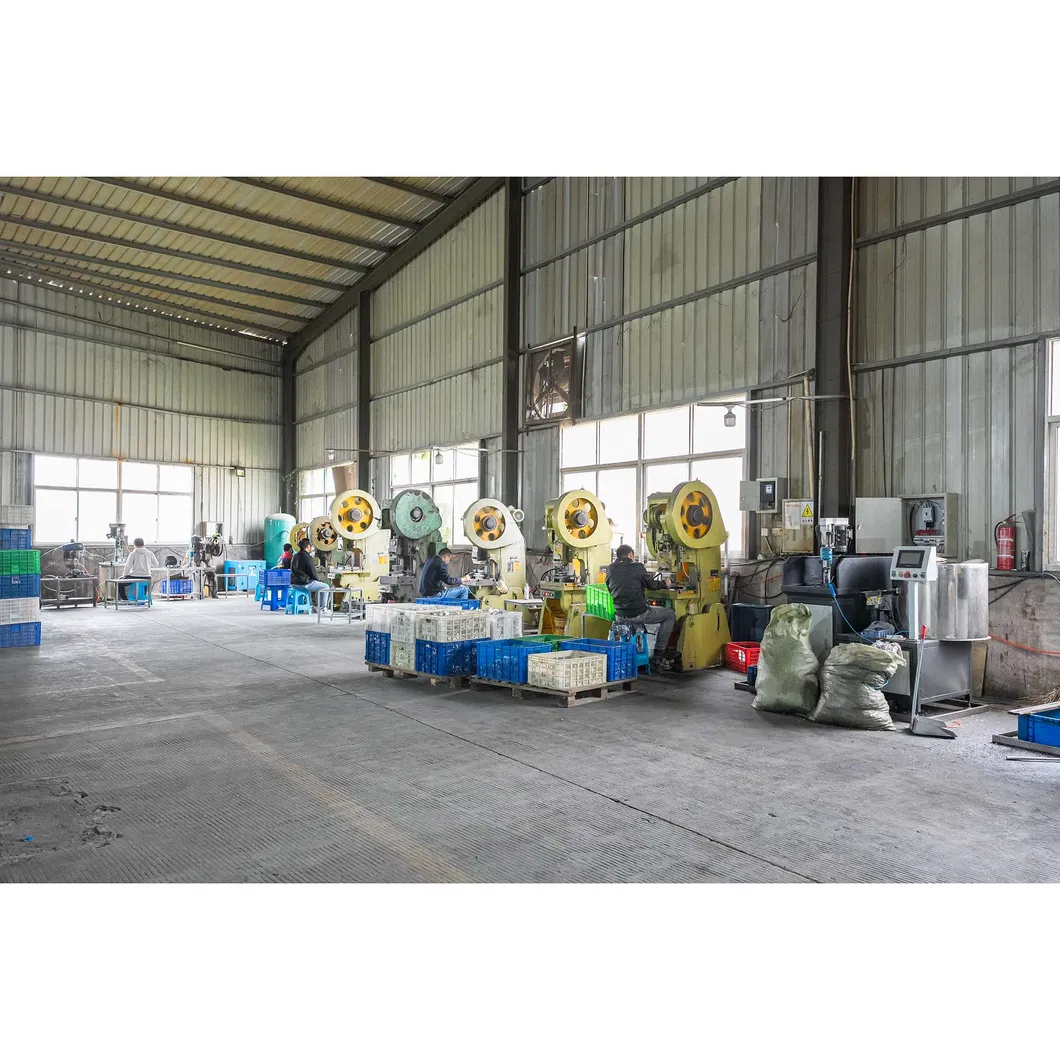

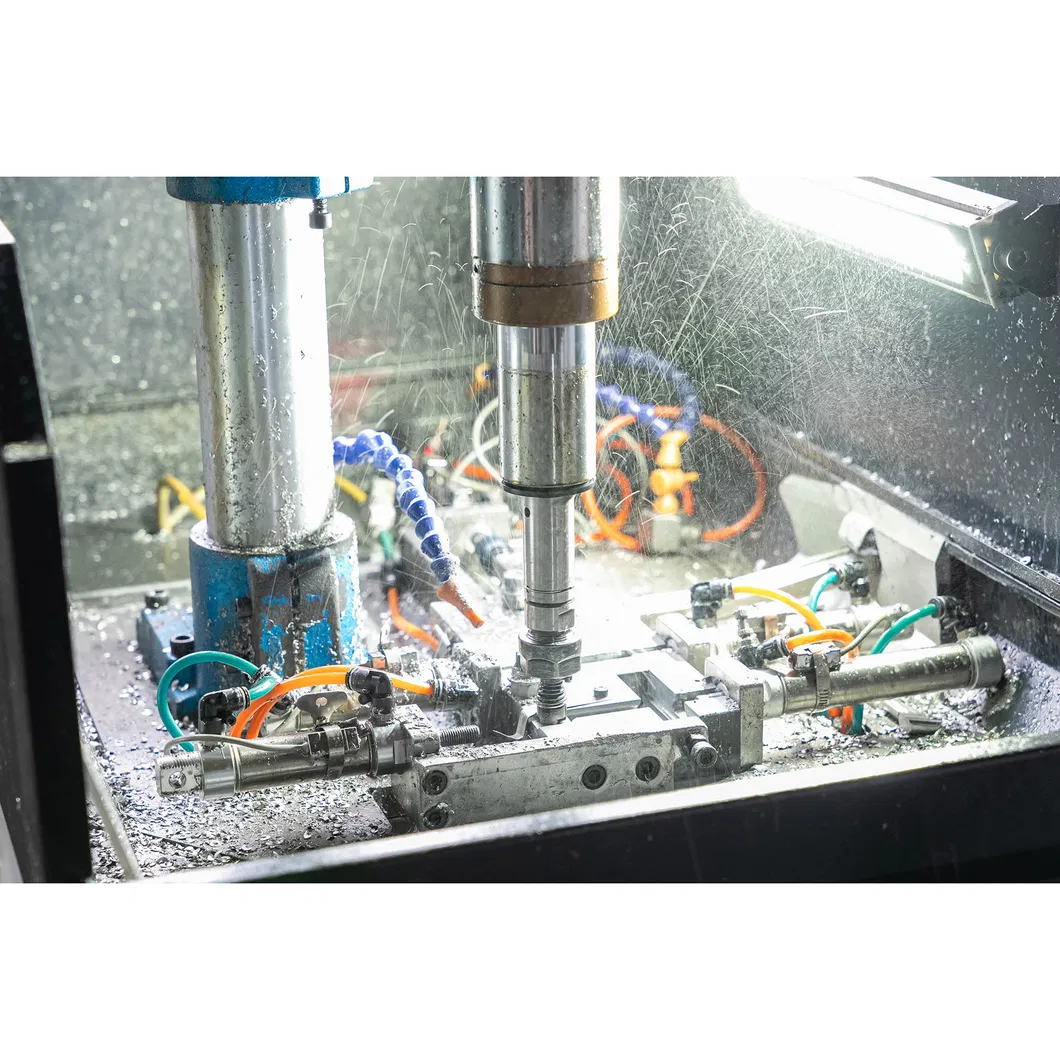

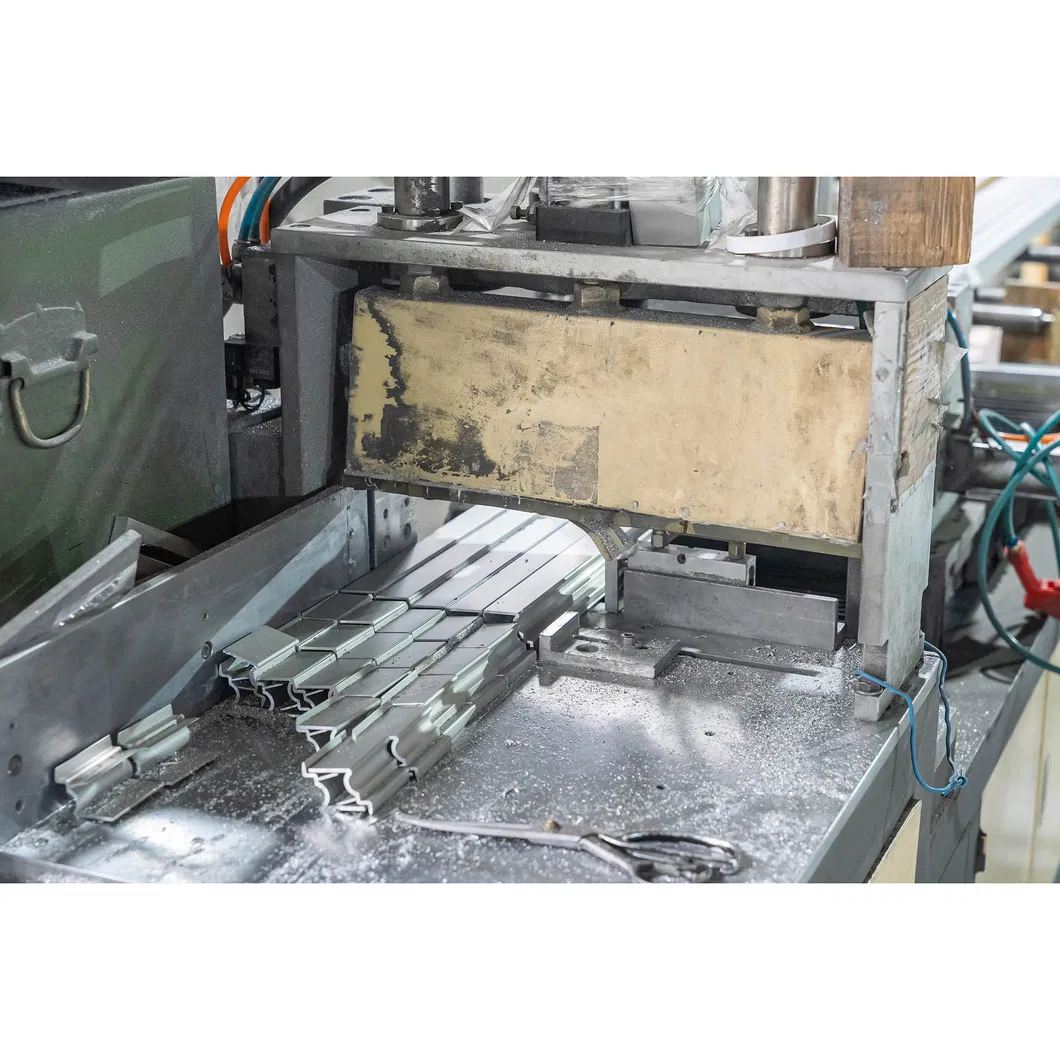

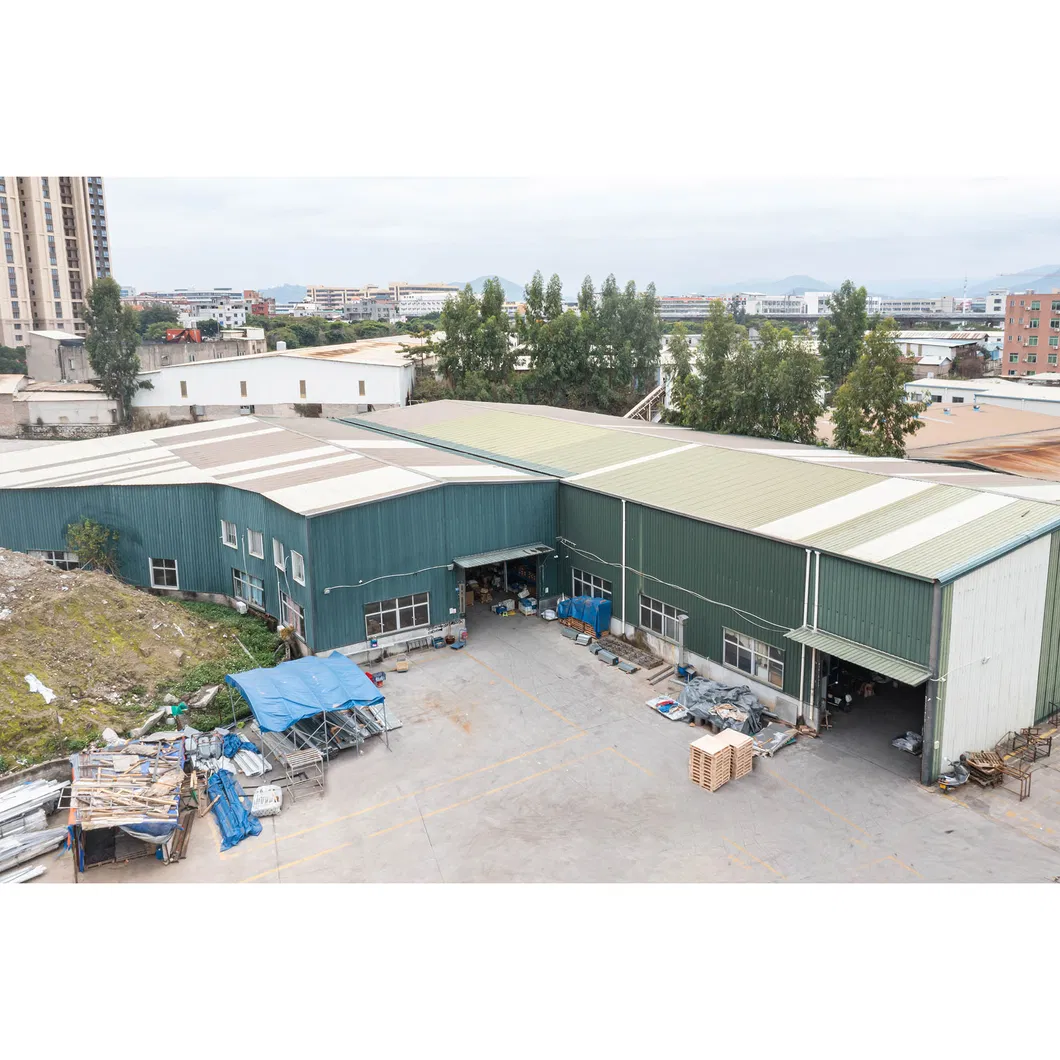

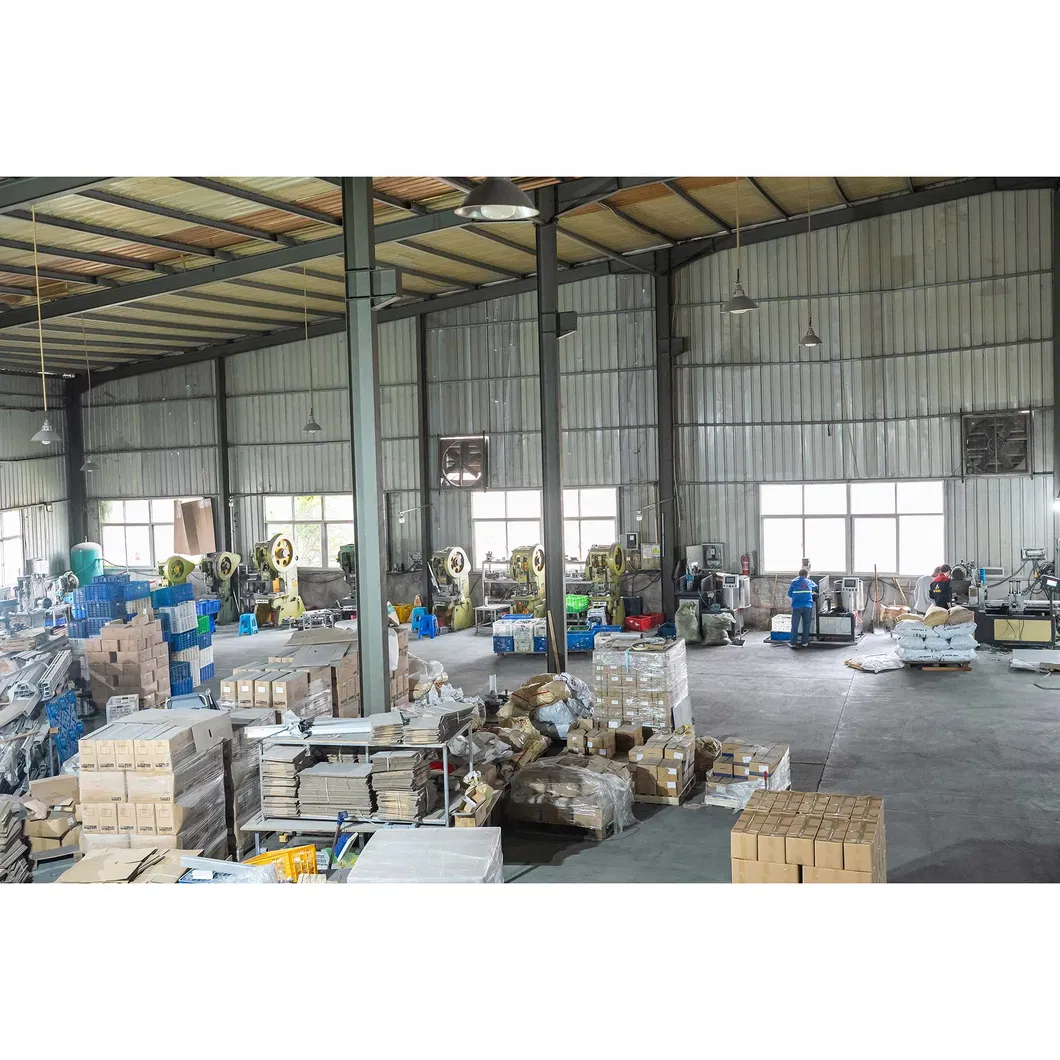

Independent workshops for cutting, drilling, stamping, and forging. Professional production teams handle high customization and precision requirements. Steel processing lines support productivity of 40-50MW per month.
