off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

1 / 5

off Grid Pure Sine Wave Home Hybrid Inverter for Solar Power Energy 3kw 6kw 11kw 3000W 3600W 6200W Built-in MPPT

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

SUB-D

Source Flow

Active Inverter

Phase

Single Phase

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Sine Wave Inverter

Capacity Range

3KW-11KW

Origin

China

Off Grid Hybrid Solar Inverter SUB-D 3-11KW

🚀 KEY FEATURES

✔High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1

✔3 in 1 design: Power Inverter + MPPT controller + Grid Charger

✔Working without battery during daytime

✔Support lithium activation wake-up and cold start function

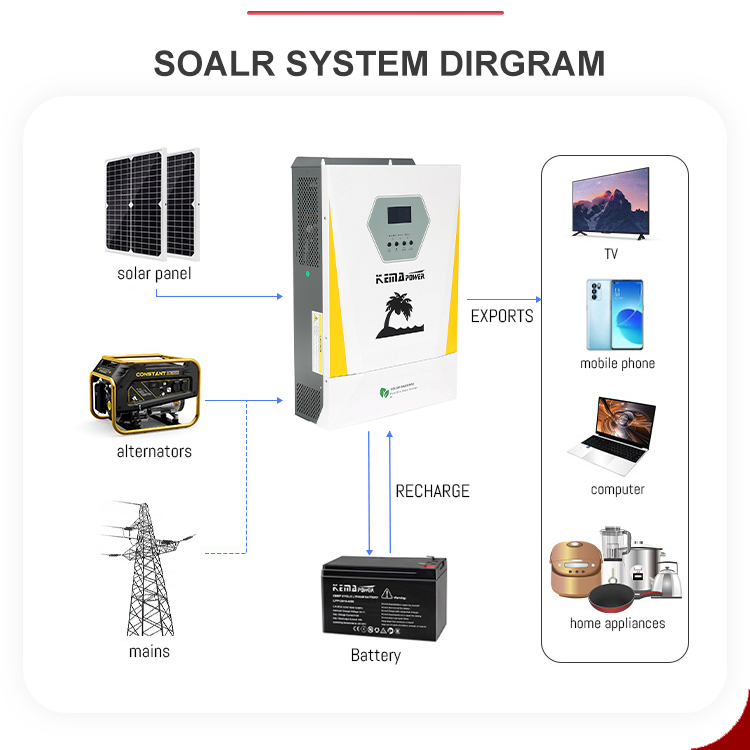

✔Intelligent power supply mode with smart distribution of solar/mains/battery shares

✔Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery

✔RS232, BMS/RS485, Dry Contact Communication

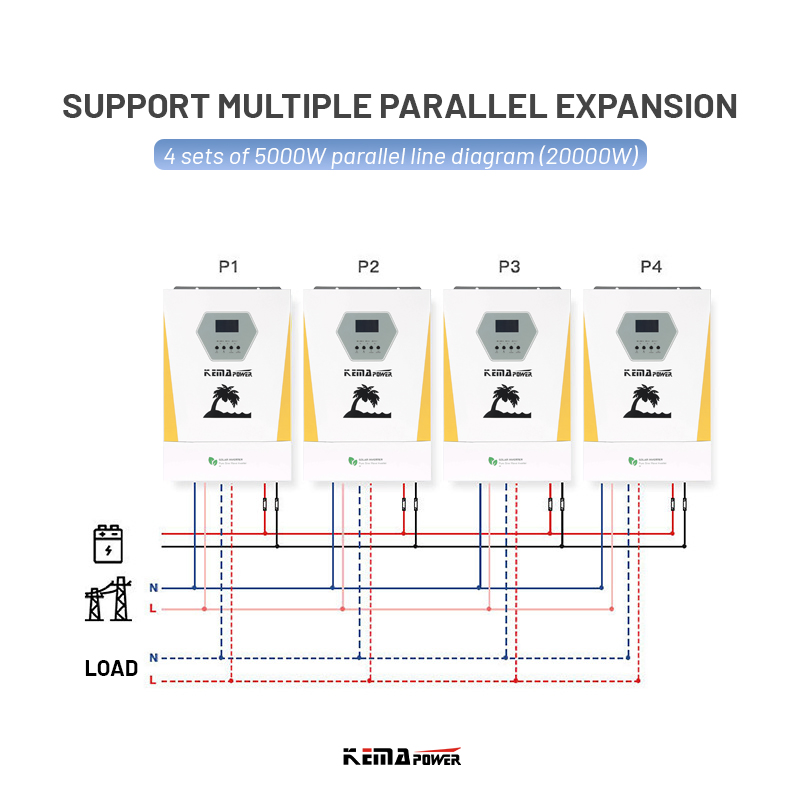

✔6.2KW/11KW models support parallel function, up to 9 units

✔Wide MPPT range 40-500VDC / 120-500VDC

✔Pure sine wave output suitable for sensitive loads

Product Display

Technical Specifications

ITEM	Model	SUB-D-E3024	SUB-D-3624	SUB-D-6248	SUB-D-11048
INPUT	RATED POWER	3KW	3.6KW	6.2KW	11KW
INPUT	Voltage	220/230/240VAC
OUTPUT	Surge Power	2 times Rated power for 5 seconds
	Efficiency	97% (Peak PV to INV)
	Waveform	Pure sine wave
BATTERY	Voltage	24 VDC	24 VDC	48 VDC	48 VDC
BATTERY	Max Charge Current	60A	80A	80A	150A
SOLAR	Max PV Array	3KW	4.2KW	6.2KW	11KW
SOLAR	MPPT Range	50-500VDC	150-500VDC

Interface & Port Layout

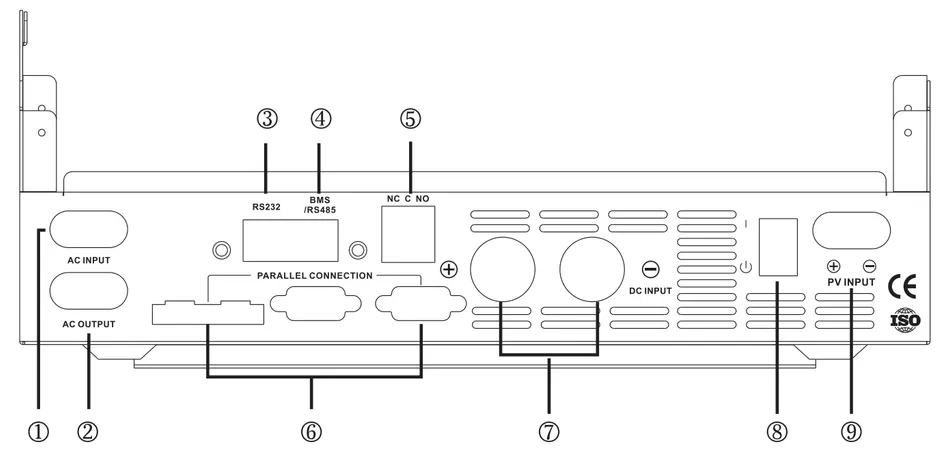

Outside Port (3KVA-6.2KVA)

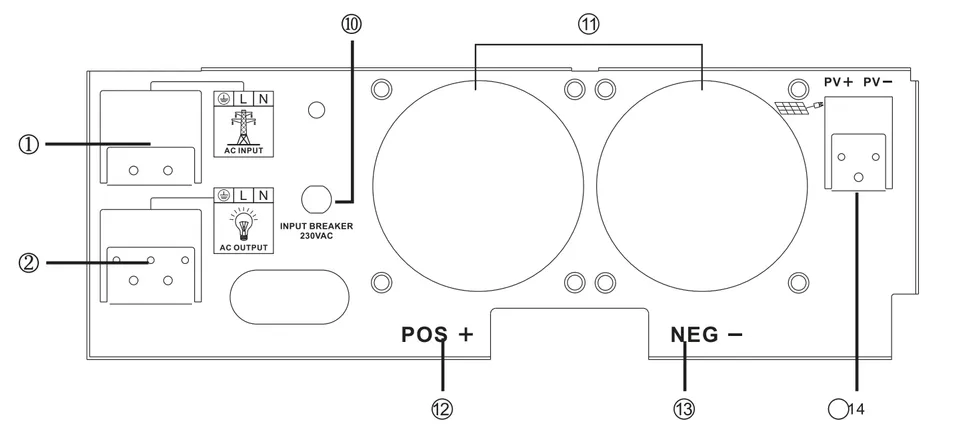

Inside Port (3KVA-6.2KVA)

1. AC input

2. AC output

3. RS232 port

4. BMS/RS485 port

5. Dry contact

6. Parallel connection

7. Battery input

8. Power switch

9. PV input

10. Input breaker

11. Cooling Fan

12. Battery (+)

13. Battery (-)

14. Solar Panel Input

Frequently Asked Questions

Can this hybrid inverter work without a battery?

Yes, the SUB-D series is designed to work without a battery during the daytime, utilizing solar energy directly to power your loads.

What is the maximum number of units that can be connected in parallel?

The 6.2KW and 11KW models support parallel functionality, allowing you to connect up to 9 units for increased capacity.

Does it support lithium batteries?

Yes, it features adjustable charging currents and voltages, with specific settings for both Lead-acid and Lithium batteries, including a lithium activation wake-up function.

What kind of protection does the inverter provide?

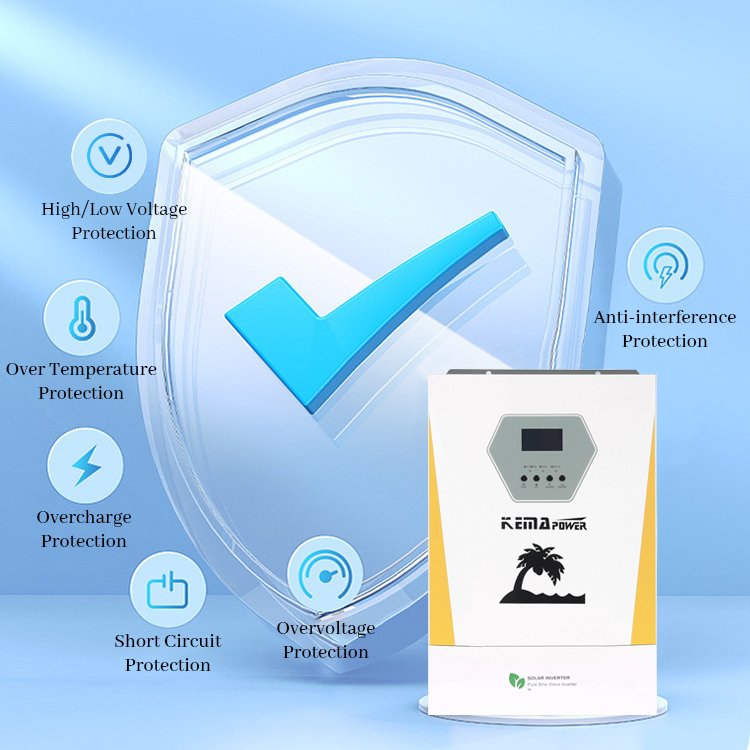

The inverter includes comprehensive protection against overload, over-temperature, short-circuits, low battery voltage, and battery reverse connection.

What is the MPPT voltage range for the solar input?

Depending on the model, the MPPT range is either 50-500VDC (for 3KW models) or 150-500VDC (for higher capacity models), allowing for flexible solar panel configurations.

Is the output a pure sine wave?

Yes, the inverter provides a pure sine wave output, which is essential for the safe and efficient operation of sensitive electronic devices and home appliances.
