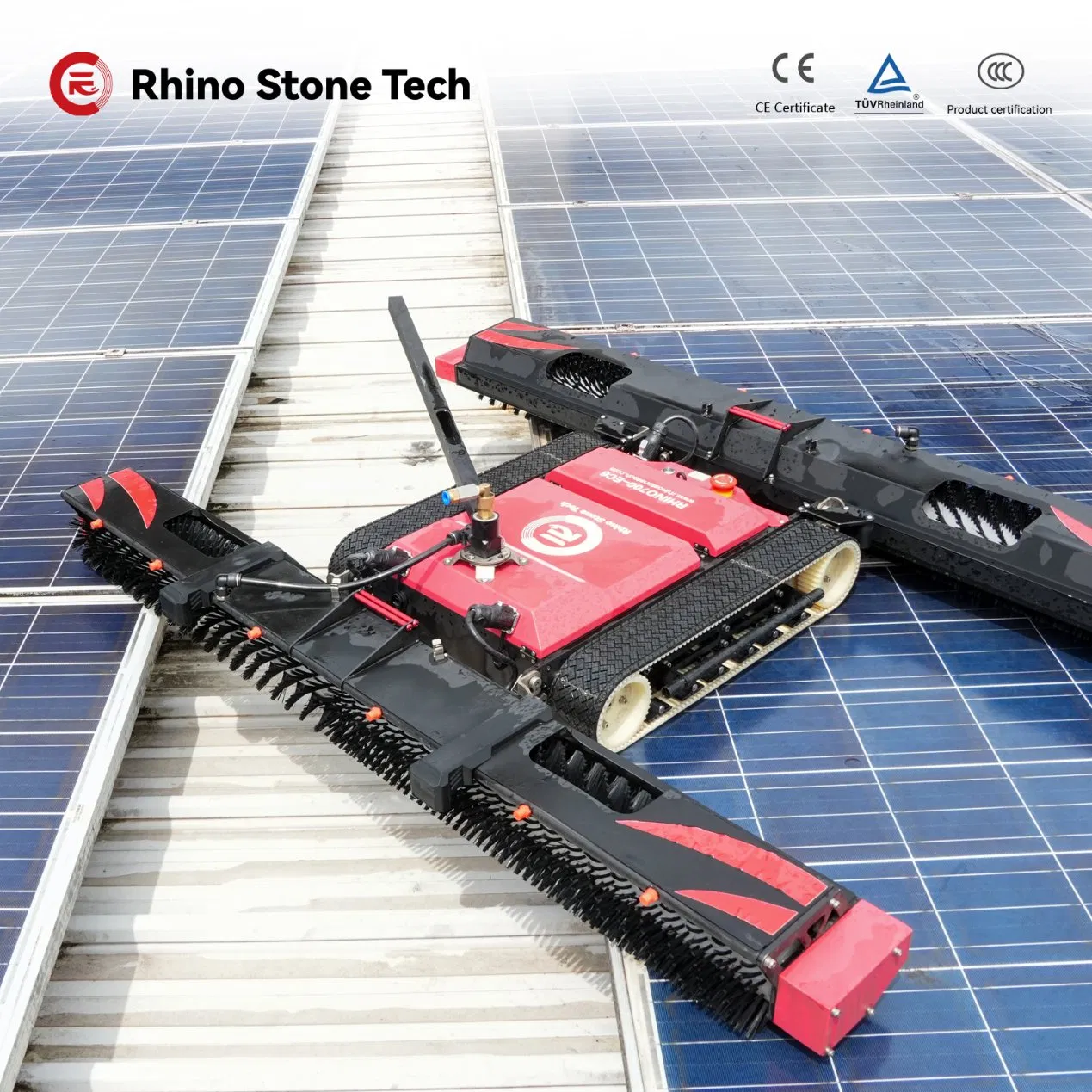

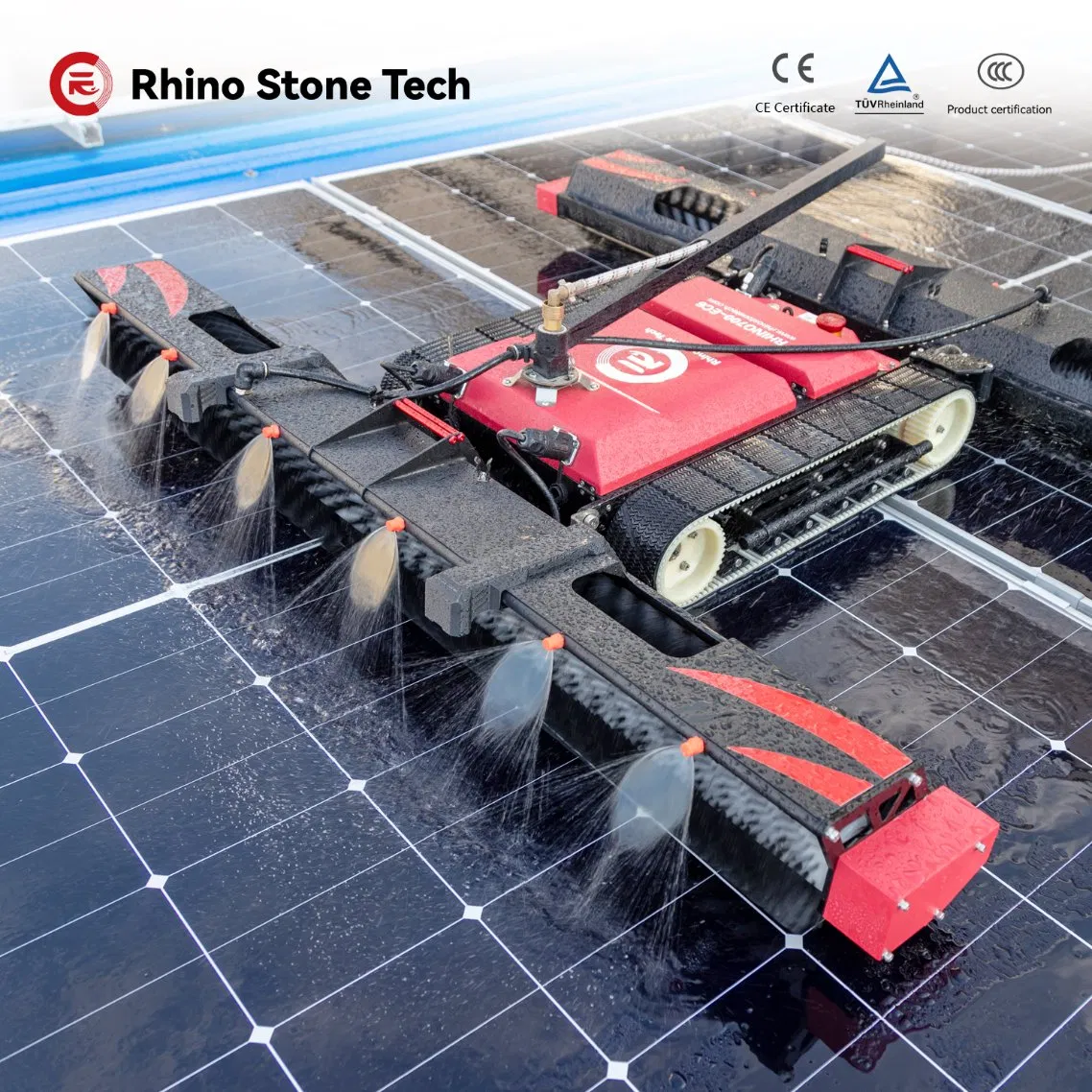

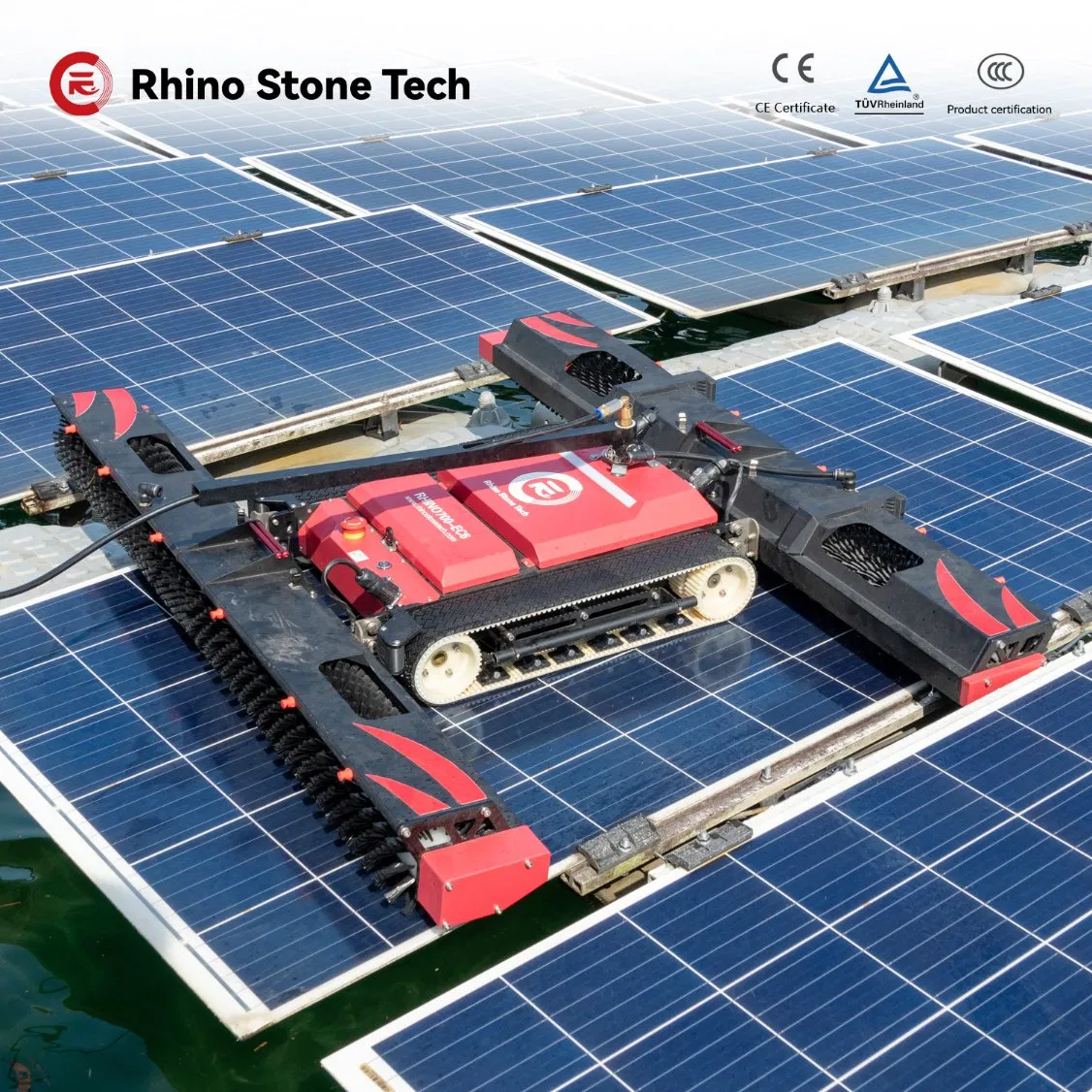

Photovoltaic Cleaner Equipment Solar Panel Cleaning Robot Semi Automatic Machine

Customization: Available
After-sales Service: 1 Year
Automation: Semi-automatic

Product Description

📋 Basic Information
Model NO.
RHINO700-EC6
Clean Type
Clean-In-Place
Control
PLC
Fuel
Electric
Style
Crawler Style
Working Mode
Dry / Wet Cleaning
Endurance
≥4h
Operating Voltage
24V
Power Supply
Lithium Battery
Certification
CE
🚀 Product Description
RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot

The RHINO700-EC6 features a lightweight overall design equipped with dual adaptive ultra-wide floating roller brushes at the front and rear. It ensures thorough cleaning with no dead corners by closely fitting the module surface. The robot includes a parking storage mode to prevent brush deformation and extend service life. An anti-fall system significantly enhances safety, enabling reliable operation across complex terrains in diverse scenarios, delivering safer and more efficient cleaning.

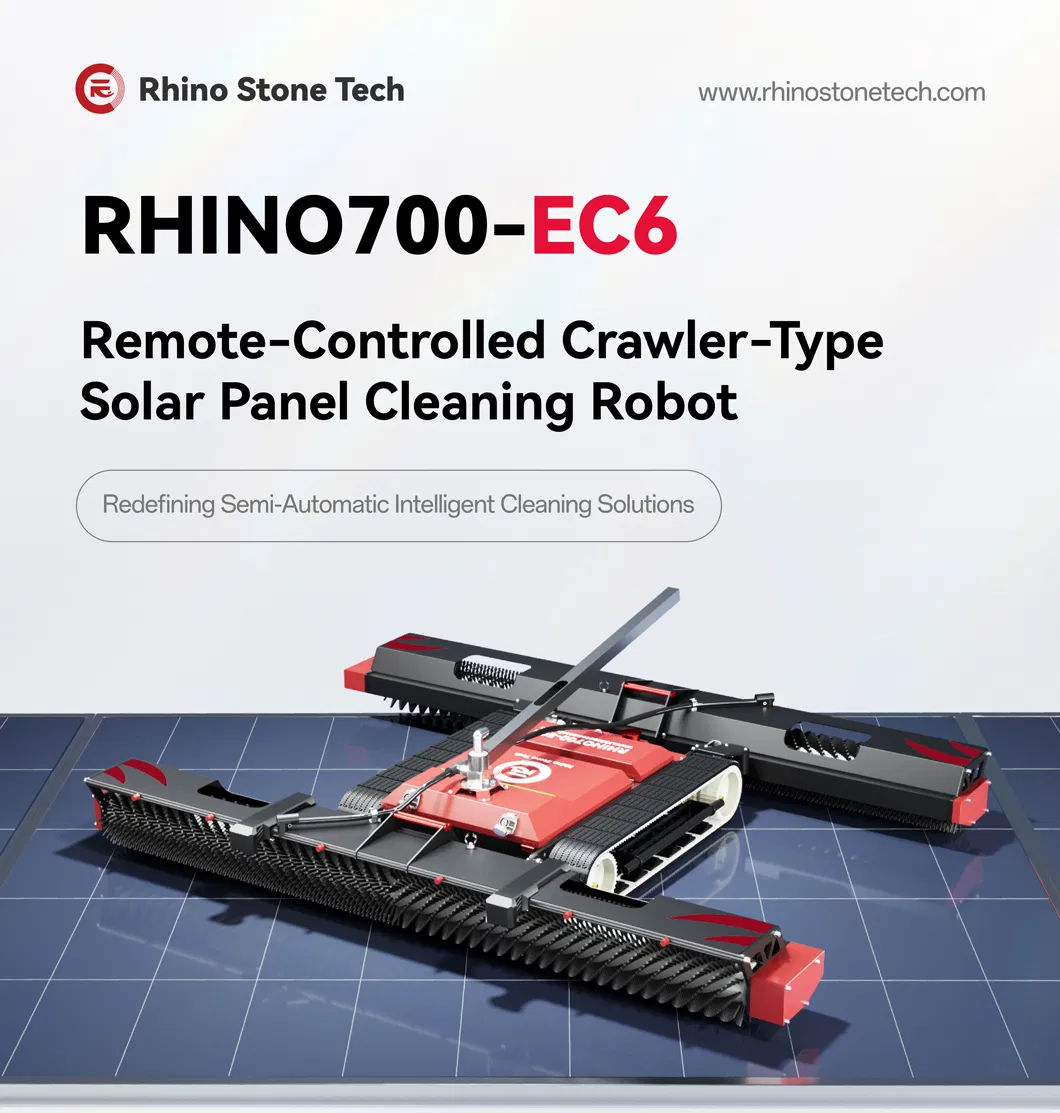

Solar Cleaning Robot Overview

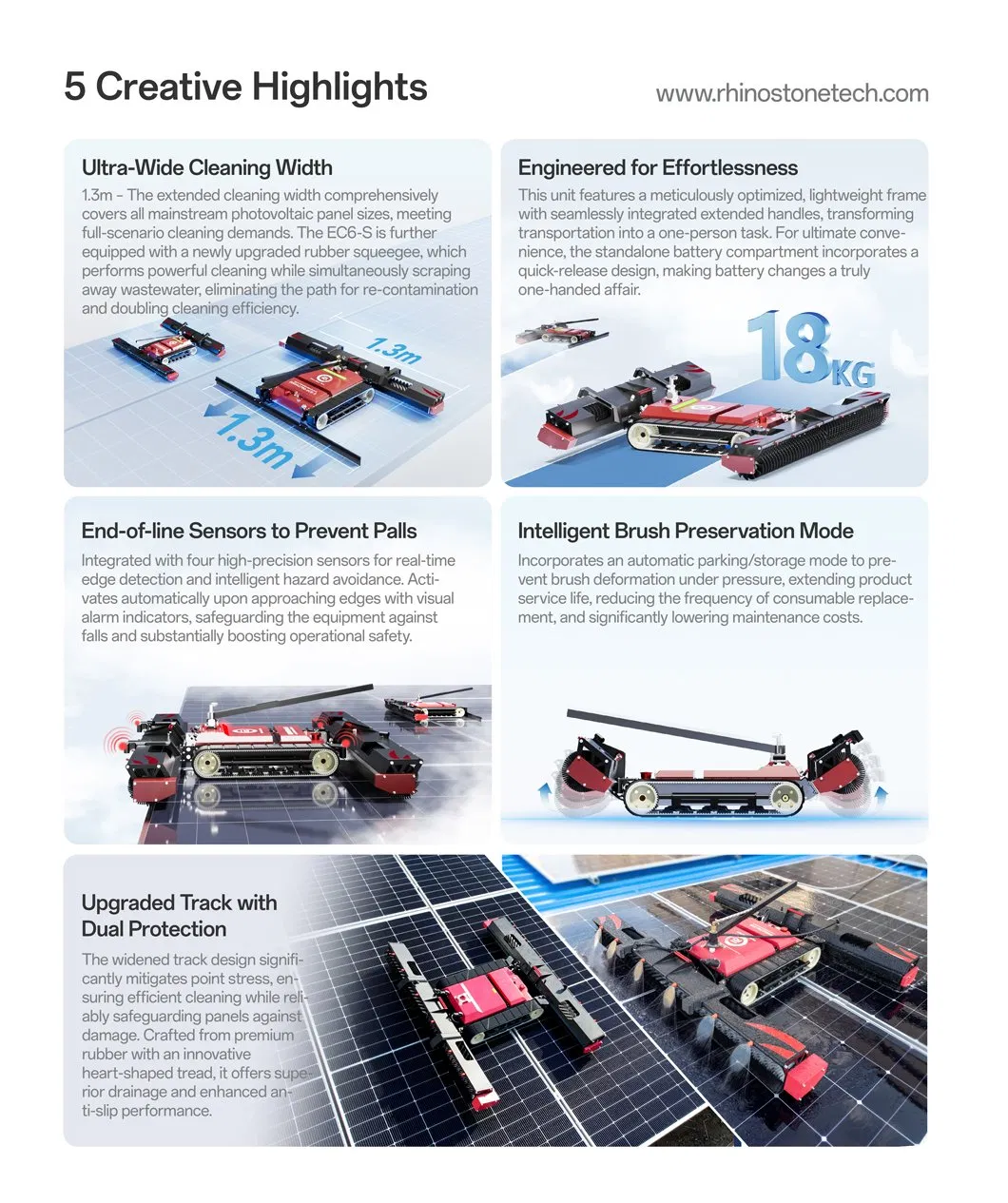

⭐ Creative Highlights
Product Advantages
  • Ultra-Wide Cleaning Width (1.3m) The extended cleaning width covers all mainstream photovoltaic panel sizes. Equipped with a newly upgraded rubber squeegee, it performs powerful cleaning while scraping away wastewater to prevent re-contamination.
  • Engineered for Effortlessness Optimized lightweight frame with integrated extended handles allows for one-person transportation. The standalone battery compartment features a quick-release design for one-handed battery changes.
  • End-of-line Sensors to Prevent Falls Four high-precision sensors provide real-time edge detection and intelligent hazard avoidance with visual alarms, safeguarding equipment against falls.
  • Intelligent Brush Preservation Mode Automatic parking mode prevents brush deformation under pressure, extending service life and lowering maintenance costs.
  • Upgraded Track with Dual Protection Widened track design mitigates cleaning stress. Crafted from premium rubber with a heart-shaped thread for superior drainage and anti-slip performance.

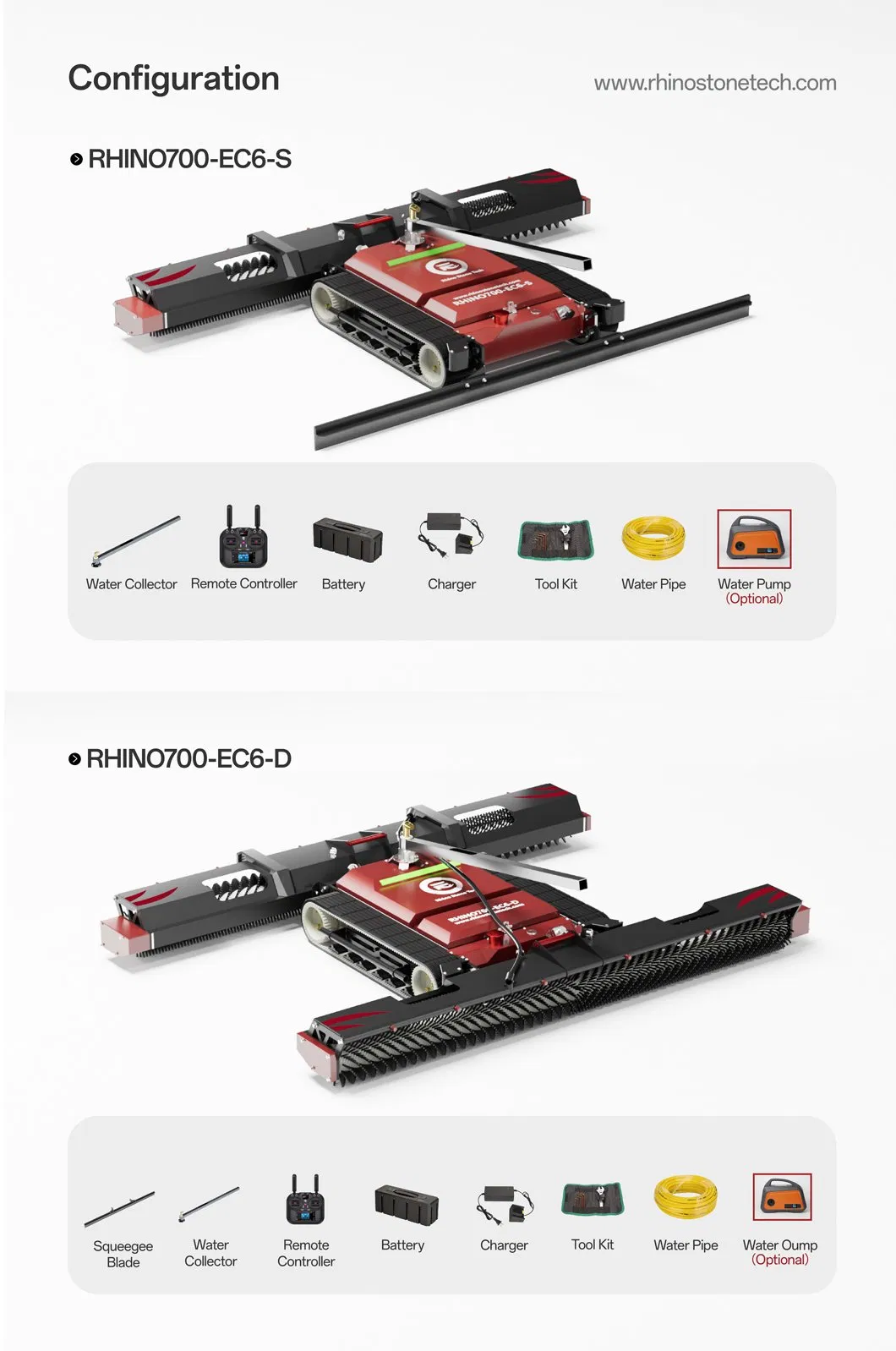

Track Details
⚙️ Technical Specifications
Technical Data Sheet
Working ModeDry Cleaning / Wet Cleaning
Travel Speed≤ 0.4 m/s (Adjustable)
Wind Resistance≤ Level 7
Operating Temperature0ºC ~ 50ºC
Dimensions63cm * 52cm * 18cm
Roller Brush Size140cm * 27cm * 19cm (Front & Rear)
Chassis Weight18kg
Battery TypePortable Lithium, 24V 30AH
Charging Time8h (Standard) / 4h (Fast)

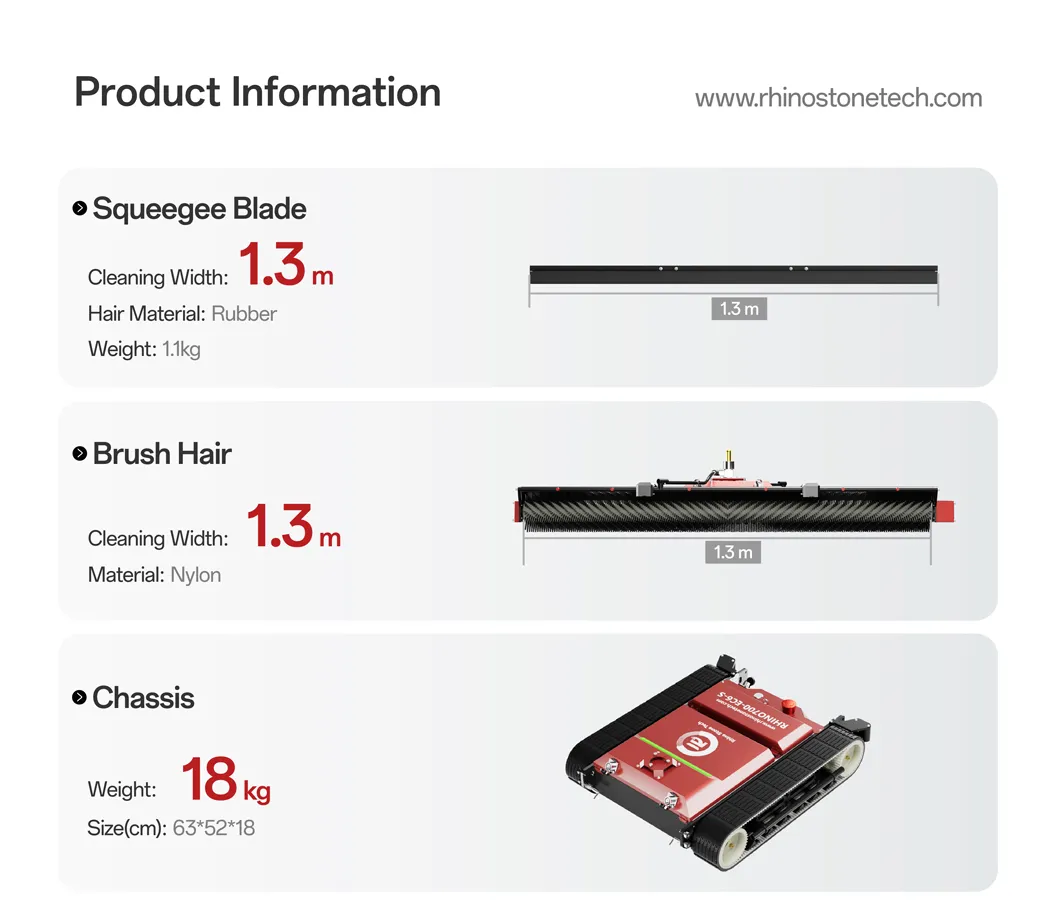

Technical Drawing
📦 Packaging & Shipping

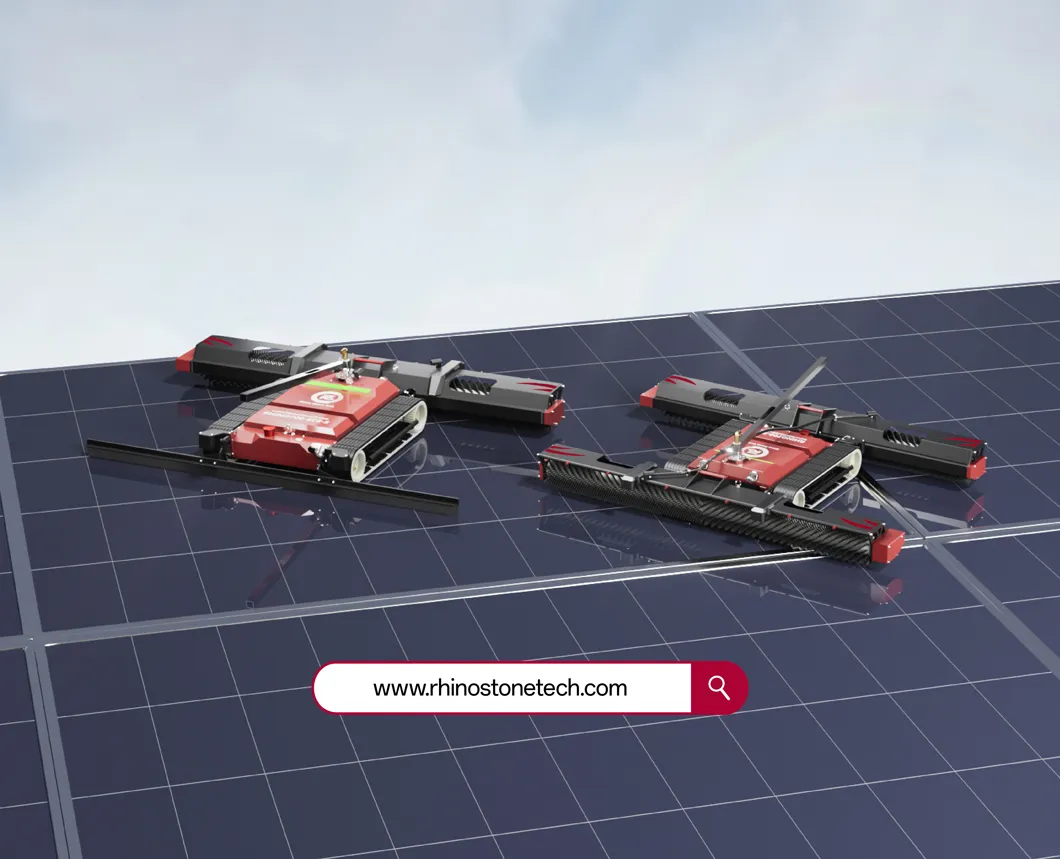

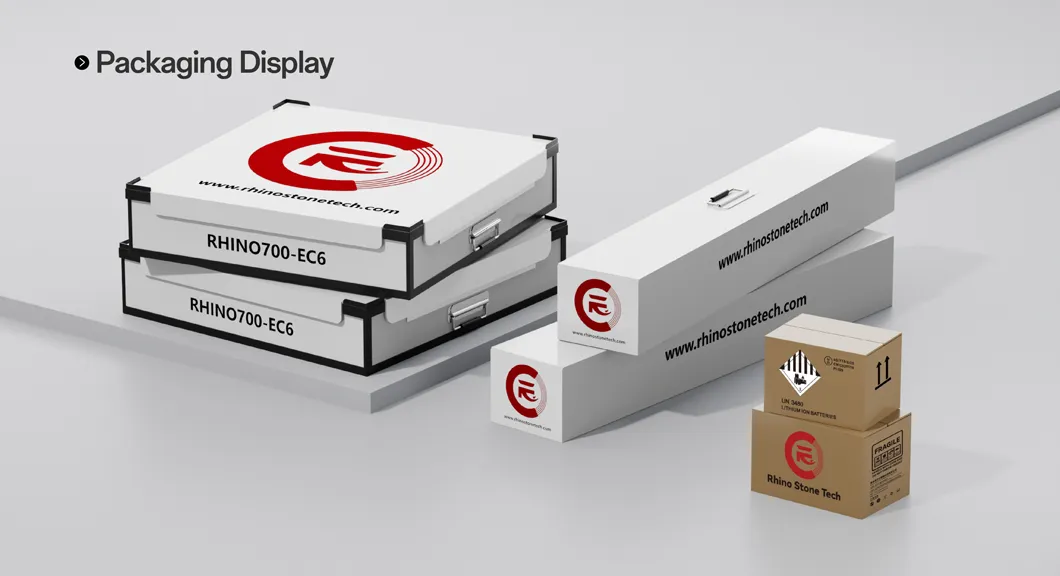

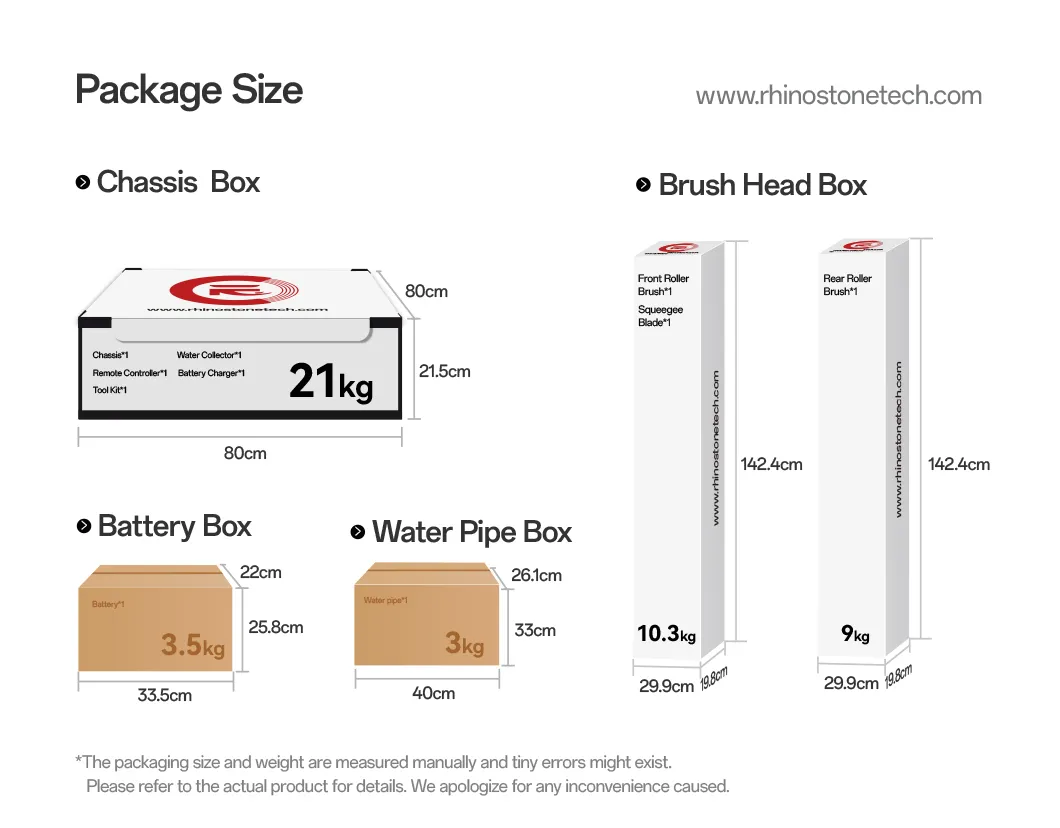

Packaging 1 Packaging 2 Packaging 3
🌍 Applicable Environments

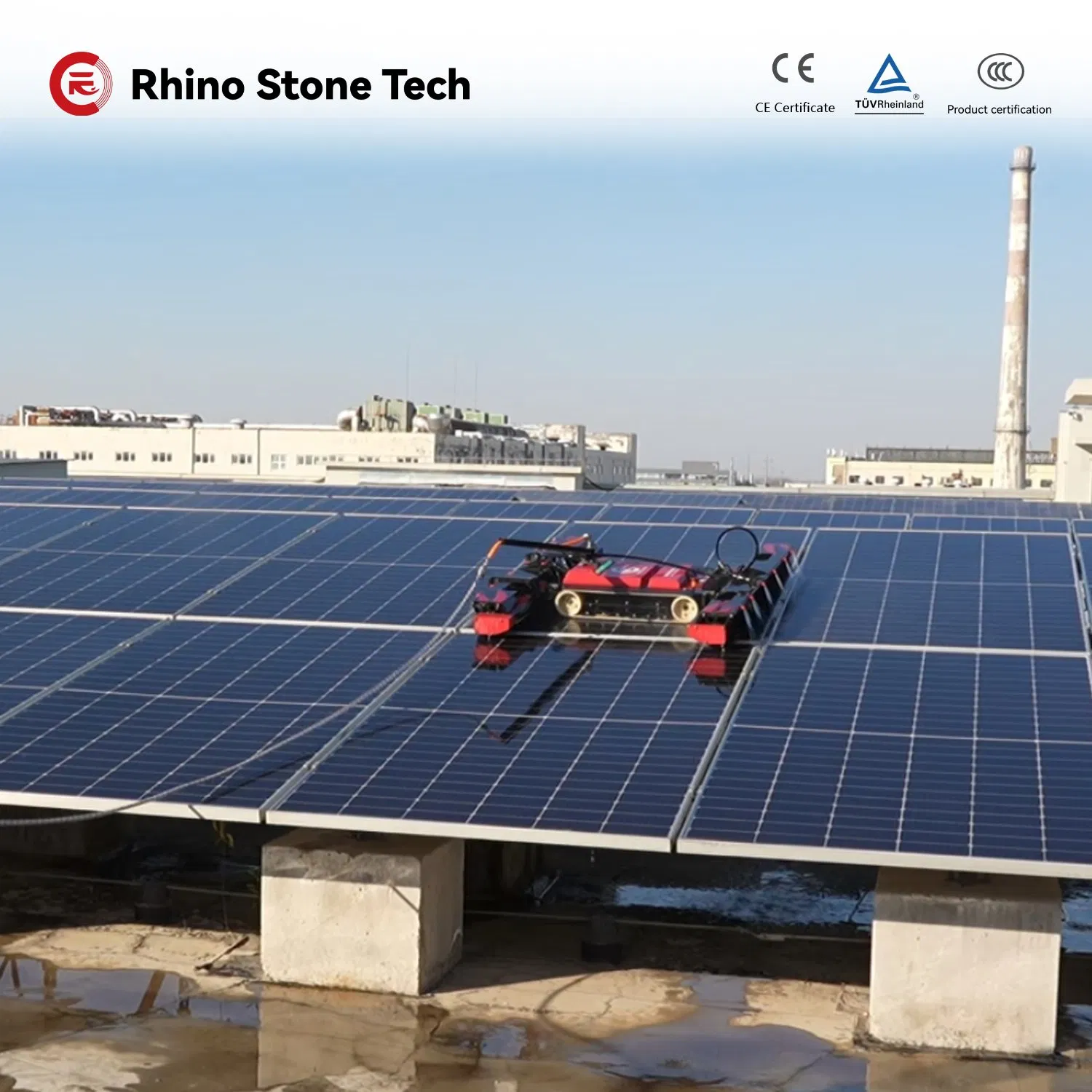

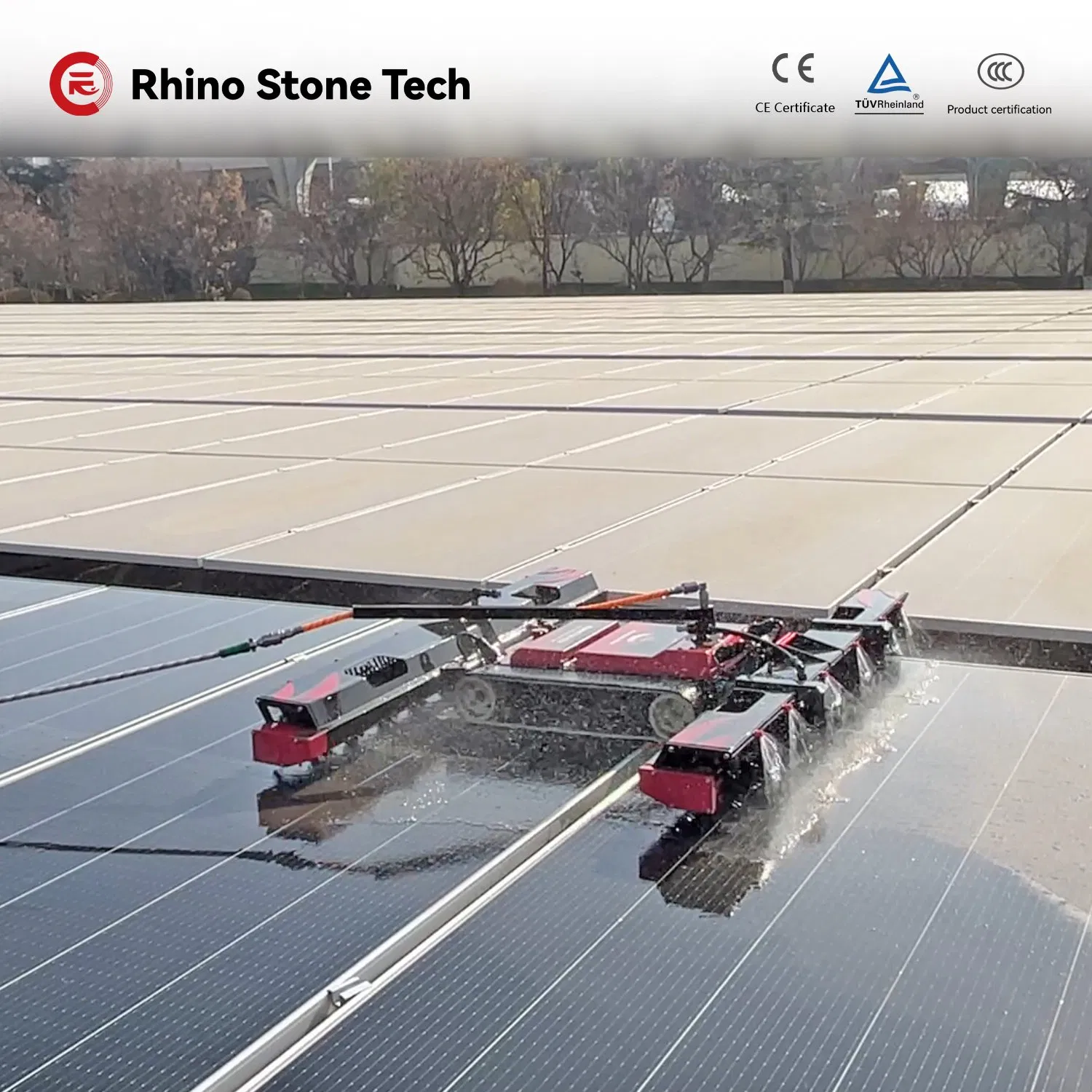

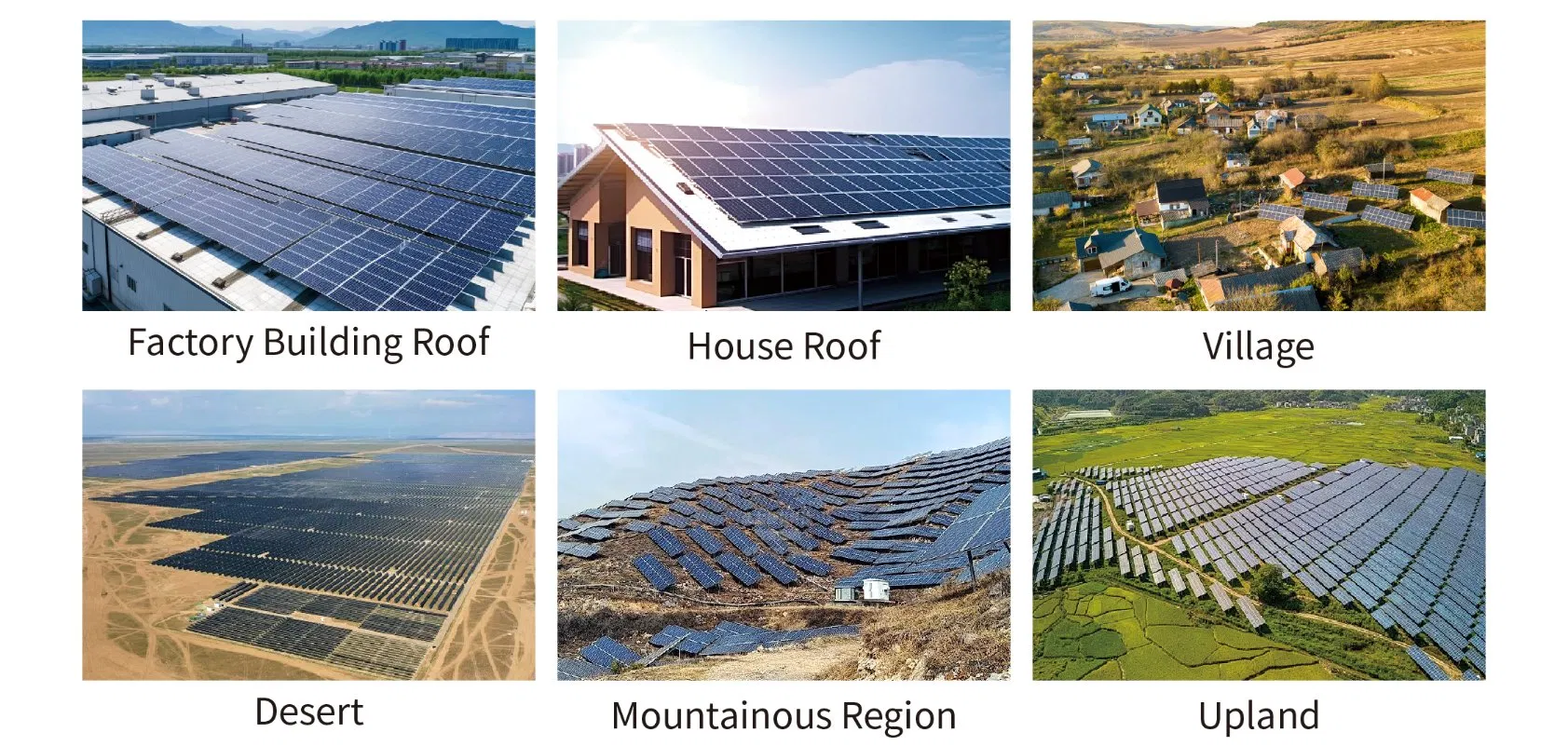

Application Scenarios
🏆 Why Choose Our Solutions
  • Rapid Response: Prompt and detailed responses to all customer inquiries.
  • Expert Support: Tailored technical solutions and efficient problem-solving.
  • Competitive Pricing: Transparent pricing with multiple cost-effective options.
  • Quality Assurance: Multi-stage testing to ensure reliability in challenging environments.
Quality Control
❓ Frequently Asked Questions
What is the warranty period for the solar cleaning robot?
We provide a comprehensive 12-month warranty on all products, ensuring long-term reliability and support.
Can the robot handle both dry and wet cleaning?
Yes, the RHINO700-EC6 is designed for both dry cleaning and wet cleaning modes to suit different environmental conditions.
How does the anti-fall system work?
The robot is integrated with four high-precision sensors for real-time edge detection, automatically stopping or alarming when approaching panel edges.
What is the typical battery life and charging time?
The lithium battery provides ≥4 hours of endurance. Standard charging takes 8 hours, while fast charging can complete in 4 hours.
Is the robot easy to transport for a single operator?
Absolutely. The lightweight frame and integrated handles are specifically engineered to make transportation a one-person task.
What payment and shipping terms are available?
We accept T/T, Western Union, and PayPal. Shipping options include FOB with air or sea freight available for bulk orders.
